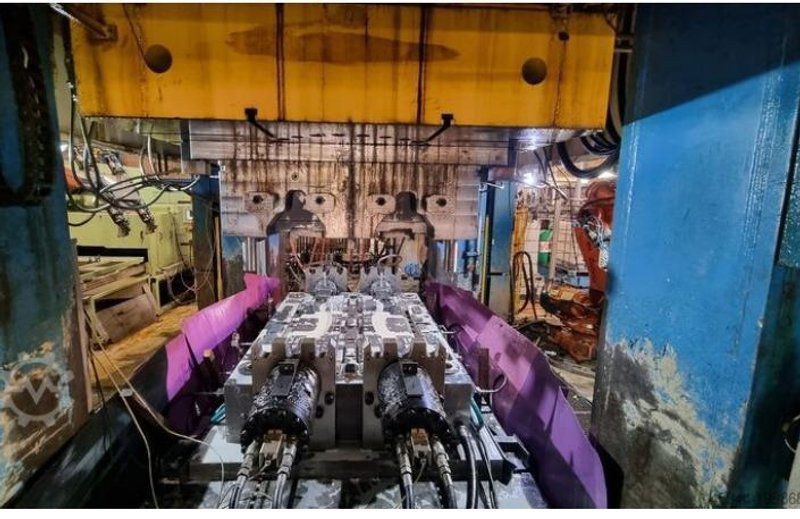

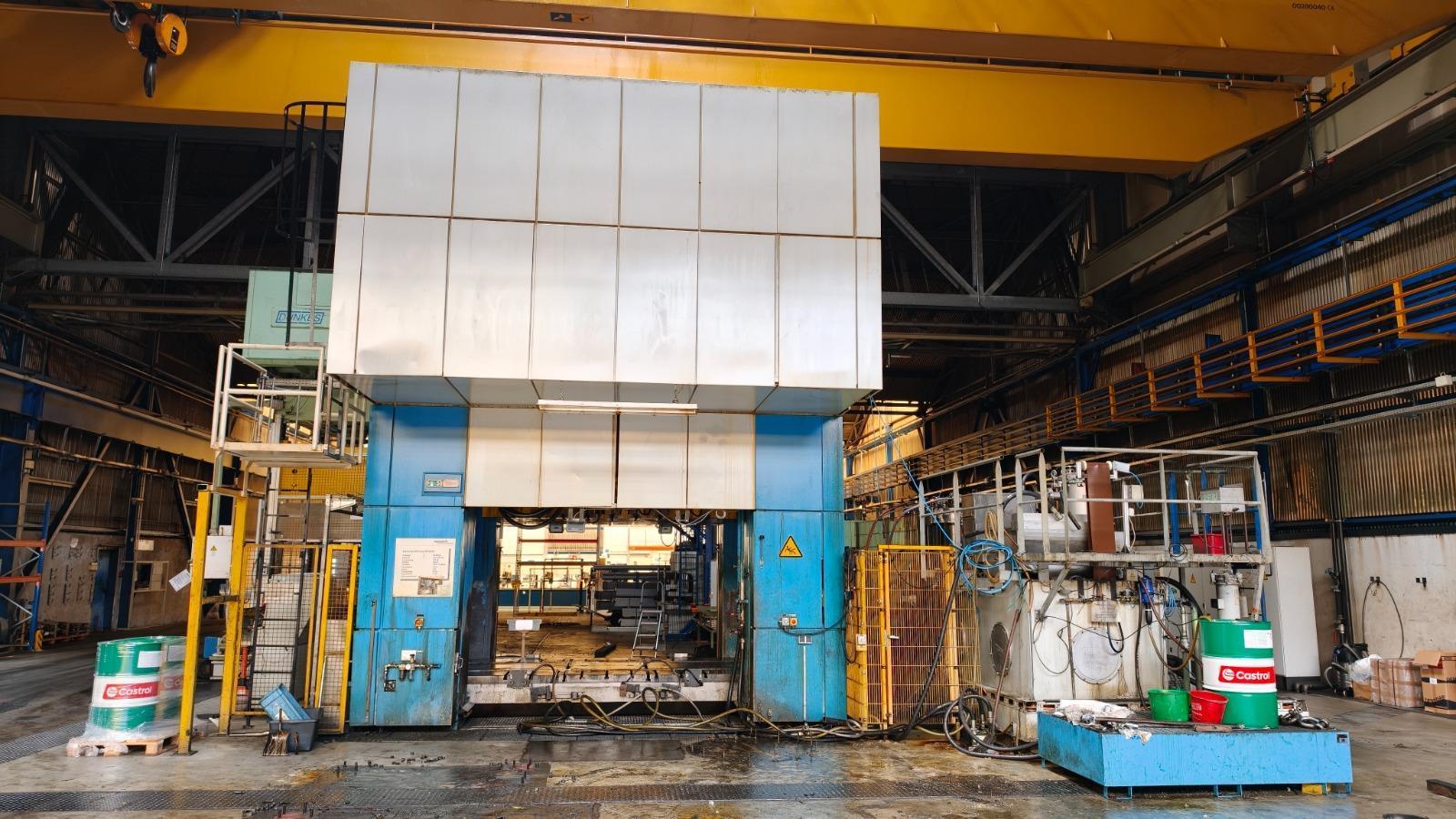

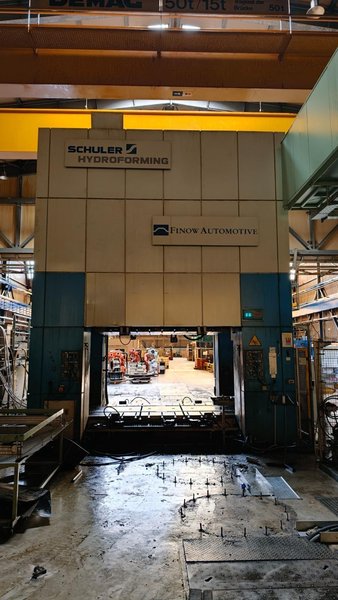

5000 Ton Schuler Hydroforming Press, 2000

4520 X 2150 mm Table

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,900 mm Stroke

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ram return force 1.390 kN

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ram stroke 900 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Die space (ram up) 1.900 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ram area (width x depth) 3.150 x 2.150 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table area (width x depth)4.520 x 2.150 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Clear distance between uprights (left–right) 3.280 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Clear distance between uprights (front–back) 2.200 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main drive power 2 x 160 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pump capacity 2 x 350 l/min at 1800 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid approach speed 360 mm/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Return speed (infinitely adjustable) 234 mm/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working speed 6.5 mm/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Drive up/down – X / –

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine weight – approx. 303.000 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Oil quantity per tank filling – approx. 5.000 l

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Operating voltage, three-phase current 400 V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control voltage, AC 230 V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Valve voltage, DC 24 V

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Frequency 65 Hz
