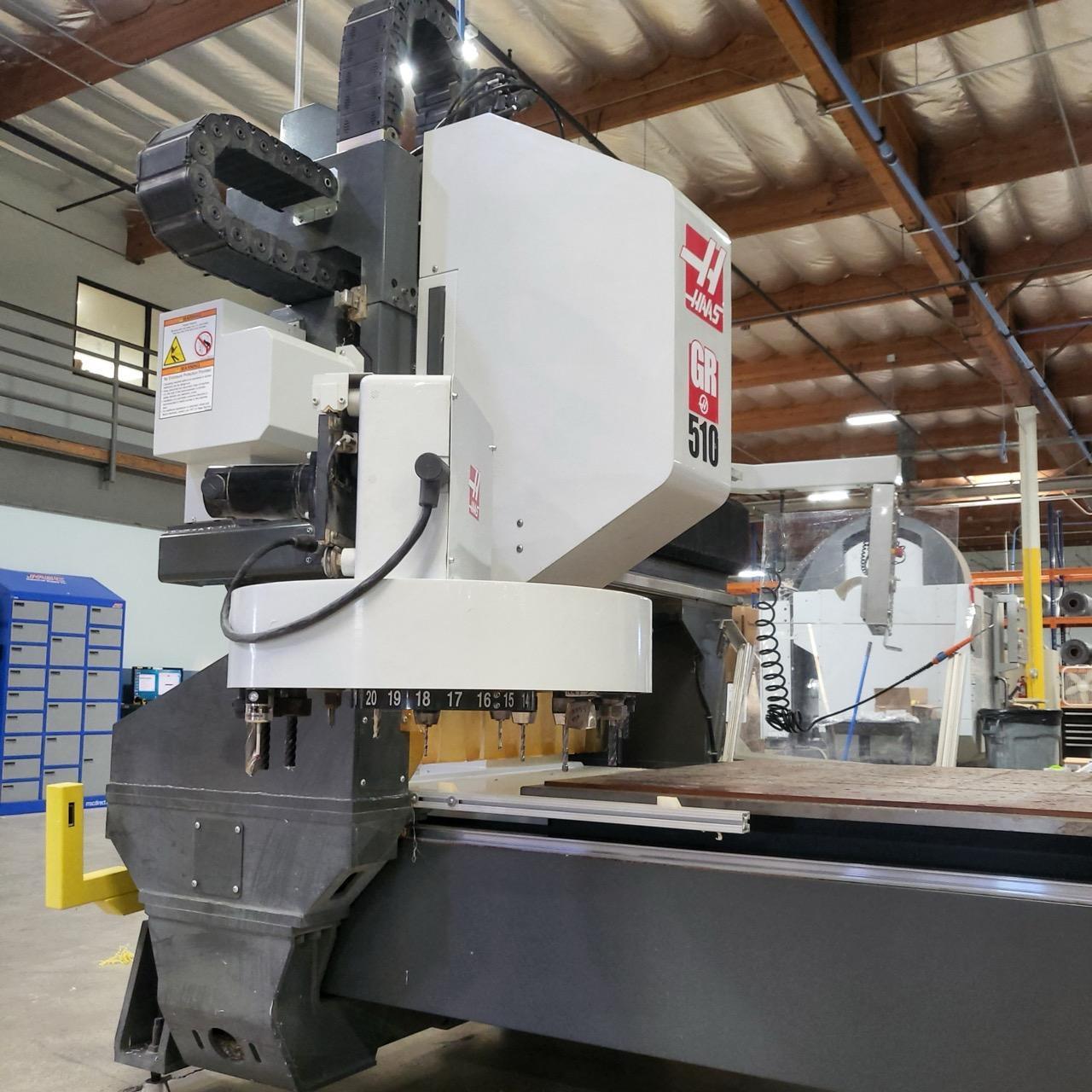

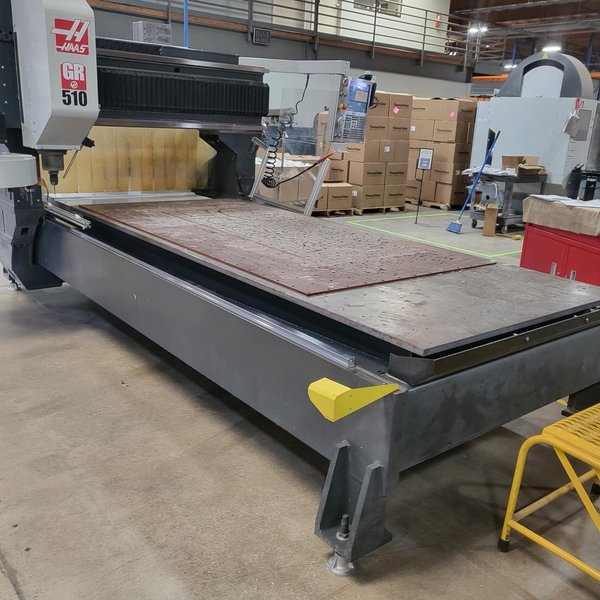

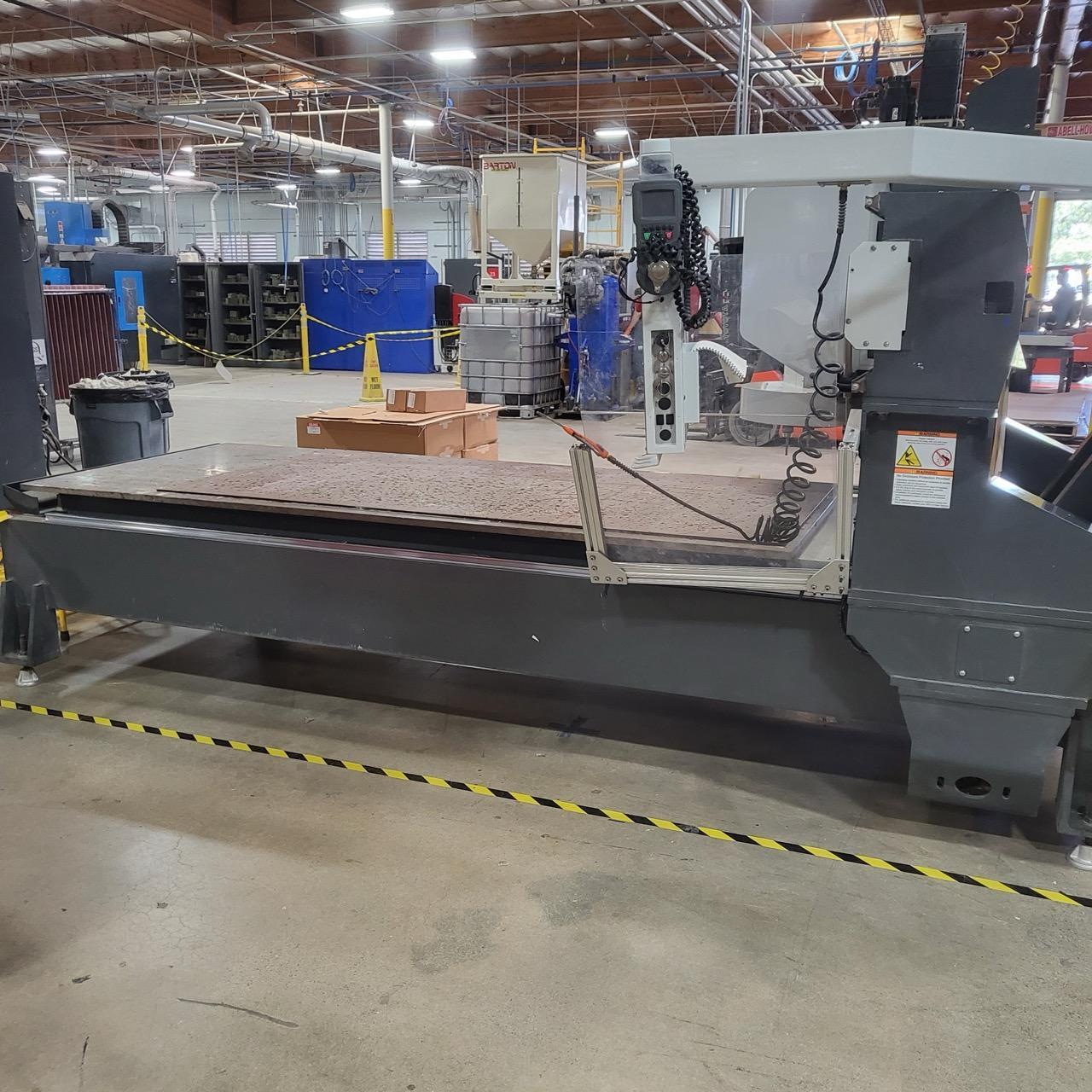

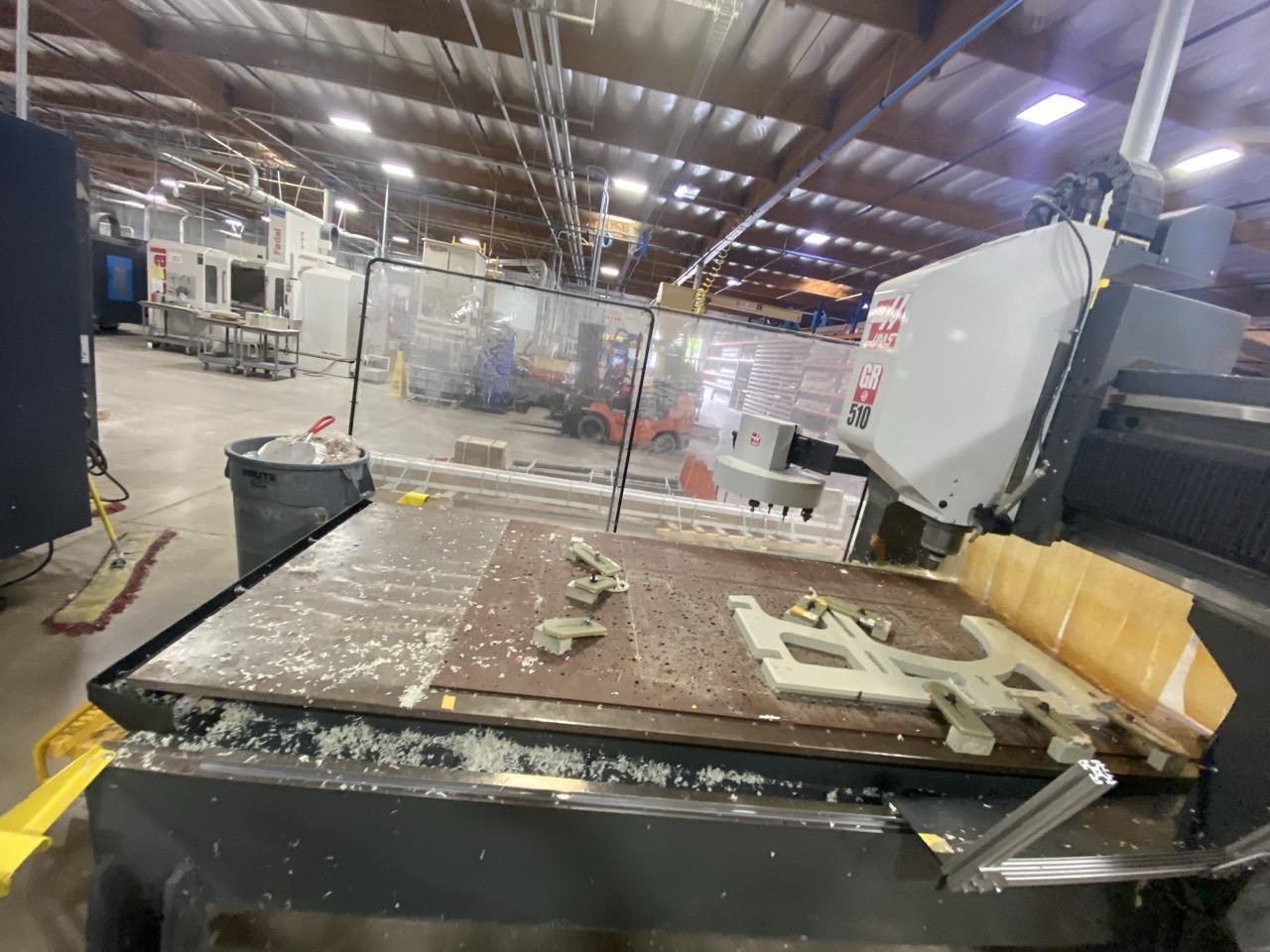

Haas GR-510 Gantry Mill, 2012 – 10k Spindle, Airblast, Low Hours
Brand
Category
Type
Model
GR510
Stock #
536468
Year
2012
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 121″
Y-Axis Travel: 61″
Z-Axis Travel: 11″
Spindle Speed: 10,000 rpm
Spindle Motor: 15 hp
Taper: CT40
Spindle Nose to Table: 2.5″ – 13.5″
Max Torque: 48 ft‑lb @ 1,500 rpm
Drive System: Direct speed, belt drive
Max Table Load (evenly distributed): 6,000 lbs
Distance Between Columns: 62″
Rapids X: 800 ipm
Rapids Y: 2,100 ipm
Rapids Z: 1,100 ipm
Max Cutting: 800 ipm
Tool capacity: 10-Position Carousel
Max Tool Diameter (adjacent pockets full): 3.5″
Max Tool Weight: 12 lbs
Approx. Dimensions: 206″ × 111″ × 108″
Approx. Weight: 19,400 lbs

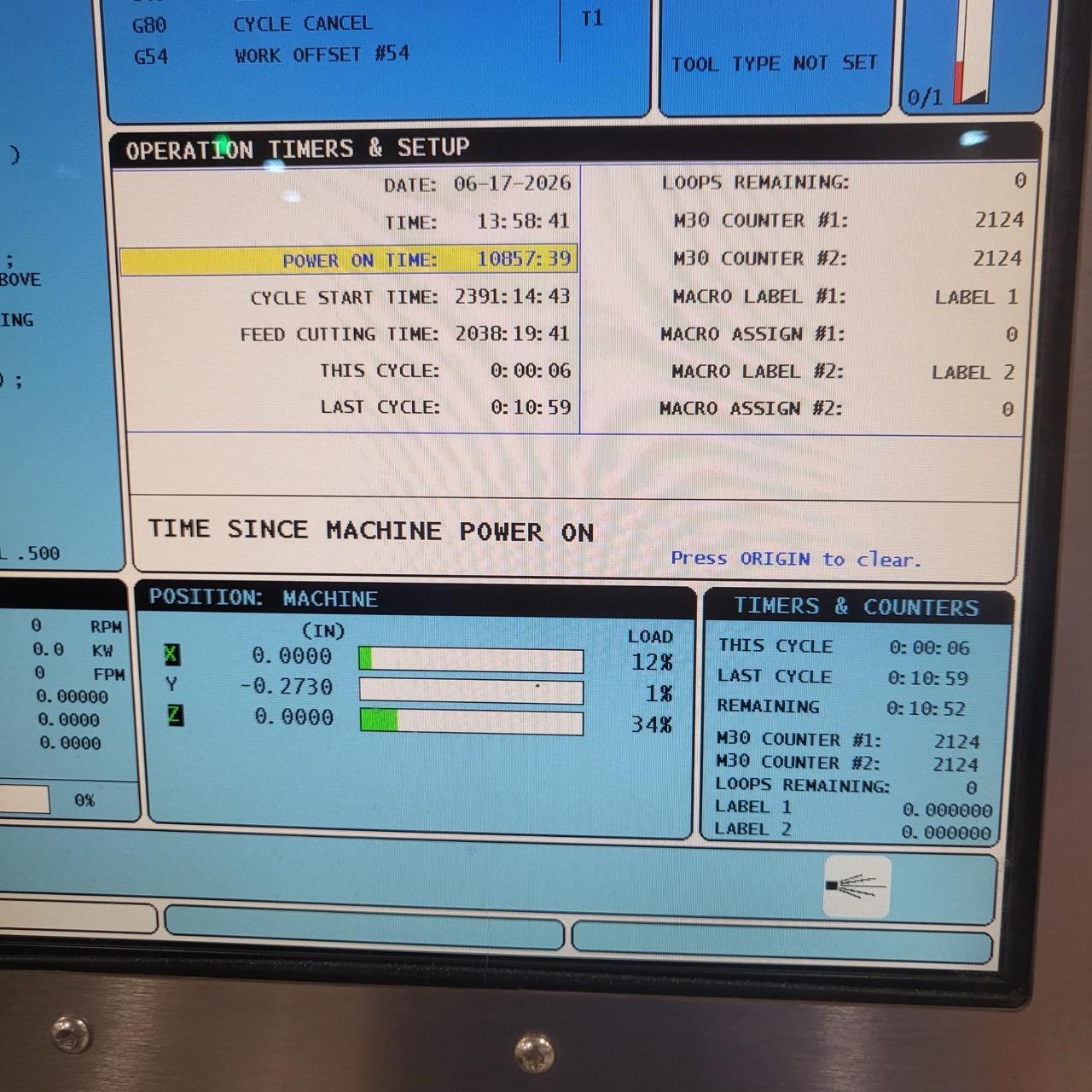

Feed Cutting Hours: 2,038

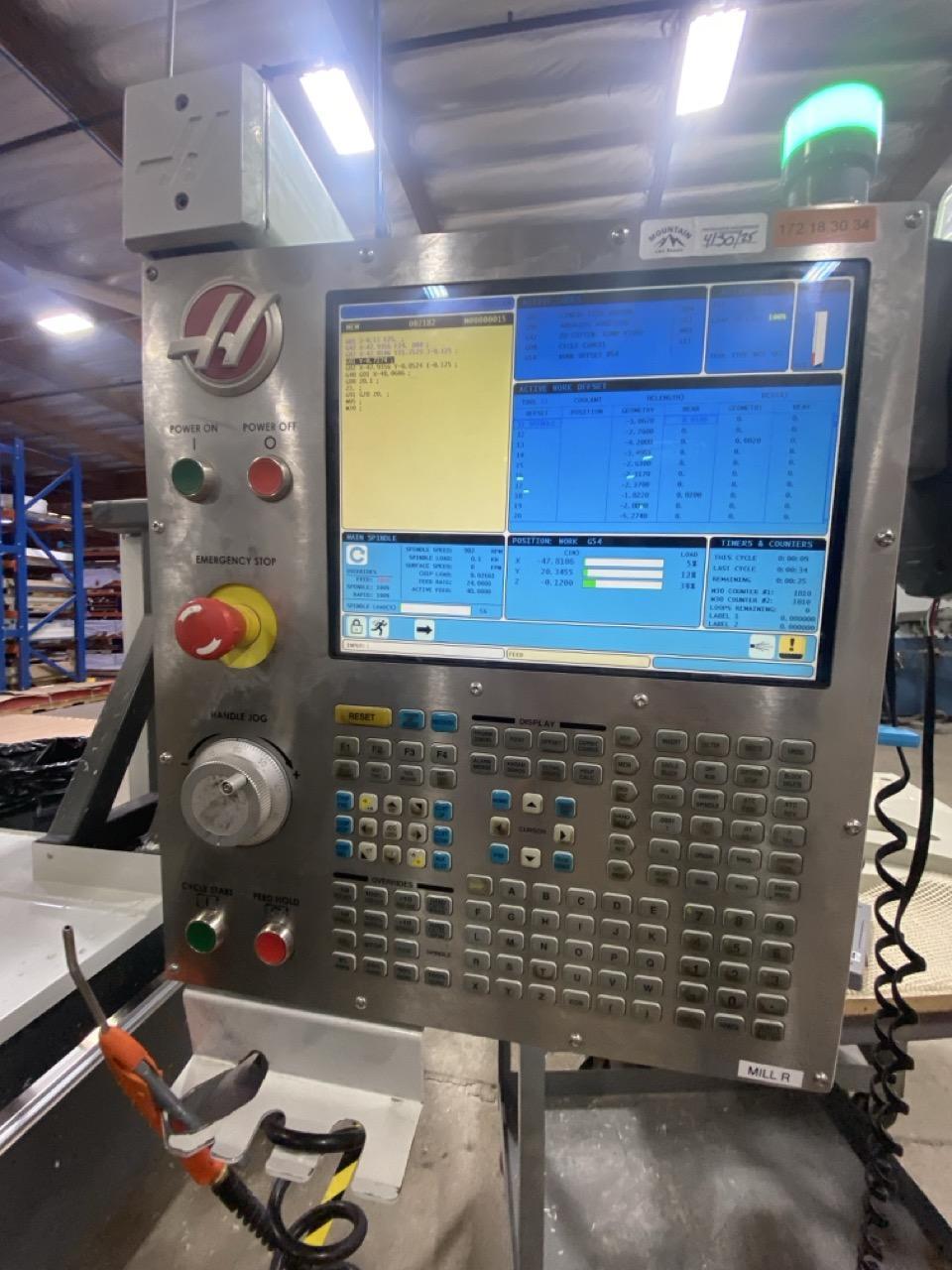

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Haas CNC Control Light Curtain Airblast 10k RPM Spindle All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
