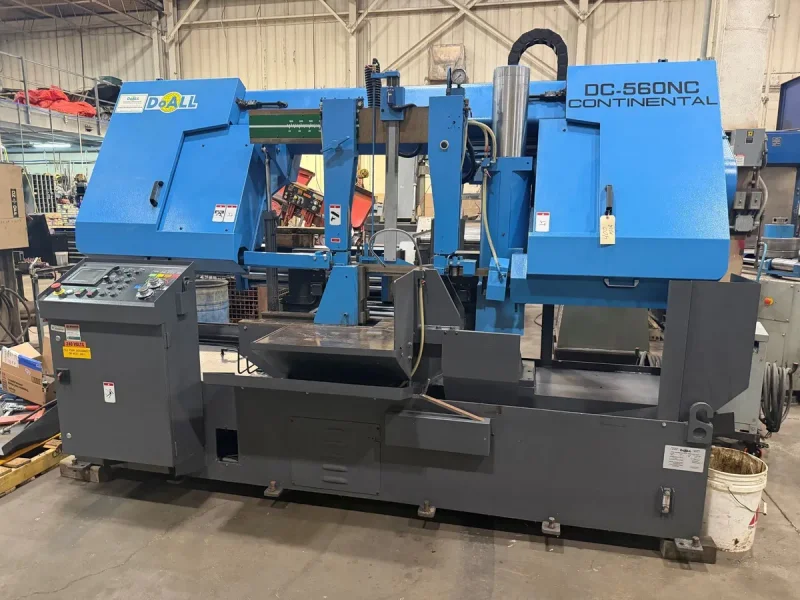

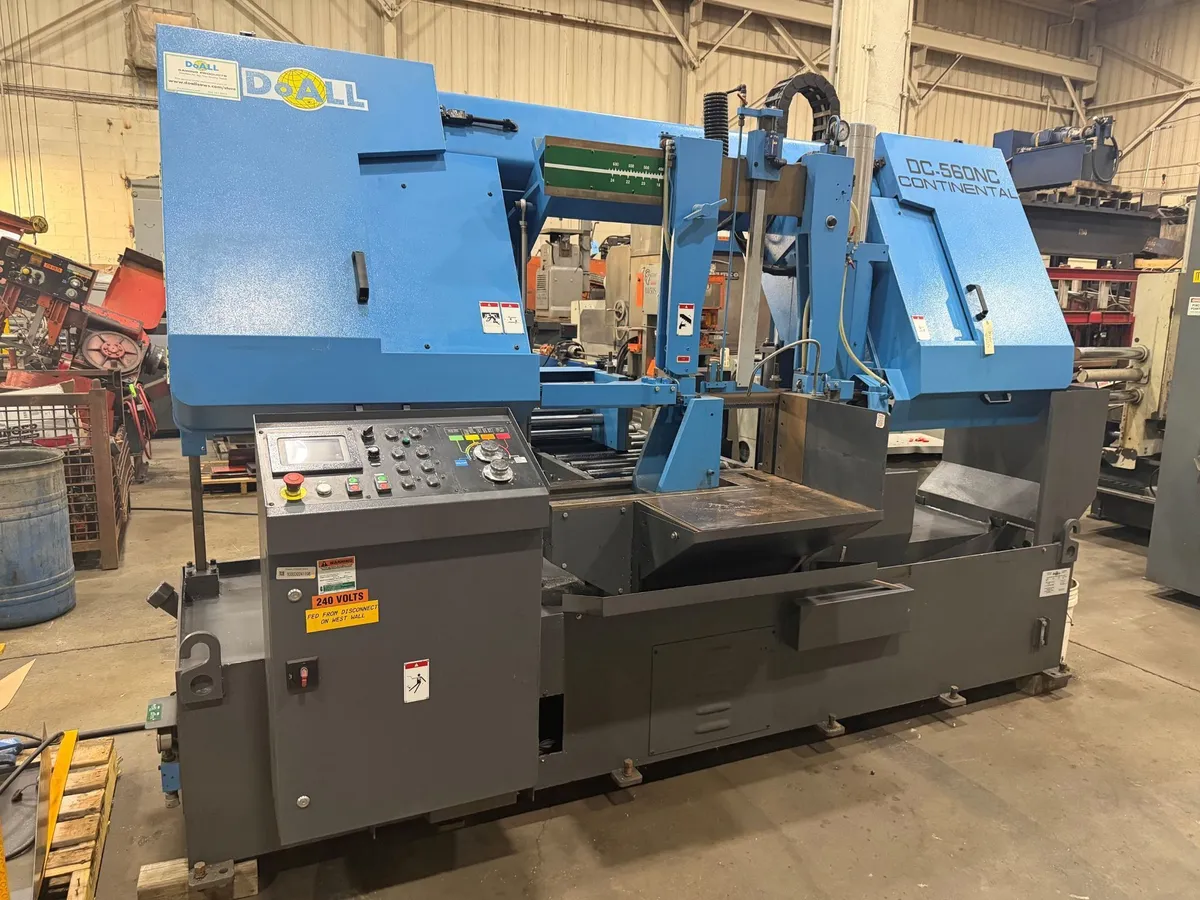

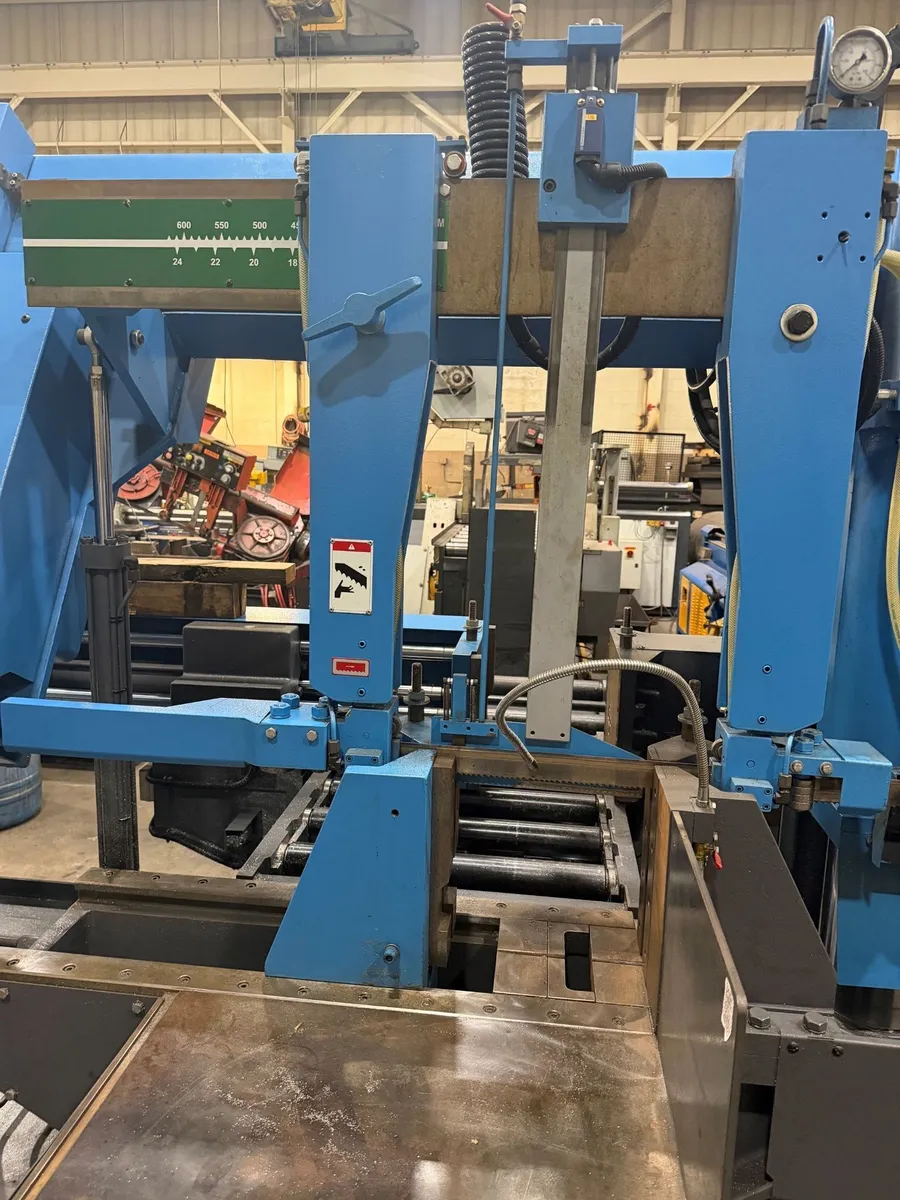

Used 2021 DoAll 24" x 22" automatic horizontal dual column bandsaw model DC-560NC

Used 2021 DoAll 24" x 22" automatic horizontal dual column bandsaw model DC-560NC

Name: Used 2021 DoAll 24" x 22" automatic horizontal dual column bandsaw model DC-560NC
Brand: DOALL
SKU: 11267
Availability: InStock

Brand

DOALL

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Saws, Band, Horizontal

Manufacturer:

DOALL

Model:

DC-560NC

Year:

2021

Stock #:

11267

Status:

For Sale

Serial #:

0600121

Description

For sale: Used 2021 DoAll DC-560NC automatic horizontal dual column bandsaw. Boasts 22"x24" rect-cap, 22" round-cap, and a 10 HP motor. Features PLC control, hydraulic clamps, and variable speed control. Ideal for precision cutting tasks.

ImperialMetric

Rect-Cap (H)	22"	558.8 mm
Rect-Cap (W)	24"	609.6 mm
Rounds-Cap	22"	558.8 mm
Power	10 hp	7.5 kW
Type (Auto, Manual, Semi)	Auto	Auto
Blade Width	2"	50.8 mm
Blade Thickness	0.063"	1.6002 mm
Blade Length	260"	6,604 mm
Dimensions	83" x 79" x 55"	83" x 79" x 55"
Weight	9,900 Lbs.	9,900 Lbs.

Brand: DoAll
Model: DC-560NC

Specifications:
Round capacity: 22"
Rectangle capacity: 24" x 22"
Saw blade: 2" x 260" x .063"
Blade speed: 50 - 400 FPM

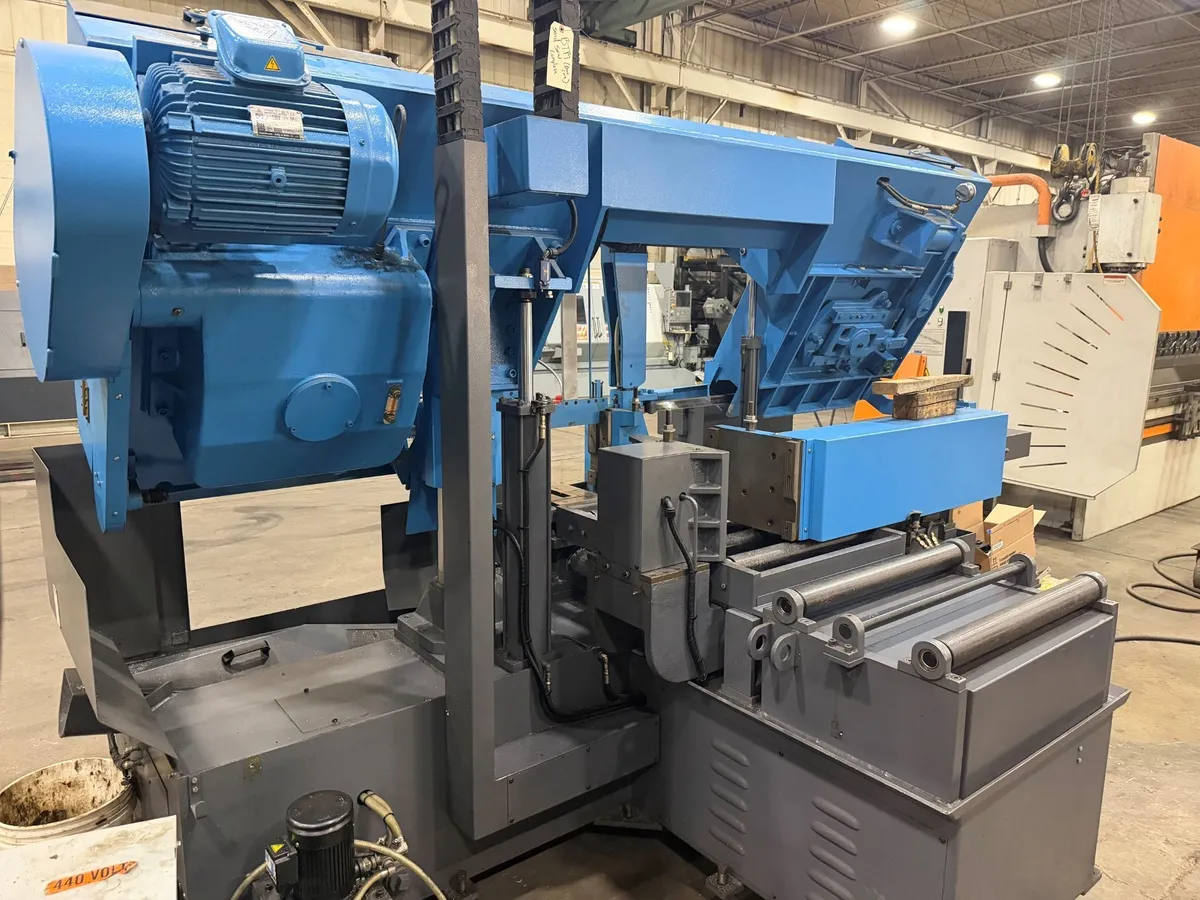

Blade motor: 10 H.P.
Hydraulic motor: 3 H.P.
Shuttle stroke: 15.75" (141.73" w/multi-index)
Voltage: 230 volt 3 phase

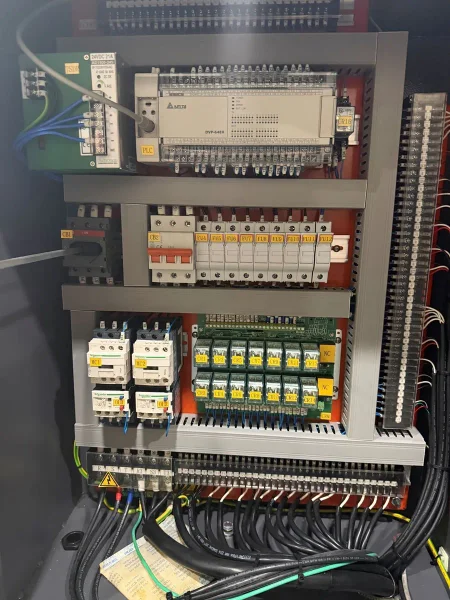

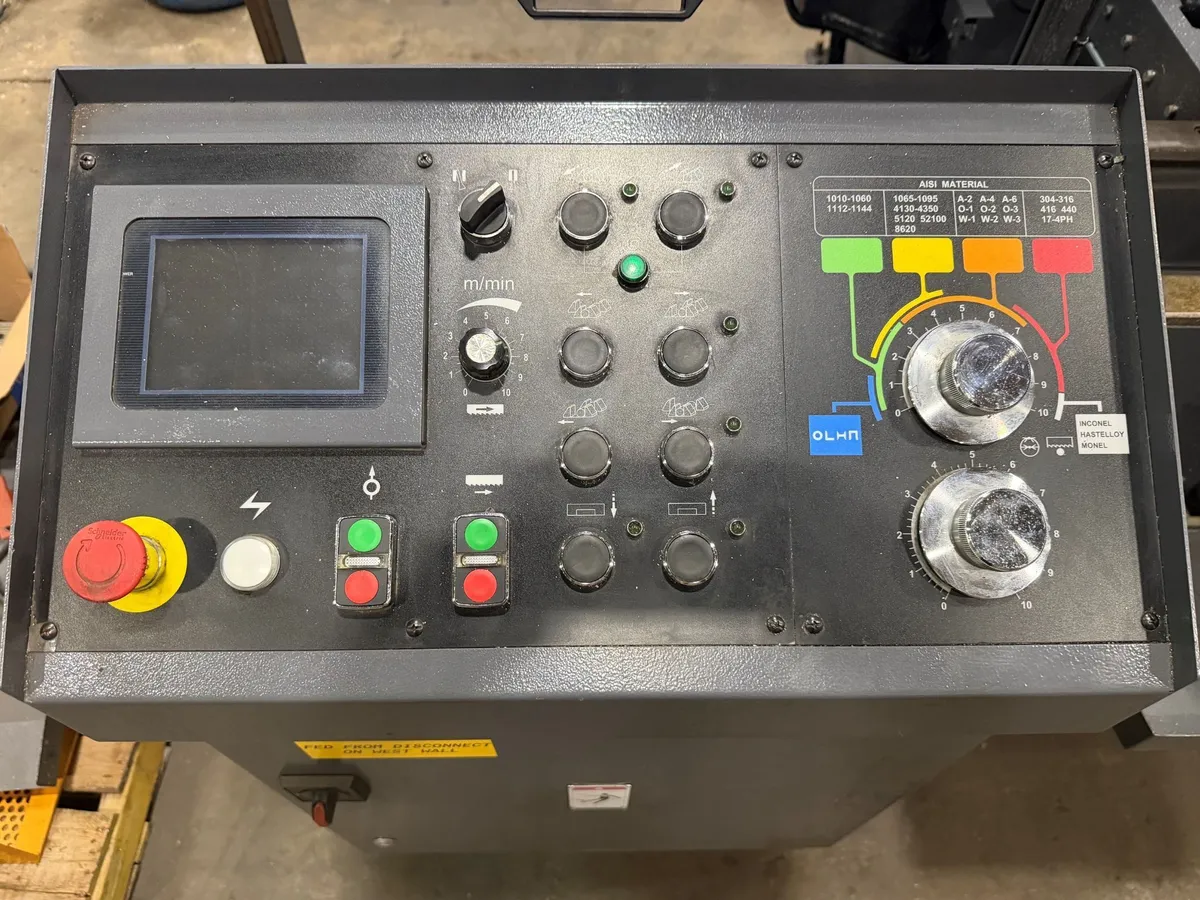

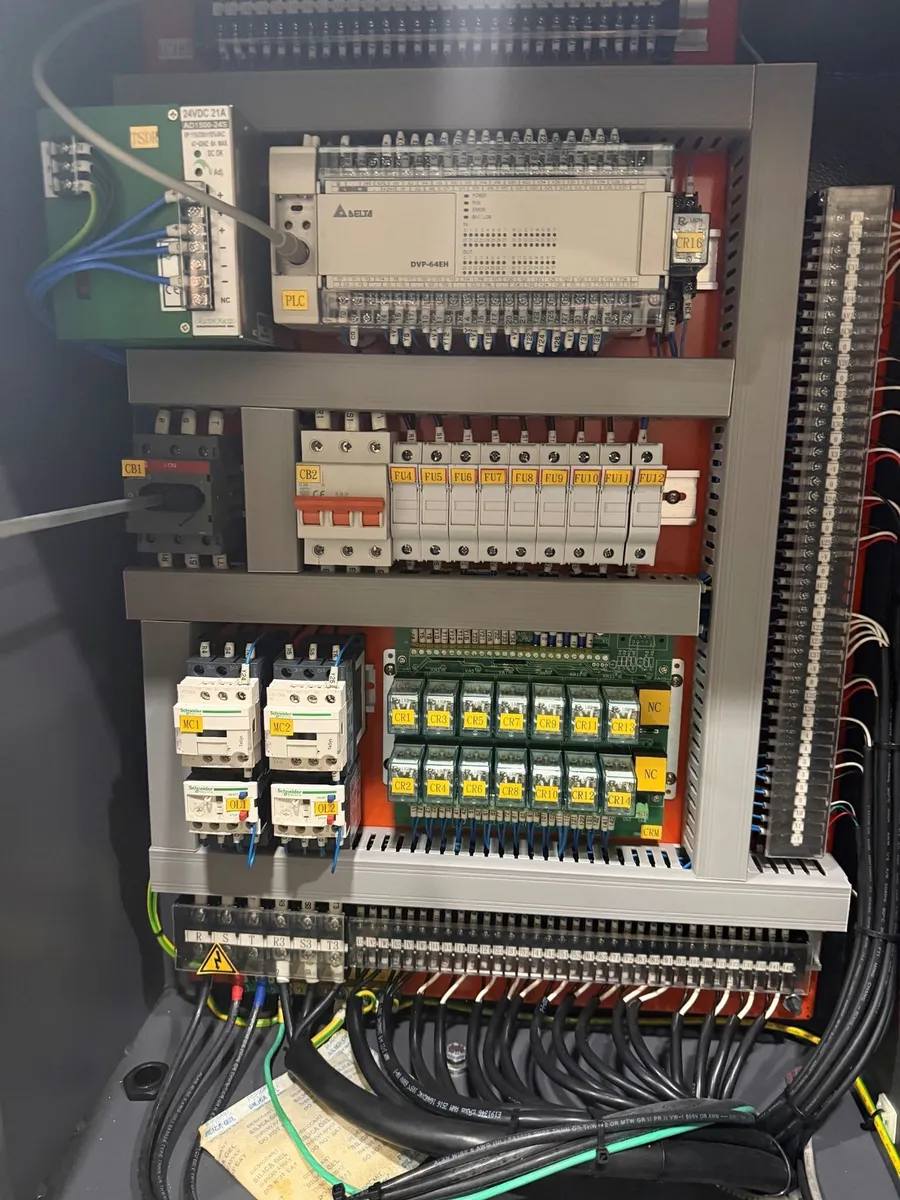

PLC control for all machine functions
Hydraulic overhead bundling clamps
Rapid head approach with paddle
Carbide and roller bearing blade guides
Flood coolant
Feed rate/feed force saw head control
Infinite blade speed controlled w/ variable frequency drive
Rapid and creep speed index vice control

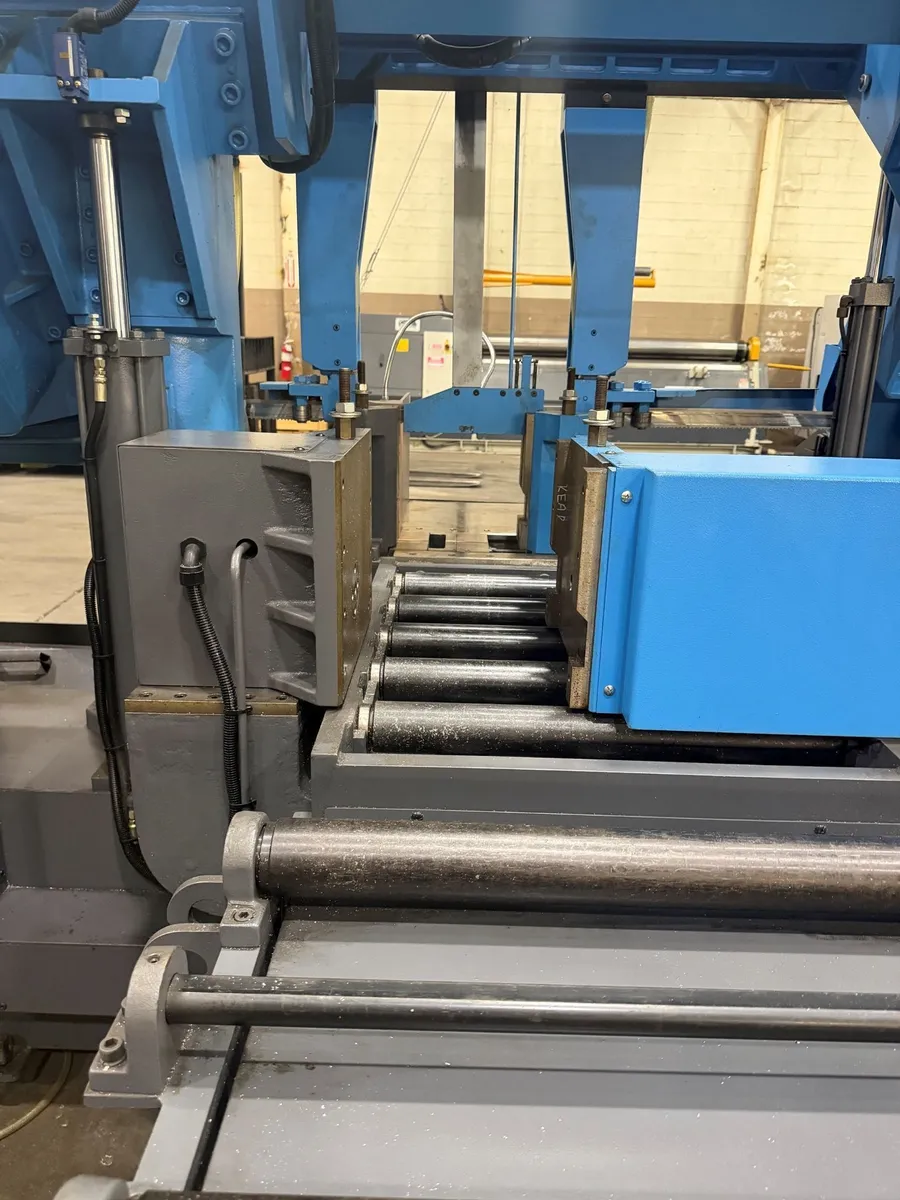

Multi step full stroke cylinder with split front vice

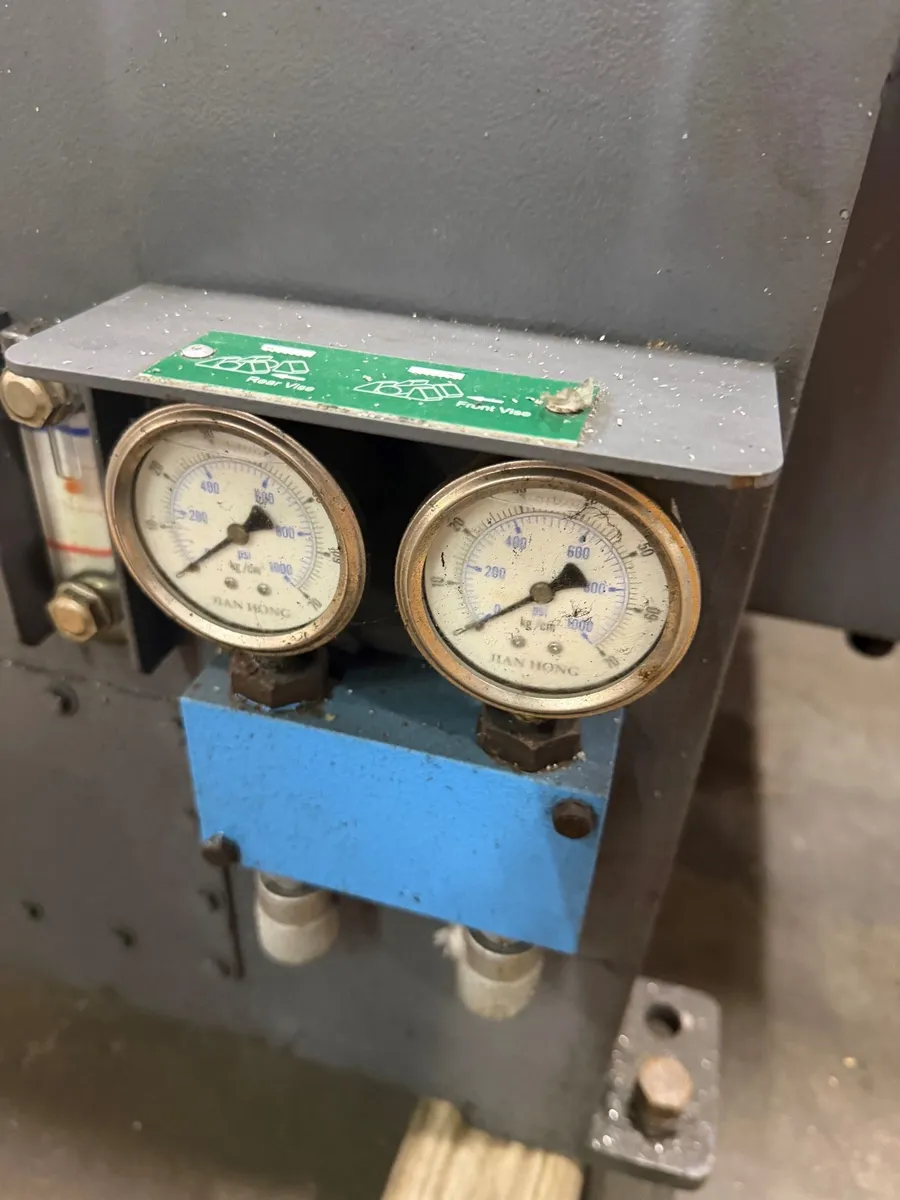

Variable vice pressure
Coolant through carbide guides
Adjustable power blade cleaning brushes
Coolant wash down hose
Work Light
Blade shock proof device
Hydraulic blade Tension

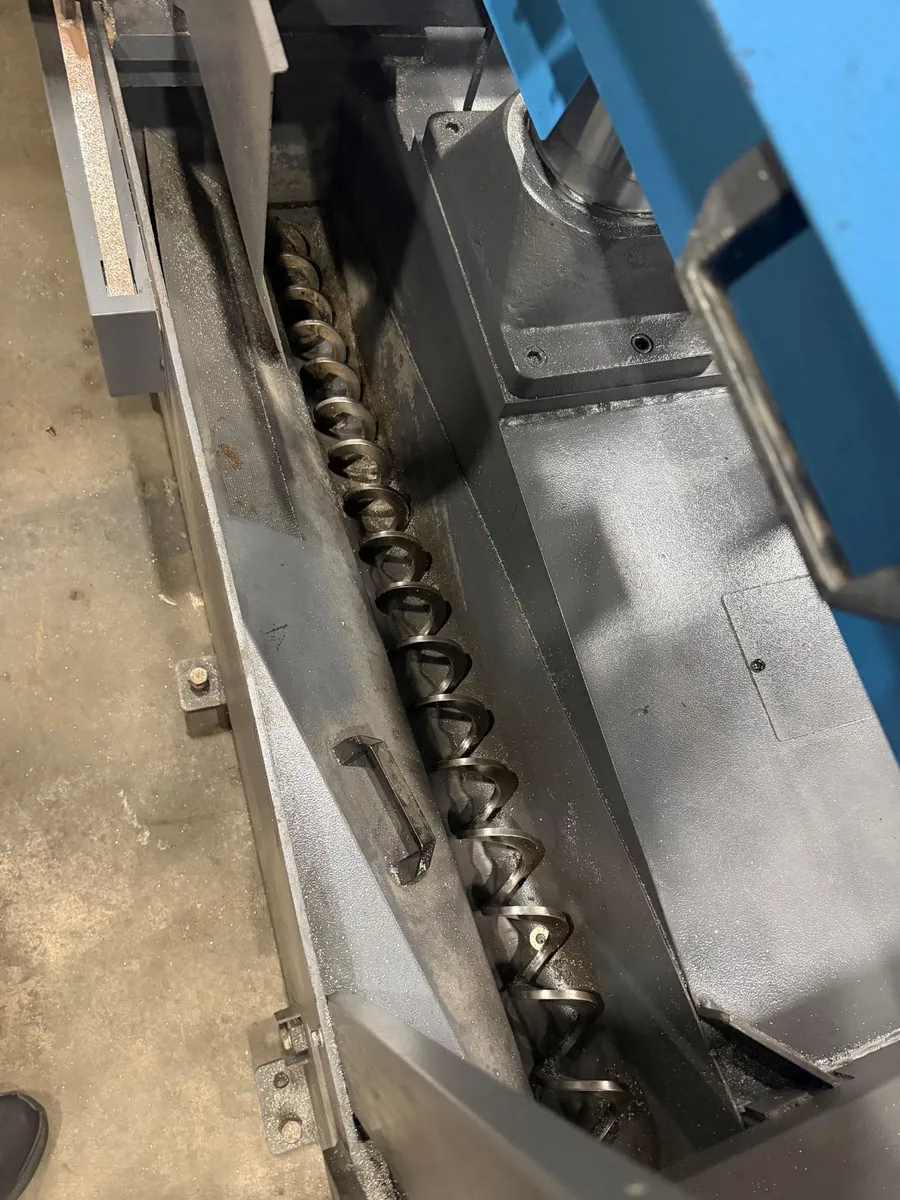

Hydraulic chip auger
Saw blade break / stall motion detector
