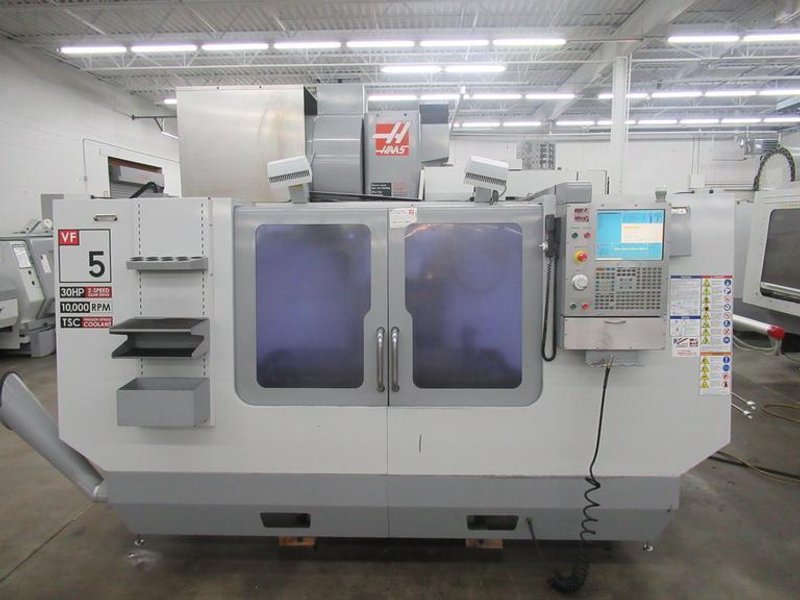

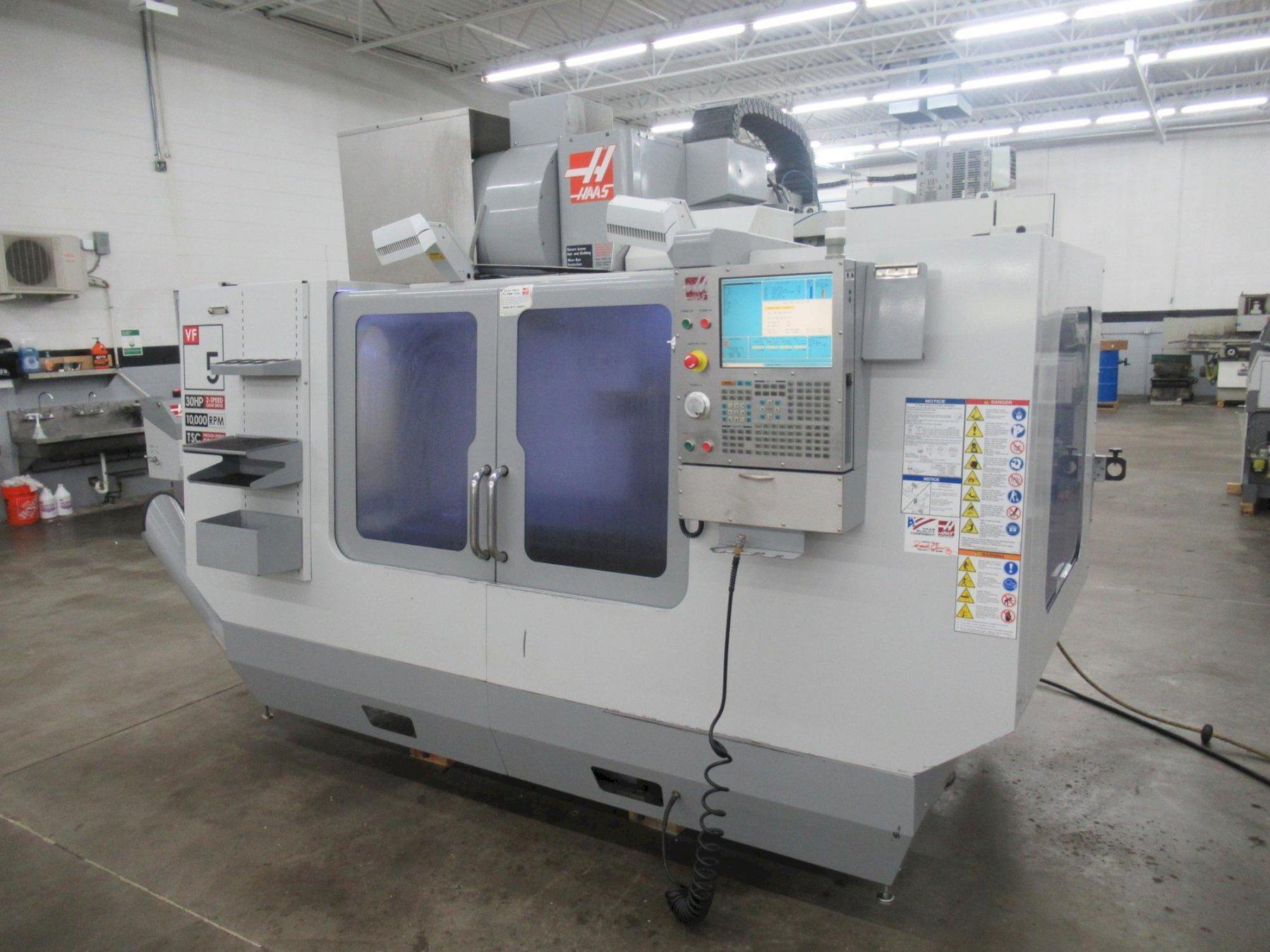

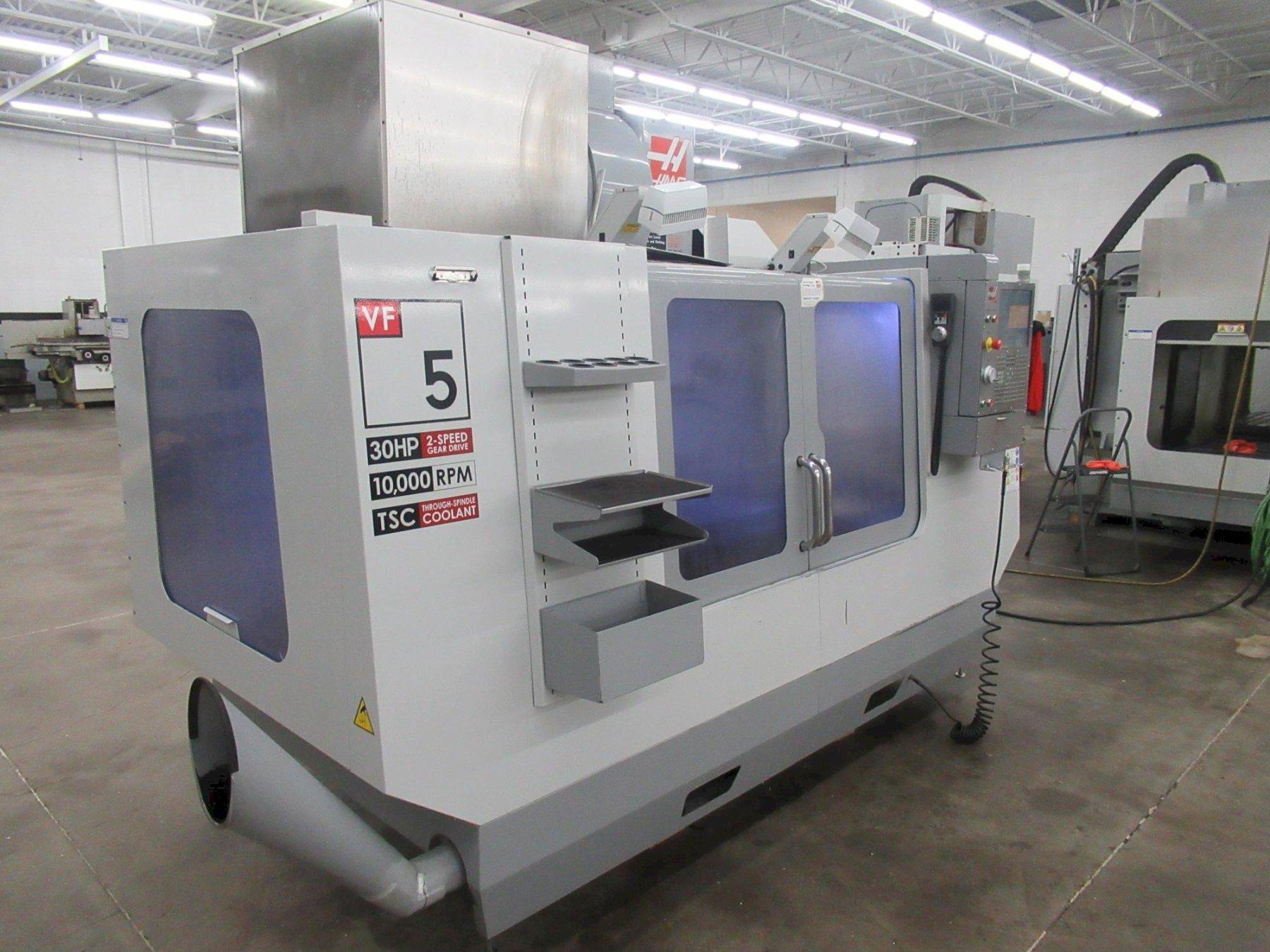

Haas VF-5/40 CNC Vertical Machining Center, 10K RPM, 24 ATC, Thru Spindle Coolant, Probing, 4th Axis Drive, 2 Speed Gearbox
Brand
Category
Model
VF-5/40
Stock #
7361
Year
2009
Condition
Not specified
Location
Not specified
|

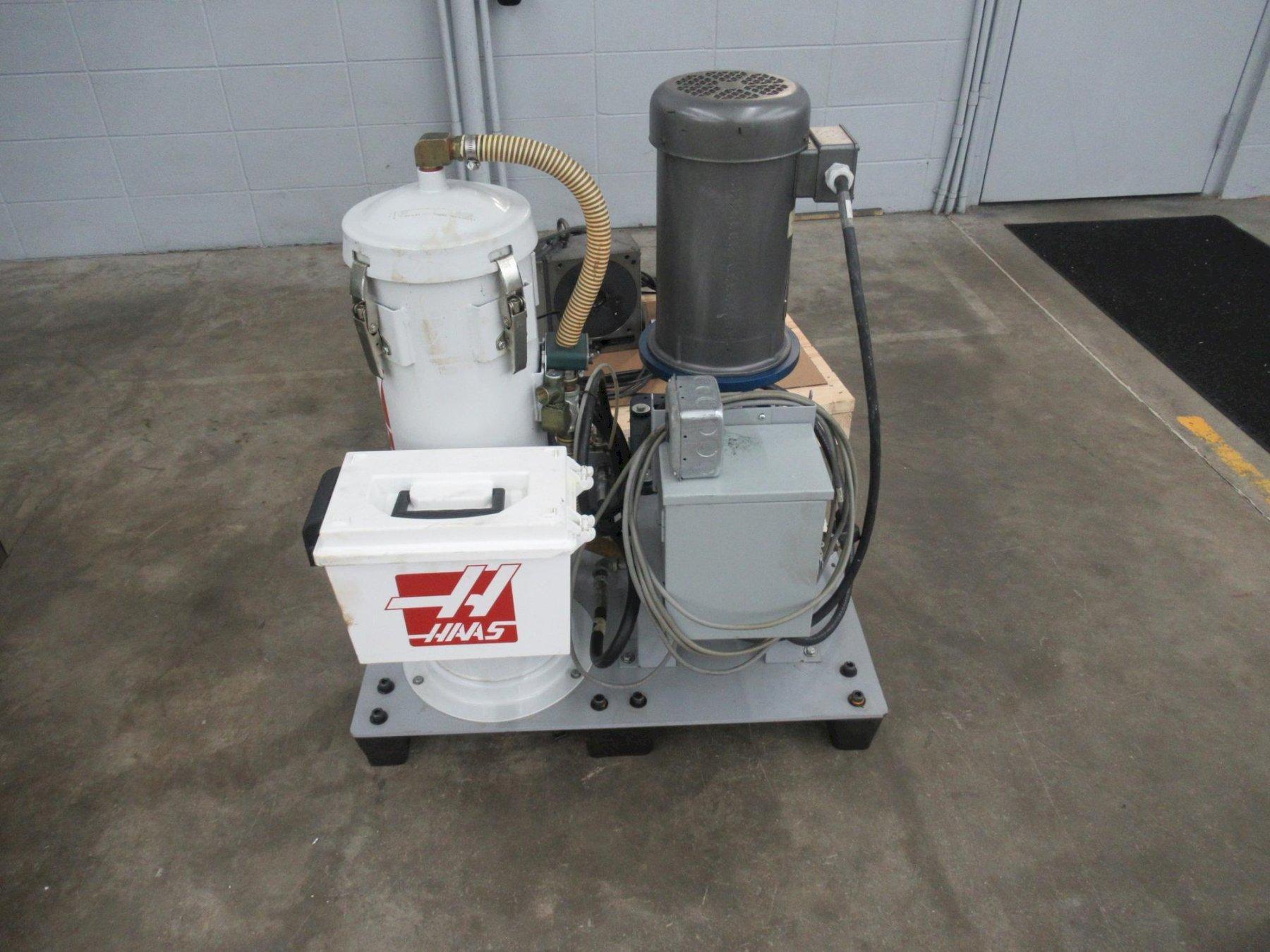

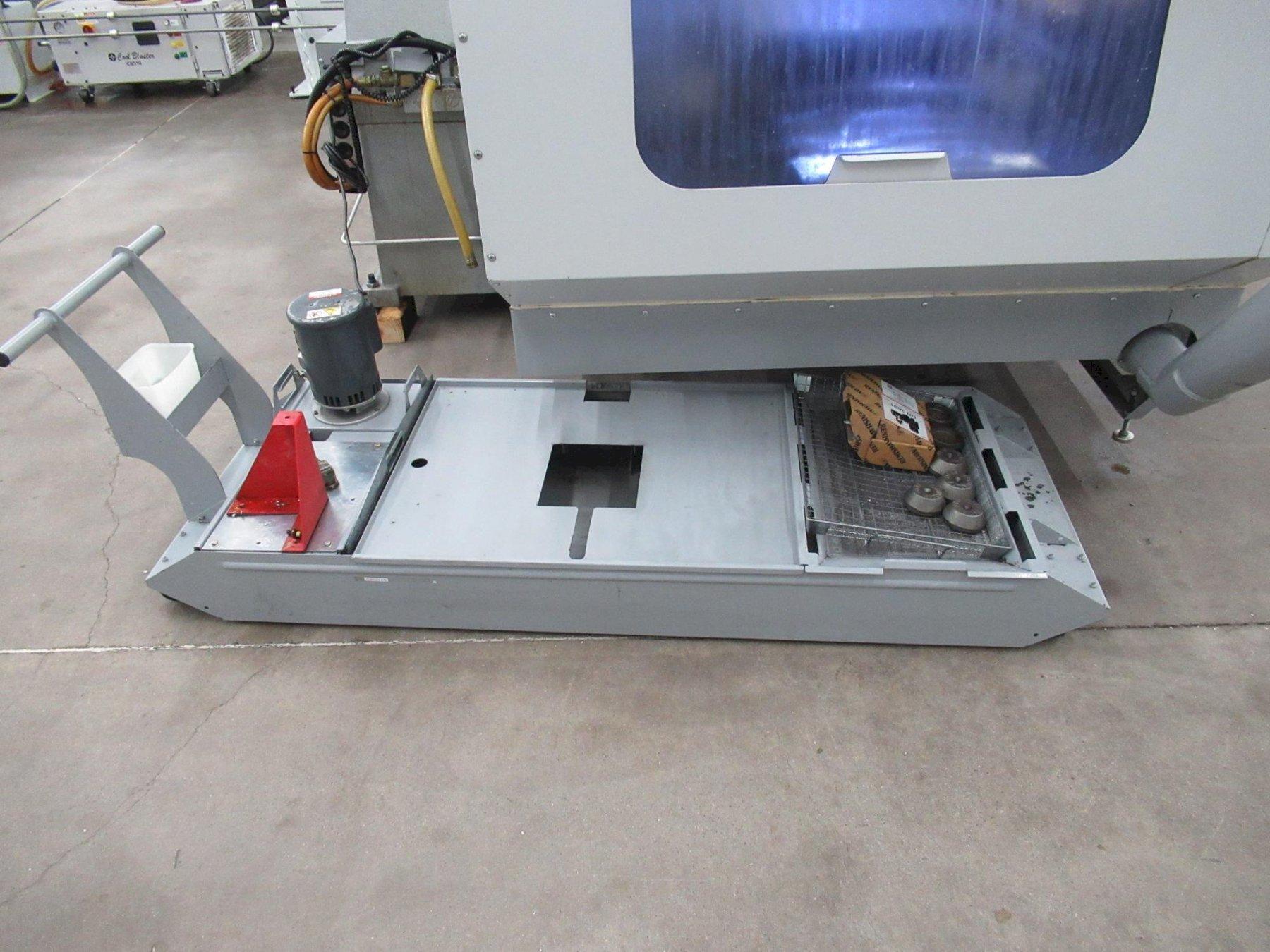

Machine Control: Haas CNC with Coldfire 2 Processor Table Size: 52" x 23" Machine Travels (X/Y/Z): 50" x 26" x 25" Table Capacity: 4,000 lbs Spindle Taper: Cat 40 Spindle Speeds: 10,000 Max RPM Spindle To Table Distance: 7" - 32" Transmission: 2-Speed Gearbox Rapid Traverse Rate (X/Y/Z): 540 IPM on X, 600 IPM Y and Z Maximum Cutting Feed Rate: 500 IPM Tool Changer Style: Side Mount, Twin Arm Tool Changer Capacity: 24 + 1 Stations Max Tool weight: 12 Lbs. Spindle Drive: 20 HP Vector Spindle Drive Equipped With: Haas Coldfire 2 CNC Control, 10,000 RPM Max Spindle Speed, 2-Speed Gearbox, CAT 40 Spindle Taper, 24 Station Side Mount Twin Arm Automatic Tool Changer, 1,000 PSI Thru Spindle Coolant, 55 Gallon Coolant Tank, Brushless 4th Axis Drive, Renishaw Probing System with Parts Probe and Tool Setter, Programmable Coolant, Remote Jog Handwheel, Chip Auger. Electrics: 195-260 Volt, 3 Phase |
