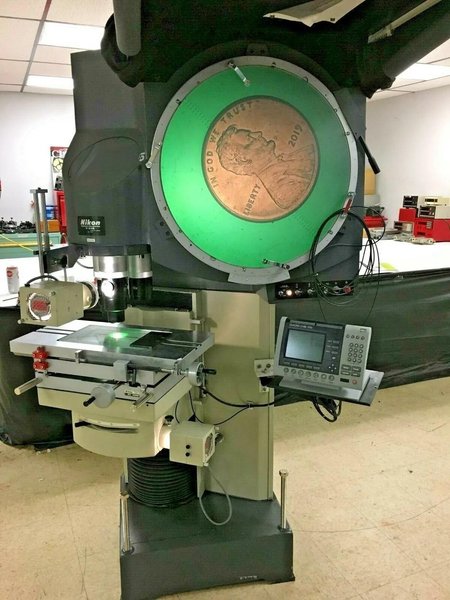

24" NIKON Model V-24B Profile Projector / Optical Comparator, dro, 5X, 10X & 20X.

Name: 24" NIKON Model V-24B Profile Projector / Optical Comparator, dro, 5X, 10X & 20X.
Brand: NIKON
SKU: 34977
Availability: InStock

Brand

NIKON

Location

Ohio

Specifications
Files & Videos

Preliminary Specifications:

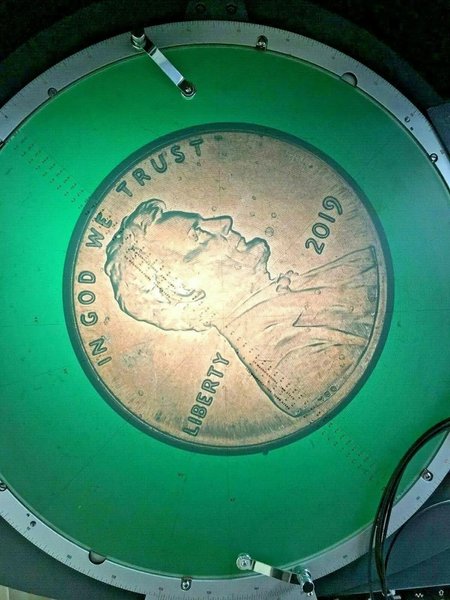

Effective Screen Diameter - 23.6"
Max Size of Workpiece - 9.84"
Stage Size - 24.0" x 11.4"
Stage Glass Size - 13.0" x 7.9"
Travels - 8.9" x 3.9"
Table Load Capacity - 66.1 Lbs.
Image Type - Inverted and Reversed
Light Sources - 24V 150W Halogen (FCS)
Electrics - 1/60/110 Volt AC
Dimensions - 46.5" wide x 43.3" deep x 74.8" tall
Net Weight, Approx - 1,950 Lbs.
Crated Shipping Weight, Approx - 2,535 Lbs.

Equipped with:
Nikon Model 9V Linear Encoder Stage
Rotating Table Type 4 (Glass insert diameter 262mm)
Quadra Chek 200 Computational Digital Readout
3-Position Manual Rotating Lens Turret, with 5x, 10x, & 20x Lenses
Surface Illumination Attachment
Graduated Rotating Chart Ring
Glass Crosshair hart
Spring Loaded Chart Clips
Push Button Variable Speed Power Focus
Screen Hood with Curtains
Manuals

Notes:
Availability pending / New arrival needs cleaned and serviced.
Specifications subject to independent verification by the buyer.

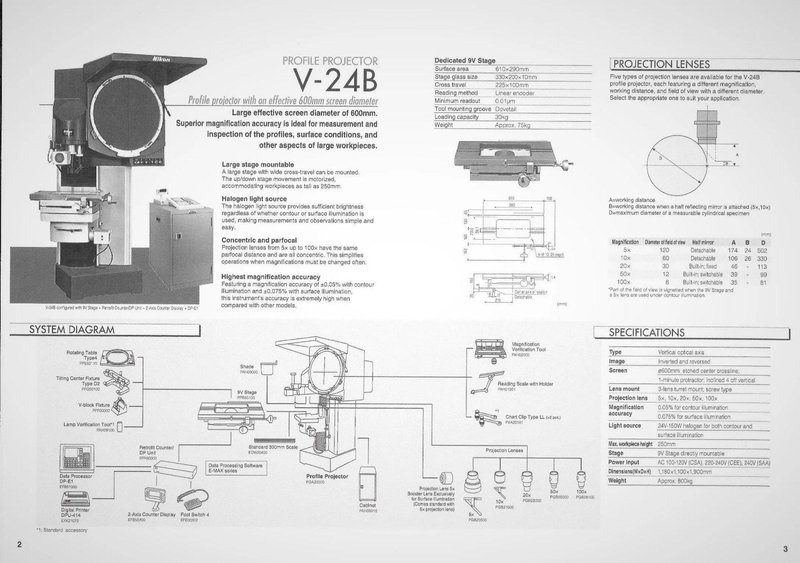

Factory literature for reference only. There may be discrepancies.
Seller will prepare for shipment. Buyer responsible for shipping
Comparable new price as equipped was approx. $95,000
