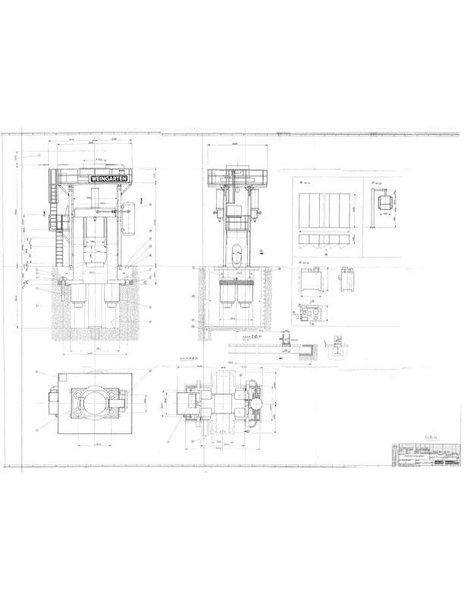

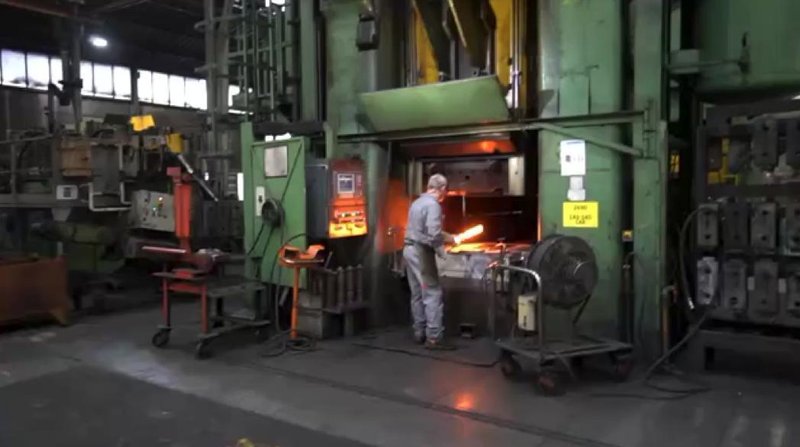

7000 TON WEINGARTEN PSH 4.560F FORGING SCREW PRESS. STOCK # 0652726

Max Allowable Continuous Forging Force.............................: 53,000 kN
Peak Force.........................................................: 63,000 kN
Gross Energy at Approx. 19.68" Stroke..............................: 630 kN.m
Diameter of Screw..................................................: 22.047"
Maximum Stroke Length..............................................: 23.6"
Minimum Stroke Length..............................................: 9.80"
Cycle Time at Maximum kW...........................................: 3.5 Seconds
Effective Speed....................................................: 35 SPM

Distance From Table to Ram:
- Bottom of Stroke Height............................................: 49.2"
- Top of Stroke Height...............................................: 72.8"
- Clearance Between Guides...........................................: 59.0"

Table & Ram Specifications:
- Width..............................................................: 51.2"
- Depth..............................................................: 55.1"
- Usable Table Width.................................................: 63.0"
- Press Height from the Ground.......................................: 24.6'
- Below Ground Press Base Height.....................................: 10.1'
- Floor Dimensions (F-B x L-R).......................................: 6.6' x 12.8'

Total Press Weight...................................................: 230 M Tons

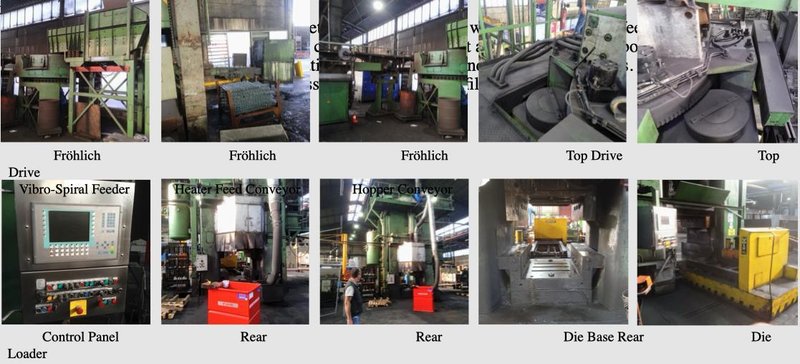

Support Equipment Includes:
- Die-Changing System
- Induction Heating System - 1100kW with (4) Tunnel Sizes
- Full Foundation Damping Bases - Set of (25) pcs.
- Electrical Control Panels
- Generous Major and Control Spares
- Billet Feeder System from Hopper to Induction Heater Output at Press window
