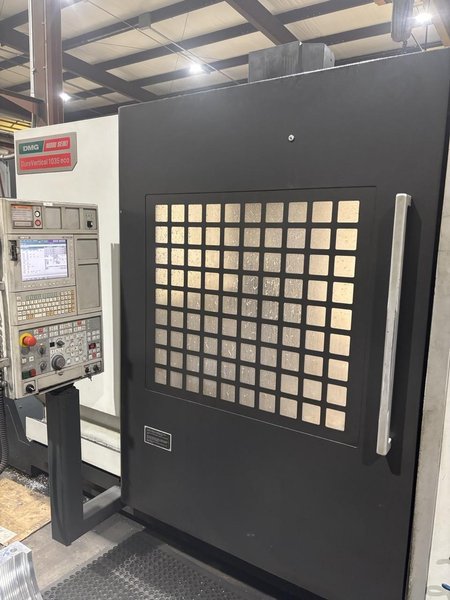

DMG Mori Seiki DuraVertical 1035 eco CNC VMC, 2012 – Through Spindle Coolant, 4th Axis Ready
Brand
Category
Model
Mori Seiki DuraVertical eco
Stock #
321583
Year
2012
Condition
Not specified
Location
Not specified
|
Travels
X-Axis: 40.2″
Y-Axis: 22″
Z-Axis: 20.1″
Table Size: 47.2″ x 22″
Table Load Capacity: 2,205 lbs

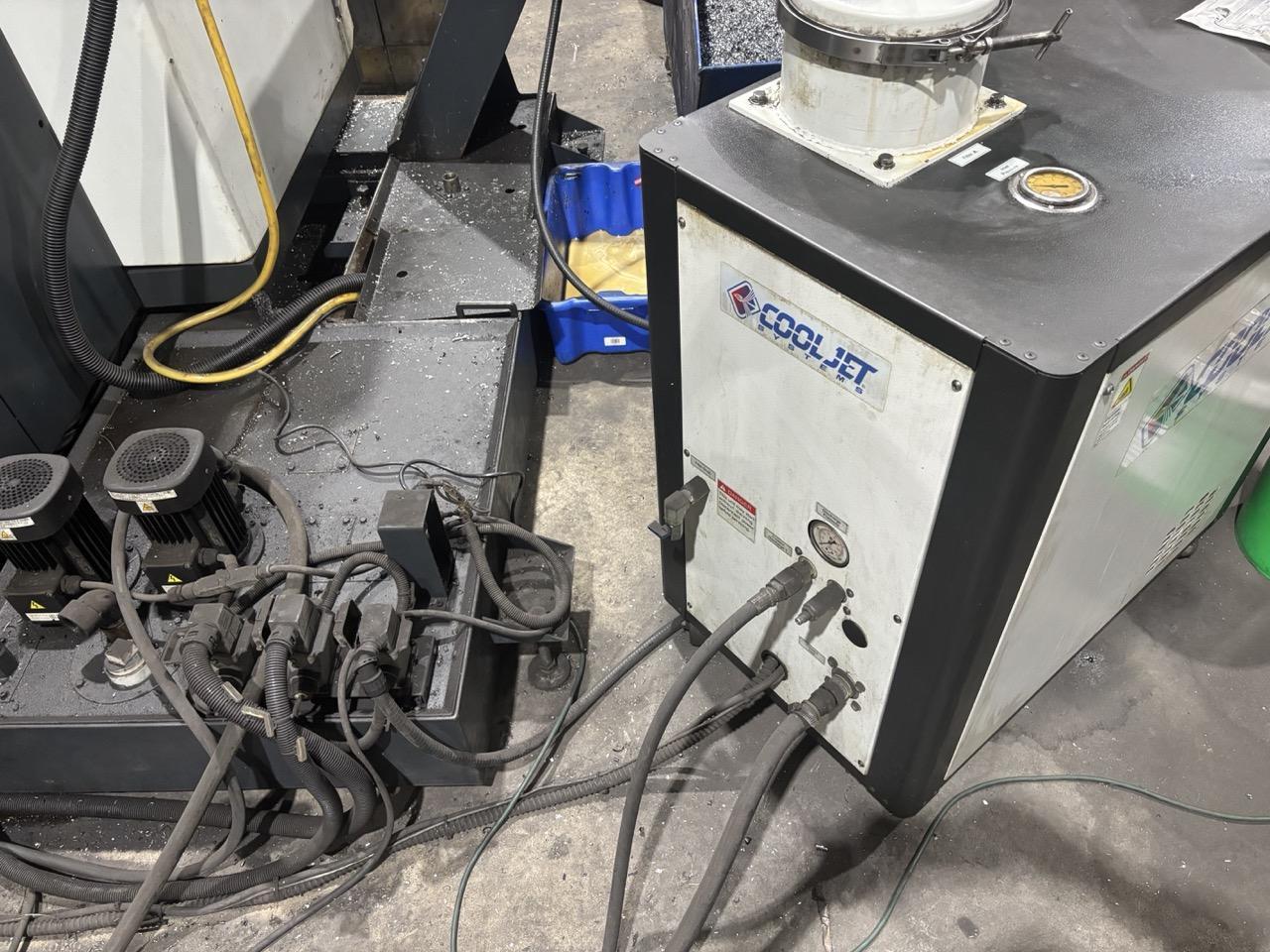

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Taper: CAT40 Speed: 12,000 RPM Motor: 20 HP All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse (X/Y/Z): 1,417 IPM Positioning Accuracy: ±0.0002″ Repeatability: ±0.00008″ All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: ~100″ L x 94″ W x 106″ H Weight: ~9,700 lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Through Spindle Coolant 4th Axis Ready 40 ATC All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
