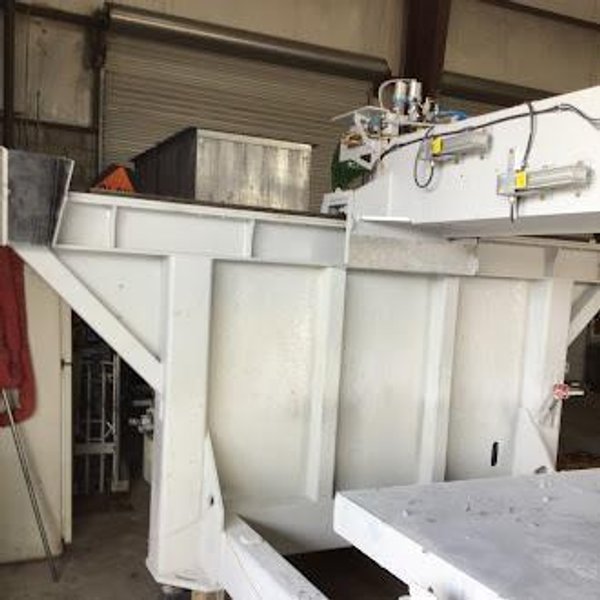

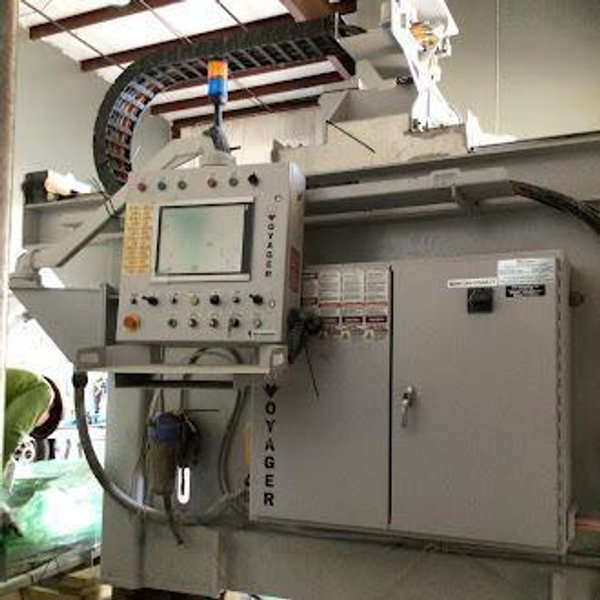

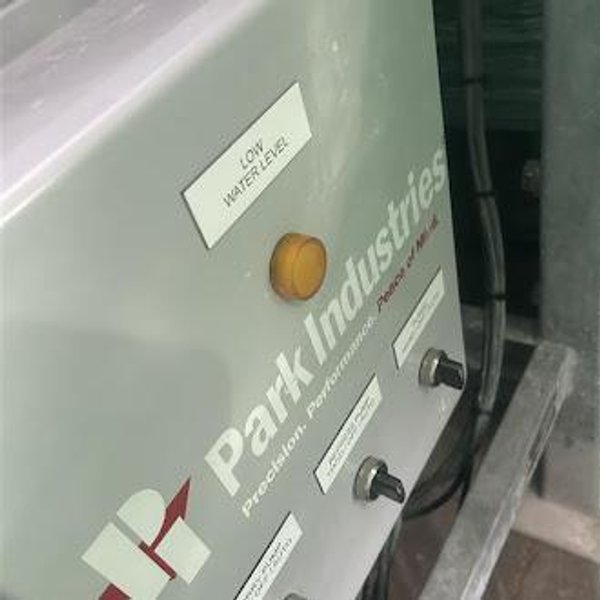

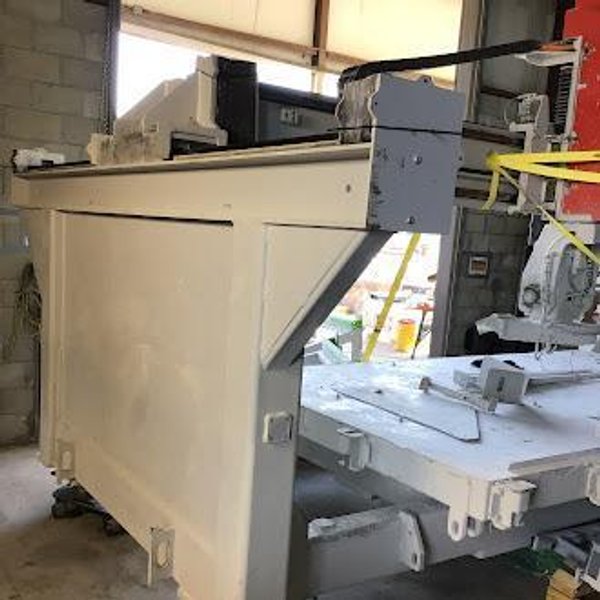

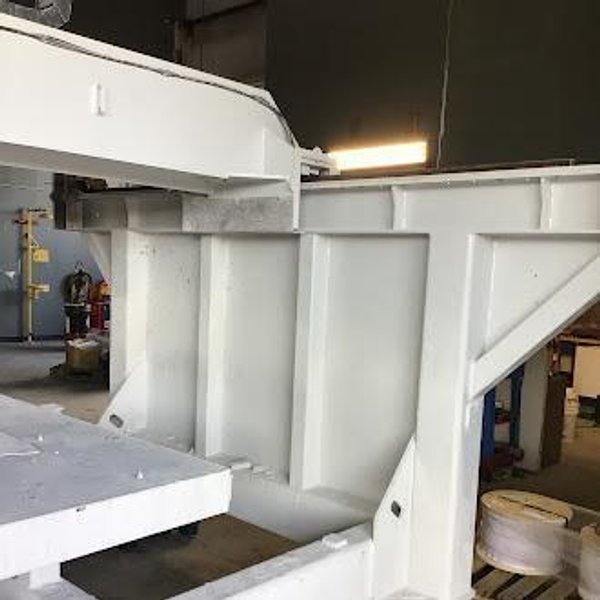

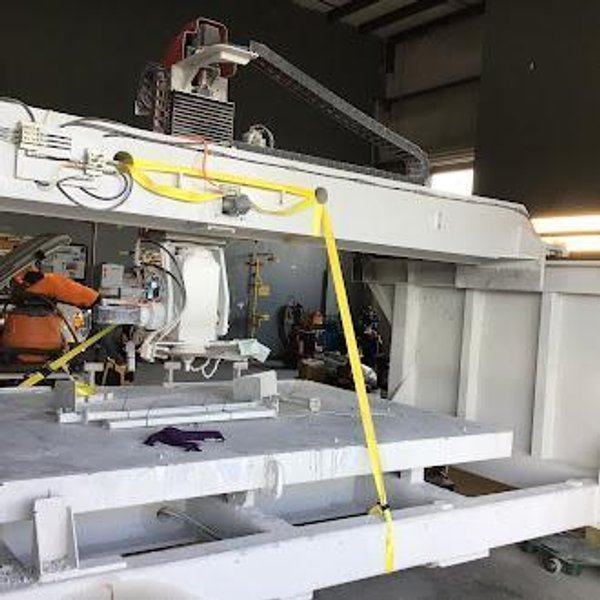

Park Industries VOYAGER XP 5-Axis CNC Bridge Saw, 2023 – 27 HP, Tilt Table, Stone Cutting Machine

2023 Park Industries VOYAGER XP 5-axis CNC bridge saw featuring a powerful 27 HP arbor motor, automatic 0–47° mitering, milling capabilities and a hydraulic tilt table for precision fabrication of granite, quartz, quartzite, porcelain and other dimensional stone materials.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer Park Industries Model VOYAGER XP Year 2023 Machine Type 5-Axis CNC Bridge Saw Primary Application Countertop, architectural and dimensional stone fabrication Arbor Motor 27 HP Axis Configuration True 5-axis CNC operation Blade Capacity 14″, 16″ or 18″ diameter Blade Speed Variable-frequency drive; approximately 1,000–6,000 RPM Automatic Mitering 0–47° Maximum Cutting Depth Approximately 4.5″ with applicable blade Maximum Slab Capacity Approximately 144″ × 84″ Table Hydraulic tilt table Table Surface Lightweight concrete cutting surface Machine Design Monoblock construction Control Modes Automatic CNC and manual operation Milling Capability Tool-bit attachment for routing, coring and profiling Cutting Functions Straight cutting, mitering, contour cutting, step cutting and incremental routing Additional Functions Coring, gauging, straight-line profiling and coping TightCut Capability Blade-plunge functionality for tighter part nesting Compatible Materials Granite, marble, engineered stone, quartz, quartzite, porcelain and ultra-compact materials Approximate Footprint 26′ L × 21′ 6″ W × 10′ H, including recommended clearance Approximate Machine Weight Up to 14,500 lb., depending on configuration

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
