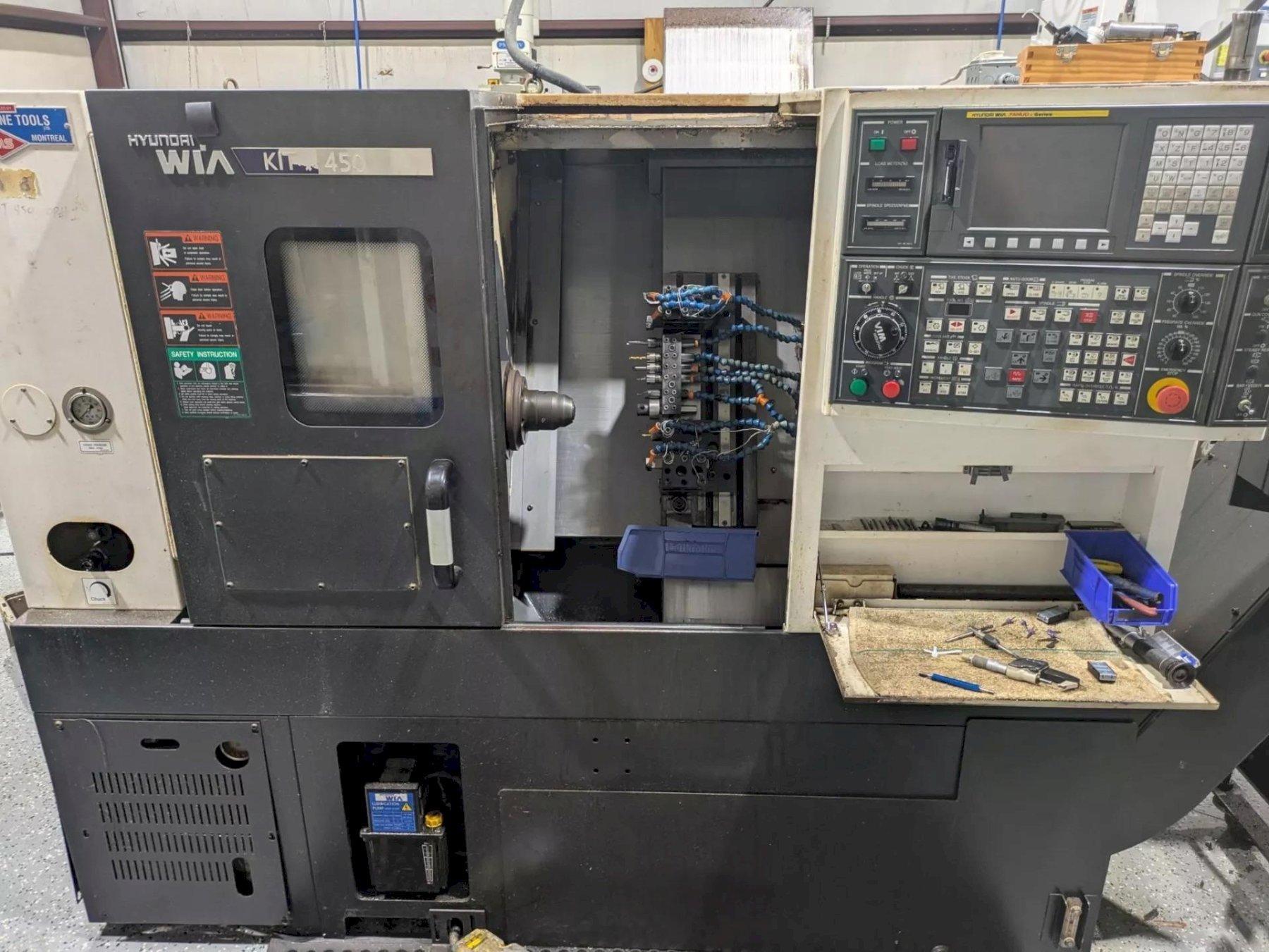

Hyundai Wia KIT-450 CNC Gang Tool Lathe, 2014 – Fanuc Control

SWING OVER BED: 20.9″ MAXIMUM TURNING DIAMETER: 12.8″ MAXIMUM TURNING LENGTH: 12.8″ BAR CAPACITY: 1.8″ CHUCK SIZE: 6.5″ SPINDLE BORE: 2.05″ SPINDLE SPEED: 50–6,000 RPM SPINDLE MOTOR POWER (MAX/CONTINUOUS): 20/15 HP TORQUE (MAX/CONTINUOUS): 70 / 51 FT-LB SPINDLE TYPE: BELT-DRIVEN SPINDLE NOSE: A2-5 TRAVEL (X/Z): 450/300 MM (17.7″/11.8″) RAPID TRAVERSE RATE (X/Z): 1,181 / 1,417 IN/MIN SLIDE TYPE: LM GUIDE NUMBER OF TOOLS: 6 TOOL SIZE (OD/ID): 1″ / 1.25″ ELECTRIC POWER SUPPLY: 20 KVA VOLTAGE/FREQUENCY: 220V / 60HZ MACHINE DIMENSIONS: (82.7″ × 56.5″ x 72″) WEIGHT: (5,952 LBS)

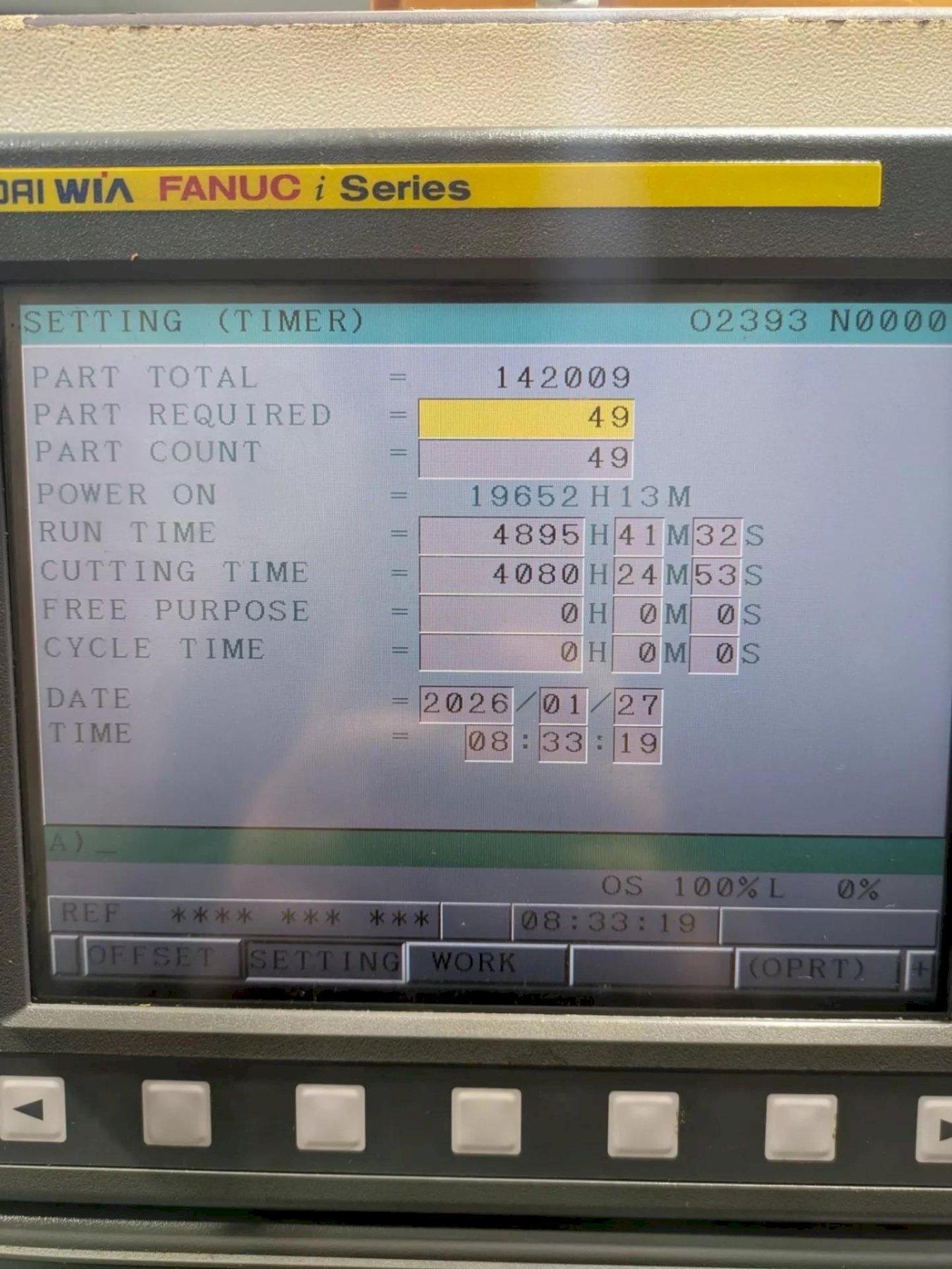

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: FANUC I SERIES

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
