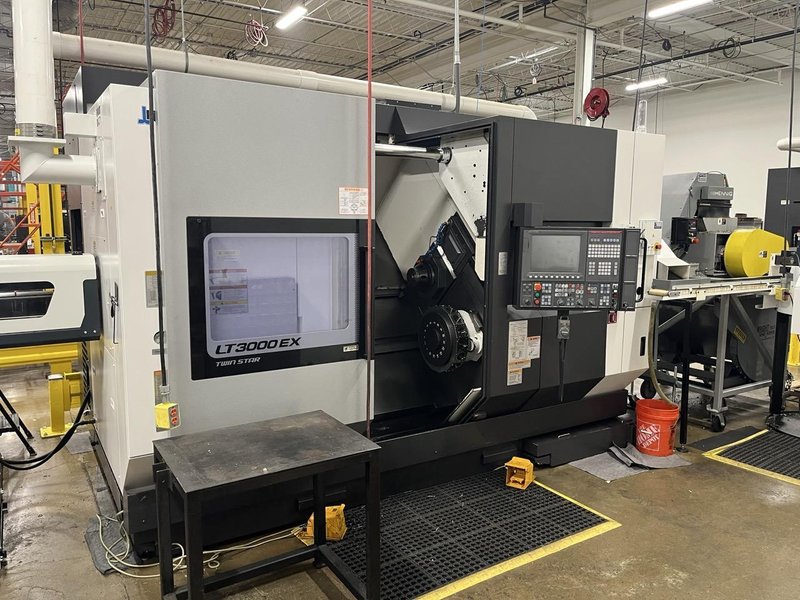

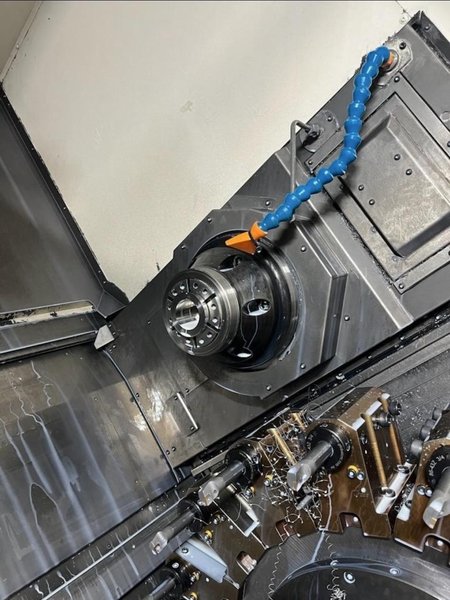

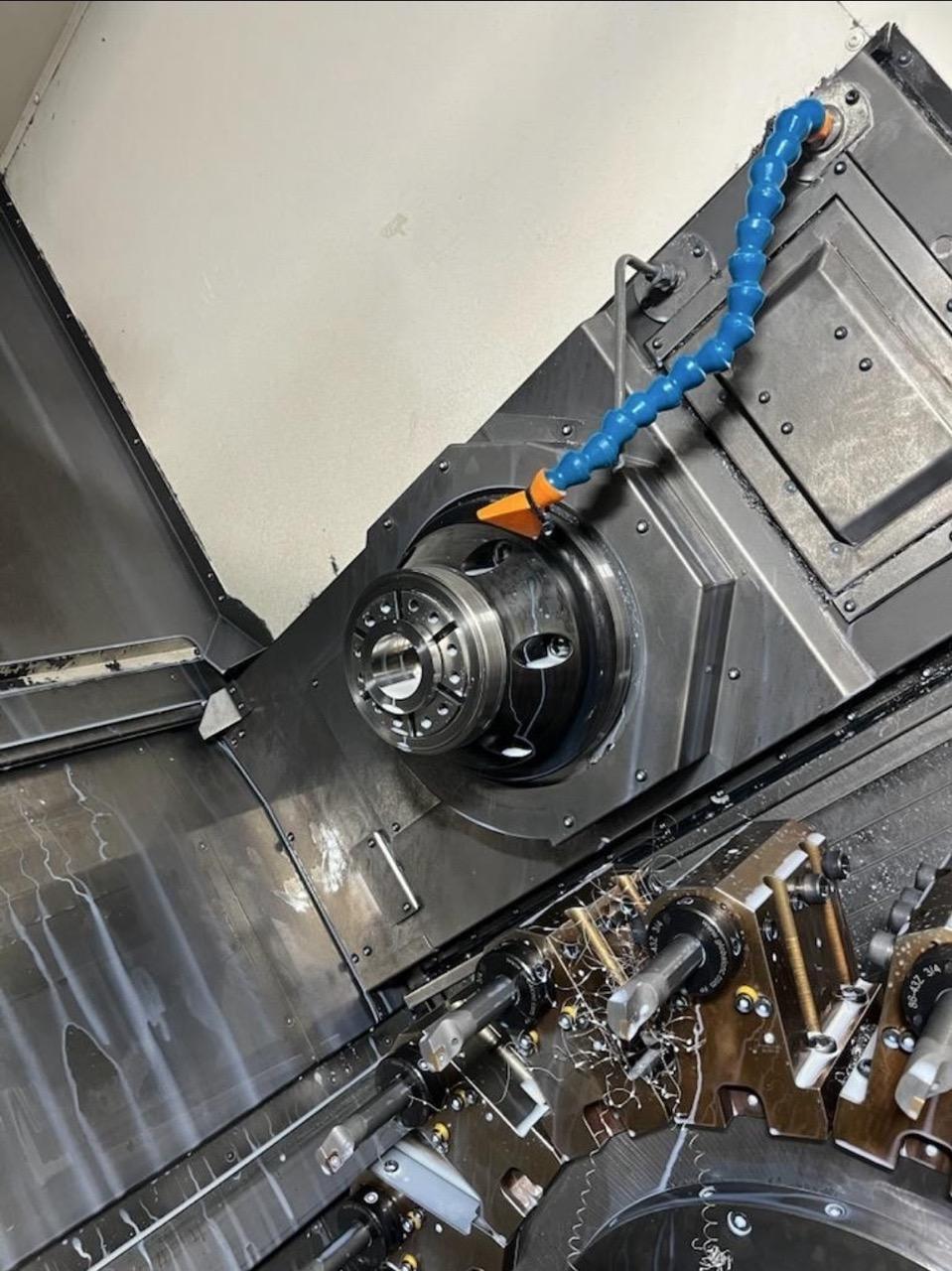

Okuma LT3000 EX Twin Star Multi Axis CNC Lathe, 2020 – Renishaw Probe, Bar Feeder, Chip Conveyor

Max Swing: 21.65″ Max Turning Diameter: 13.78″ Max Turning Length: 36.61″ Distance Between Centers: 47.24″ Bar Capacity: 3.15″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travels X-Axis: 10.04″ Y-Axis: 4.92″ Z-Axis: 36.61″ Sub-Spindle: 37.01″ C-Axis: 0.001° Indexing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Nose: A2-8 Speed Range: 45-4,200 RPM Motor: 40 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Traverse X-Axis: 1,181 IPM Y-Axis: 1,574 IPM Z-Axis: 787 IPM

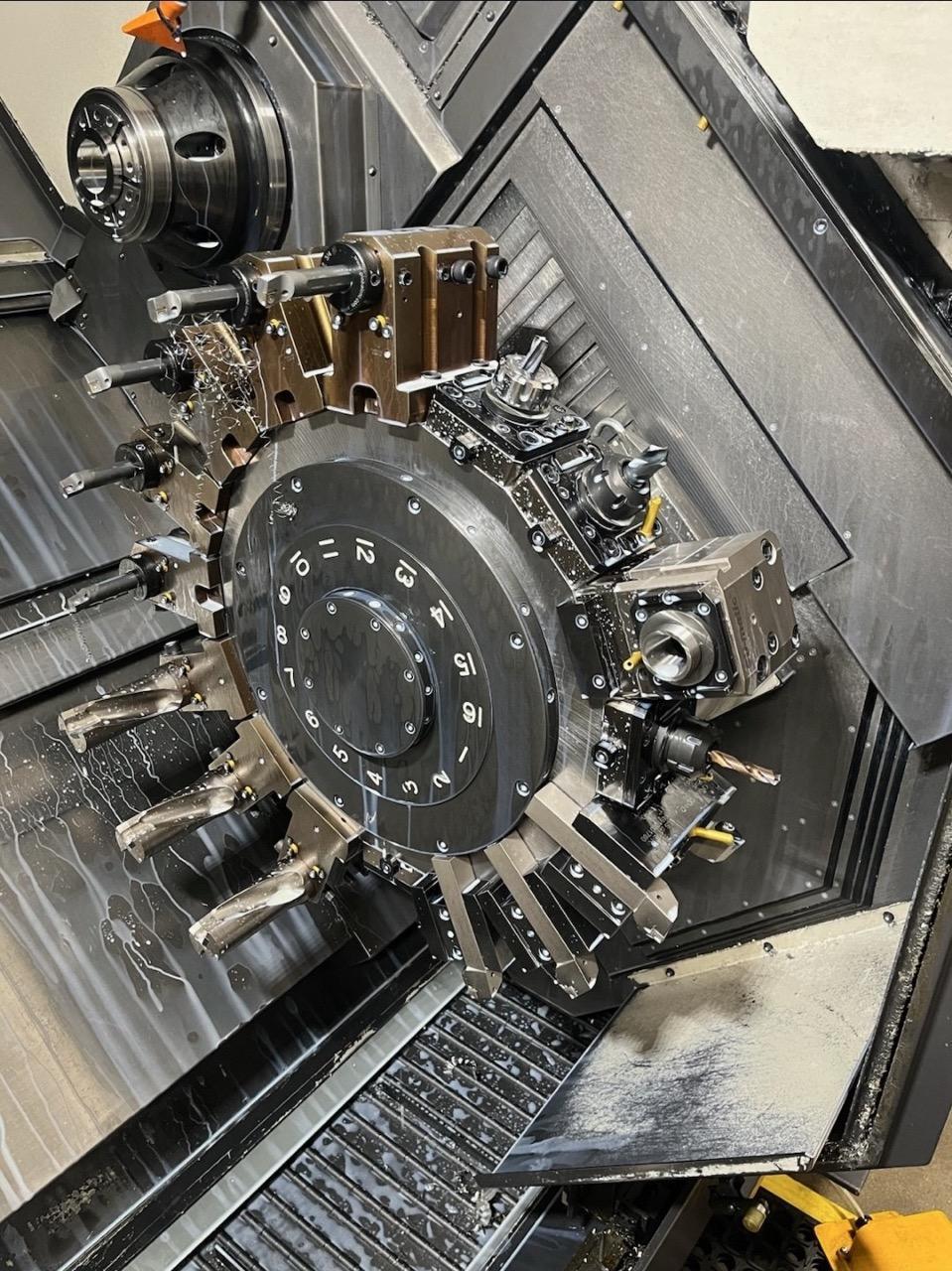

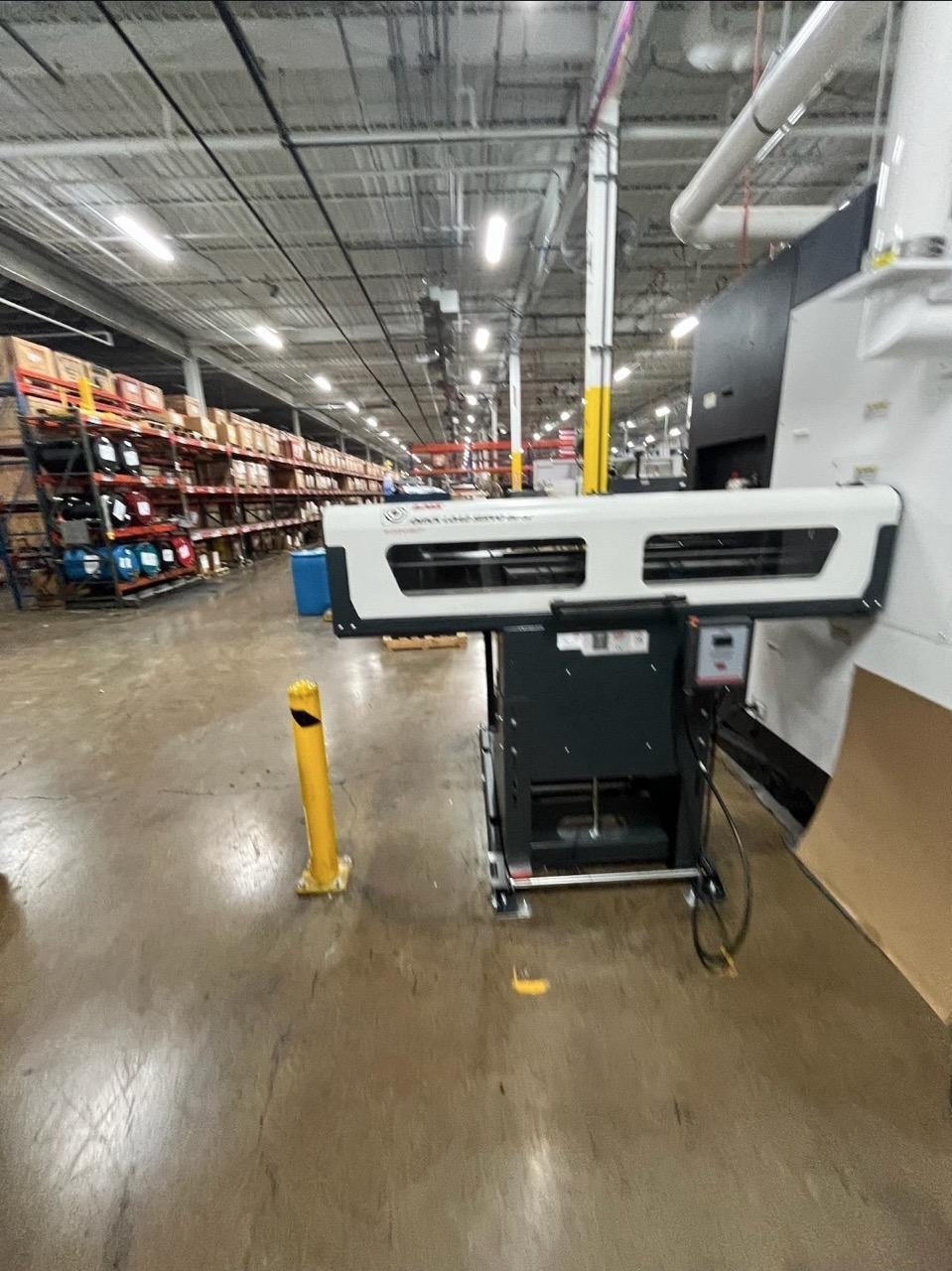

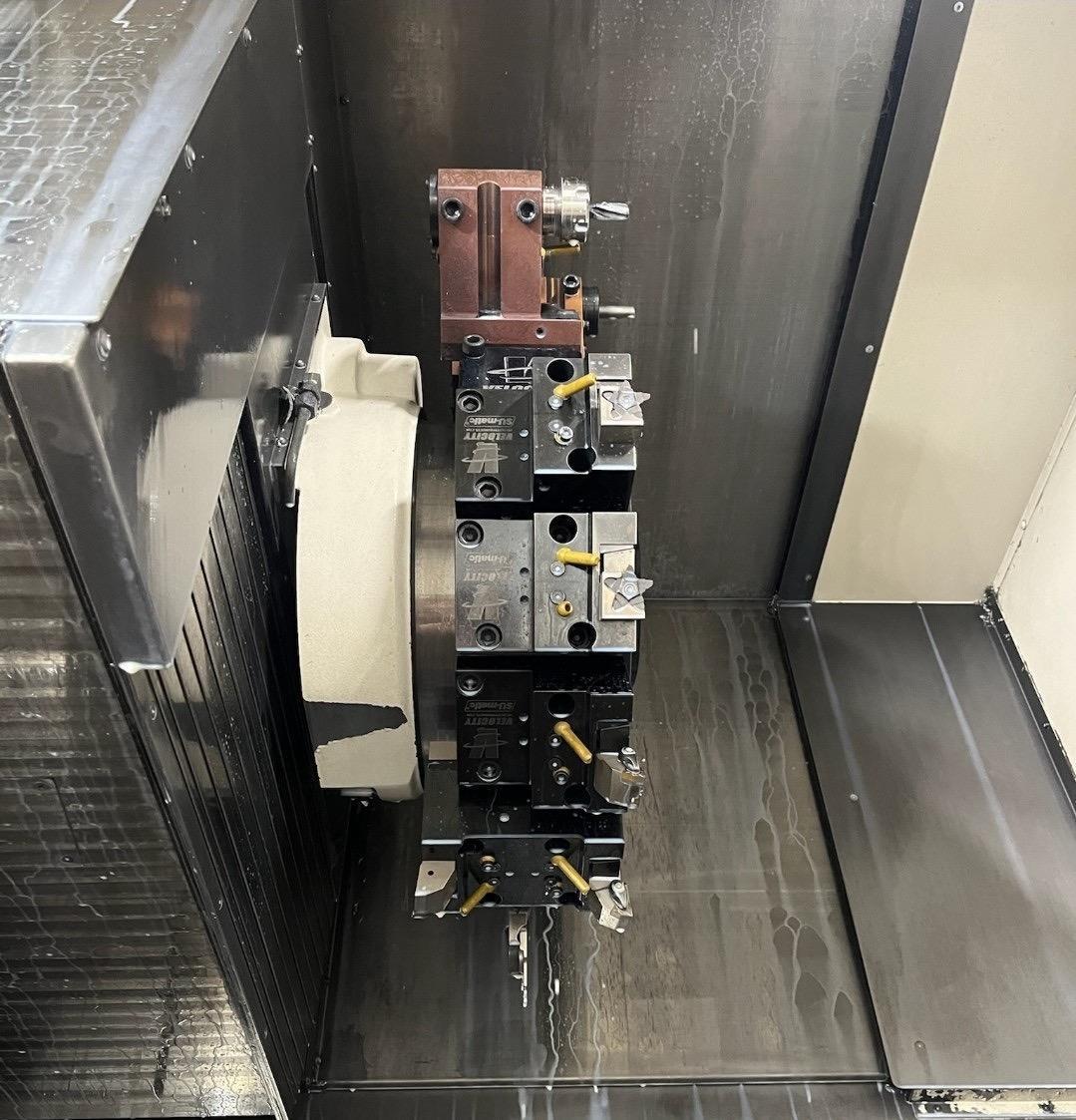

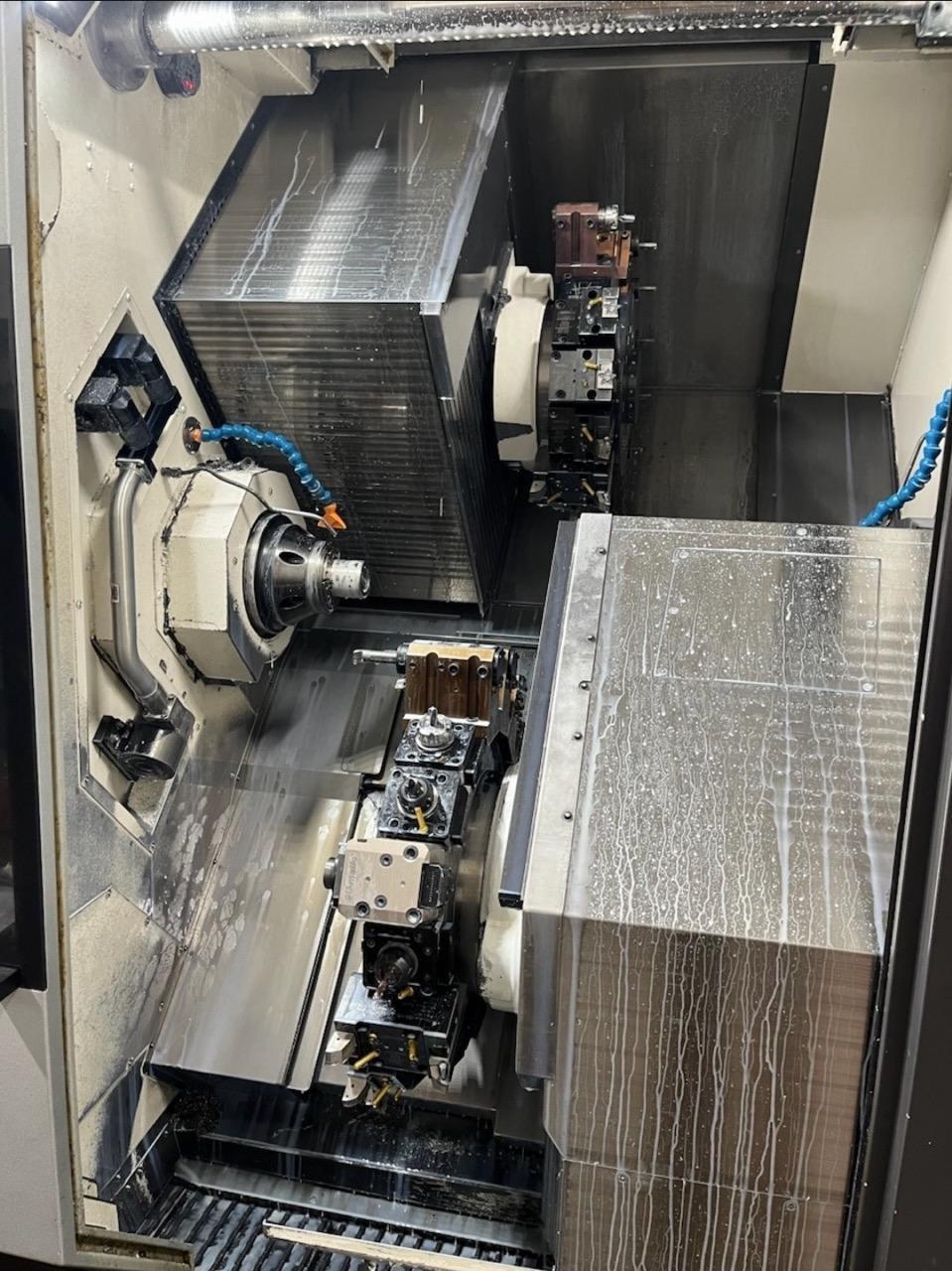

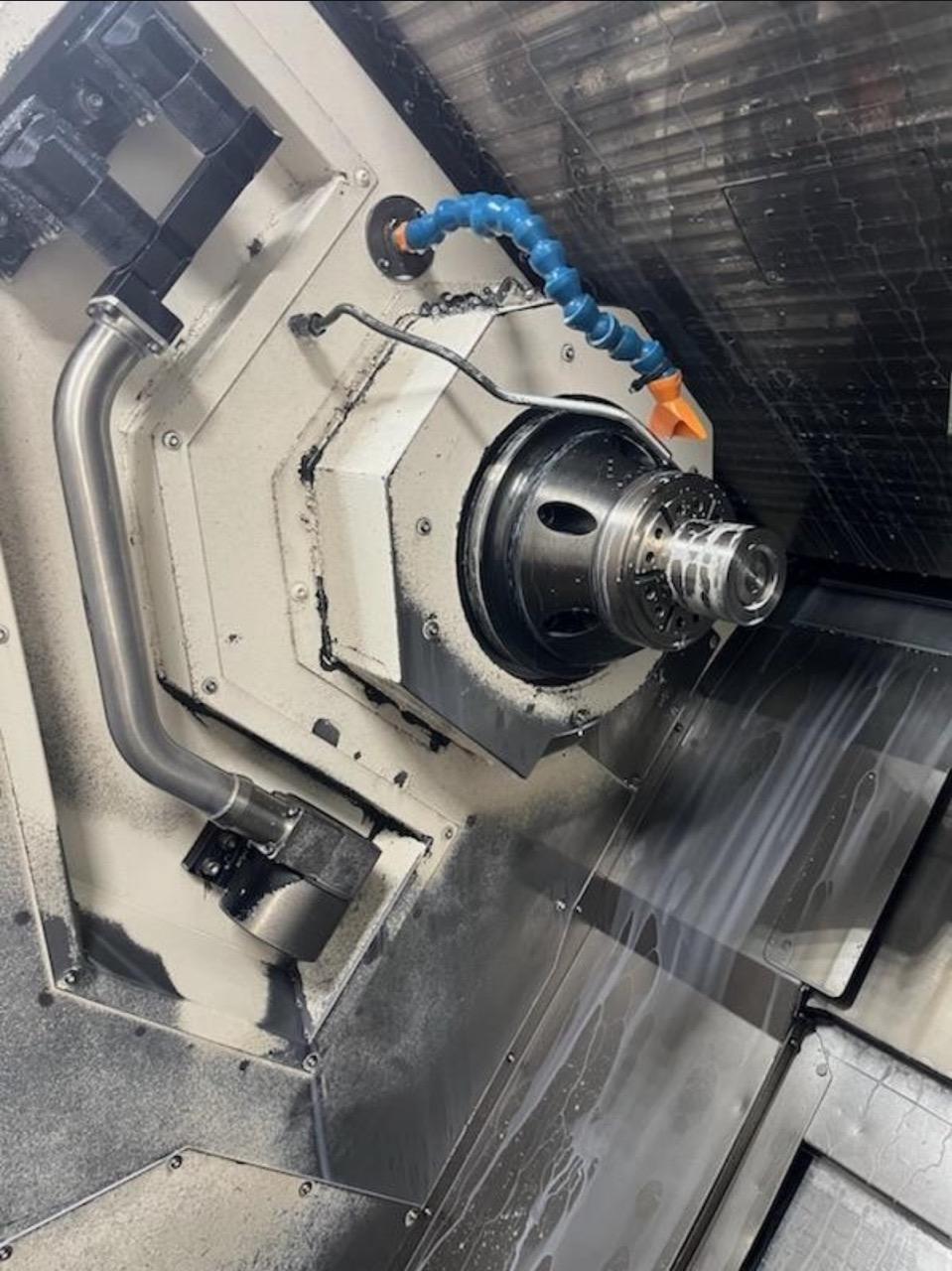

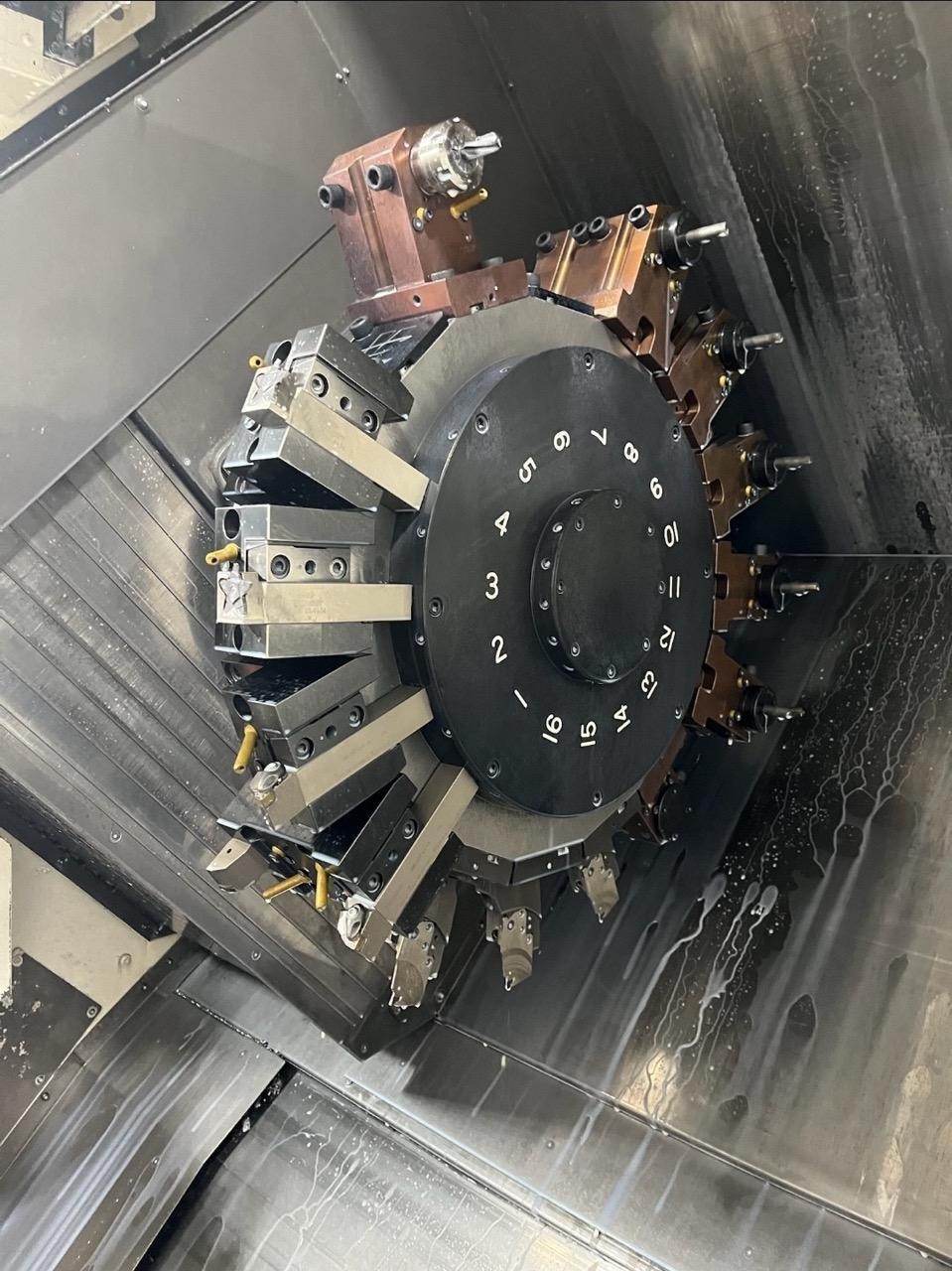

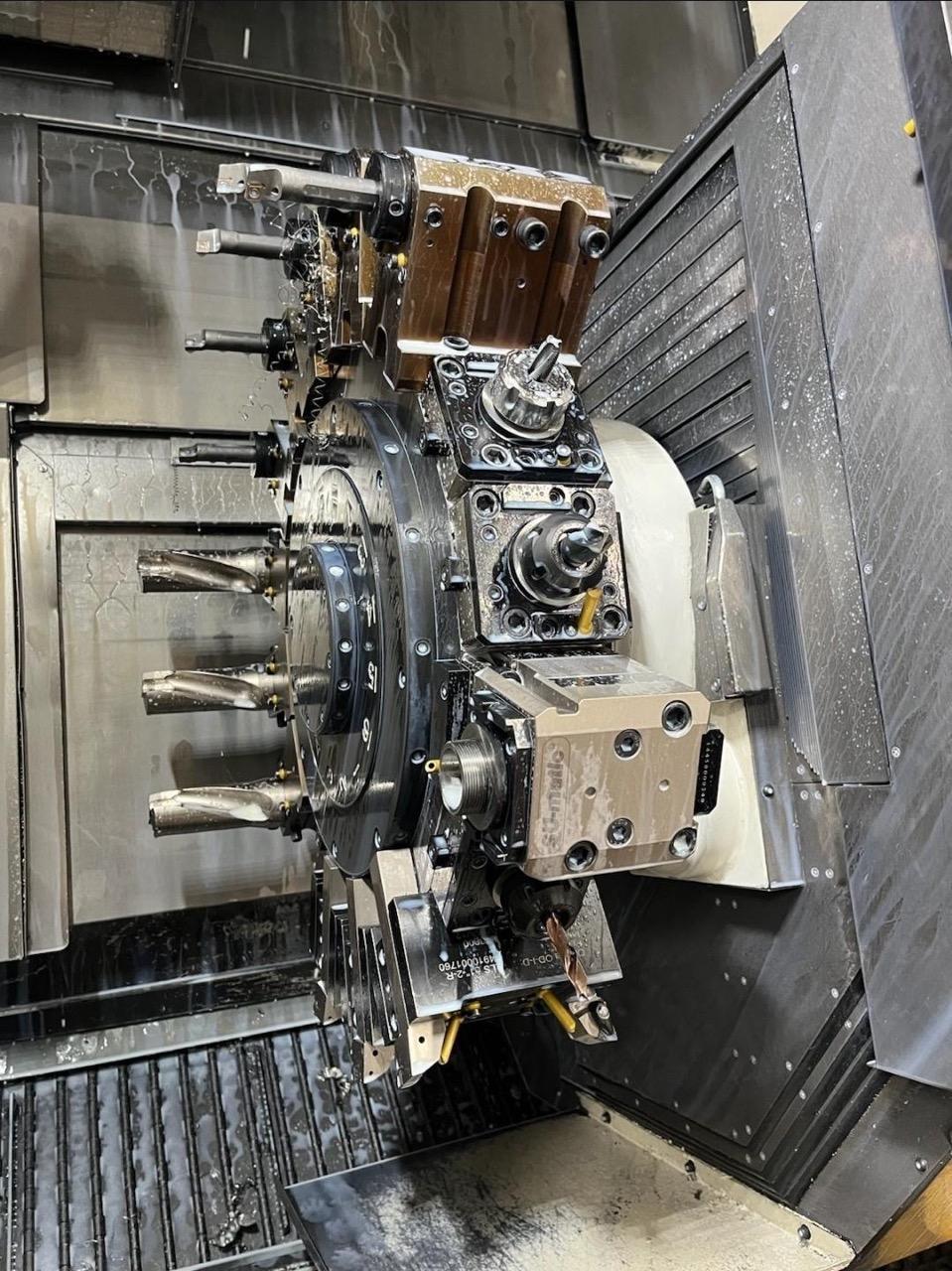

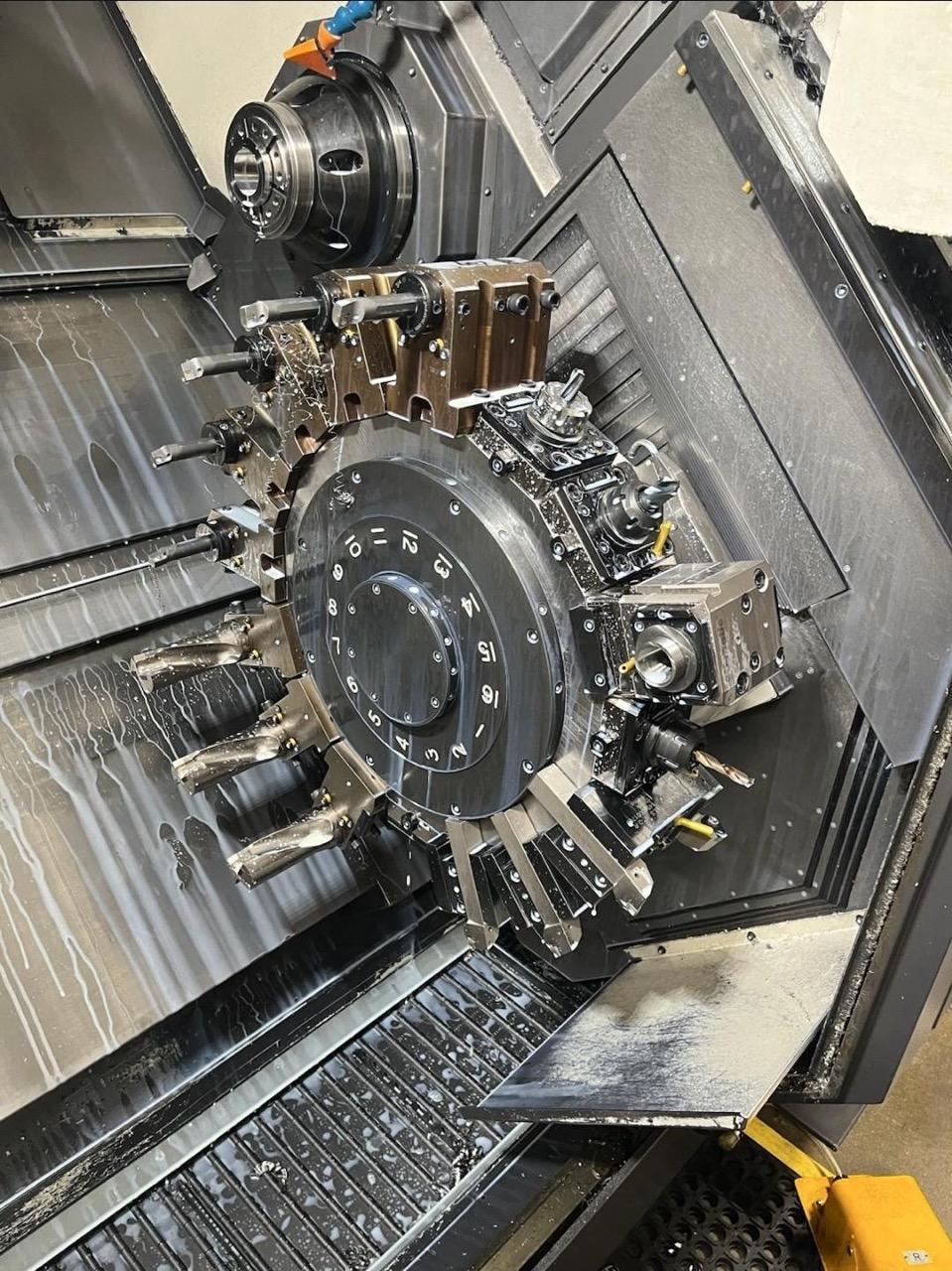

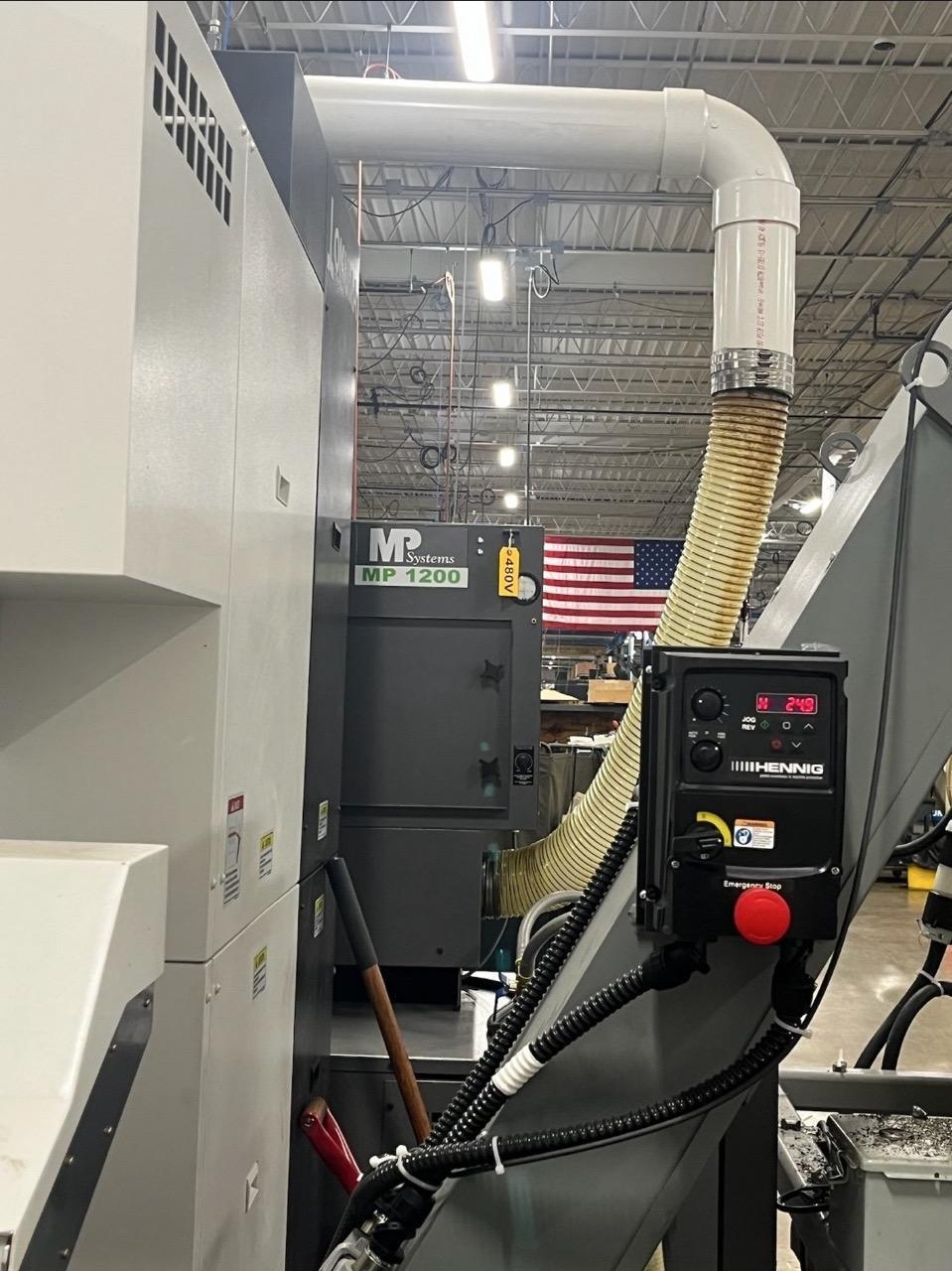

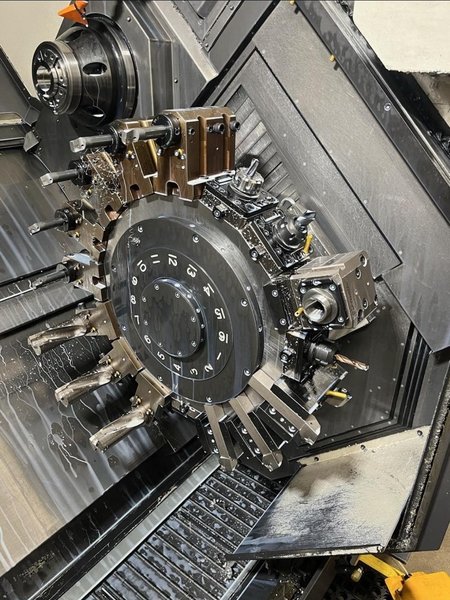

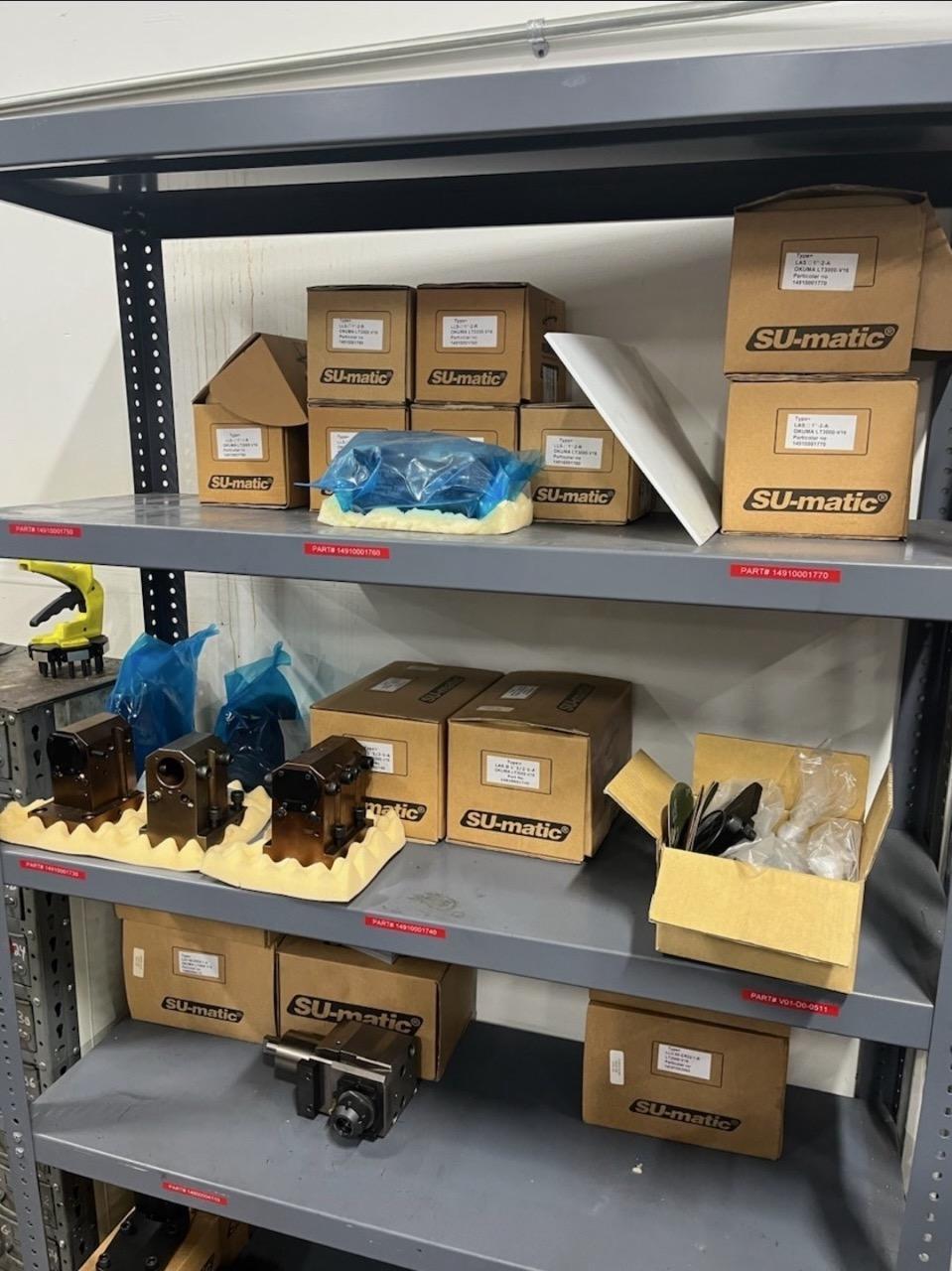

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Twin Star Dual Spindle Dual 16-Station Live-Tool Turrets OSP-P300L Control with IGF Renishaw RLP40 Probing Auto Gauging Package Collision Avoidance System 1,000 PSI Coolant System Chip Conveyor Through-Spindle Air Blast LNS Servo 80 S2 Bar Feeder Royal QG80 Quick-Change Collet Chuck

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: ~13.2′ L x 9.2′ W x 9.8′ H Weight: ~25,000 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
