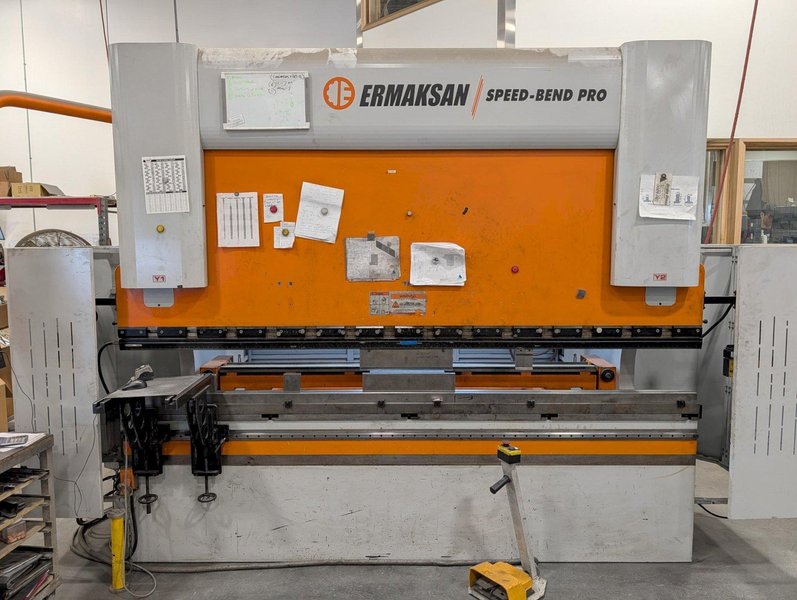

Ermak Speed-Bend Pro 10×149 CNC Hydraulic Press Brake, 2015 – 4-Axis Backgauge, Wila Hydraulic Clamping, ER90 Plus Control

Capacity: 149 Tons Bending Length: 10′ Control: ER90 Plus CNC Backgauge Axes: X, R, Z1, Z2 Y-Axes: Y1, Y2 Approach Speed: 7.8 IPS Motor Power: 25 HP Voltage: 575 V Ingress Protection Rating: IP54 Overall Length: 167.3″ Overall Width: 80.7″ Overall Height: 110.2″ Weight: 17,419 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

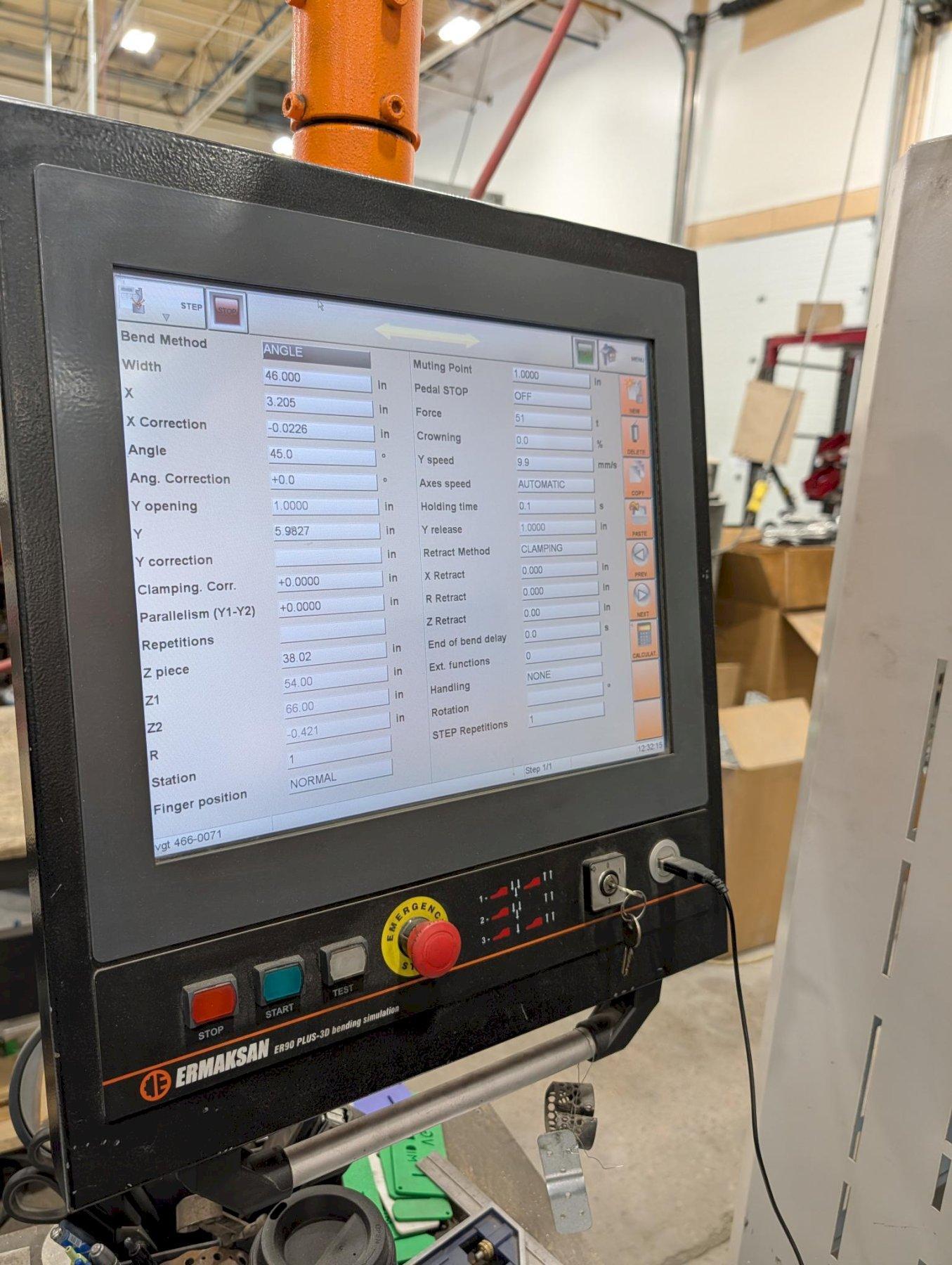

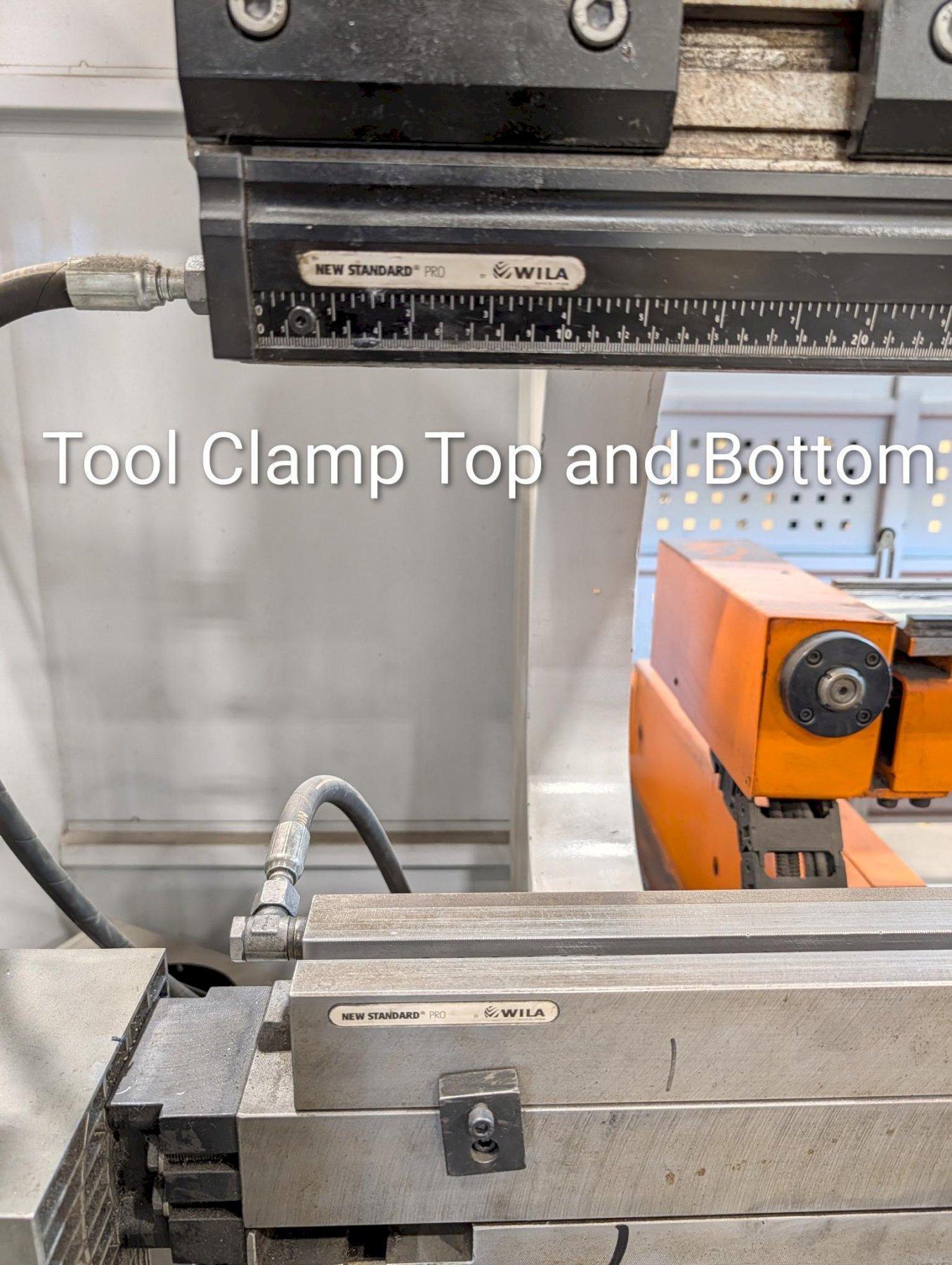

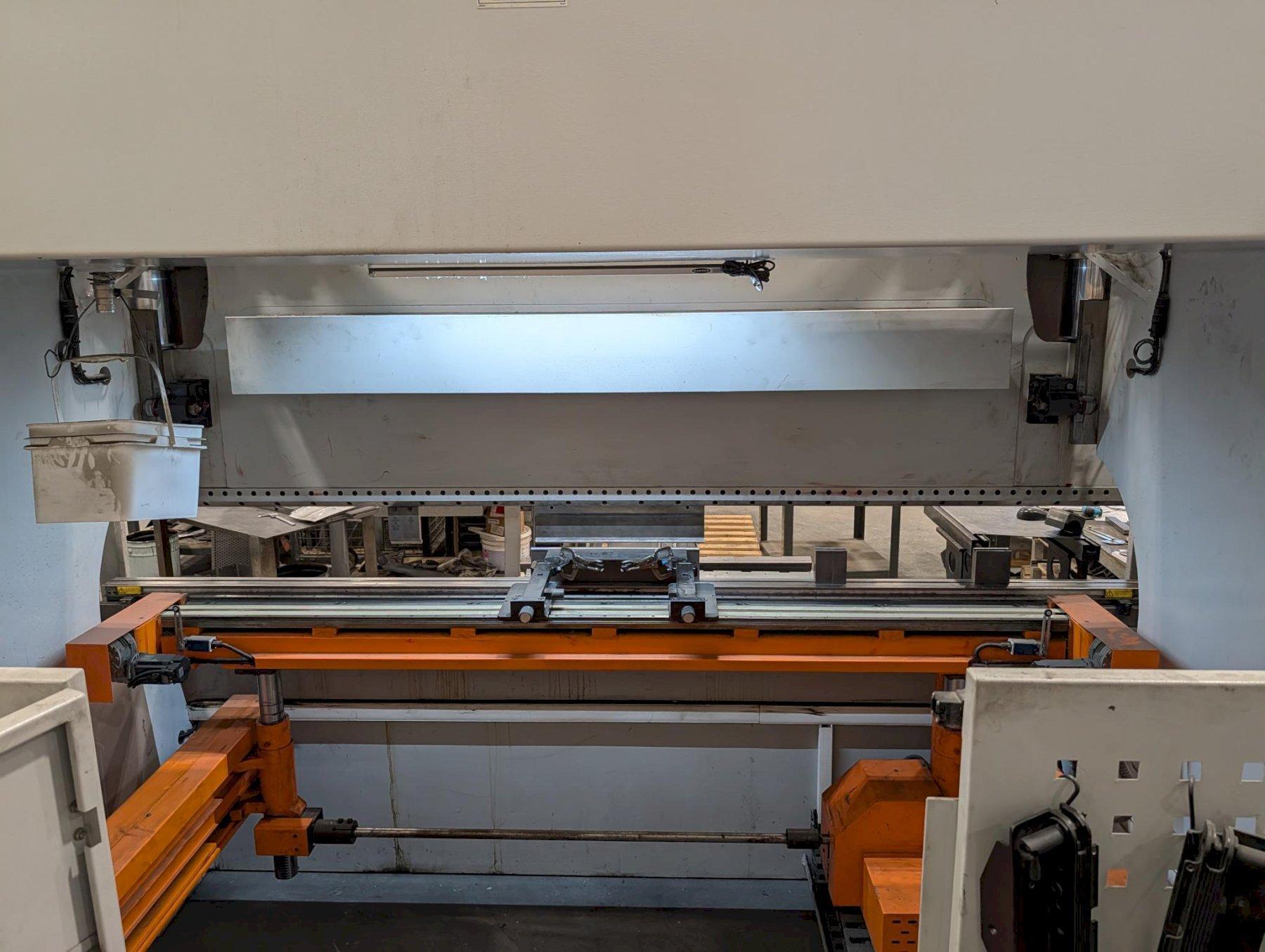

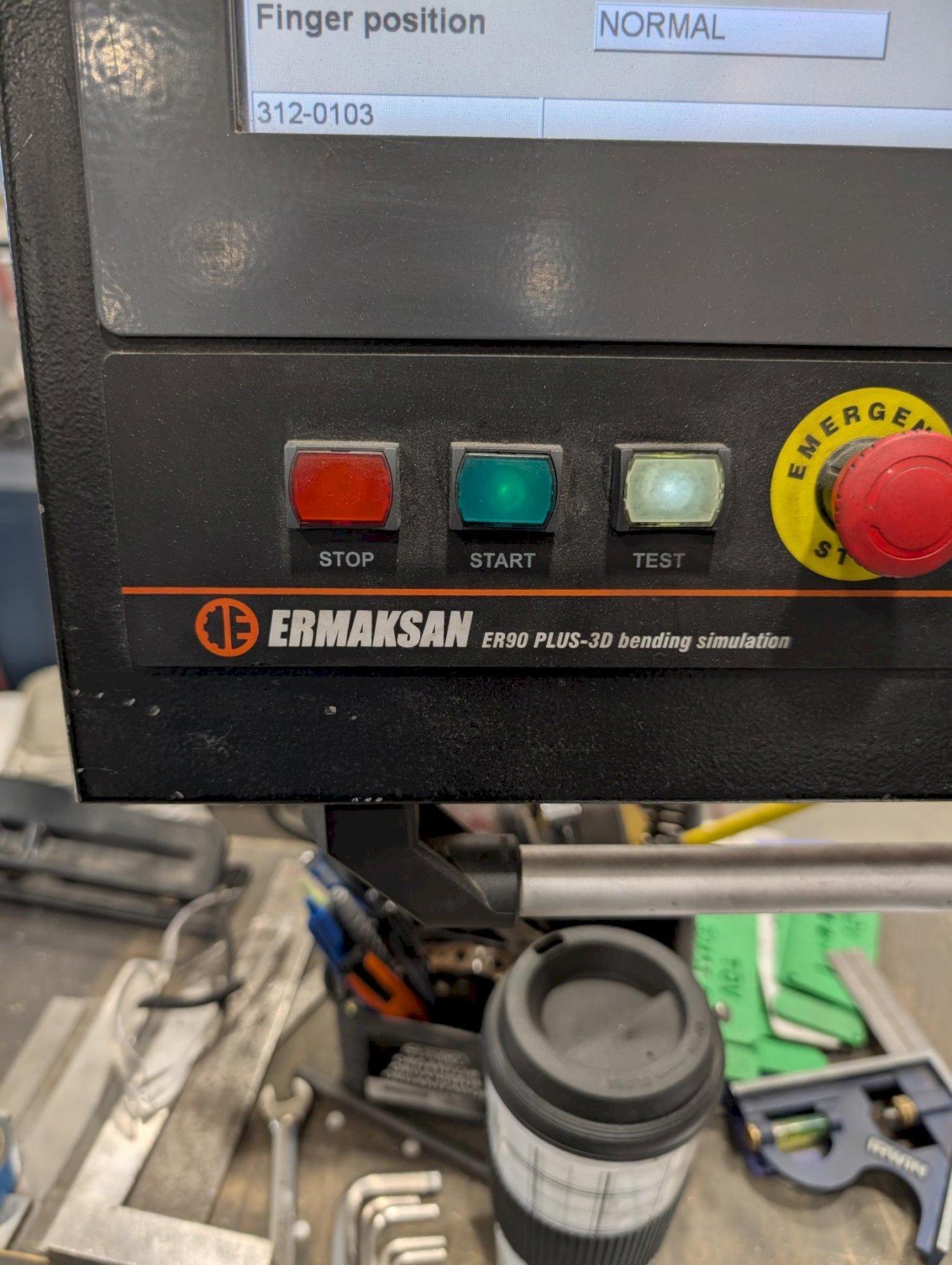

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ER90 Plus CNC Control X R Z1 Z2 CNC Backgauge Y1 Y2 Ram Axis Control Wila Trumpf Style Hydraulic Top Clamping Wila Trumpf Style Hydraulic Bottom Clamping CNC Crowning System Hydraulic Press Brake Design Front Support Arms Safety Guarding Foot Pedal Control Precision Linear Scale Feedback System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
