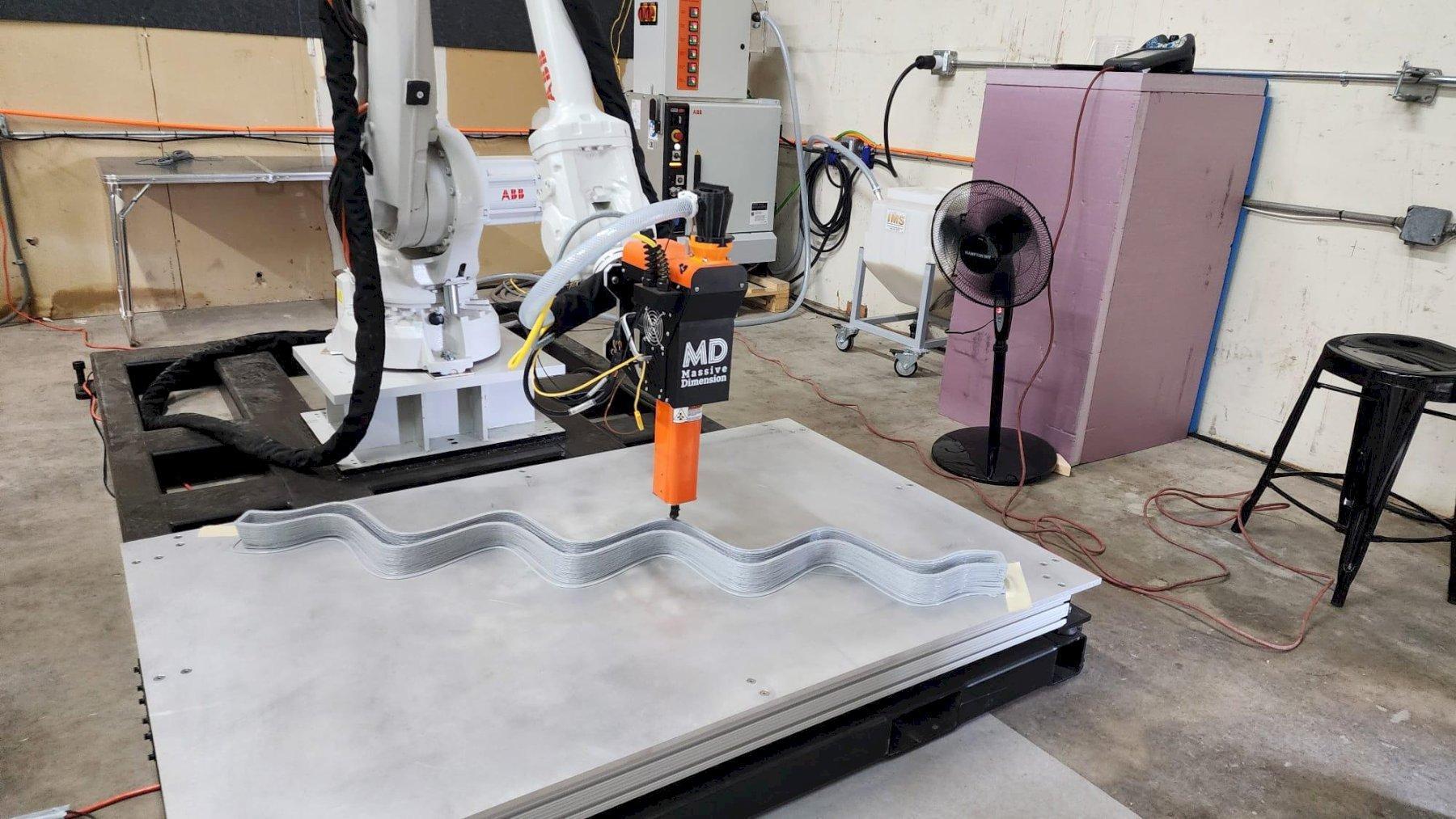

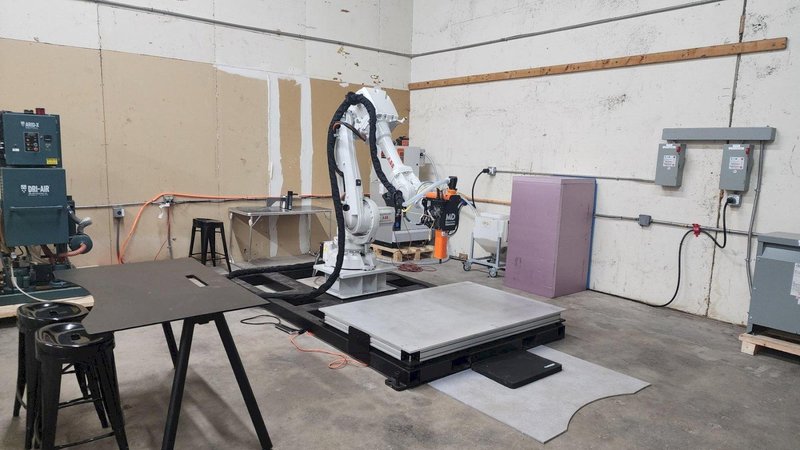

ABB IRB 4600L Robot Cell w/ MDPE‑10 Pellet Extruder, 2025 – Large Format Additive Manufacturing

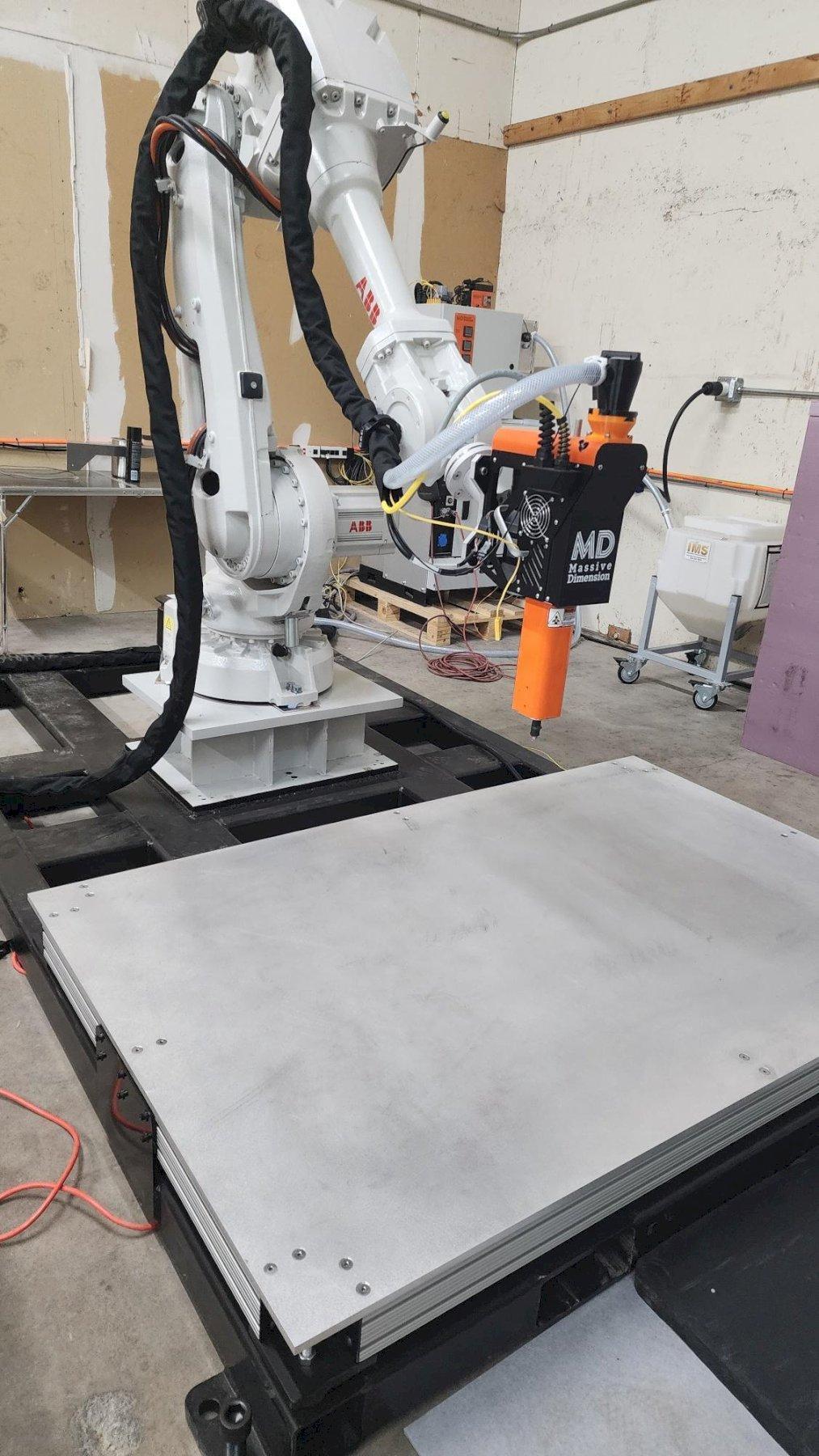

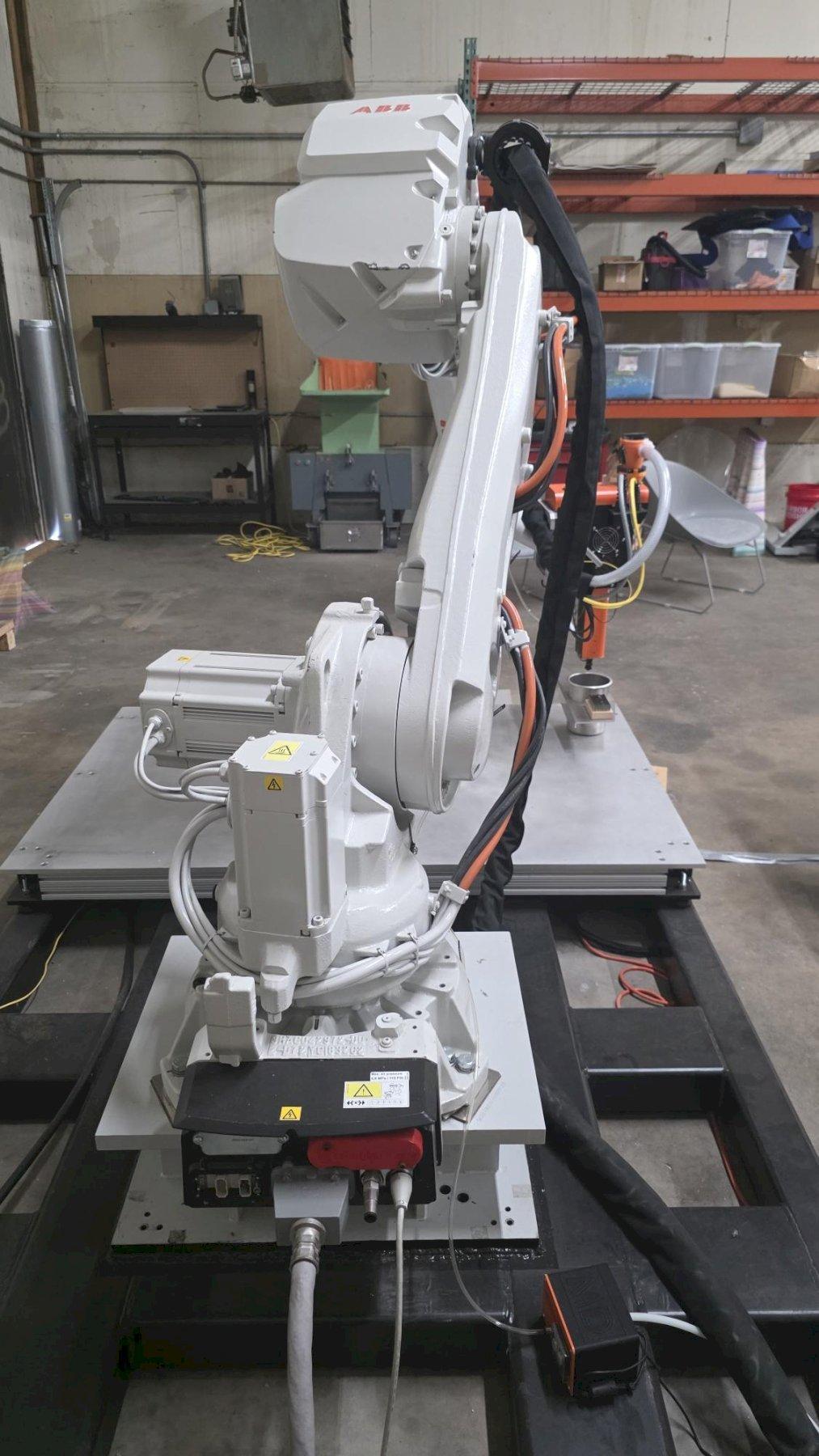

ABB IRB 4600 Robot (60kg / 2.05m reach)

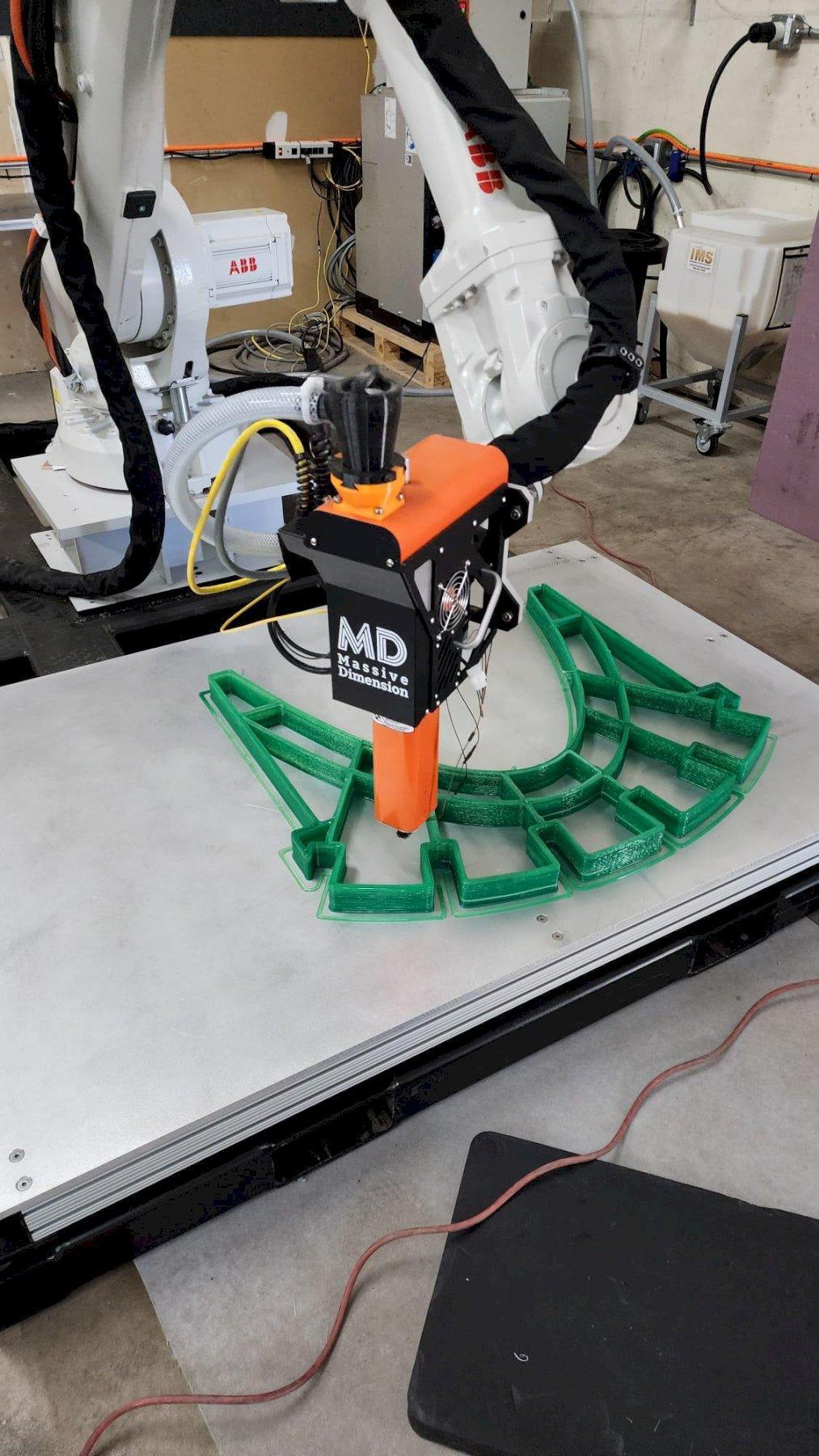

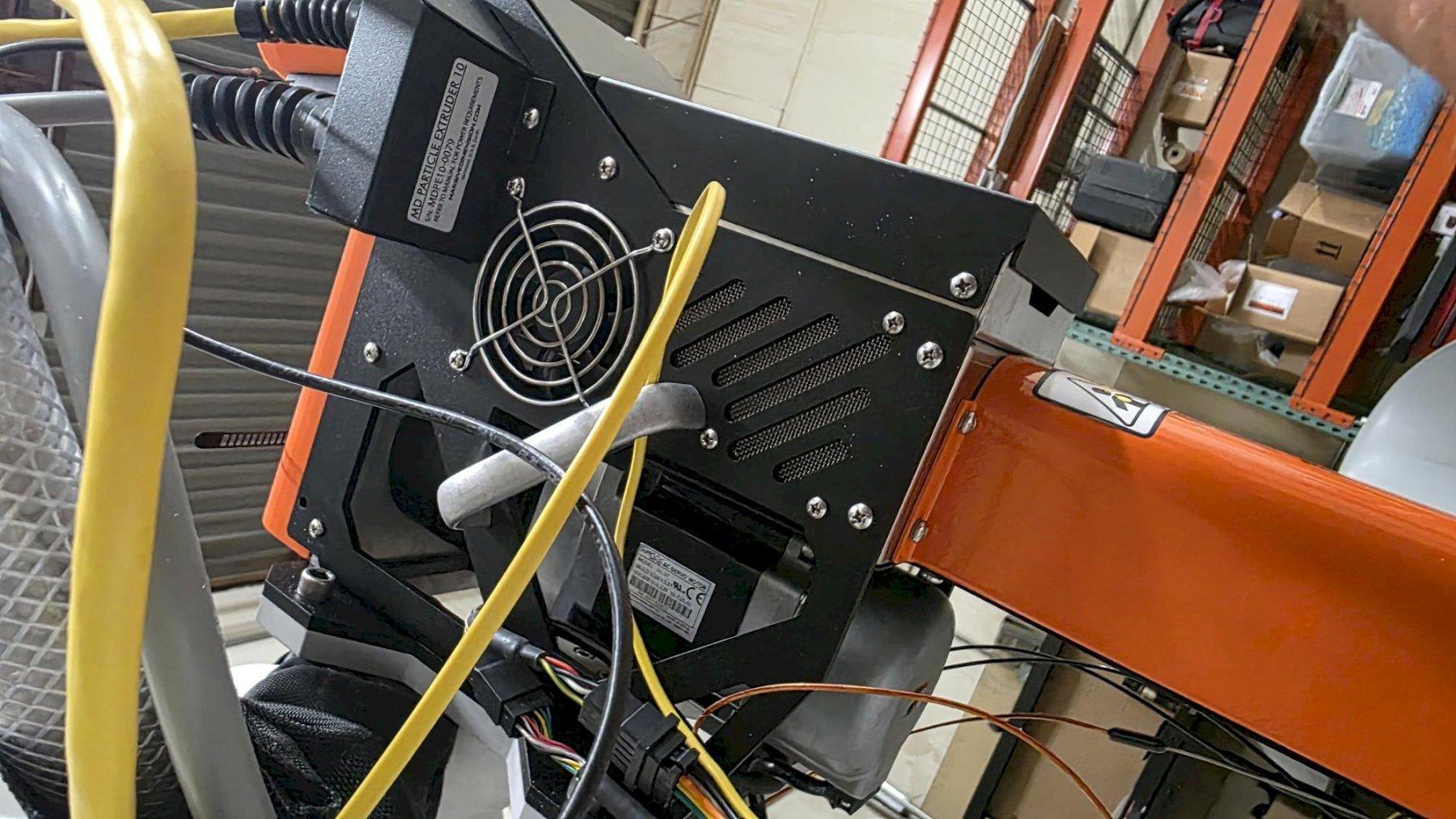

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MDPE10 Pellet Extruder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3 ft x 5 ft Heated Build Surface

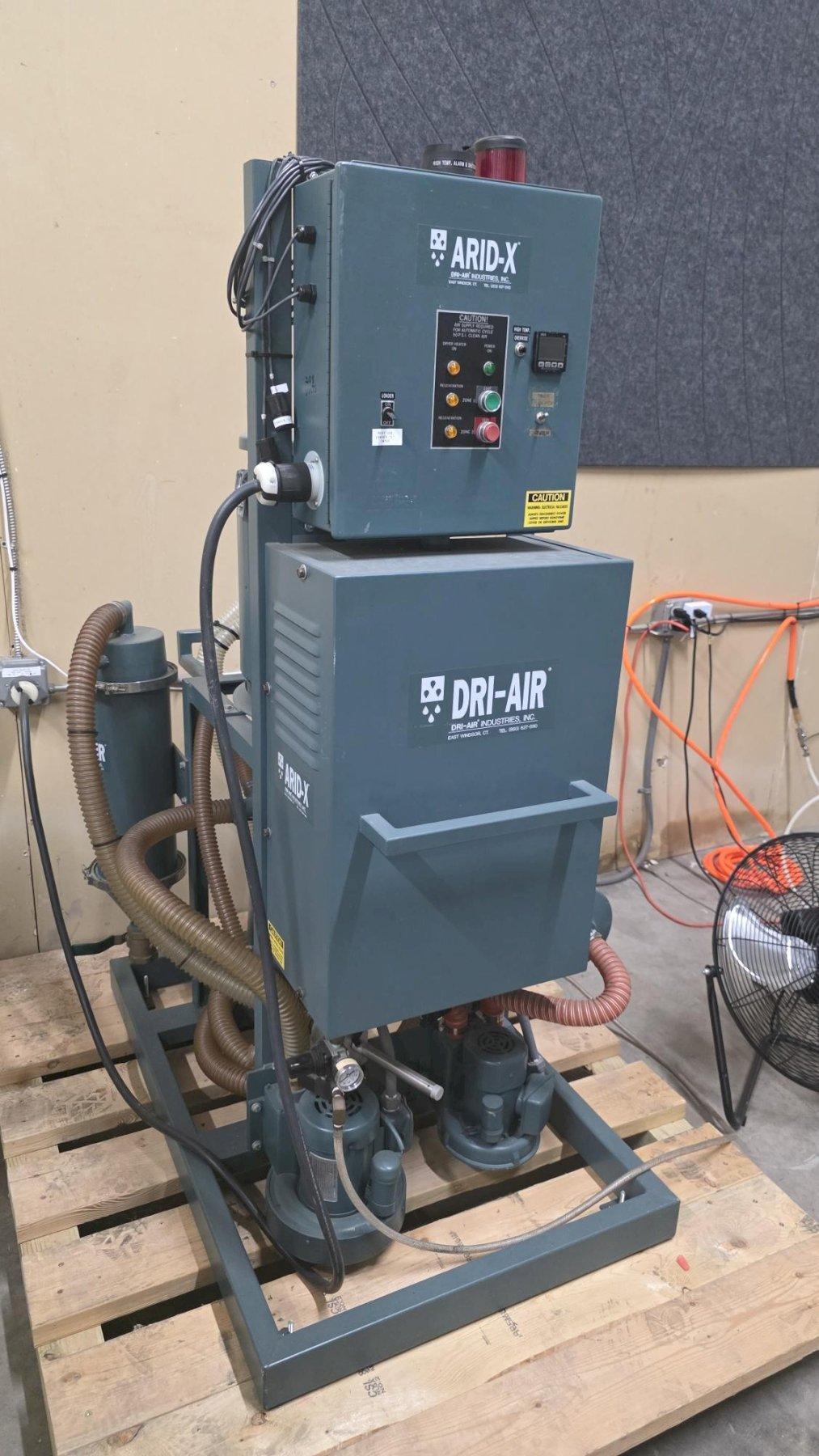

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MD Pellet Dryer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MDMCU – Material Control Unit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Built-In Camera Monitoring System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Industrial Safety Panel System

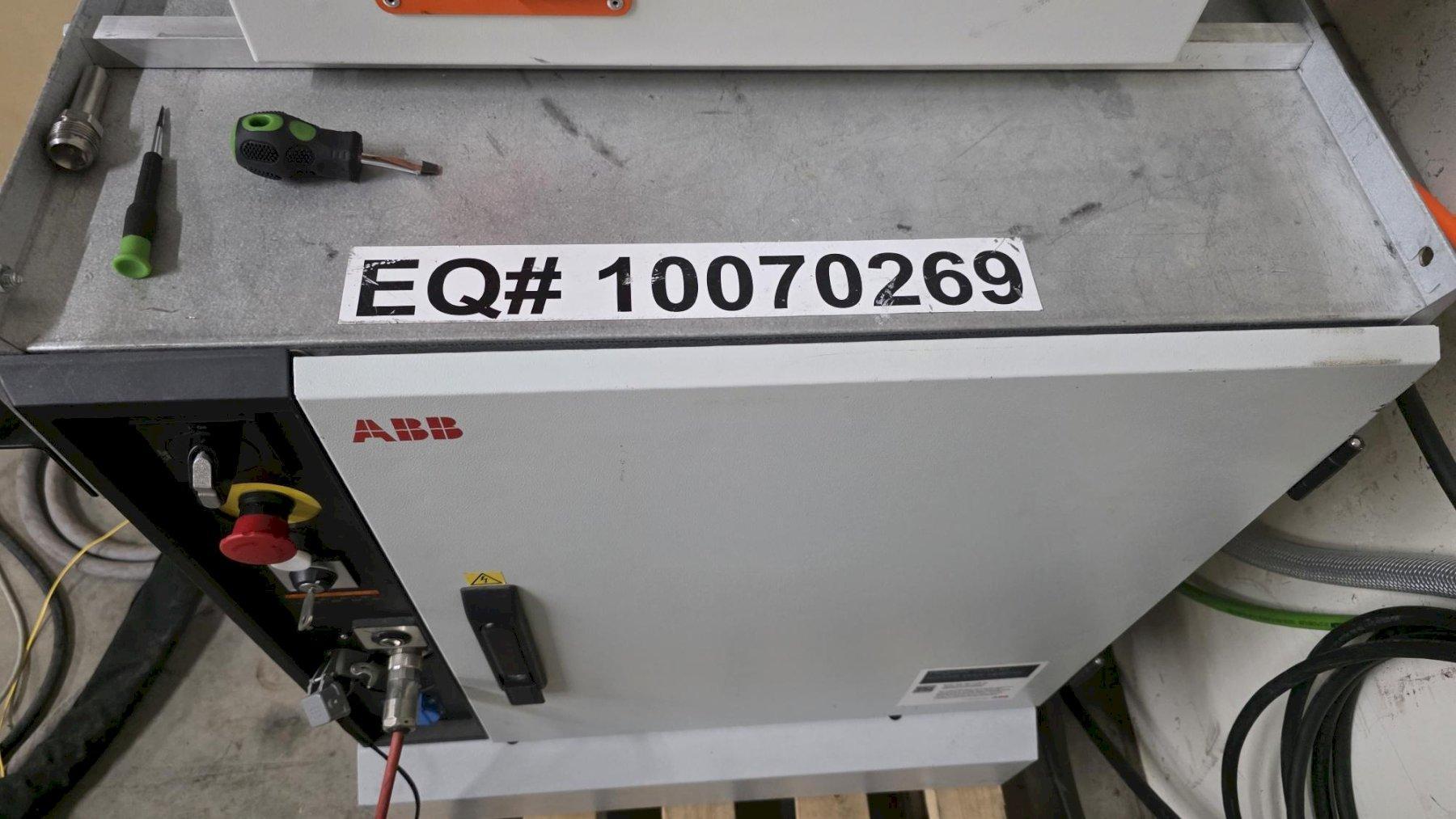

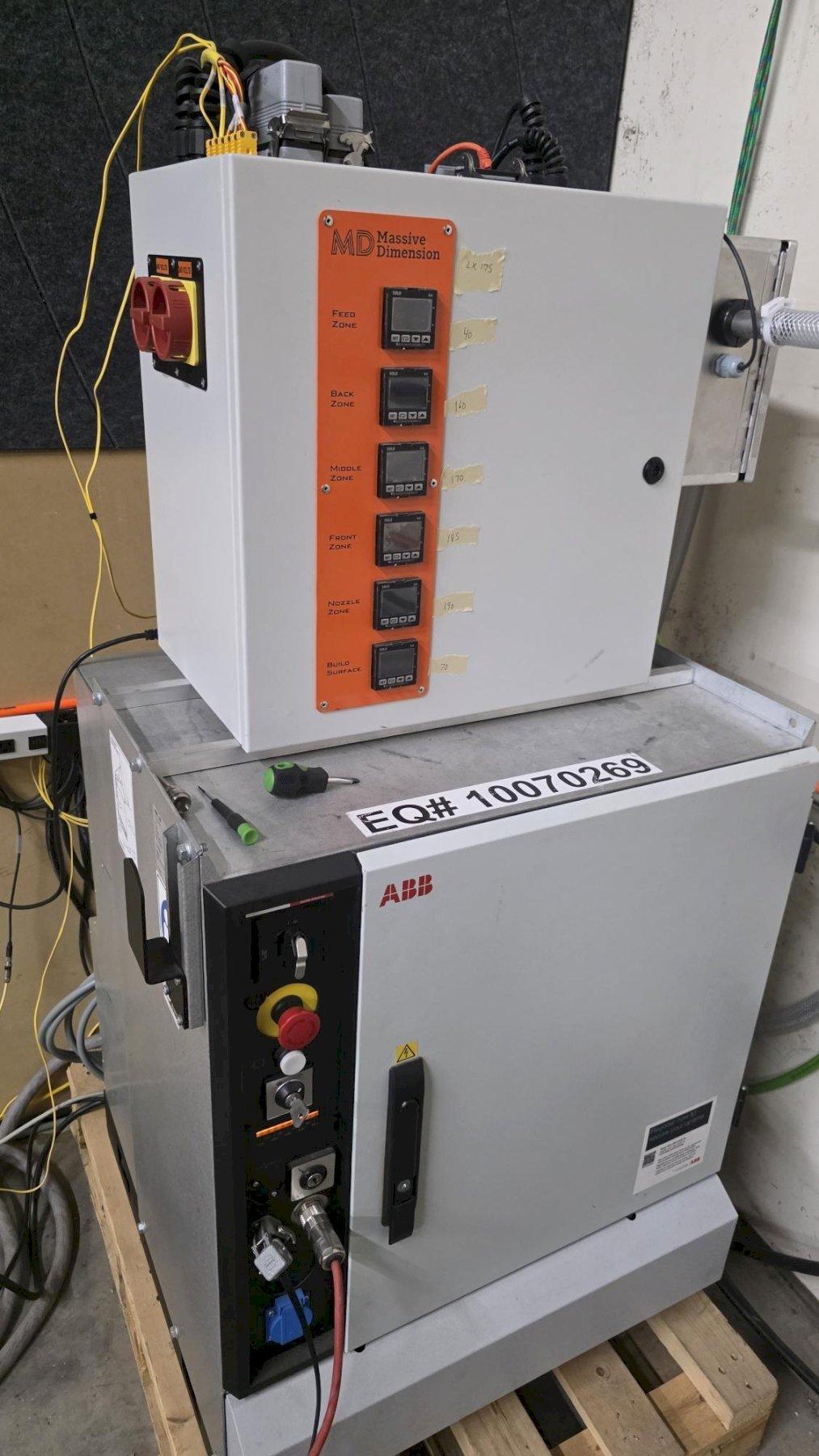

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MD Process Cabinet and Cabling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Technical Specifications

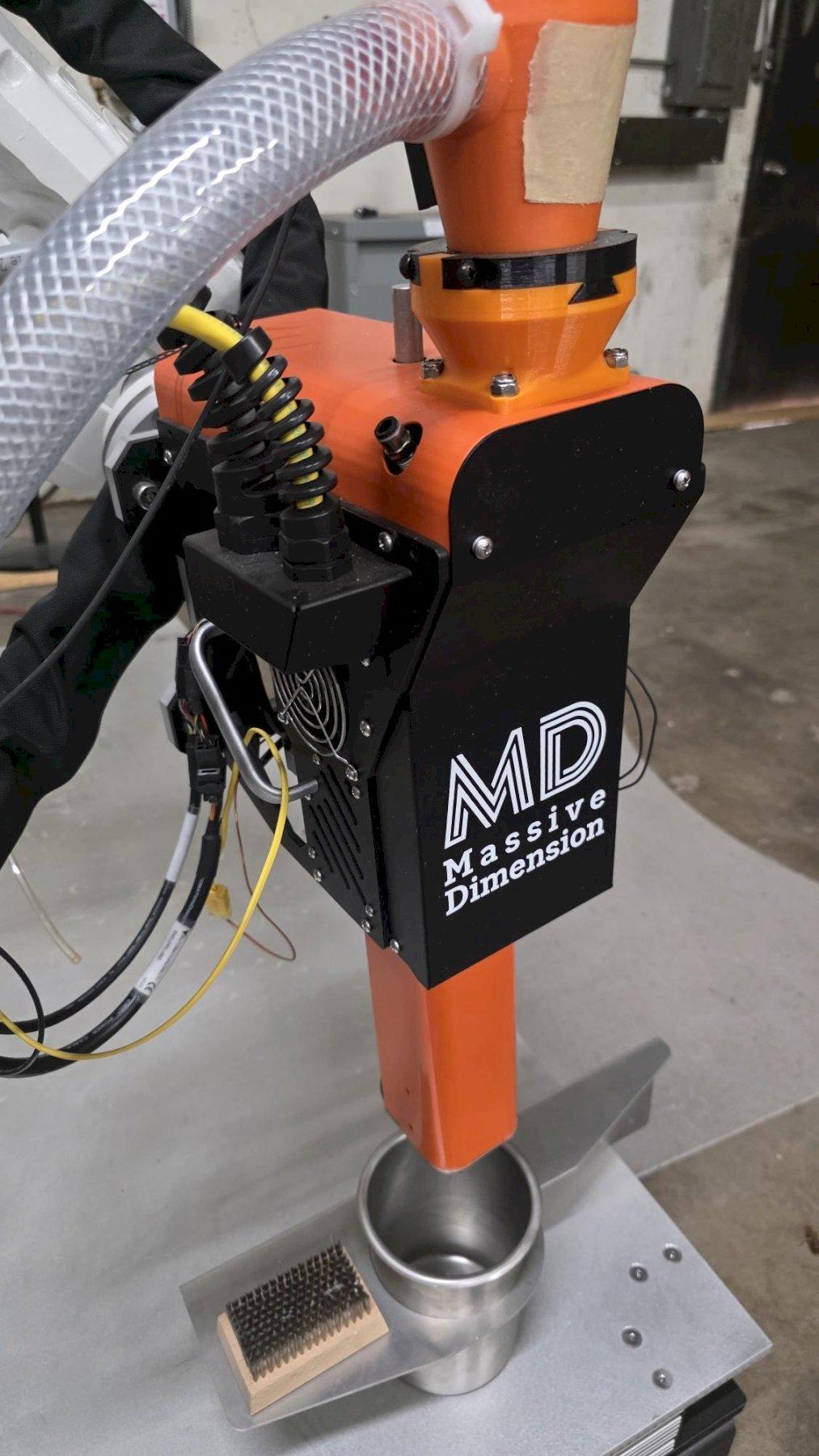

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extruder: MDPE10 – high-flow pellet-fed system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material Input: Thermoplastic pellets

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Output: 10 lbs/hour

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Nozzle Size Range: 0.4mm to 6.0mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Extruder Temp: 450°C

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Build Volume: ~2.85 m³

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Printing Capabilities: Multi-planar, non-planar, and angle-based toolpaths

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Optional Milling: Available for hybrid additive-subtractive workflows

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Material Handling: Includes drying and feeding control via MDMCU

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Remote Monitoring: Integrated camera for live monitoring and time-lapse recording

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Software Compatibility

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,AdaOne by Adaxis

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,AiBuild
