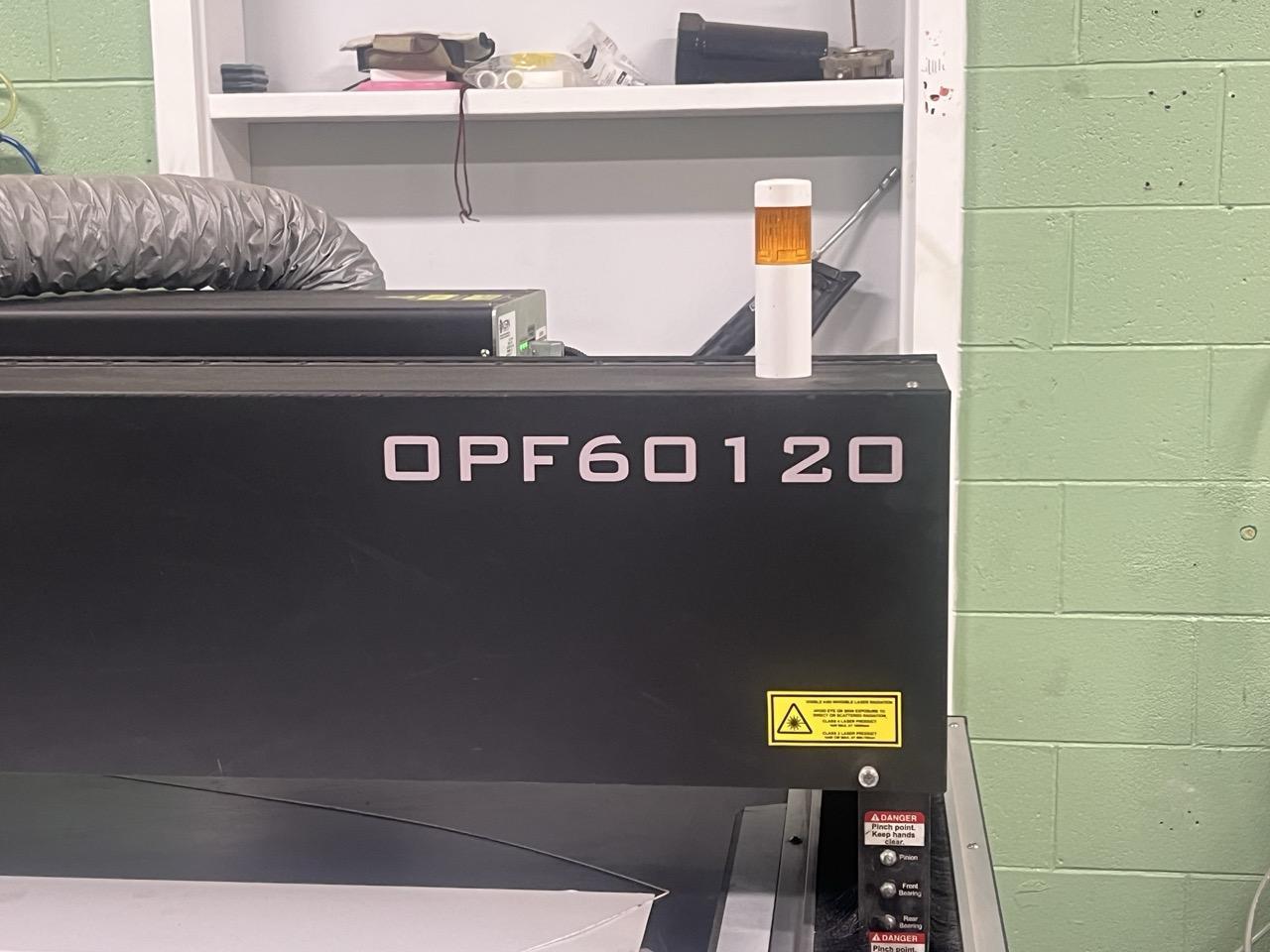

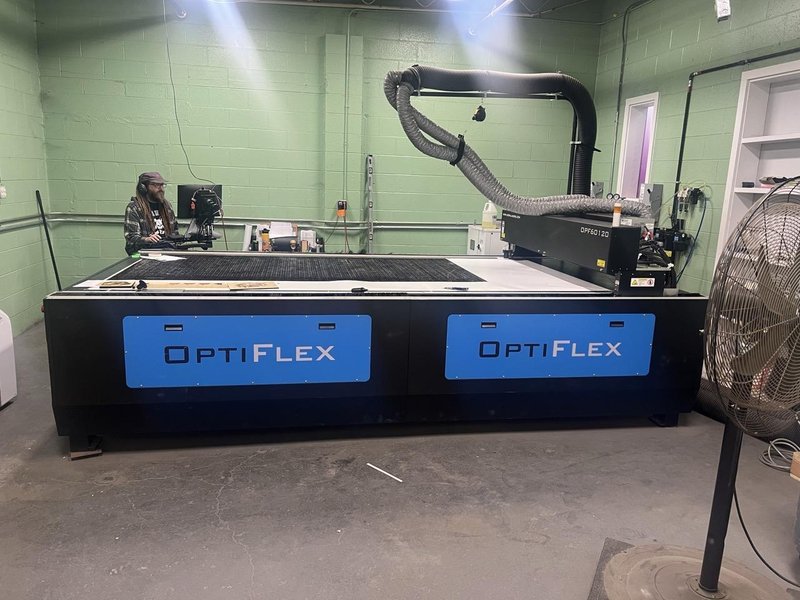

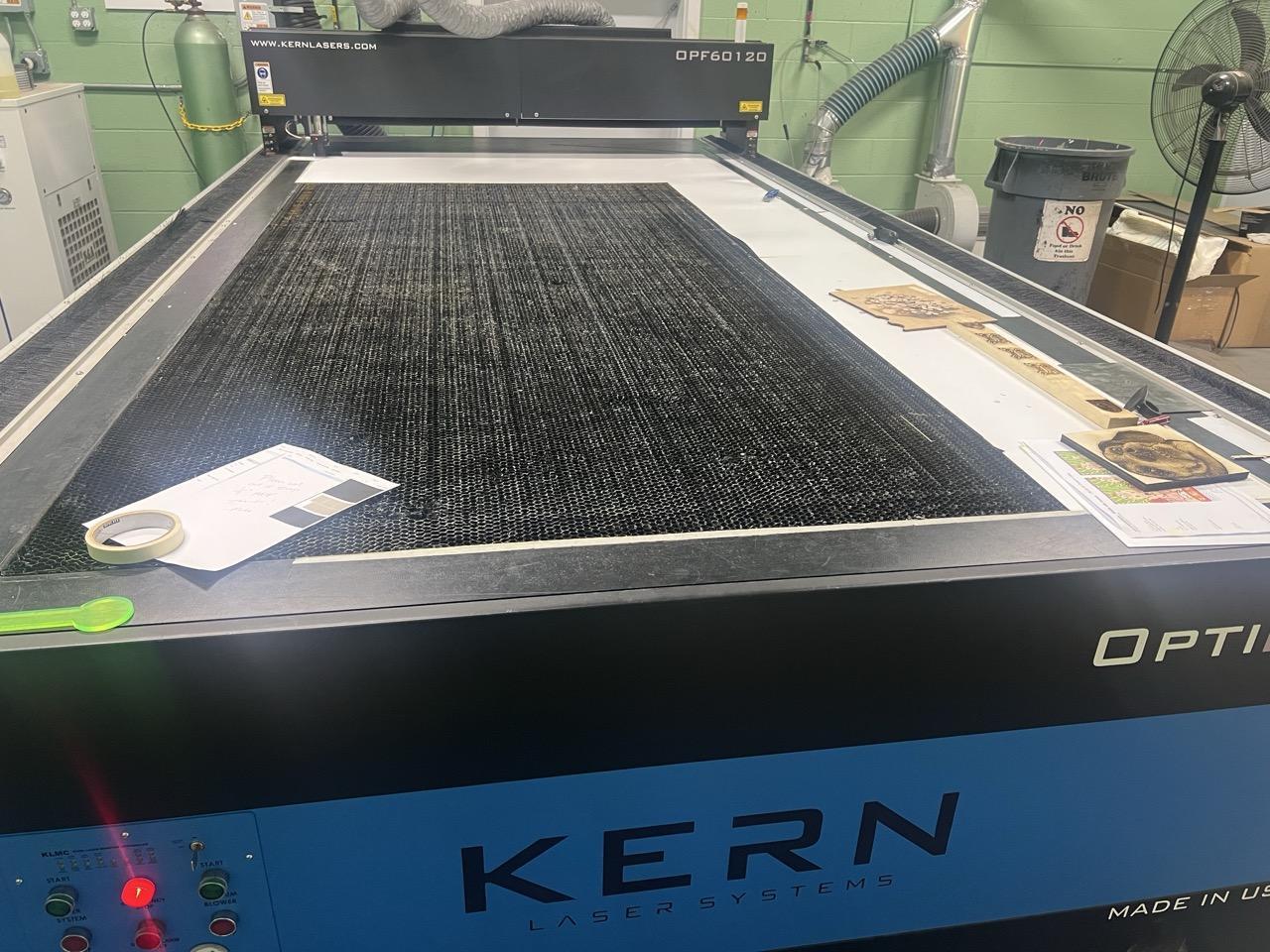

Kern OptiFlex OPF60120 KT500 500W CO2 Laser Cutting & Engraving System, 2023 – 60″ x 120″ Table

2023 Kern OptiFlex OPF60120 industrial CO2 laser cutting and engraving system equipped with a 500-watt KT500 laser source, large-format 60″ x 120″ work area, HyperDual servo motion and precision capabilities for processing acrylic, wood, plastics, textiles, foam and select thin metals.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specification Details Manufacturer Kern Laser Systems Model OptiFlex OPF60120 Machine Designation 60120-KT500 OPF Year 2023 Machine Type CNC CO2 laser cutting and engraving system Laser Source Kern LightWAVE KT500 Rated Laser Power 500 watts Typical Peak Power At least 1,200 watts Laser Wavelength 10.6 µm standard; other configurations may be available Working Area 60″ x 120″ Metric Working Area 1,524 x 3,048 mm Number of Controlled Axes 3 Maximum Material Clearance Approximately 2″–3″, depending on gantry configuration Positioning Accuracy ±0.002″ under mapped-table conditions Repeatability ±0.0005″ Motion System Kern HyperDual servo-driven motion package Drive Design Rack-and-pinion system with dual Y-axis servo motors Table Type Vacuum cutting table; installed surface should be confirmed Maximum Table Load Approximately 2,205 lb. / 1,000 kg Laser Classification Class 4 CO2 laser Control Software Kern KCAM laser cutting and engraving software Cooling System Closed-loop water chiller Material Handling Large-format flat-sheet processing Suitable Materials Acrylic, wood, MDF, plastics, rubber, foam, textiles, leather, paper, cardboard and select thin metals Electrical Supply Available in 230V single-phase, 230V three-phase or 480V three-phase configurations; verify machine data plate Approximate Machine Width 82″ / 2,083 mm Approximate Machine Length 157″ / 3,988 mm Approximate Machine Height 53″ / 1,346 mm Approximate Machine Weight 5,500 lb. / 2,495 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
