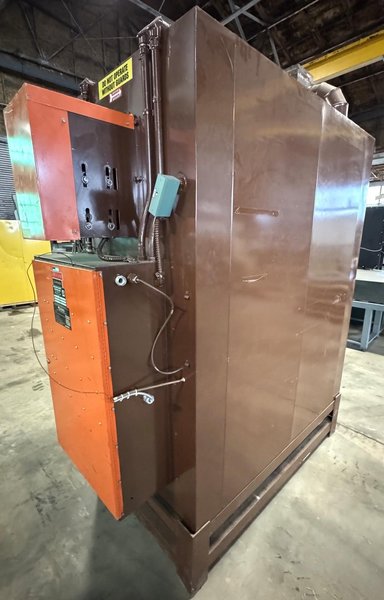

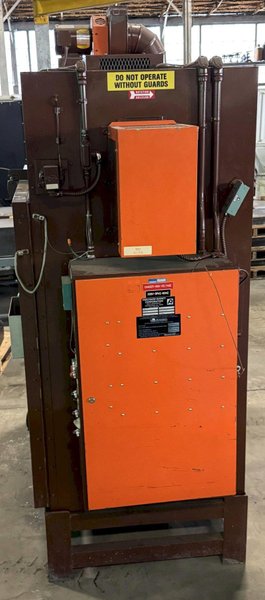

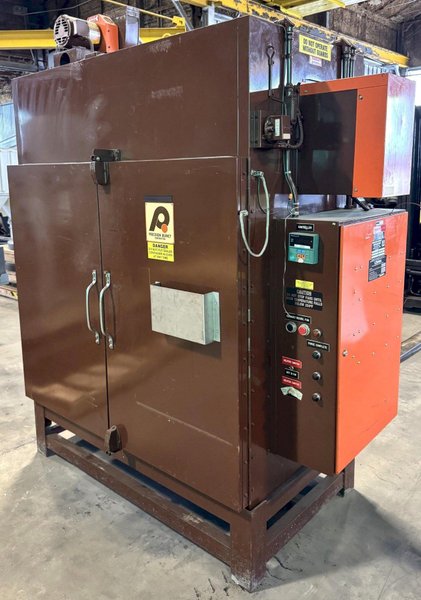

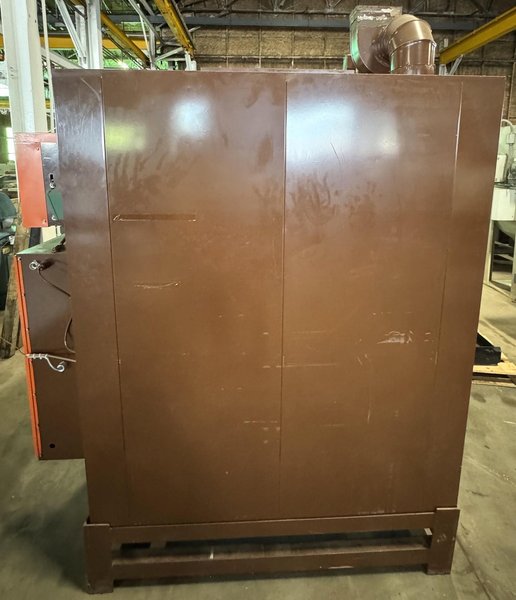

Precision Quincy Oven 40B-350, 48"W x 30"D x 48"H, 350 Degrees, Electric

PRECISION QUINCY ELECTRIC SOLVENT RATED CABINET OVEN

MODEL: 40B-350

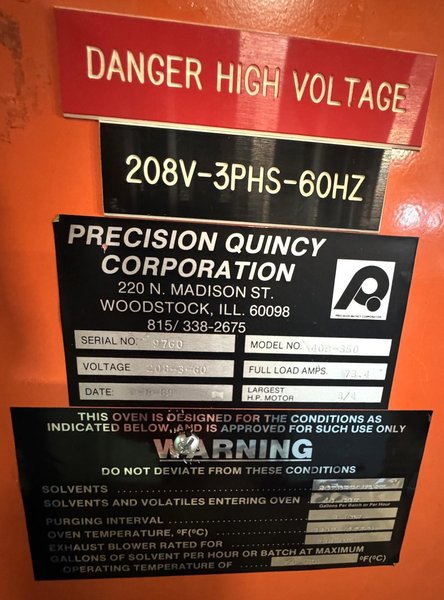

SERIAL NUMBER: 9760

GENERAL SPECIFICATIONS

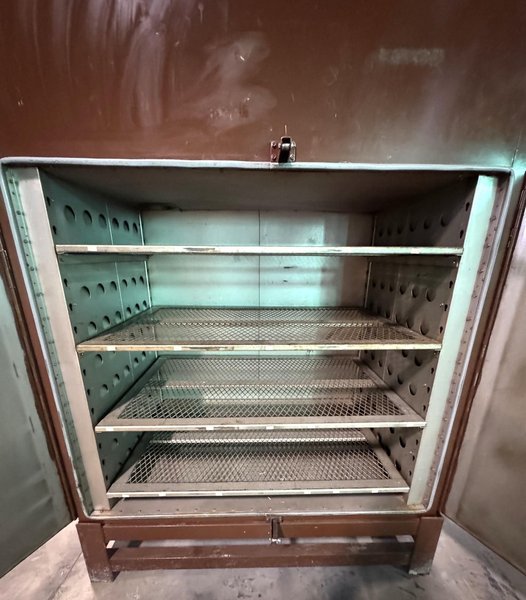

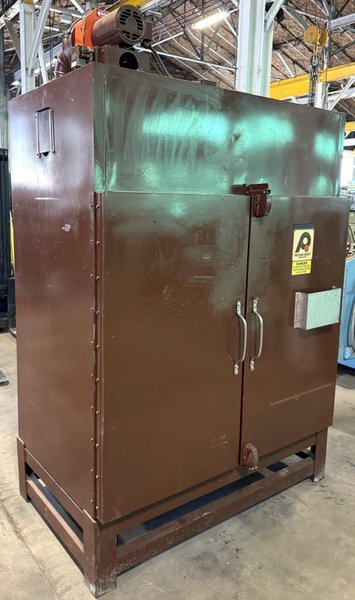

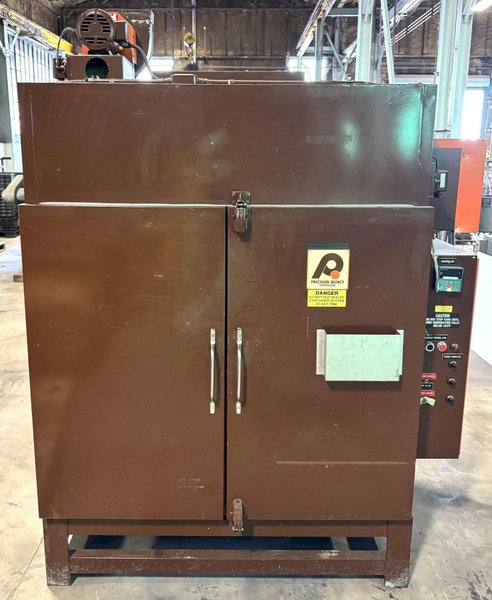

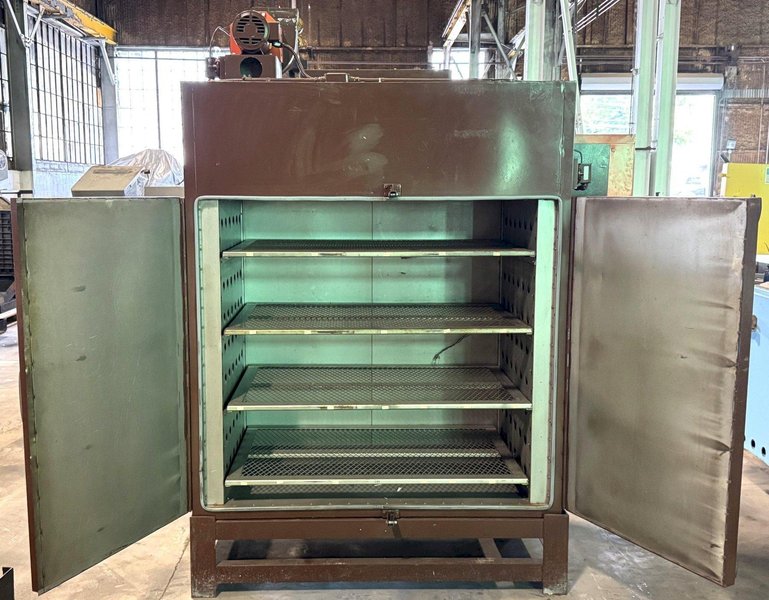

Double door opening with pressure latches. Heating elements and belt driven circulating fan are mounted above work area in a protected chamber. Heated air is circulated horizontally. Heating elements are in two banks of 12 KW each allowing the operator to reduce power consumption at lower operating temperatures. Air safety switches monitoring circulating fan and power exhaust will terminate power to heating elements in the event of fan failure. Aluminized steel interior with (4) adjustable shelves.

Working Dimensions: 48" Wide x 30" Deep x 48"H

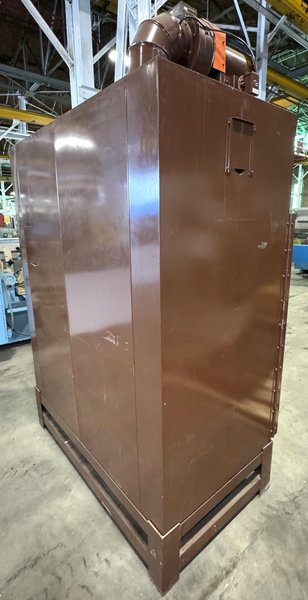

Overall Dimensions: 75" Wide x 37" Deep
Maximum Temperature: 350 Degrees F
Power: 208 Volt, 3 Phase, 60 Hz

EQUIPPED WITH

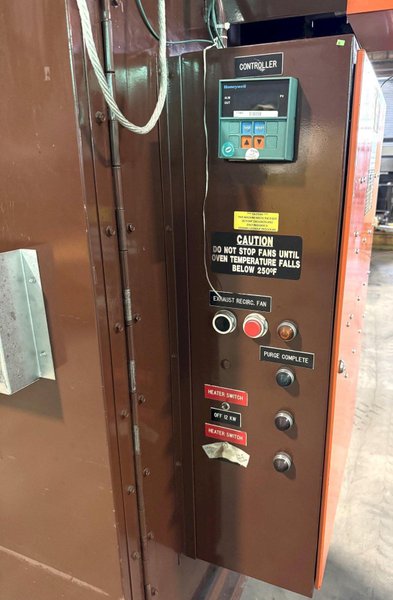

Honeywell Digital Temperature Control and Non-Indicating Over Temperature Control Mounted In Enclosed Panel

Approximate Weight: 1100 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
