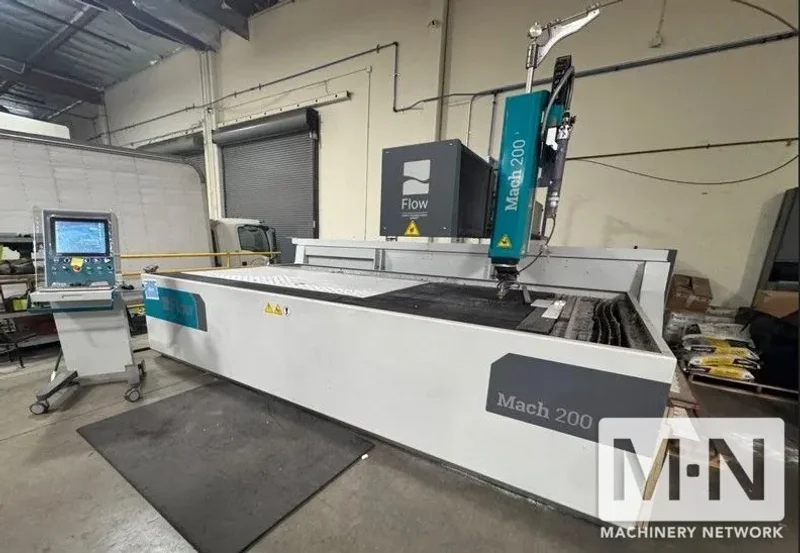

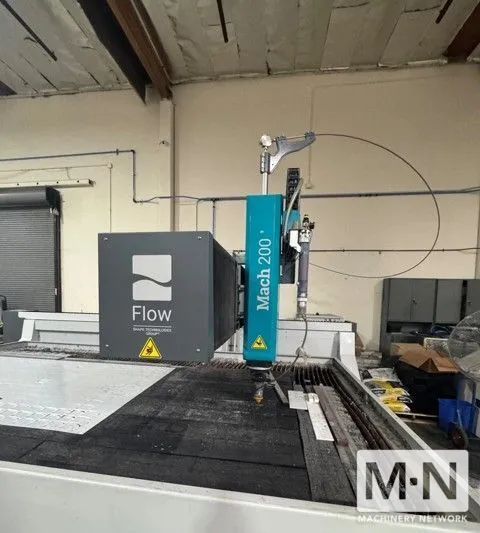

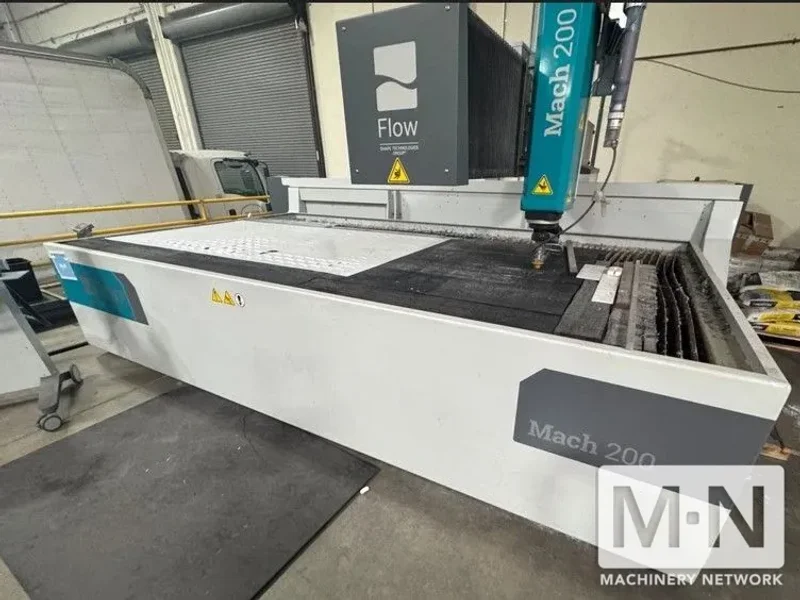

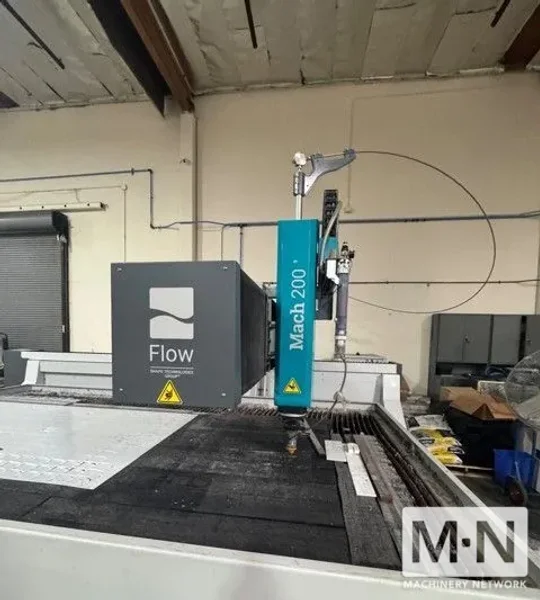

2021 FLOW MACH 200 4020 PIVOT 5-AXIS CNC WATERJET - LOW HOURS

📐 Work Envelope / Table
Cutting area: 13'-1" x 6'-6" (4.0 m x 2.0 m)
Table size: ~72" x 156"
X travel: ~156" (13 ft)
Y travel: ~72" (6 ft)
Z travel: 8" (203 mm)
3-sided table access for loading

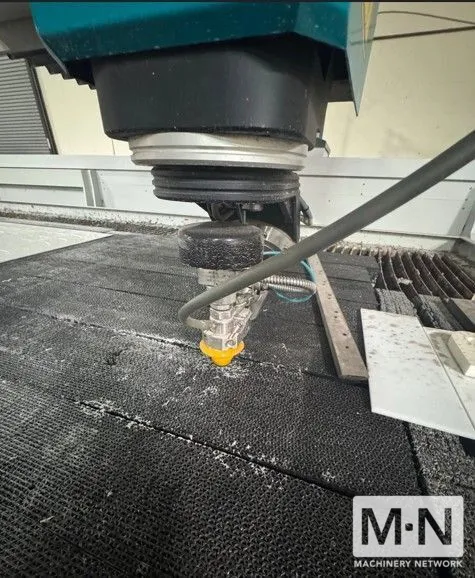

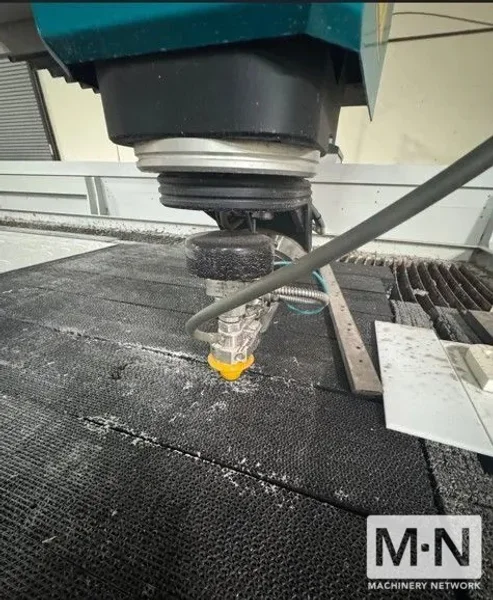

⚙️ Cutting Head – Pivot+ (5-Axis)
Type: Pivot+ 5-axis bevel cutting head
Motion: Up to 60° articulation
Features:
Automatic taper compensation
Bevel / 3D cutting capability
Compact, high-speed wrist design
💧 Pump / Pressure
Max pressure: 60,000 PSI (4,150 bar)
Pump type: Typically HyPlex Prime direct drive
Motor: ~30 HP
🚀 Performance
Rapid traverse: 400 in/min (10.16 m/min)
Cutting/contouring speed: ~300 in/min max
Acceleration: 0.05 G
📏 Accuracy
Linear positional accuracy: ±0.002 in (±0.051 mm)
Repeatability: ±0.001 in (±0.025 mm)
Ballbar circularity: ~±0.003–0.005 in
🏗️ Capacity / Build
Catcher tank load rating:
Mild steel: ~300 lb/ft²
Stainless: ~200 lb/ft²
Cold cutting process (no HAZ, no distortion)

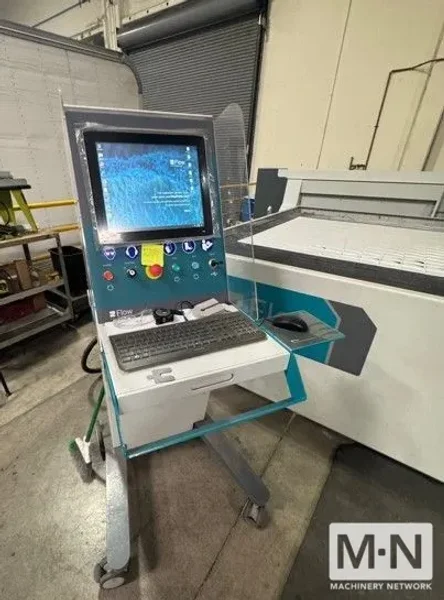

💻 Controls & Software
Control: FlowMaster / FlowXpert software
Features:
Automatic toolpathing
Material database
Taper compensation integration with Pivot head
