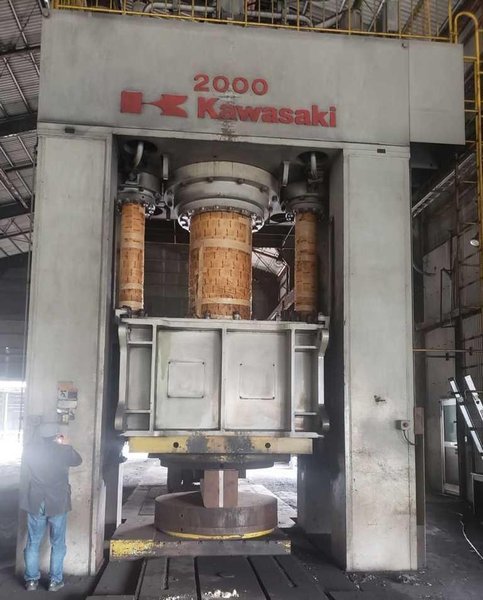

2000 Ton Kawasaki Die Hot Forging Press
Model: AFP2-2000
-Main Press:
Maximum Stroke: 1300mm (51.18")
Daylight: 2300mm (90.55")
Effective Table Dimensions: R.L. 1650 x F.B. 2400mm
Rotating Table Dimensions: 1600mm
Slide Dimensions: R.L. 1650 x F.B. 1500mm
Effective Frame Clearance: R.L. 3000 x F.B. 1200mm
No Load Descent Speed: 300mm/s
Low Output (upto 15000 kN): 45mm/s (at 1000 kN) ~ 30mm/s (at 15000 kN)
High Output (upto 20000 kN): 30mm/s (at 15000 kN) ~ 23mm/s (at 20000 kN)
Ascent Speed: 300mm/s
Die Matching Speed: Approx. 50mm/s
-Table Transfer Device (Hydraulic Cylinder Drive):
Dimensions: R.L. 1650 x F.B. 4200mm
Transfer Stroke: 2500mm
Transfer Speed: 200mm/s
Loading Capacity: Approx. 10 Tons
-Upper Table Rotating Device (Hydraulic Motor Drive):
Dimensions: 1500mm
Rotation Angle: 90 Degree, 180 Degree
|
