10 Stand 7.625" x 1.50" Tru-Tech Rollforming Line STOCK# 4300

Brand
Not specified
Category
Roll Formers & Rolling Mills
Type
Roll Formers
Model
Not specified
Stock #
4300
Year
Not specified
Condition
Not specified

Location

Ohio
10 Stand Tru-Tech Rollforming Line

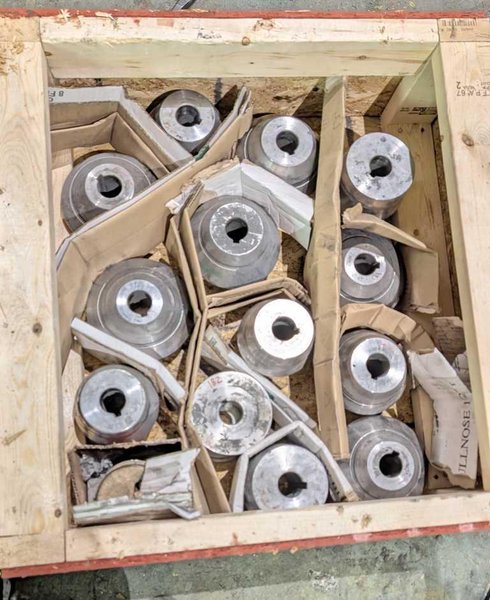

Tooled for the following parts:

(2) Sizes of Hat Channel (Furring Channel)
Overall Width: 2.6875" and 3.500"
Overall Height: 0.875" and 1"
Leg Size: 0.50" and 1.00"
Top of Hat: 1.250"

(3) Sizes of Hemmed V channel
1.5" x 1.5"
2" x 2"
3" x 3"


Consisting of:

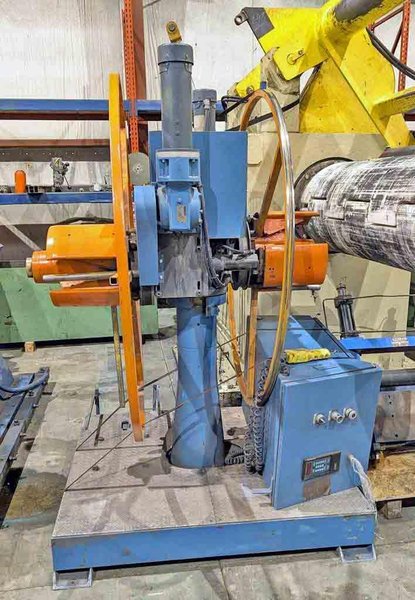

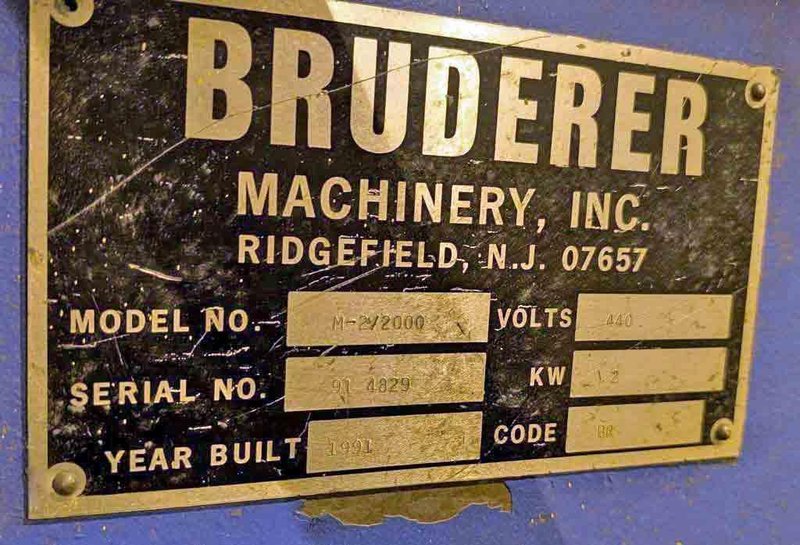

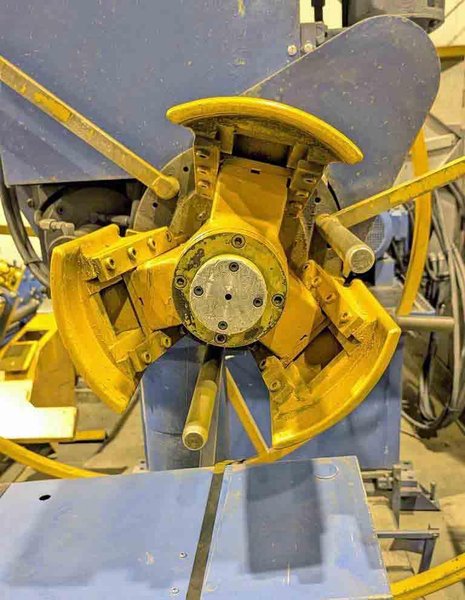

-Double-End Uncoiler: Bruderer
  New in 1991
  Model: M-2/2000
  S/N: 91-4829
  Weight Capacity: 4,400 lbs. (2,000 kgs.) Each Side
  11.5" Face Mandrels
  Hydraulic Wedge Type Expansion
  14" - 17" Expansion Range (approx.)
  Bolt-on wood pads for 20" I.D. on (1) Head
  Passline: 41.5" from Center of Mandrel to Top of Base
  Each Head Belt Driven by 1 HP Variable Speed DC Motor
    through Reliance Reducer. (One Drive Belt Missing)
  Drive Speed: 65 FPM Max.
  Manual Rotation

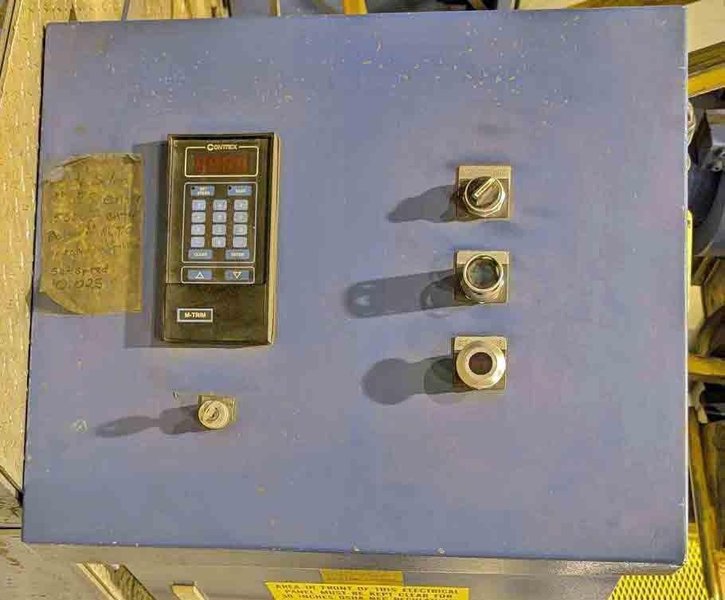

  Operators Panel w/Contrex M-Trim Digital Motion Control
  Overall Size: 76" L x 60" W x 83" High

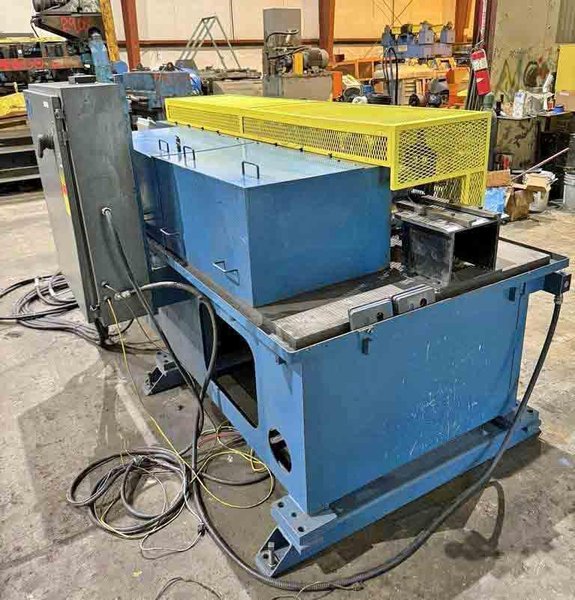

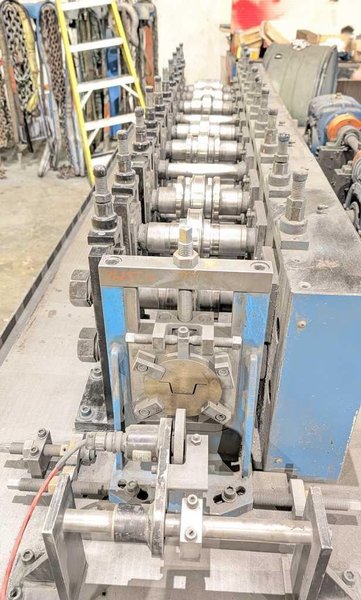

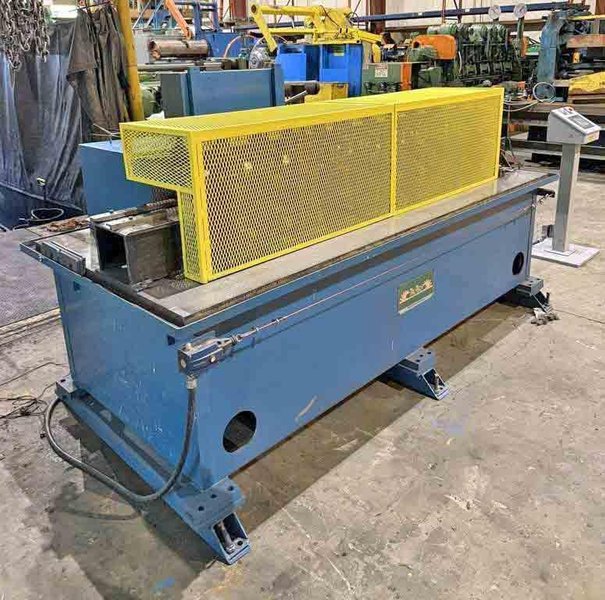

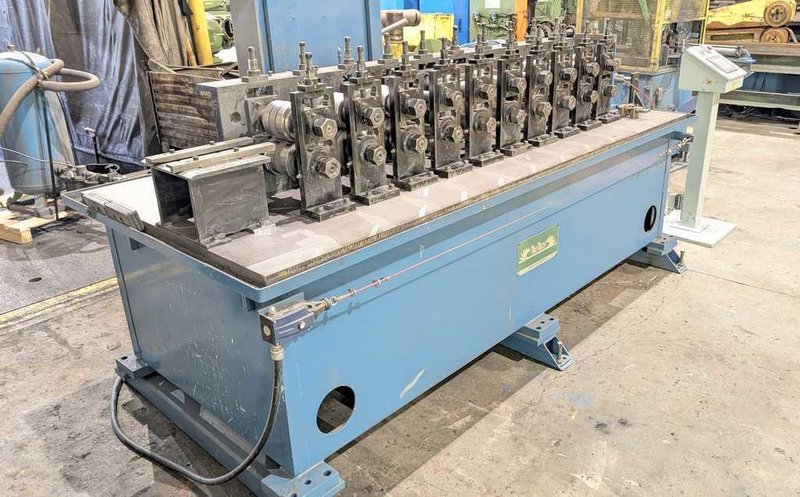

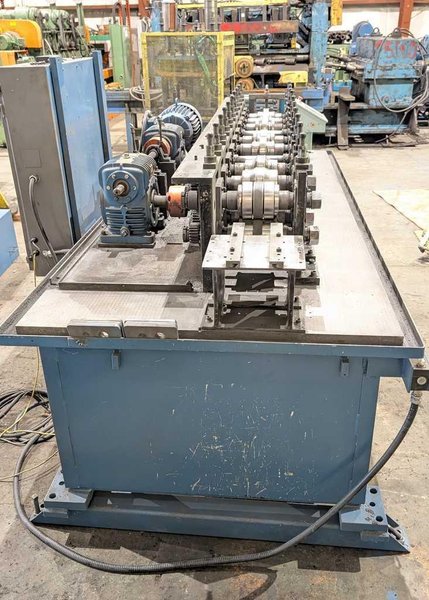

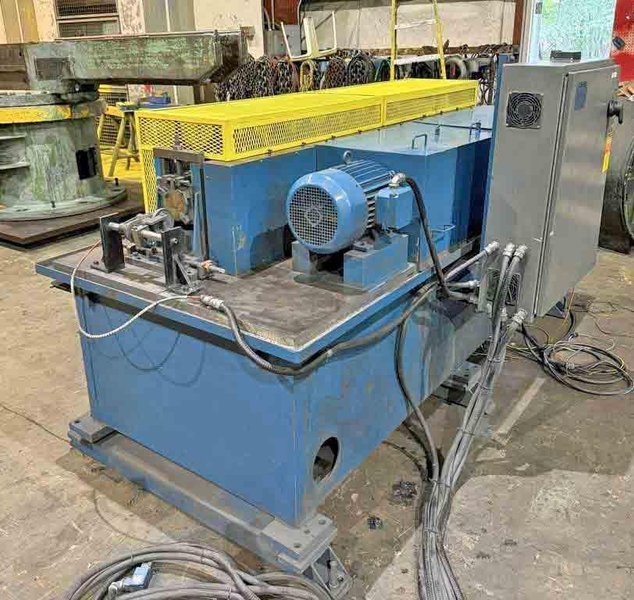

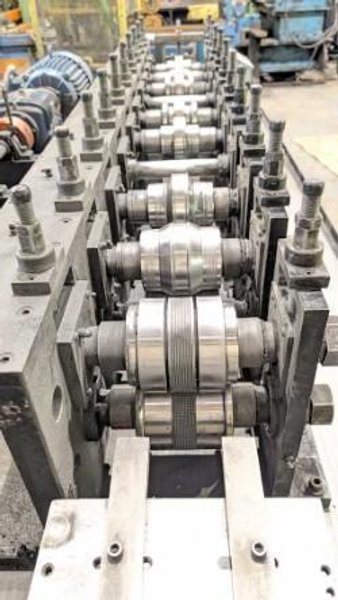

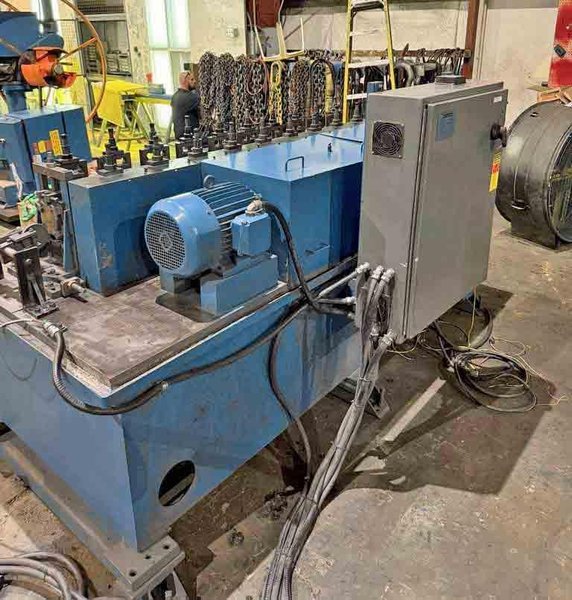

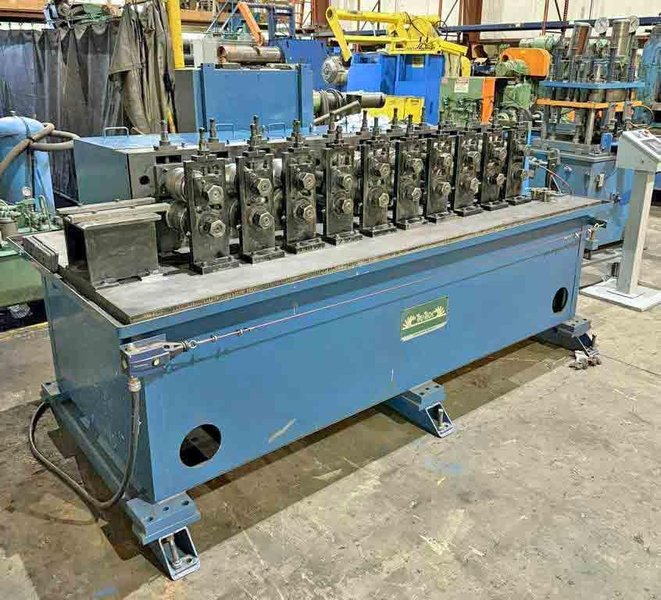

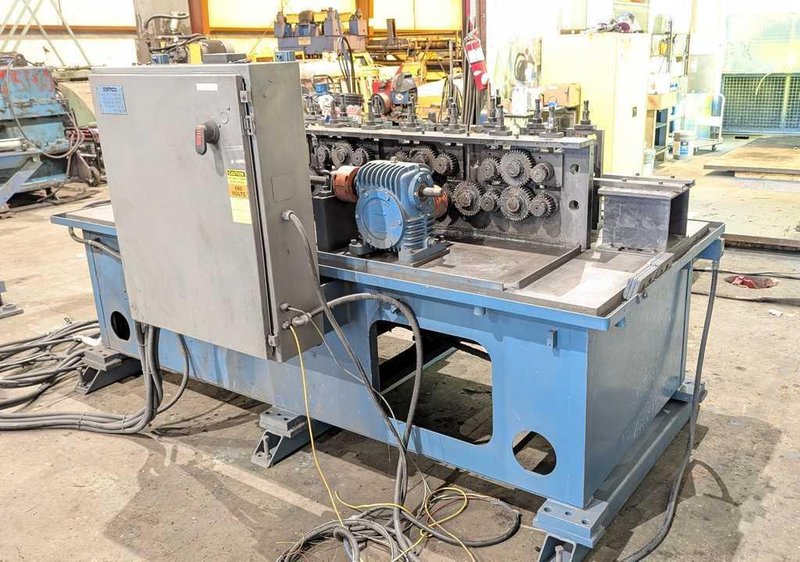

-Rollformer: Tru-Tech
  10 Stands
  1.50" Dia. Spindles
  7.625" Rollspace
  2" Vertical Adjustment (4" - 6")
  8" Horizontal Centers
  6" from Base to center of Bottom Spindle
  34.25" from Floor to top of Base
   (Can be reduced to 30.5" by removing 3.75" Risers)

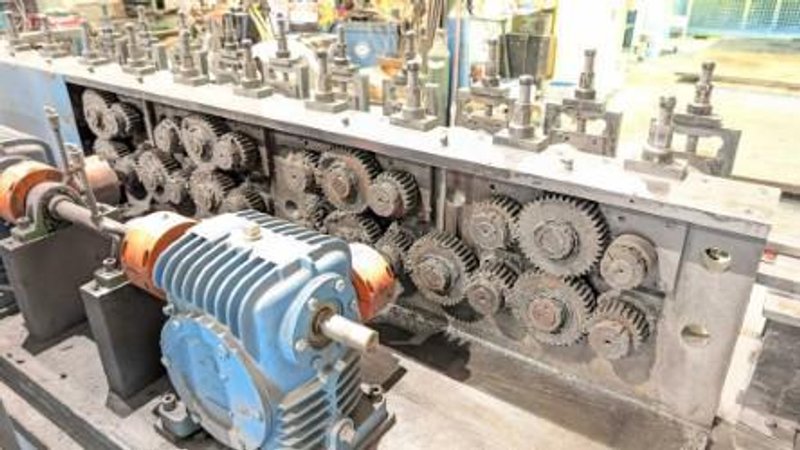

  AC Drive Motor

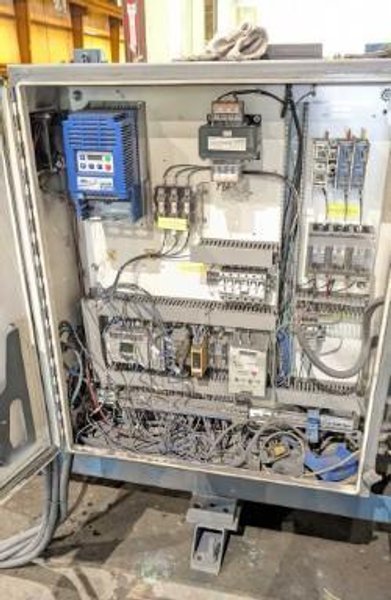

  New Controls added by Samco in 2010
  Lenze AC Tech SMVector Variable Frequency Drive

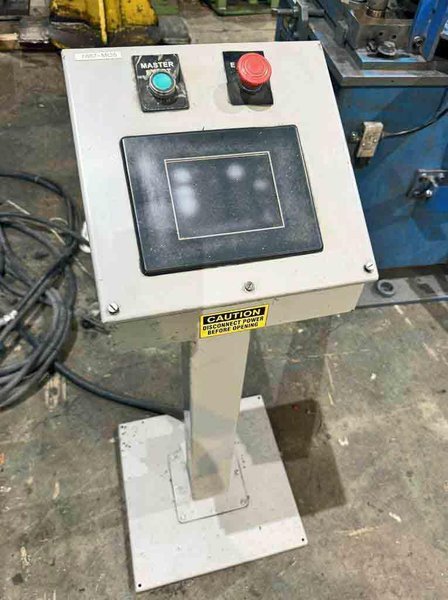

  Operators Control Pedestal
  Overall Size: 109" L x 68" W x 62" High

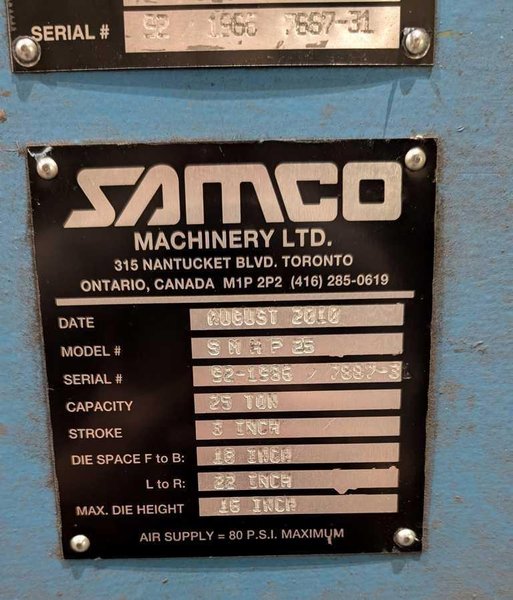

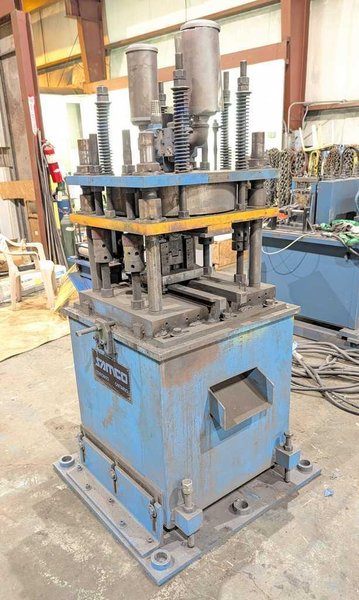

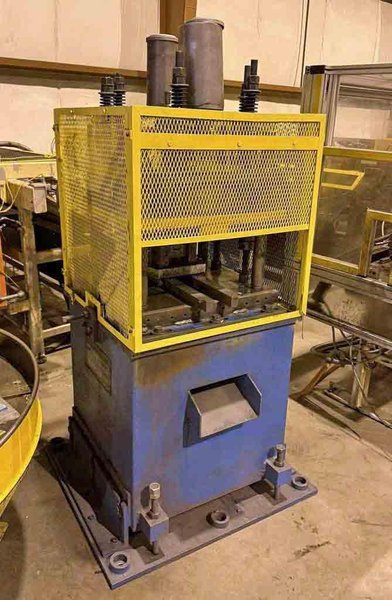

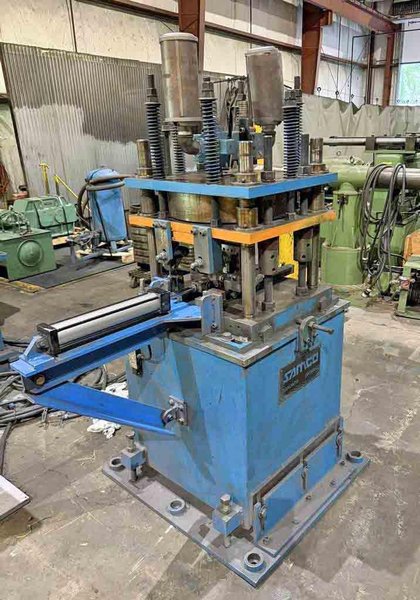

-Air Ram Cut-Off Press: Samco
  New in 2010
  Model: SMHP-25
  S/N: 92-1985/7997-31
  Capacity: 25 Ton
  Stroke: 3"
  Die Space: 18" F to B
             22" L to R
  Max. Die Height: 16"
  Air Supply: 80 PSI Max.
  Passline: 39.5" from Floor to top of Die Rails
  Air Cylinder for Flying Die
  Free-Standing Accumulator Tank
  Overall Size: 56" L x 40" W x 76" High
