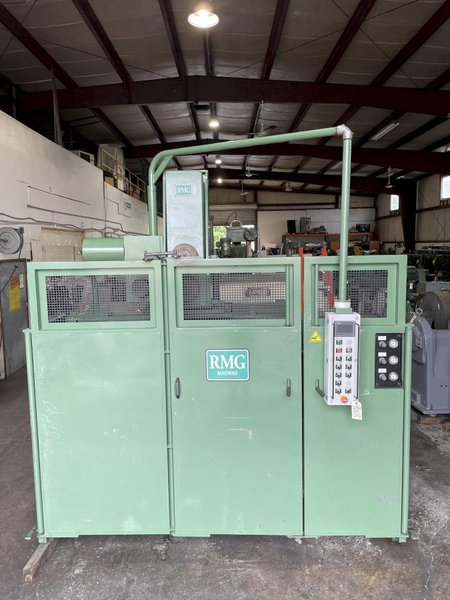

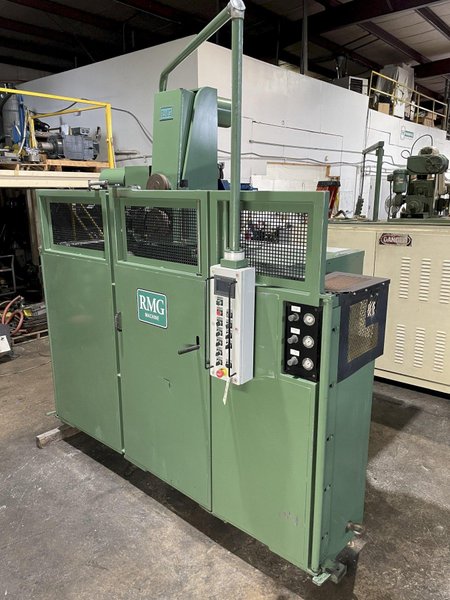

RMG Model 1416-4073-87 Wire Drawer, 52" Capstan "LIKE NEW"

RMG Model 1416-4073-87 Wire Drawer, 52" Capstan "LIKE NEW"

Name: RMG Model 1416-4073-87 Wire Drawer, 52" Capstan "LIKE NEW"
Brand: RMG
SKU: 9068
Availability: InStock

Brand

RMG

Location

Pennsylvania

Specifications
Files & Videos

Capstan Diameter	52"
Maximum Wire Diameter (Mild Steel)	1.00" (25.4 mm)
Maximum Wire Diameter (Alloy)	.875" (22.0mm)
Speed Range	73 FPM
Electrics	460V / 3 Phase / 60 Volts
Horsepower	40 HP
Approx. Weight	14,000 lbs.
Approx. Floor Size	111"L x 84"W x 117"H

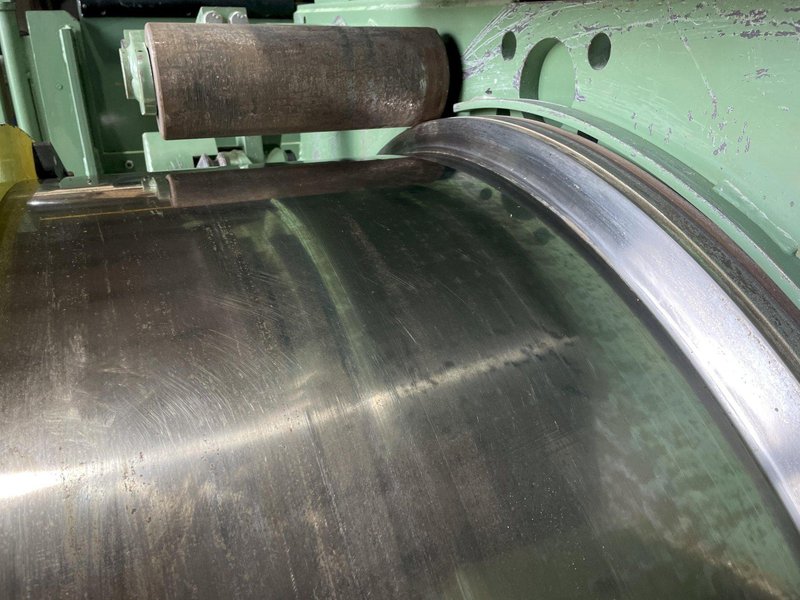

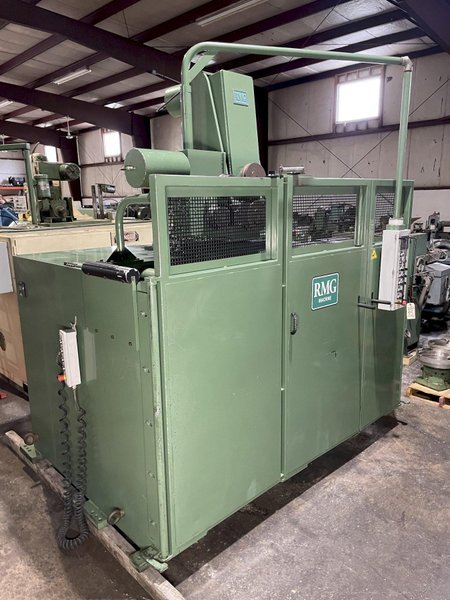

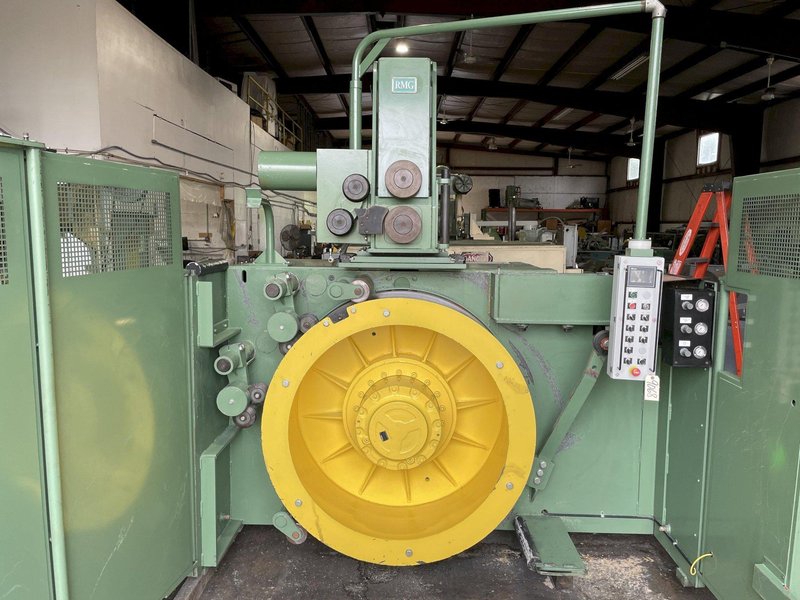

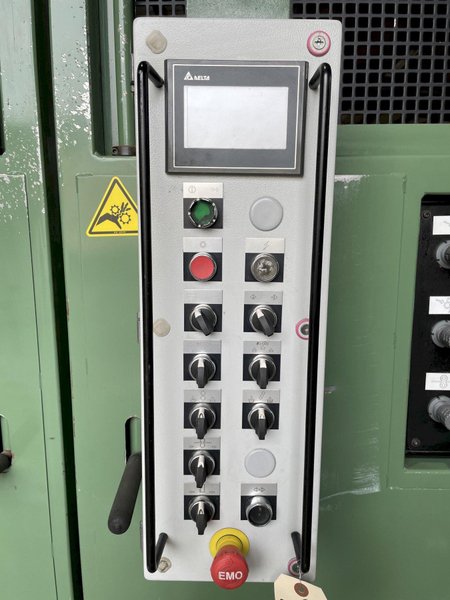

Model 1416-4073-87 Autodraw II IN-line wire drawing machine capable of drawing 28mm (1.102") with a Maximum tensile of 550N/mm2 (80000 PSI) down to a finished diameter of 27mm (1.063"). This machine can generally provide 7,100 kg (15,640lbs) of draw force at 20.4 Meters Per Minute (67 Feet Per Minute) wire speed. Unit includes: -IN STOCK READY TO SHIP -1300mm (52") diameter. Hardened, D2 tool steel capstan. -Heavy duty planetary gearbox -Standard hand frame with horizontal draw with horizontal draw box (right to left wire flow0 -Entrance wire guide (annular) rollers for draw box -Full capstan enclosure with Space Saving, Tri-Fold doors and electrical interlocks. Allows for SAFE, full access to capstan during set up. -Through Door, Pneumatic Controls for operator convenience and safety. -"CE 2006/42/EC" plate -Full machine enclosure for reduced maintenance costs and Safety. -Non-Contact, End of coil detector assembly -Pneumatic 12 o'clock capstan roller assembly activated by End of Coil Detector (assists in containing wire at the end of the coil -Pneumatic 7 o'clock capstan roller assembly activated by End of Coil Detector (assists in containing wire at the end of the coil) -Pneumatic compensator with 130mm (5") steel wheel and wire retaining clip -Pneumatic WIRE RELAXER with four, Patented One Way Clutch, V-grooved 130mm (5") rollers - D3416 11SS (prevents more tractive force by preventing slipping of the last wrap of wire) -Wire relaxer anti-reverse electrical interlock -Remote grease points for ease of preventative maintenance -1.5 kW (2hp) Retractable feedhead and pre-straightener for set-up with one set of V-grooved feed rolls (P0101.11) -Walk-along remote control to assist operator during set-up -"Energy Efficient" Variable Frequency Drive with 29.8 kW (40 hp) Premium Efficiency Motor -Infinitely variable speed 4.9 to 67 fpm -Wiring for 460 volt, 3 phase, 60 hz electrics with 24v DC control voltage -EC electrical controls -Operator pendant control includes control , emergency stop and tow hand jog (slowfast). Allows for greater flexibility during setup. -PLC with Interactive Diagnostic Screen Display -Disconnect with short circuit protection -STARTGARD (production machine interlock) -SLIPGARD (forward compensator over travel switch) -25mm (1") screw self storing gripper chain assembly) -Vista Green Paint -Operation and Service Manual in English
