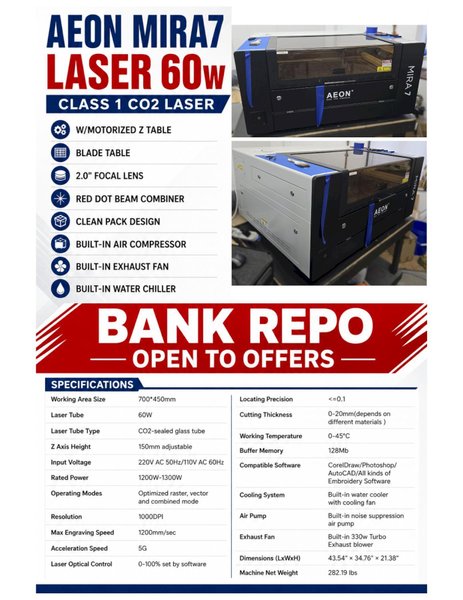

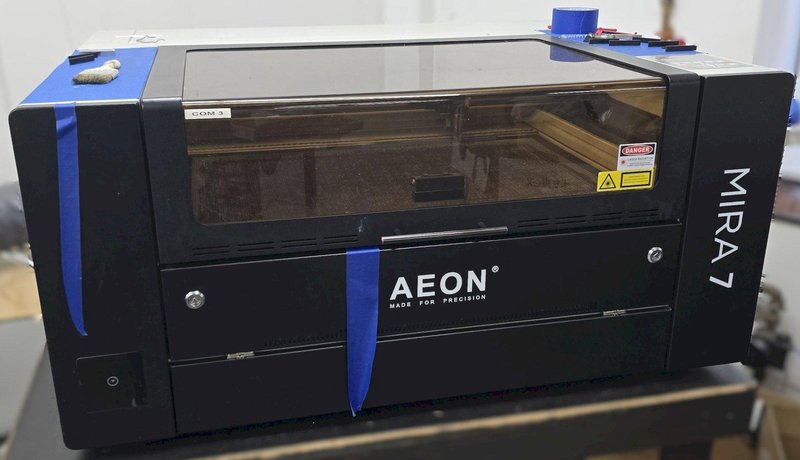

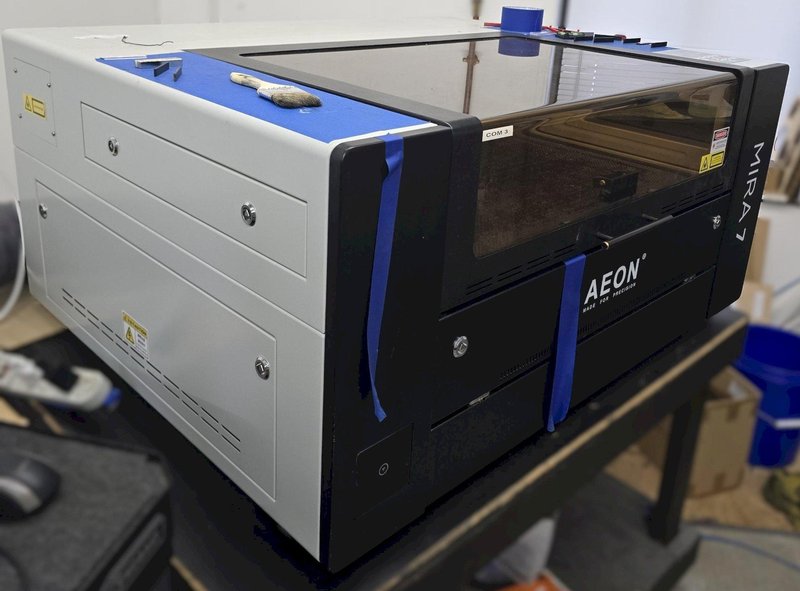

AEON MIRA7 Laser 60w Class 1 CO2 Laser w/Motorized Z Table, Blade Table, 2.0" Focal Lens, Red Dot Beam Combiner, Clean Pack Design, Built-In Air Compressor, Built-In Exhaust Fan, Built-In Water Chiller
Brand
Category
Type
Model
MIRA 7
Stock #
7151
Year
Not specified
Condition
Not specified
Location
North Carolina
| Working Area Size | 700*450mm |
| Laser Tube | 60W |
| Laser Tube Type | CO2-sealed glass tube |
| Z Axis Height | 150mm adjustable |
| Input Voltage | 220V AC 50Hz/110V AC 60Hz |
| Rated Power | 1200W-1300W |
| Operating Modes | Optimized raster, vector and combined mode |
| Resolution | 1000DPI |
| Max Engraving Speed | 1200mm/sec |
| Acceleration Speed | 5G |
| Laser Optical Control | 0-100% set by software |
| Locating Precision | <=0.1 |
| Cutting Thickness | 0-20mm(depends on different materials ) |
| Working Temperature | 0-45°C |
| Buffer Memory | 128Mb |
| Compatible Software | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software |
| Cooling System | Built-in water cooler with cooling fan |
| Air Pump | Built-in noise suppression air pump |
| Exhaust Fan | Built-in 330w Turbo Exhaust blower |
| Dimensions (LxWxH) | 43.54" × 34.76" × 21.38" |
| Machine Net Weight | 282.19 lbs |
|
AEON MIRA7 Laser 60w Class 1 CO2 Laser w/Motorized Z Table, Blade Table, 2.0" Focal Lens, Red Dot Beam Combiner, Clean Pack Design, Built-In Air Compressor, Built-In Exhaust Fan, Built-In Water Chiller |
|
