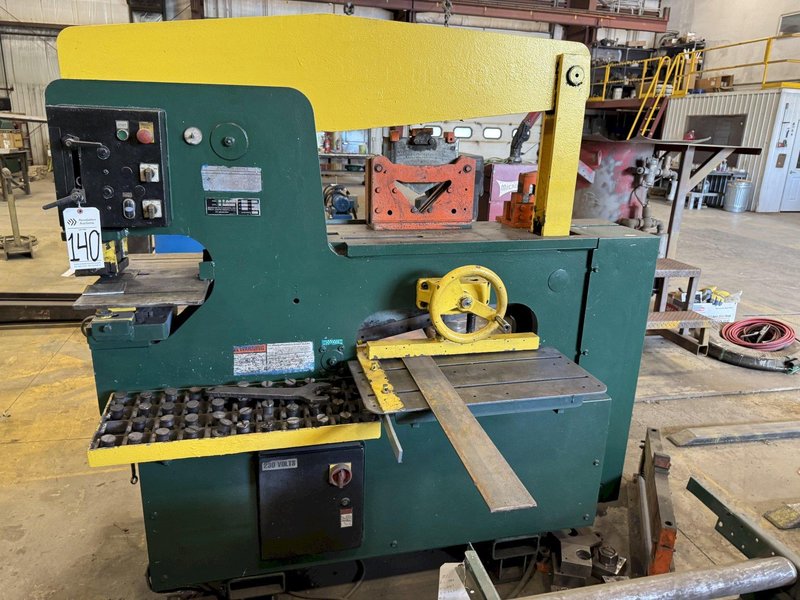

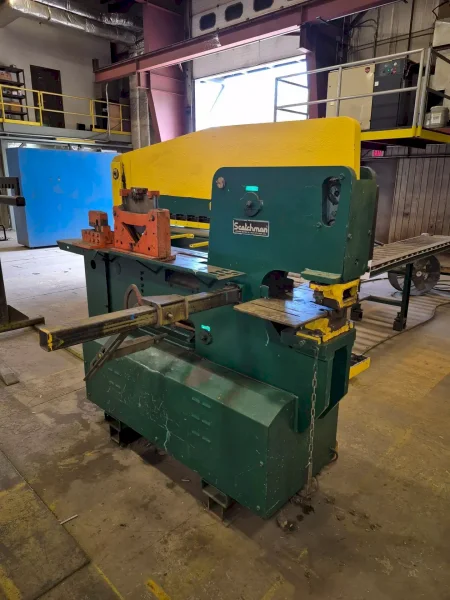

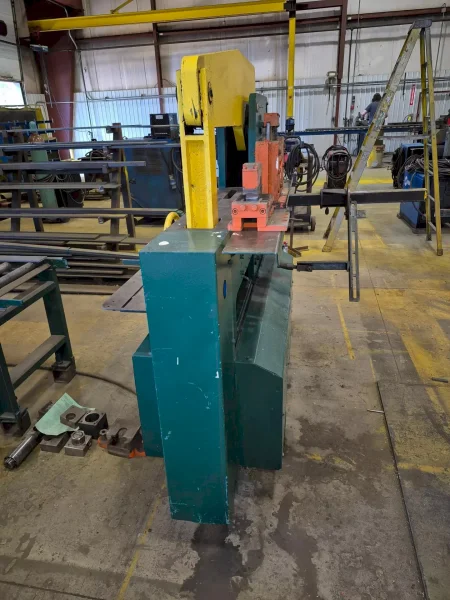

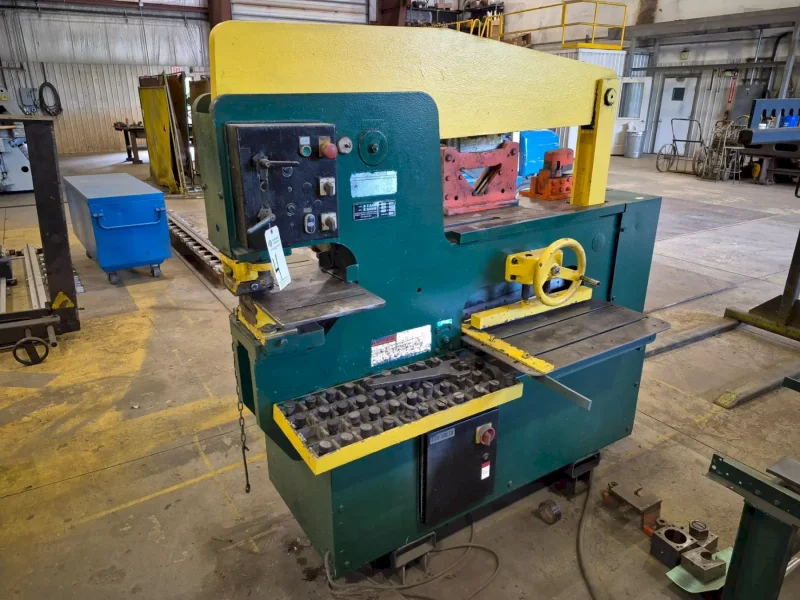

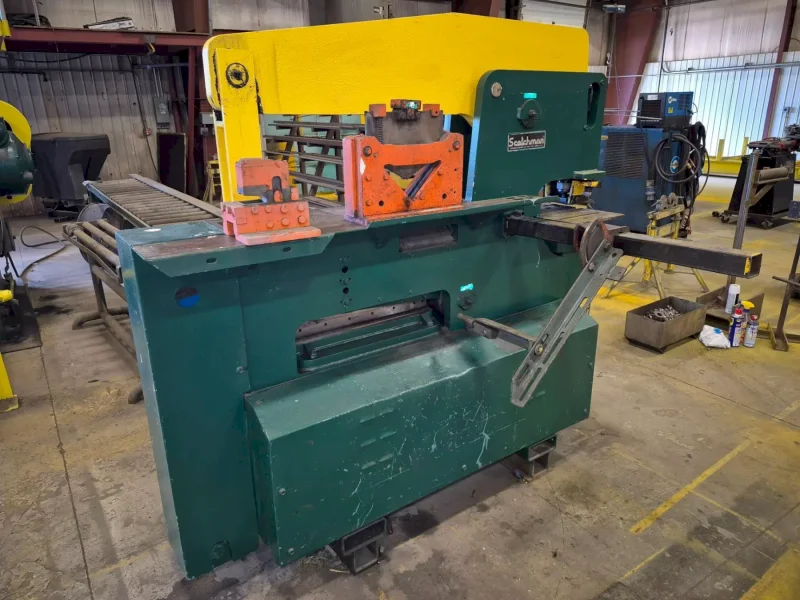

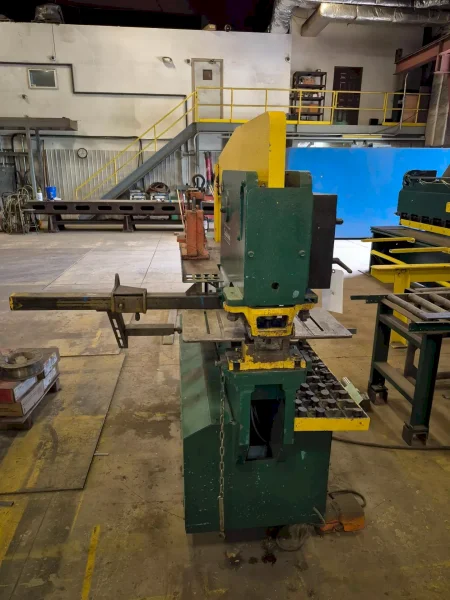

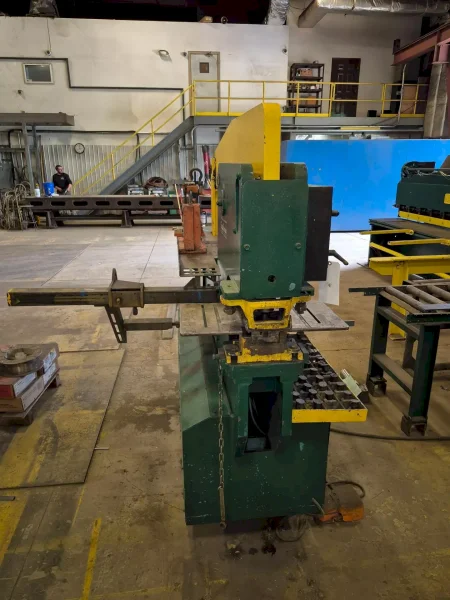

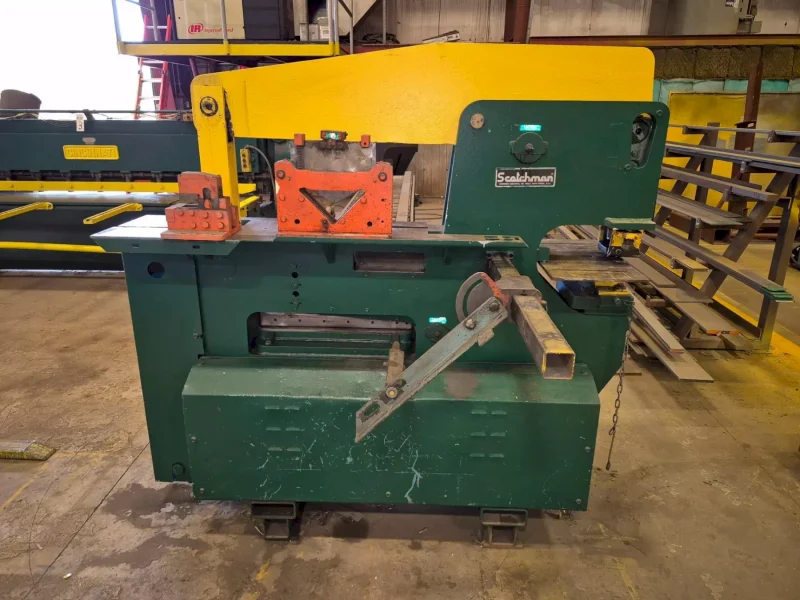

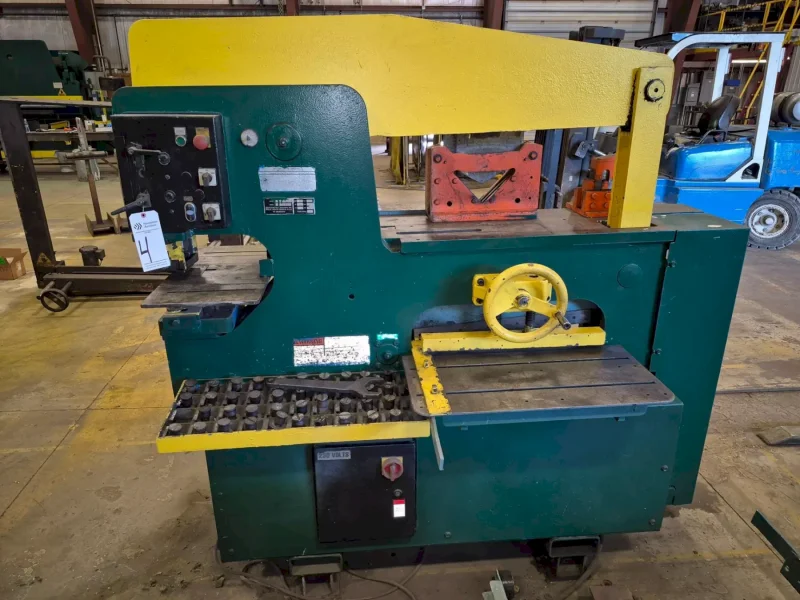

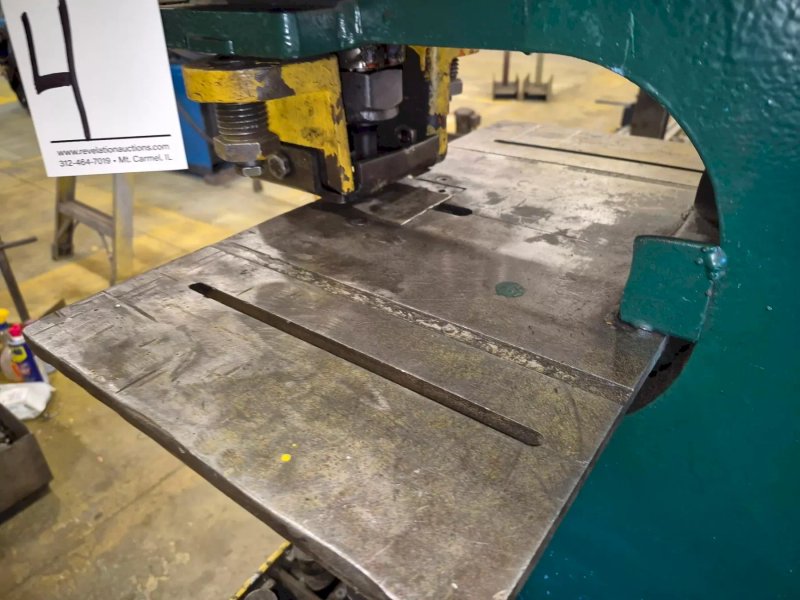

90 TON SCOTCHMAN 9012-24M HYDRAULIC IRONWORKER

Brand
SCOTCHMAN
Category
Punching Equipment
Type
Punches & Shears
Model
9012-24M
Stock #
117316
Year
2003
Condition
Used

Location

Not specified

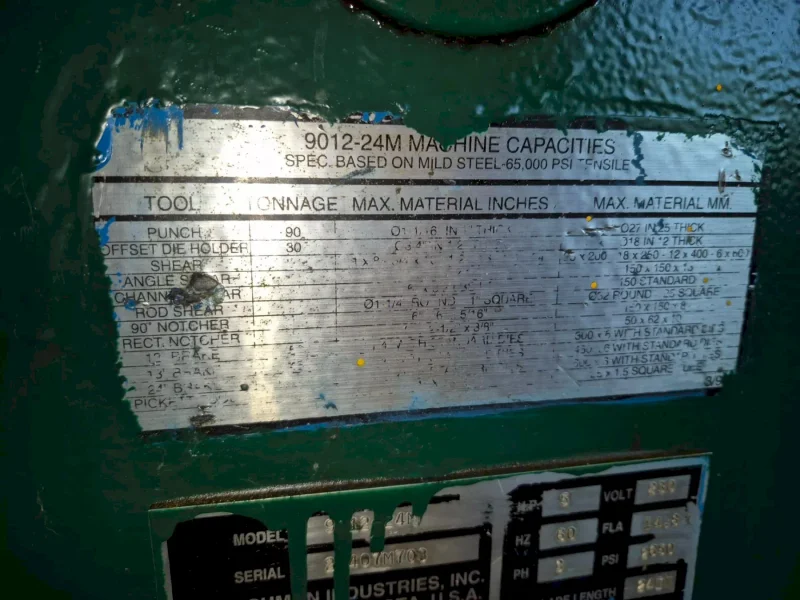

SPECIFICATIONS:
PUNCHING CAPACITY      90 TON
                       1-1/8"
THROAT DEPTH           12"

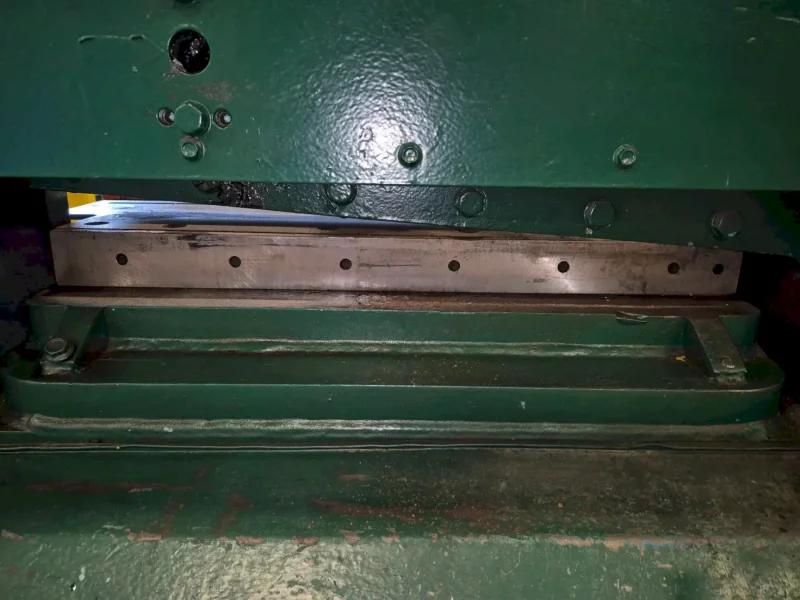

FLAT BAR SHEAR         24" LENGTH
                       1" X 8"
                       3/4" x 12"
                       1/2" x 16"
                       1/4" x 24"

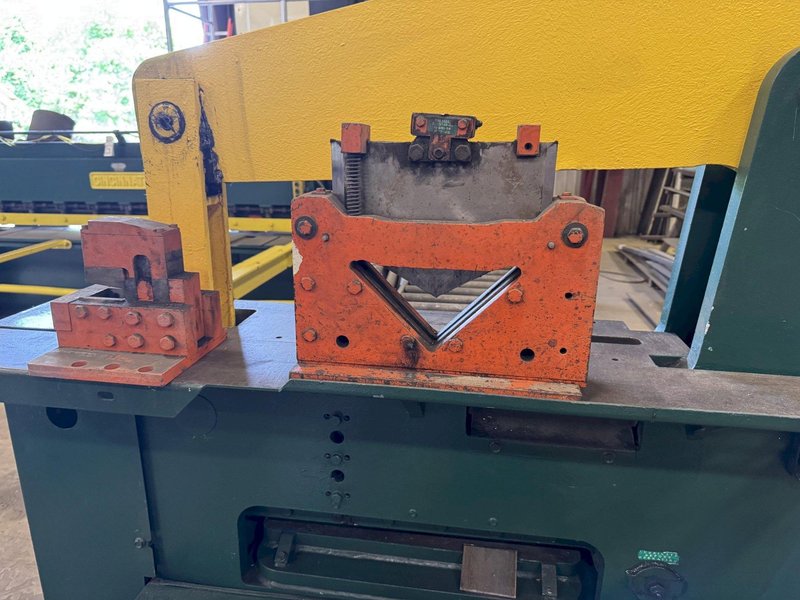

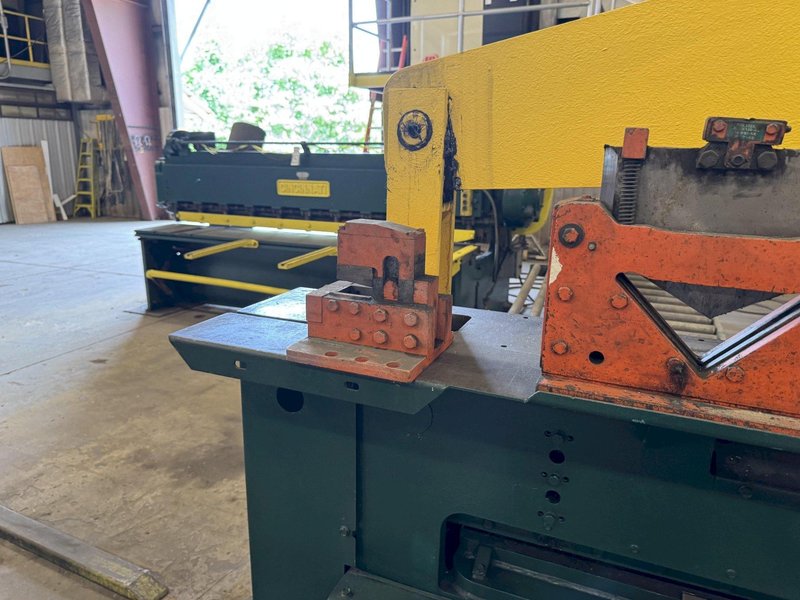

ANGLE SHEAR 90 DEGREE  6" X 6" X 1/2"
ANGLE SHEAR 45 DEGREE W/TOOL  3" X 3" 3/8"
W/BAR SHEAR            4" X 4" X 1/2"
BRAKE 12"              50 TON
BRAKE 24"              40 TON

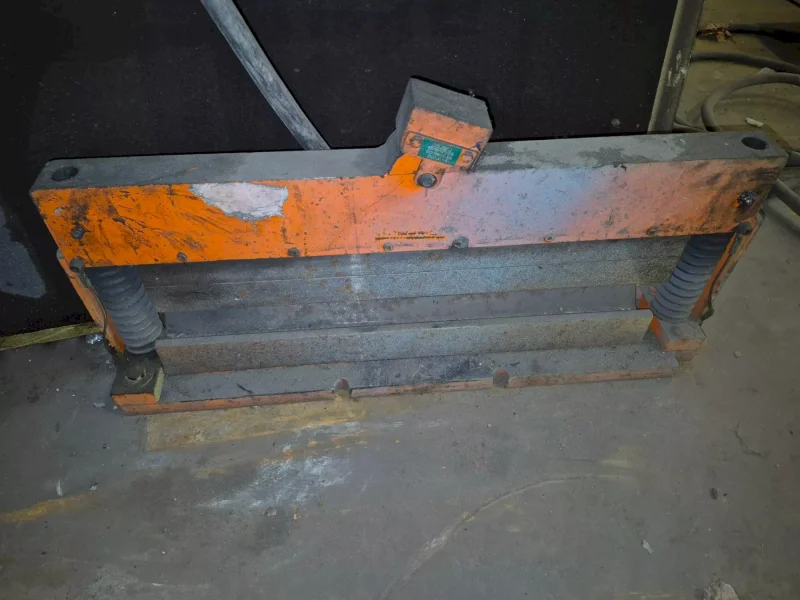

OPEN END BRAKE         MAX. 1/4" X 5
PIPE NOTCHER           3/4", 1",1-1/2',2"
SCHEDULE 40

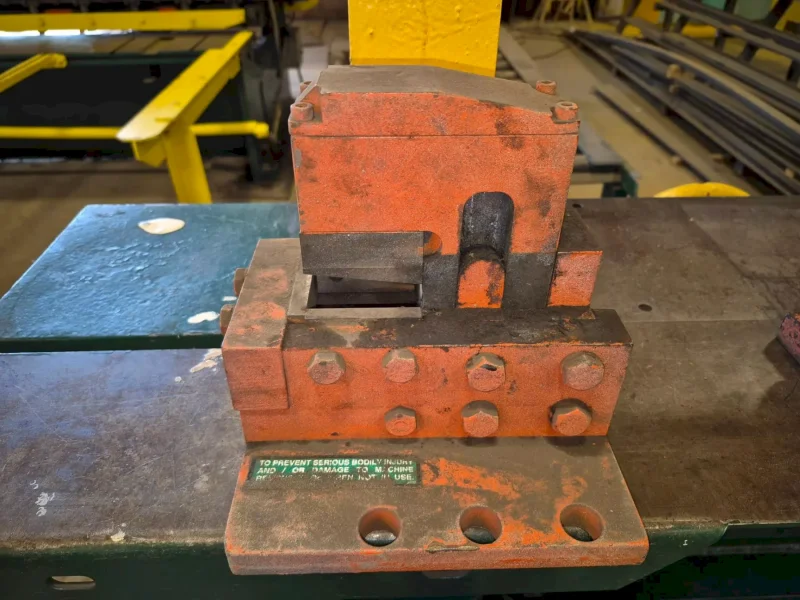

RECTANGLE NOTCHER      2" X 2-1/2" X 3/8"
90 DEGREE V- NOTCHER   6" X 6" X 5/16"
CHANNEL SHEAR          2" TO 6" ADJ.

PICKETT TOOL ........................ 1/2", 3/4" AND 1"



ROD SHEAR
ROUND (MAX.)           9 CAVITY- 1/4" TO 1-1/4"
SQUARE (MAX.)          1 CAVITY- 1/4" TO 1"
SQUARE TUBE SHEAR      1/2", TO 2"
90 V.NOTCHER ........................ 6" X 6" X 1/2"
                       12 GAUGE
PICKET TOOL            1/2", 3/4" & 1"
                       16 GAUGE
OFFSET DIE HOLDER      MAX.40 TON
STROKES PER MINUTE IN LIGHT MATERIAL 45SPM
STROKES PER MINUTE IN HEAVY MATERIAL 24SPM
HYDRAULICS             2,600 PSI
MOTOR STANDARD         5 HP
                       208/230/460,380/57V;
                       3 PH
DIMENSIONS             L: 76-3/4"
                       W: 31"
                       H: 71-1/2"
WT- 4200LBS


RECTANGLE NOTCHER ................... 2" X 2-1/2" X 3/8"

PIPE NOTCHING ....................... 3/4", 1", 1-1/4",

                                      1-1/2", 2"

BRAKE 12" ........................... 50 TON

BRAKE 24" ........................... 40 TON

DYDRAULICS .......................... 2,500 PSI



MOTORS:

STANDARD............................. 230/460 5 HP 3 PH

OPTIONAL............................. 230 5 HP 1 PH



DIMENSIONS .......................... W-26" X L-76" X H-70"

WEIGHT .............................. 4,200 LBS.



EQUIPPED WITH:

- ANGLE SHEAR

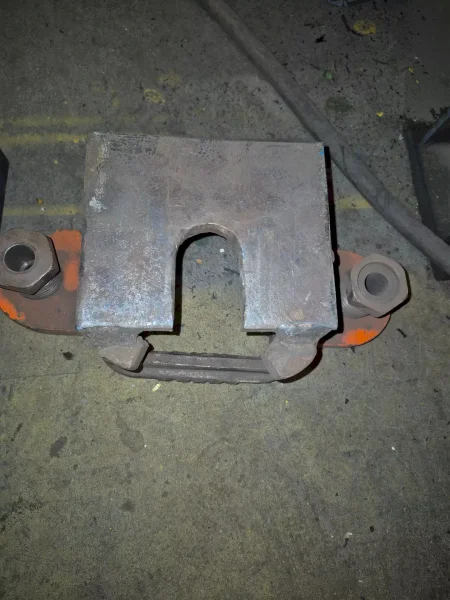

- NOTCHER

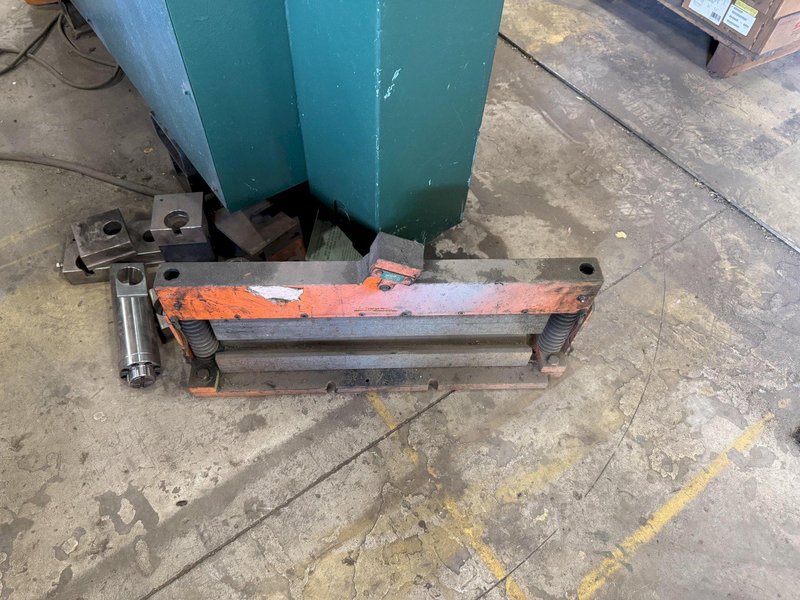

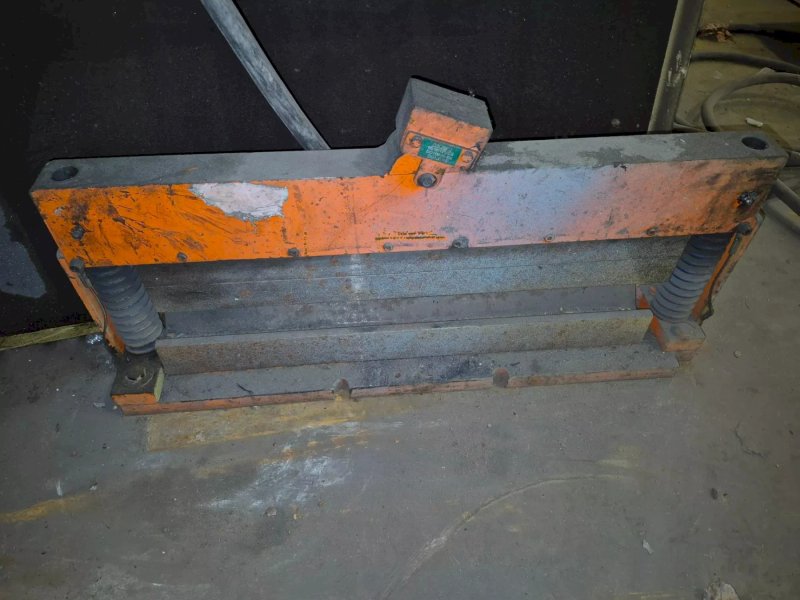

- BRAKE

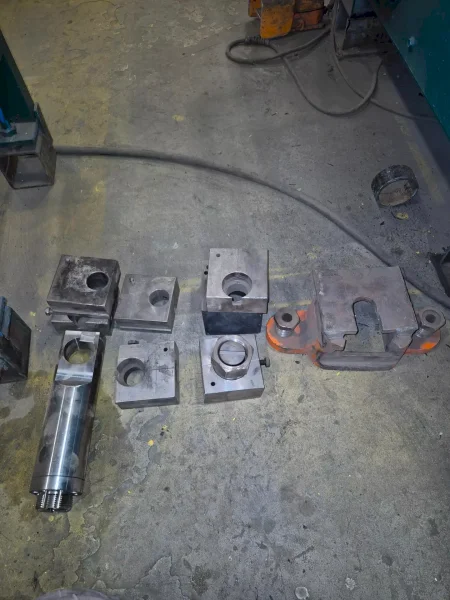

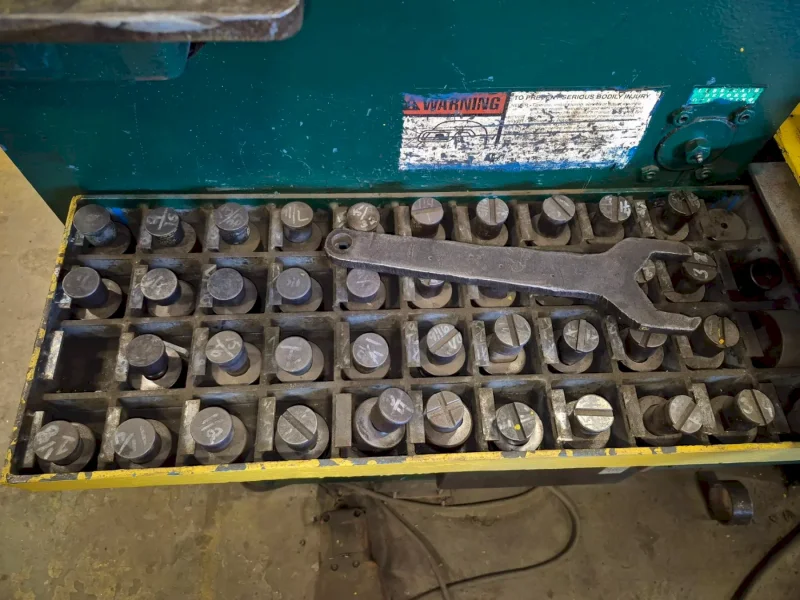

- MISC. PUNCH ACCESSORIES

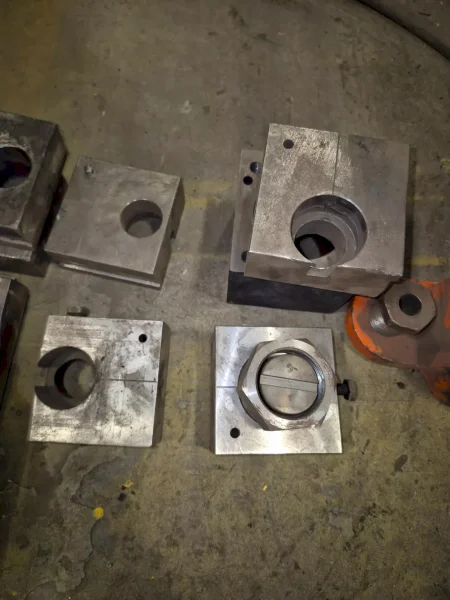

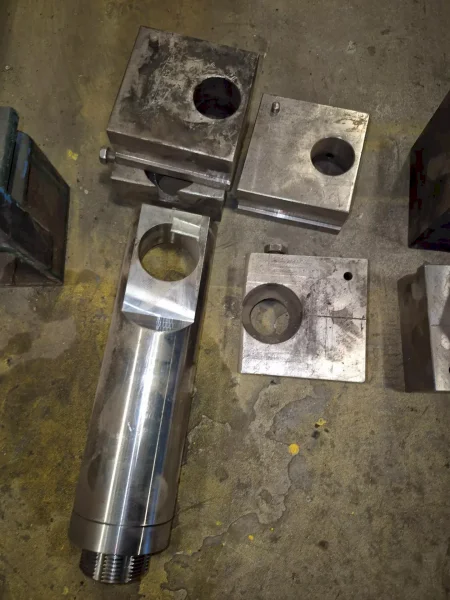

- MISC. PUNCHES & DIES

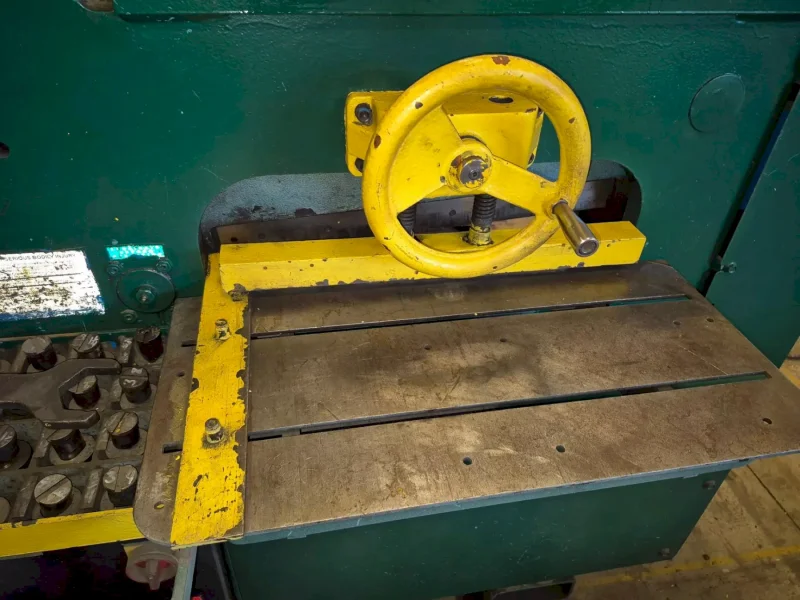

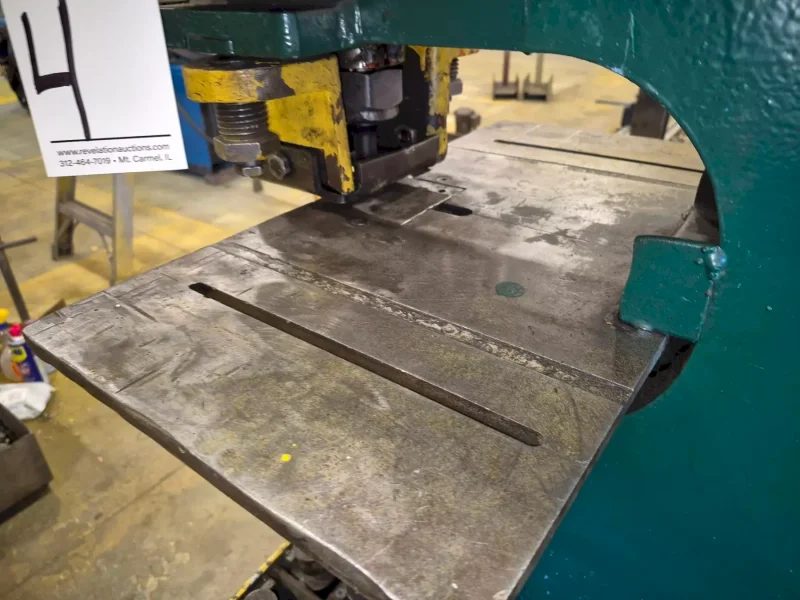

- FLAT SHEARING STATION

- BACK GAUGE STOP

- FOOT PEDAL
