2017 SCHNELL BAR WISER #22 N MULTIFEED STIRRUP BENDER W/ UL/CSA CONTROLS
Brand
Category
Type
Model
#22
Stock #
117304
Year
2017
Condition
Used
Location
Not specified
|
SPECIFICATIONS:
CAPACITY FOR GR60 REBARS
WITH BARS:
3 BARS #3;
2 BARS #4, #5 (13 / 16MM);
1 BAR #6, #7 (19/ 22MM).
WITH COIL: 2 WIRES (ONLY FOR STIRUPS) #3 #4 (10, 13MM);
1 WIRE #3 (10MM), #4 (13MM), #5 (16MM)
TRACTION SPEED 328FT/MIN (100M/MIN)
CONFIGURATION:
-EXTERNAL AND INTERNAL STRAIGHTENING UNIT FOR COIL: TWO #3; TWO #4; ONE $5;
-PNEUMATIC PRESSURE ON TRACTION WHEELS;
- ELECTRIC CABINET AIR CONDITIONER;
-BODY WITH LOWER FRONT DOOR;

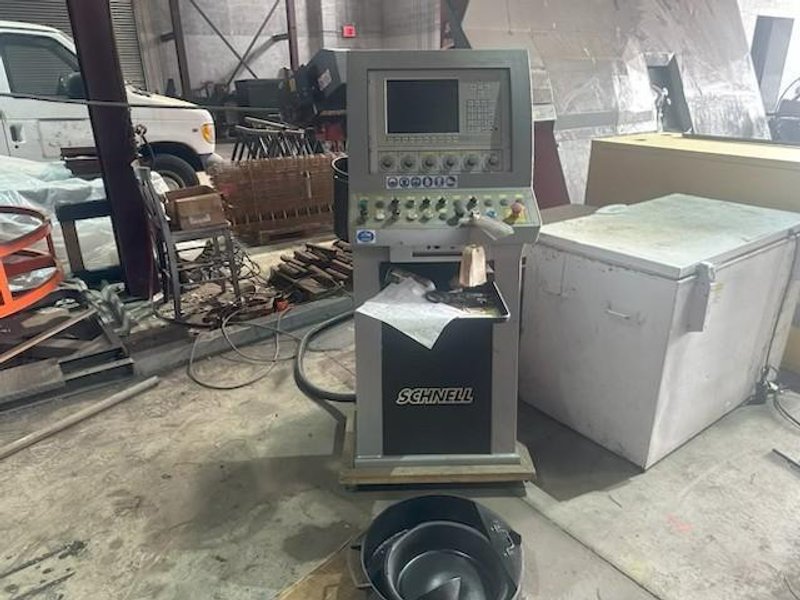

INDUSTRIAL PC EQUIPPED WITH 12, 1' LCD GRAPHIC-COLOR DISPLAY;

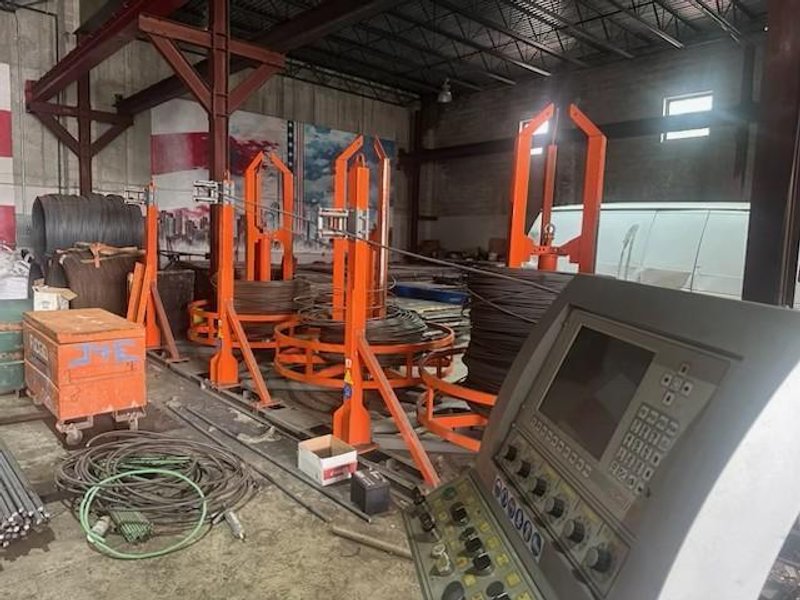

EQUIPPED WITH 3 DECOILER 3TON CAP.
REBAR WINCH,HYD UNIT. CONTROLS.
|
