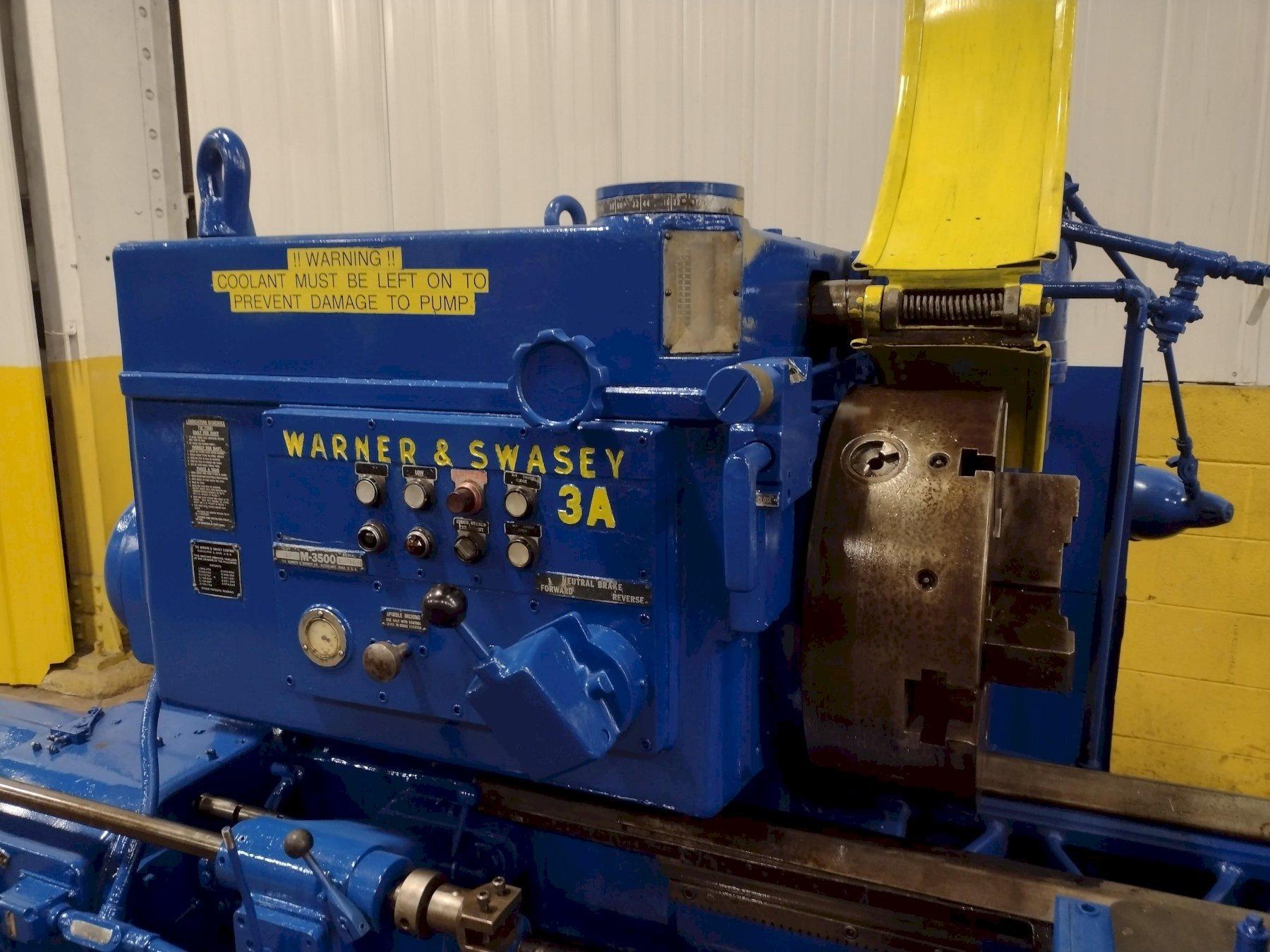

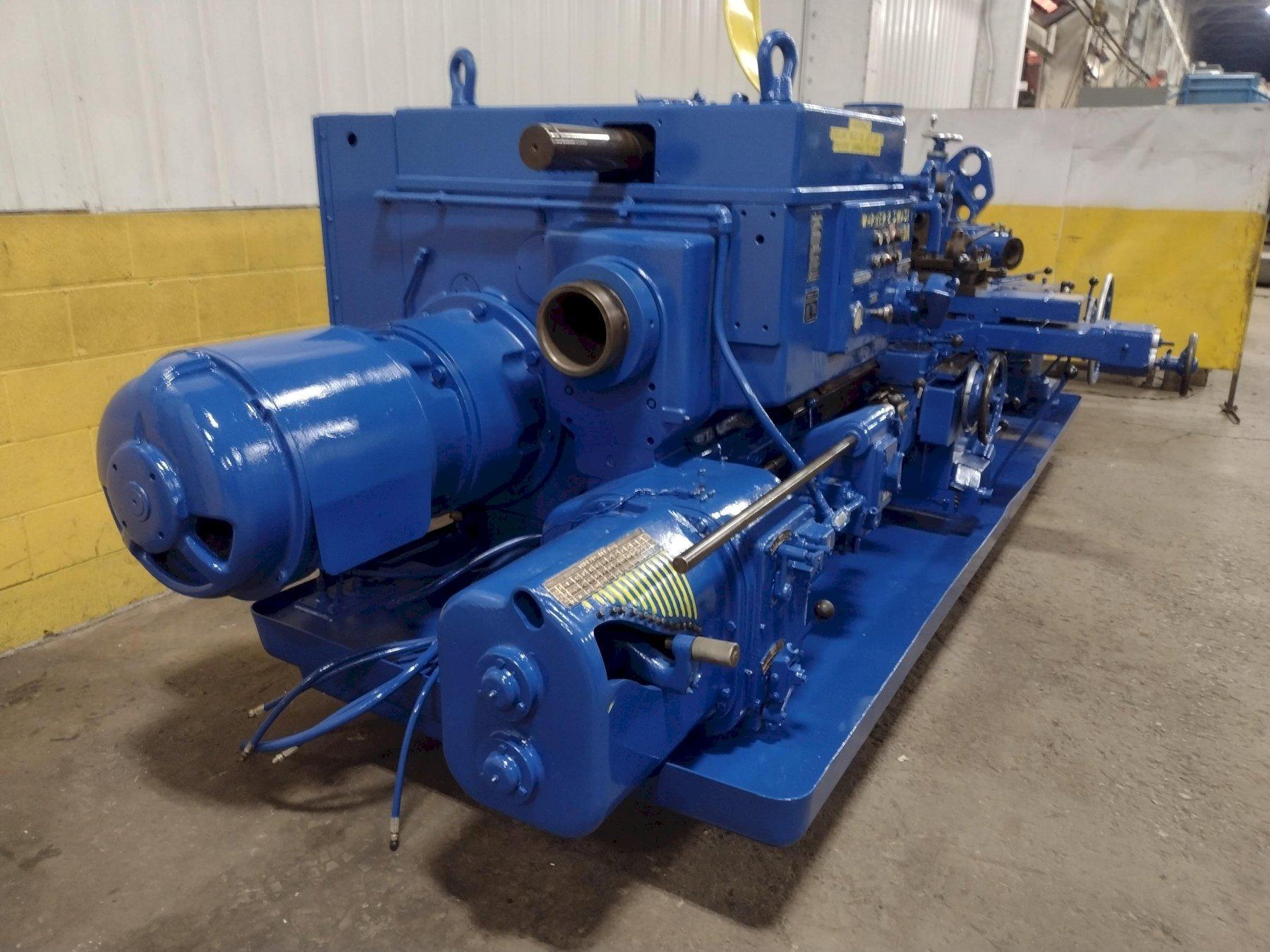

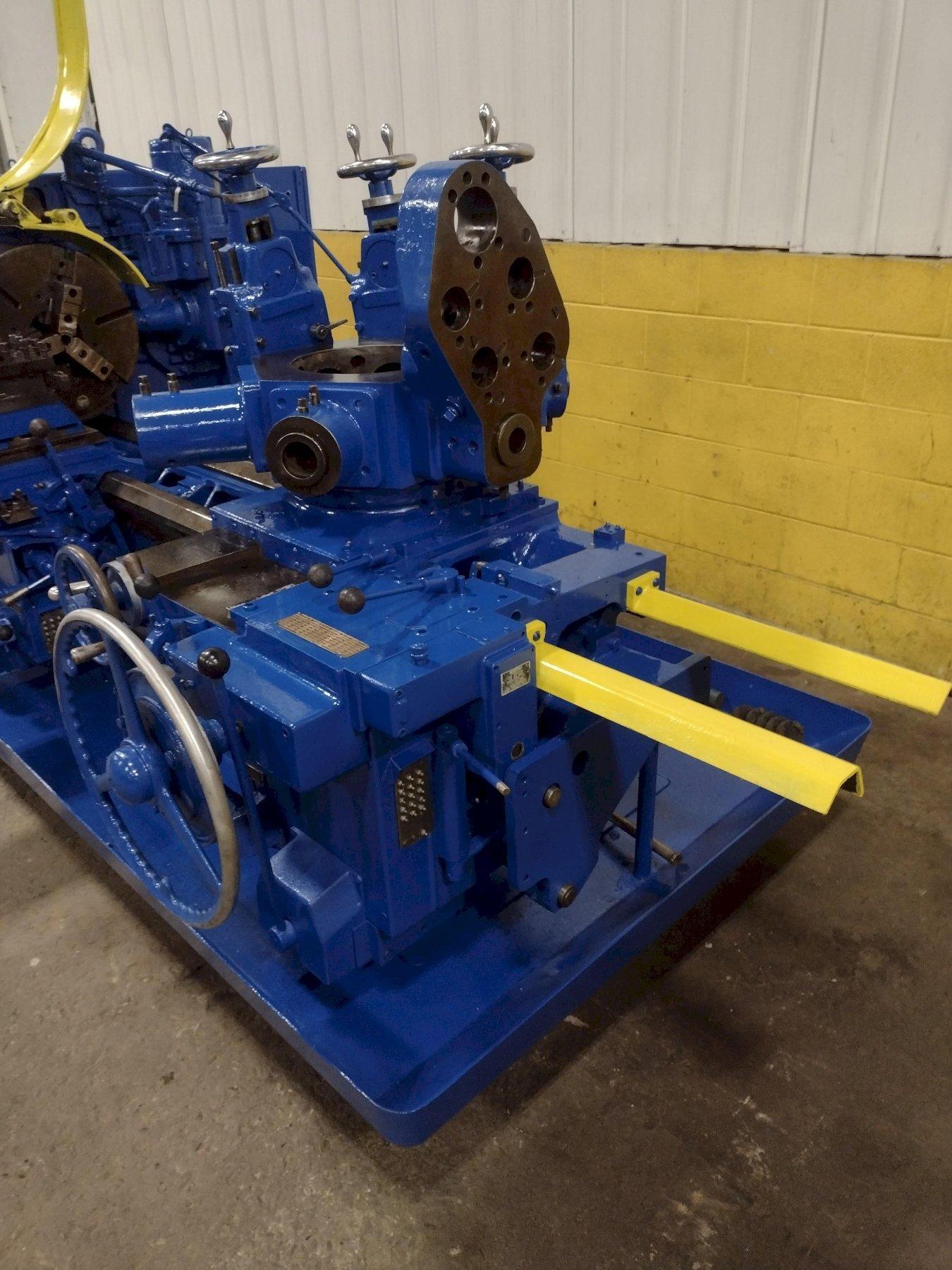

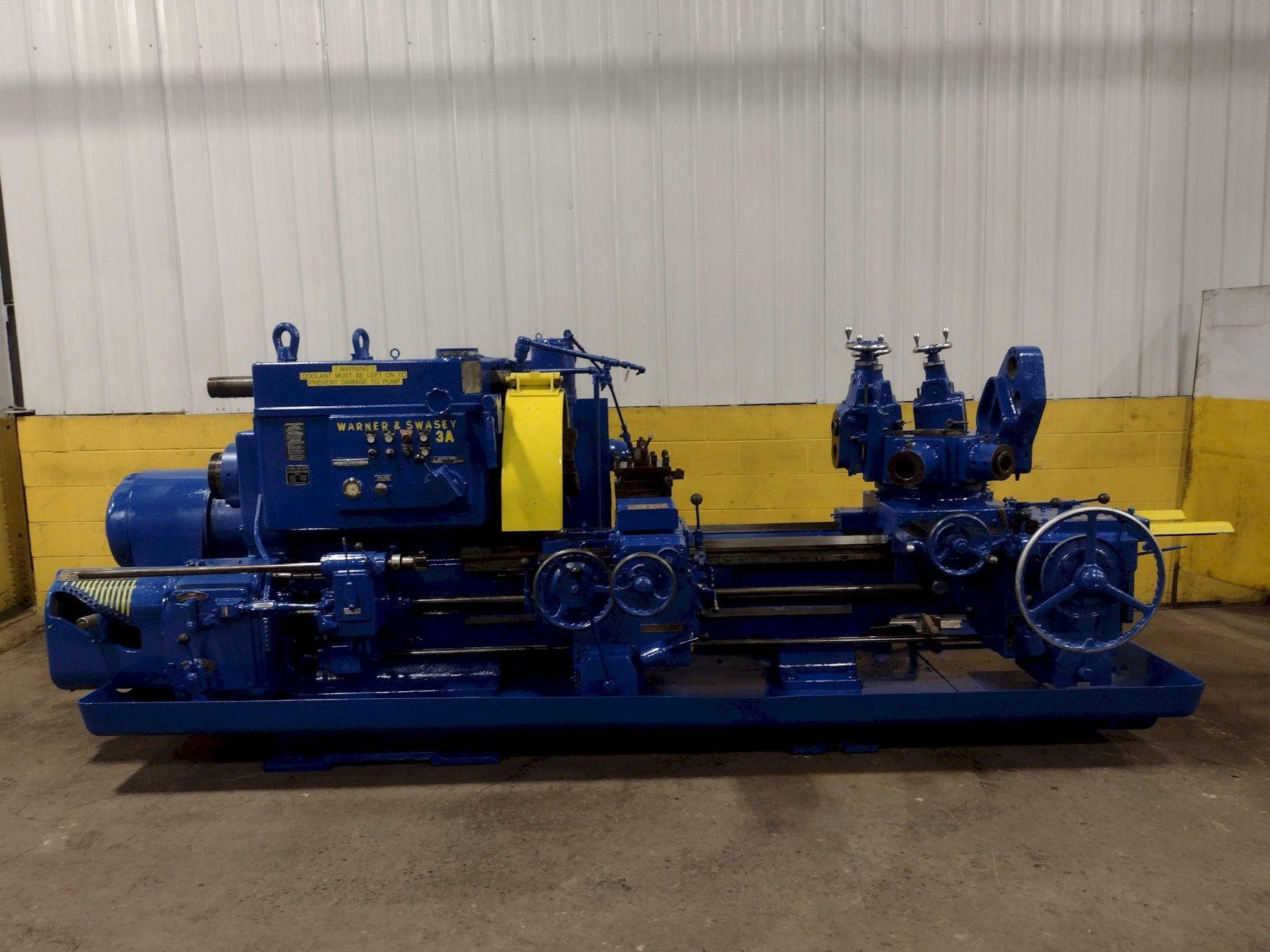

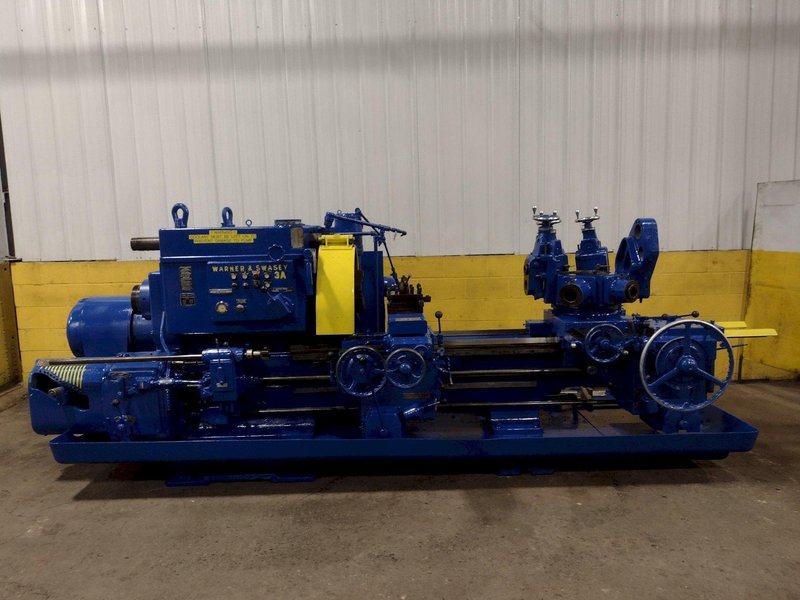

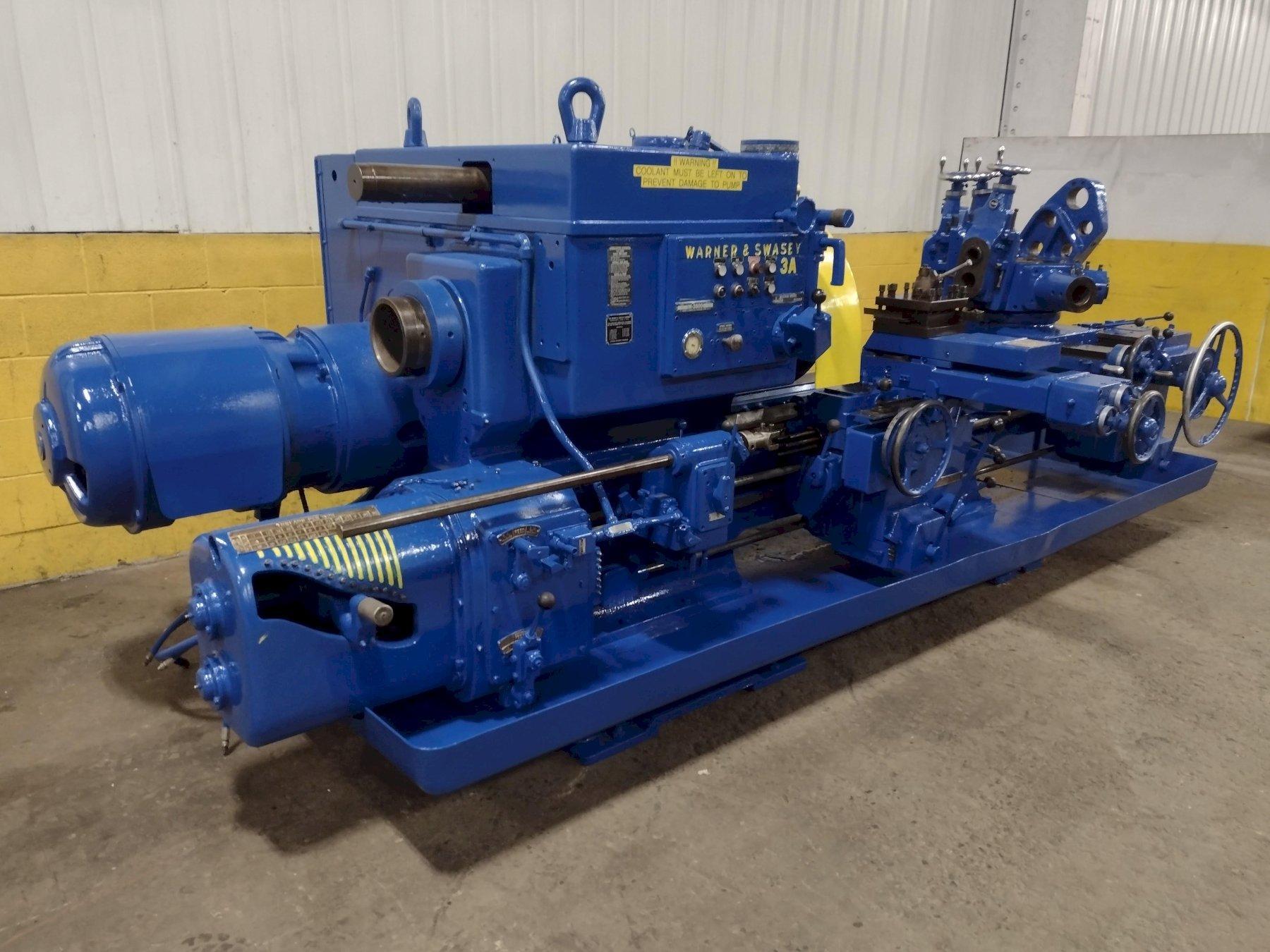

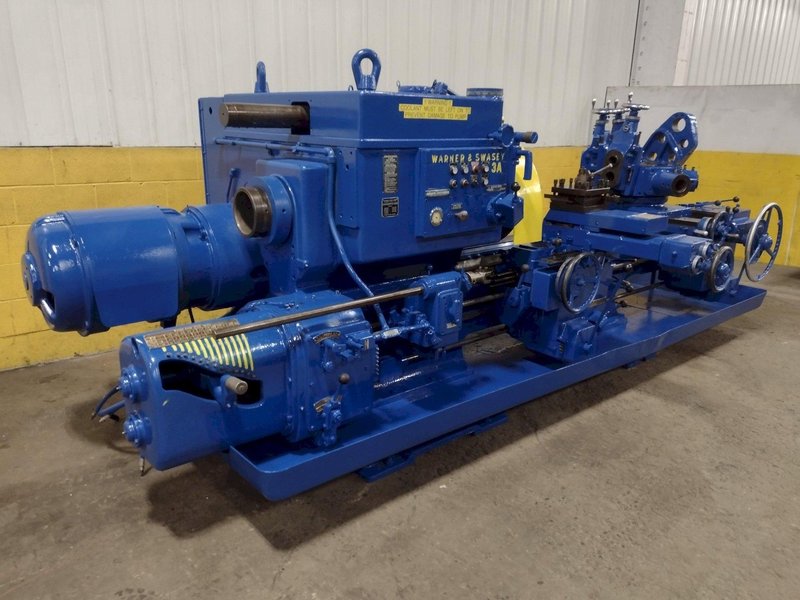

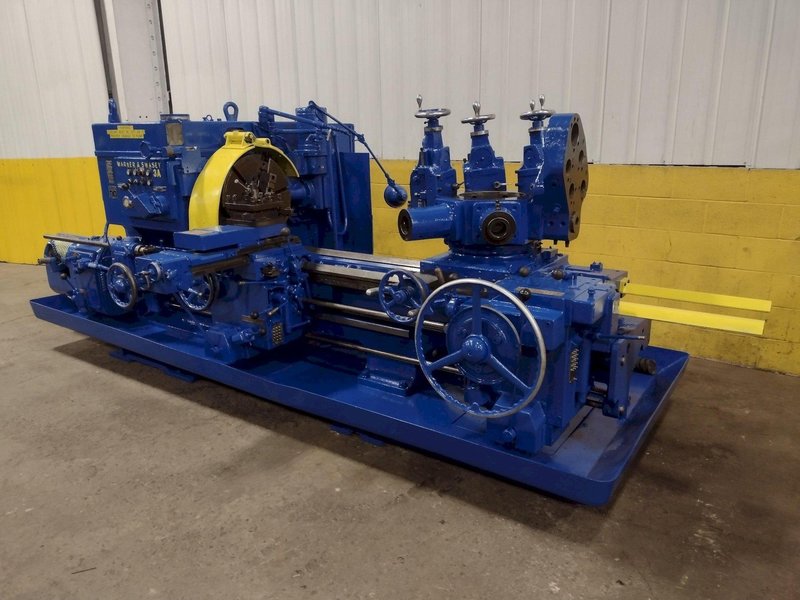

3A WARNER & SWASEY MODEL #M3500 CROSS SLIDING TURRET LATHE: YOBRO #25678

3A WARNER & SWASEY MODEL #M3500 CROSS SLIDING TURRET LATHE: YOBRO #25678

Name: 3A WARNER & SWASEY MODEL #M3500 CROSS SLIDING TURRET LATHE: YOBRO #25678
Brand: WARNER & SWASEY
SKU: 25678
Availability: InStock

Brand

WARNER & SWASEY

Location

Ohio

Specifications
Files & Videos

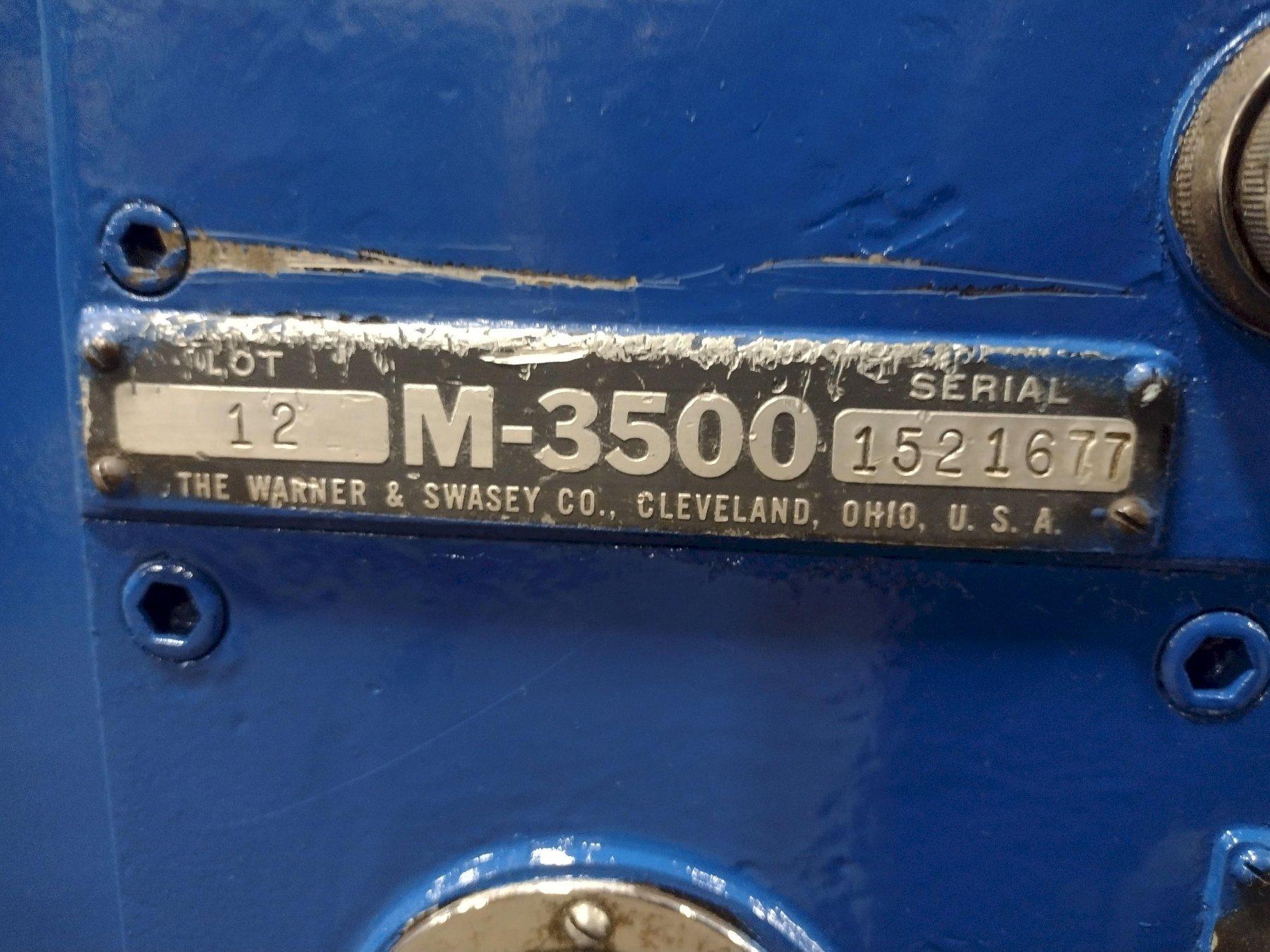

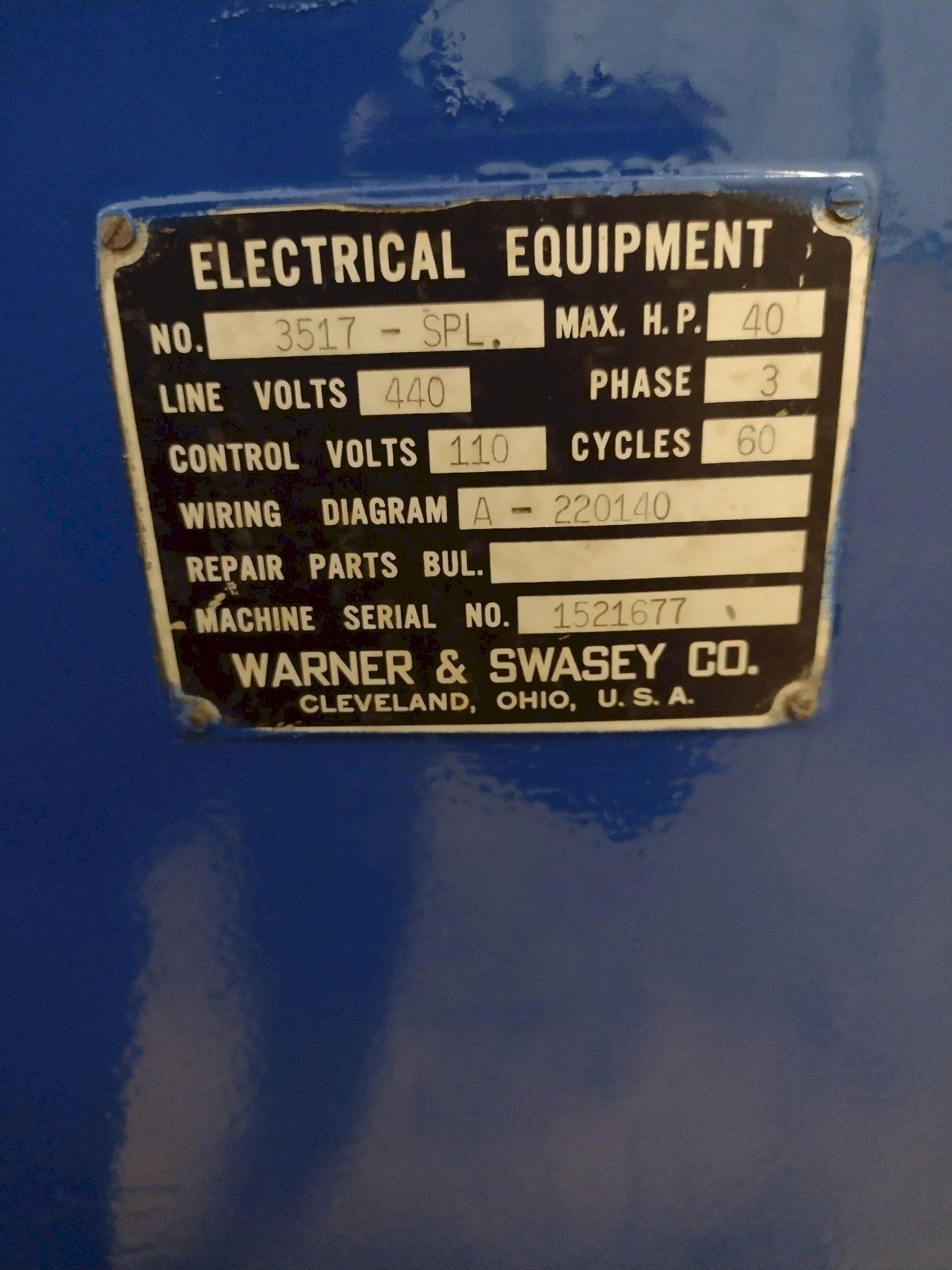

SERIAL ............................ 1521677

MODEL ............................. 3A (M-3500) SQUARE HEAD

SWING OVER BED .................... 24-1/2"

SWING OVER CARRIAGE HORN .......... 18"

SPINDLE NOSE TO TURRET ............ 58-3/4"

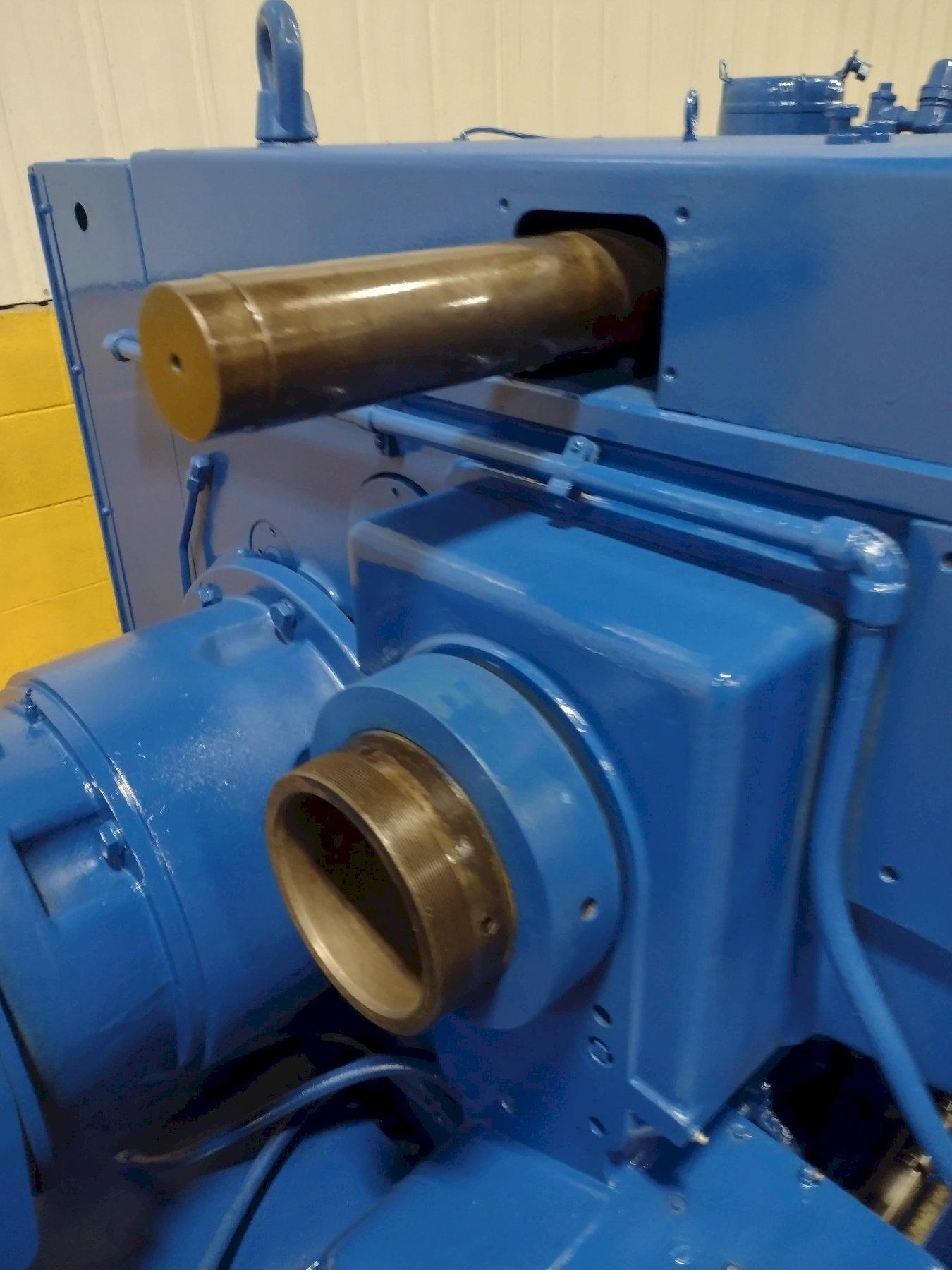

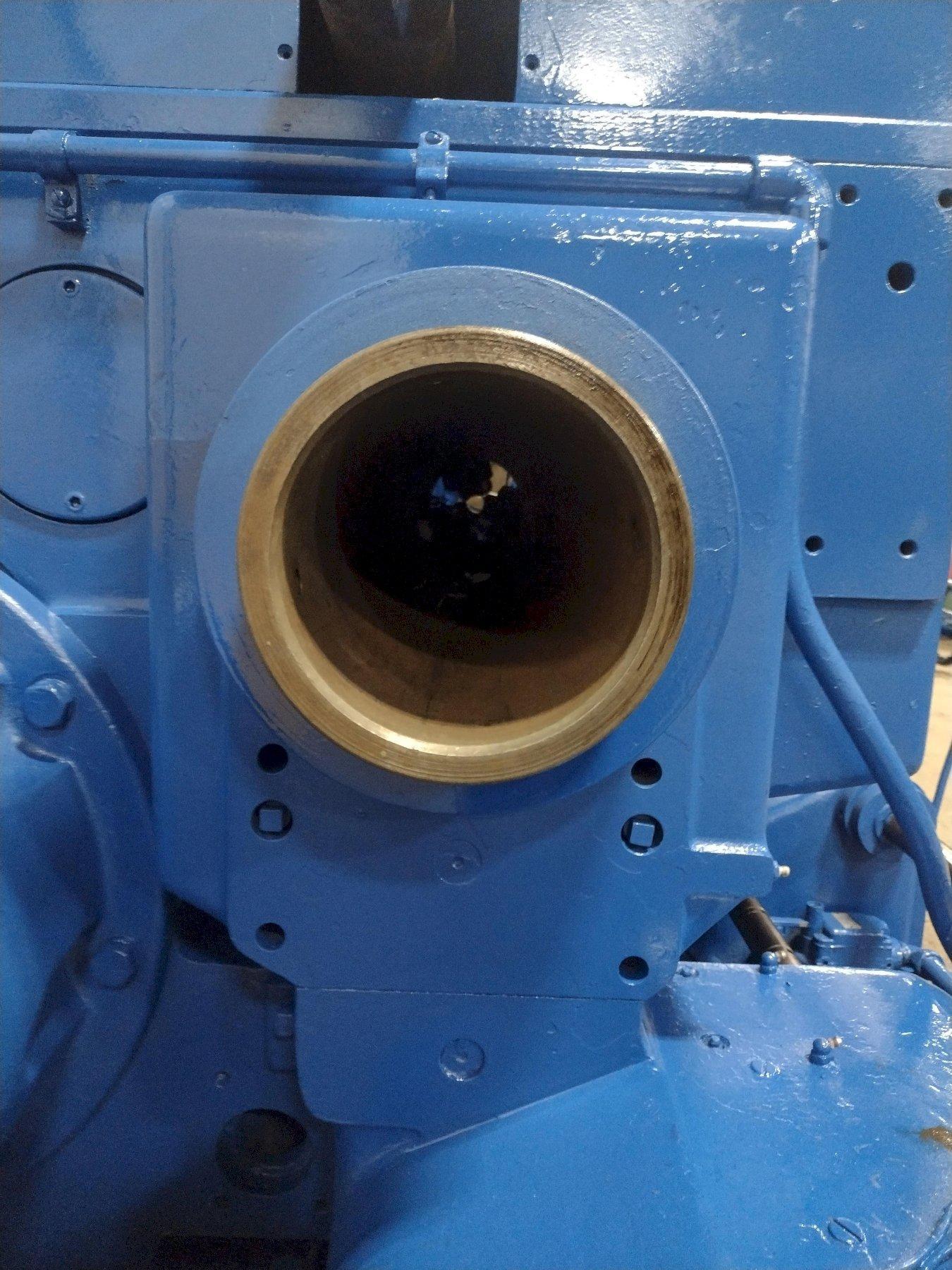

SPINDLE HOLE ...................... 6-1/8"

SPINDLE SPEEDS .................... (32) 18 TO 639 RPM

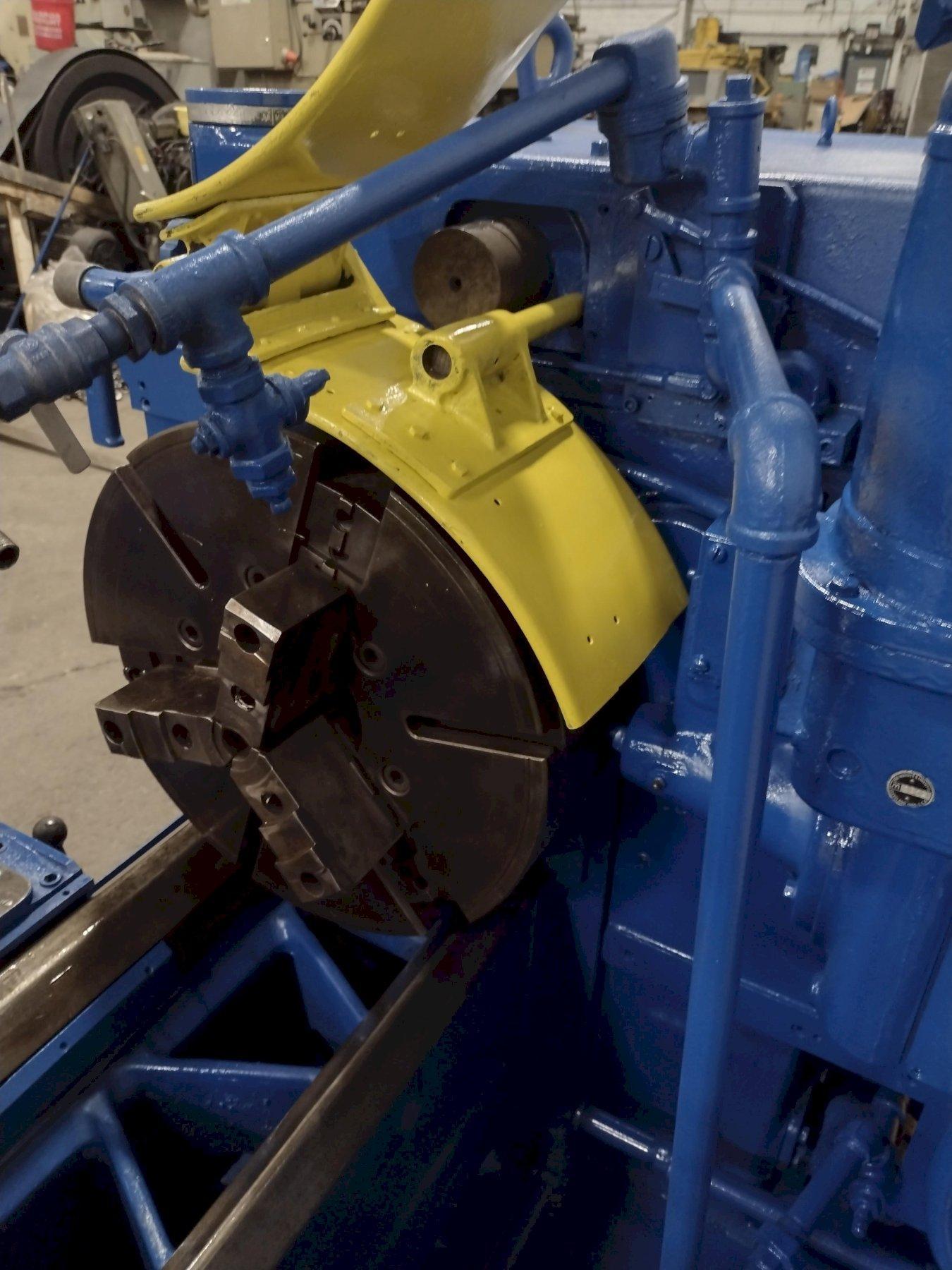

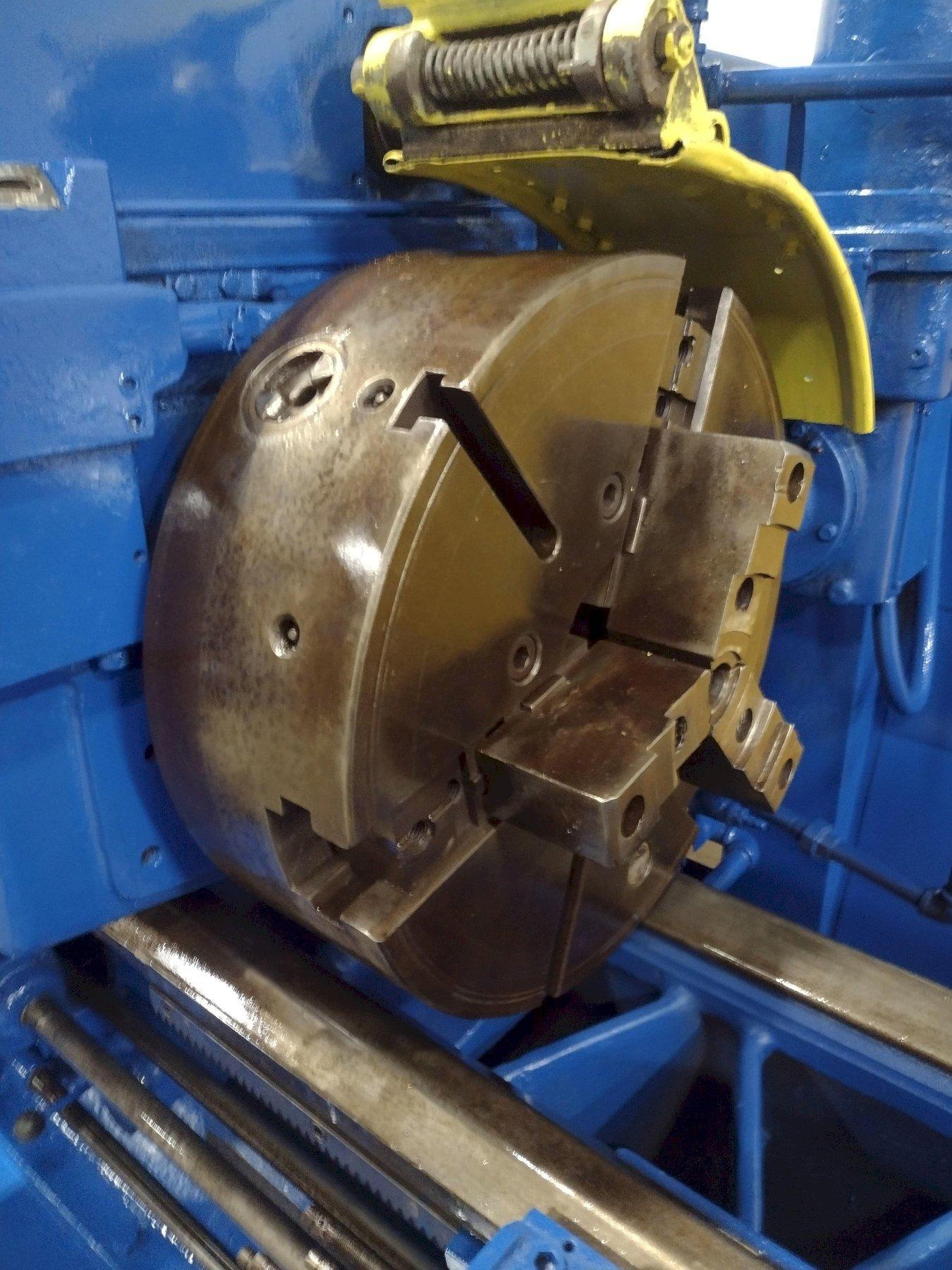

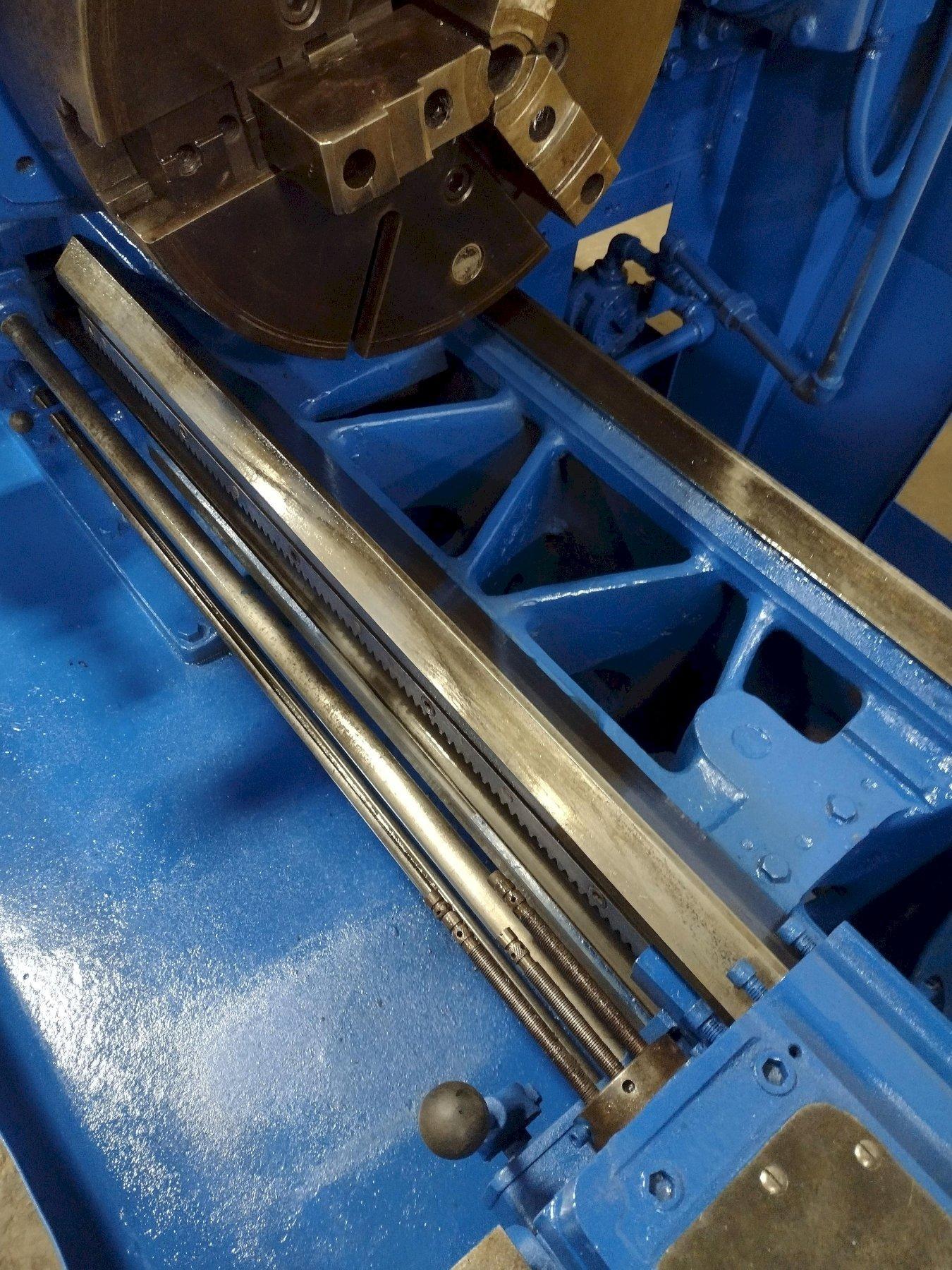

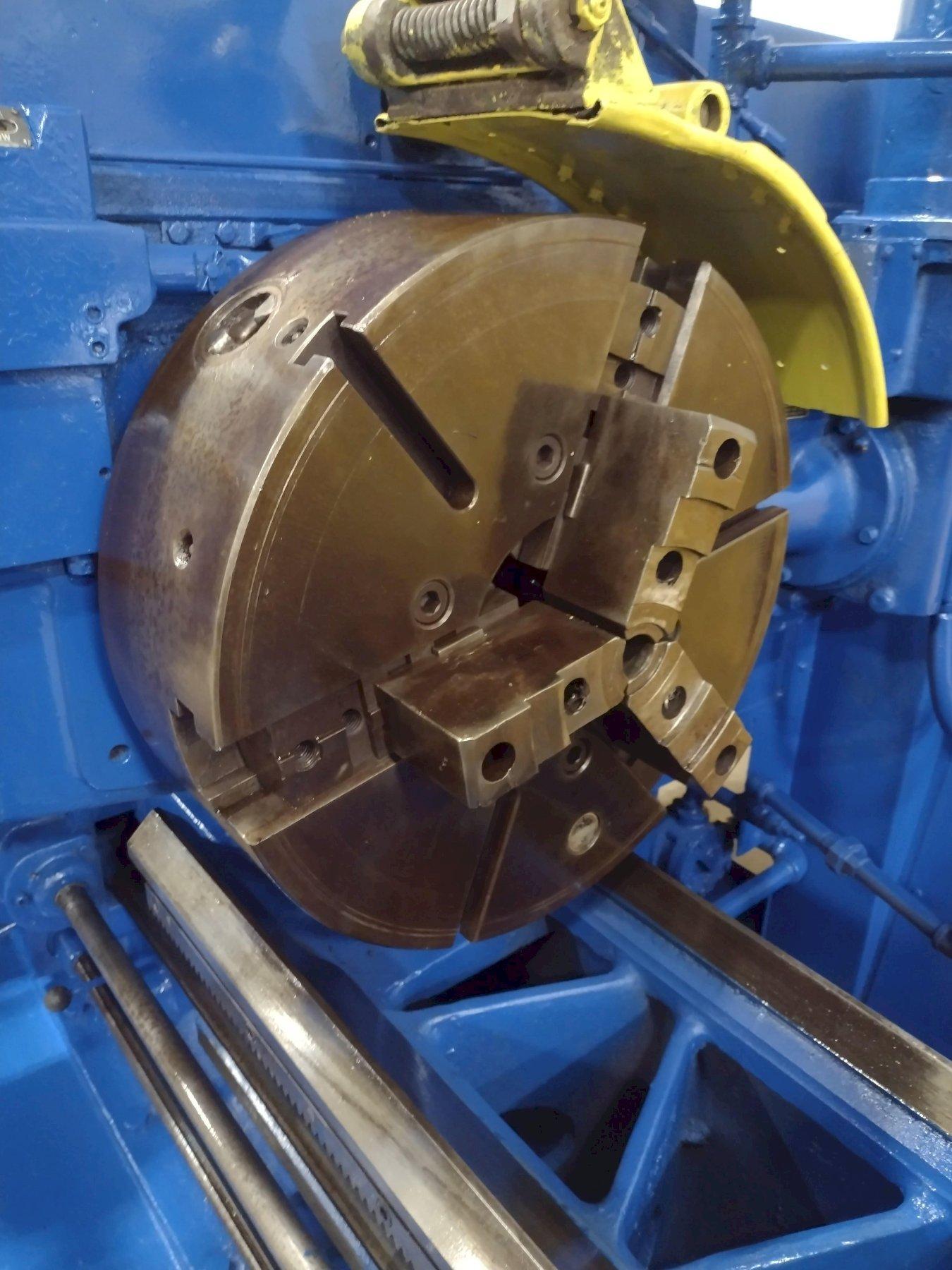

CHUCK ............................. 21" 3 JAW

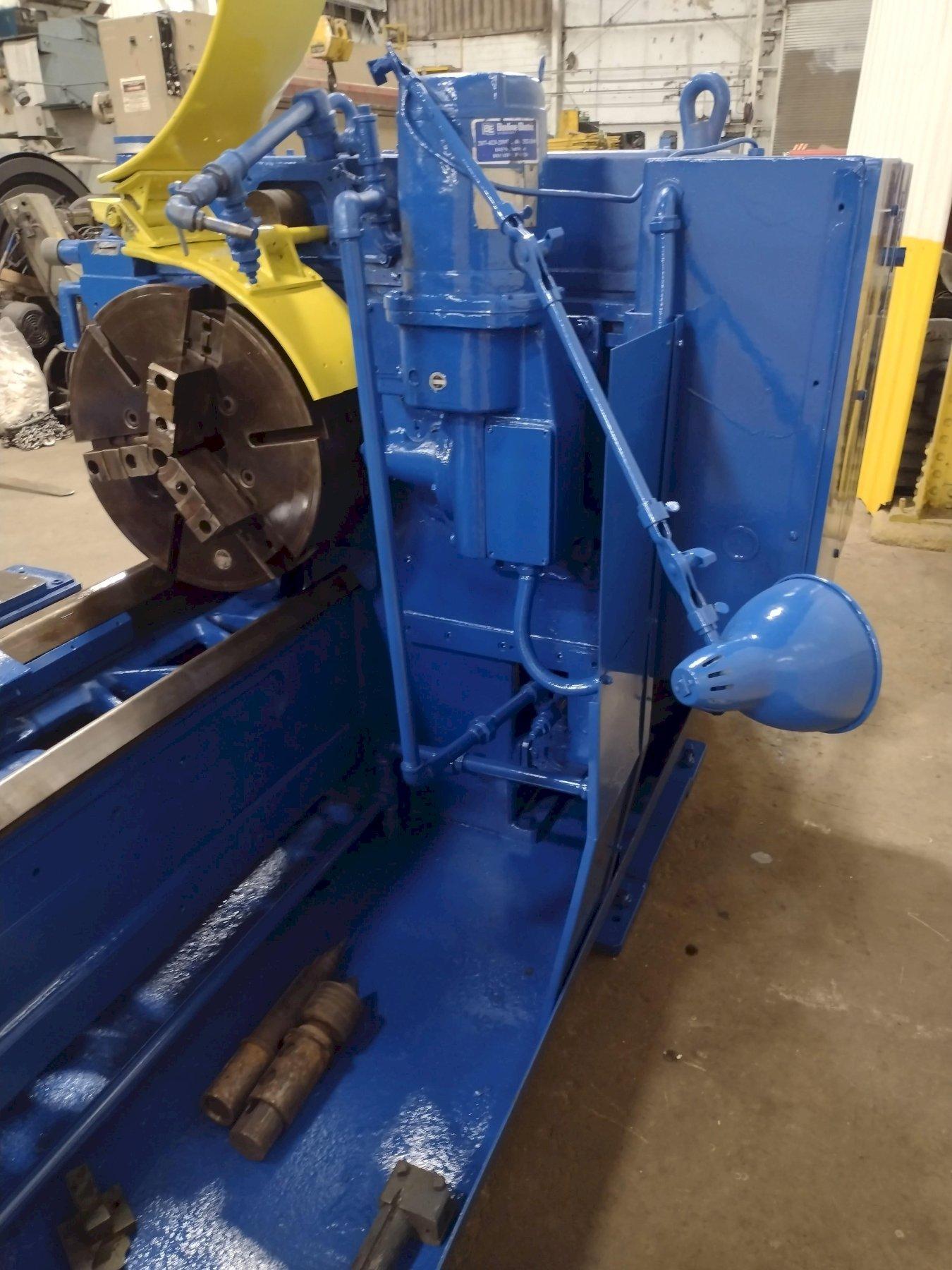

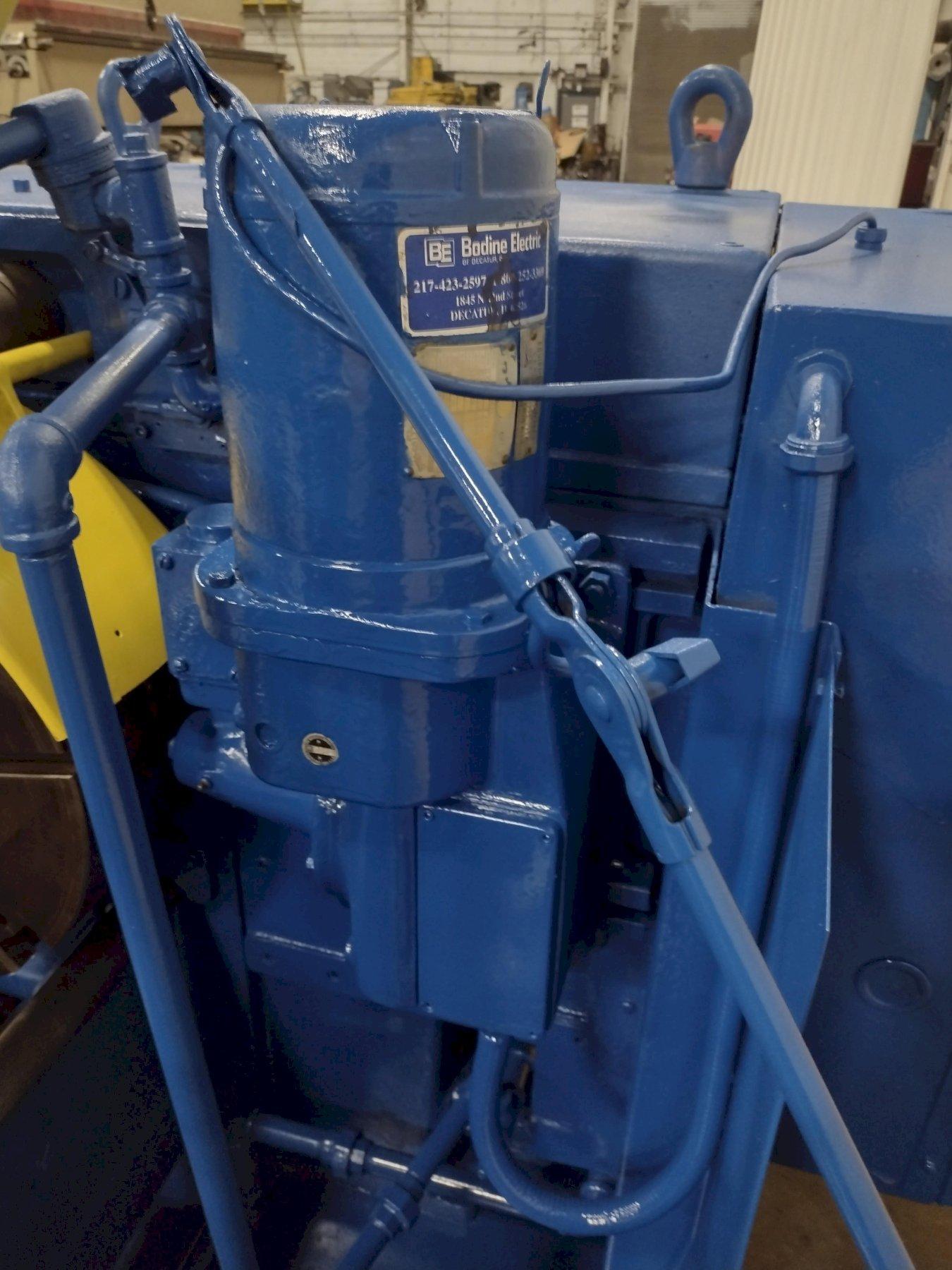

POWER CHUCK WRENCH ................ YES

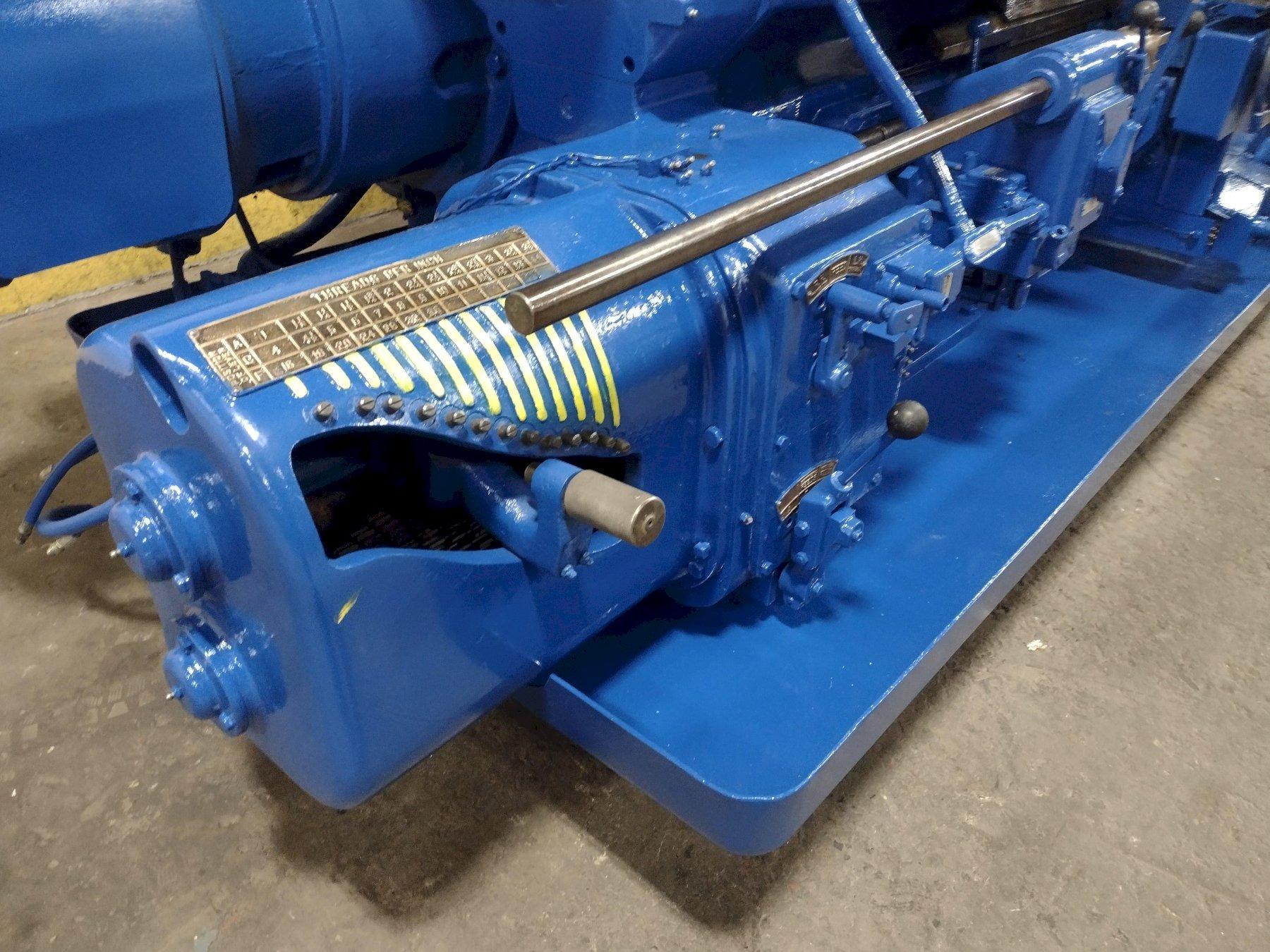

CARRIAGE LONGITUDINAL FEEDS ....... (16) .0029 TO .187 IPR

CARRIAGE CROSS FEEDS .............. (16) .002 TO .082 IPR

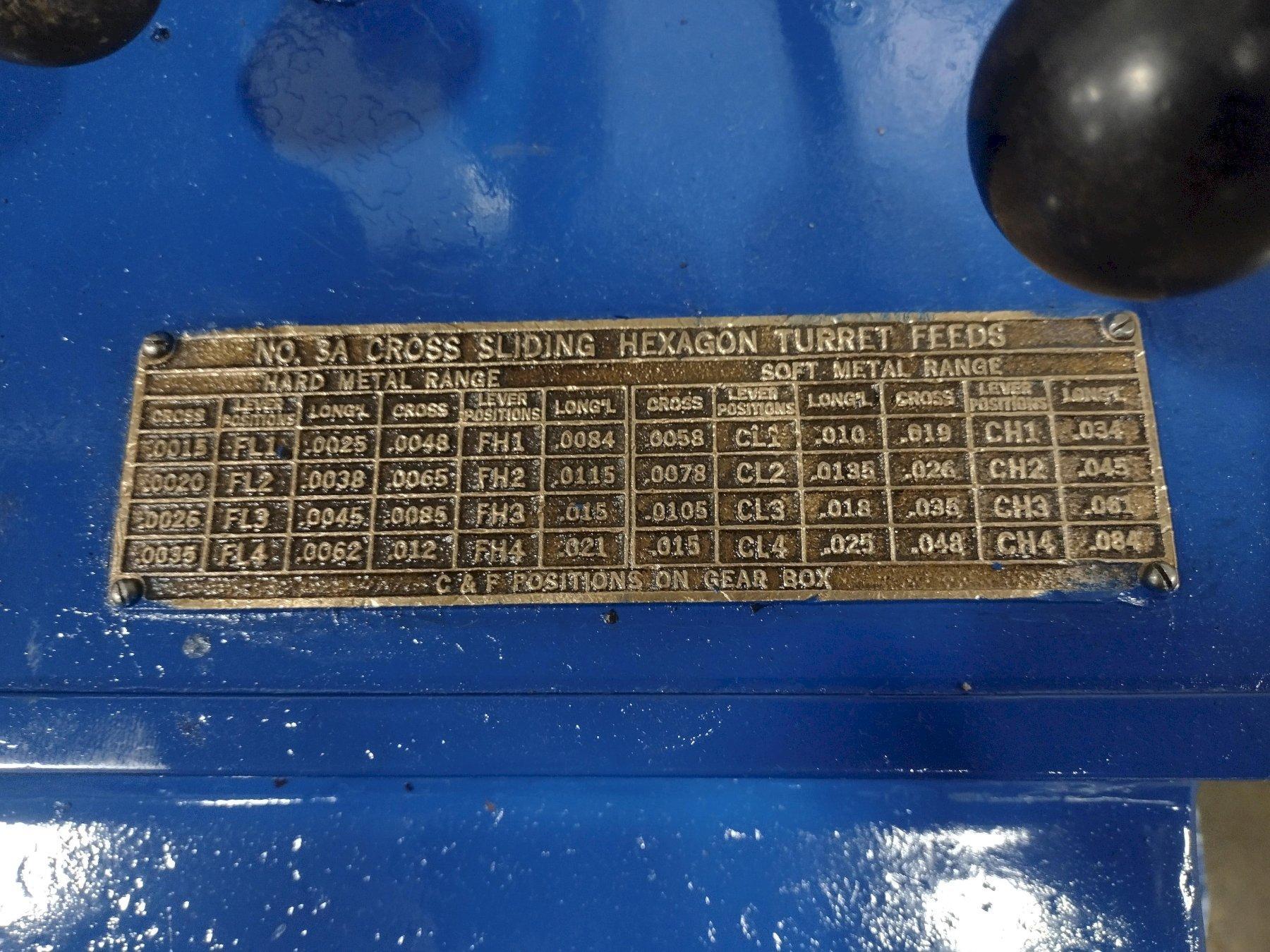

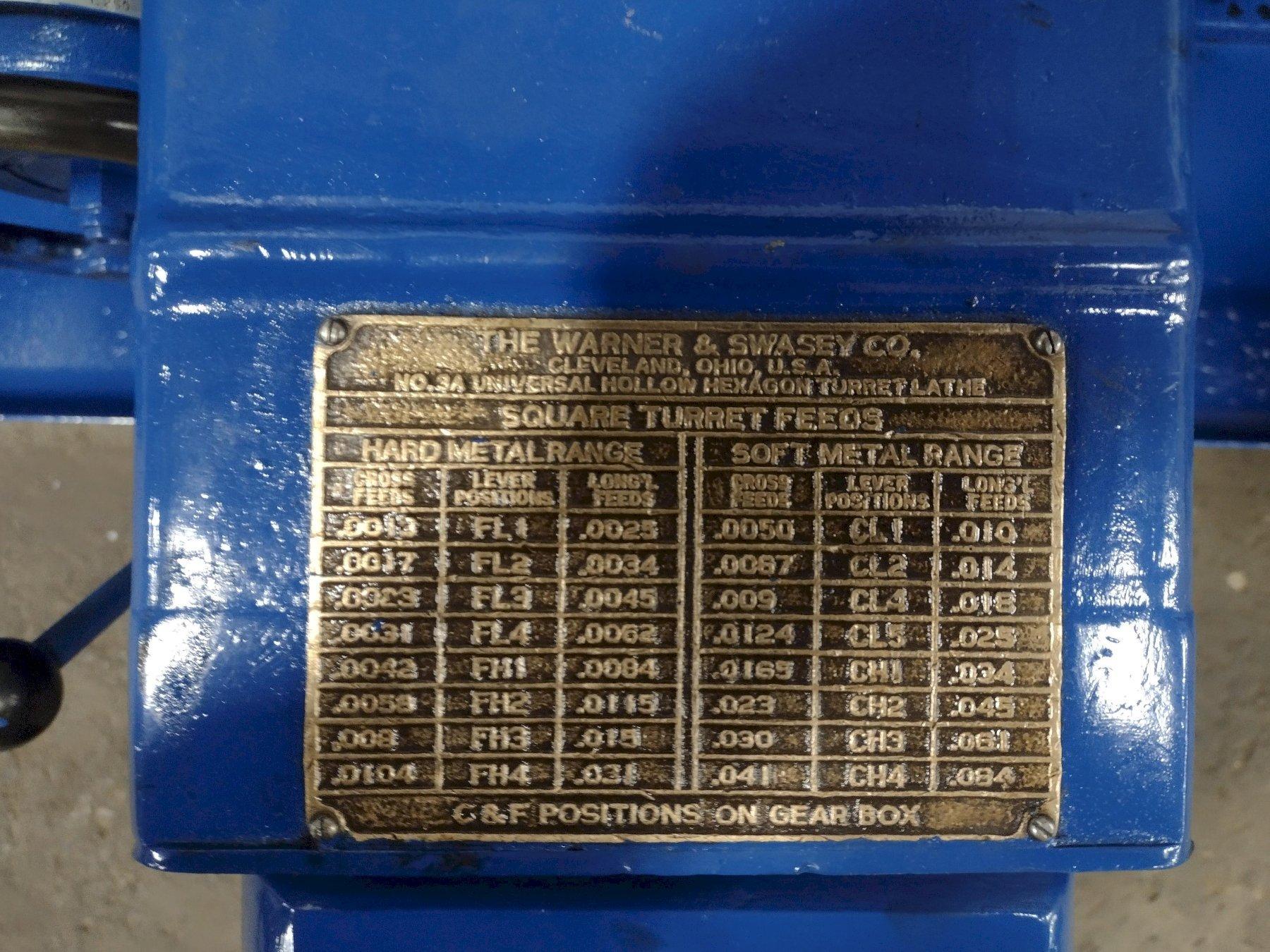

TURRET LONGITUDINAL FEEDS ......... (16) .005 TO .167 IPR

TURRET CROSS FEEDS ................ (16) .003 TO .096 IPR

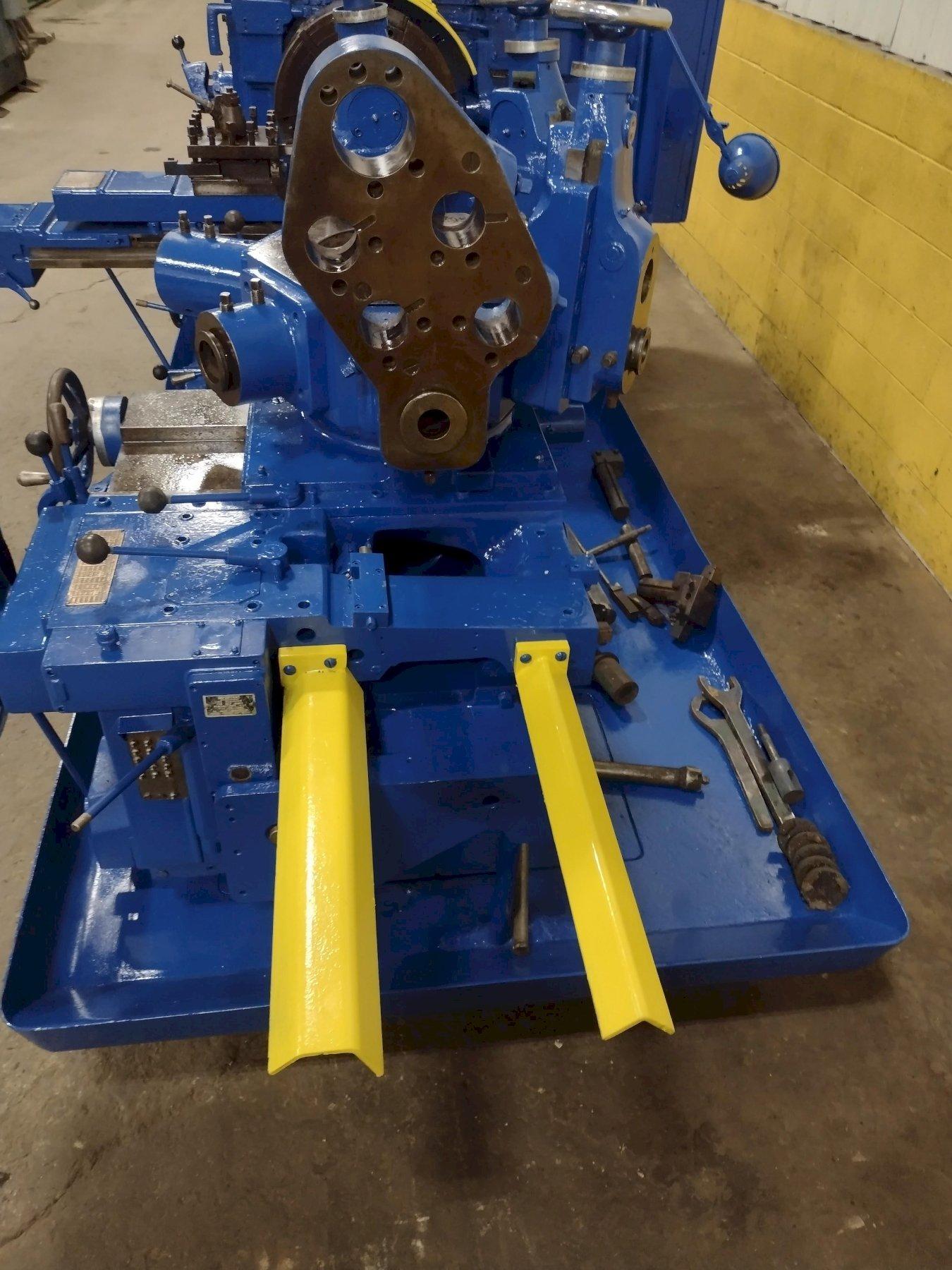

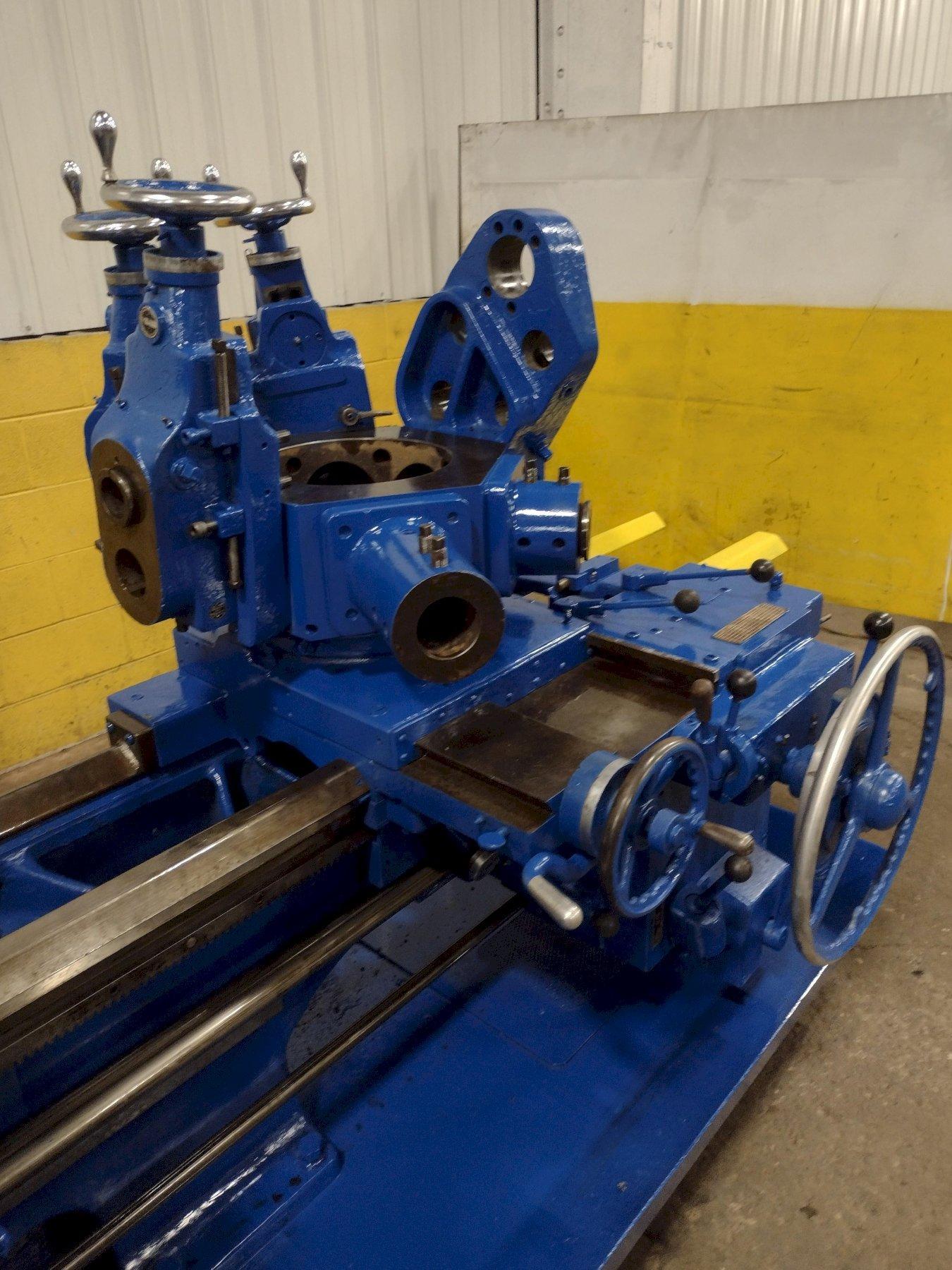

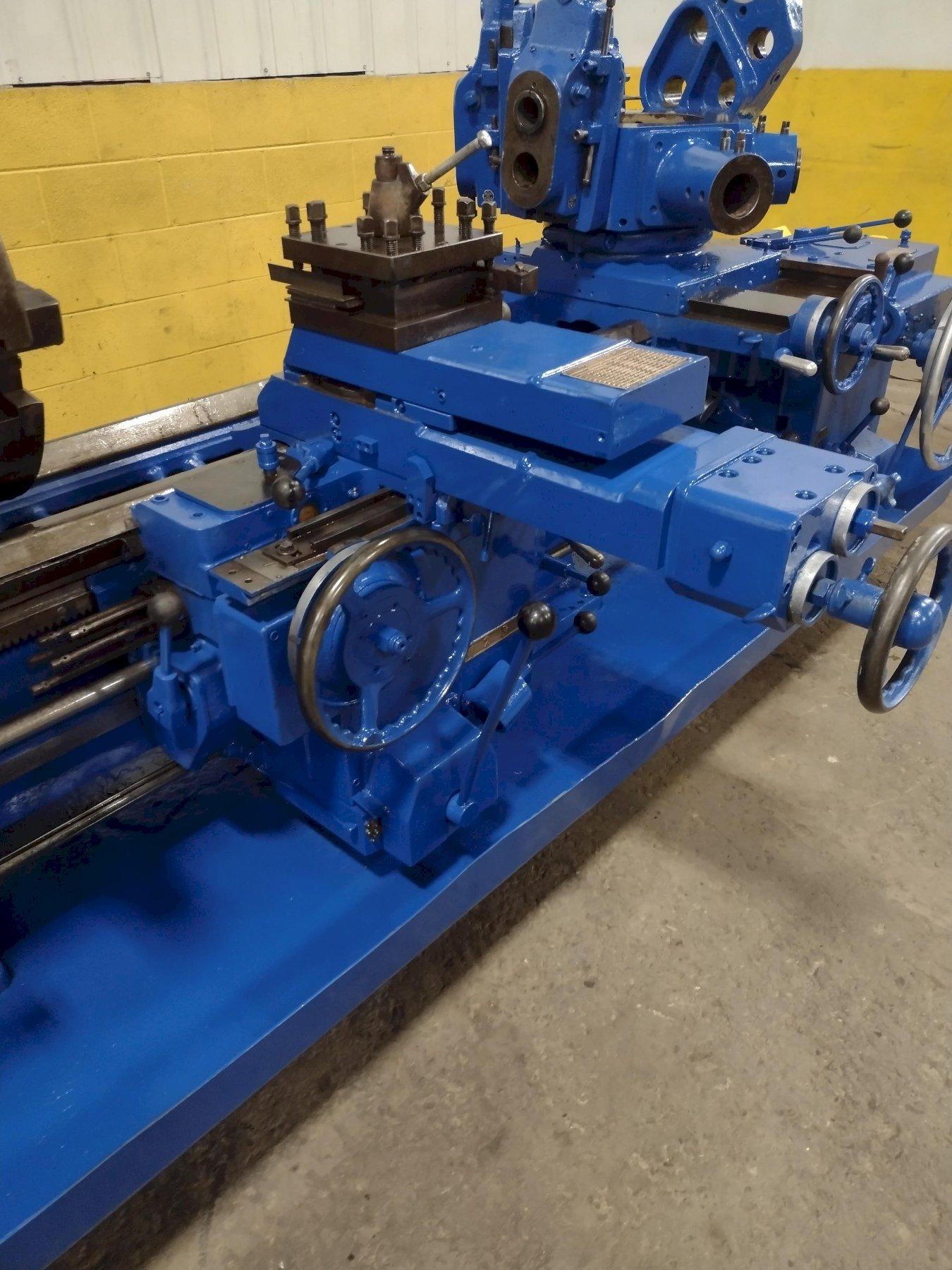

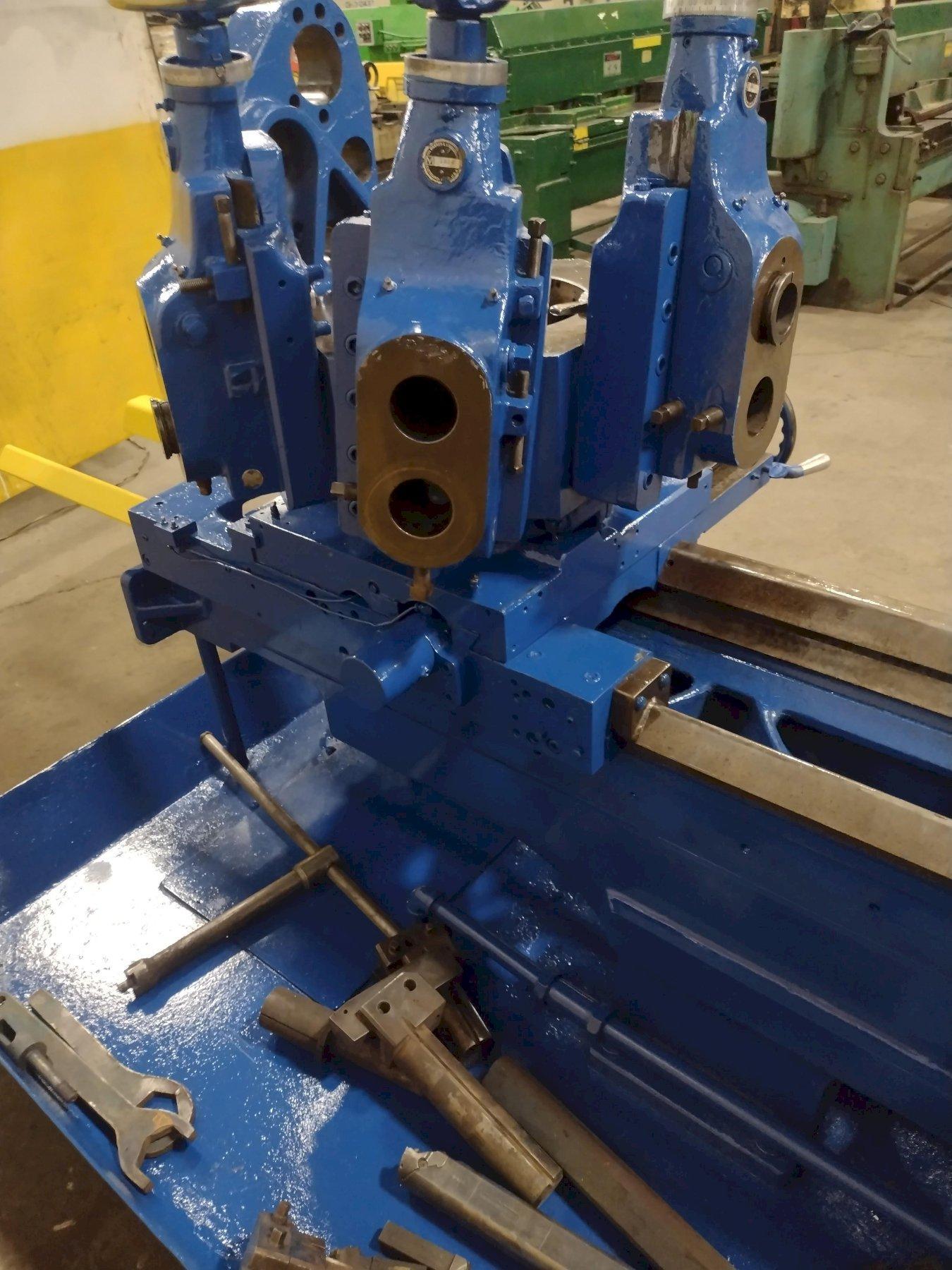

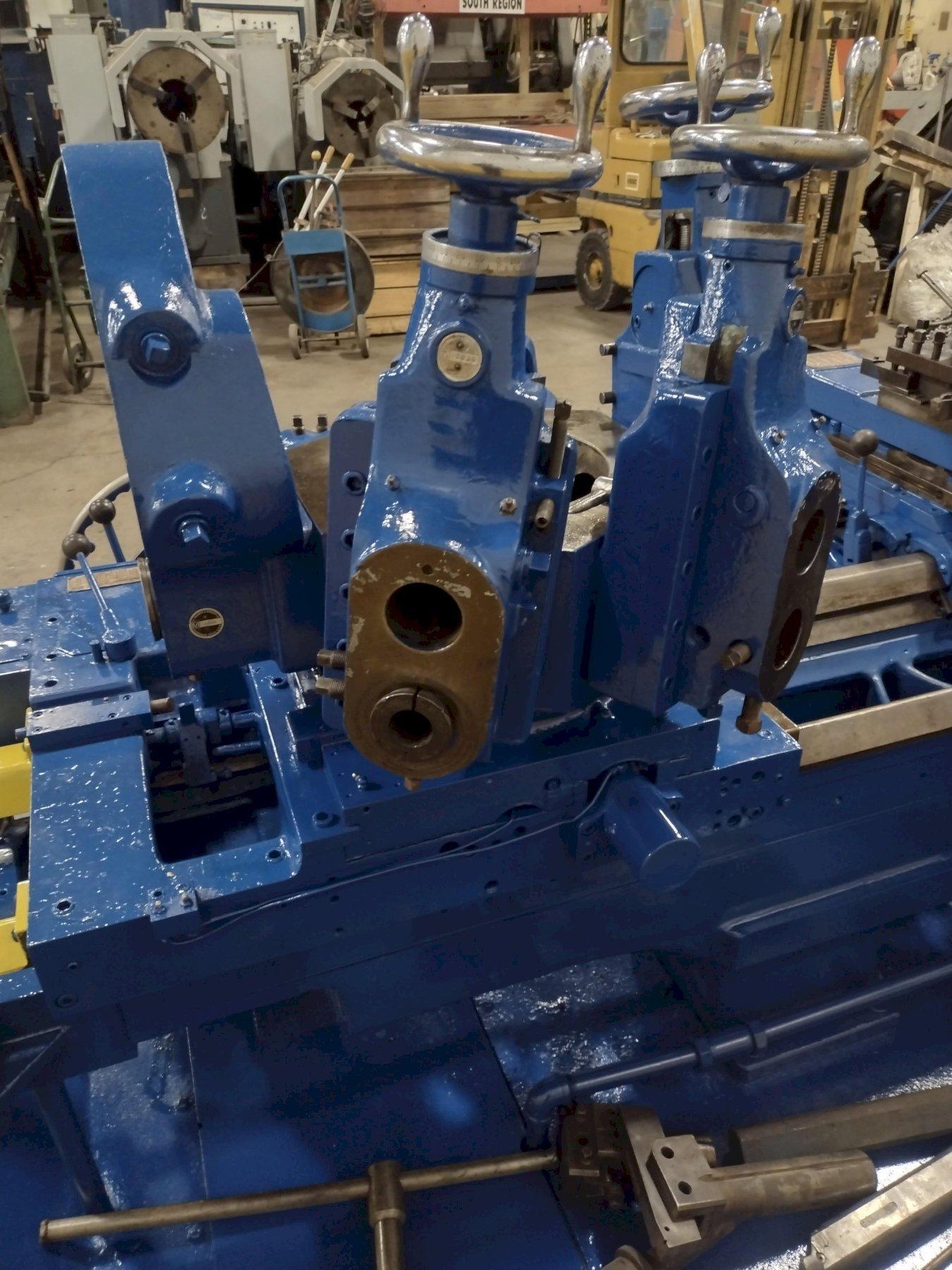

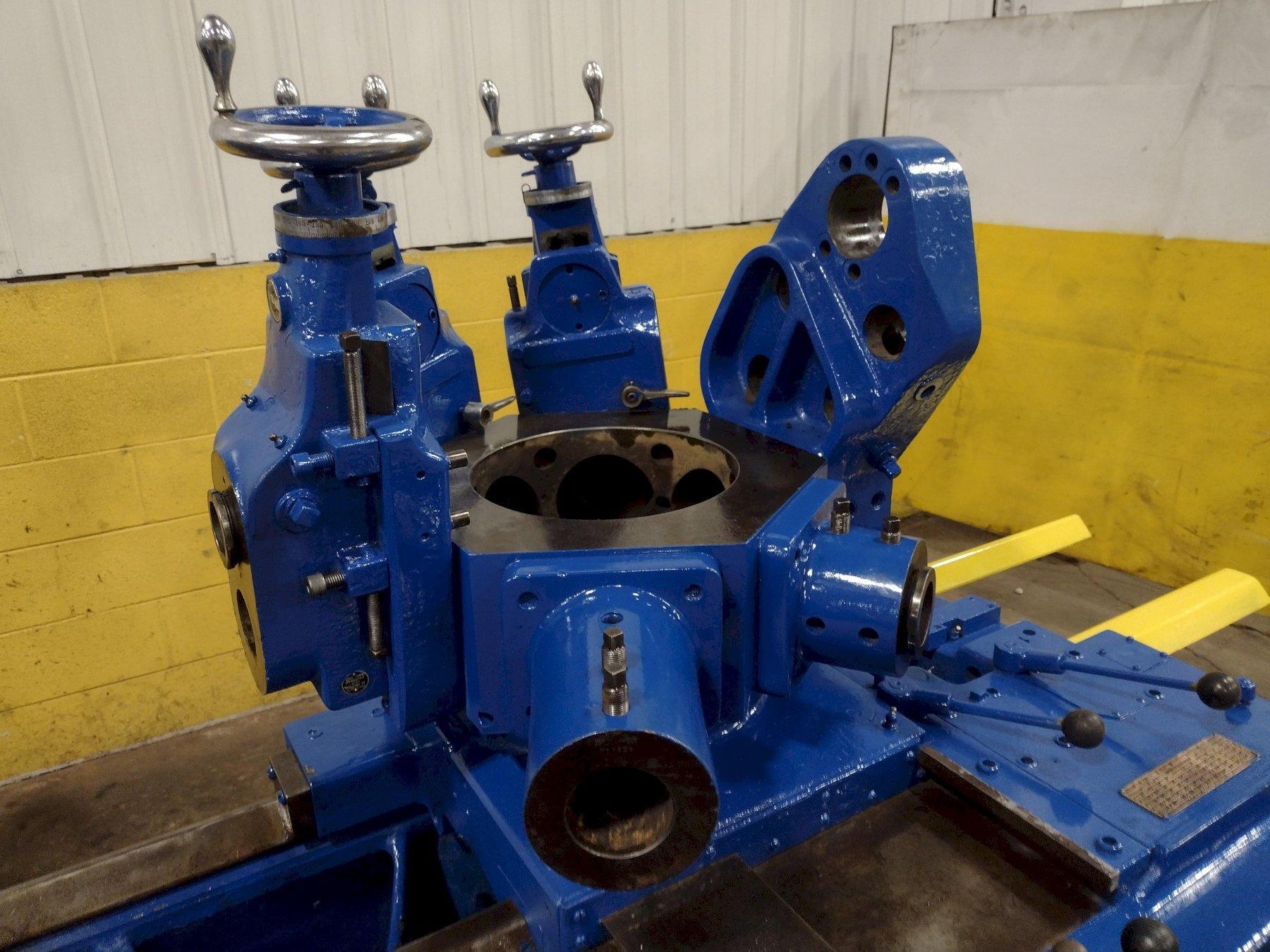

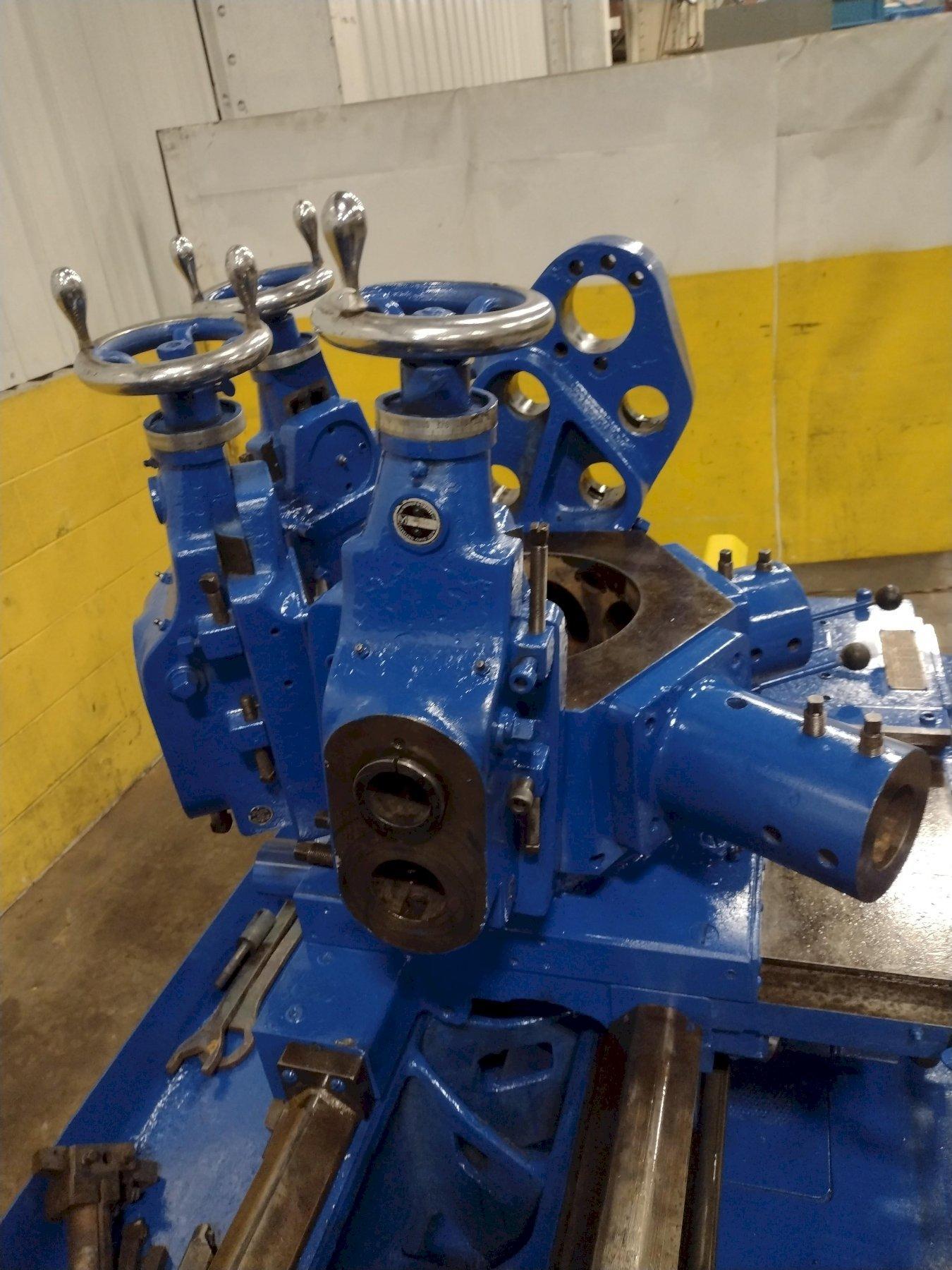

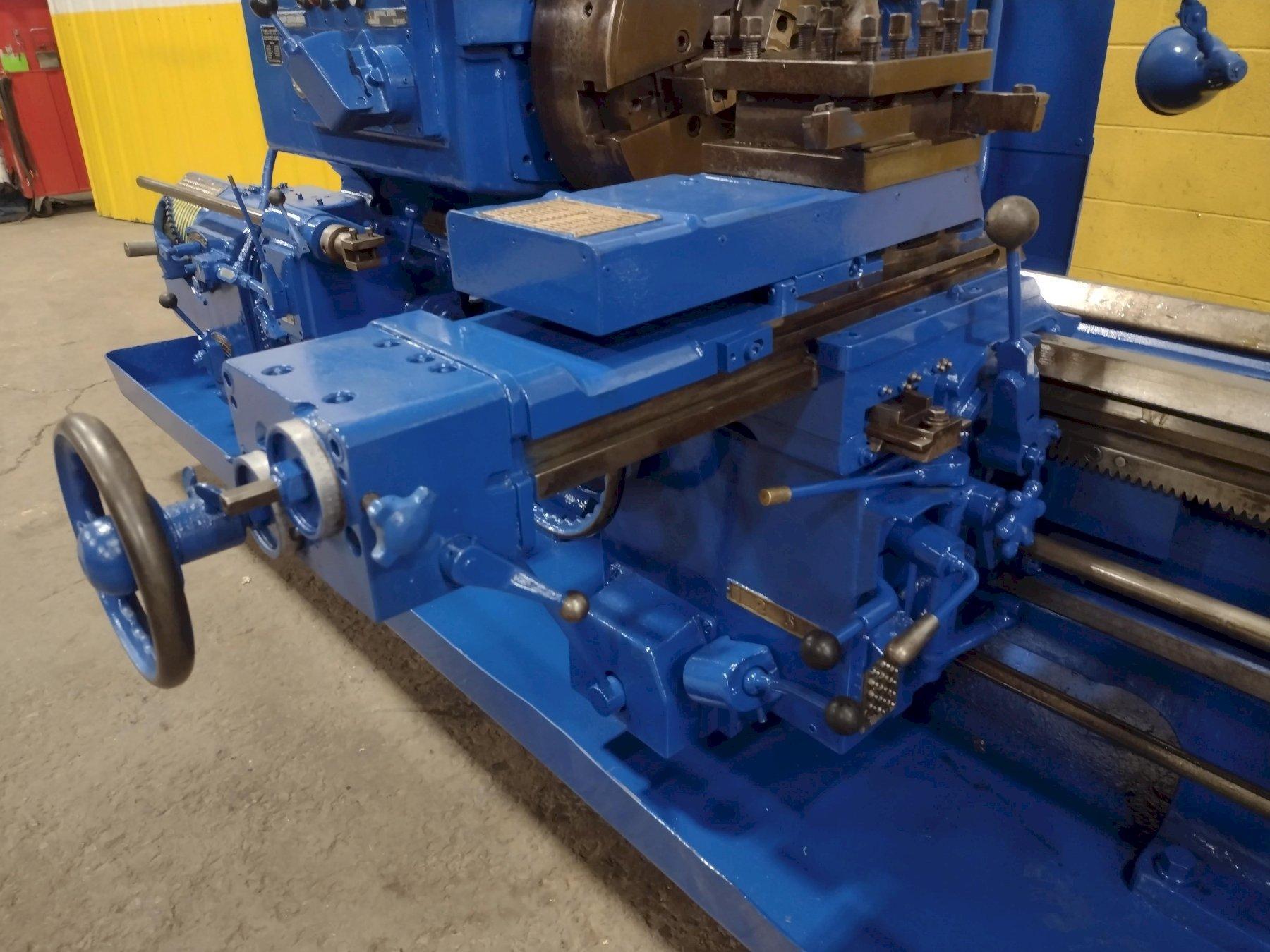

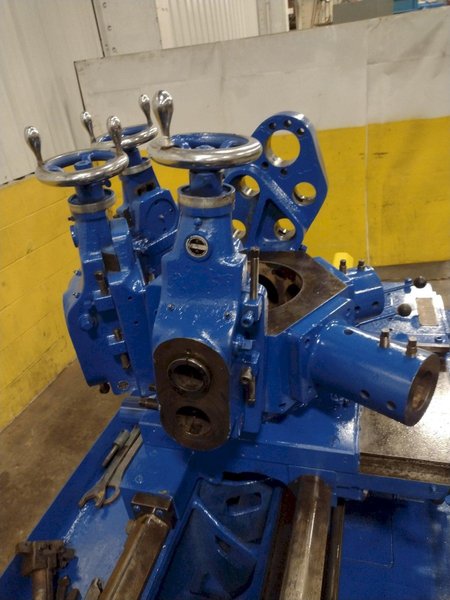

CROSS SLIDING TURRET .............. YES

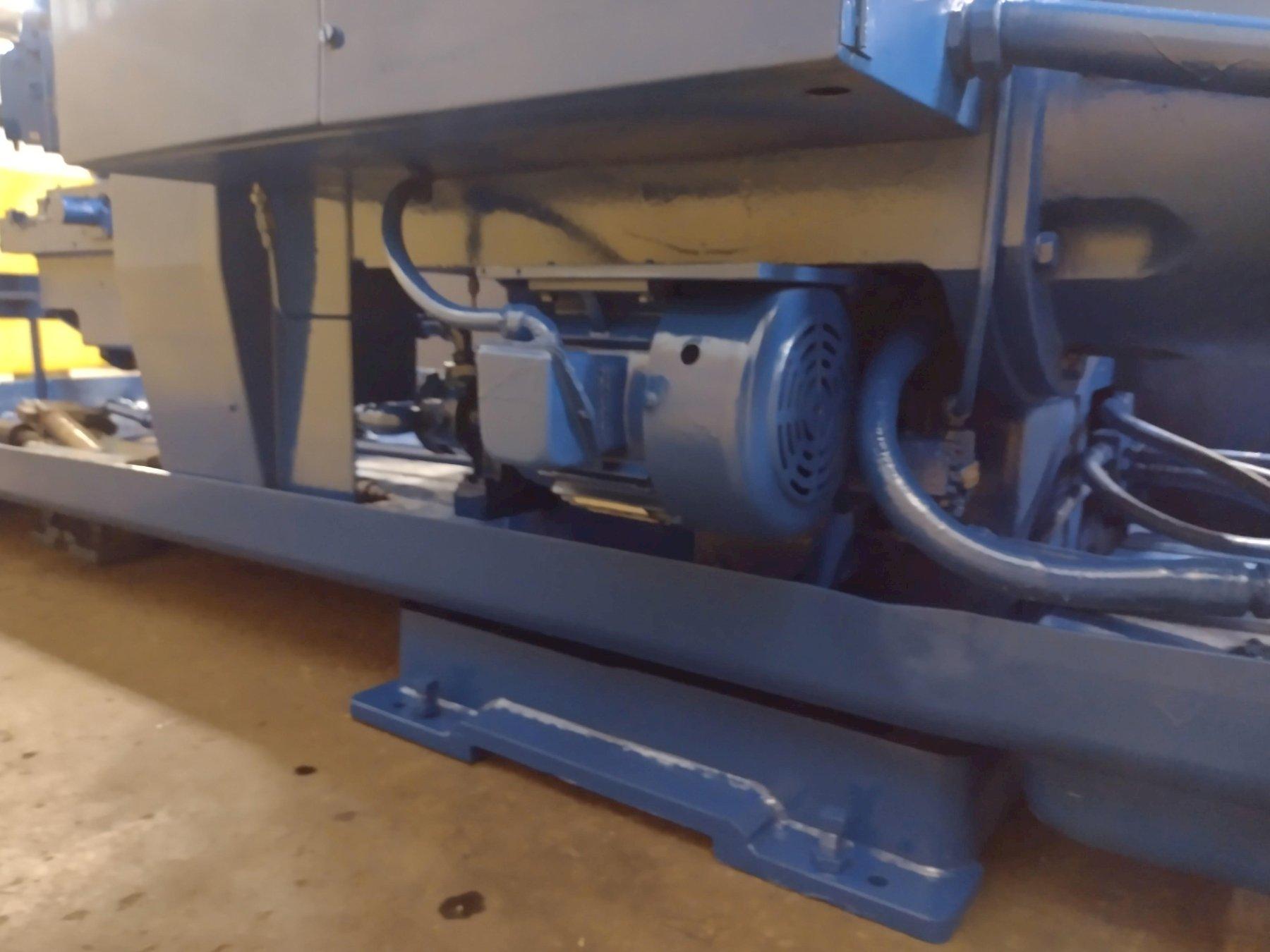

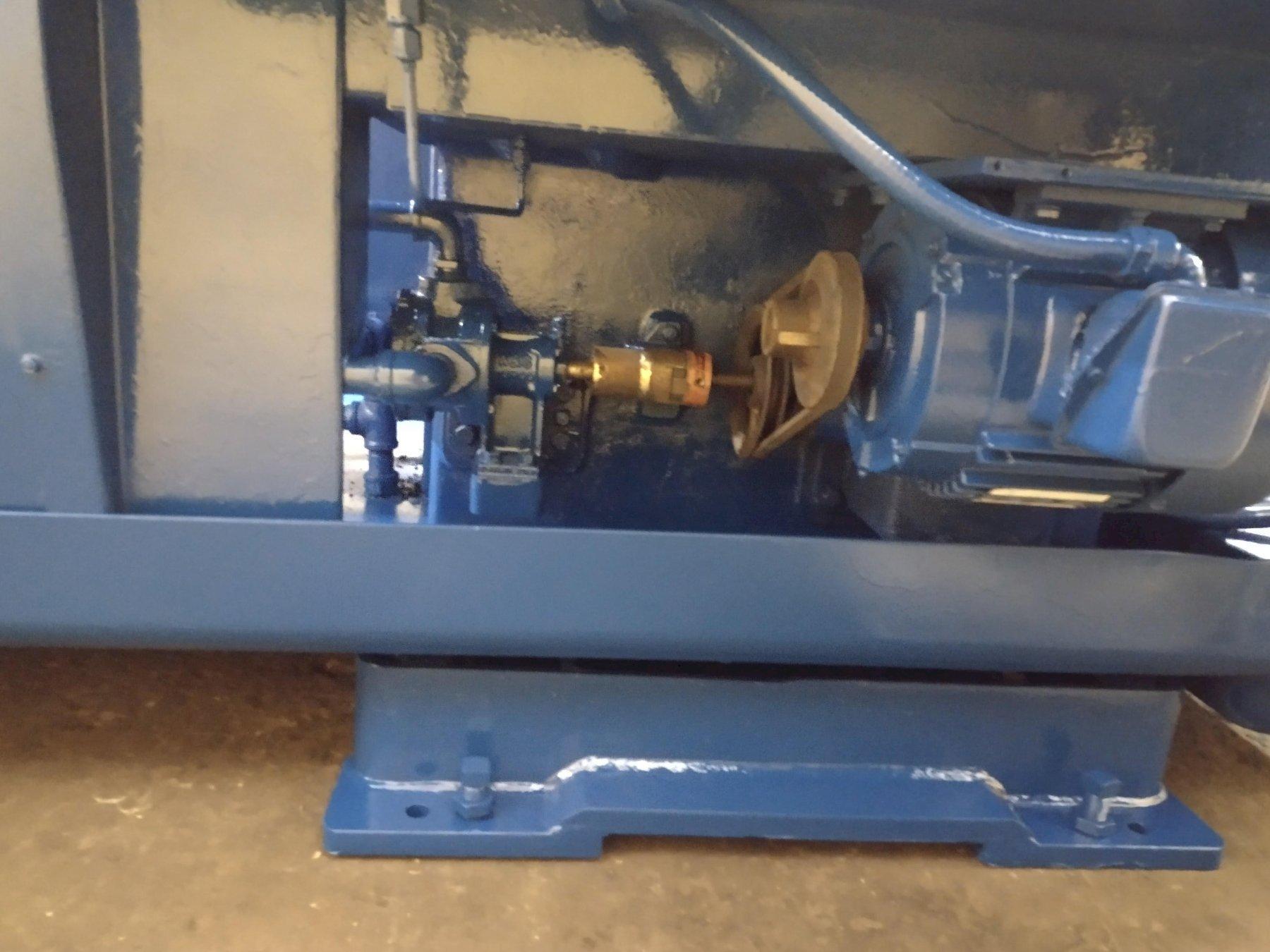

CHIP PAN WITH COOLANT ............. YES

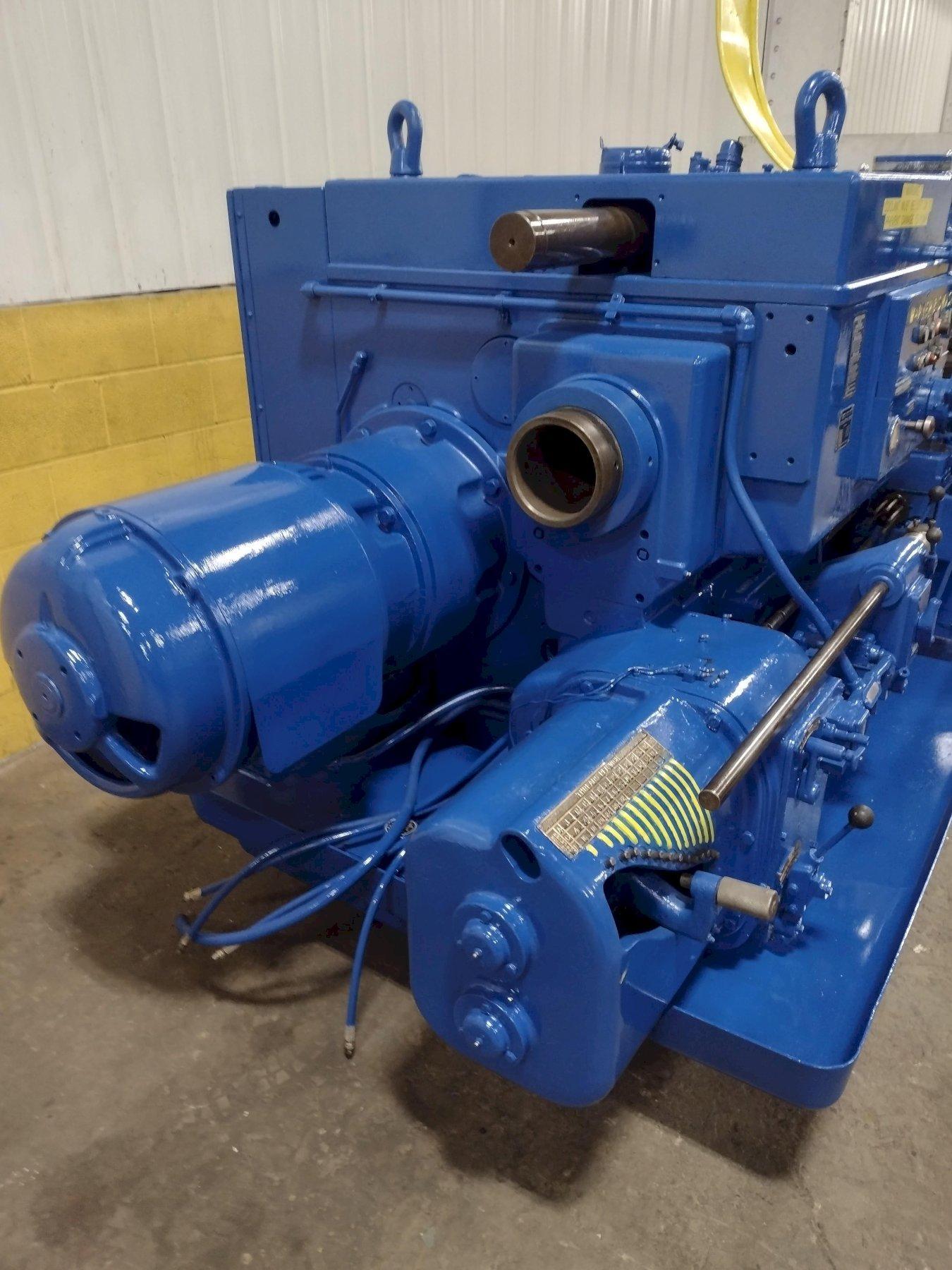

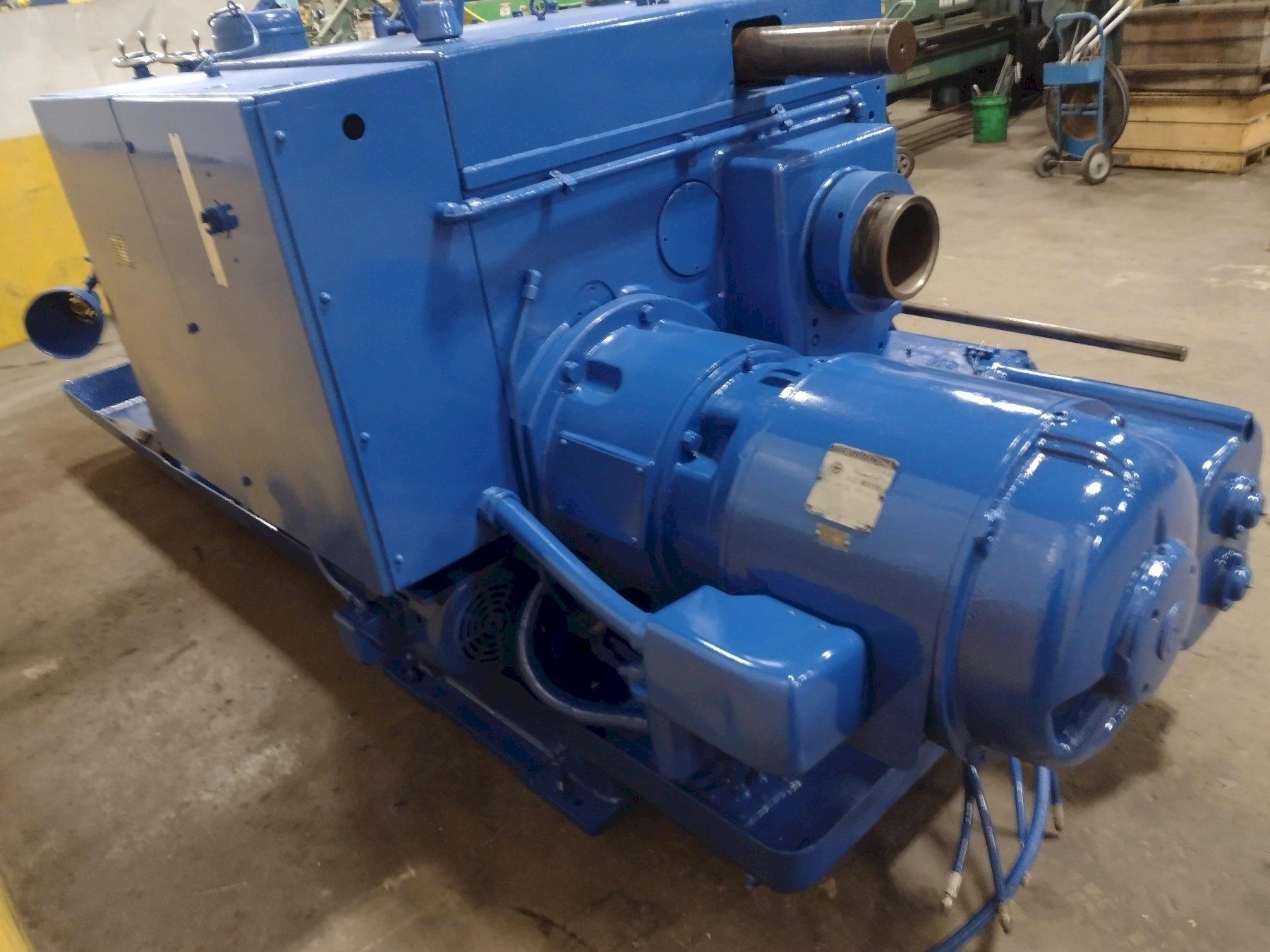

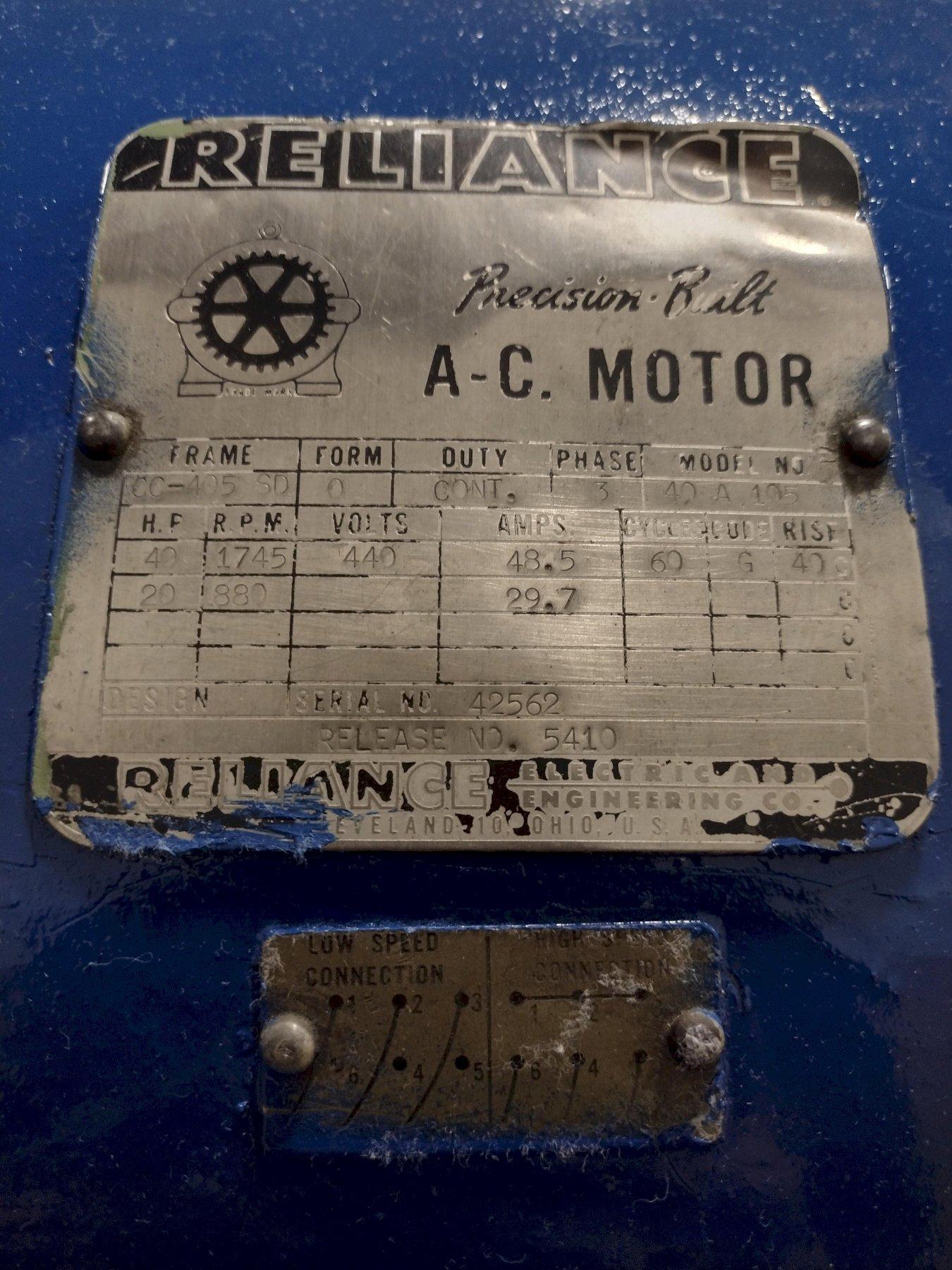

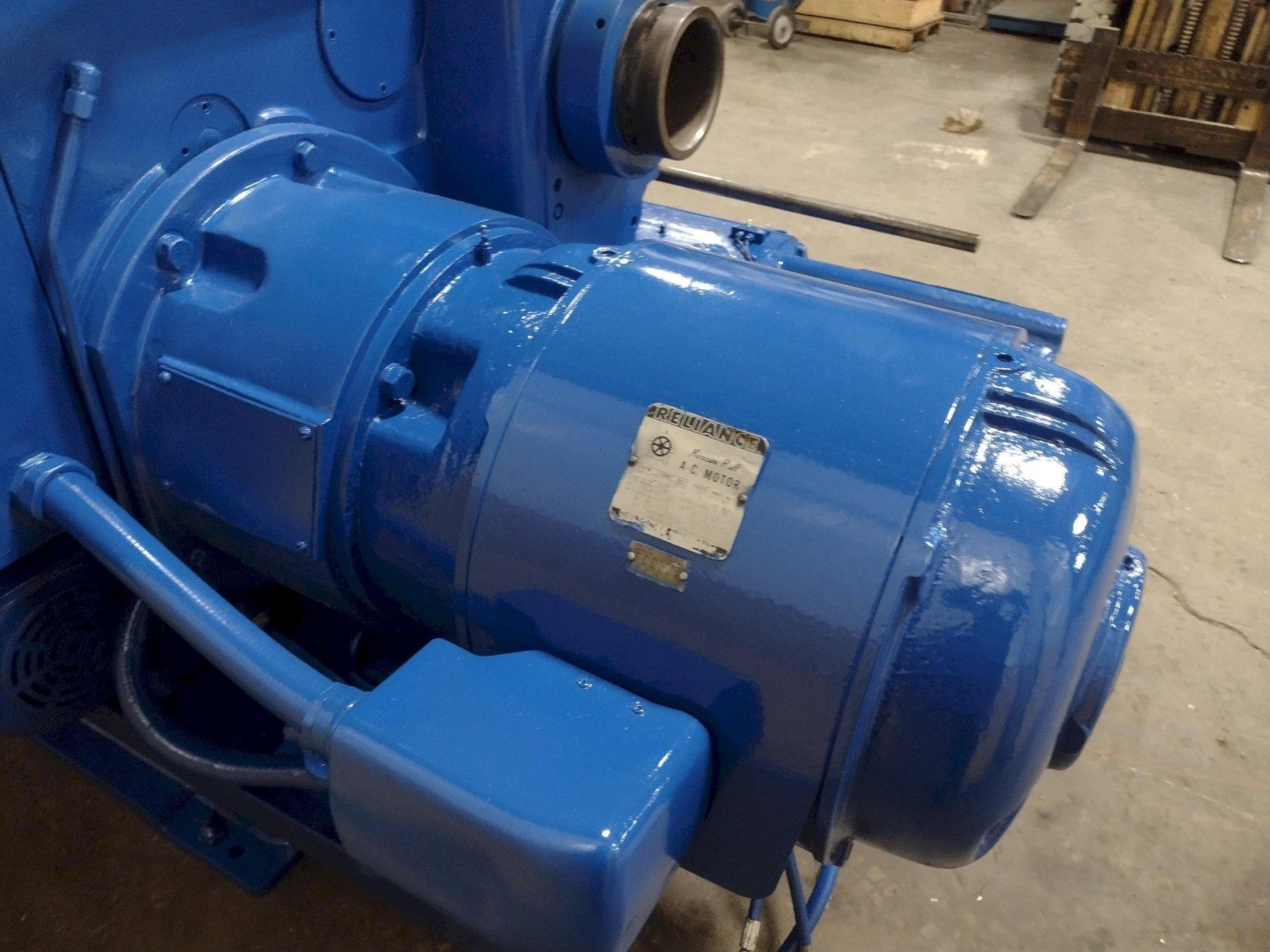

MAIN MOTOR ........................ 40 HORSEPOWER
