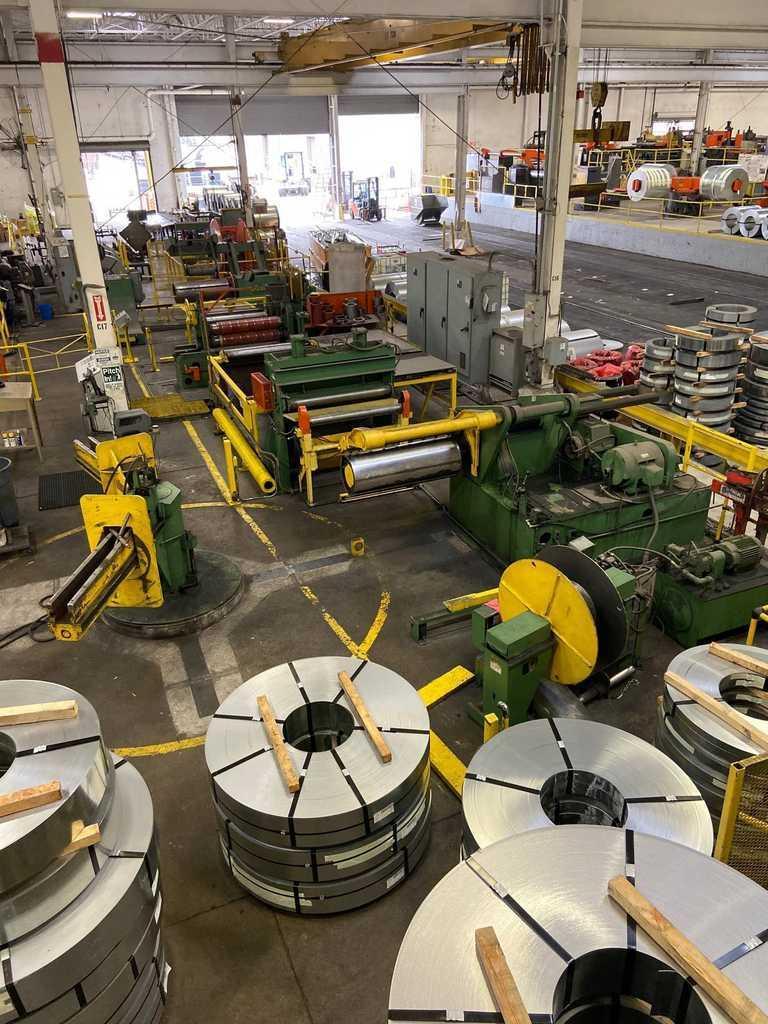

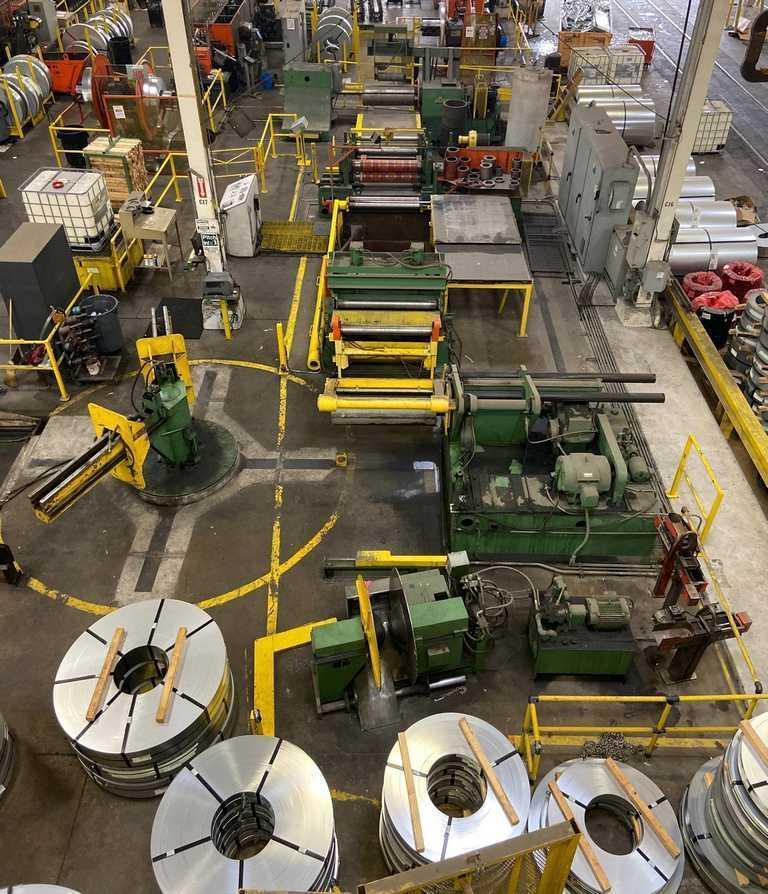

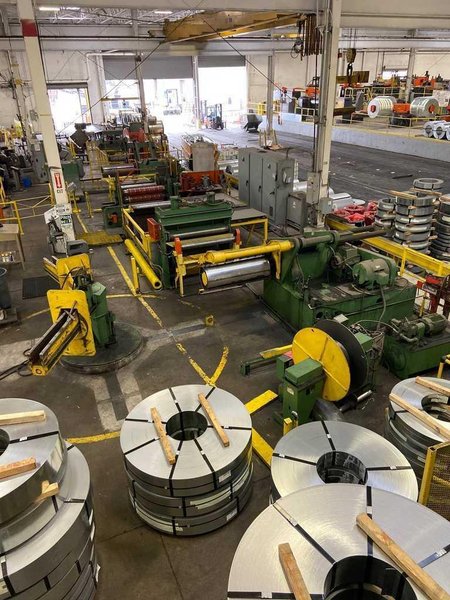

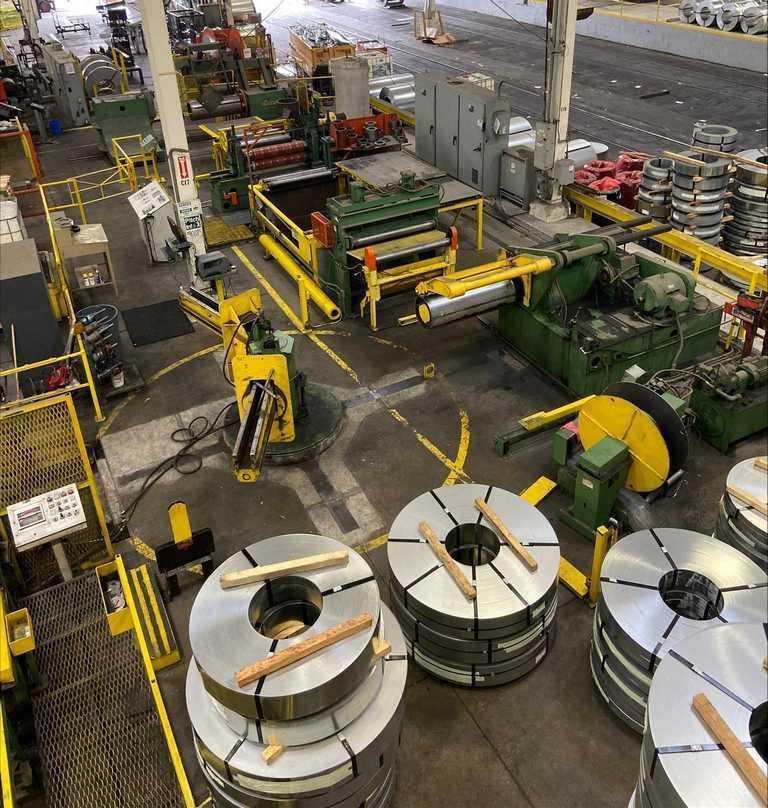

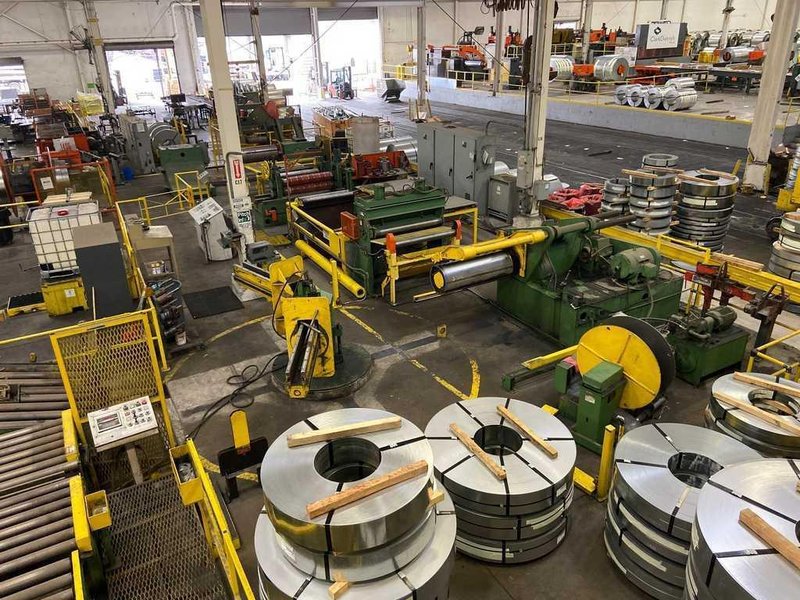

52" x 6.00" x 30,000# Paxson Slitting Line

-Capacity: 52" Wide x 30,000 lb. Coils
-Electrics and New PLC Upgrade 2009
-Style: Loop Type, Driven Slitter
-Coil Size: 20" ID x 72" OD
-Direction: Left to Right
-Speed: 350 to 400 FPM
-Controls: Upgraded in 2009 with New PLC, Control Pulpit

Consisting of the following:

-Entry Coil Car:
Above Ground
"L" Type
Self Contained Power / Electrics

-Uncoiler:
Expanding Mandrel Type
Drag Brake
Holddown Arm with Roll

-Peeler:
Hydraulic Peeler Table with Pinch Rolls

-Slitter:
Two Drop in Heads
75 HP Drive Motor
6" Diameter Arbors

-Looping Pit:

-Cross Over Table:

-(1) Scrap Winder:
One Self Dumping
Oscillating Scrap Guide

-Tension Stand: Loopco
Drag Board Type w/Air Cylinders for Pressure
Exit Passline Roll

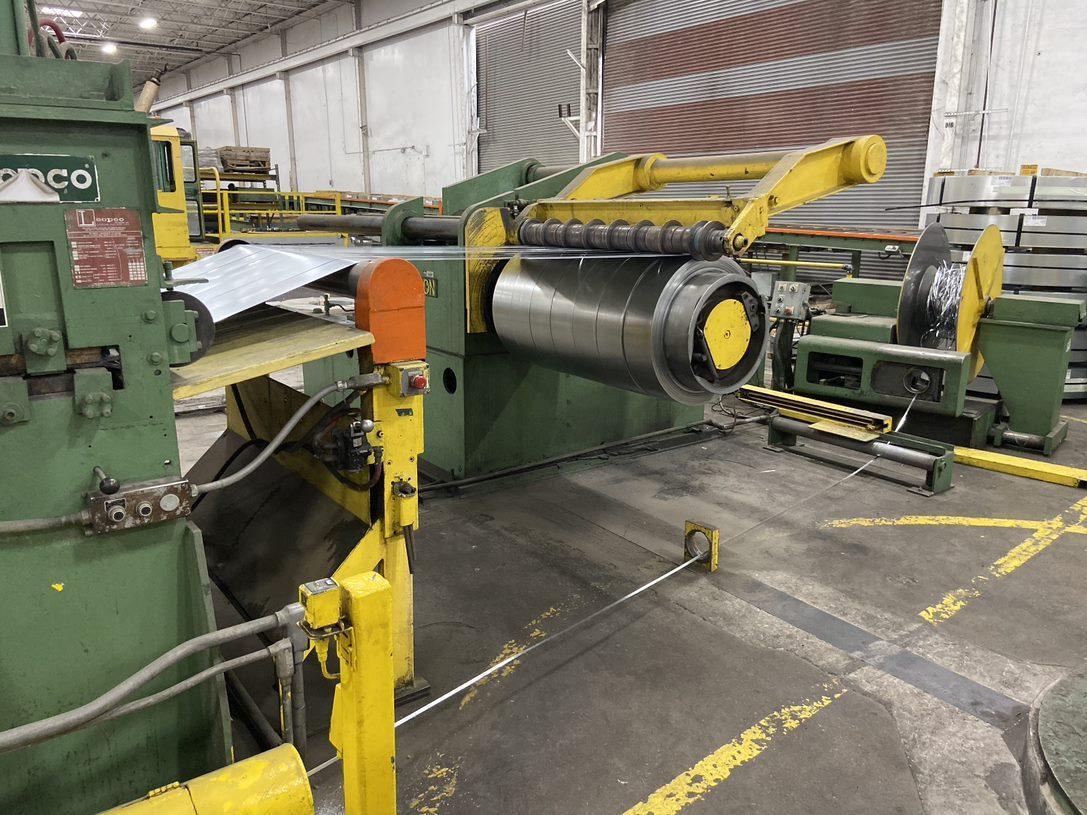

-Recoiler:
Expanding Mandrel Type
Overarm Separator
Gripper
20" ID Drum
60 HP DC Motor
Hydraulic Pushoff

-Turnstile:
Two Arms
Powered with Coil Pushoffs

-Condition: Good - Still installed and can be inspected under power.
