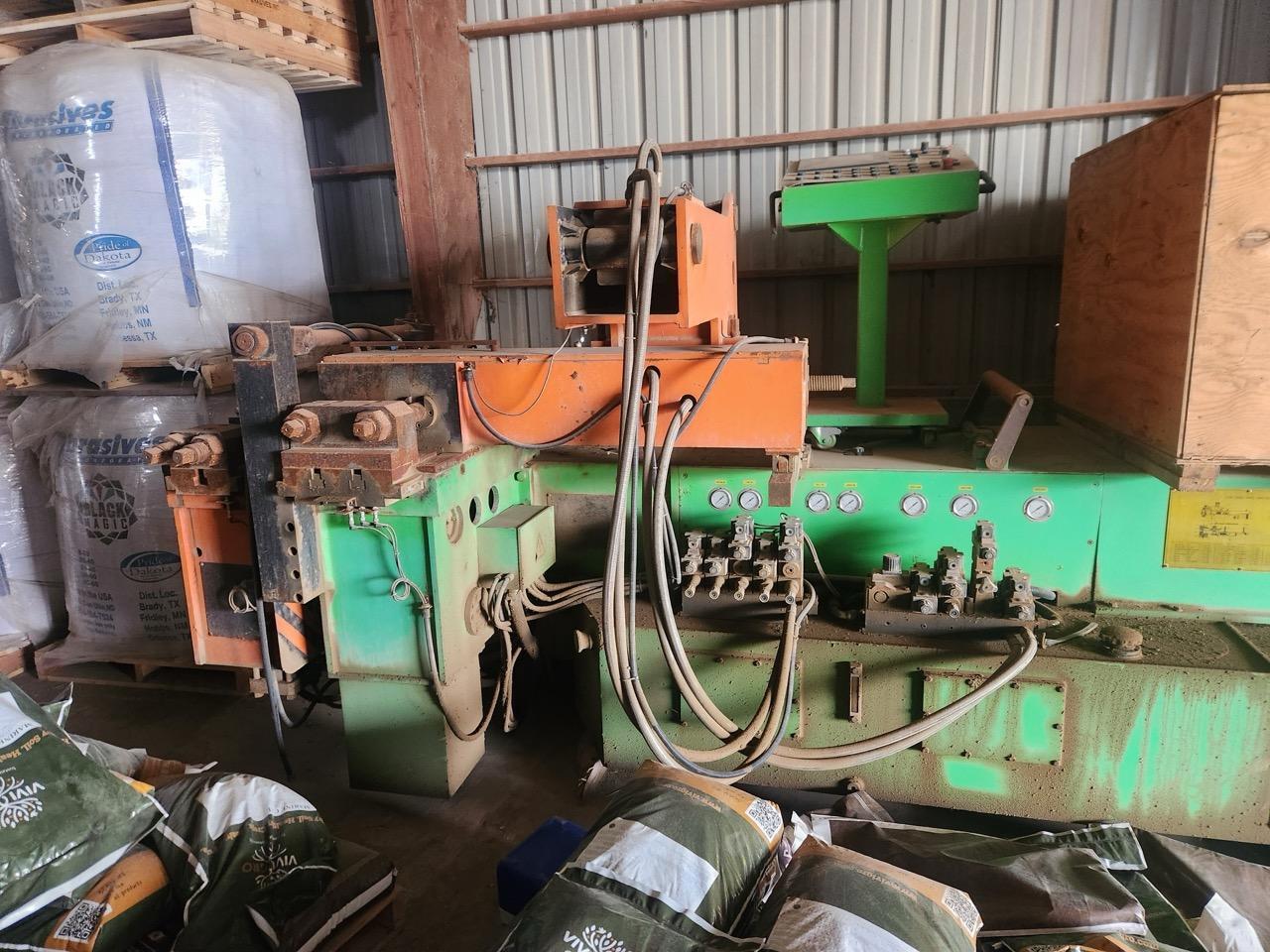

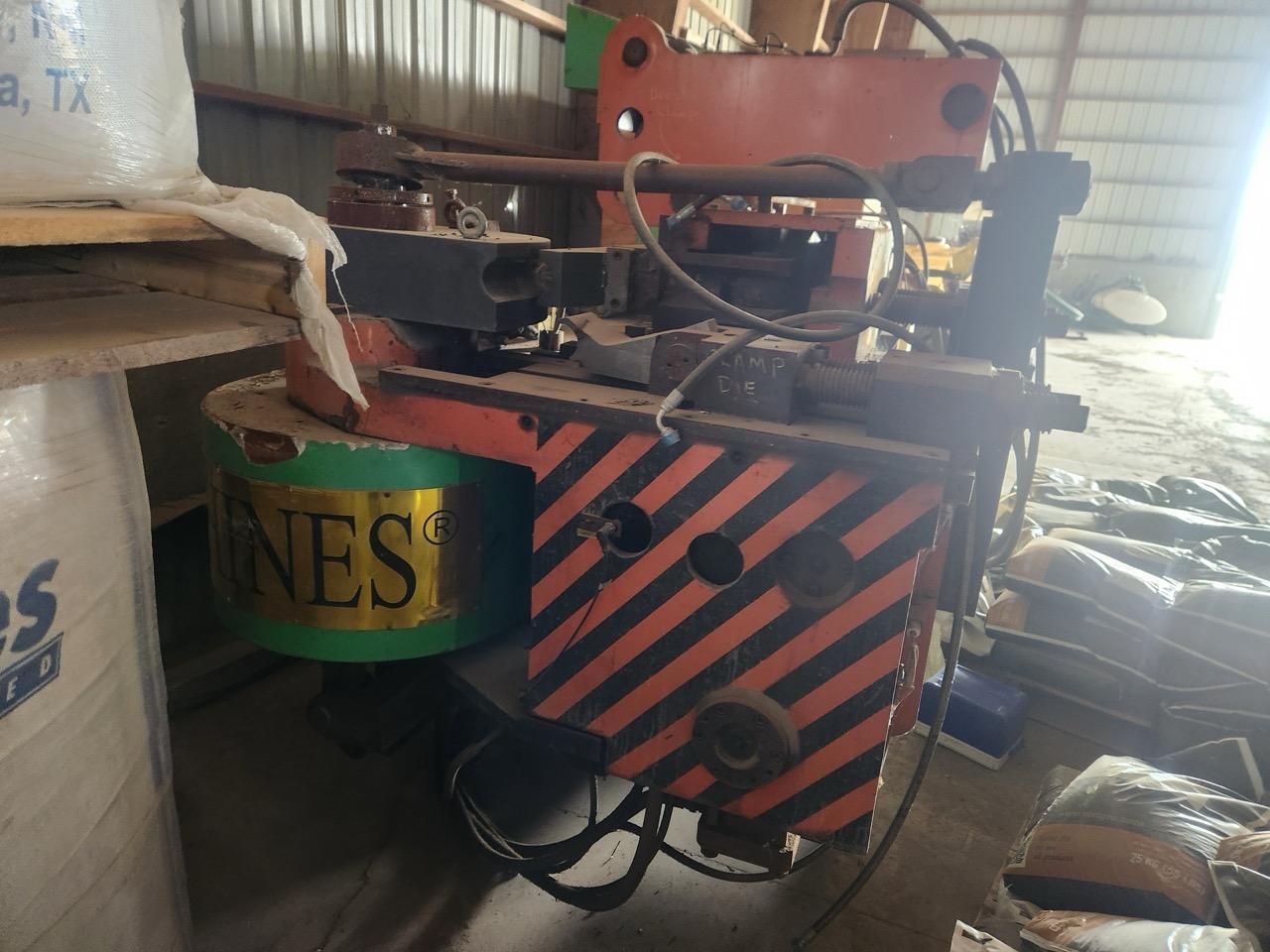

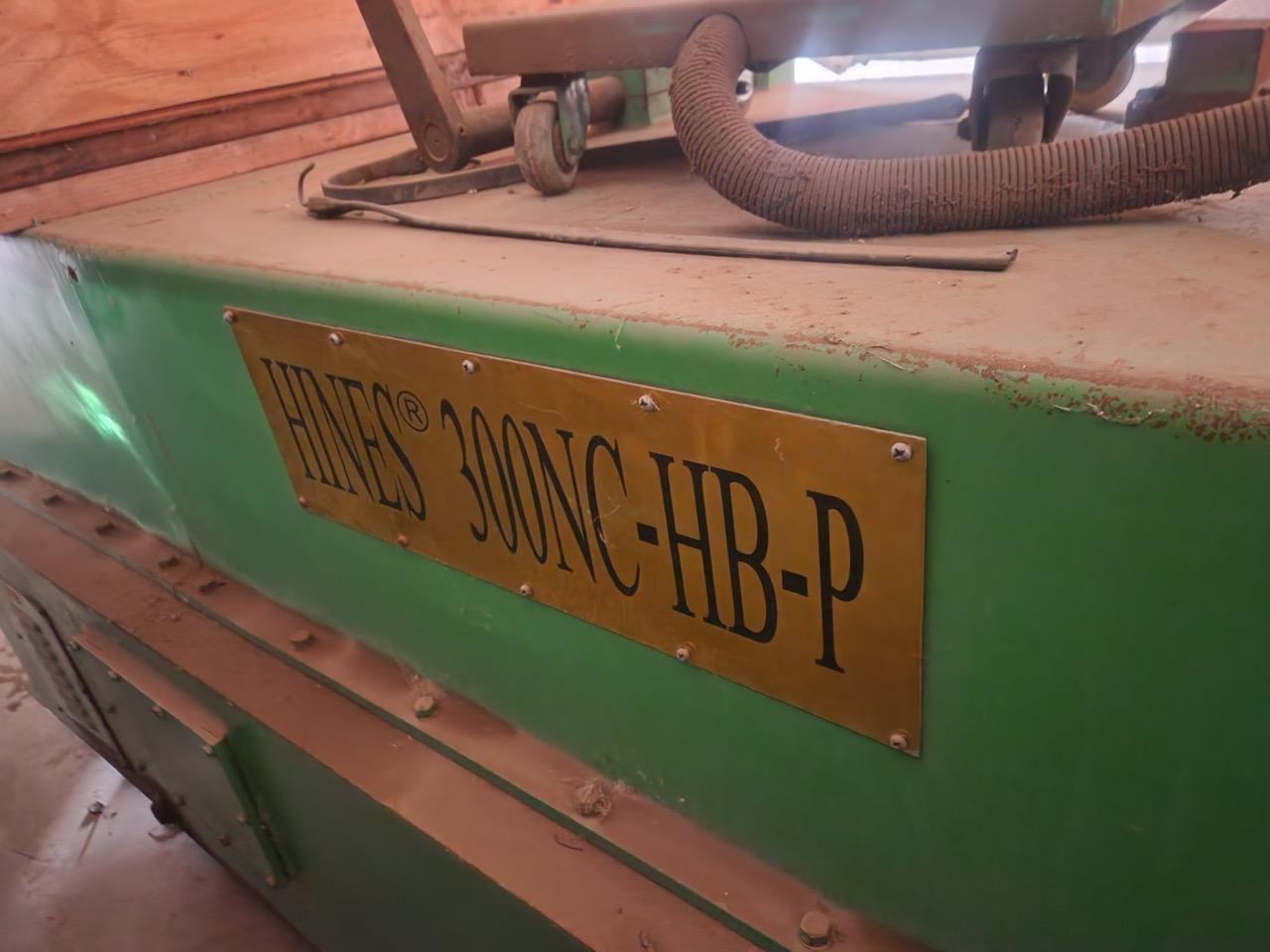

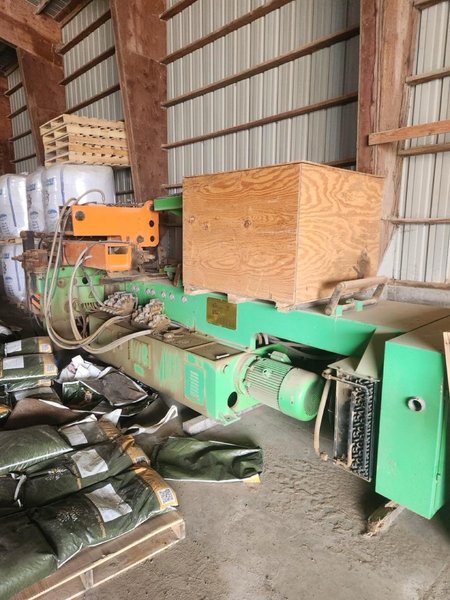

Hines 300NC-HB-P Hydraulic NC Tube and Pipe Bender, 2012

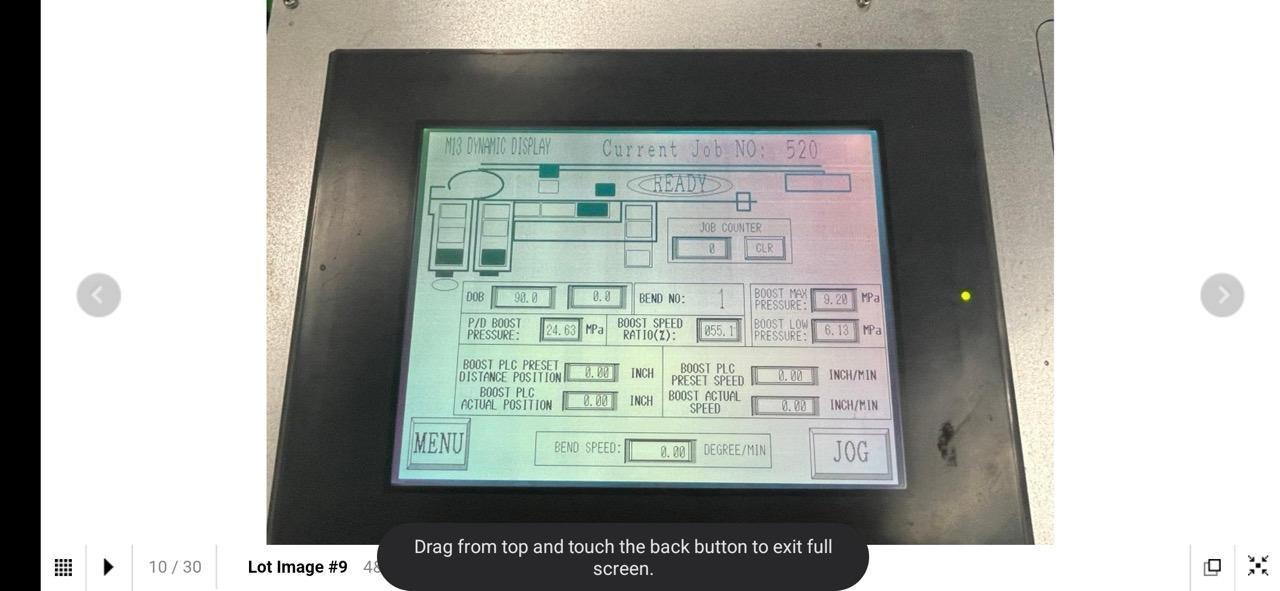

This 2012 Hines 300NC-HB-P is a heavy-duty hydraulic NC tube and pipe bender purpose-built for demanding applications in the power generation, petrochemical, and process piping industries. Capable of bending 3-1/2″ O.D. x .500″ wall pipe with a maximum bend angle of 190 degrees and accuracy of +/- 0.1 degree, the 300NC-HB-P delivers the precision and repeatability required for boiler tube fabrication, heat exchanger bending, offshore piping, and pressure vessel work. Controlled by a Mitsubishi FX3U PLC with Proface America touch screen interface, this machine is ready for high-volume production environments where consistent quality and minimal downtime are critical. Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Hines Bending Systems Model: 300NC-HB-P Year: 2012 Capacity (Pipe): 3-1/2″ O.D. x .500″ Wall Standard Maximum Radius: 12″ Maximum Bend Angle: 190 Degrees Bend Angle Accuracy: +/- 0.1 Degree Bend Arm Speed: 1.5 RPM Motor: 40 HP Operating Pressure: 2,000 PSI Reservoir Capacity: 240 US Gallons Voltage: 440/480V / 3-Phase / 60Hz Approximate Weight: 17,000 lbs. Approximate Dimensions: 16′ L x 7′ W x 6′ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mitsubishi FX3U PLC Controller – Stores 200 Jobs / 6 Bends Per Job Proface America Touch Screen Interface Dual Stage Pump Hydraulic System Overhead Tie Bar (Eliminates Die Deflection) Pressure Die Assist with Rear Support Roller Mandrel Early Out Programmable Mandrel Rod SAE Thread (1 Supplied) Mandrel Lubricator & Extractor Pressure Die Holder & Wiper Die Holder Hydraulic Manifolds Interchangeable (Parker, Vickers, etc.) Solid Machined Steel Bend Arms Manifold Style Hydraulic and High-Pressure Filter Operator Safety Features Tube Piece Counter Clockwise Rotation Rear Boost

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,All specifications are assumed to be correct but must be verified by the purchasing entity. All machinery is sold as-is, where-is, with no warranties expressed or implied. Buyers are encouraged to inspect prior to purchase.
