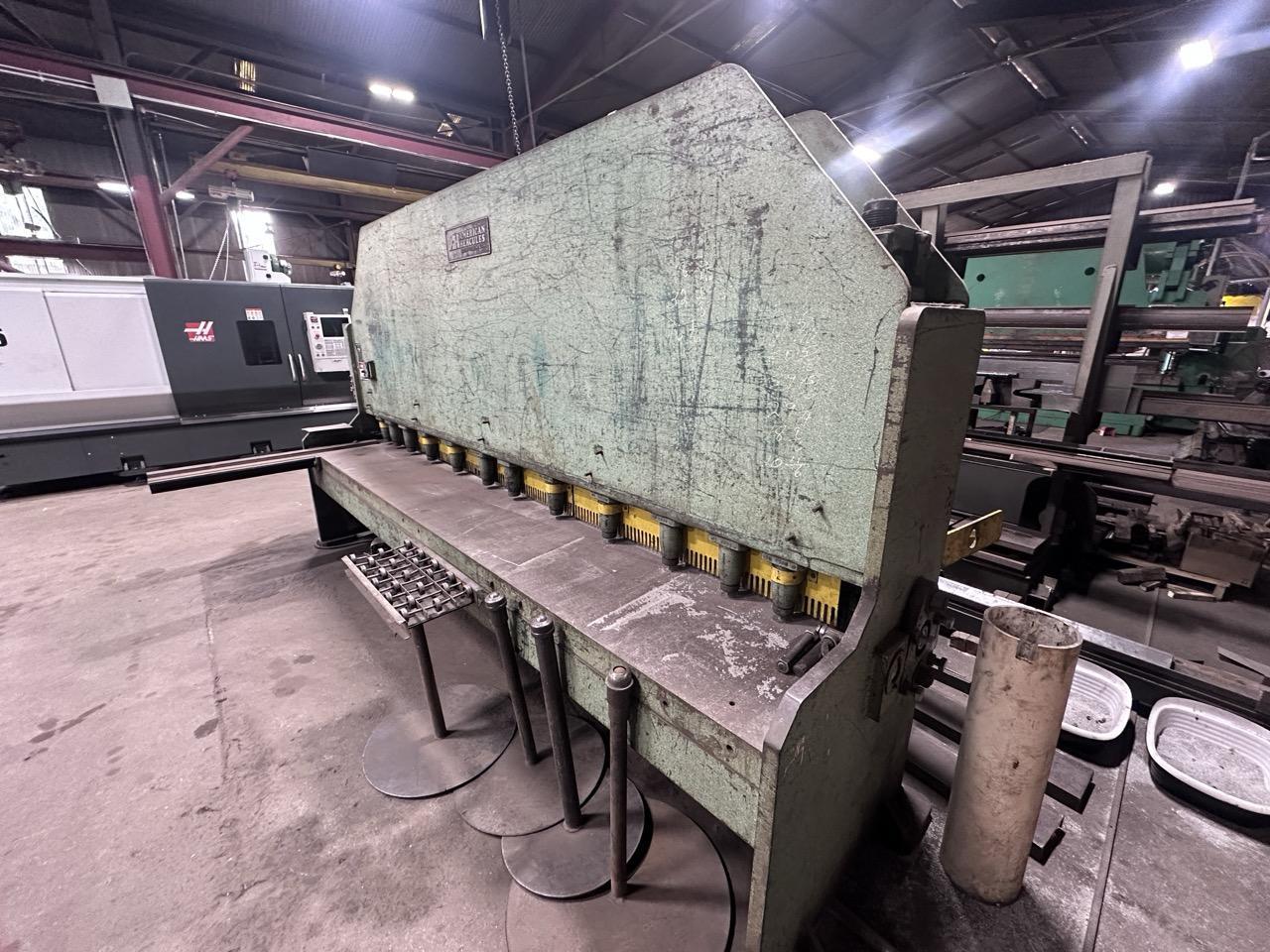

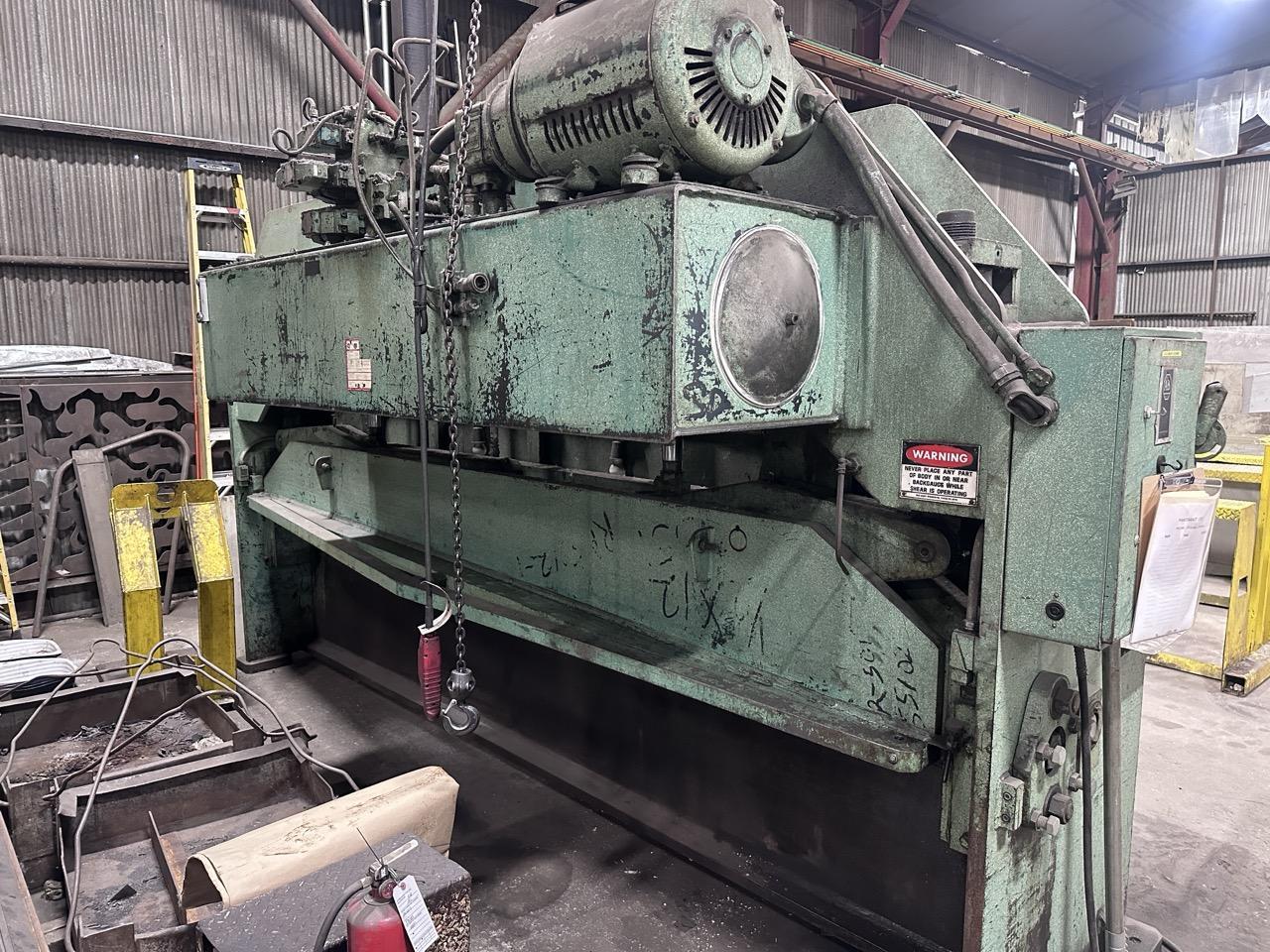

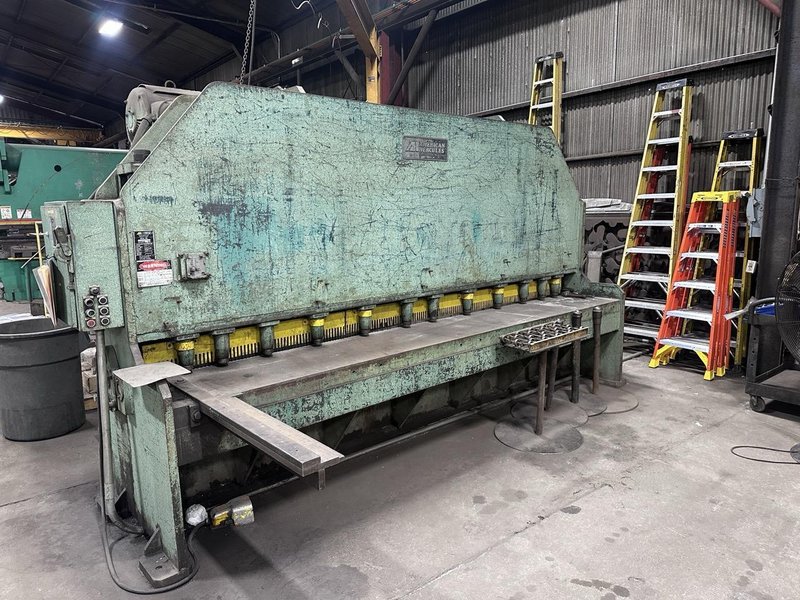

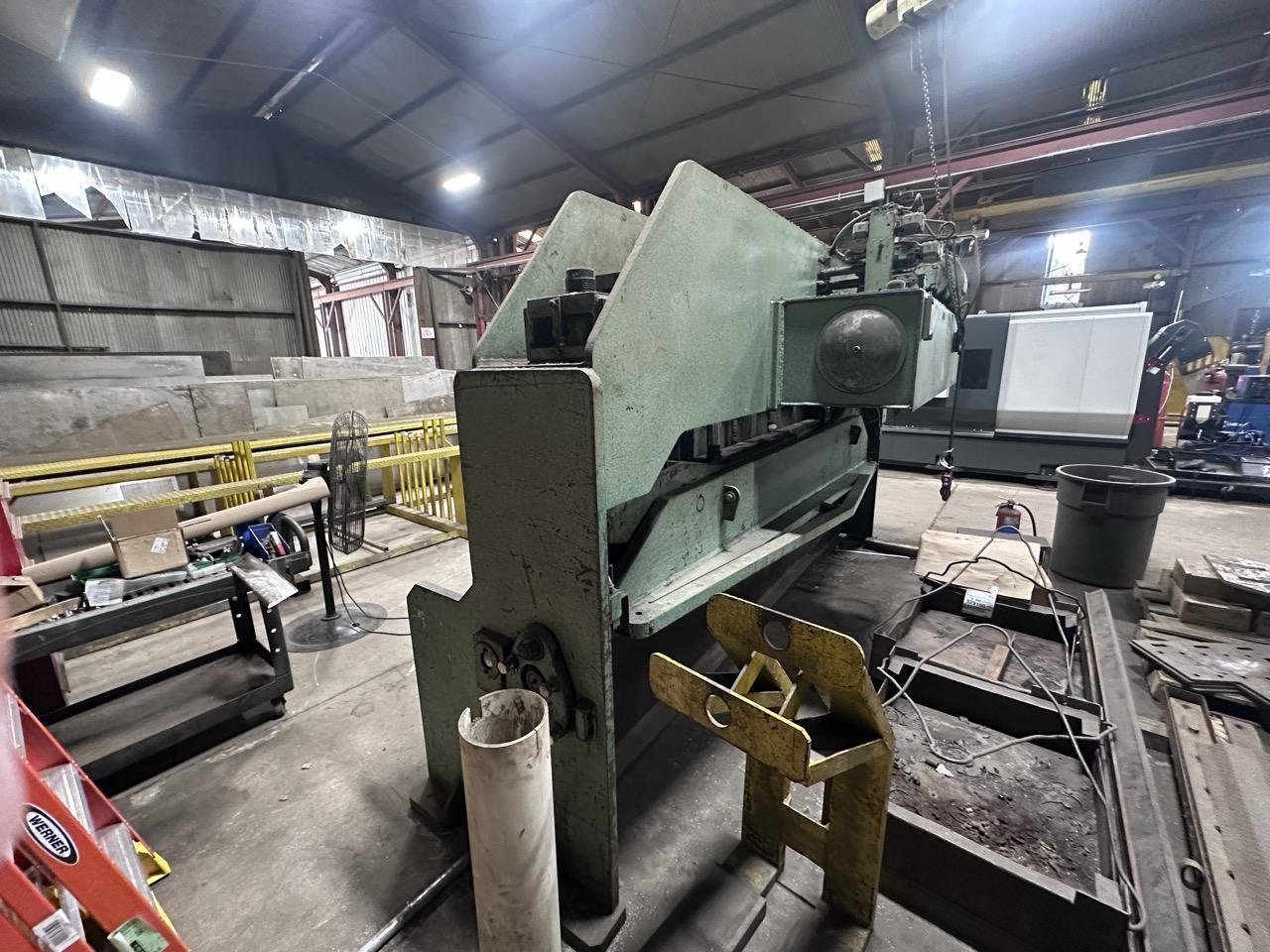

1/2″ x 12′ American Hercules Alpha Series Hydraulic Shear, 1983
Brand
Category
Type
Model
Alpha Series
Stock #
286128
Year
1983
Condition
Not specified
Location
Not specified
|
Capacity (Mild steel): 1/2″ x 12′
Nominal rake (inches per foot): 1/2″
Maximum working clearance: 145″
Number of hold downs: 12
Nominal holddown force: 39 tons
Speeds
Up: 160 IPM
Down; 132 IPM
Approximate weight 25,000 lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Squaring Arm Front Support Arm Electric Foot Switch Backgauge All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
