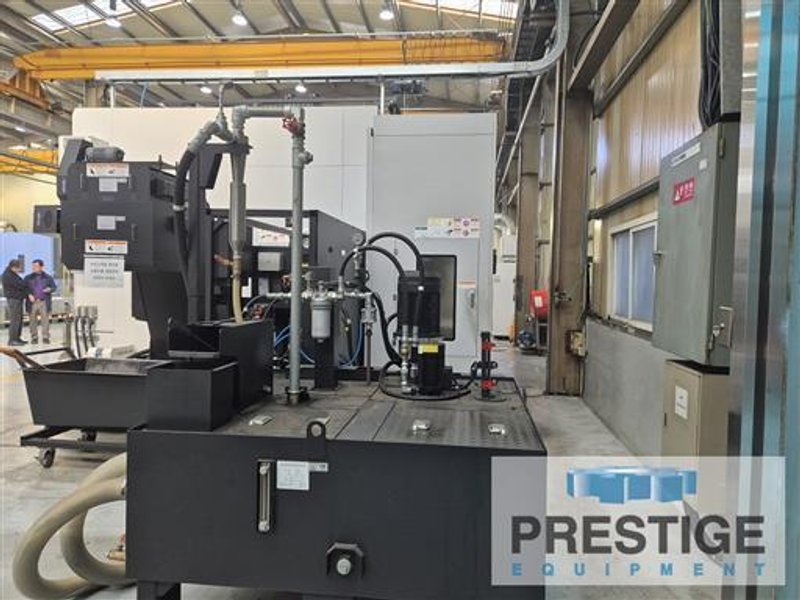

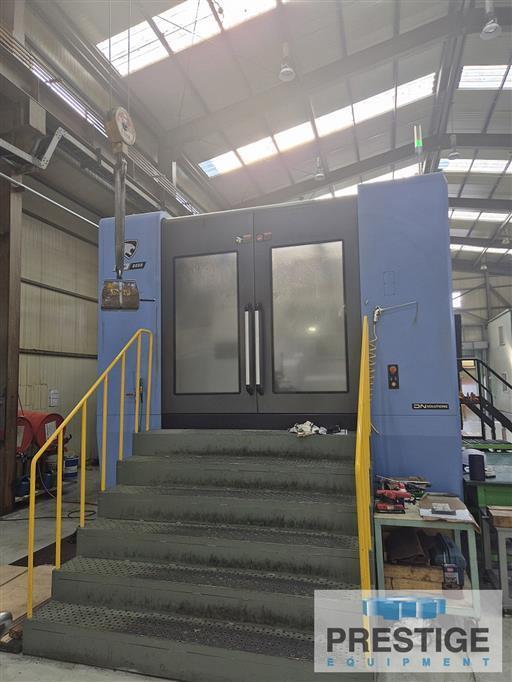

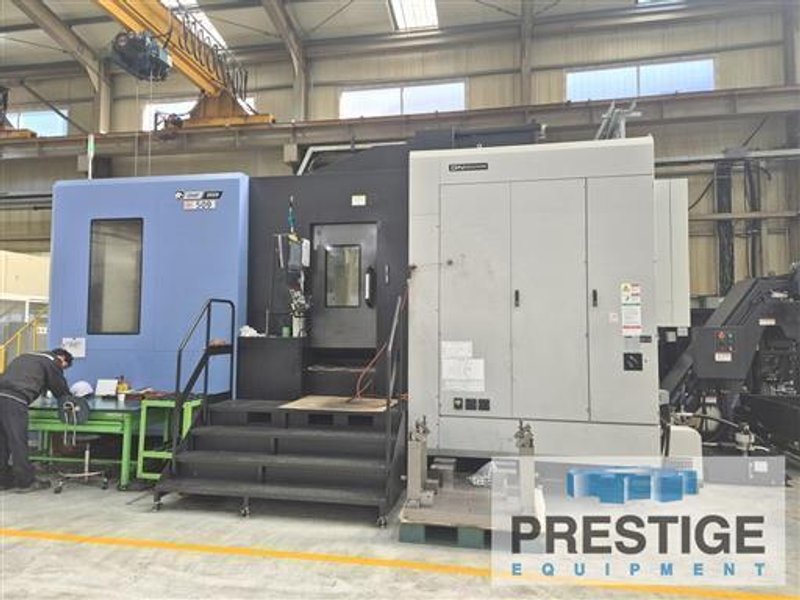

Machining Centers Horizontal CNC

CAPACITY:
X-Axis Travel 57.08"
Y-Axis Travel 47.24"
Z-Axis Travel 59.05"
A-Axis Tilt +60 Deg./- 100 Deg.
C-Axis Rotation 360 Deg.
Spindle Speed 6,000 RPM
Spindle Taper BT 50
Pallet Dimensions 31.49" x 31.49"
Pallet Contouring .001 Degree
Maximum Workpiece Weight 4,400 Lbs.
Number of Pallets 2
Main Motor 47 HP
Rapid Traverse (X & Y Axes)............ 1574.80 IPM 1574.80 IPM
Rapid Traverse Z-Axis 1968.50 IPM
Approximate Dimensions 466" x 161" x 230"
Approximate Weight 68,350 Lbs.



Equipped With:

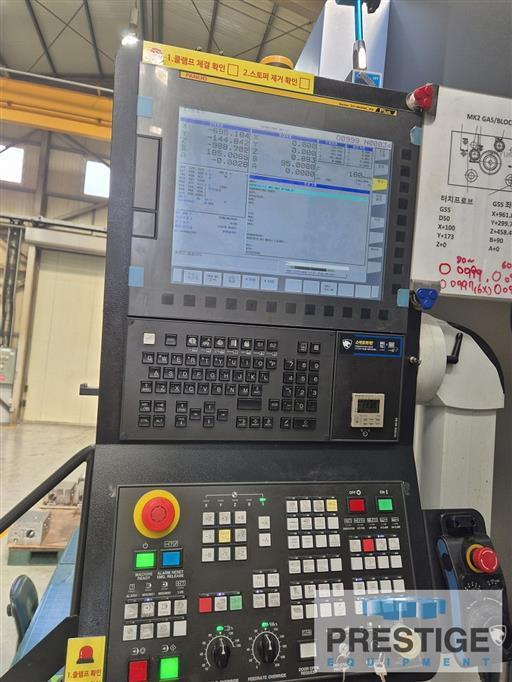

Fanuc 31i-B CNC Control
1,000 PSI Coolant Thru Spindle

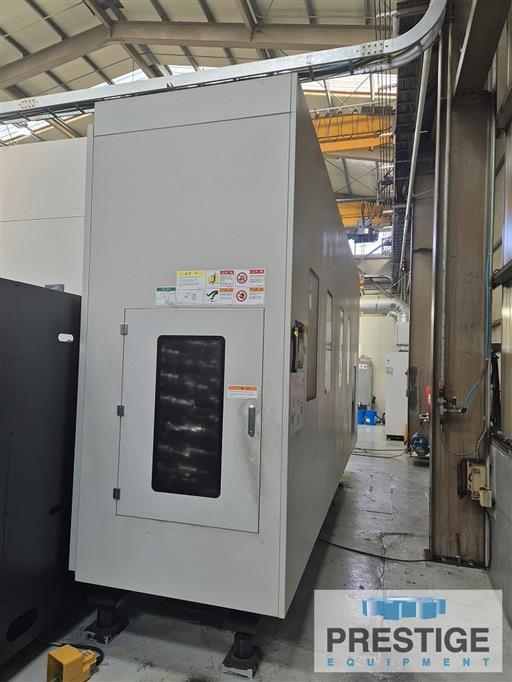

120-Positions Automatic Tool Changer
(2) 31.49" B-Axis Pallets
Scales for X,Y,Z,A,C axis
RMP 60 probe
Renishaw Tool Setter

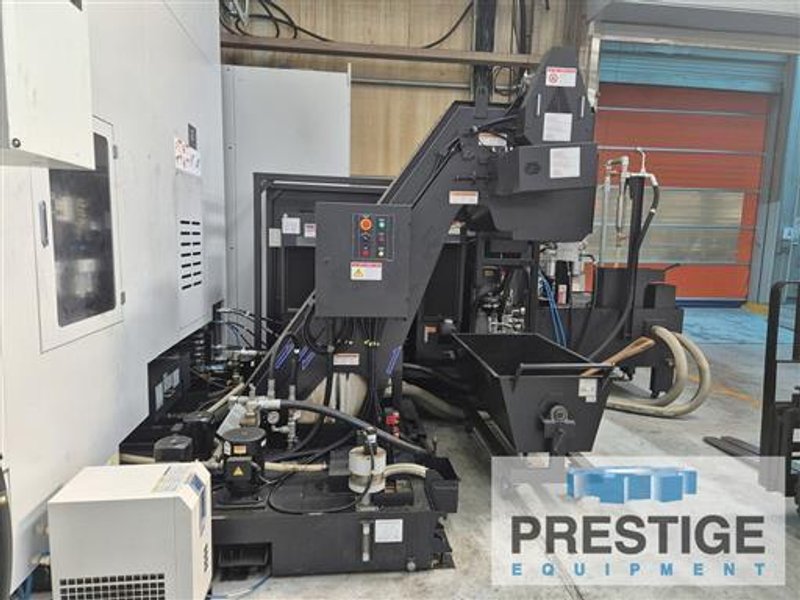

Chip conveyor

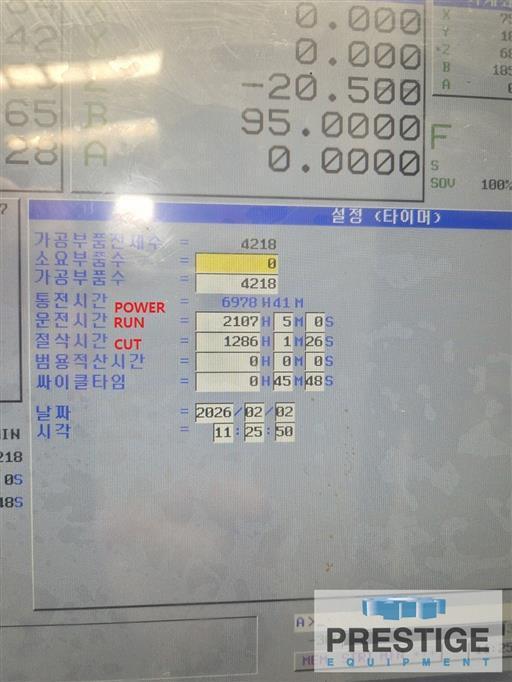

HOURS: 1,286 Cutting Hours
