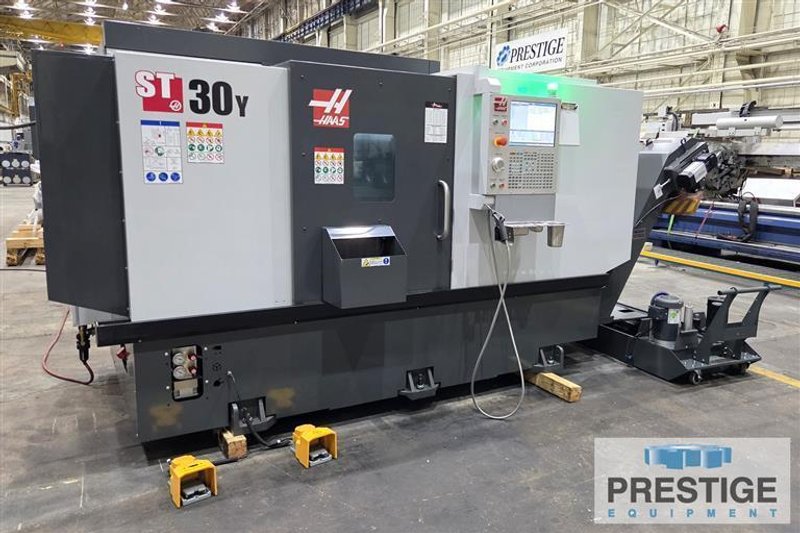

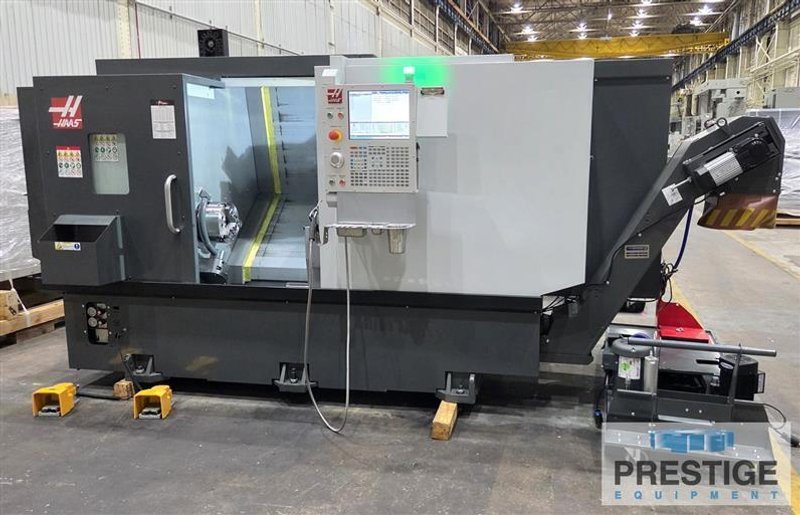

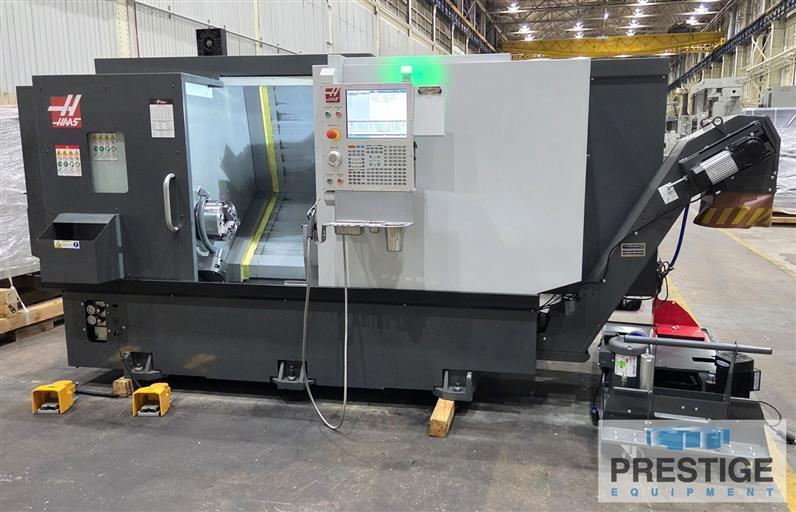

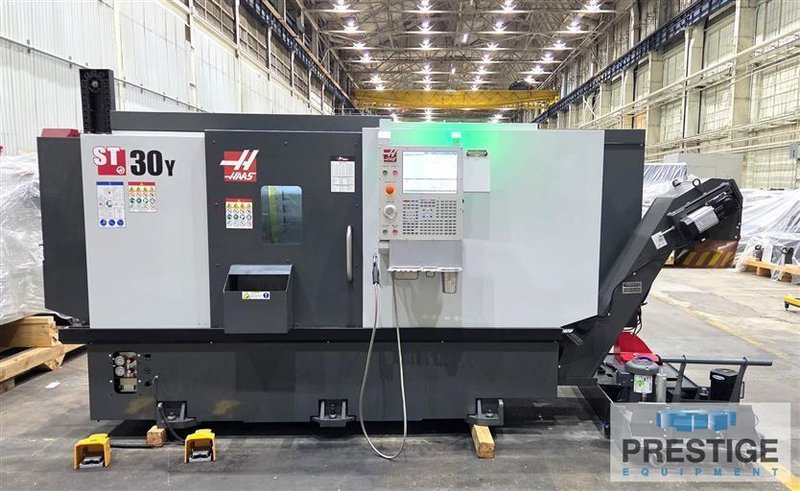

Lathes CNC

CAPACITIES:
Chuck Size 10"
Max Part Swing 21"
Max Cutting Dia. With BMT65 Turret 13.75"
Max Cutting Length 32.5"
Bar Capacity 3.0"
Max. Distance Between Centers 32.5"
TRAVELS:
X-Axis 9.40"
Y-Axis ± 2.0"
Z-Axis 32.50"
FEEDRATES:
Rapids, X/Y Axes 472 IPM
Rapids, Z-Axis 945 IPM
Max Thrust, X-Axis 4100 LBF
Max Thrust, Y-Axis 2300 LBF
Max Thrust, Z-Axis 5100 LBF
SPINDLE:
Spindle Nose A2-6
Spindle Motor 30 HP
Spindle Speed 3400 RPM
Max Torque 300 ft-lbf @ 500 RPM
Spindle Bore 3.5"
C-AXIS:
Max Rating 5 HP
Max Speed 60 RPM
Positioning (±)0.01 Degree
Brake Diameter 13.9"
Brake Holding Torque 250 FT-LBF
Control Type Interpolated Motion & Positioning

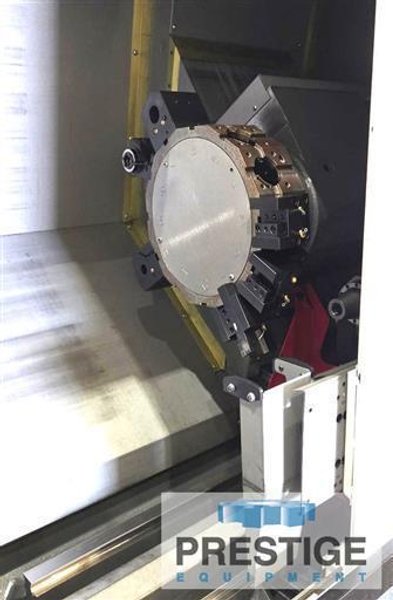

TURRET:
Turret Type 12-Station BTM-65
Boring Bar Rear Clearance 4.0"
Live Tooling Max. Speed 4000 RPM
Tooling BTM 65
TOOLING INCLUDED:
1- Radial Live Tool Holder
1- Axial Live Tool Holder
1- Axial Live Tool Holder
Static Tool Holder
DIMS & WEIGHT:
Domestic Pallet 171" x 90" x 98"
Approx. Weight 11,340 Lbs.



Equipped With:

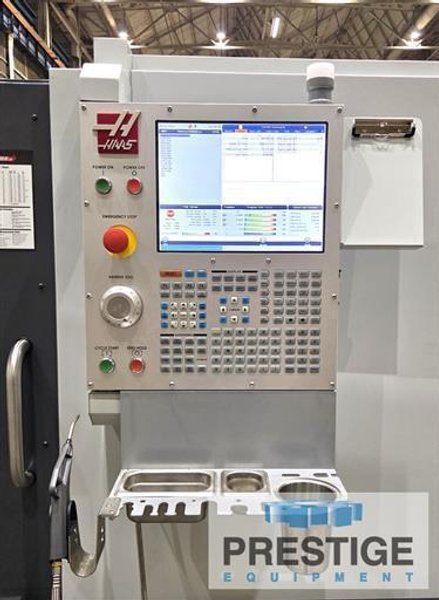

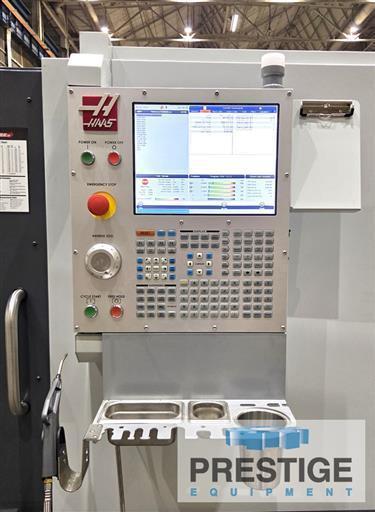

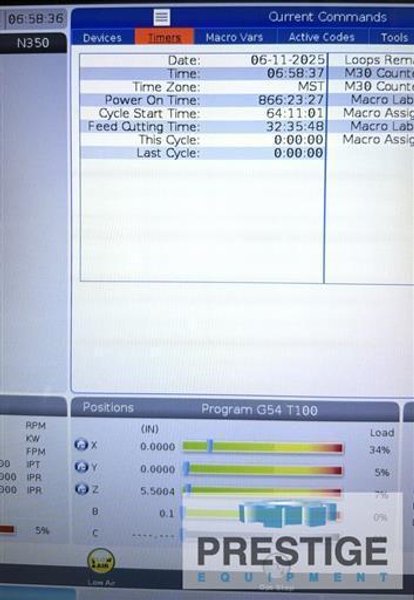

Haas NextGen CNC Control with WIFI Connection

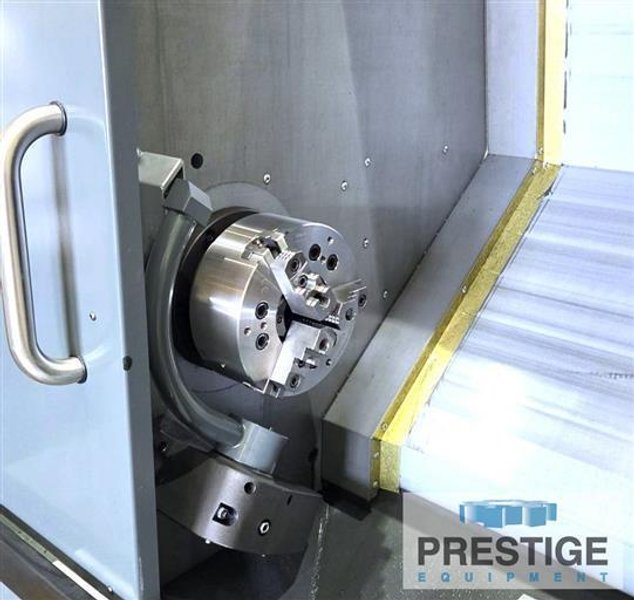

10” 3 Jaw Chuck
12-Station BMT65 Turret with 6000 RPM Live Tooling Speed Upgrade
Tool Eye
Parts Catcher

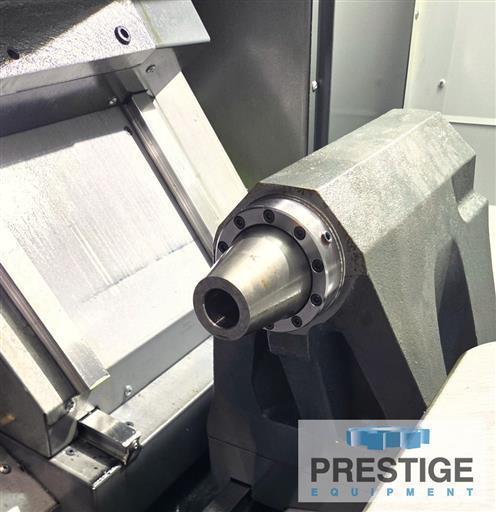

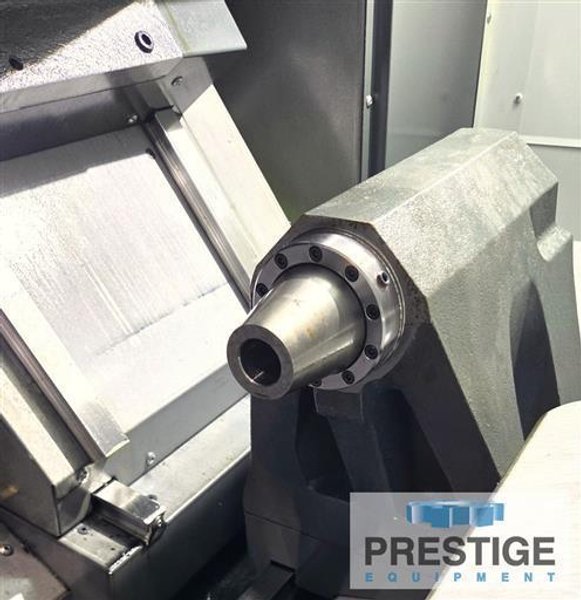

Programmable Tailstock

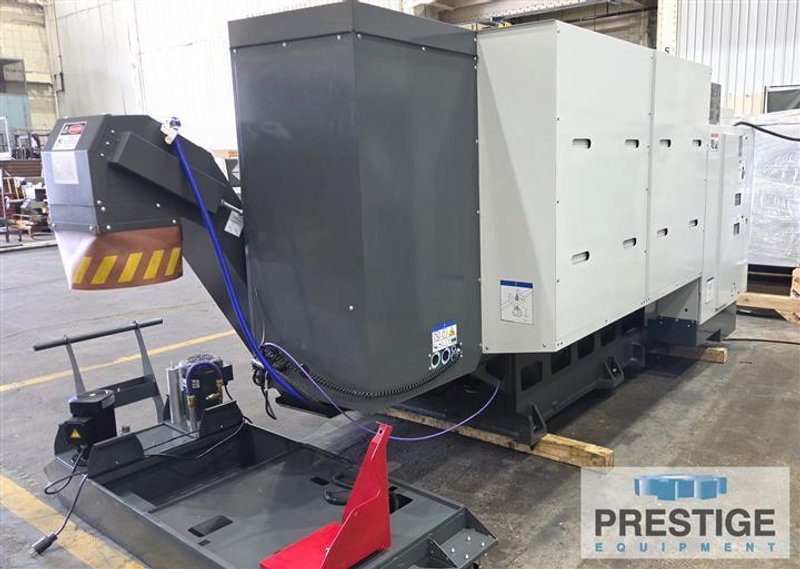

Belt Type Chip Conveyor
Chip Tray Filter Kit
300 PSI High Pressure Coolant
Early Power Failure Detection Module
User Definable Macros
Rigid Tapping
Spindle Orientation
Visual Programming System
Coolant System
High Intensity Lighting


NOTE: Low Hours!
Inspect Under Power in Our Philadelphia, PA Warehouse
