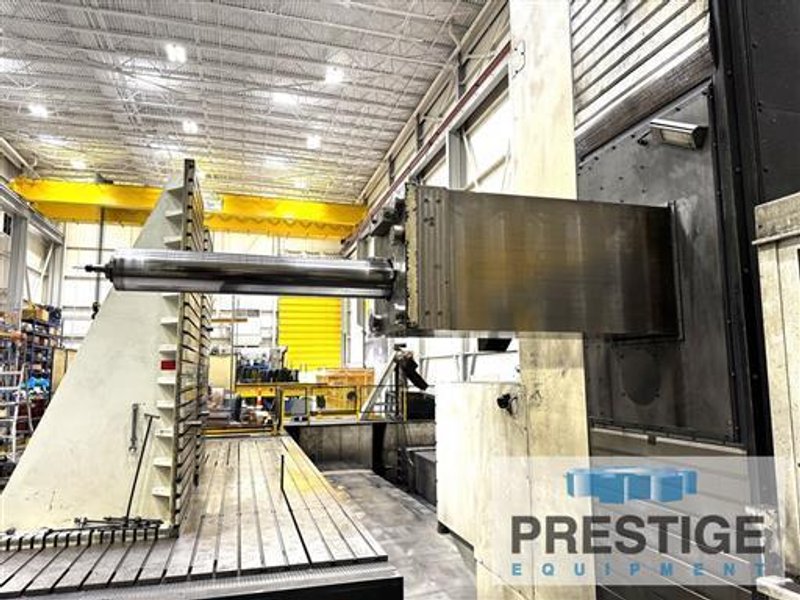

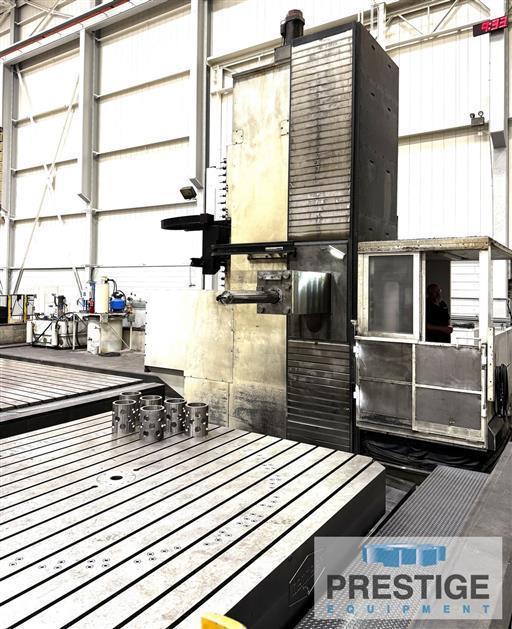

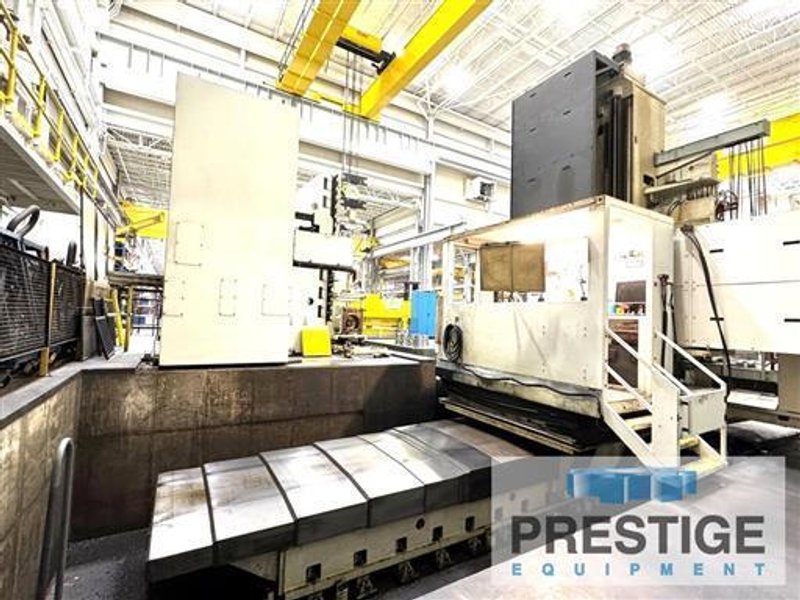

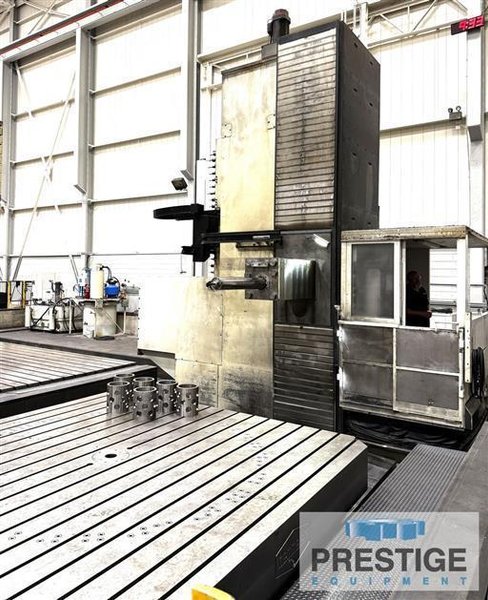

Boring Mills Horizontal Floor Type CNC

SPECIFICATIONS:
Spindle Diameter 6.1"
Ram Cross Section 18.7" x 21.6"
Spindle Taper ANSI B5.50 No.50
Headstock Travel, Y-Axis............... 157.48" 157.48"
Column Travel, X-Axis 629.92"
Ram Stroke, Z1-Axis 39.4"
Spindle Stroke, Z2-Axis 39.4"
Ram & Spindle Combined Travel, Z1/Z2 78.8"
V-Axis Table Longitudinal Travel 94.4"
Spindle Speeds 1-3500 RPM
Spindle Speed Ranges 4
Spindle Motor 75 HP
Constant Torque 3100 Nm
Constant Torque Range 0-114 RPM
Traverse Rate 787 IPM

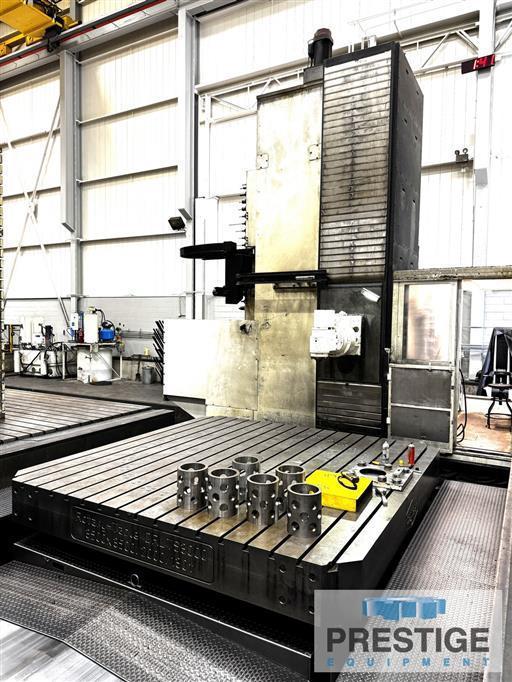

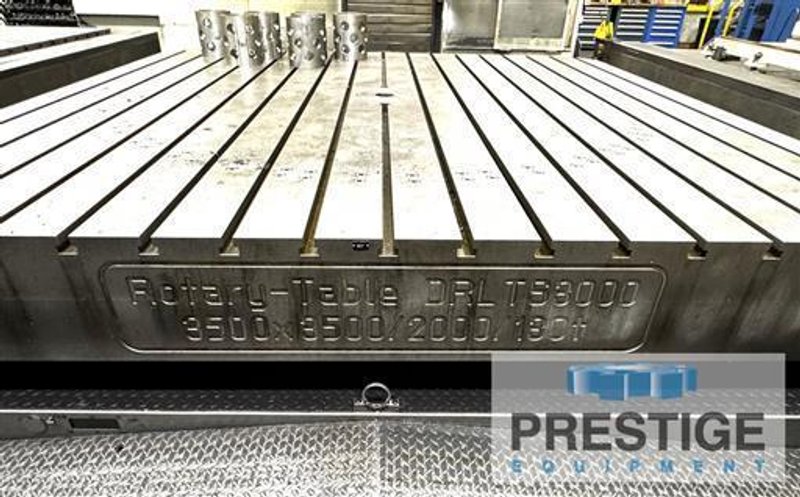

DEMMELER CNC INFEEDING B-AXIS ROTARY TABLE:
Table Size 137.79" x 137.79"
Table Infeed, Z-Axis 94.4"
Table Rotation, B-Axis .001 dgrees
Table Table Rotation 1.5 RPM
Table Weight Capacity 220,000 Lbs.

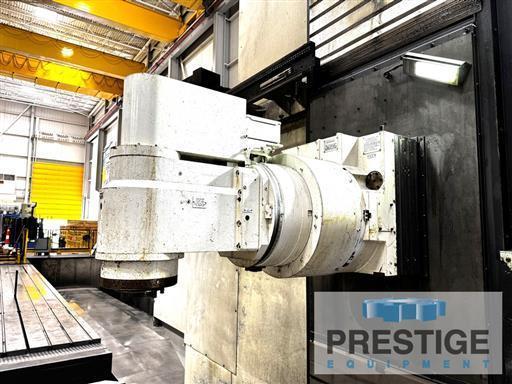

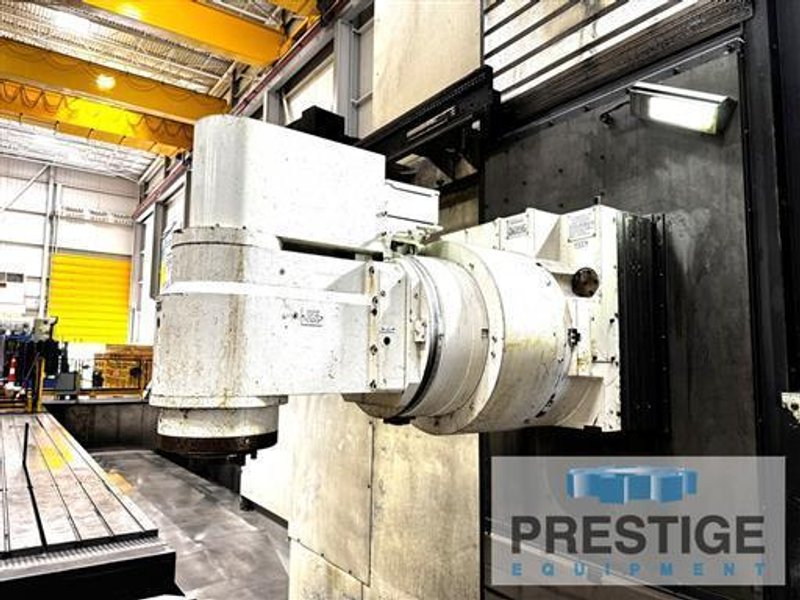

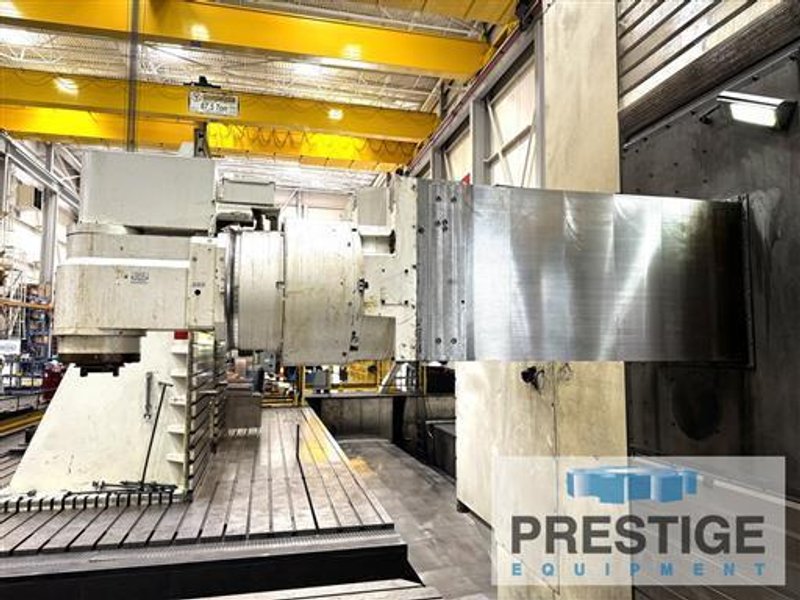

AUTO INDEXING RIGHT ANGLE MILLING ATTACHMENT:
Mounting Automatic Latch Plate
Indexing 2.5 Degrees
Mounting Face to Centerline Spindle 35.43"



Equipped With:

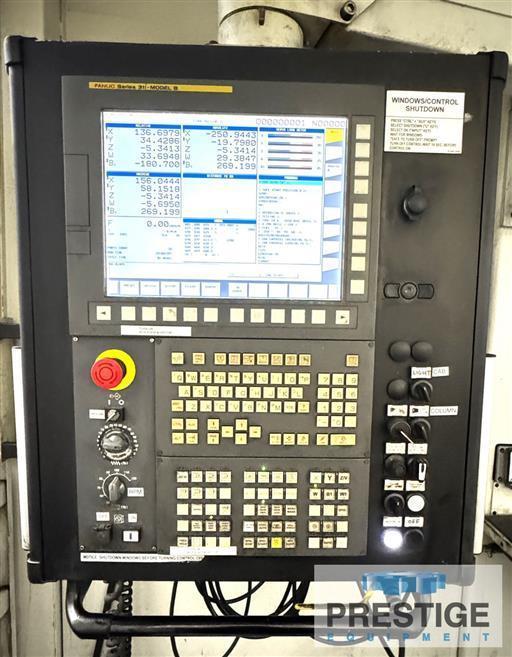

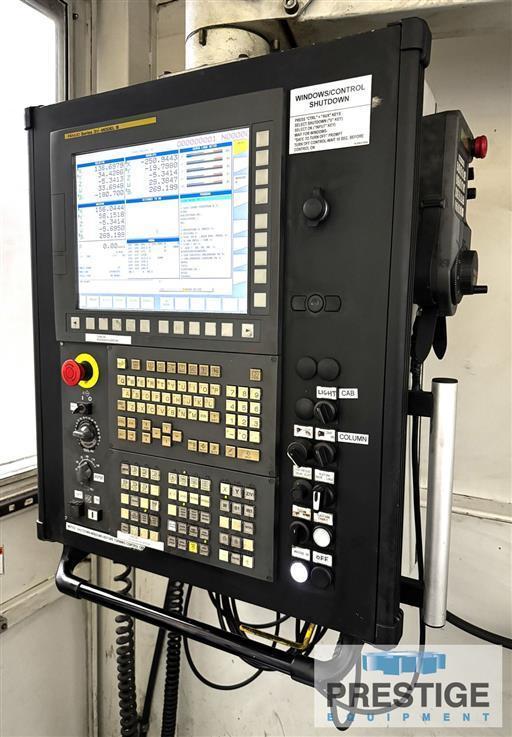

Fanuc 31i CNC Controls w/ 15" Color LCD

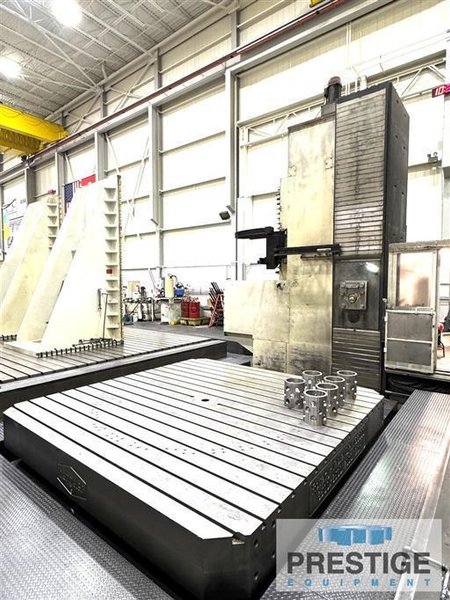

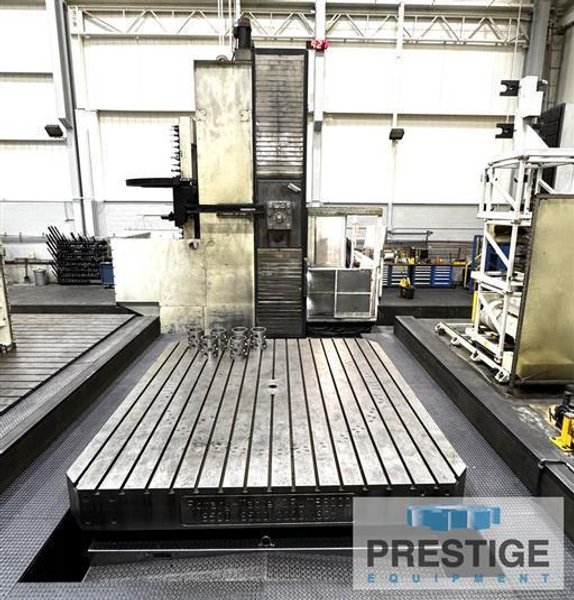

137.79" x 137.79" Demmeler B-Axis Infeeding Rotary Table

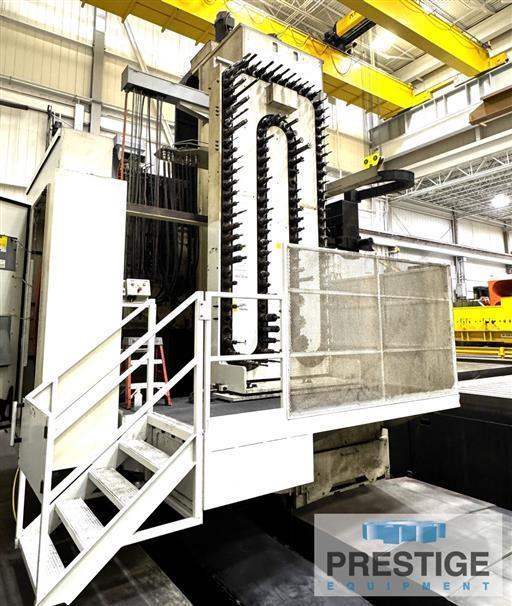

240-Station Automatic Tool Changer

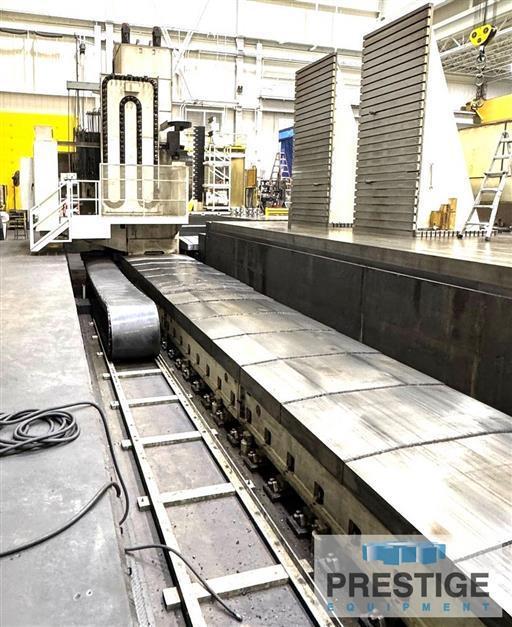

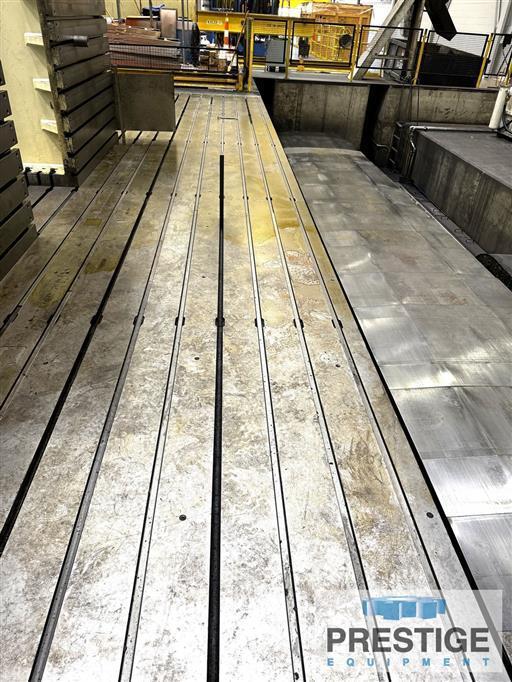

Challenge Precision T-Slotted Floor Plates 394" x 197" x 9.8" Thick

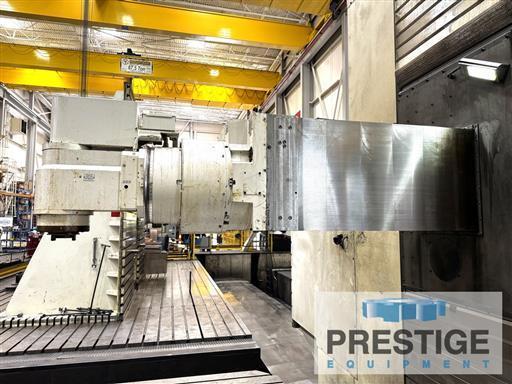

Auto Indexing Right Angle Milling Attachment Head
4 Position Attachment Rack
High Pressure Coolant System
Filtration System
Thru-Spindle Coolant
Standard Flood Coolant
Renishaw Part & Tool Probe
Chip Conveyor System
Rigid Tapping
Remote Hand Help Pendant w/ MPG
Boom Mounted Operator System
Embedded Windows XP Operating System
Thread Cutting
99 Tool Offsets
Tool Nose Radius Compensation
Programmable Spindle Orient
Helical Interpolation
Tool Length Measurement
Cylindrical Interpolation
75 Spindle Spindle Motor


Note:

Complete Specifications Available Upon Request:

Inspect Under Power:
