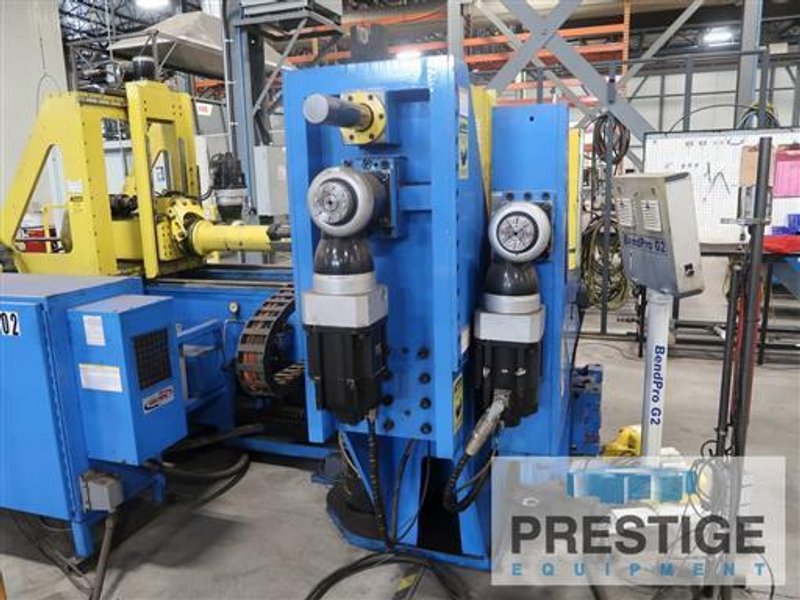

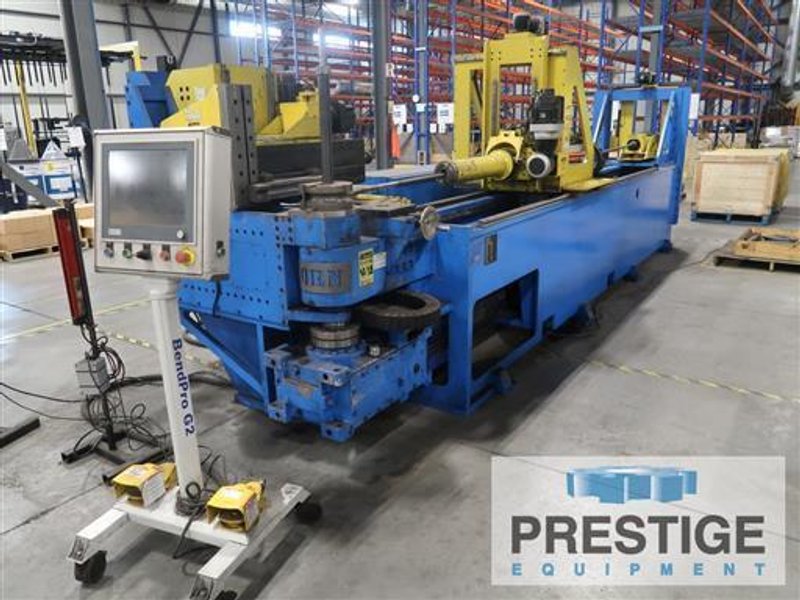

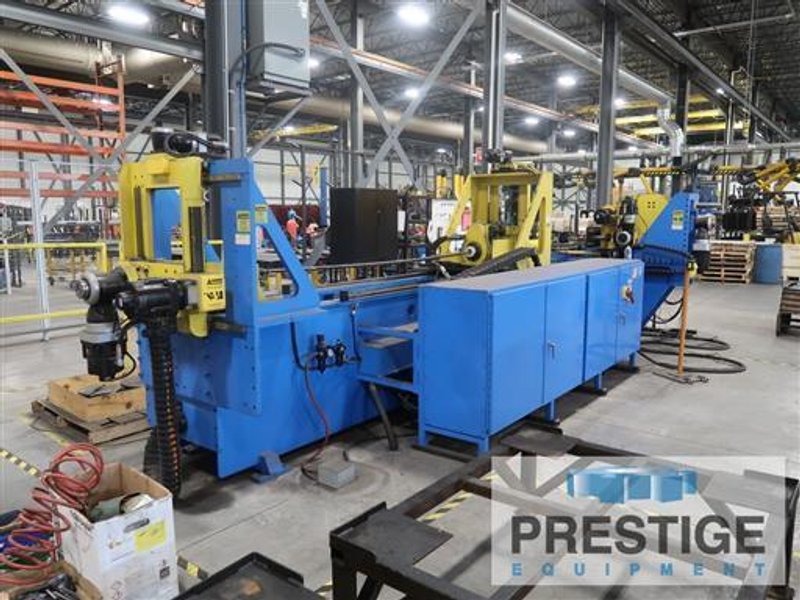

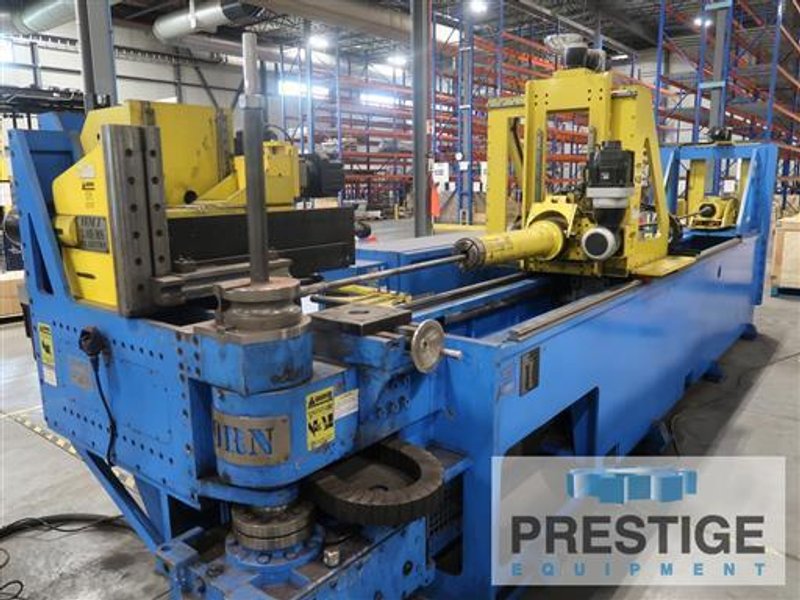

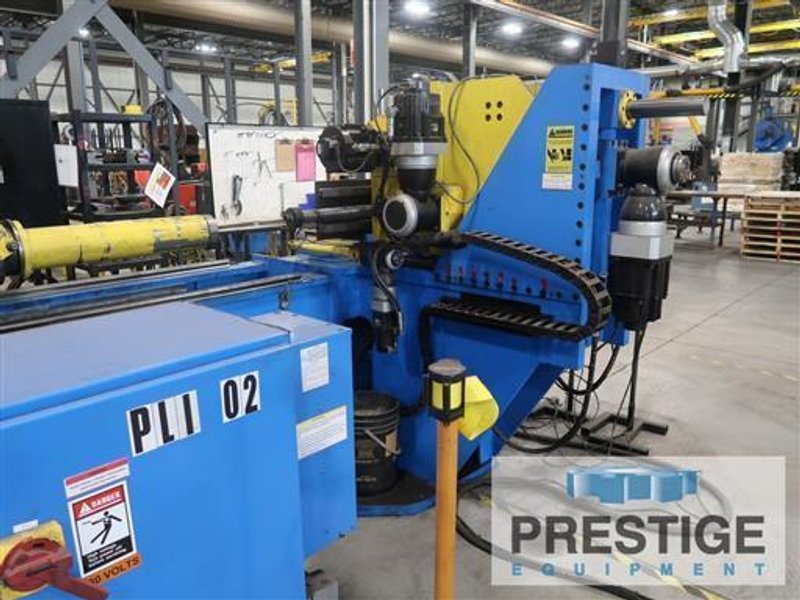

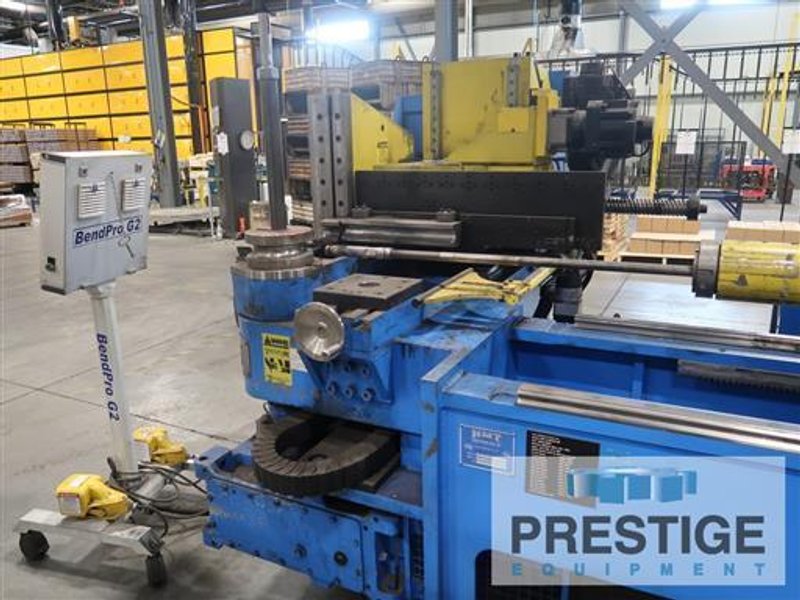

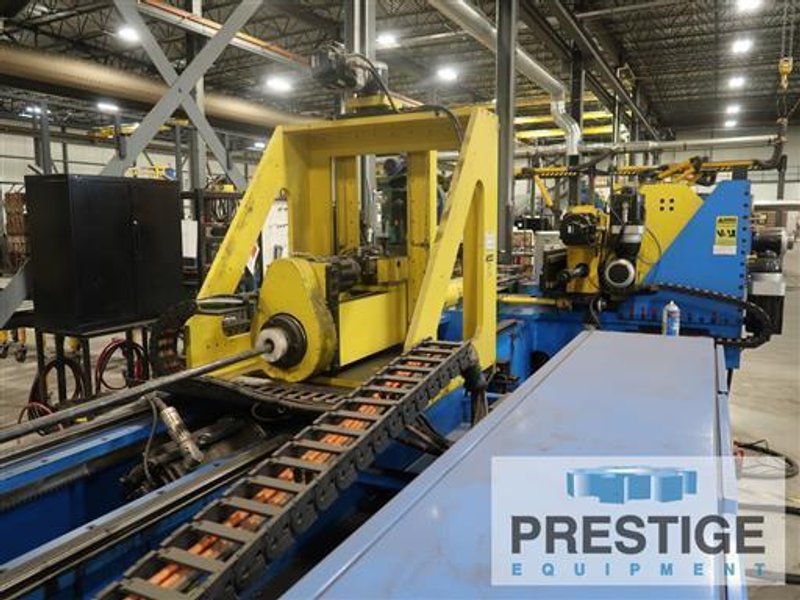

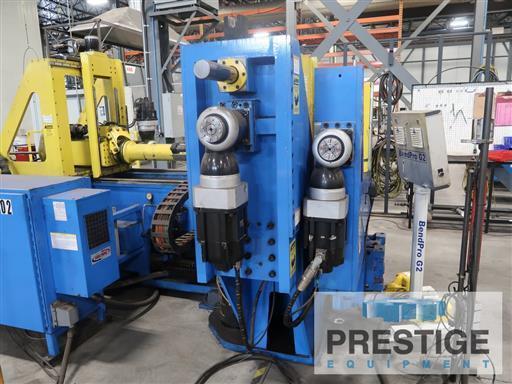

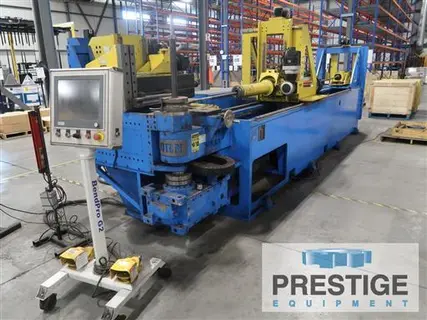

Benders Tube Pipe CNC

BENDER CAPACITY (CLR @ 1.0 X D):
Bending Cap. Round Mild Steel (OD x WT) 3" x .188
Bending Cap. Round Non-Ferrous(OD x WT) 3" x .375
Bending Cap. Round Stainless (OD x WT) 3" x .095
Bending Cap. Square Mild Steel(OD x WT) 2" x .250
Bending Cap. Pipe/Mild Steel 2" IPS Schedule 80
Bending Cap. Solid Bar/Mild Steel 2"
BENDER SPECIFICATIONS:
Maximum Bending Radius 12"
Maximum Bending Angle 190 Degrees
Maximum Length over Mandrel 120"
Working Height 49.2"
Tooling Center Line Height 2.75"
Bend Arm Speed 160 RPM
Y-Axis Travel (Carraige Feed) 117"
Y-Axis Speed 29 IPS
B-Axis Travel (Collet Rotation) 360 Degrees
B-Axis Speed 600 Degrees/Sec
Z-Axis, Vertical Stack Shift Speed 12"/Sec
X-Axis Horizontal Stack Shift Speed 18"/Sec
Electric Service 480 VAC, 3-Ph @ 125 Amps.
Machine Dimensions 96" W x 252" L x 8' H
Machine Weight 24,000 Lbs.



Equipped With:
BendPro G2v2 CNC Control
Left-Hand CCW Rotation
Multi-Stack Feature
Keyence Safety Laser floor scanner
