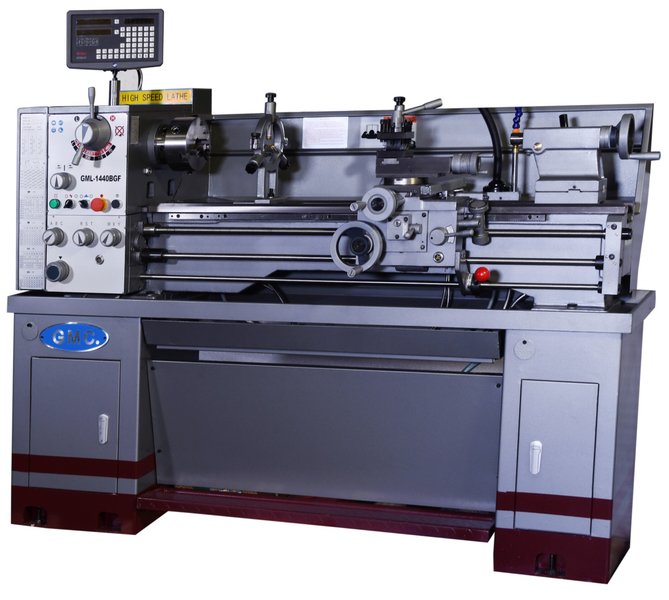

GML-1440BGF-1PH, 14" x 40" High Speed Geared Head Precision Toolroom Metal Lathe

L A T H E  C A P A C I T Y

Max. Swing Over Bed

14”

Max. length of workpiece

40”

Max. length of cutting

34”

Max. Swing Over Cross Slide

8.25”

Center Height

7”

Distance between centers

40”

Bed Width

7.5”

Bed Length

S P I N D L E

Spindle Nose

D1-4 Camlock

Spindle Bore

1.5”

Spindle Taper Nose

MT5 (Morse Taper #5)

Spindle Taper Sleeve

MT3 (Morse Taper #3)

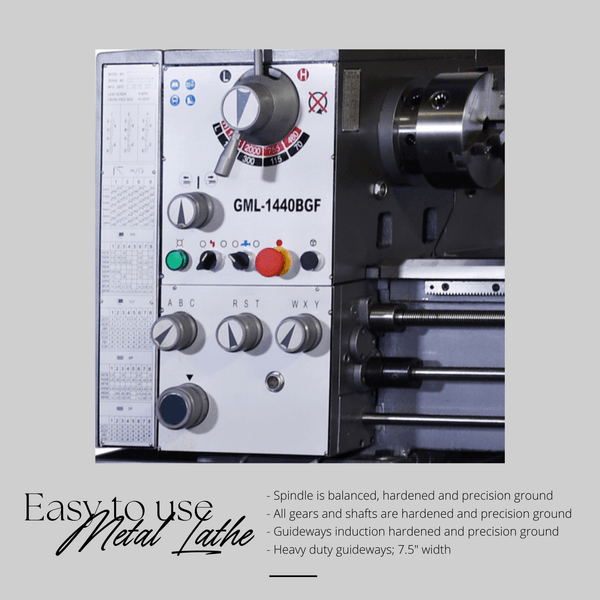

Range of Spindle Speeds

70-2,000 RPM

Low Spindle Speeds

70/115/190/300 RPM

High Spindle Speeds

460/755/1255/2000 RPM

Steps of Spindle Speed

8 steps

F E E D

Range of Longitudinal Feeds

0.00168” - 0.11750”/rev.

IPR, 24 kinds

Range of Cross feeds

0.00046” - 0.03231” /rev.

IPR, 24 kinds

T H R E A D I N G

Imperial Threads  QTY. / Speed

56 / 4-112 TPI

Metric Threads QTY. / Speed

44 / 0.1-7.0 mm

Diametral Pitch threads QTY. / Speed

32 / 16-112 DP

Module threads

34 / 0.1 – 1.75 mm

T A I L S T O C K

Tailstock Quill Diameter

1.5”

Tailstock Quill Taper

MT3 (Morse Taper #3)

Tailstock Quill Travel

4”

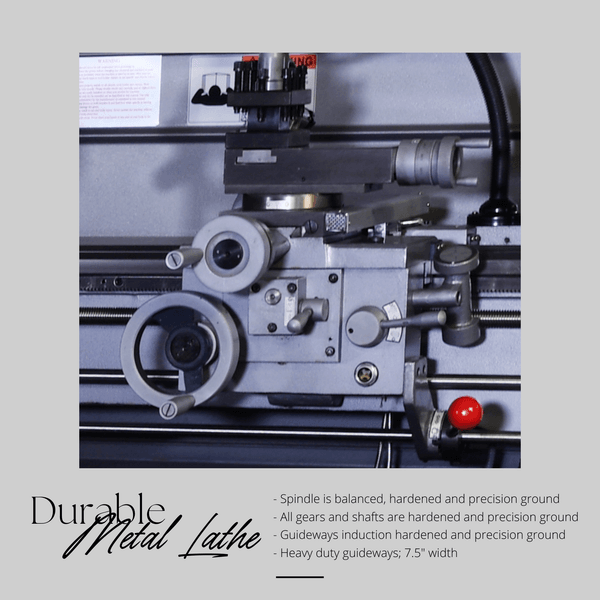

A P R O N

Compound Slide Travel

4.25”

Cross Slide Travel

7.25”

Cross Feed QTY. / Speed

0.014 – 0.380mm / rev

Leadscrew Diameter

7/8”

Feed Rod Diameter

3/4"

Max. Cutting Tool – 4 Way Tool Post

5/8”

M O T O R S

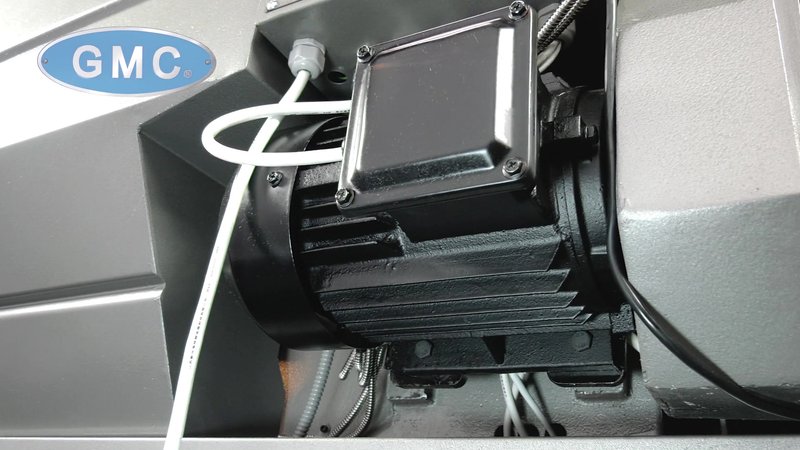

Main motor

3 HP Single Phase

Power

Prewired: 220VAC

Amperage

12 AMP

Coolant pump

1/16HP, Single Phase

220V

D I M S.

Net Weight (approx.)

1,730 LBS

Overall Dimensions

Shipping Dimensions

70”L x 35”W x 59”H

70”L x 35”W x 59”H
