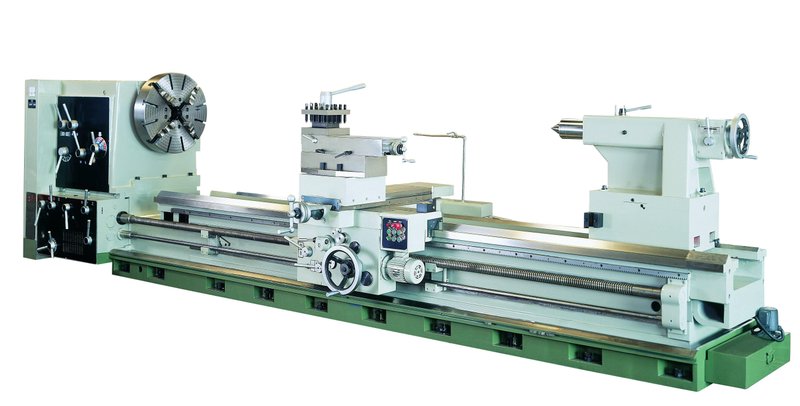

HEAVY DUTY OILFIELD LATHES Oil Country Lathes - OCL-47160G

Name: HEAVY DUTY OILFIELD LATHES Oil Country Lathes - OCL-47160G
Brand: GMC
SKU: OCL-47160G
Availability: InStock

Brand

GMC

Not specified

One year industrial warranty for parts

Specifications	OCL- 47160G	OCL- 47240G	OCL- 47360G
Max. swing over bed	47”	47”	47”
Distance between centers	160”	240”	360”
Max. swing over cross slide	33-1/2”(830mm)	33-1/2”(830mm)	33-1/2” ( 830mm)
Width of bed	27-1/4” (692mm)
Spindle bore	12-1/8” (310mm)
Spindle nose	A 2-20
Spindle speeds	4-420rpm , 12 steps
Max. weight of workpiece	9,000 LBS
Longitudinal auto feeds	0.004” – 0.055” IPR, 40 kinds
Cross slide auto feeds	0.004” – 0.022” IPR, 40 kinds
Inch threads	59 – 1 TPI, 35 kinds
Metric threads	0.5-18mm , 34 kinds
Max. travel of top slide	13-3/4”
Longitudinal rapid traverse	12’ / min.
Cross rapid traverse	6’ / min.
Top slide rapid traverse	3’ / min.
Diameter of tailstock quill	5”
Max. travel of tailstock quill	12”
Taper of tailstock quill center	MT 6
Main Motor	50 HP, 220V or 440V, 3 phase
Rapid traverse motor	1/2 HP, 220V or 440V, 3 phase
Lubrication pump motor	1/8 HP, 220V or 440V, 3 phase
Coolant pump motor	1/8 HP, 220V or 440V , 3 phase
Weight, approx. LBS	27,580LBS	31,580 LBS	33,580 LBS
Overall dimensions, LxWxH	264” x 79” x 82”	335” x 79” x 82”	465” x 79” x 82”
