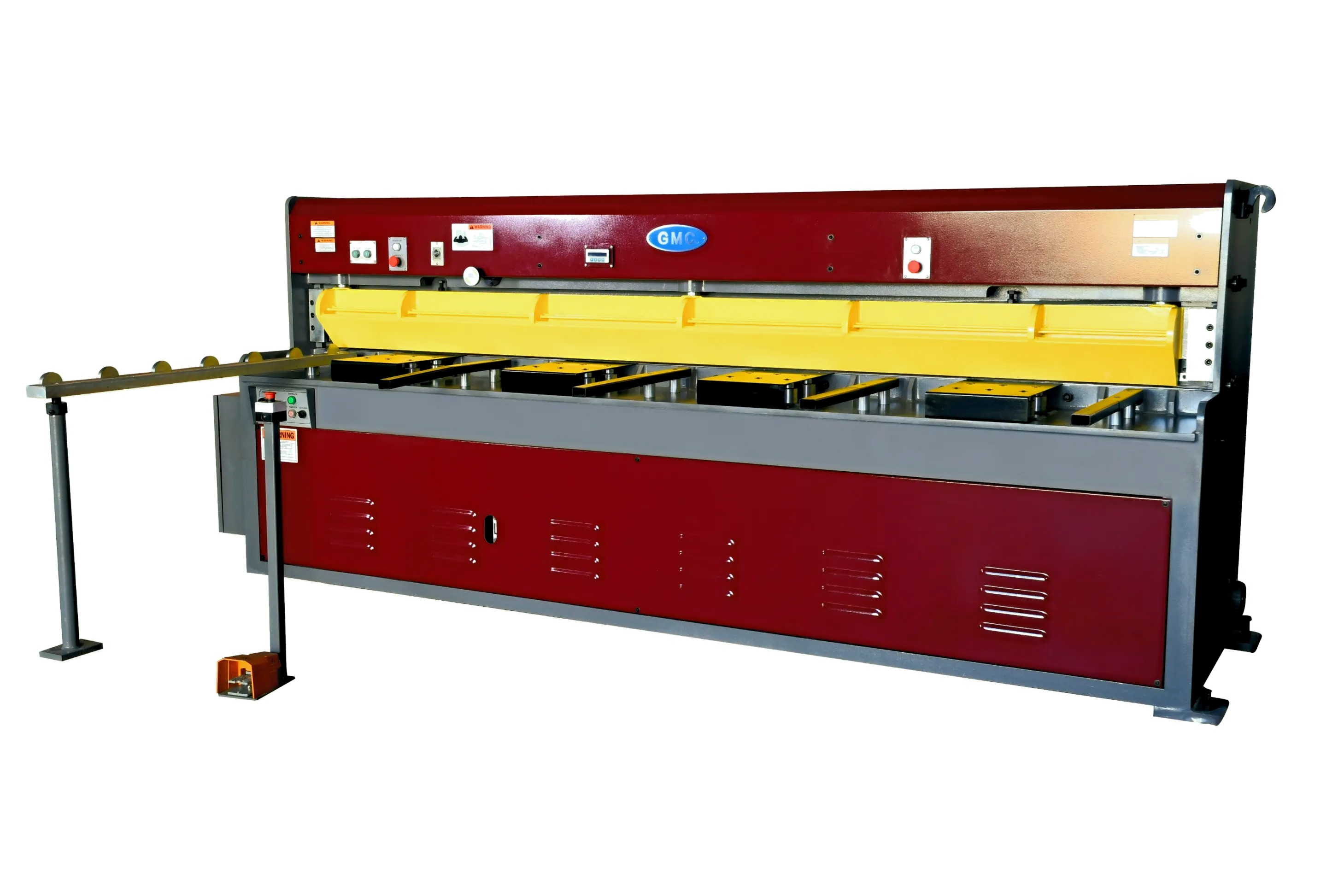

HS-0825E, 8' x 1/4" Hydraulic Plate Shear - Electric Backgauge

HS-0825E, 8' x 1/4" Hydraulic Plate Shear - Electric Backgauge

Name: HS-0825E, 8' x 1/4" Hydraulic Plate Shear - Electric Backgauge
Brand: GMC
SKU: HS-0825E
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

ISO 9001 certified
Taiwan machines

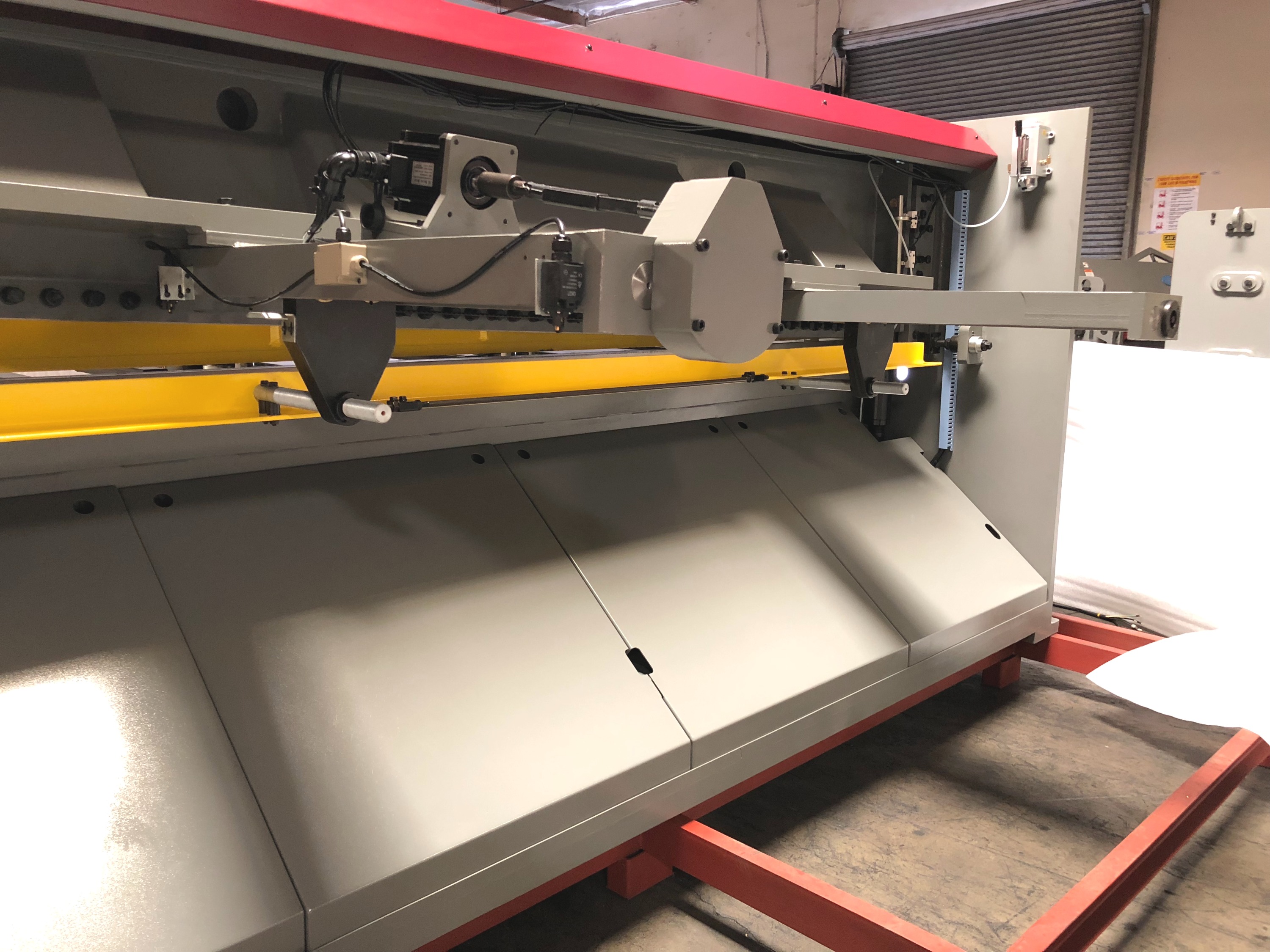

36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardenedto 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes

One year industrial warranty for parts

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Cutting capacity: Mild steel Stainless steel soft aluminum min. thickness	8’ x 1/4" 8’ x 10 Ga. 8' x 3/8" 20 Ga
Blade length	8' 2" = 98"
Strokes per minute	10-15

Worktable height	34 1/2"
Front support arm	24"
Back gauge	36" SIKO powered B.G.
Blade rake angle	2 degree
Oil tank cap.	32 Gal
Main Motor Powered B.G. Motor	20 HP, 220V/70A - 440V/35A, 3 Phase 1 HP, 220V/440V, 3 Phase
Machine weight	12,850 LBS
Machine dimensions	157" x 99" x 65"

No files or videos to display
