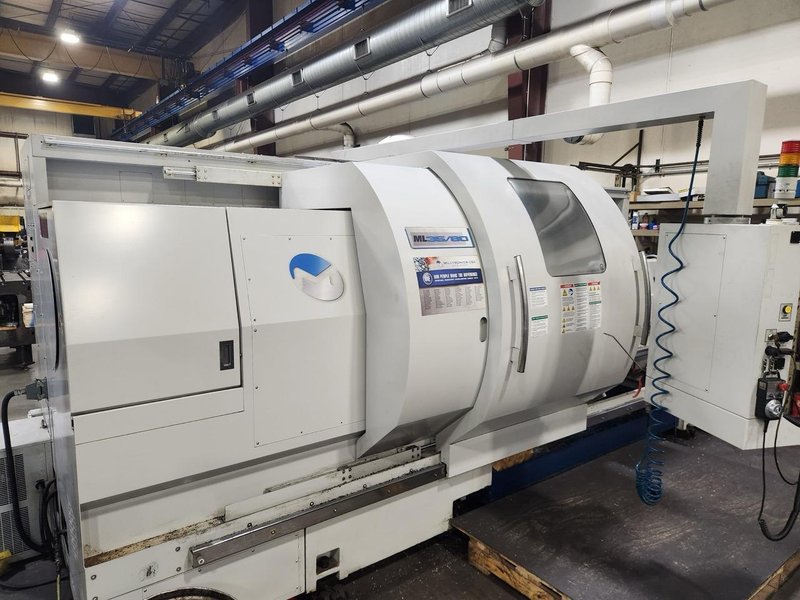

Milltronics ML35/80 CNC Combination Lathe, 2015 – Tailstock

X-Axis Travel: 19″ (480 mm) Z-Axis Travel: 87″ (2210 mm) Swing Over Bed: 36.2″ (920 mm) Swing Over Gap: 45″ (1150 mm) Swing Over Cross Slide: 21.6″ (550 mm) Gap Distance: 14.6″ (370 mm) Spindle Bore: 6.02″ (153 mm) Spindle Nose: A2-11 Spindle Range: 10-900 RPM Spindle Motor: 35/25 HP (26/18 kW) WYE Delta Spindle Torque: 1850 ft-lbs (2500 N.m)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tailstock Quill Travel: 8″ (200 mm) Tailstock Quill Diameter: 4.92″ (125 mm) Tailstock Quill Taper: MT6 Tools: 8 Tooling Size: 1.5″ (38 mm) Bar Capacity: 2″ (50 mm) X, Z Axis Rapid Traverse Rate: 500 IPM (12.7 m/min) Max. Cutting Feed Rate: 100 IPM (2540 mm/min) Approximate Dimensions: 193″ x 110″ x 90″ Approximate Machine Weight: 23,000 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Milltronics 8200-B CNC Control 24″ 3-Jaw Chuck 6″ Spindle Bore Manual Steady Rest Manual Follow Rest 8 Station Auto Turret Tailstock

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
