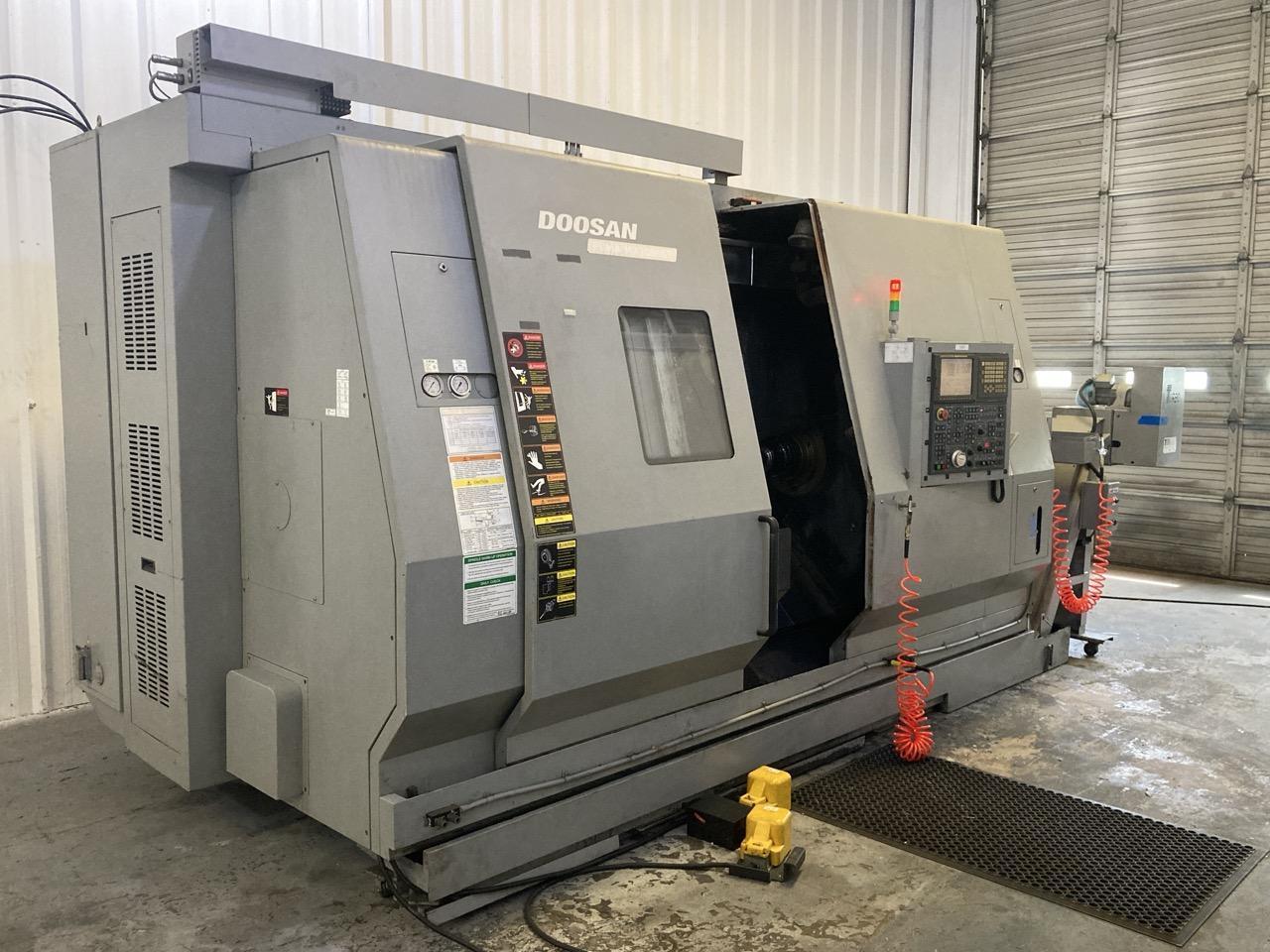

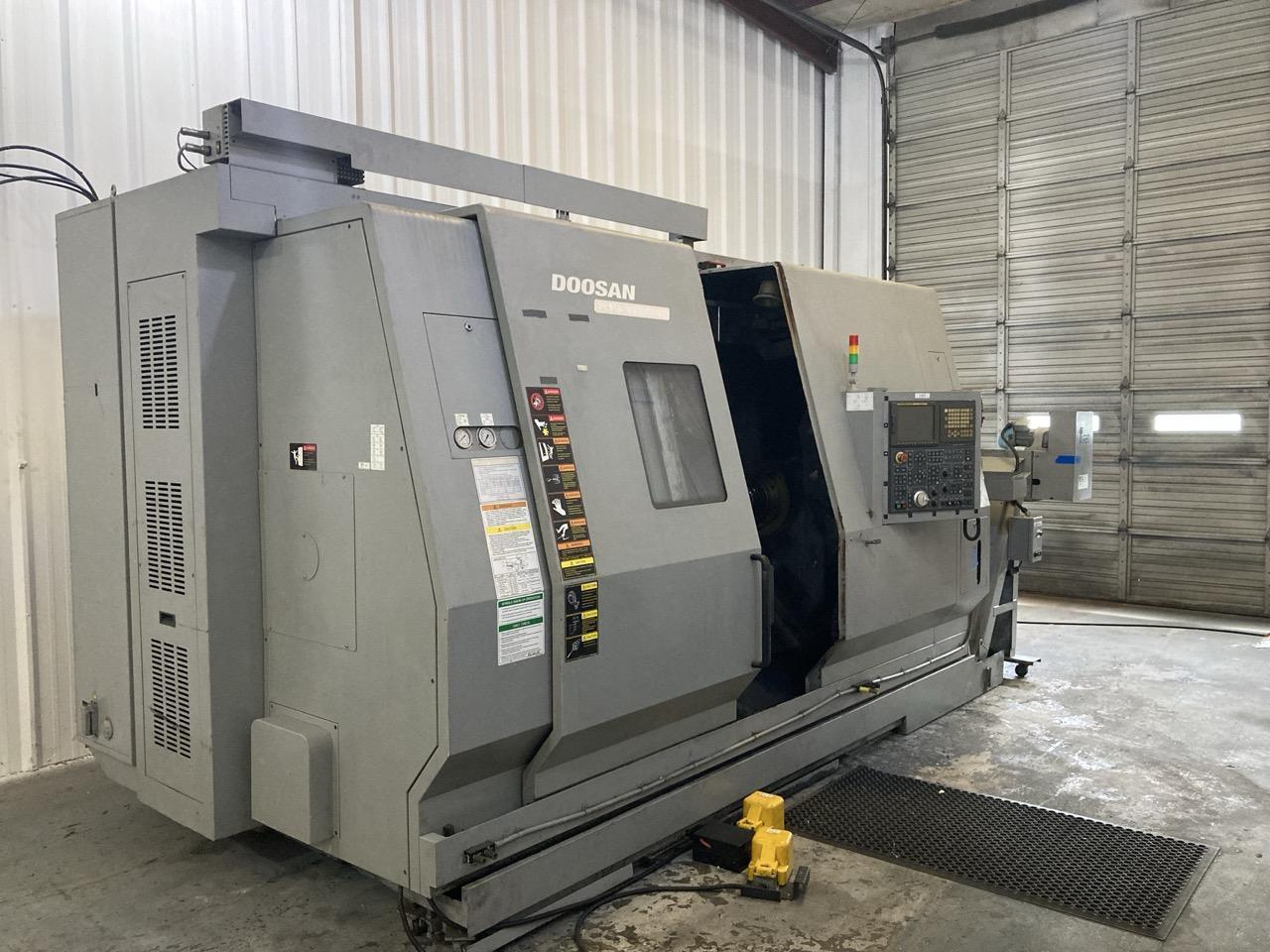

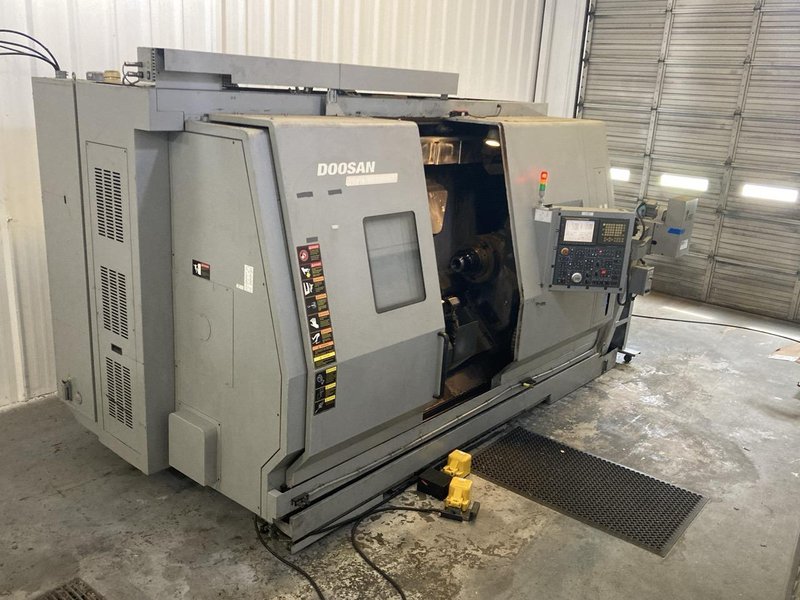

Doosan Puma MX‑2000ST Multi Axis Lathe, 2007 – Live Tooling, Sub Spindle

Swing Over Bed: 29.52″ Swing Over Saddle: 23.62″ Recommended Turning Diameter: 8.26″ Max Turning Diameter: 21.65″ Max Working Length: 40.15″ Bar Working Diameter: 2.55″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle: Chuck Size: 8″ Spindle Nose: A2-6 Spindle Diameter: 4.33″ Spindle Through Hole: 2.99″ Bore of Draw Tube: 2.59″ Main Spindle Motor: 29.5 HP/ 20 HP Max Spindle Speed: 5,000 RPM Max Spindle Indexing (C Axis): 0.001 Degrees

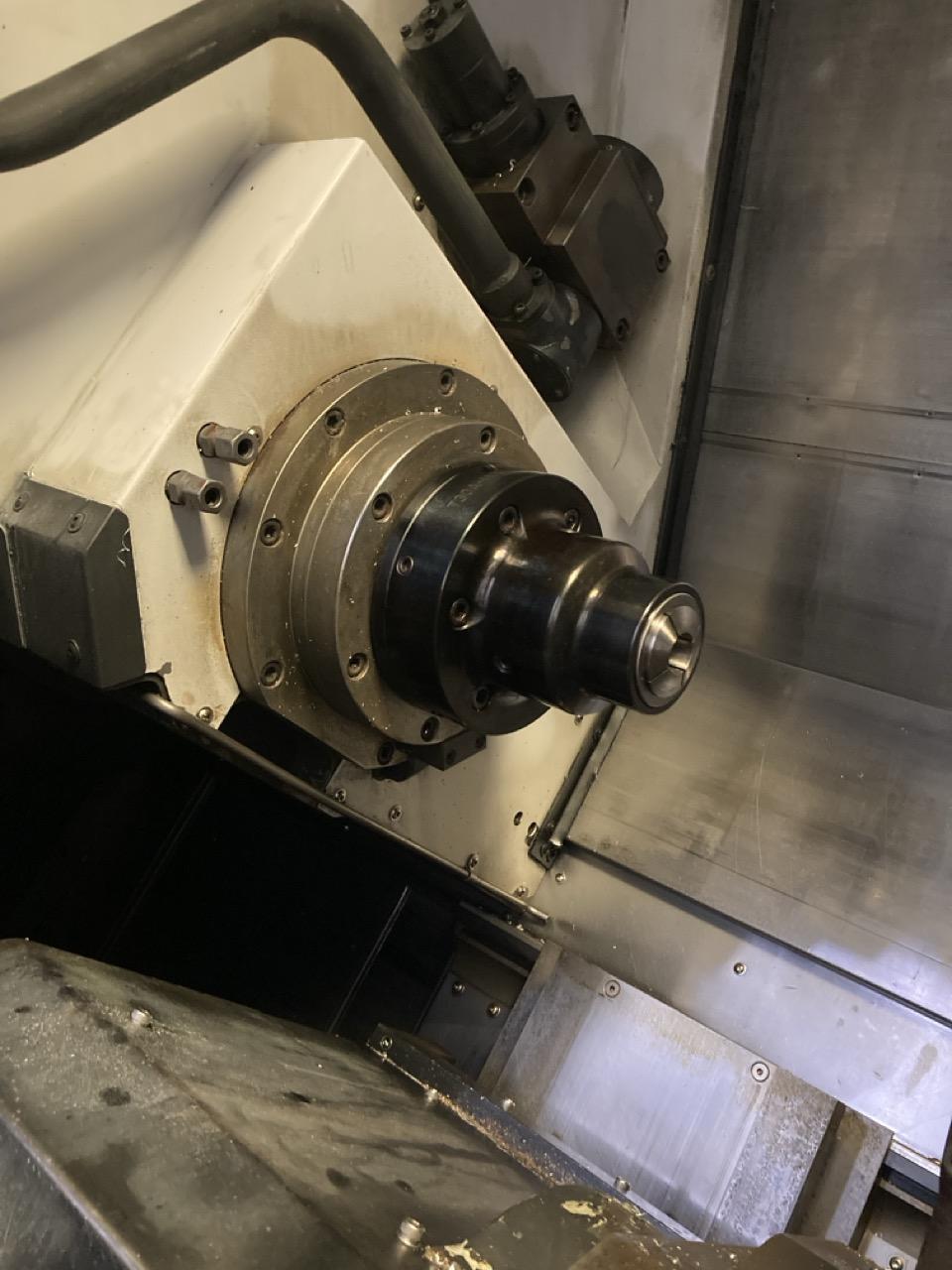

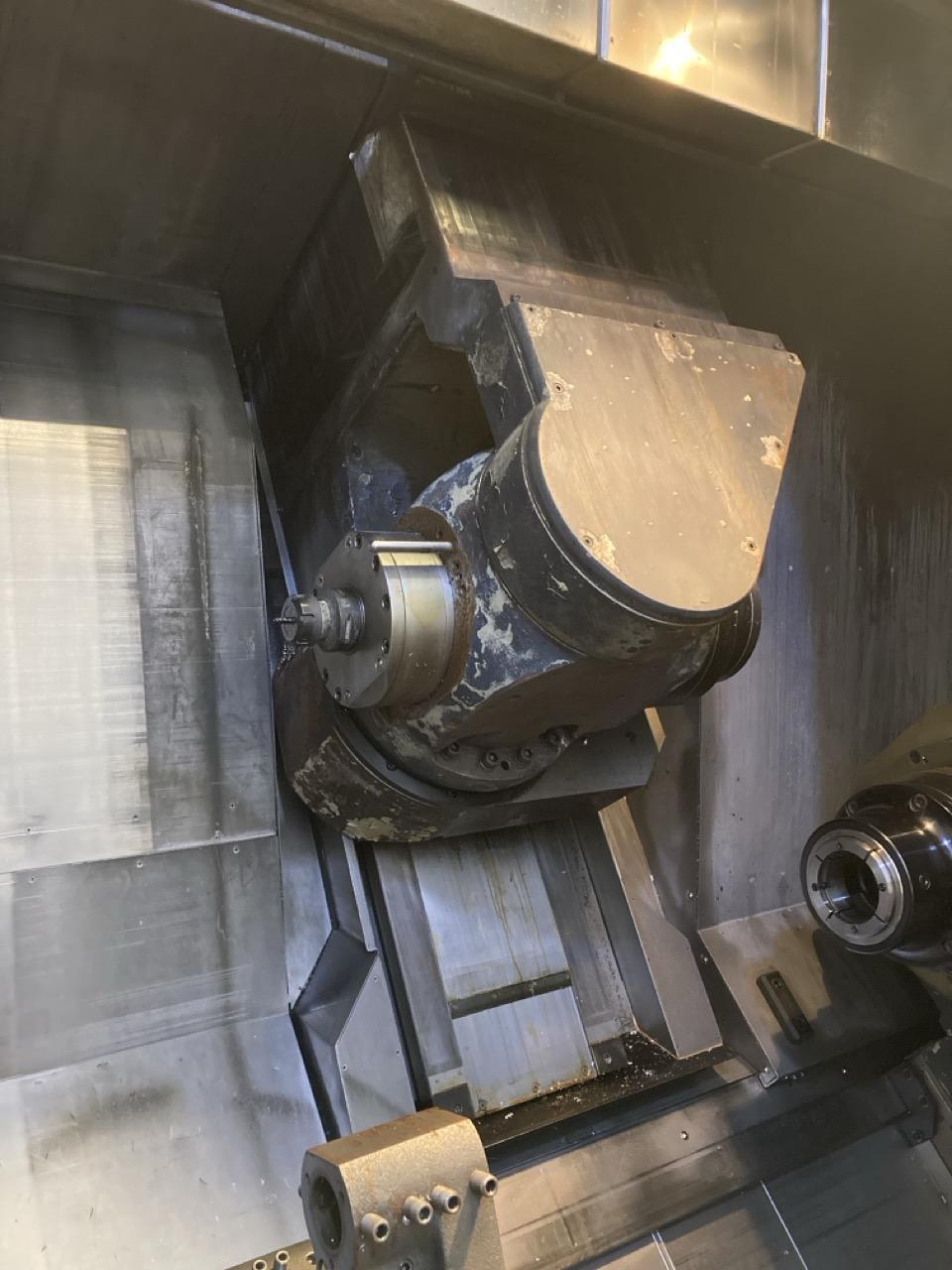

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Milling Spindle: Spindle Taper: Capto C6 Milling Spindle Diameter: 2.75″ Spindle Motor: 20 HP / 15 HP Max Milling Spindle Speed: 10,000 RPM Index of Milling Spindle: 360 degrees in 30-degree increments

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tool Changer Capacity: 24 Tool Changer Arm: Swing Arm Tool Change Time: 1.5 sec

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Carriage: X1 Axis Travel: 21.85″ X2 Axis Travel: 7.28″ Z1 Axis Travel: 43.11″ Z2 Axis Travel: 44.88″ Y Axis Travel: 6.29″ (±3.14″) A-Axis Travel: 41.92″ C1, C2 Axis Travel: 360 (0.001) Degree B-Axis: 240 Degree (±120) B Axis Coupling Clamp Degree: 15

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bed & Saddle Slant Angle: 45 Degrees Bed (Z1 Axis): 21.25″ Saddle (X1 Axis): 11.22″ Saddle (X2 Axis): 9.44″ Right Spindle Base: 17.51″

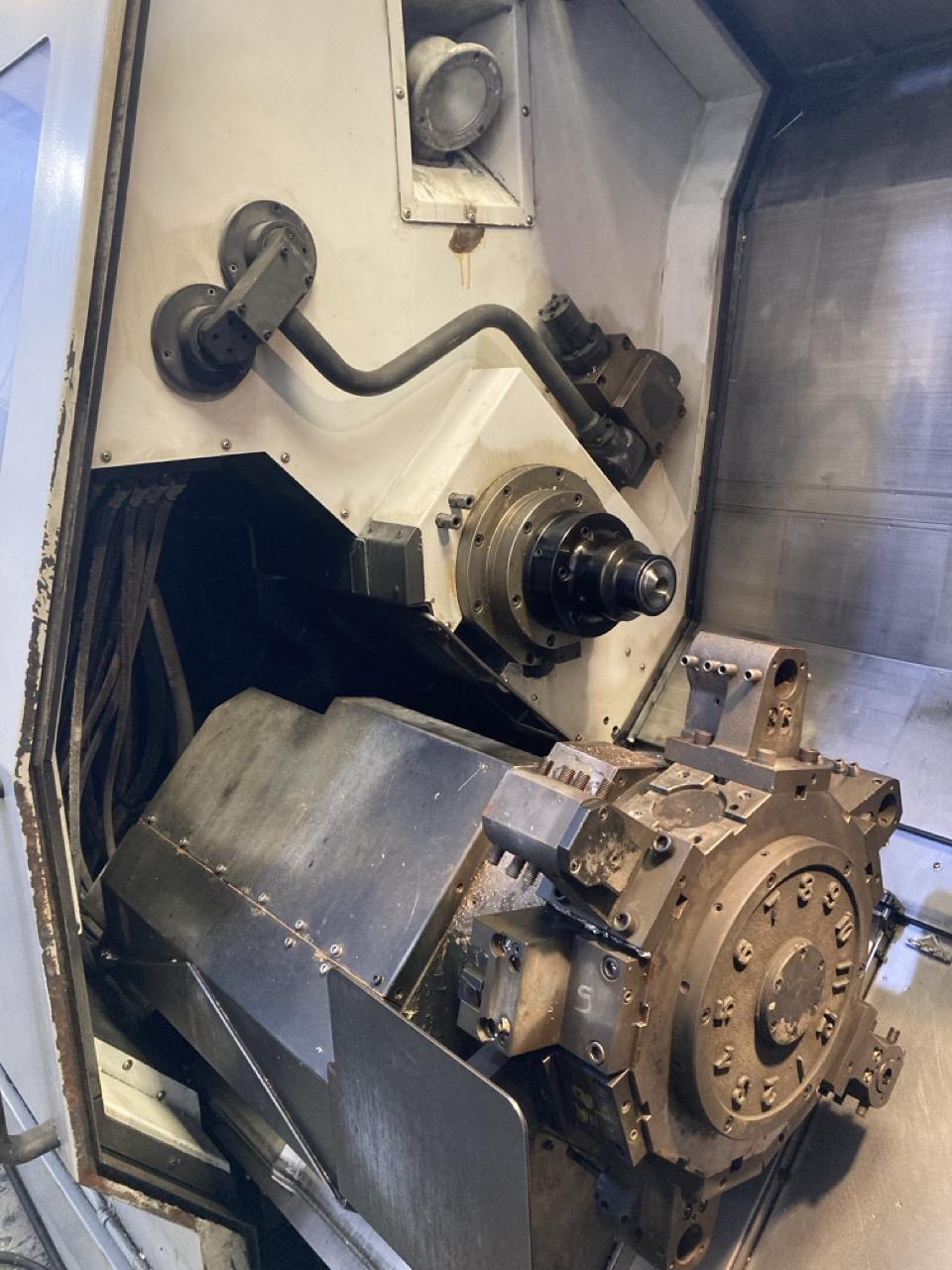

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lower Tool Post: Number of Tool Stations: 12 Boring Bar Size: 1.57″ Rotary Tool Speed: 4,000 RPM Rotary Tool Motor: 7.5 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Weight: 12,500 kg (27,557 lbs) Machine Floor Dimensions: 177.95″ x 98.22″ x 102.36″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

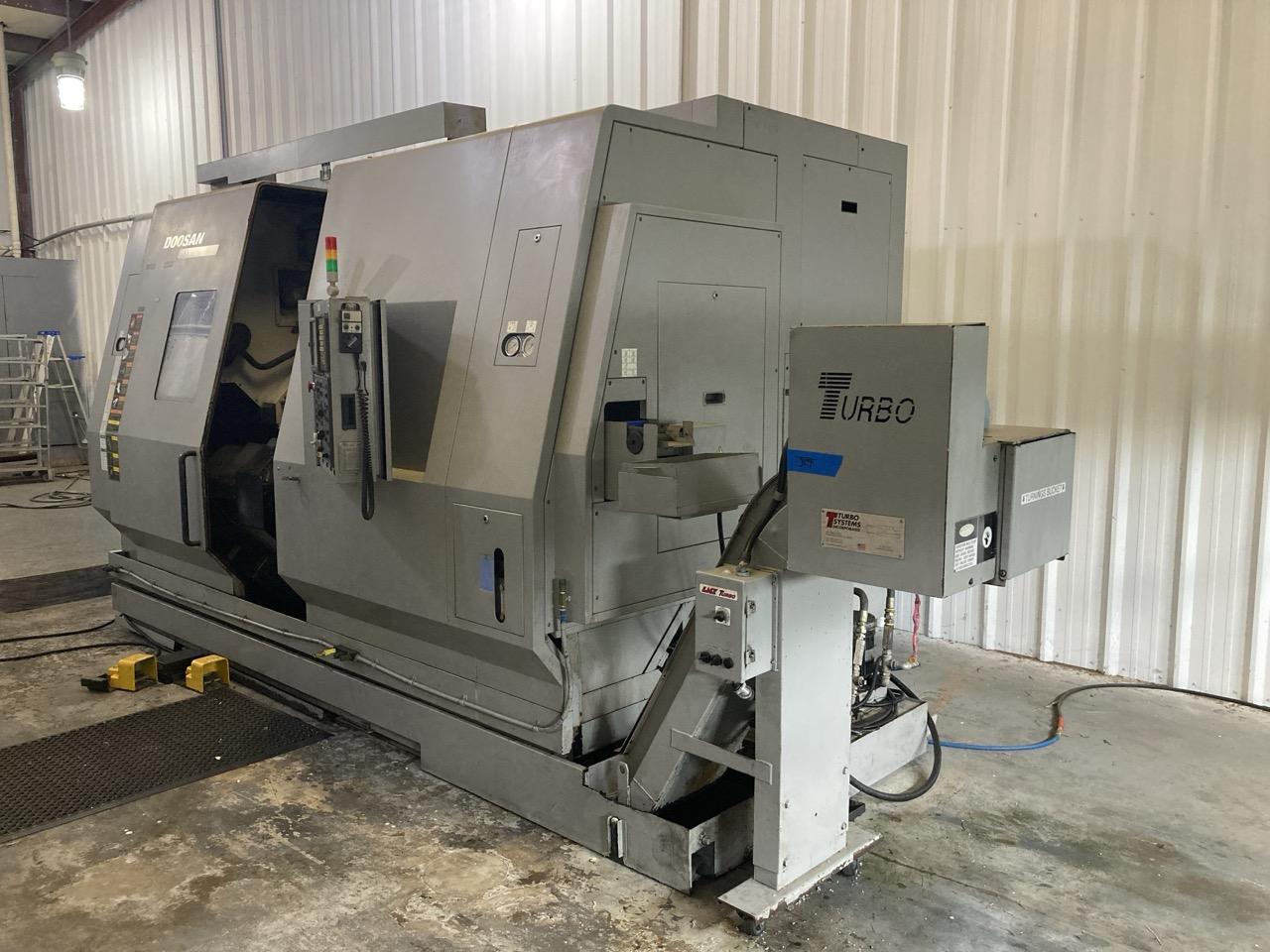

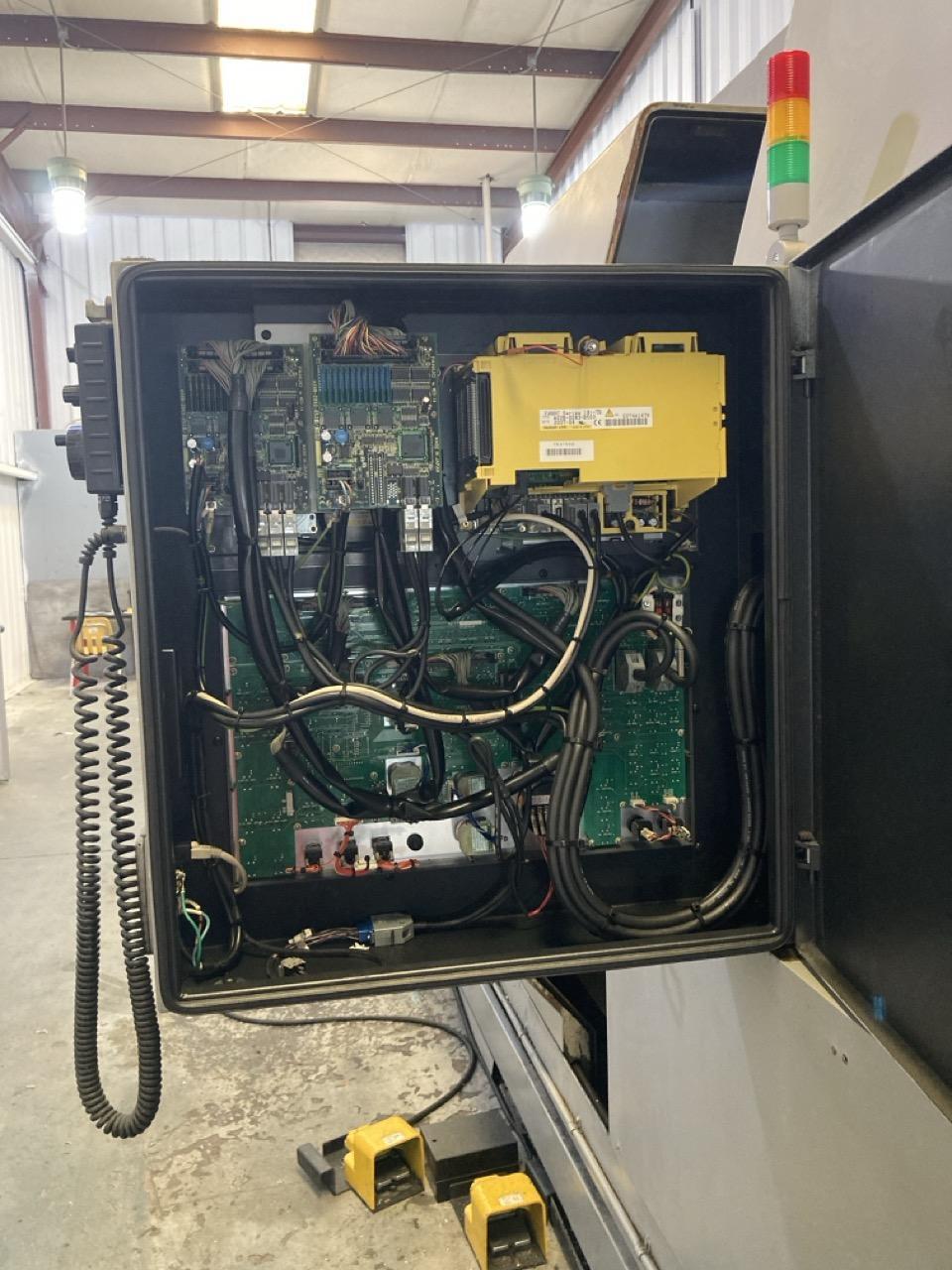

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 18i-TB Control Chip Conveyor Sub Spindle B Axis Y Axis C Axis Live Tooling
