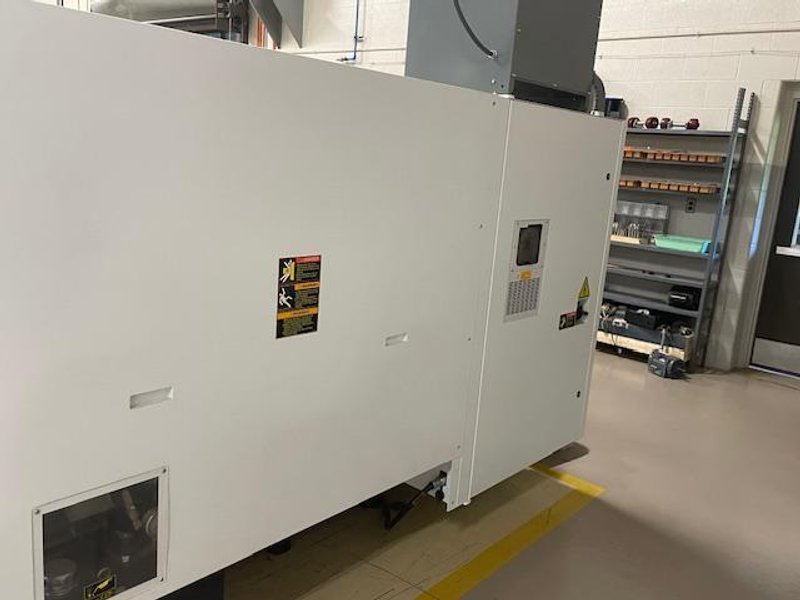

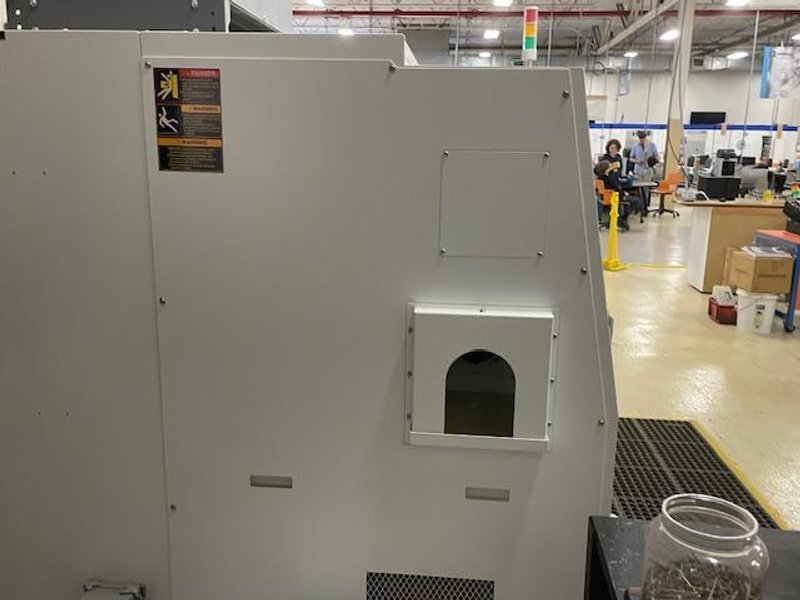

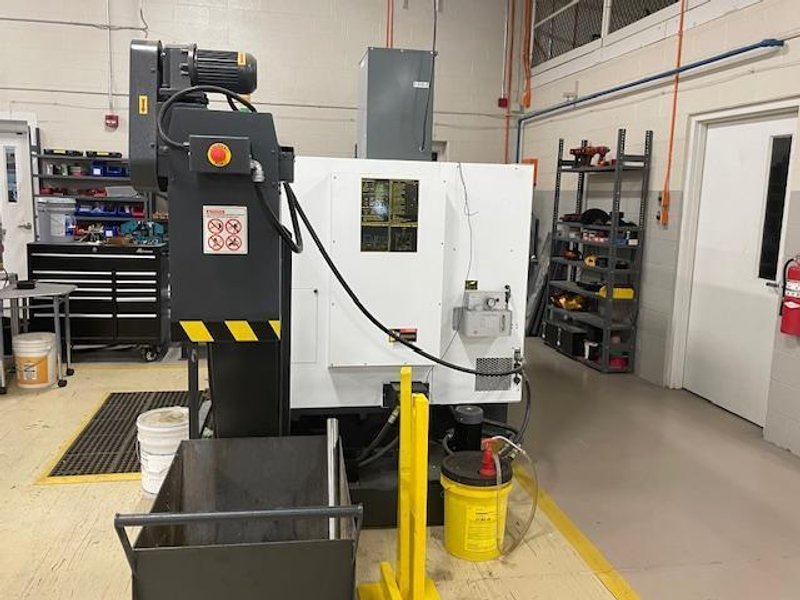

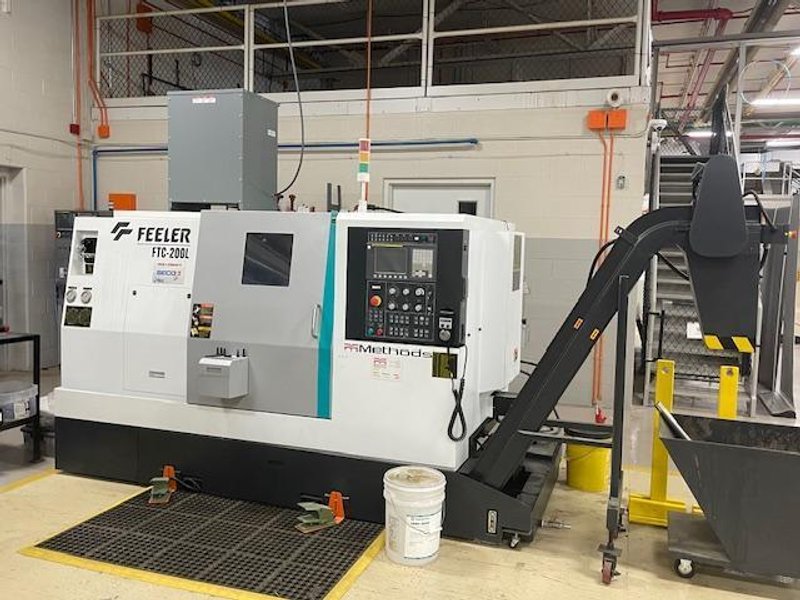

Feeler FTC-200L CNC Lathe, 2017 – Fanuc, Tailstock, 12 Station Turret, Parts Catcher, Chip Conveyor

Chuck Size: 8″ Chuck Type: 3-Jaw Power Chuck Bar Capacity: 2.6″ Swing Over Bed: 23.6″ Swing Over Saddle: 15.7″ Maximum Turning Diameter: 13.8″ Maximum Turning Length: 26″ Maximum Workpiece Weight Without Tailstock: 53 Lbs. Slant Angle: 30° Turret Capacity: 12 Stations Standard O.D. Tool Size: 1″ Maximum I.D. Tool Size: 1.25″ Turret Indexing Time: 0.3 Sec. Tailstock: Manual Tailstock With Dead Center X-Axis Travel: 6.9″ + 1″ Z-Axis Travel: 27.6″ Spindle Speed: 4,500 RPM Spindle Motor HP: 25 HP Spindle Nose: A2-6 Coolant Tank Capacity: 29 Gal. Coolant Pump Pressure: 100 PSI Power Capacity: 25 KVA Floor Space With Chip Conveyor: 152″ X 62″ Maximum Machine Height: 68″ Weight: 8,800 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approx Power On Time: 886 Hours Approx Cutting Time: 219 Hours

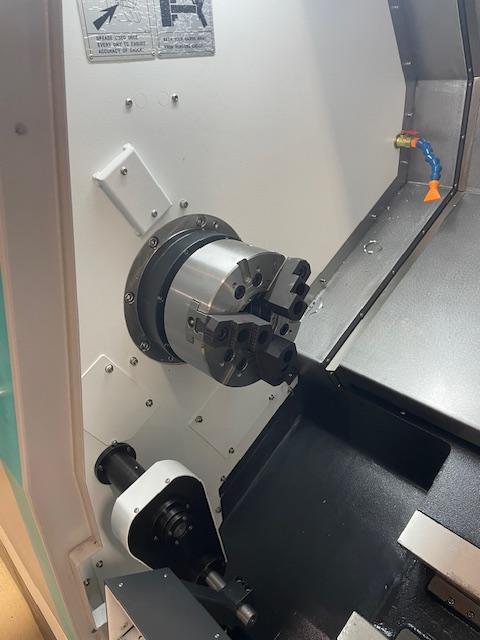

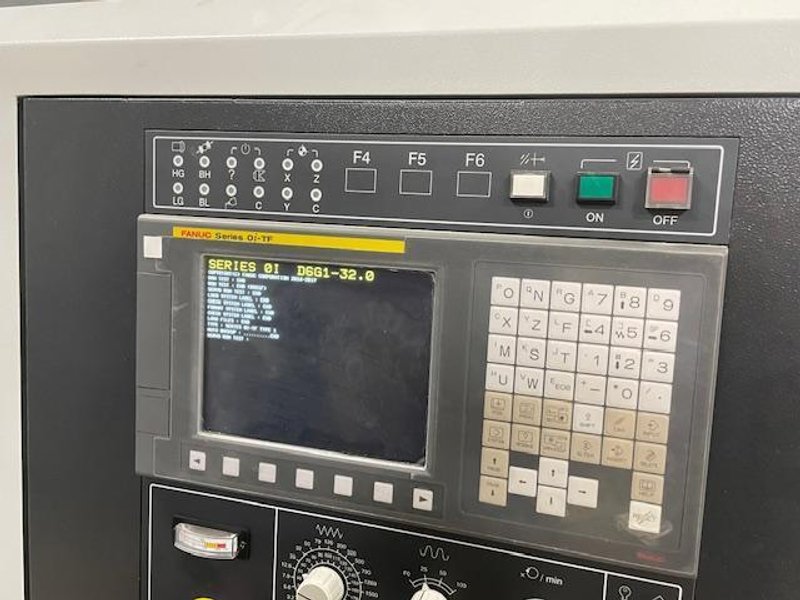

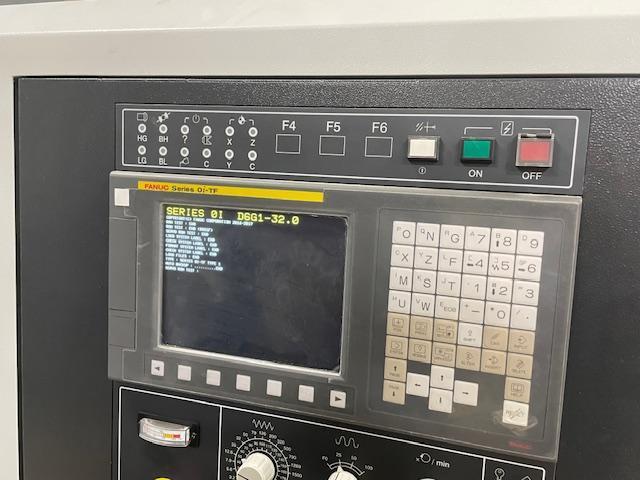

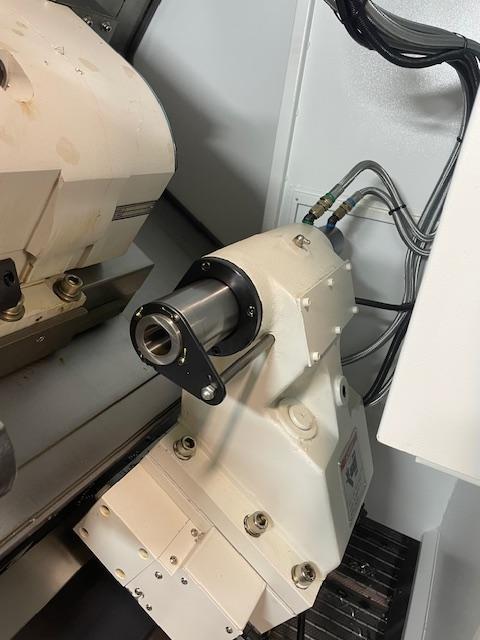

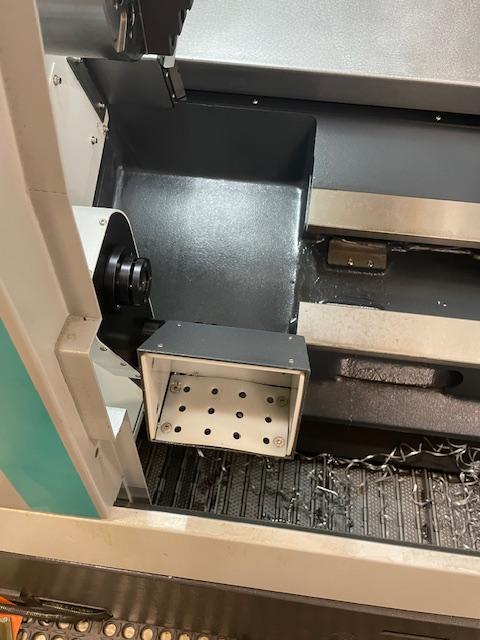

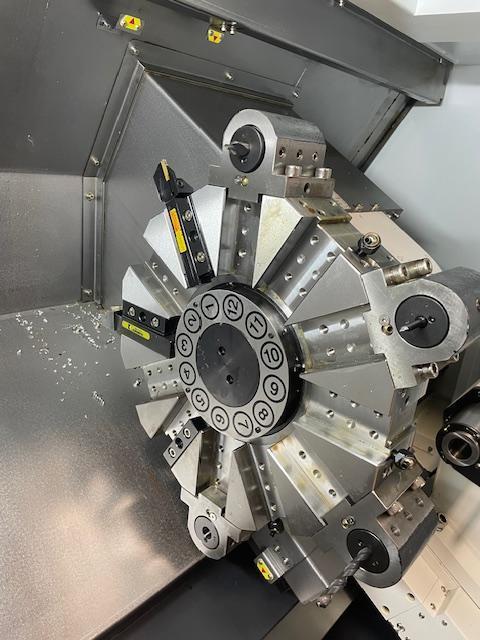

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Fanuc 0i-TF Control Manual Tailstock With Dead Center Hydraulic Quill Movement 12 Station Turret 8″ 3-Jaw Power Chuck Hydraulic Parts Catcher Chip Conveyor Bar Feeder Interface Tool Holder Package Hard Jaw Set Soft Jaw Sets Flood Coolant Over Main Spindle Automatic Lubrication System Enclosed Splash Guard Safety Interlock Package

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
