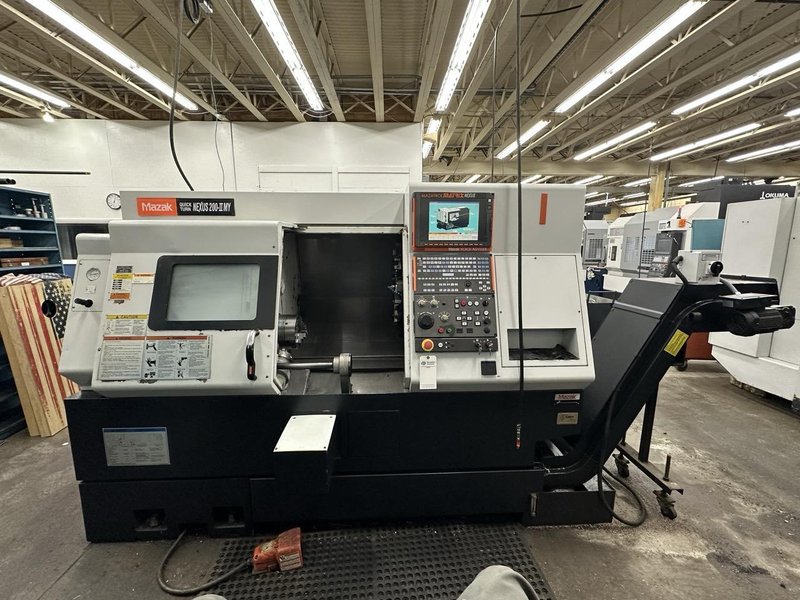

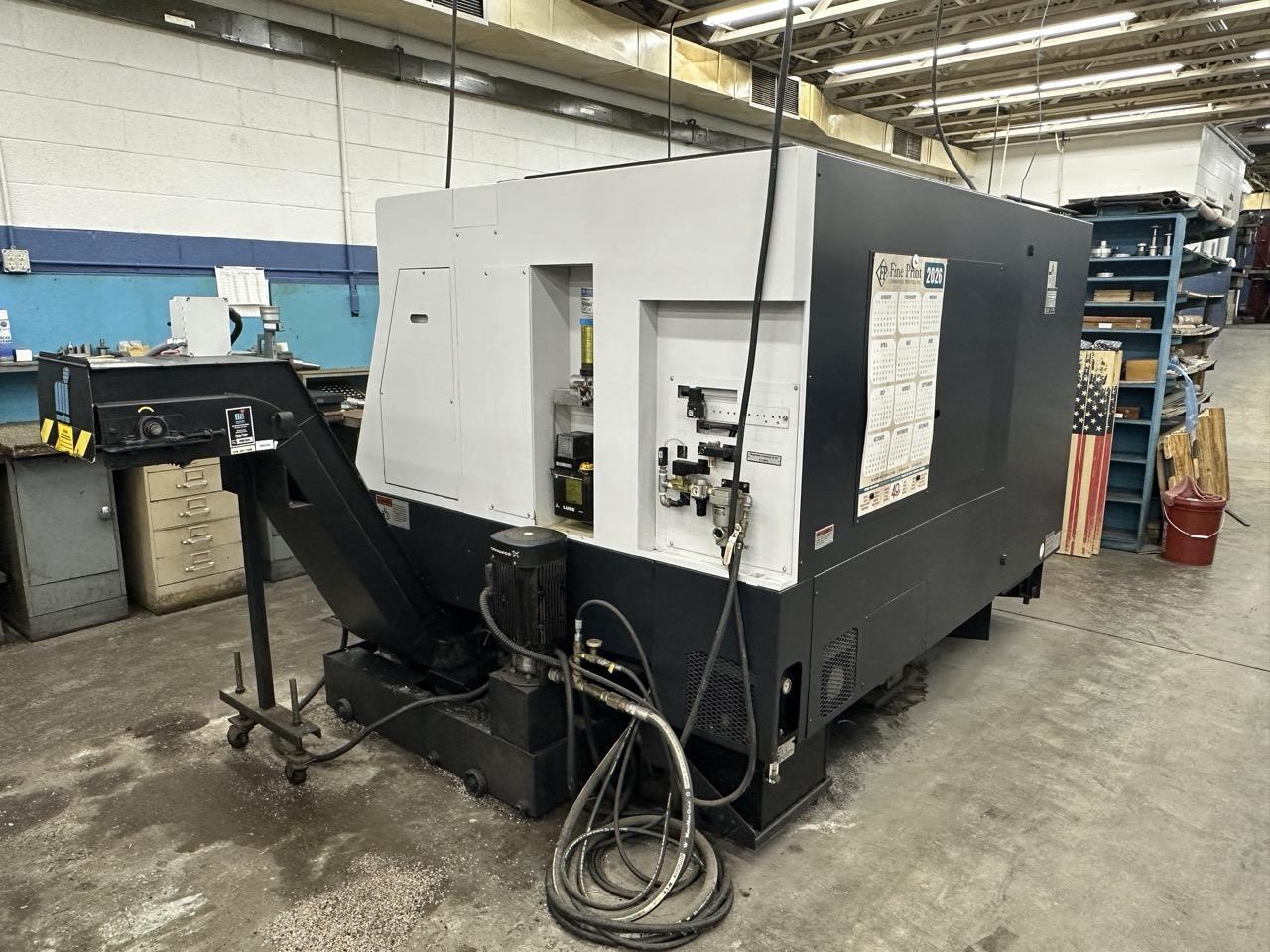

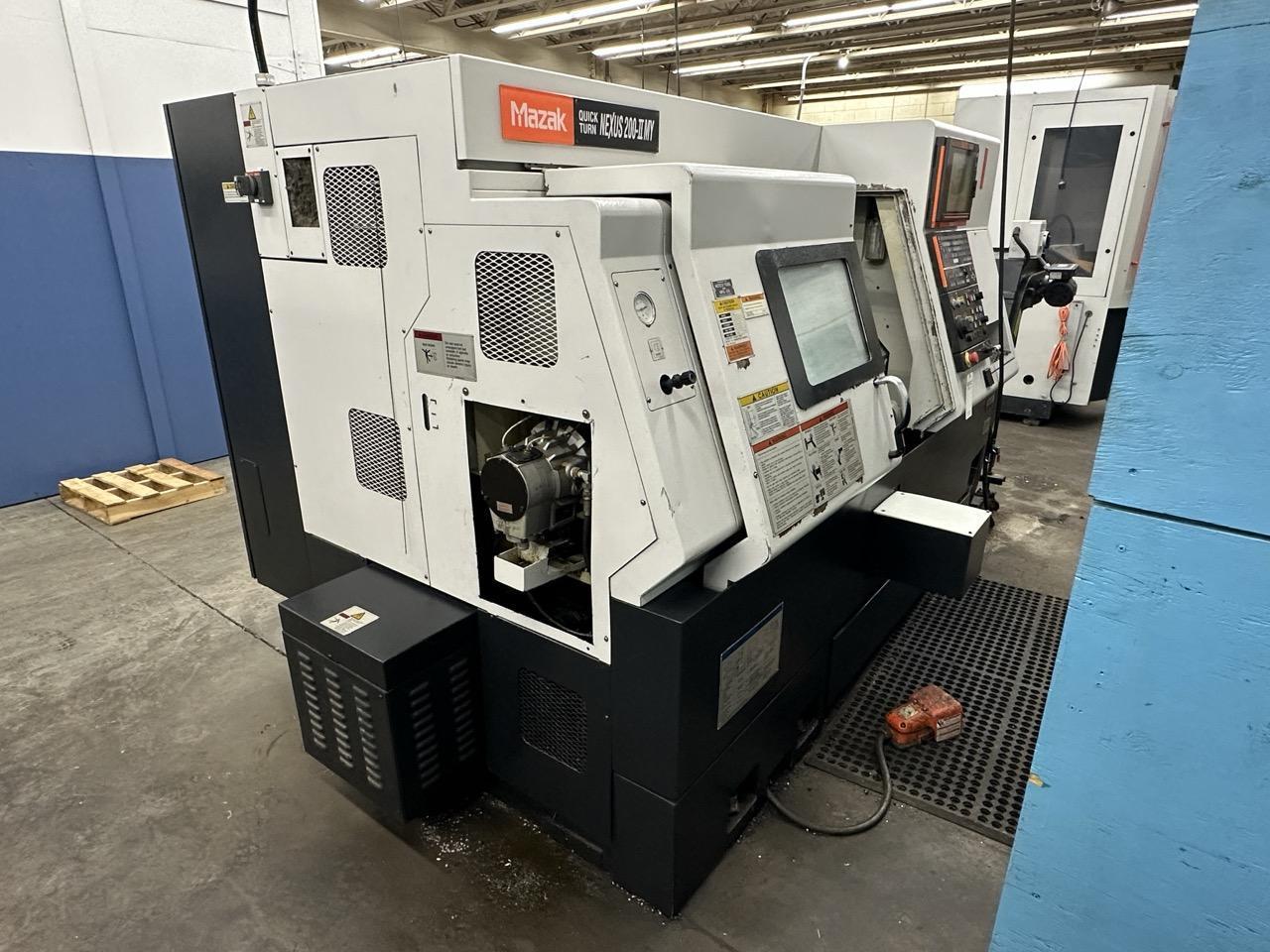

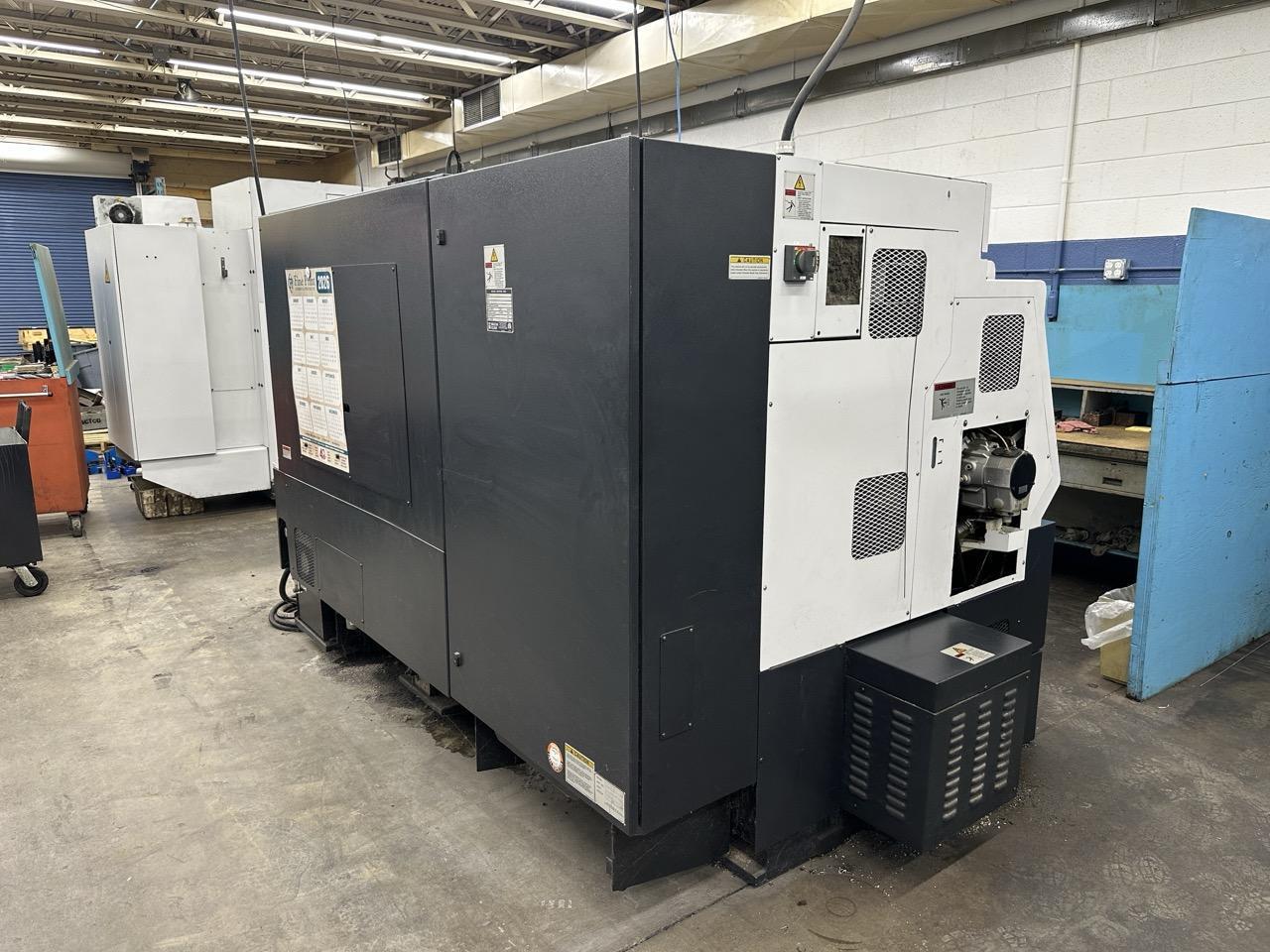

Mazak QTN Nexus 200MY-II CNC Turning Center, 2009

Chuck Size:  8″ Maximum Swing:  675 mm (26.50″) Standard Machining Diameter:  276 mm (10.87″) Bar Work Capacity:  65 mm (2.50″) Distance Between Spindle End and Turret End Face:  135 to 710 mm (5.357 to 28.107″) Spindle Speed:  35 – 5000 Min⁻¹ (rpm) Spindle Nose:  A2-6 Bore:  76 mm (3.00″) Motor Output [Half-Hourly Rating]:  26.0 kw (35 hp) Maximum Torque:  47.4 kgf·m (343 ft·lbs) Indexing Time:  0.2/0.6 sec Milling Spindle Speed:  25 – 4500 Min⁻¹ (rpm) Milling Motor Output [10-min. Rating]:  5.5 kw (7.5 hp) Maximum Torque of Milling Spindle:  3.6 kgf·m (26.0 ft·lbs) Tailstock Center Bore:  MT 5 Travel [Tailstock]:  550 mm (21.75″) Maximum Thrust:  700 kgf (1544 lbs) Rapid Traverse (X/Y/Z):  30/21/33 m/min (1181/826/1299 ipm) Rapid Traverse (C):  555 Min⁻¹ (rpm) Travel (X):  230 [225 + 5] mm (9 [8.875 + 0.125] in.) Travel (Y):  100 [50 + 50] mm (4 [2 + 2] in.) Travel (Z):  575 [570 + 5] mm (22.75 [22.5 + 0.25] in.) Machine Weight: 12500 lbs Accumulated Time Power On:  39901 Auto Ope.:  15664 Auto Cut.:  10757 Total Cut.:  9485 Total Time:  39901

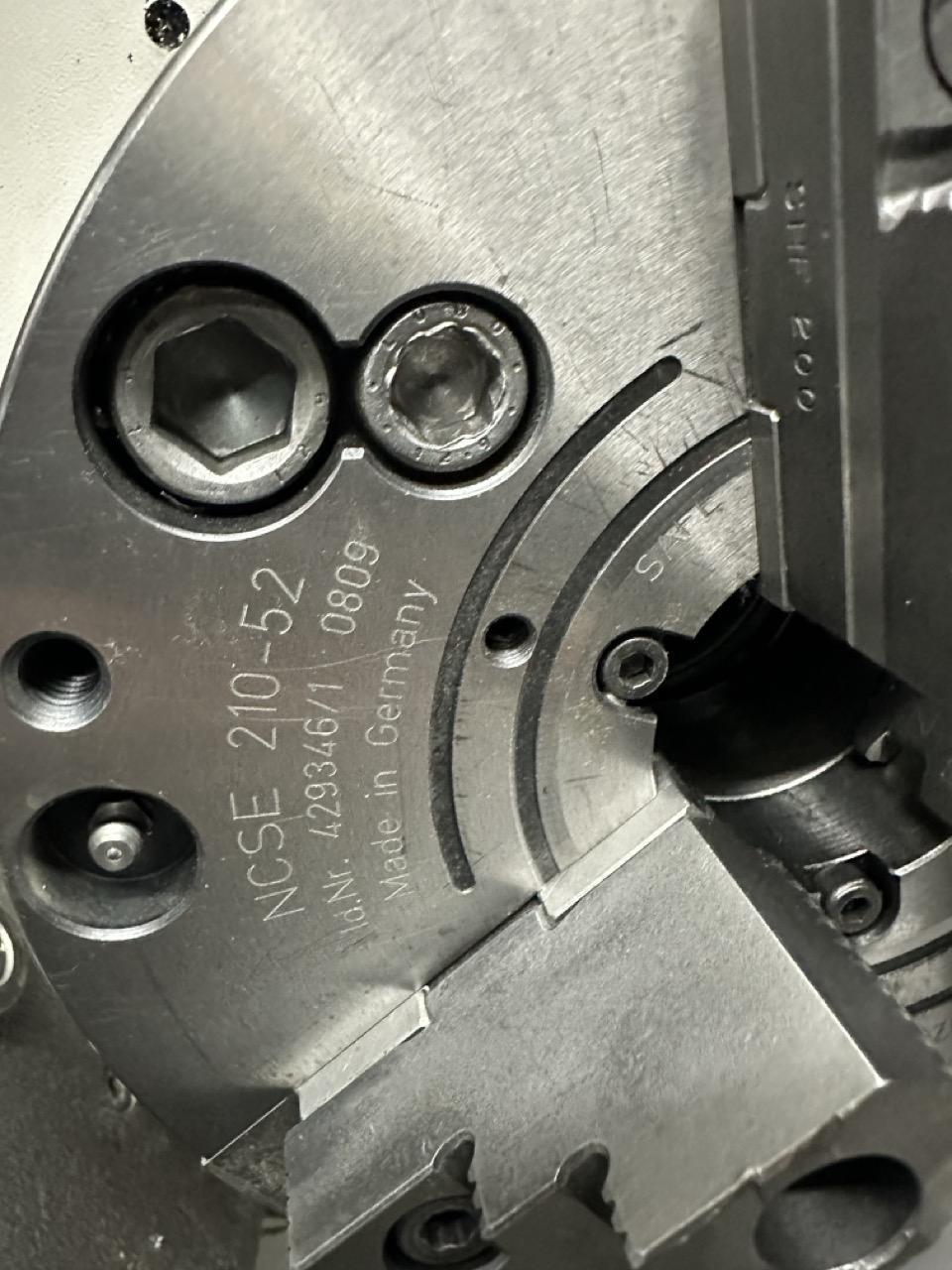

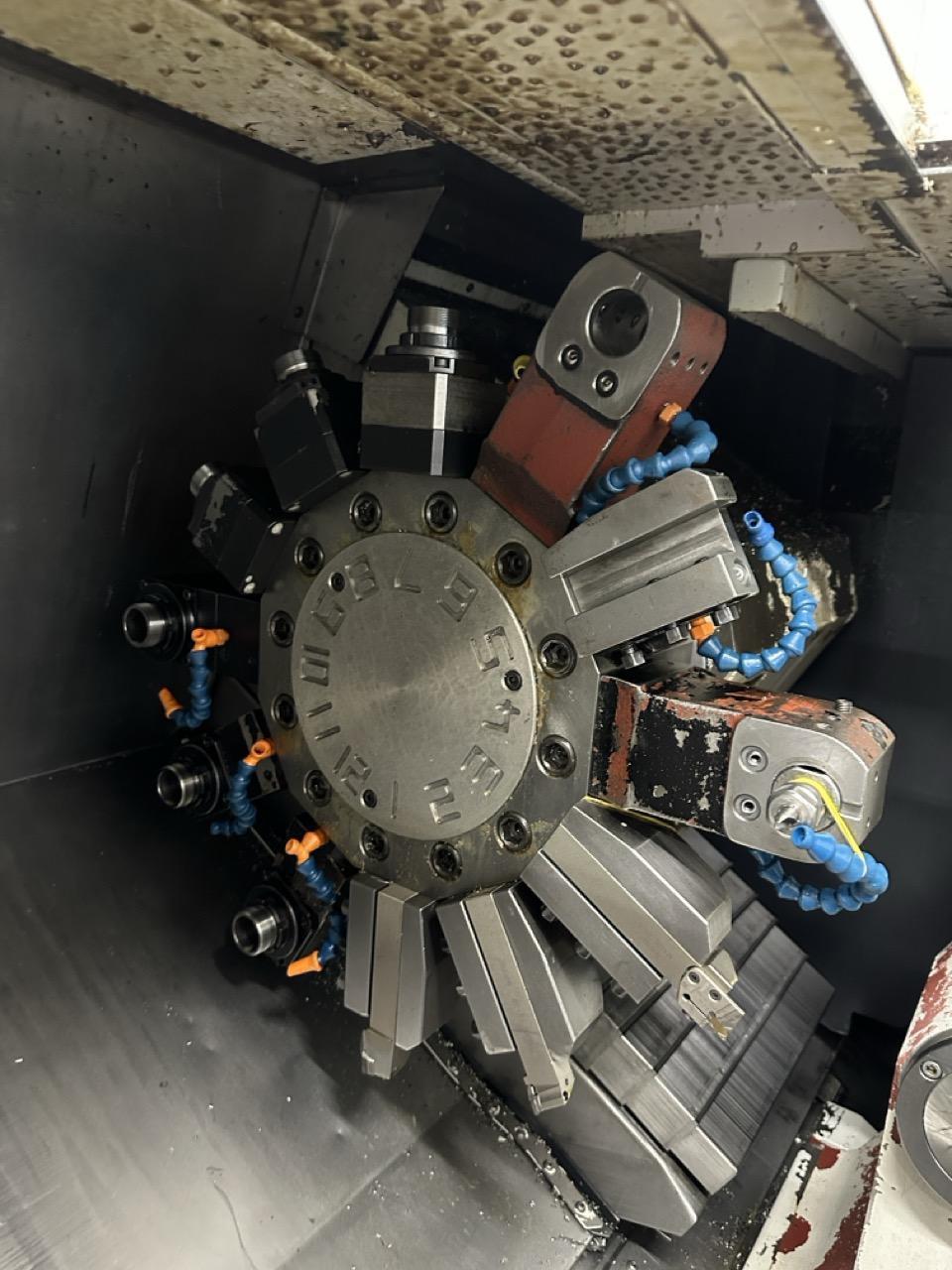

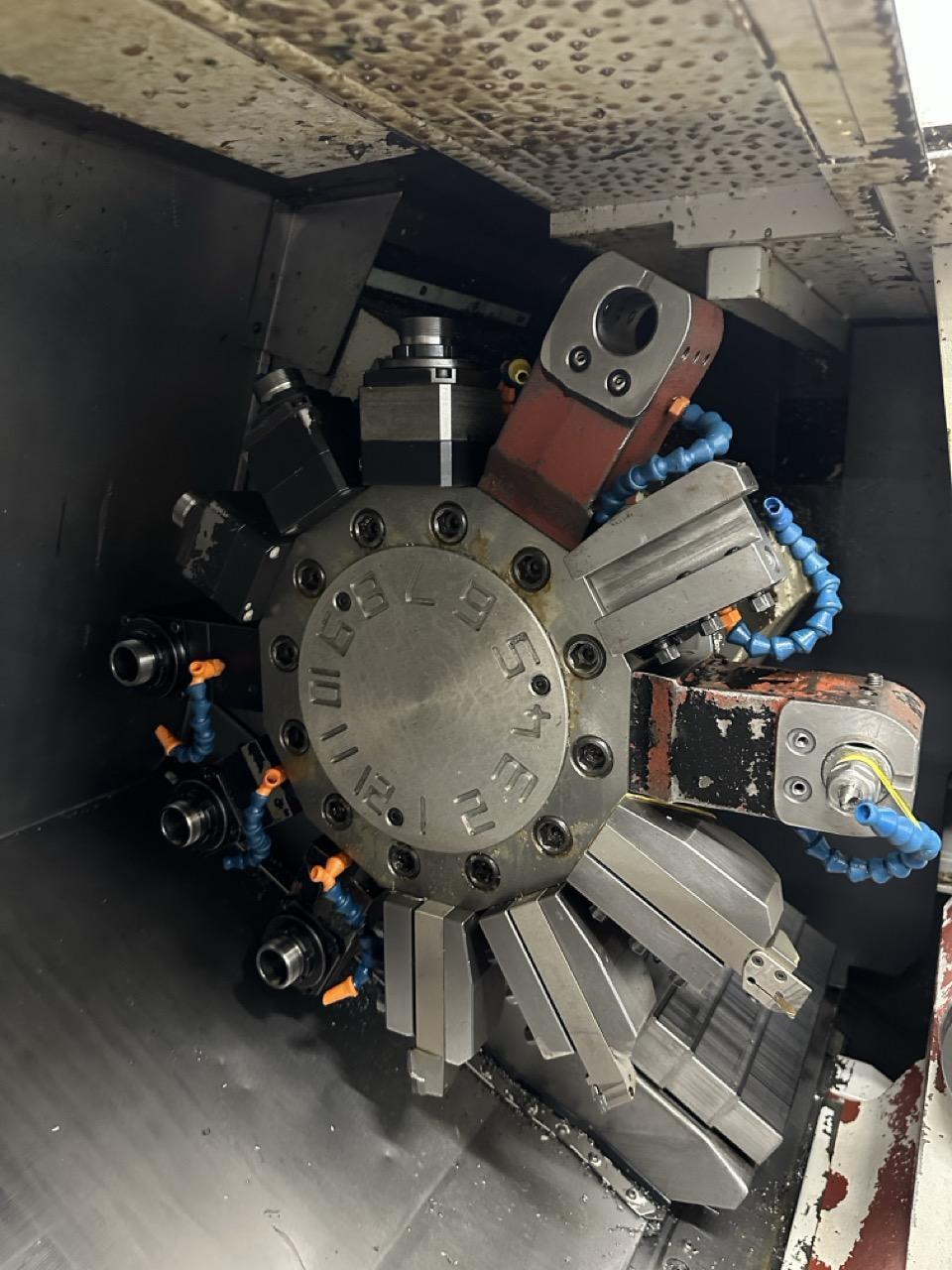

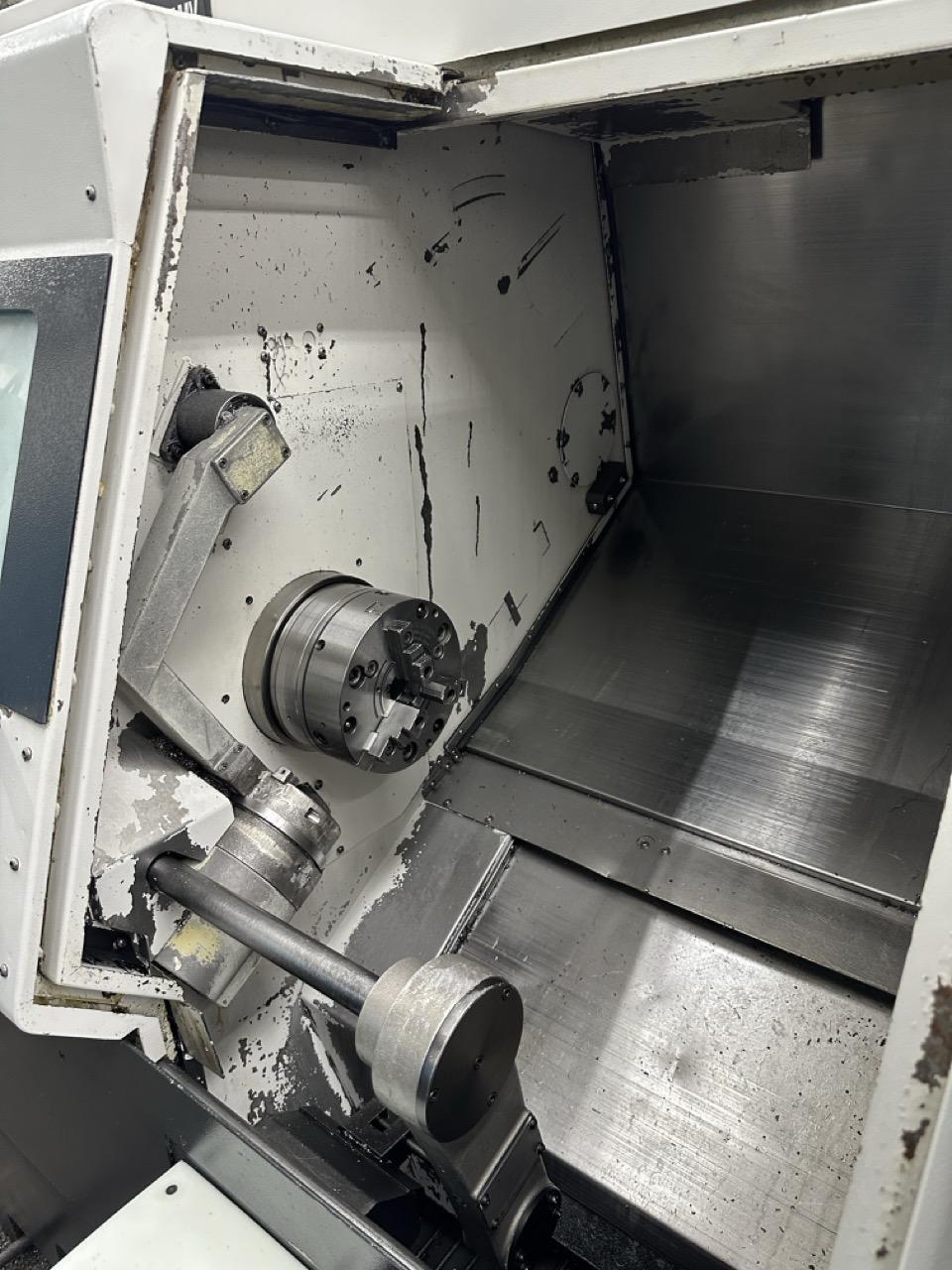

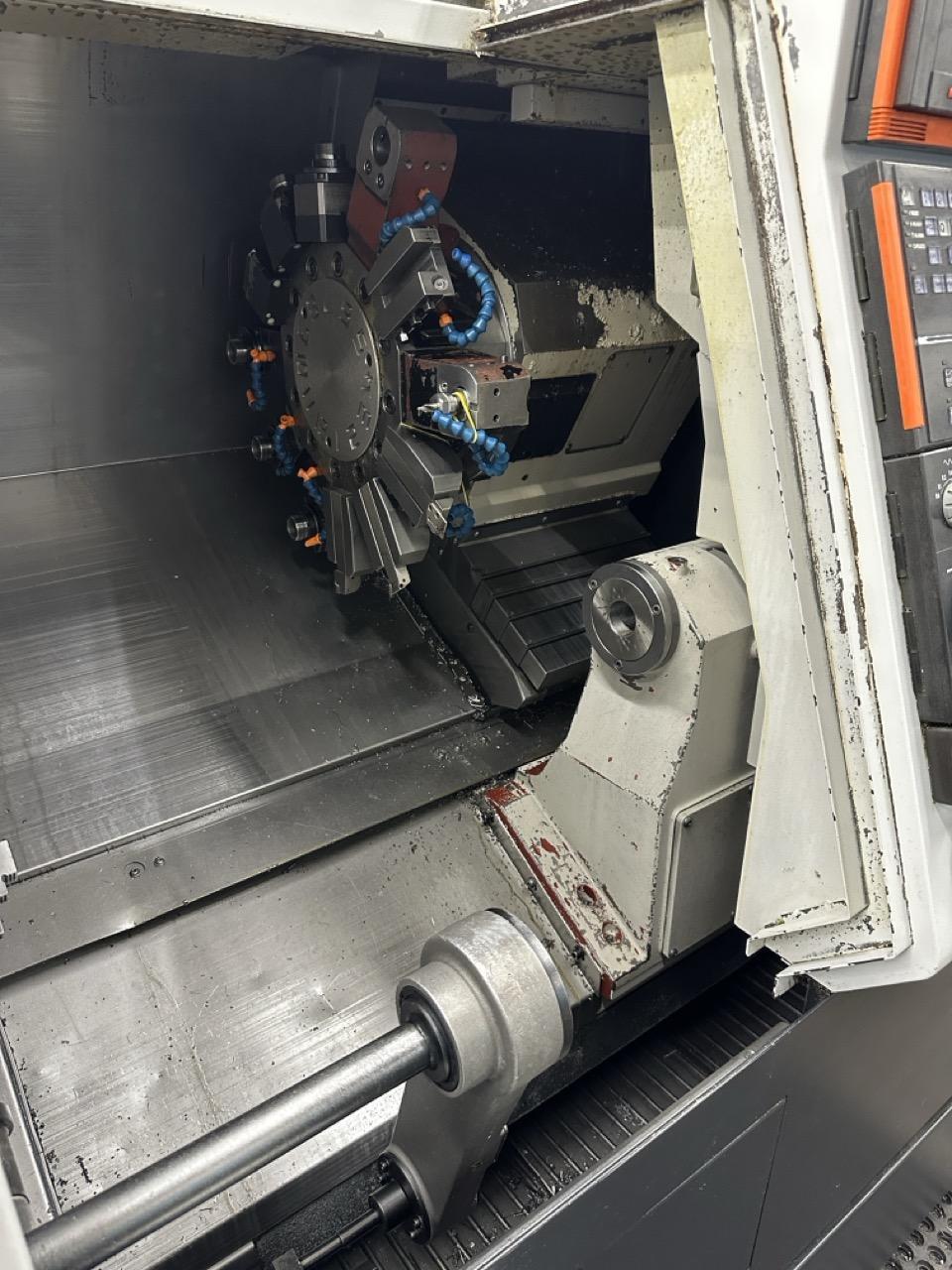

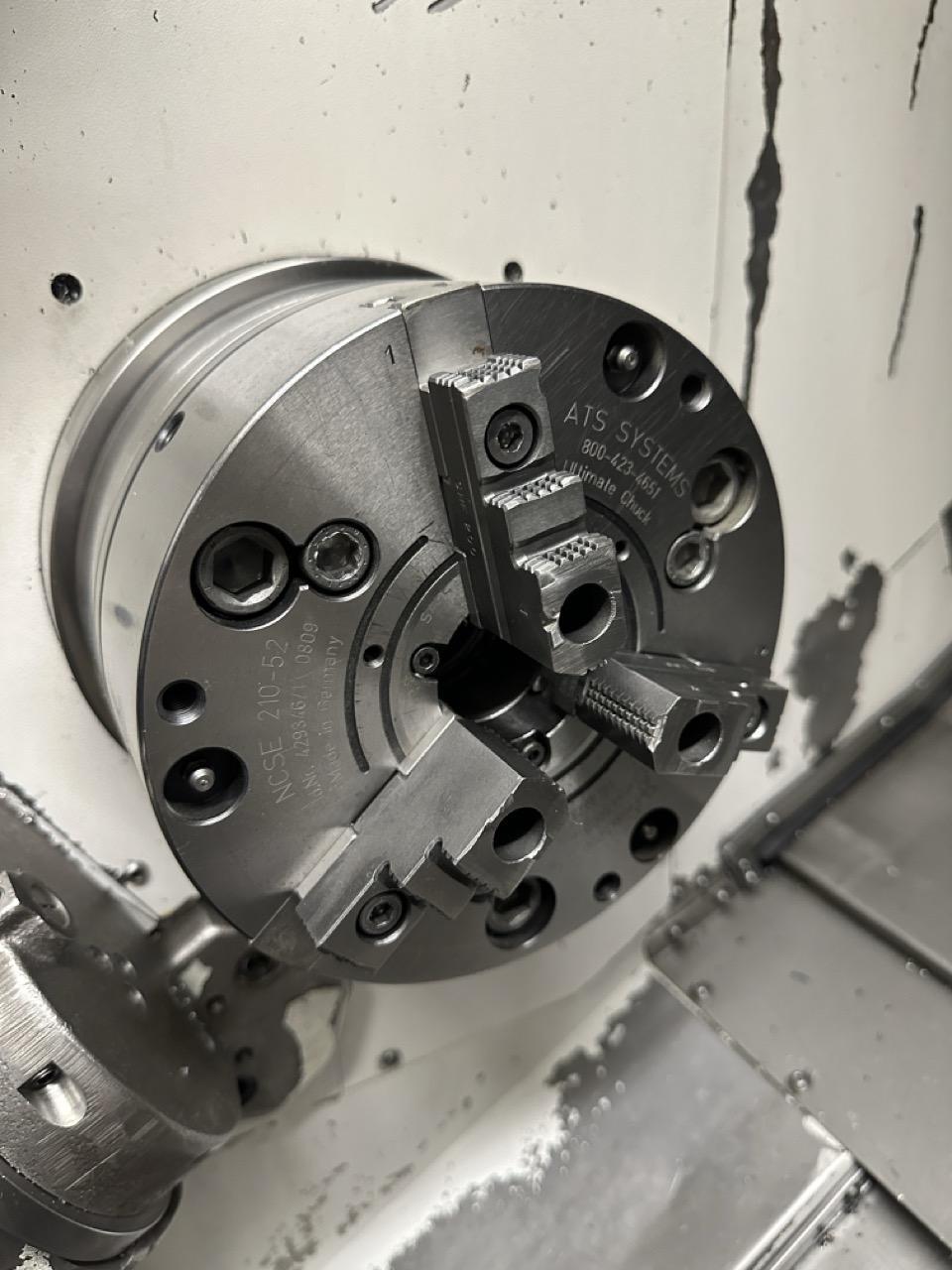

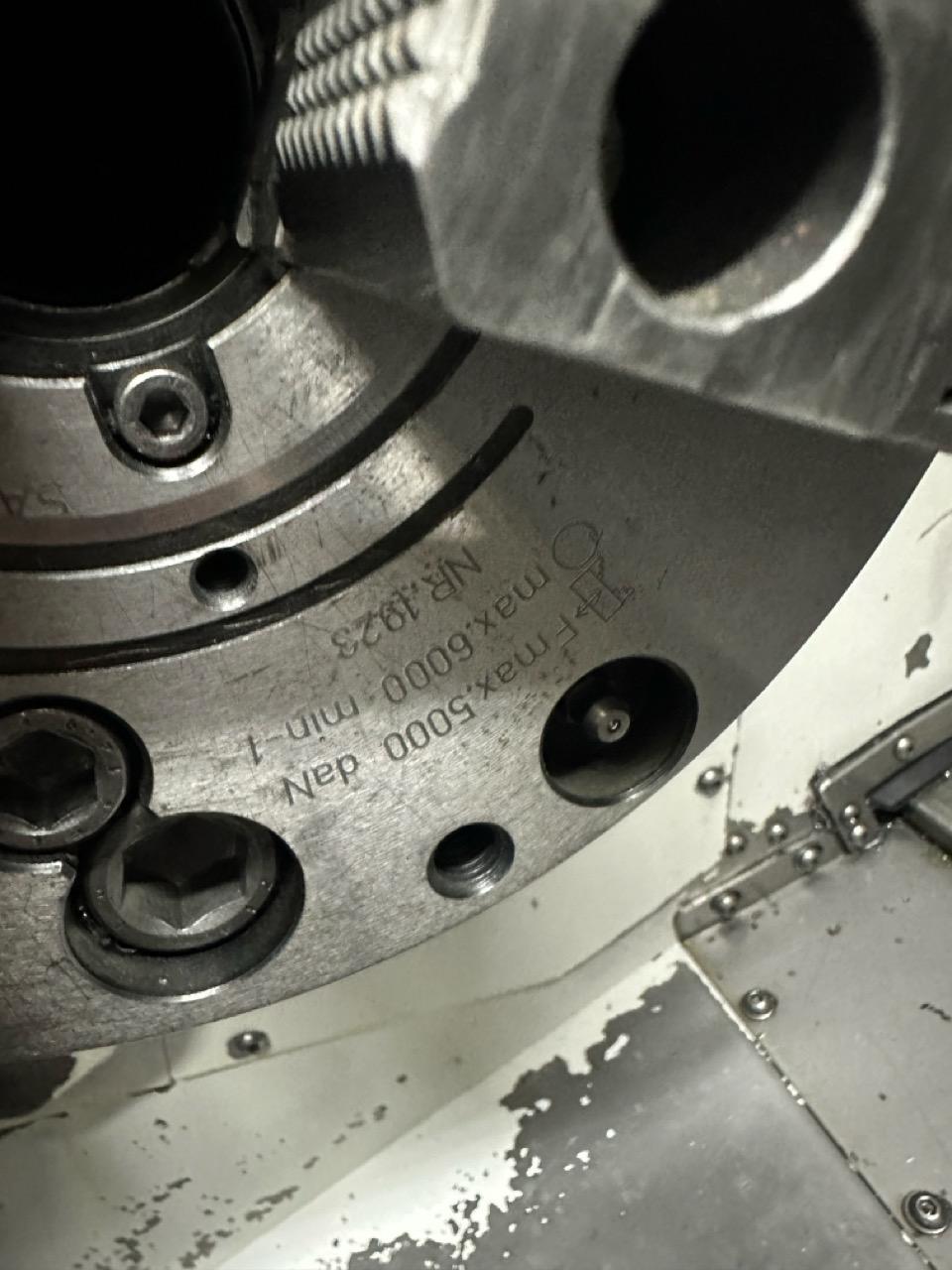

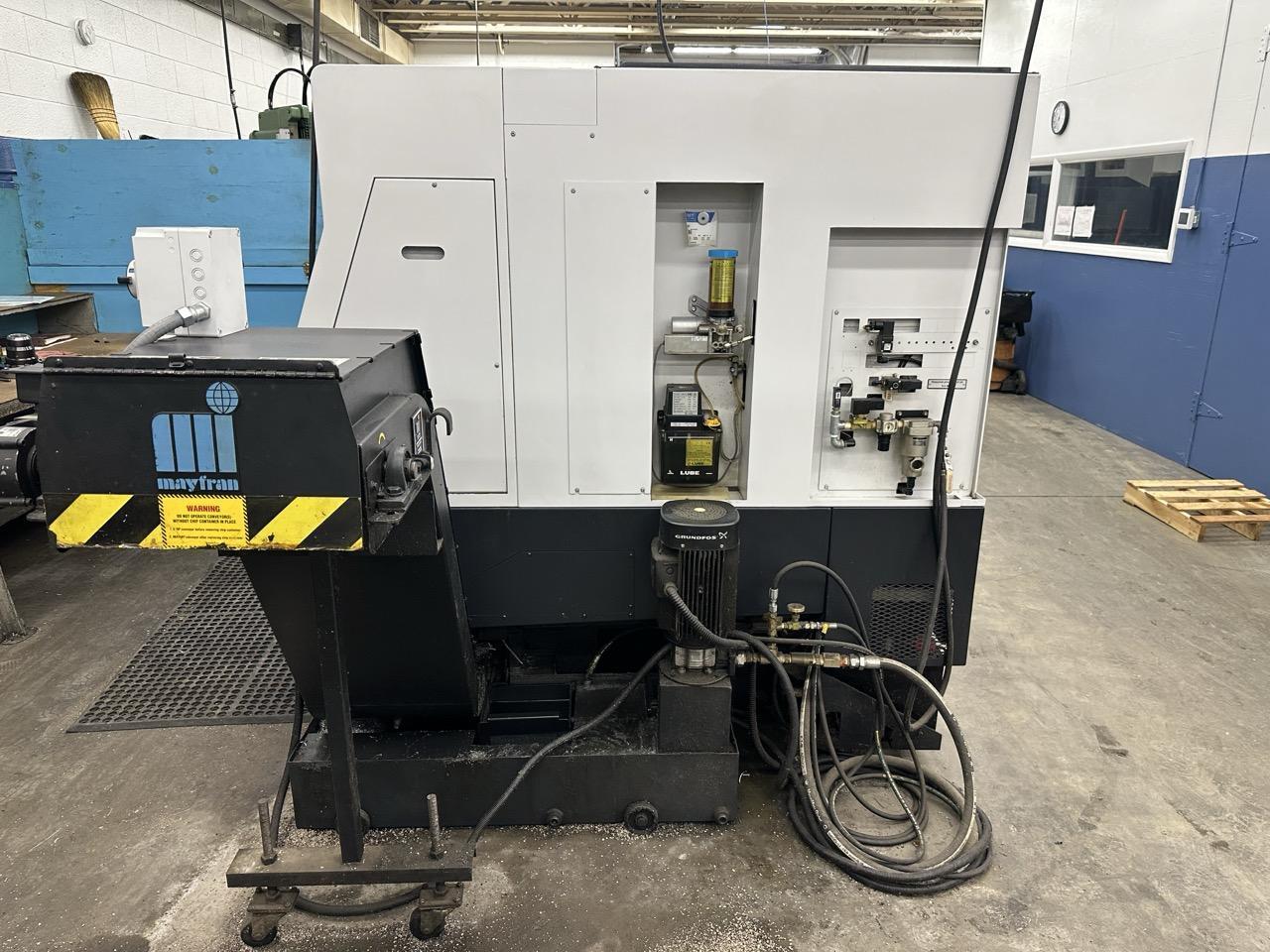

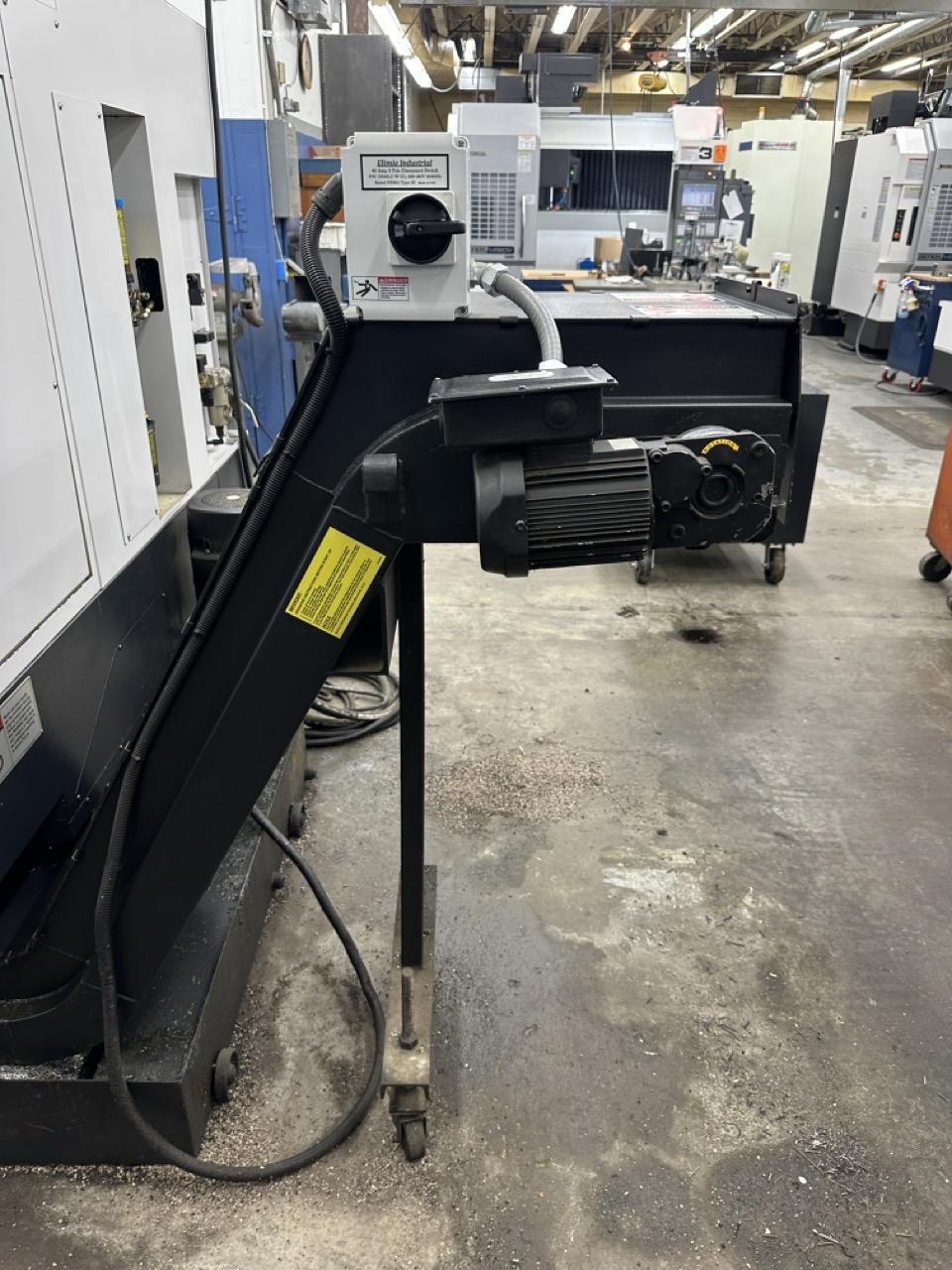

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol Matrix Nexus CNC Control Live Tooling Royal Products CNC Collet Chuck SMW Autoblok NCSE 210-52 Quick-Jaw-Change 3-Jaw Power Chuck Programmable Tailstock Side-Exit Chip Conveyor Tool Eye (Automatic Tool Presetter) Mazak Voice Adviser Manuals and Technical Documentation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
