2000 KURAKI KBT-13E.A | Boring Mills, Horizontal, Table Type

2000 KURAKI KBT-13E.A | Boring Mills, Horizontal, Table Type

Name: 2000 KURAKI KBT-13E.A | Boring Mills, Horizontal, Table Type
Brand: KURAKI
SKU: 34158
Availability: InStock

Brand

KURAKI

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Boring Mills, Horizontal, Table Type

Manufacturer:

KURAKI

Model:

KBT-13E.A

Year:

2000

Stock #:

34158

Description

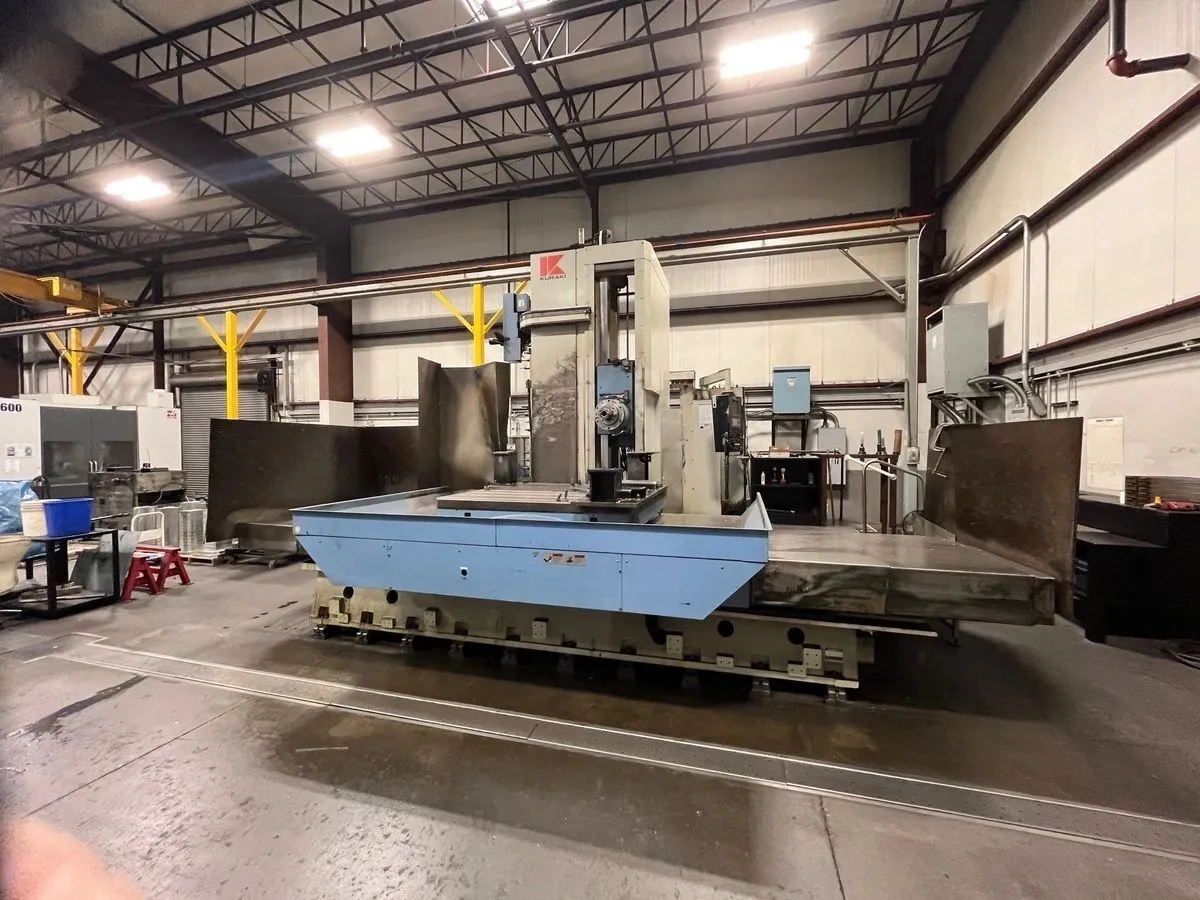

2000 Kuraki KBT-13EA CNC horizontal boring mill with Fanuc 16i-M control and 5.1" #50-taper spindle. Features 118" x 90" x 51" travels, 26" W-axis, 86" x 70" table rated to 26,400 lb, and 4,000 RPM spindle with 60 HP. Equipped with 40-position tool changer and chip conveyor.

ImperialMetric

Spindle Size	5.11"	129.79 mm
X-Horiz Tvl of Table	118.11"	3,000 mm
Y-Vert Tvl of Head	90.5"	2,298.7 mm
Power	60 hp	44.7 kW
RPM	4,000 RPM	4,000 RPM
Table-W	70.87"	1,800.1 mm
Table-L	86.61"	2,199.9 mm
Spindle Tvl.	25.59"	649.99 mm
Control	CNC (Fanuc 16i-M)	CNC (Fanuc 16i-M)
Weight	81,400 lbs	81,400 lbs

2000 Kuraki KBT-13EA
CNC Horizontal Boring Mill

================================================

CAPACITY

- X-Axis: 118.11 in
- Y-Axis: 90.5 in
- Z-Axis: 51.2 in
- W-Axis: 25.6 in
- Table Size: 86.61 in L x 70.87 in W
- Table Capacity: 26,400 lb
- Table Indexing: 0.001°

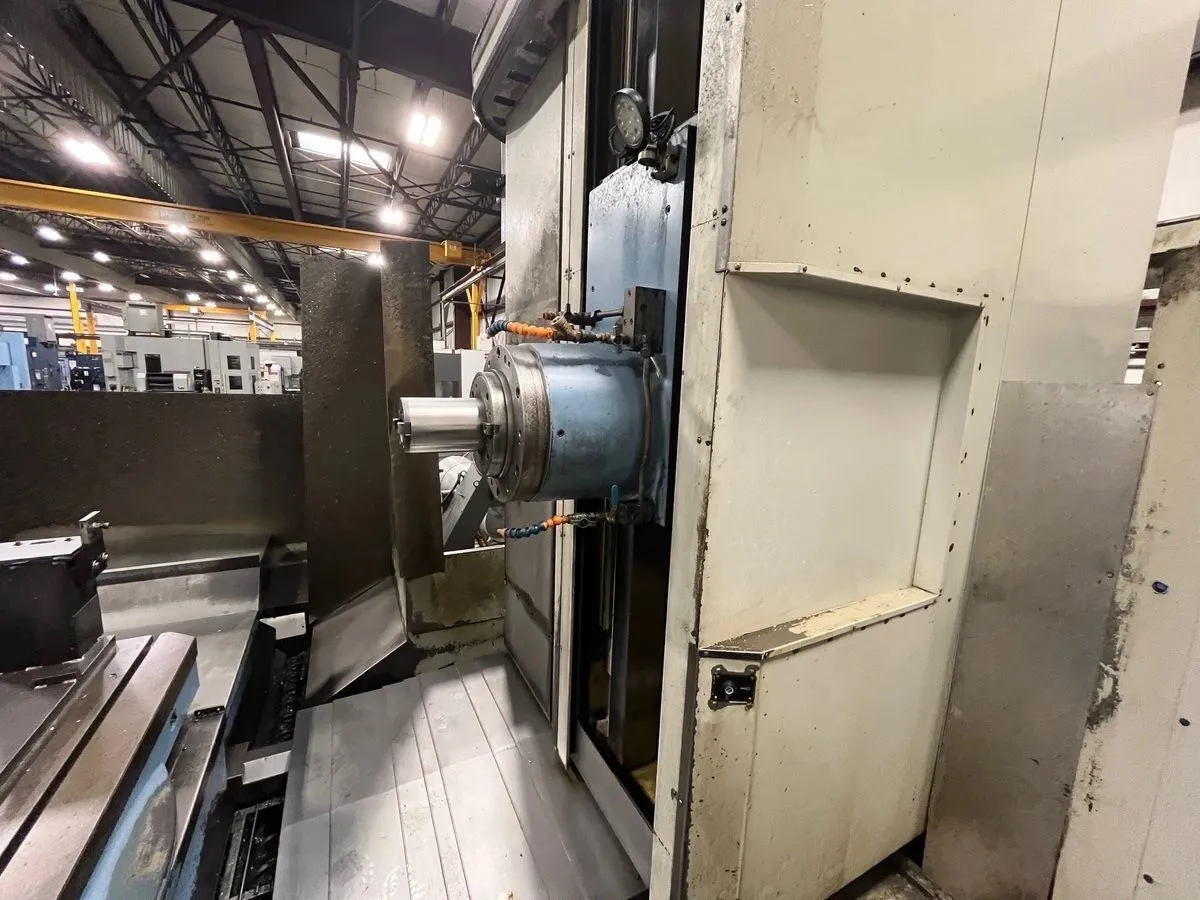

- Spindle Diameter: 5.1 in
- Spindle Taper: #50 CT
- Max Spindle Speed: 4,000 RPM
- Main Motor: 60 HP

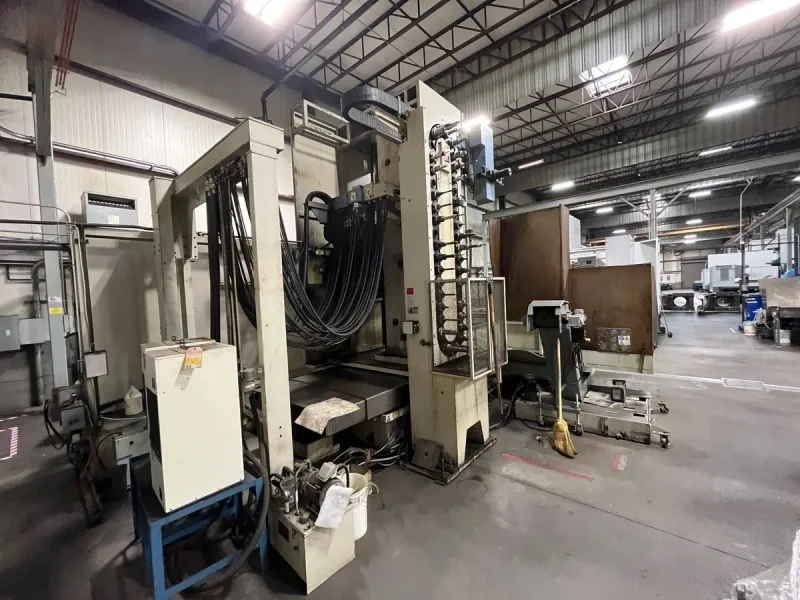

TOOL CHANGER
- Capacity: 40 Tools
- Max Tool Diameter: 4.92 in (9.45 in with adjacent empty)
- Max Tool Length: 23.62 in
- Max Tool Weight: 66 lb

================================================

EQUIPPED WITH

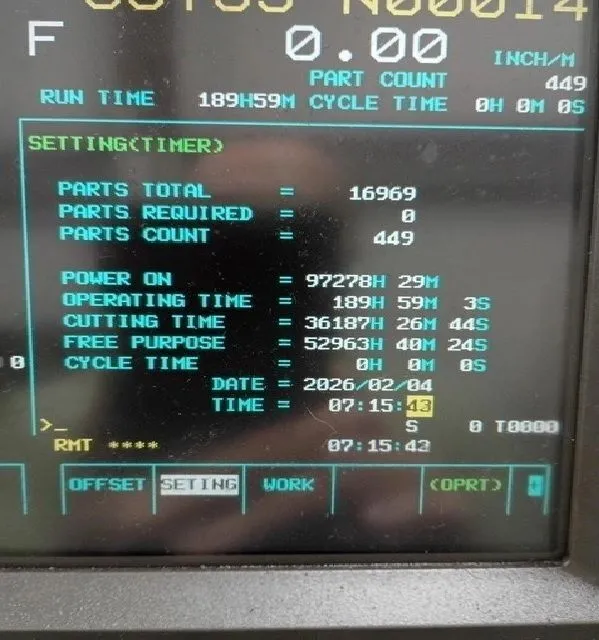

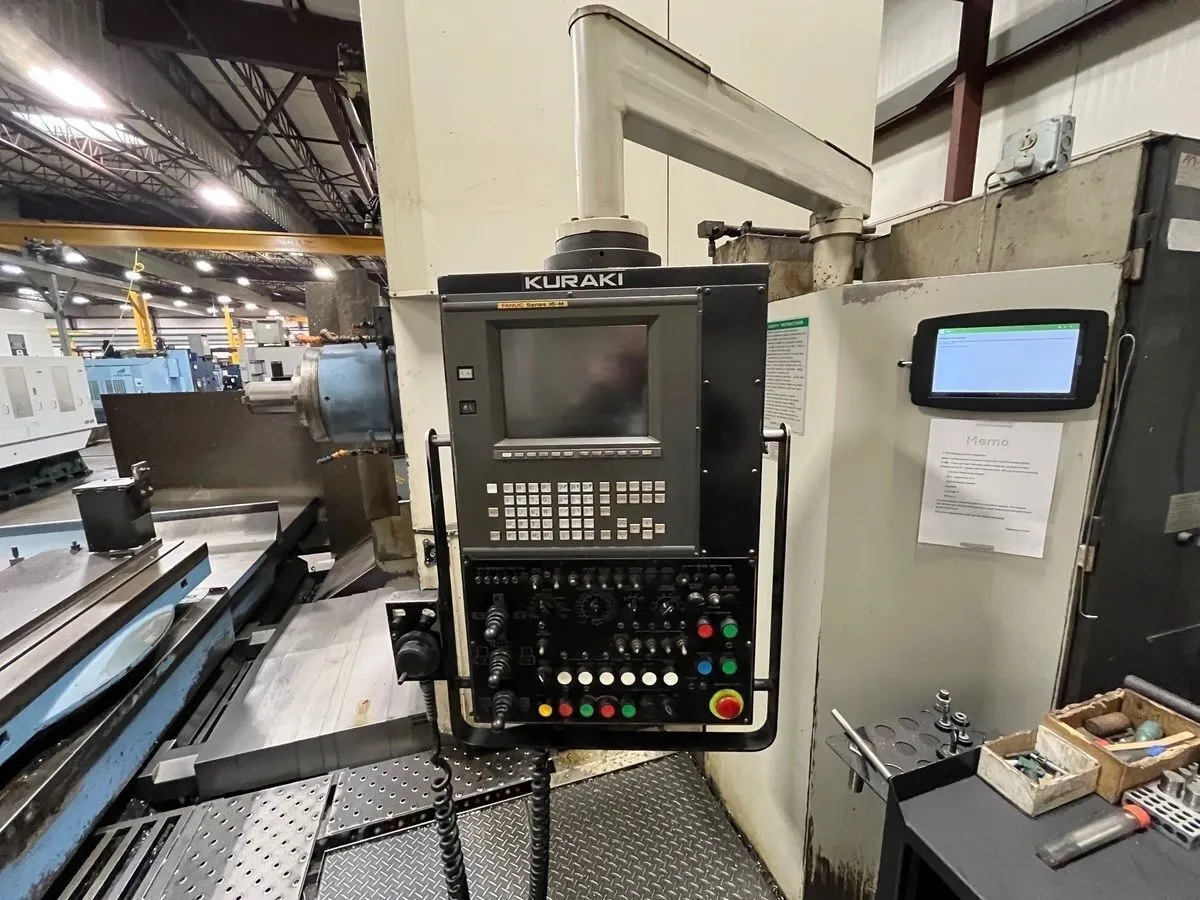

- Fanuc 16i-M CNC Control
- Chip Conveyor
