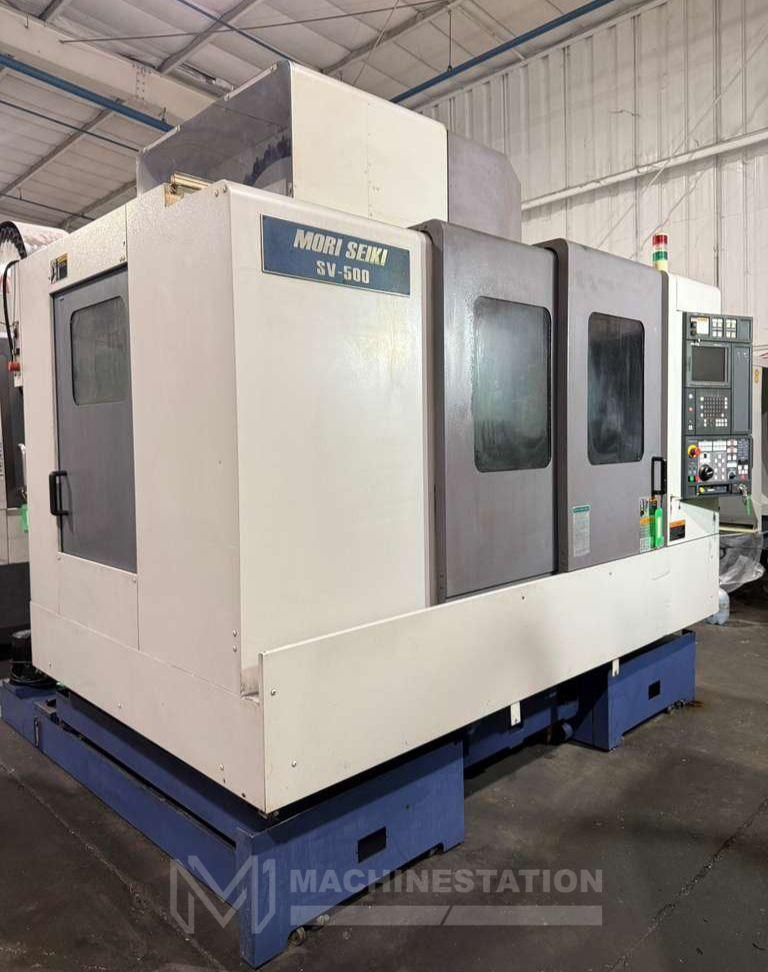

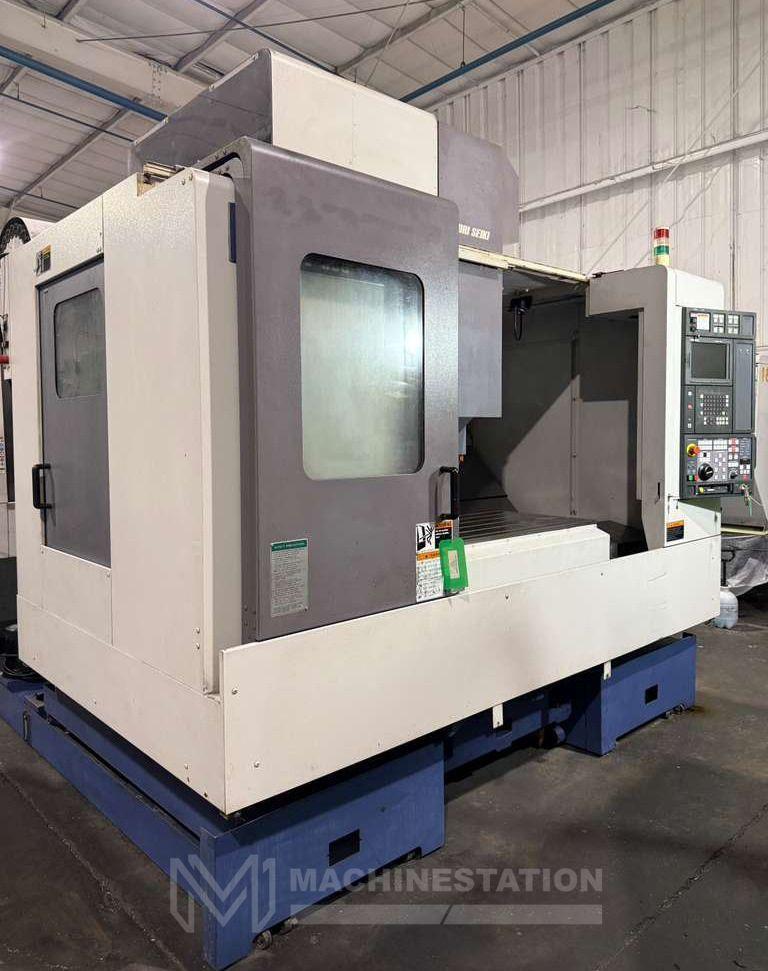

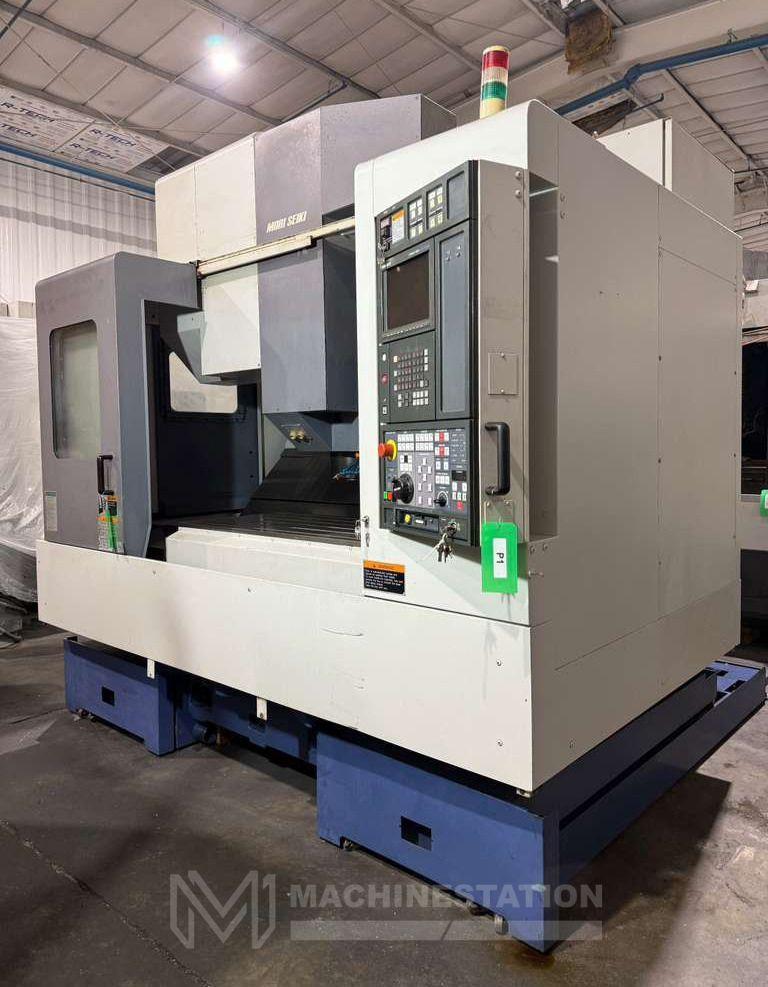

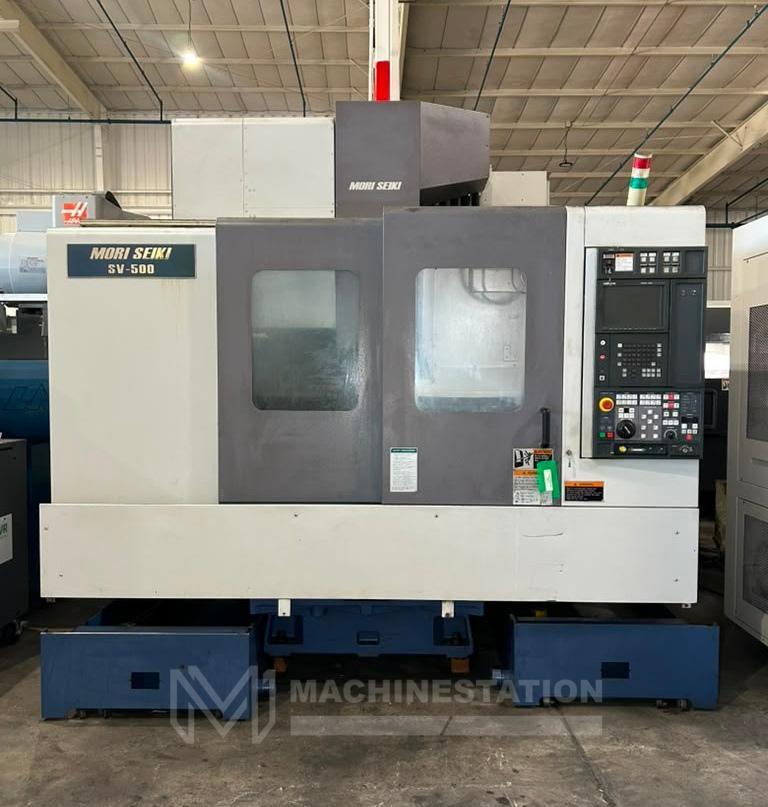

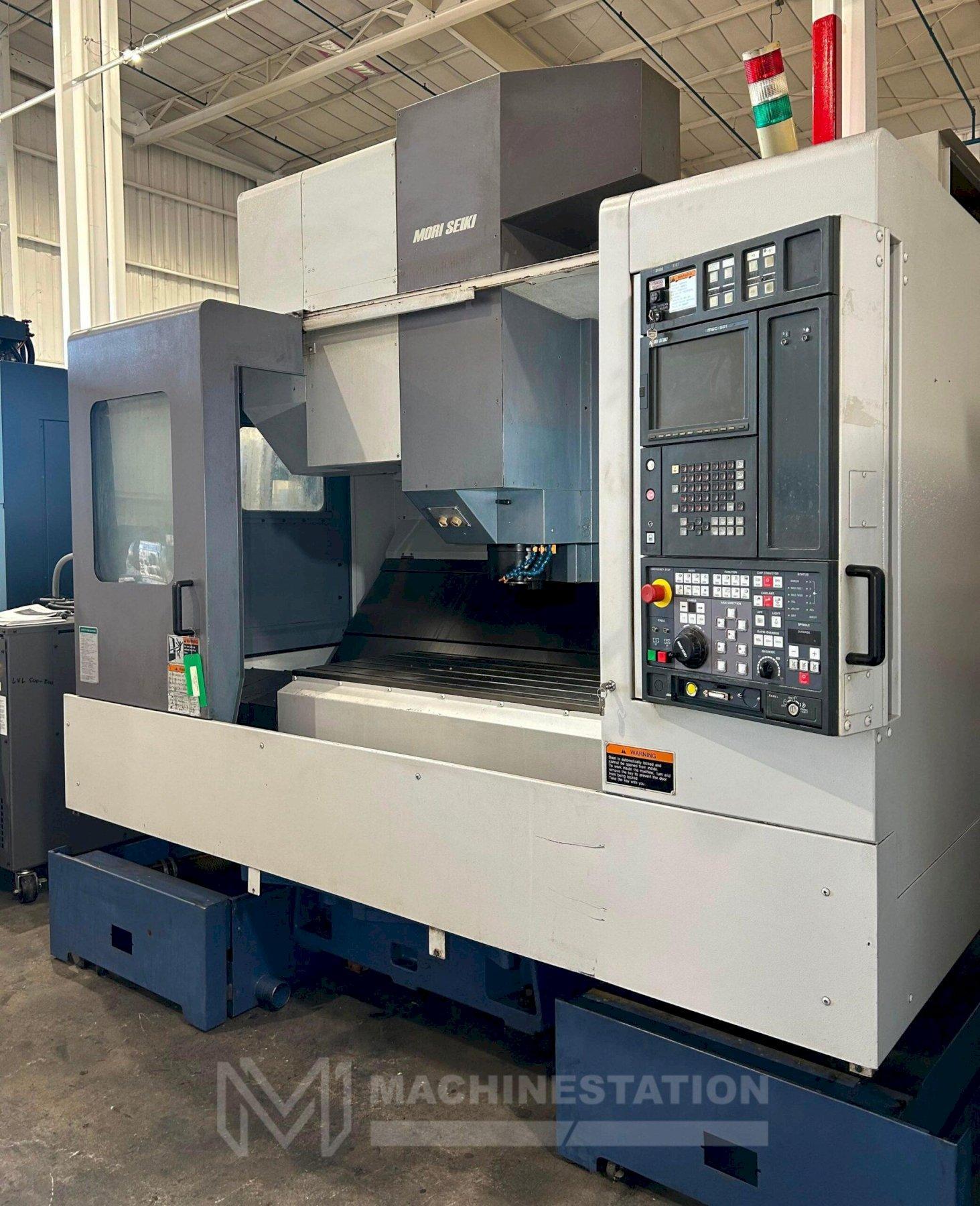

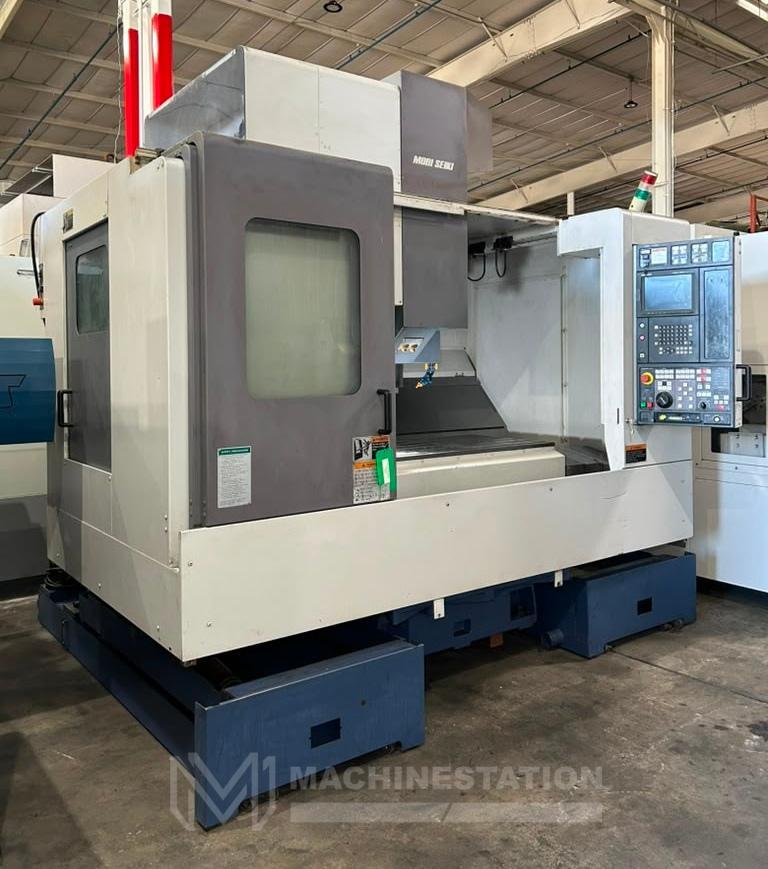

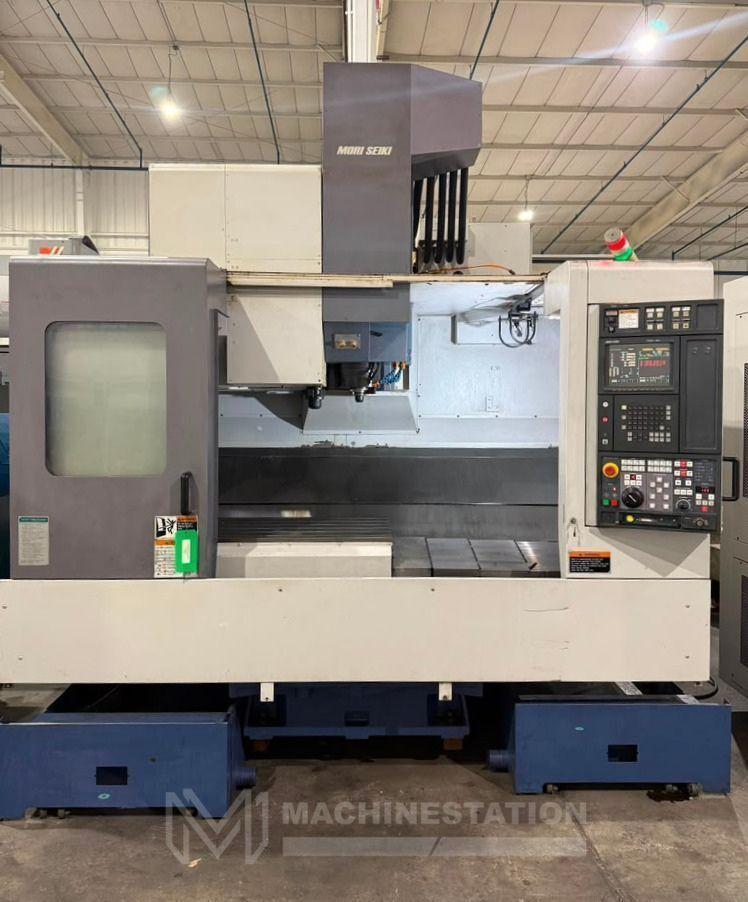

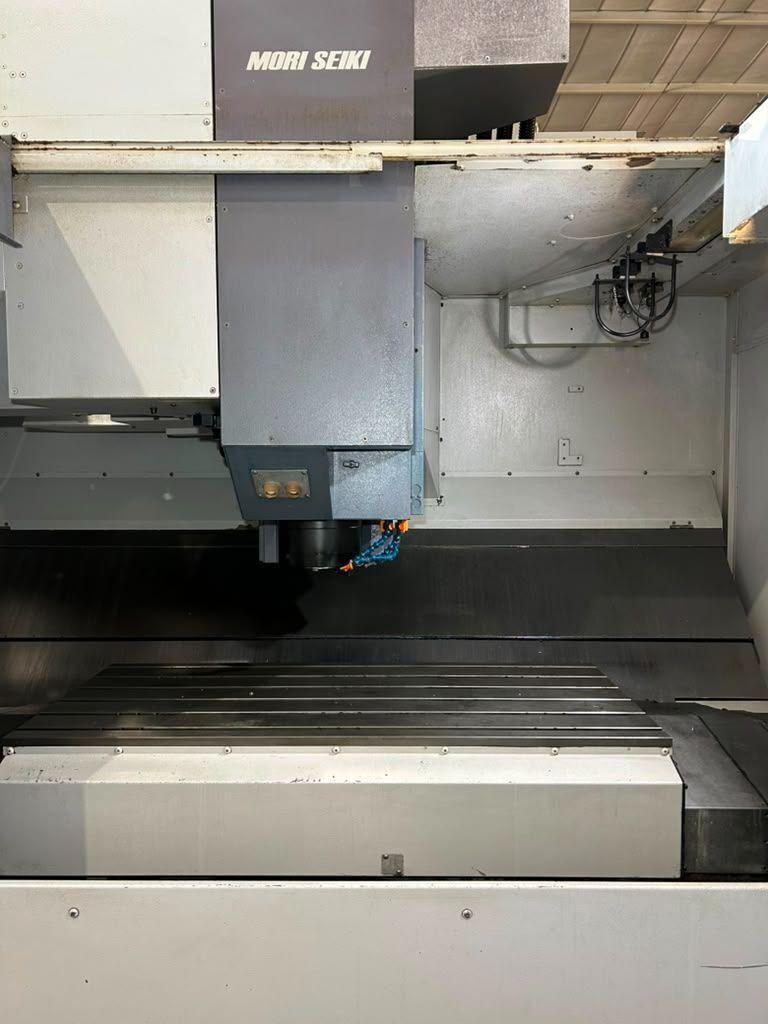

Mori Seiki SV-500B/40 CNC Vertical Machining Center – 4th & 5th Axis Ready Mill

Mori Seiki SV-500B/40 CNC Vertical Machining Center – 4th & 5th Axis Ready Mill

Name: Mori Seiki SV-500B/40 CNC Vertical Machining Center – 4th & 5th Axis Ready Mill
Brand: MORI SEIKI
SKU: 113575
Availability: InStock

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Mori Seiki
Model:	SV-500B/40
Year:	1999
Condition:	Used – Good

Equipped With:

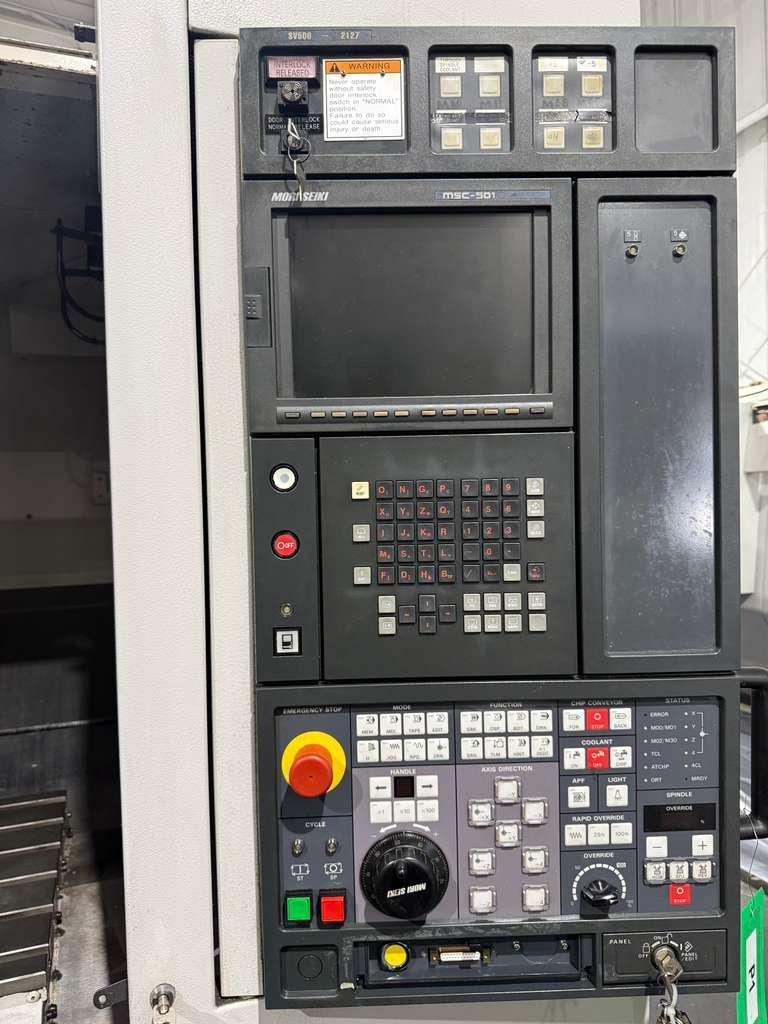

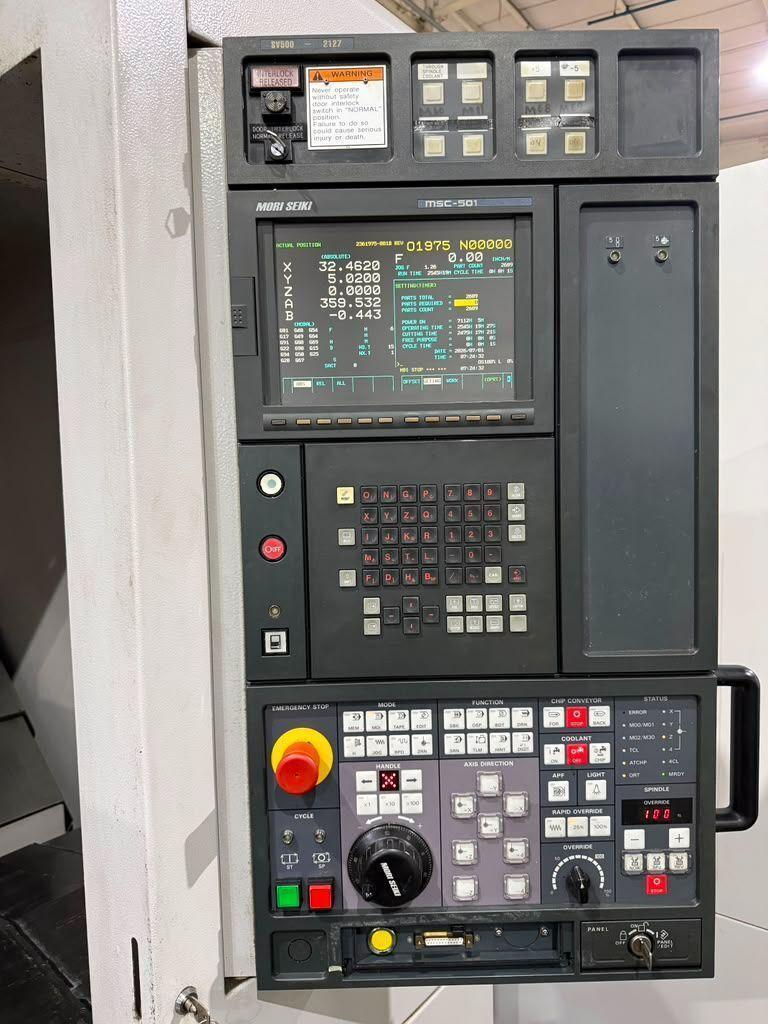

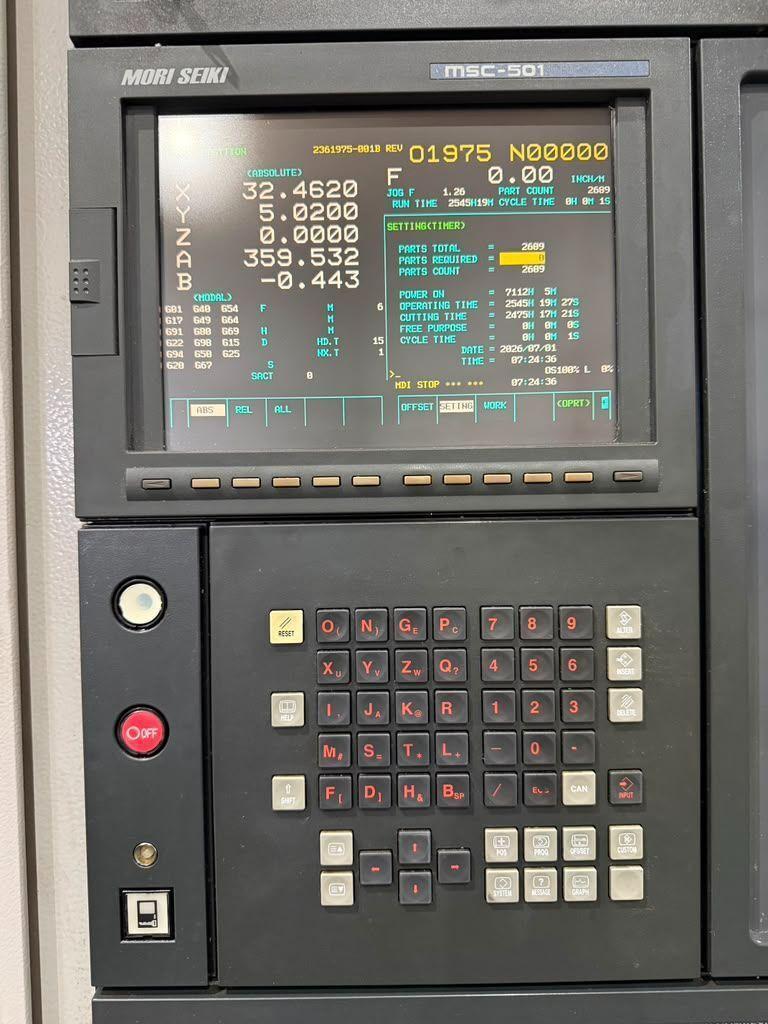

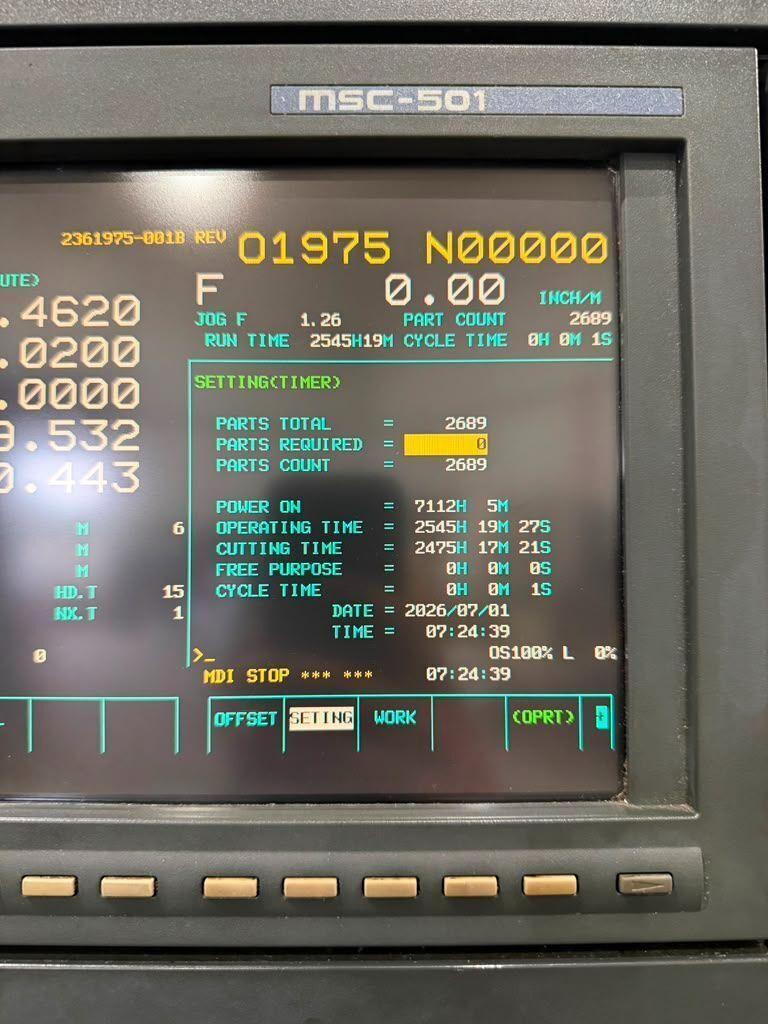

MSC 501 ( Fanuc ) CNC Control

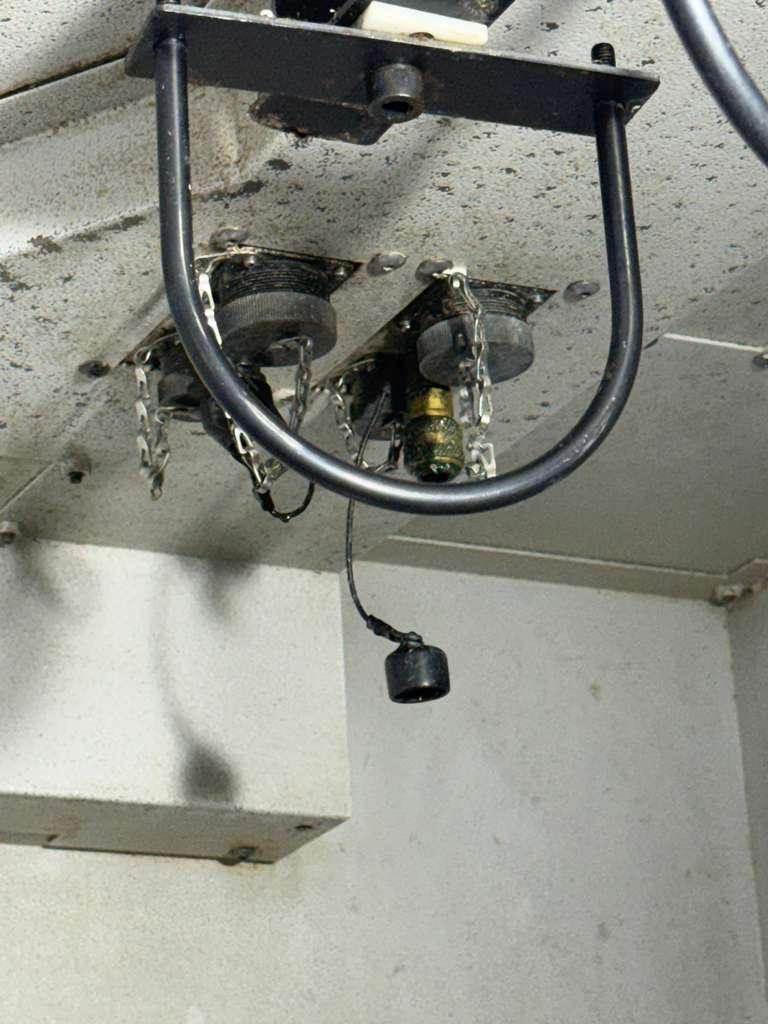

4th & 5th Axis Ready

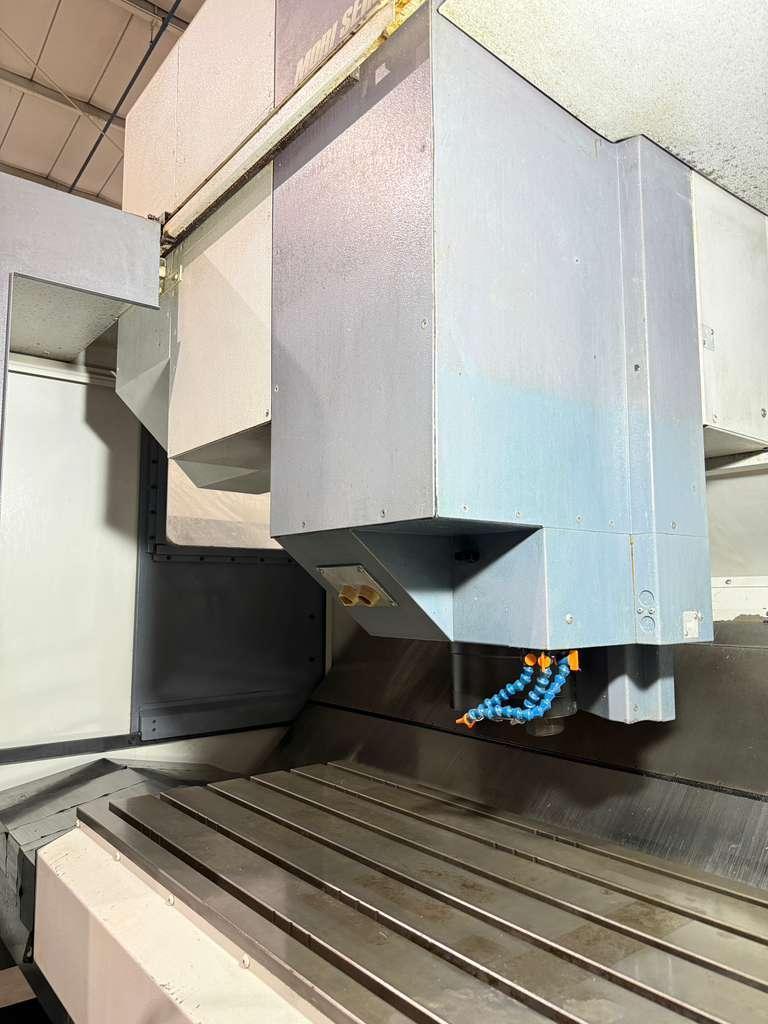

CAT-40 Taper 12,000 RPM Spindle
30 Station Automatic Tool Changer
Powerful 30 HP high torque Spindle Motor
Spindle Orientation
Rigid Tapping
Spindle Chiller Unit
Automatic Lubrication System

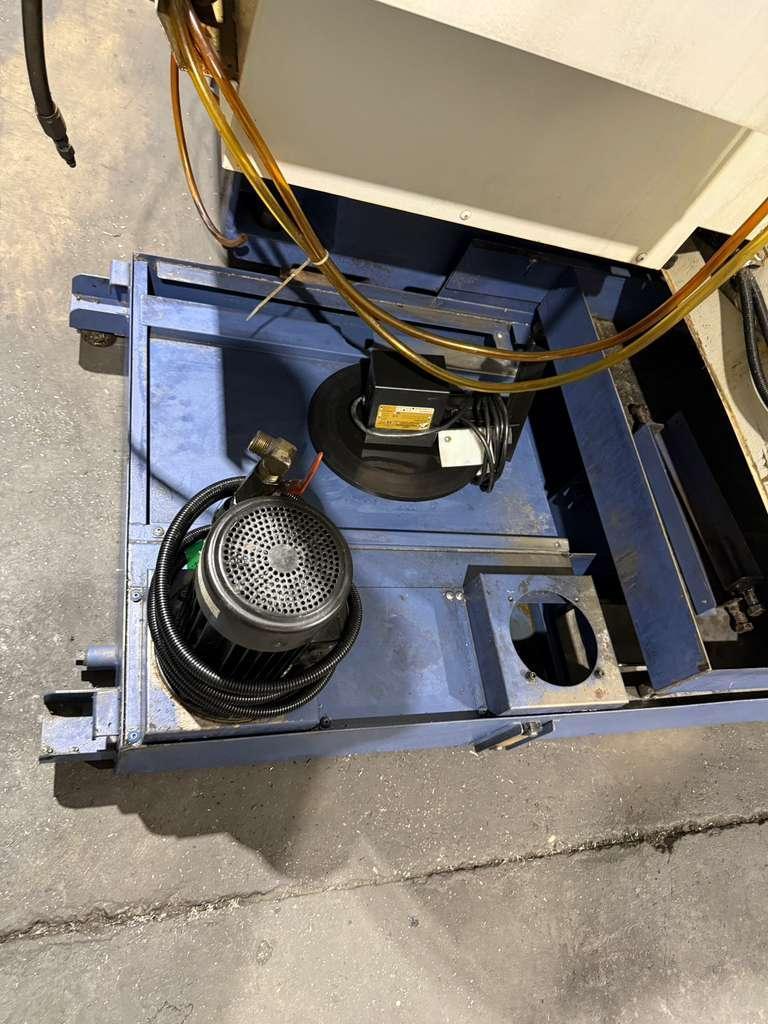

Coolant System

Travels:
X-Axis: 40.15″
Y-Axis: 20.07″
Z-Axis: 20.07″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

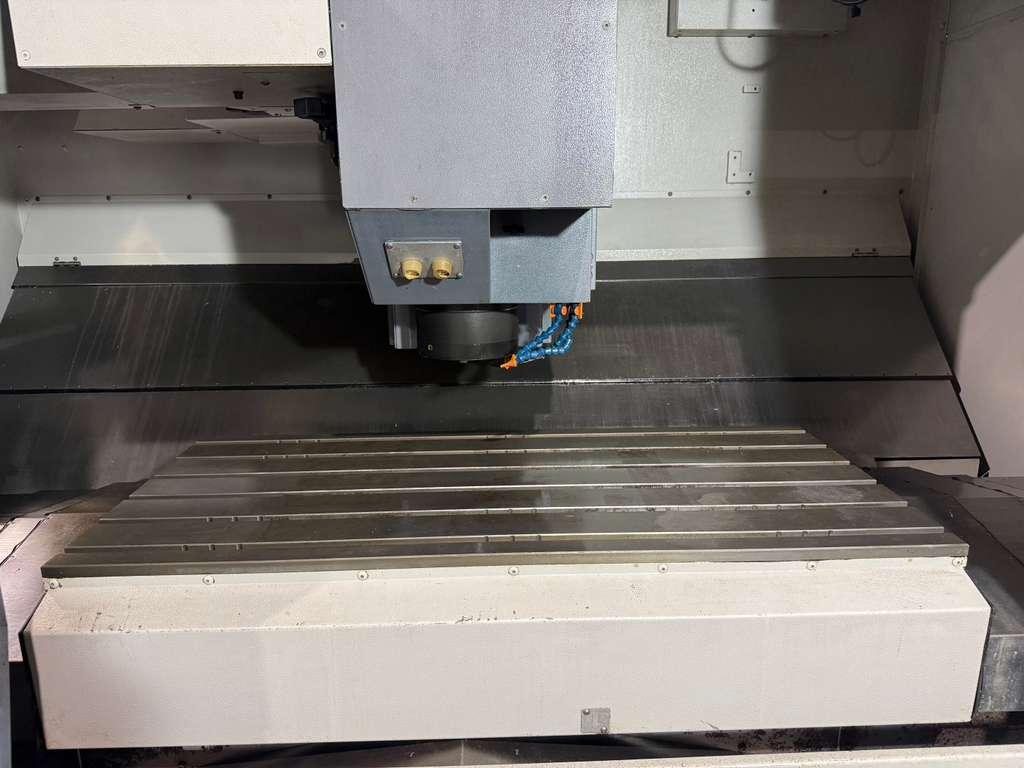

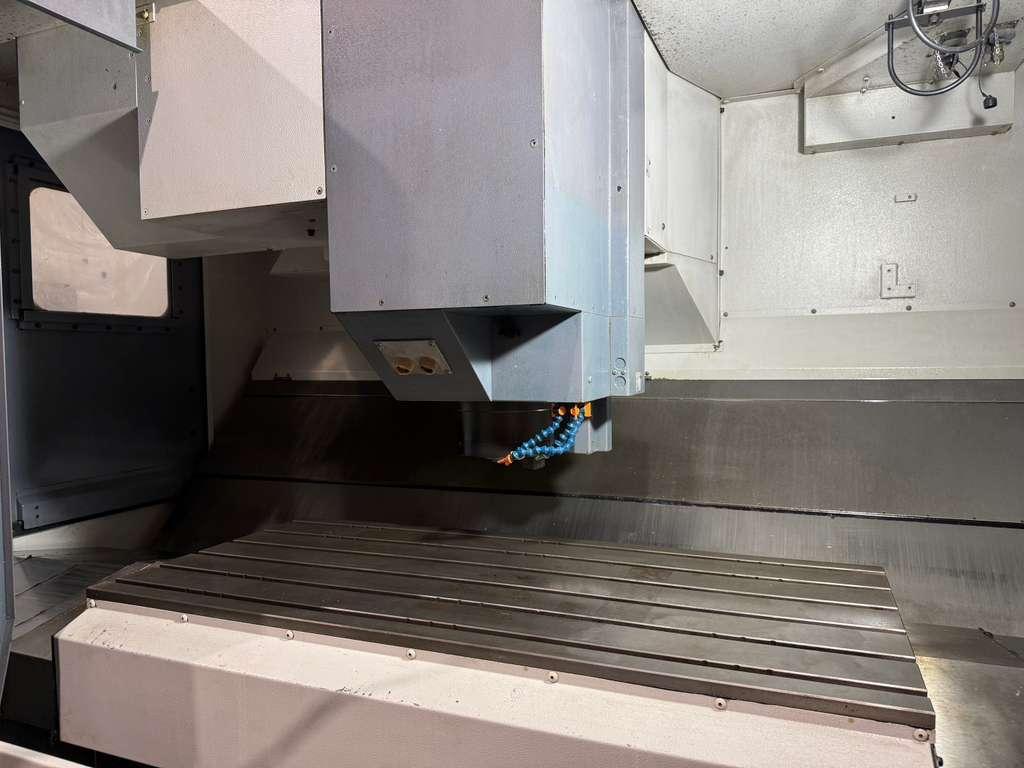

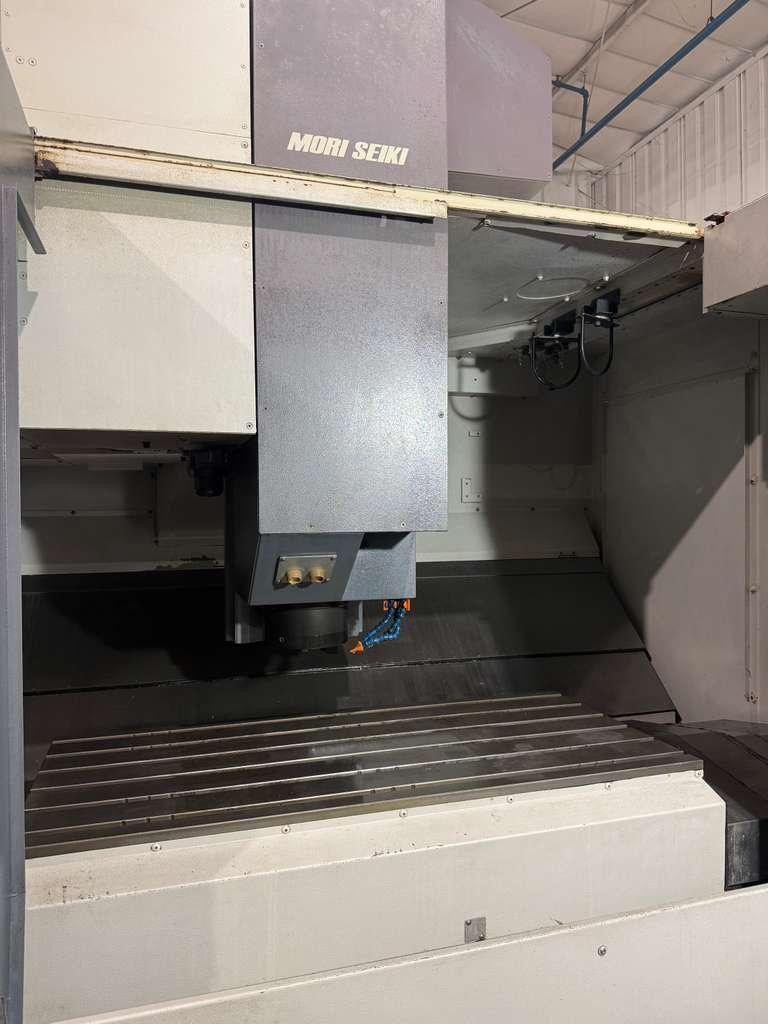

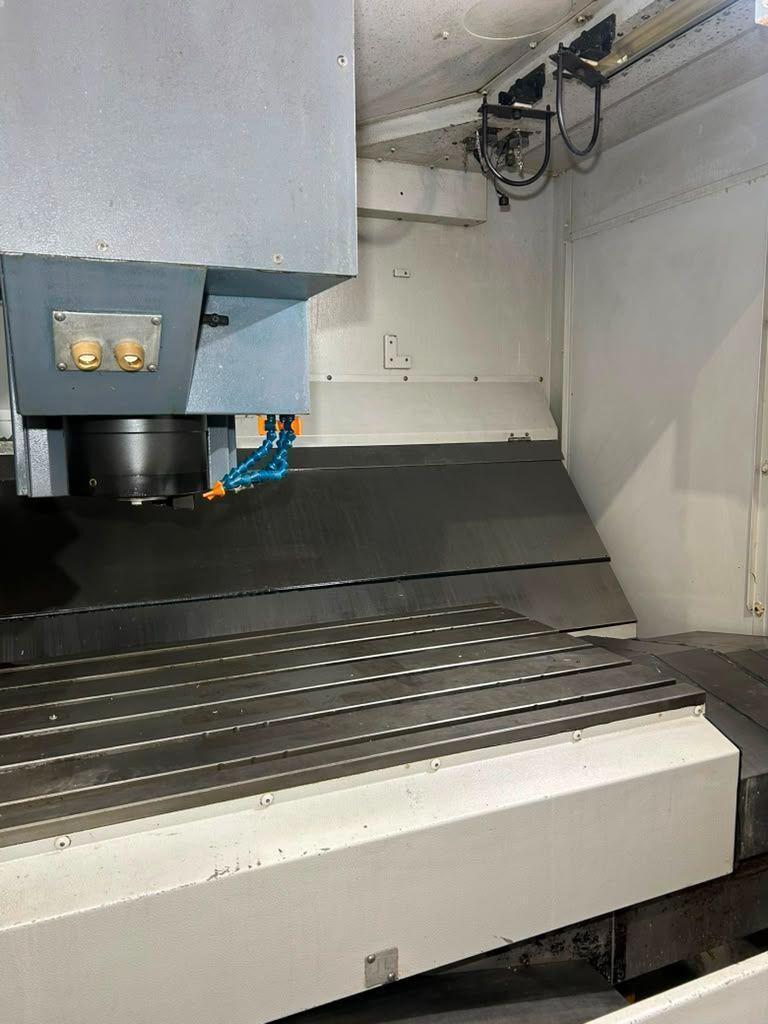

Table:
Length: 51.96″
Width: 23.62″
Max Weight on Table: 2645 lbs

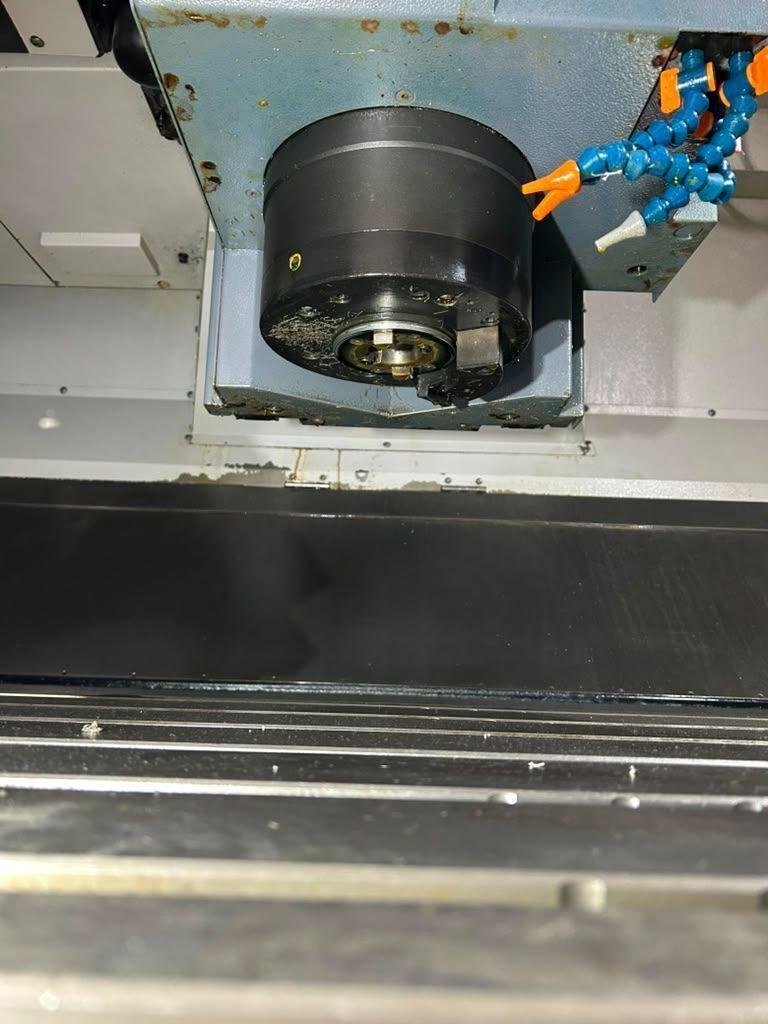

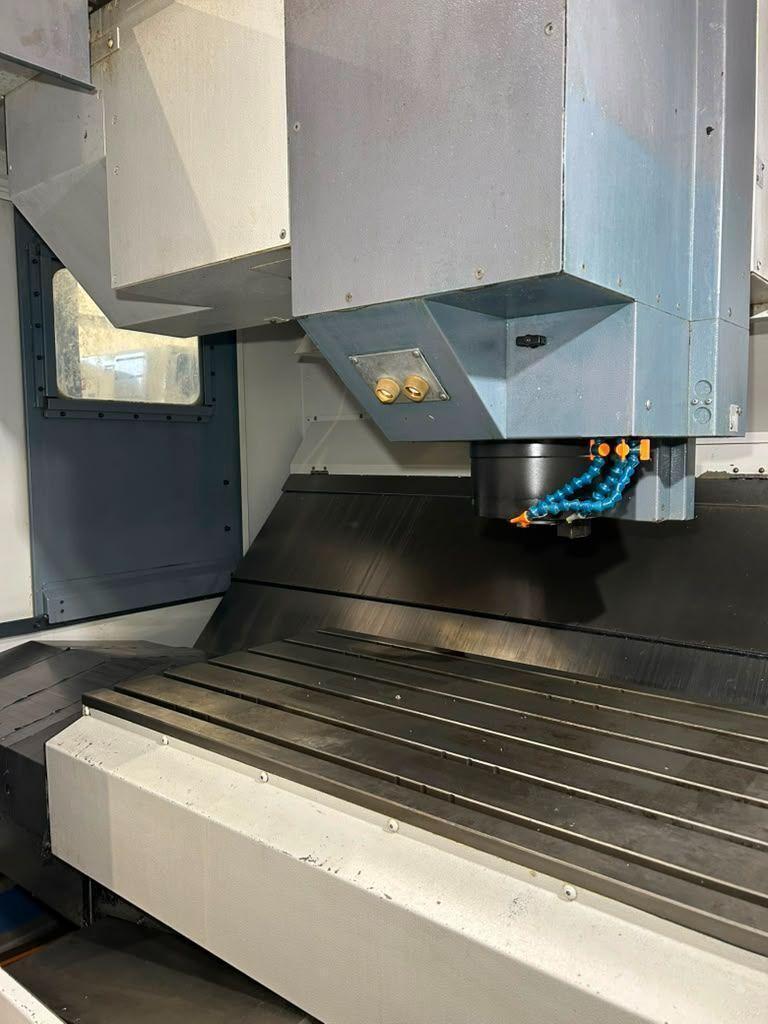

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Feed Rate:
Rapid X Y & Z: 1260 inch/PM
Cutting Feed rate: 630 inch/PM

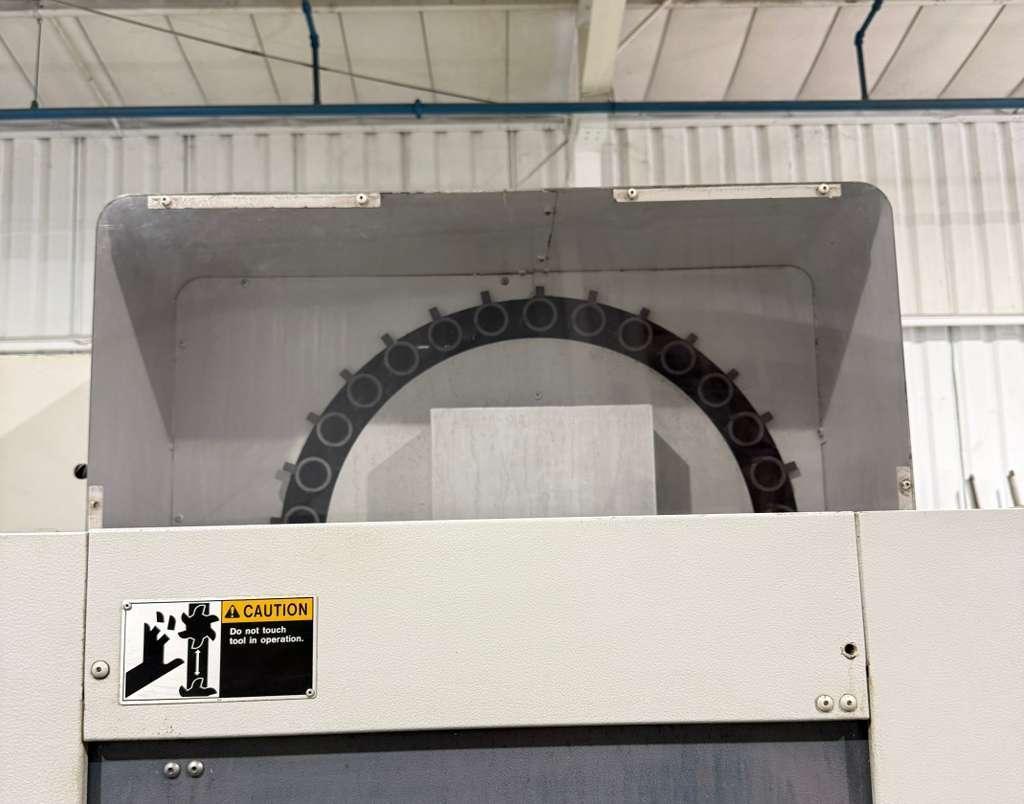

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.63 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″

General:
Air Required: 80 psi 4 scfm

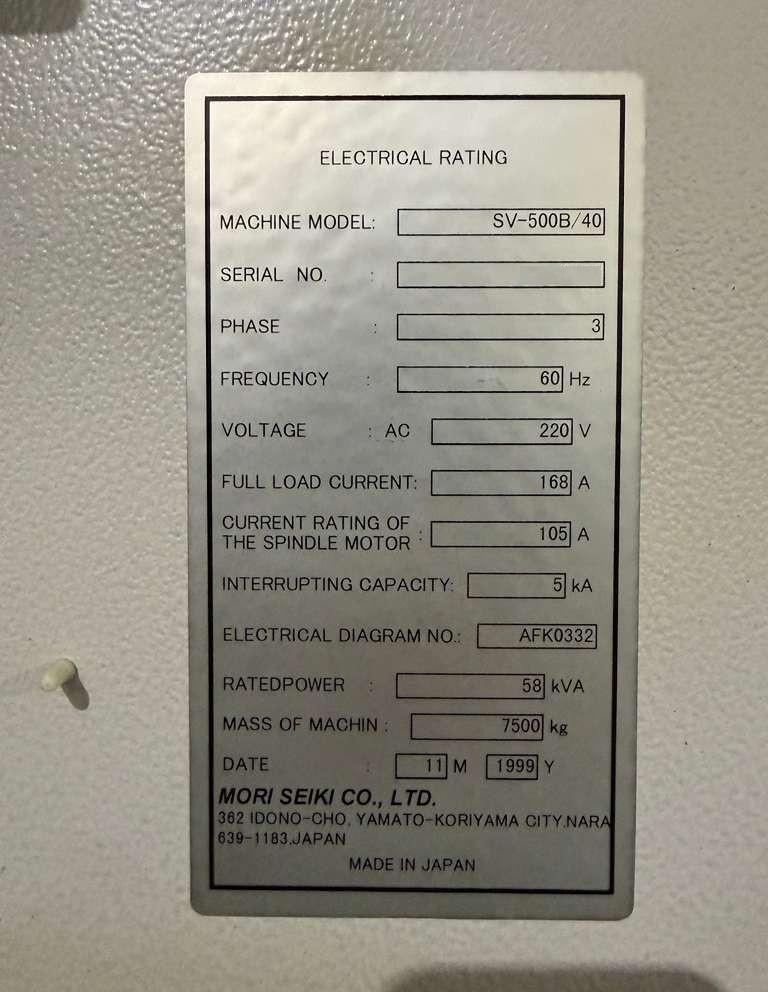

Power: 220v / 60 Hz / 3-Phase / 58 kva
Overall Dimensions: 113″ L X 104″ W X 112″ High Approx.
Weight: 16,500 lbs Approx.
