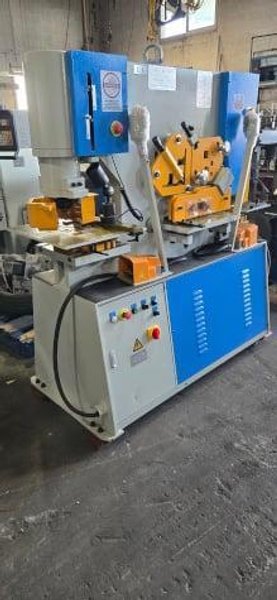

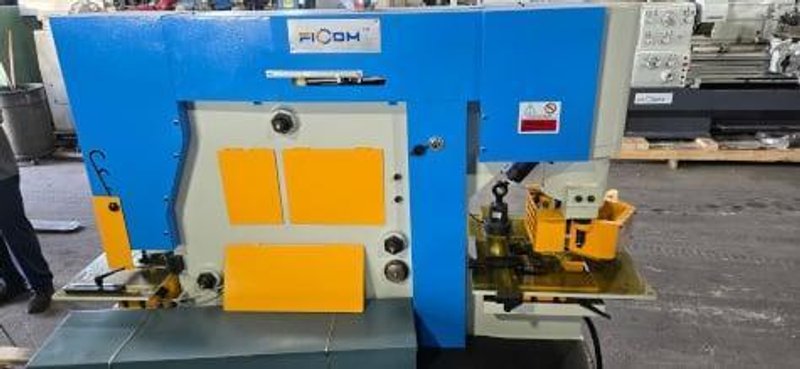

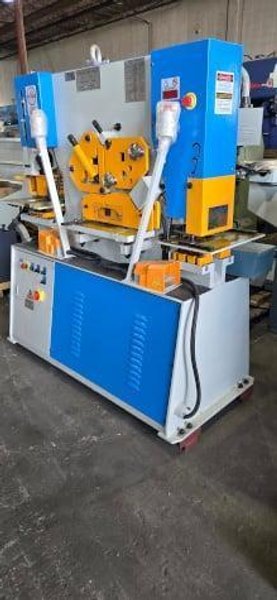

66 Ton Hydraulic Ironworker with Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table with Fence, Punch Station for Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard for Notching Station, Movable Workstation Light w/ Magnetic Base and 12” Press Brake Attachment.

GENERAL SPECIFICATIONS
Punch Station
Tonnage:                            66 Tons
Throat:                            11-13/16”
Capacity:                            1” Hole Thru ⅝” Plate
Stroke:                            3-⅛”

Bar Shear
Cutting Capacity - Max. Width:                5/16” X 15-¾”
Max. Thickness:                        ⅝” X 10”

Section Cutting
Round - Solid:                        1-¾”
Square Solid:                            1-9/16”
Channel:                            ½”
Angle:                                4-59/64” X ½”

Rectangular Notching
Max. Cut:                            2-¼” X 3-15/16” X 25/64”

Motor & Electrics
Motor Power:                            5.3 HP
Electrics - Standard:                        230 / 460 / 3 / 60

Dimensions:                            65” X 32” X 70”
Machine Weight:                        3,527 Lbs

INCLUDES: Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table with Fence, Punch Station for Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard for Notching Station, Movable Workstation Light w/ Magnetic Base and 12” Press Brake Attachment.

***All Price, Location and Specifications Subject to Change without Notice***
