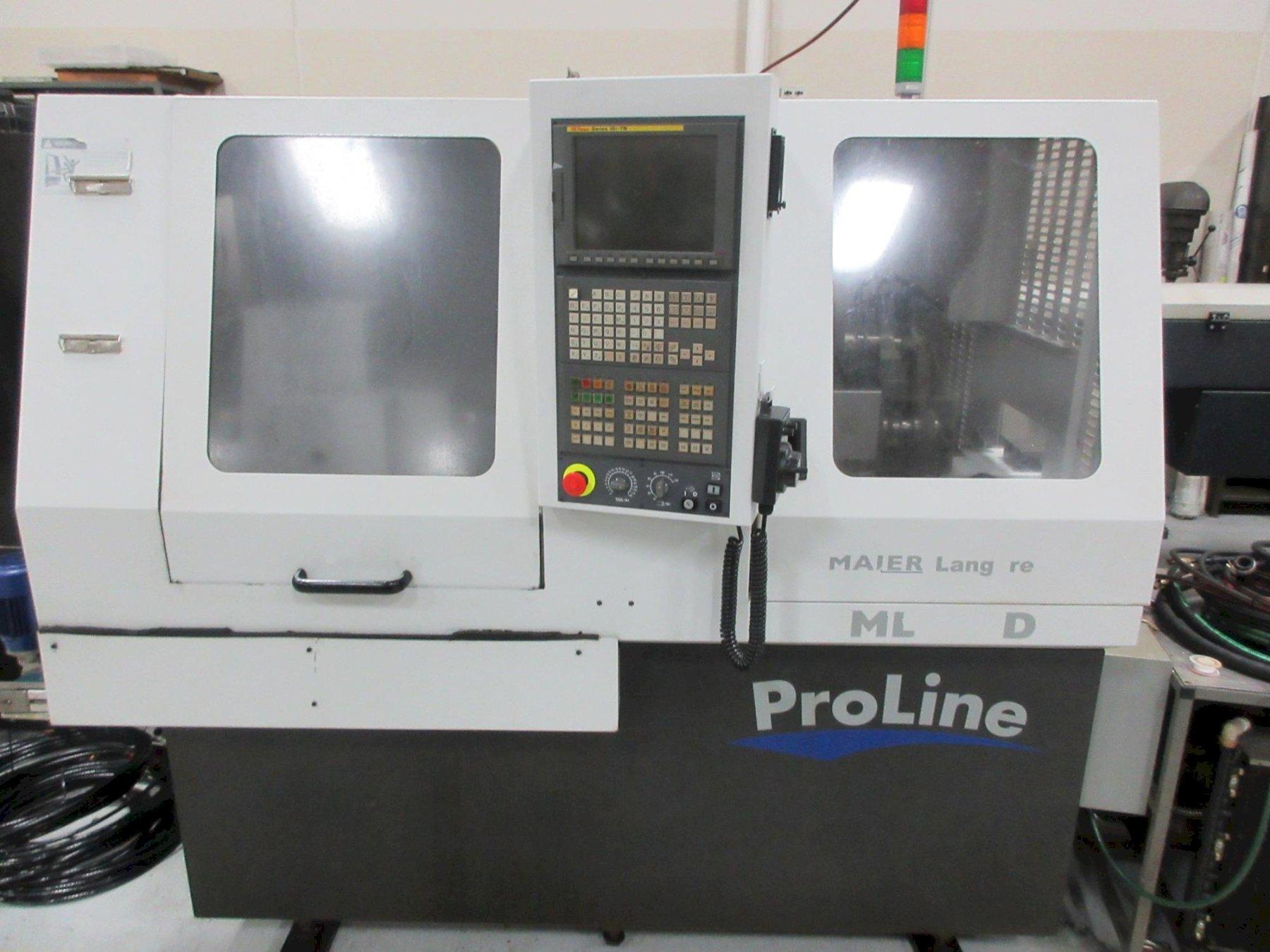

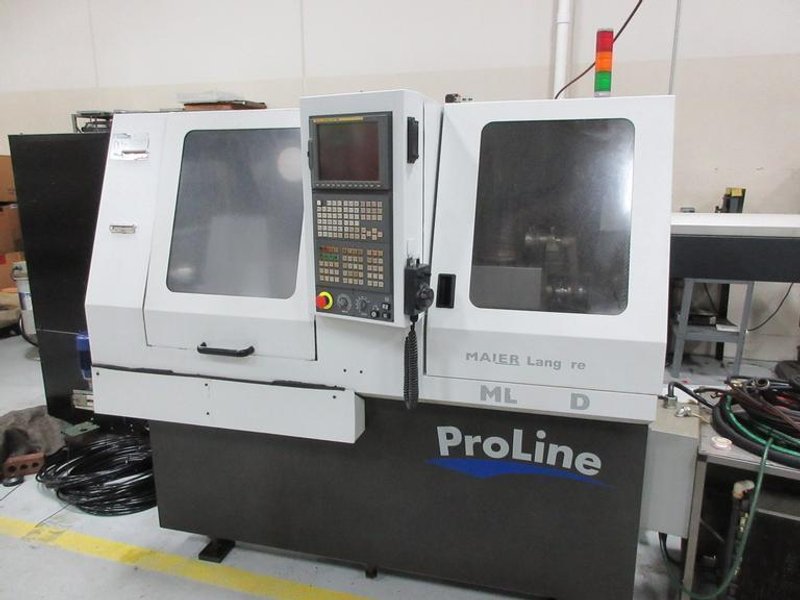

Lot 210: Maier ML32D 9 Axis Proline CNC Swiss Lathe with LNS Hydrobar Express 332 Bar Feeder and Shopmade High Pressure Coolant System

Equipped With:

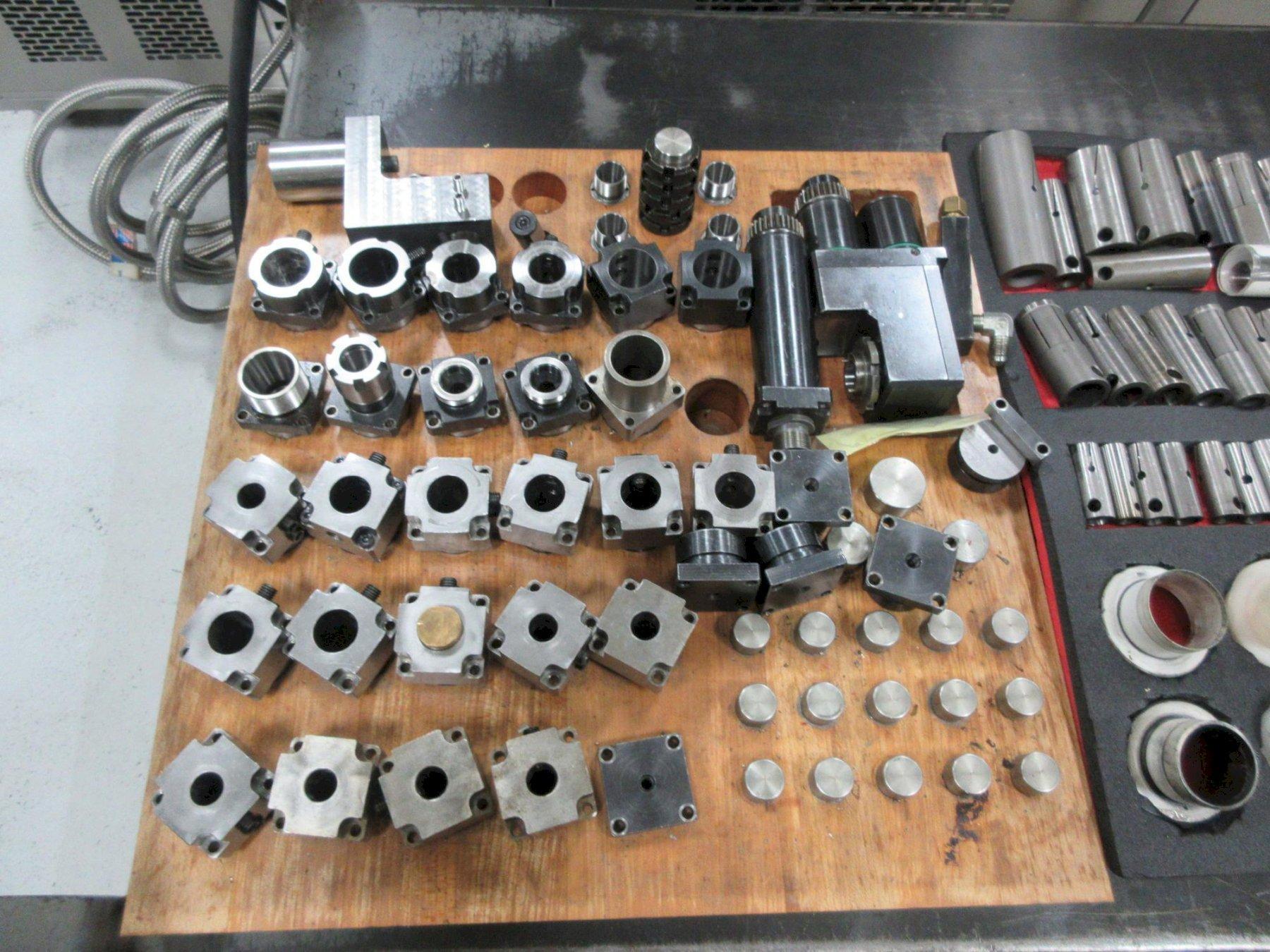

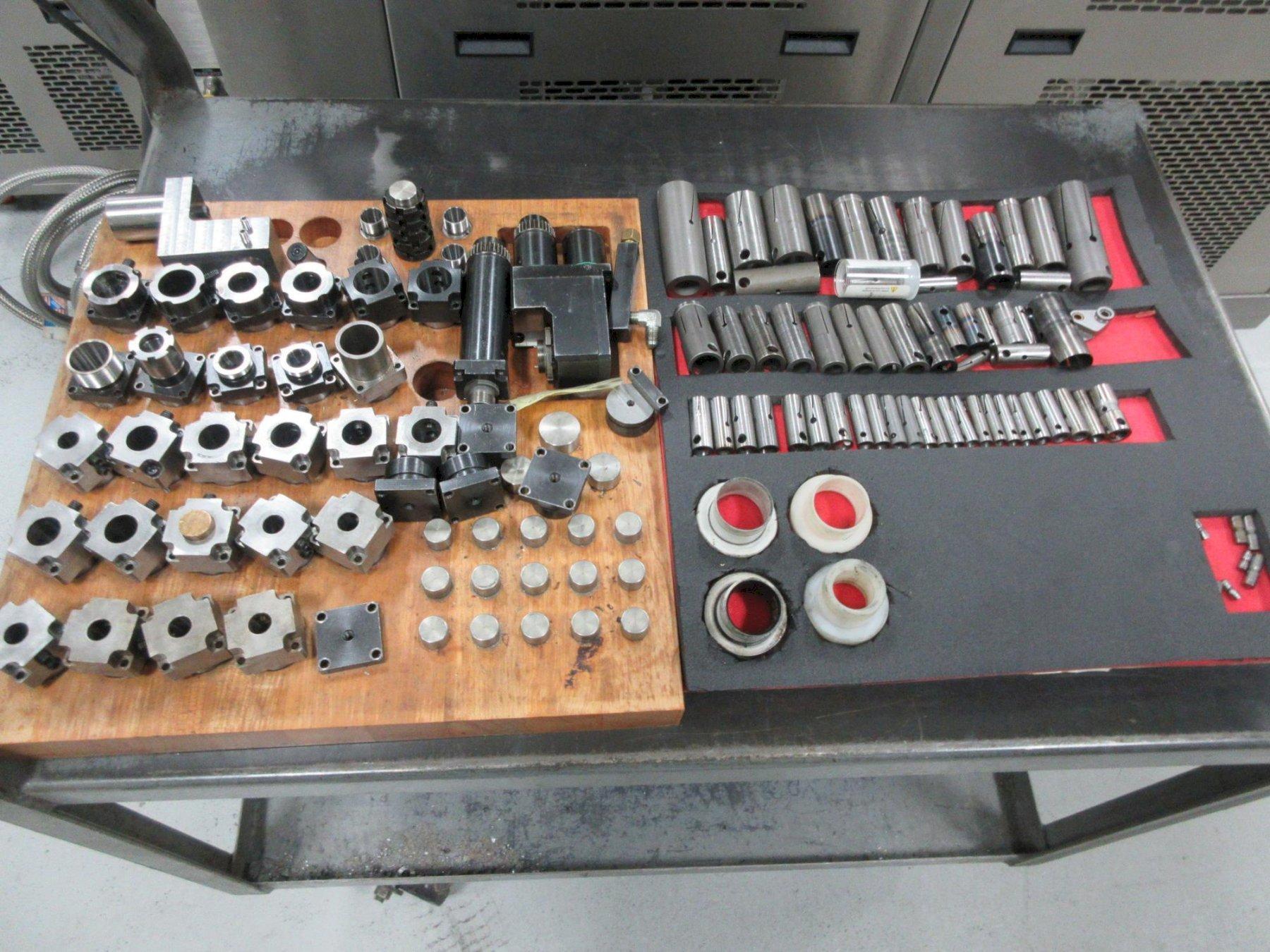

Fanuc 16i Control, LNS Hydrobar 332 12' Barfeeder, Turbo System Chip Conveyor, Parts Catcher, Shopmade High Pressure Coolant System, Manuals, Assorted Tooling. *** NOTE: No Video Due To Disconnected From Power For Non-USE. Cracked Sub-Spindle Still Works But Cannot Perform High Pressure Z Axis Operations. Spindle Tube Will Move With Too Much Pressure ***

Description:

The Maier M L32D supports industries like automotive, aerospace, and electronics manufacturing, offering specialized solutions for components production.

Electrics:

220V 3 Phase

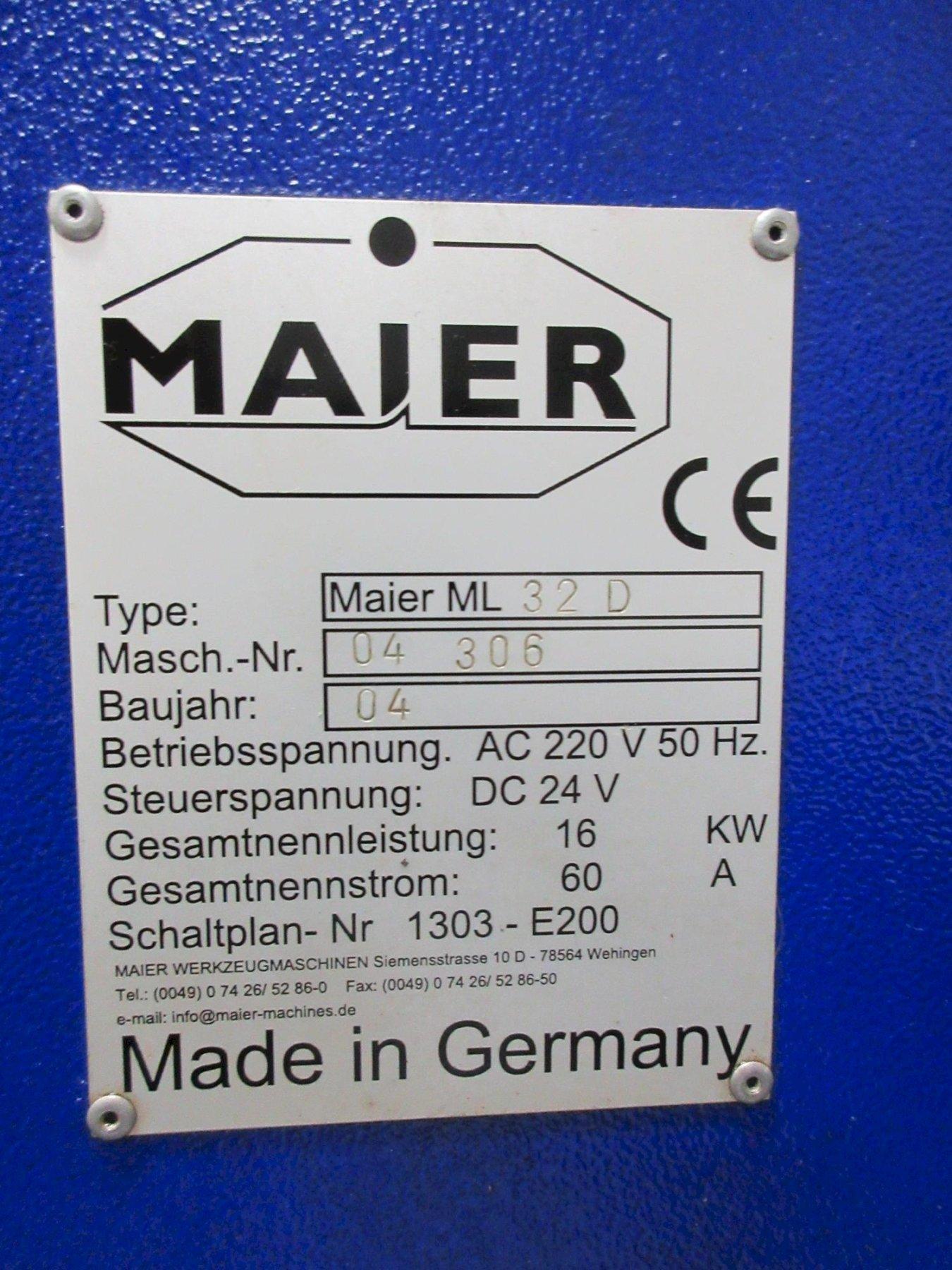

Manufacturer: Maier Model: ML-32D 9 Axis Year: 2004 Serial Number: 04-306

Main Unit Approx Weight: 9040.00 lbs

Main Unit Dimensions (in inches): Length: 83.00" Width: 63.00" Height: 83.00"

Components:

Turbo Systems Chip Conveyor: Length: 84.00" Width: 50.00" Height: 39.00"

LNS Hydrobar Express 332 Barfeed: Length: 195.00" Width: 25.00" Height: 56.00"

Shopmade High Pressure Coolant System: Length: 48.00" Width: 30.00" Height: 48.00"

Specs:

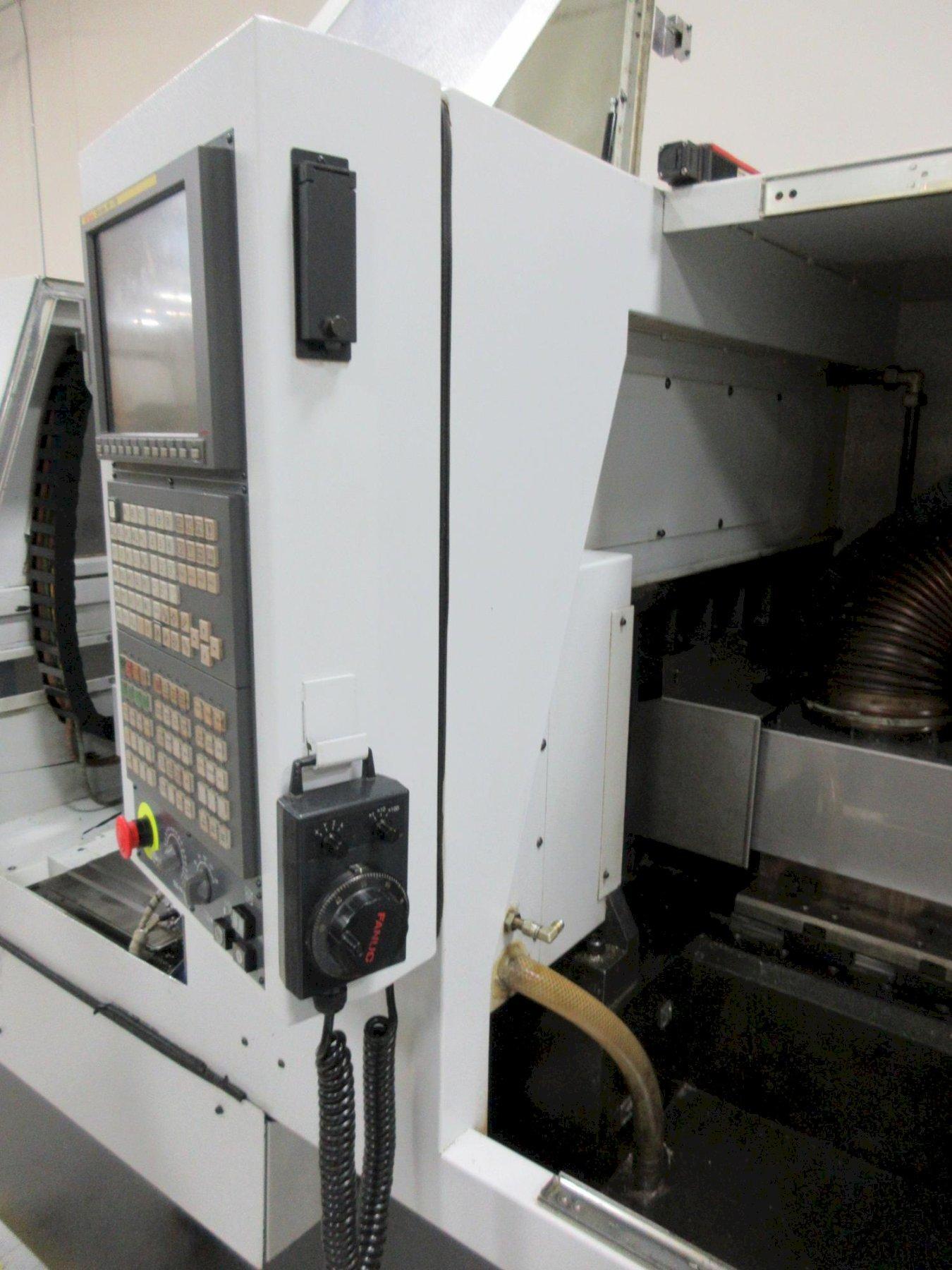

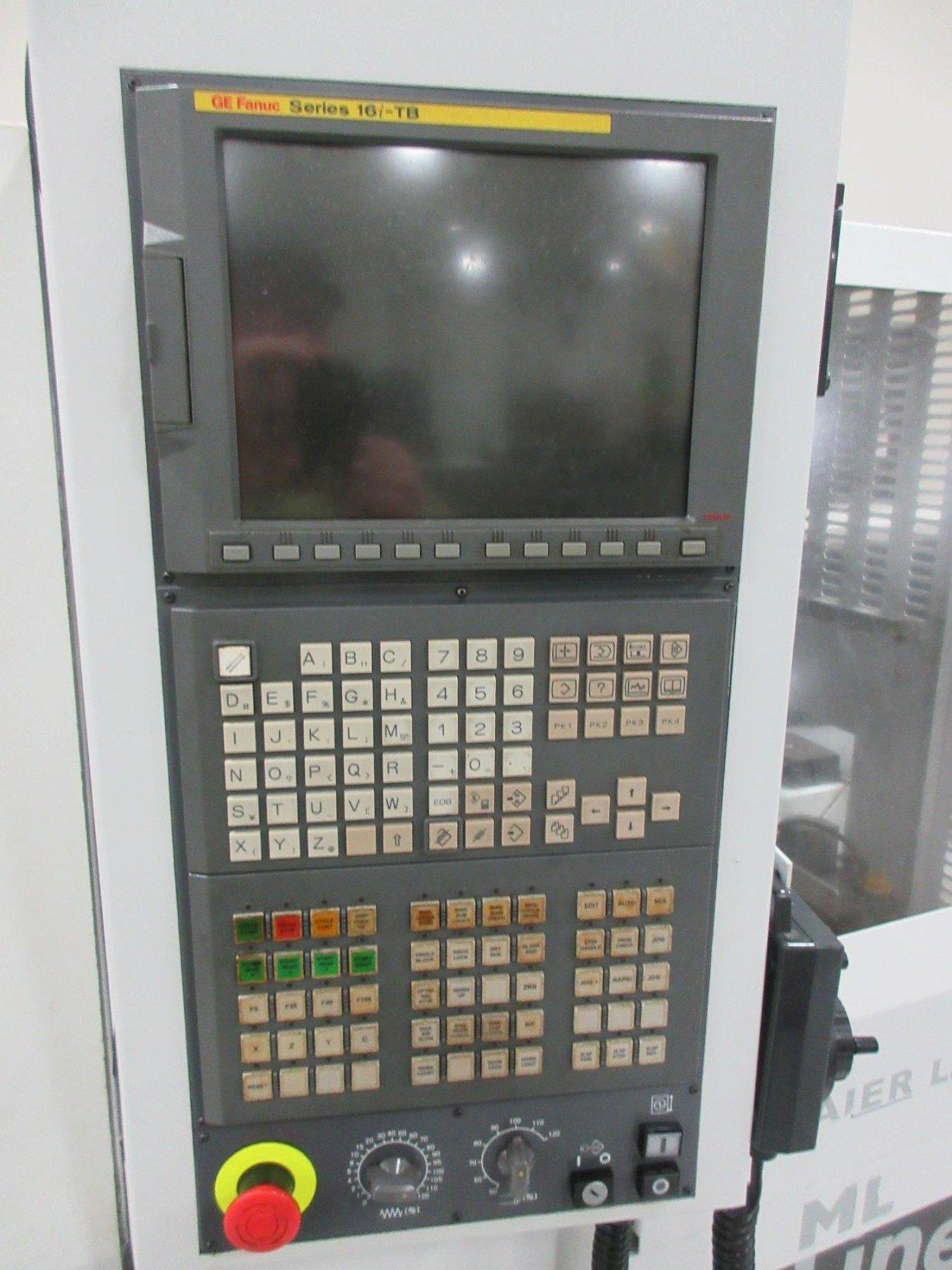

Control: GE Fanuc Series 16i-TB

Maximum Machining Diameter: 1.26"

Maximum Machining Length: 9.06"

Main Spindle Speeds: 6000 RPM

Main Spindle Indexing: .7 Sec

Back Spindle Speeds: 6000 RPM

Back Spindle Max Chucking Diameter: 1.26"

Turning Tools: 6

Rotary (Live) Tools: 12

Front Endworking Tools: 10

Back Endworking Tools: 10

Cutting Tool Shank/Sleeve Size: TF37 1.26"

Rapid Traverse (X/Y/Z): 1260 IPM in All Axes

Main Spindle Drive: 7.4 HP

Back Spindle Drive: 5.2 HP

Rotary Tool Drive: 2.0 HP

Seller Company: Mack Engineering Corporation

Seller Contact: Luke Frank Phone: (612) 721-2471 ext. 118

Item Location: Mack Engineering Corporation, 3215 E 26th St, Minneapolis, MN 55406

Location Contact: Luke Frank Phone: (612) 721-2471 ext. 118

Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday

Dock Door: 14' x 14' Door, Ground Level, Paved Lot

Removal Dates and Times: This item must be removed between Tuesday, June 2, 2026 and Friday, June 12, 2026
