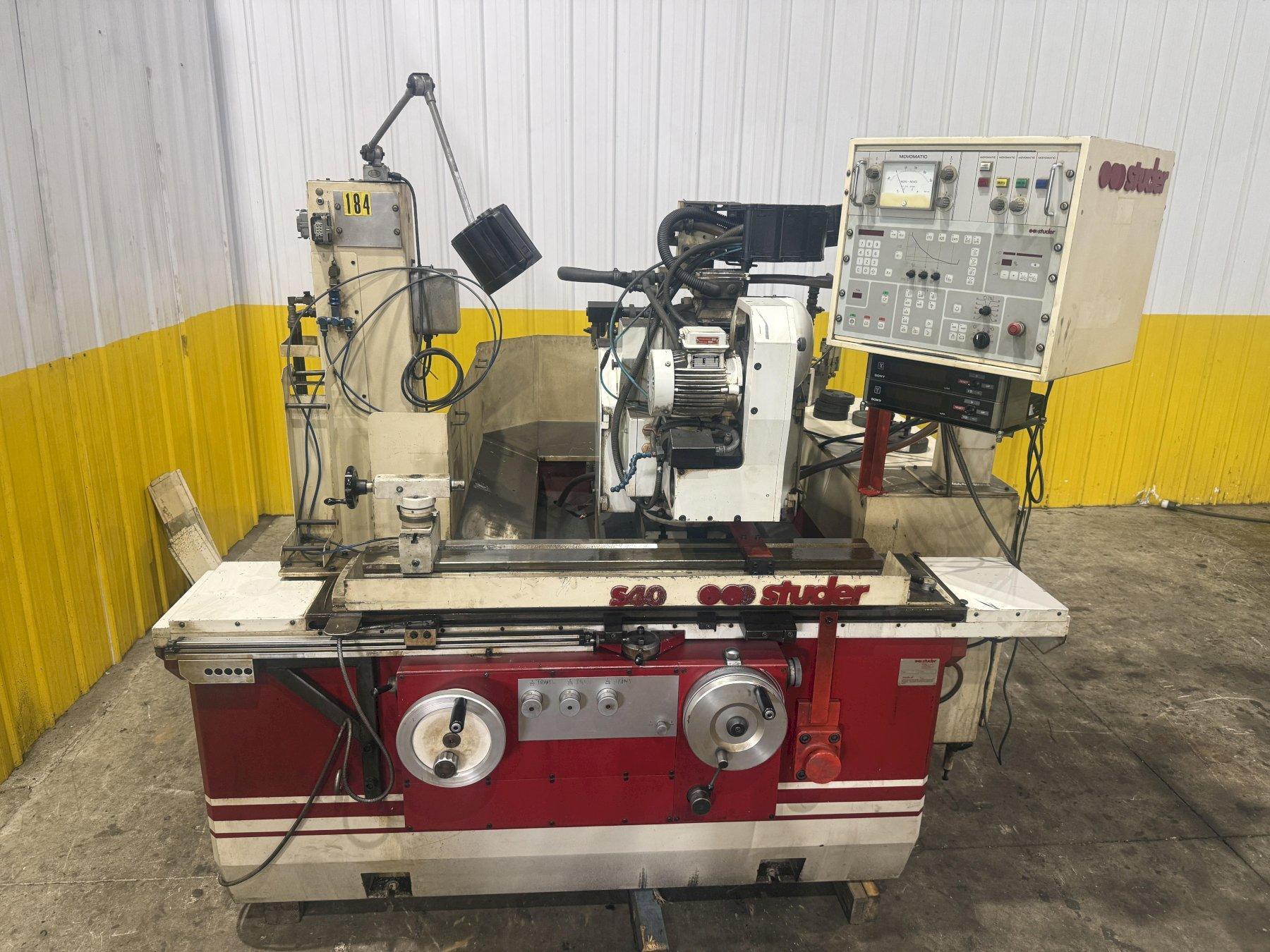

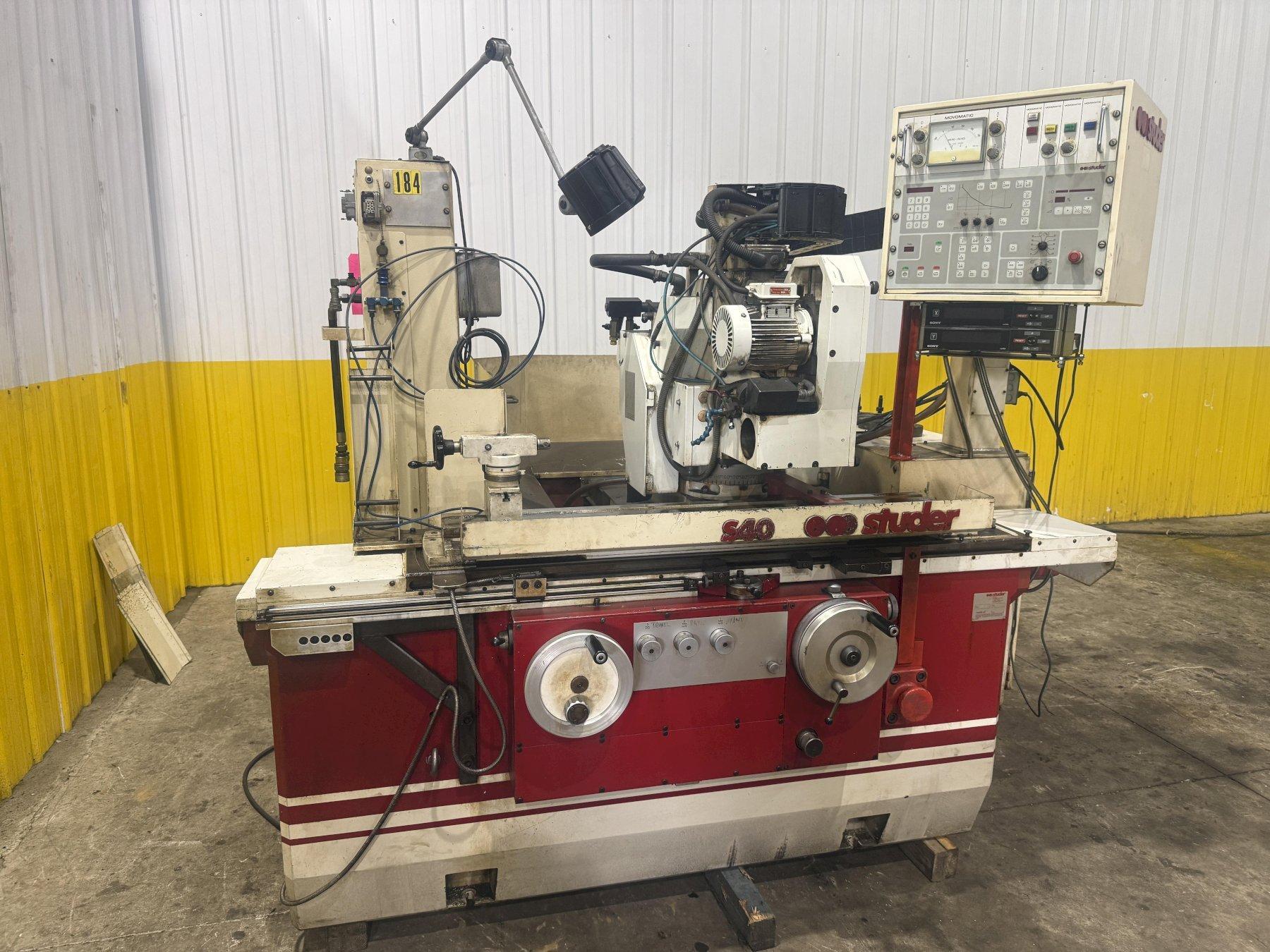

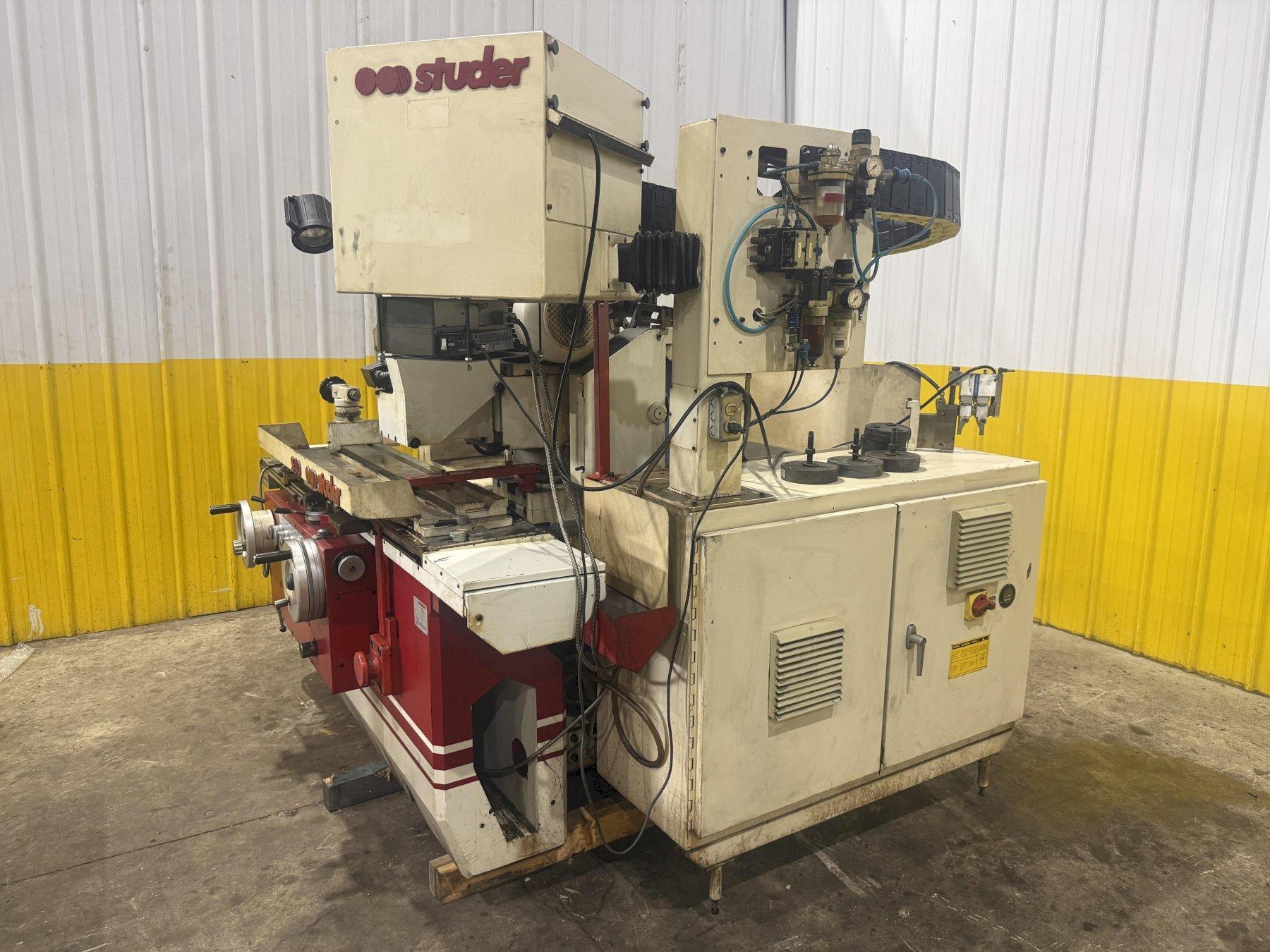

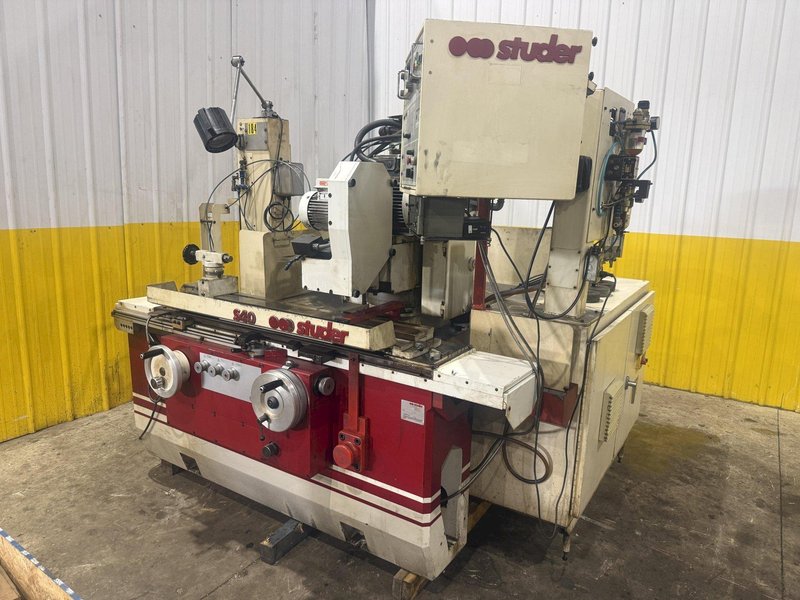

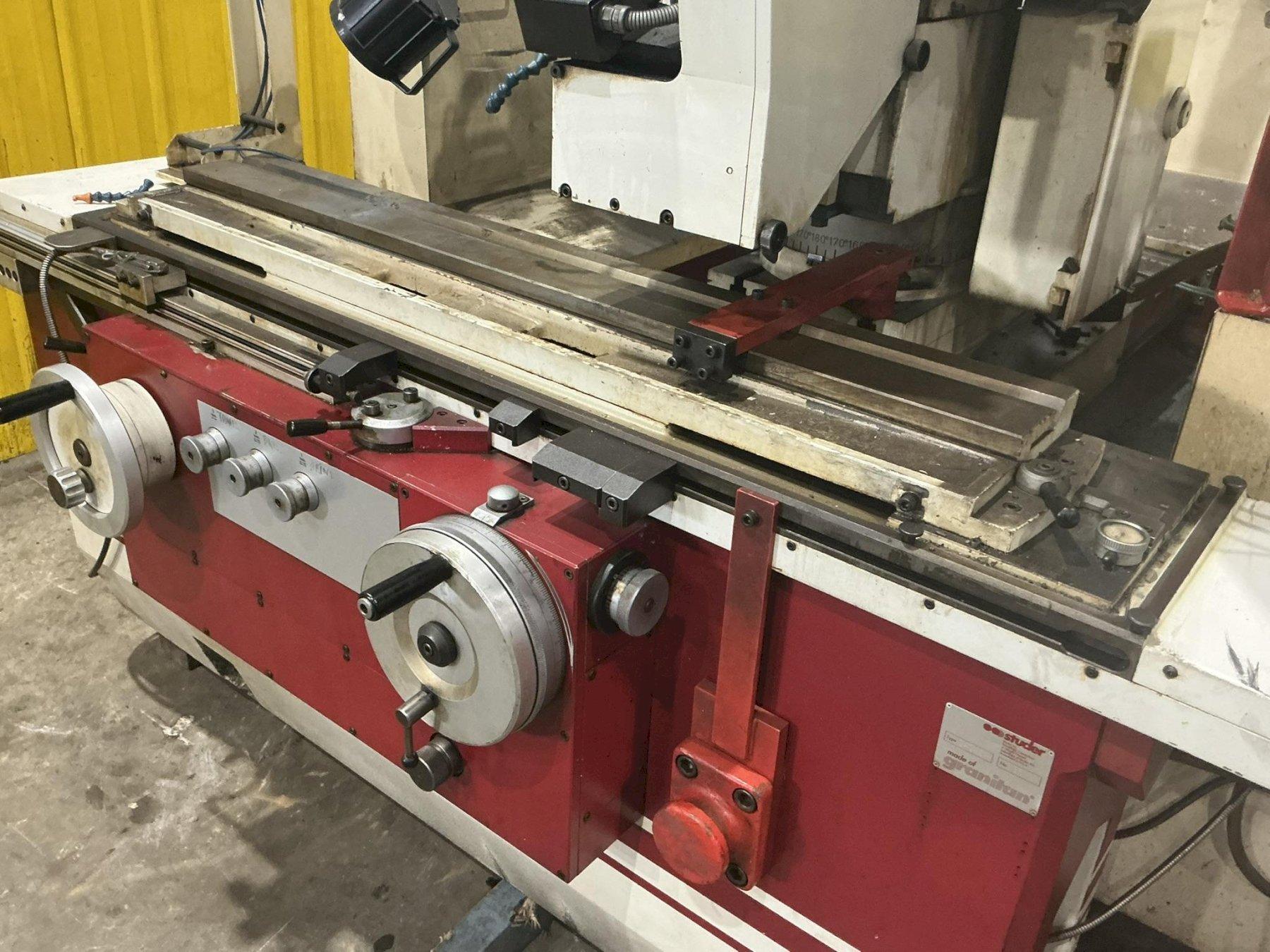

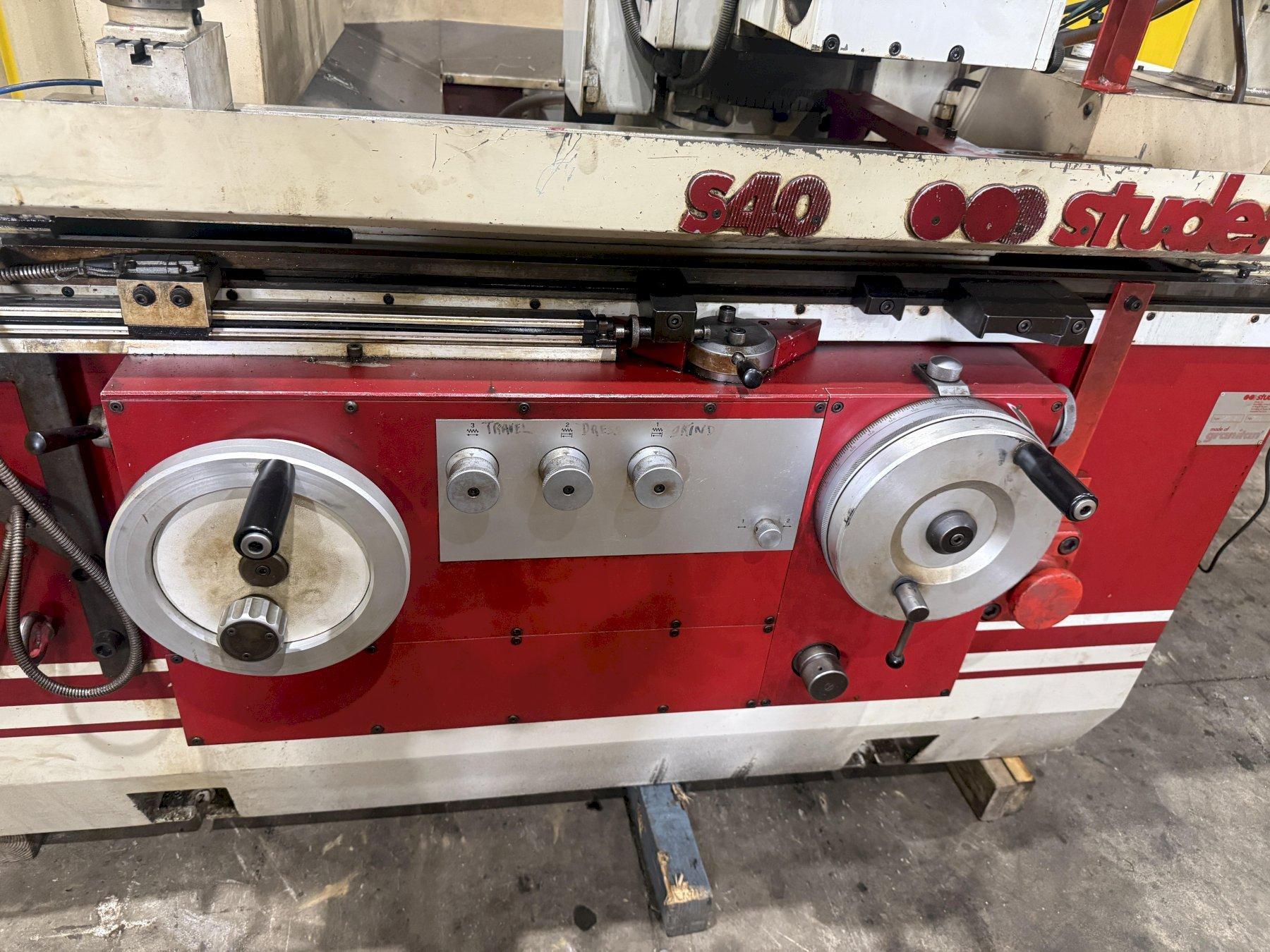

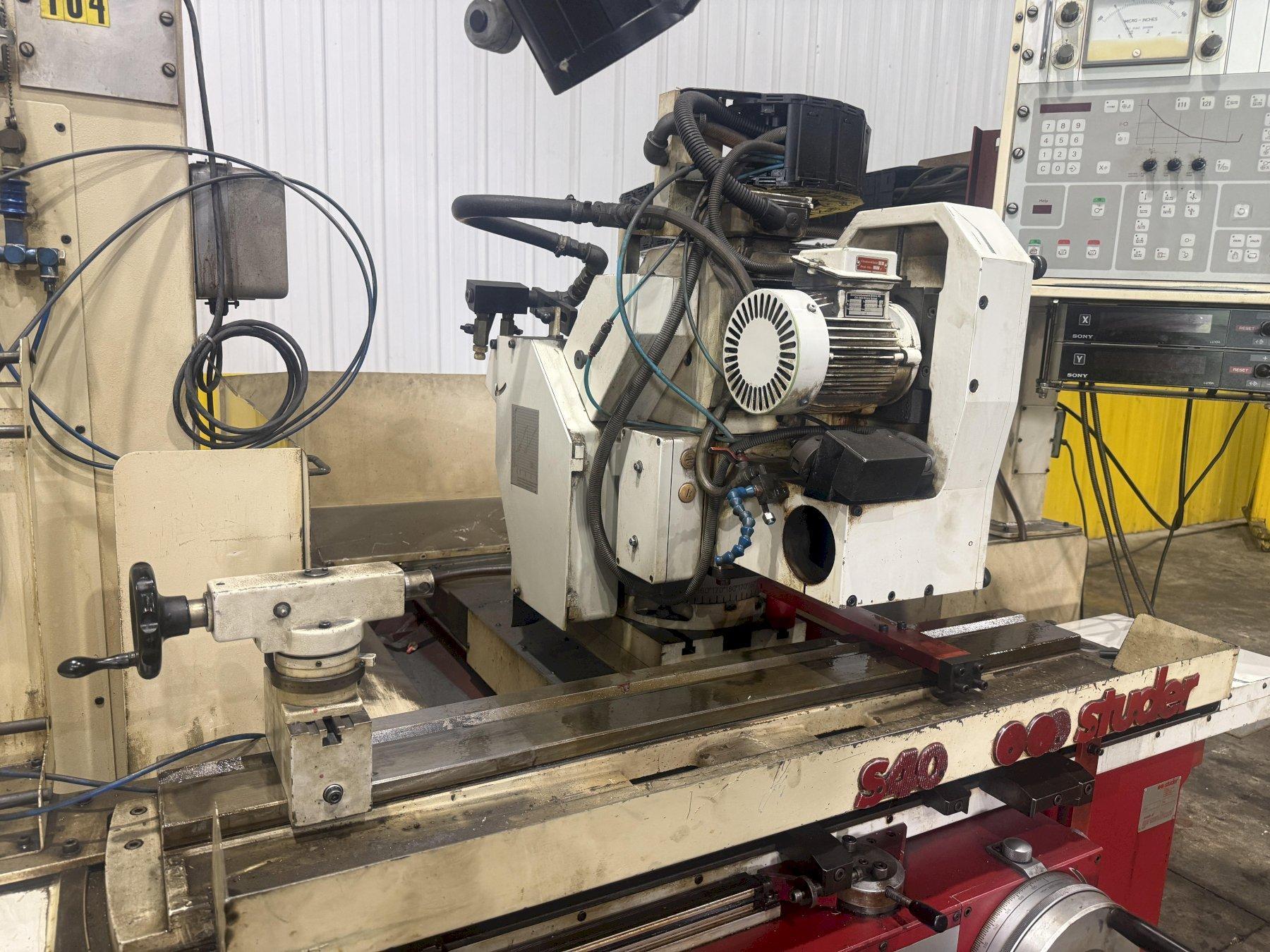

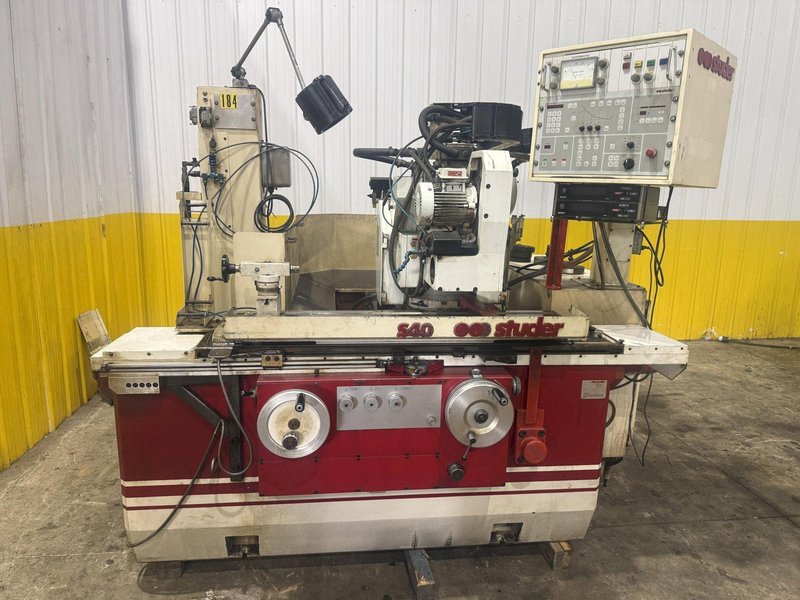

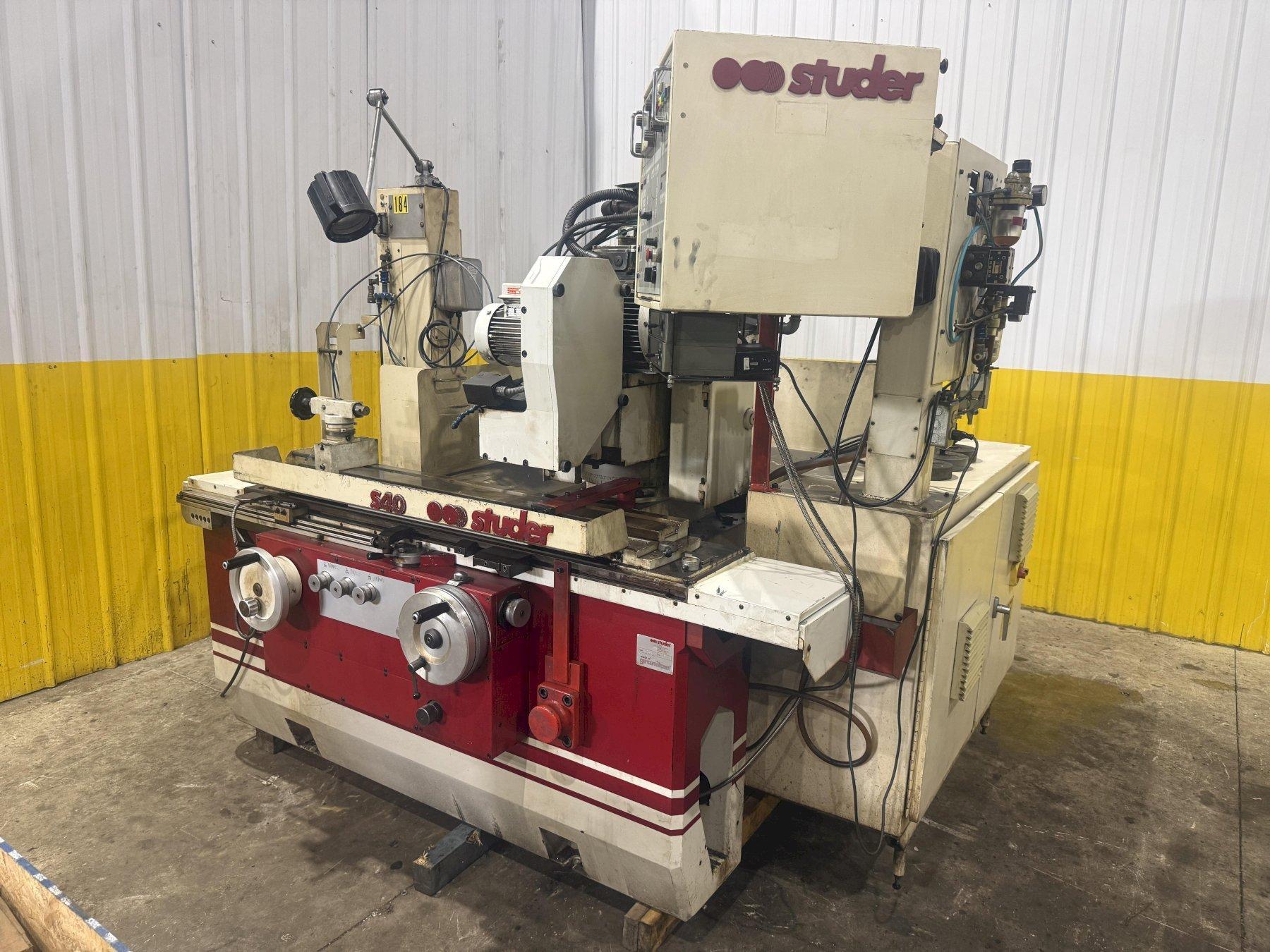

8.9" SWING x 25" CENTERS STUDER MODEL #S40-2 CYLINDRICAL GRINDER: YOBRO #25369

8.9" SWING x 25" CENTERS STUDER MODEL #S40-2 CYLINDRICAL GRINDER: YOBRO #25369

Name: 8.9" SWING x 25" CENTERS STUDER MODEL #S40-2 CYLINDRICAL GRINDER: YOBRO #25369
Brand: STUDER
SKU: 25369
Price: 19500.00 USD
Availability: InStock

Brand

STUDER

Location

Michigan

Price

$19,500.00

Specifications
Files & Videos

Dimensions	94″(L-R) x 87″(F-B) x 73″(H)
Internal Griding Attachment	yes
Weight	7500 pounds

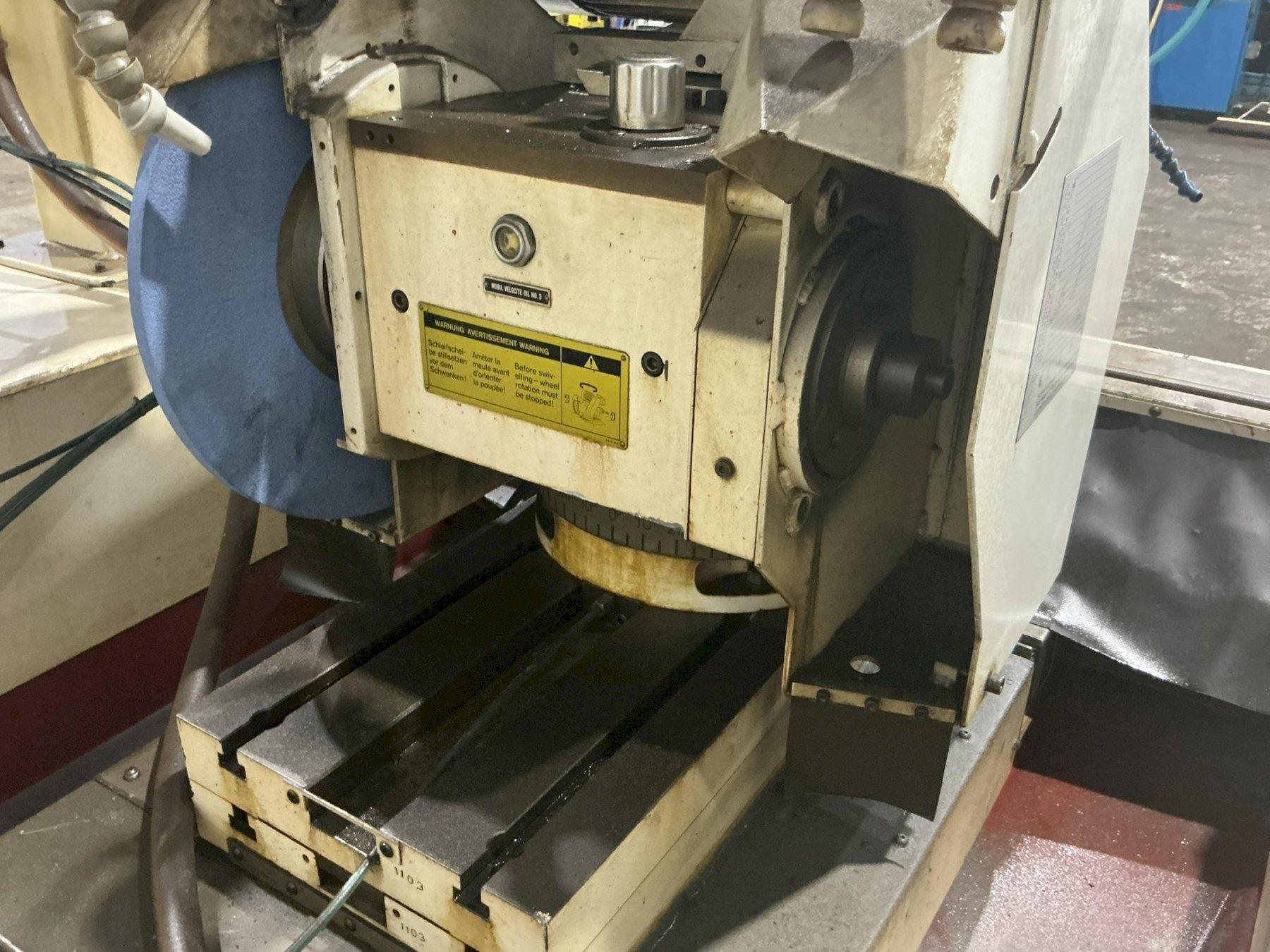

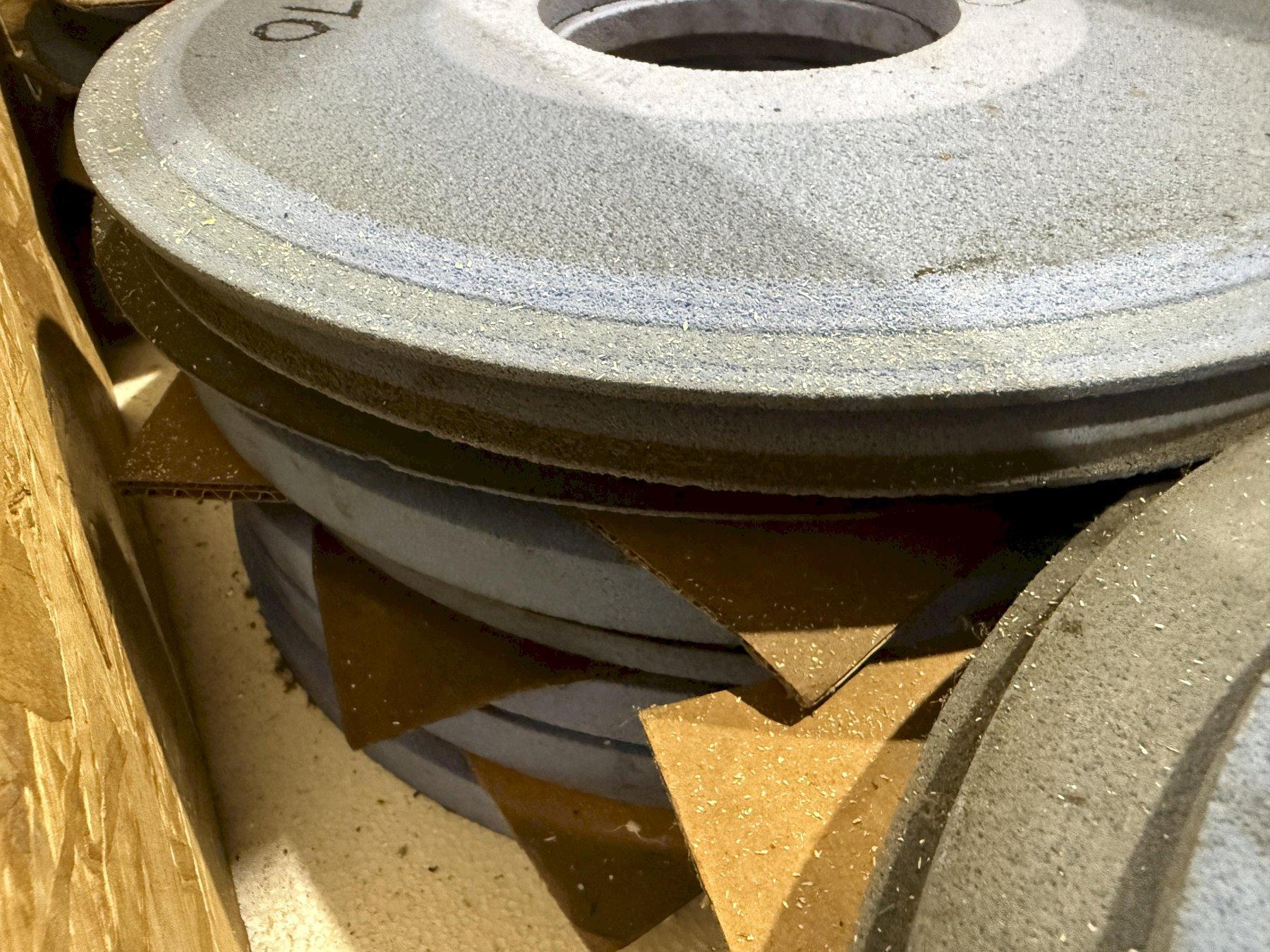

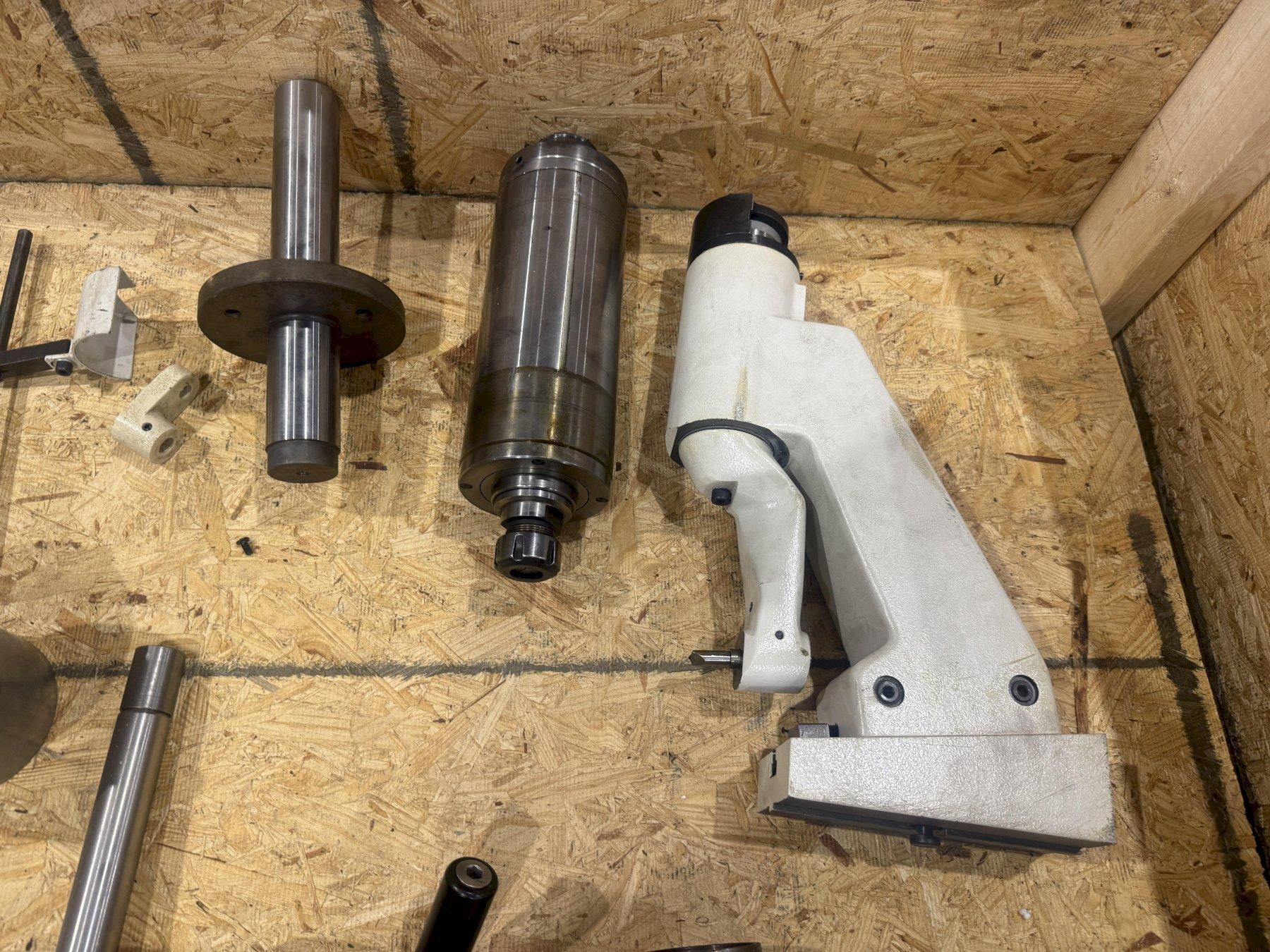

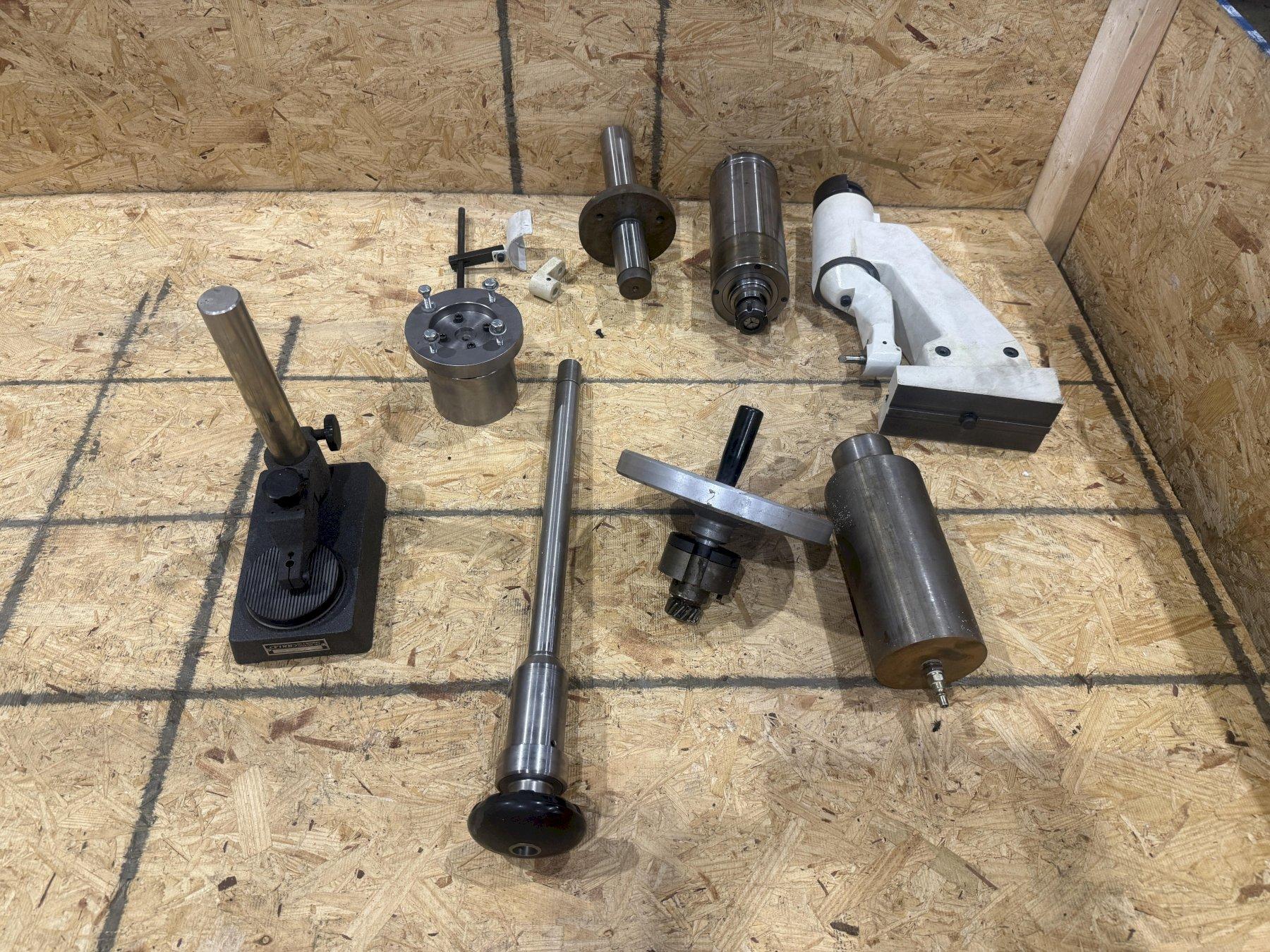

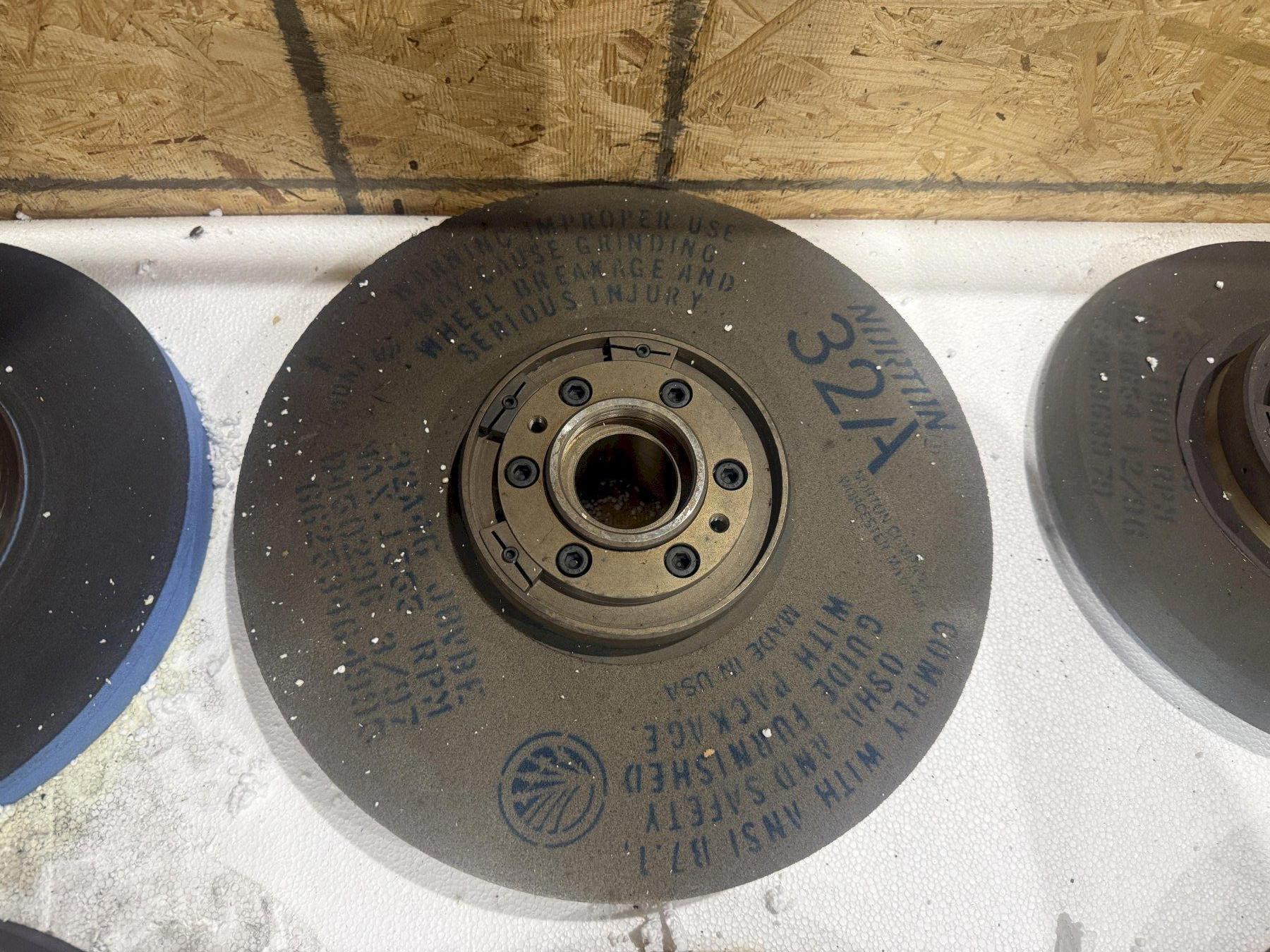

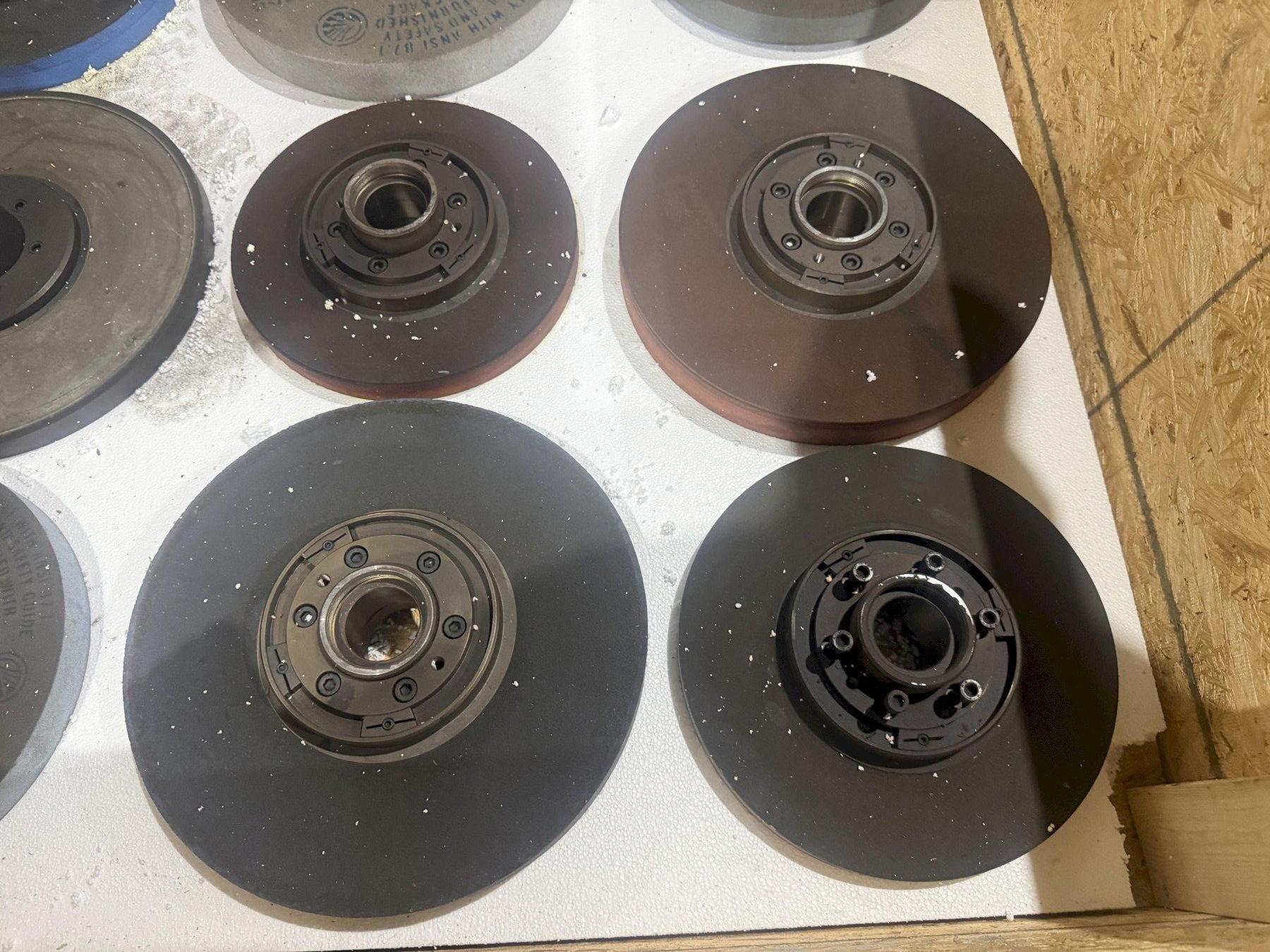

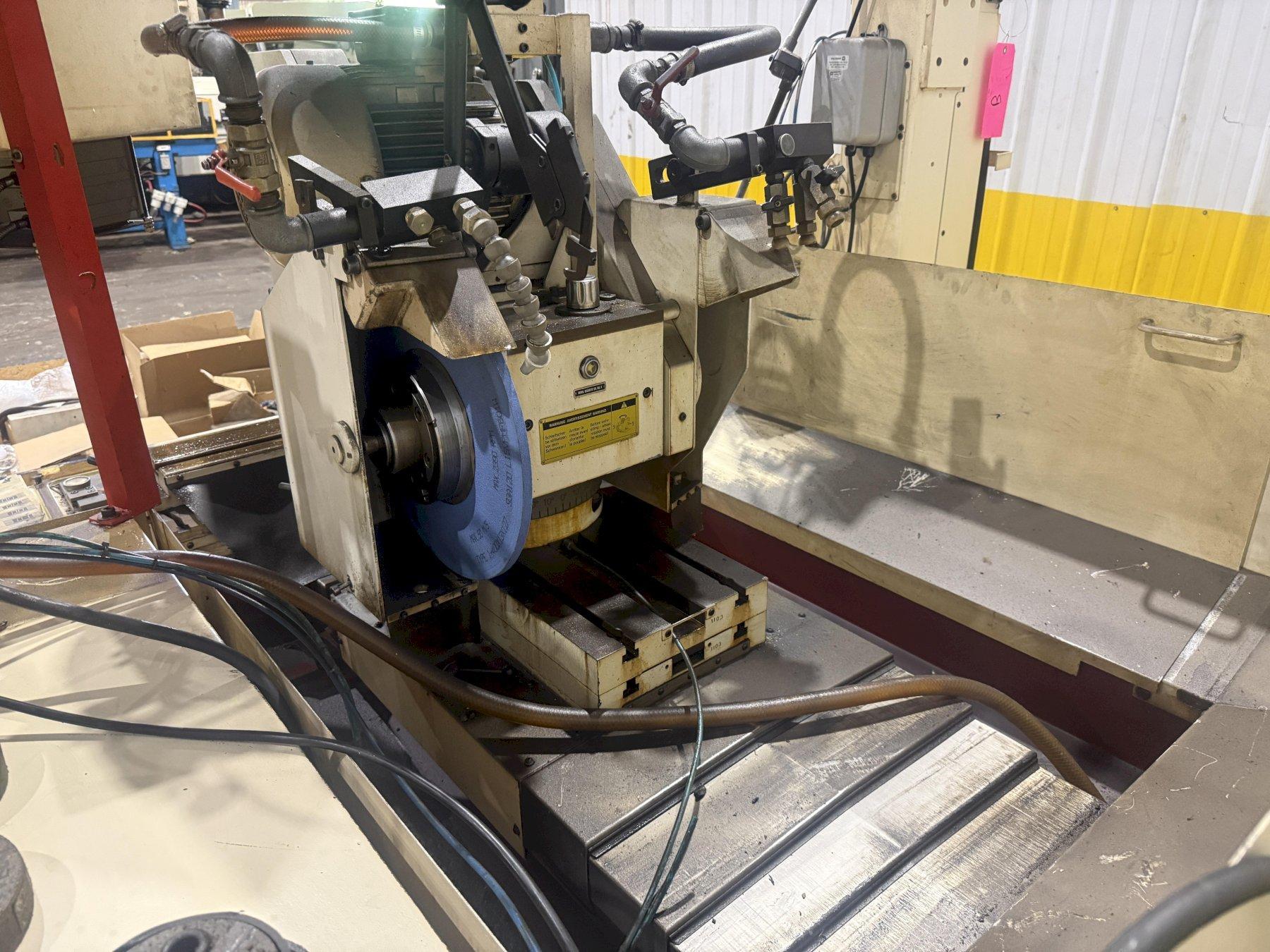

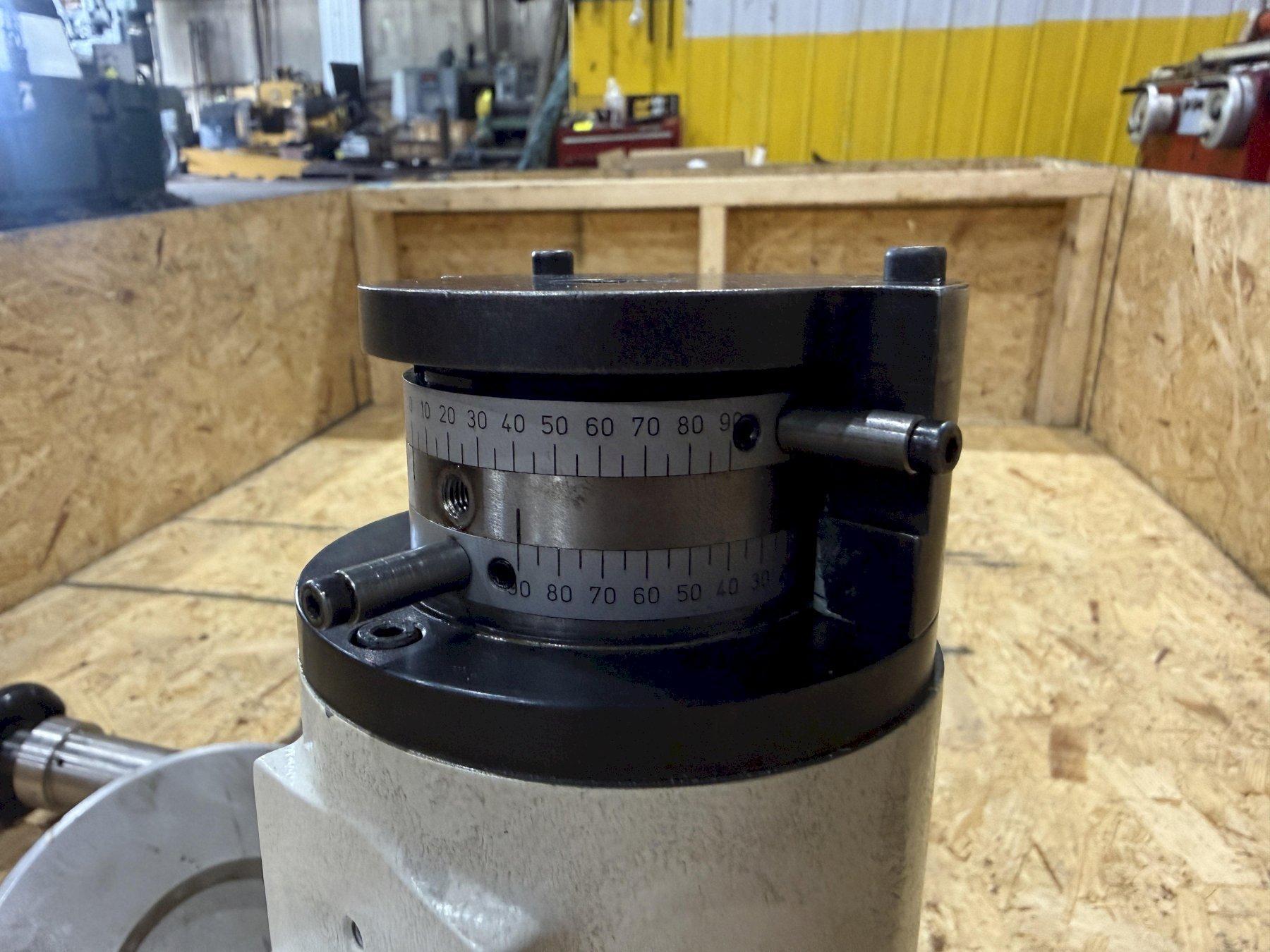

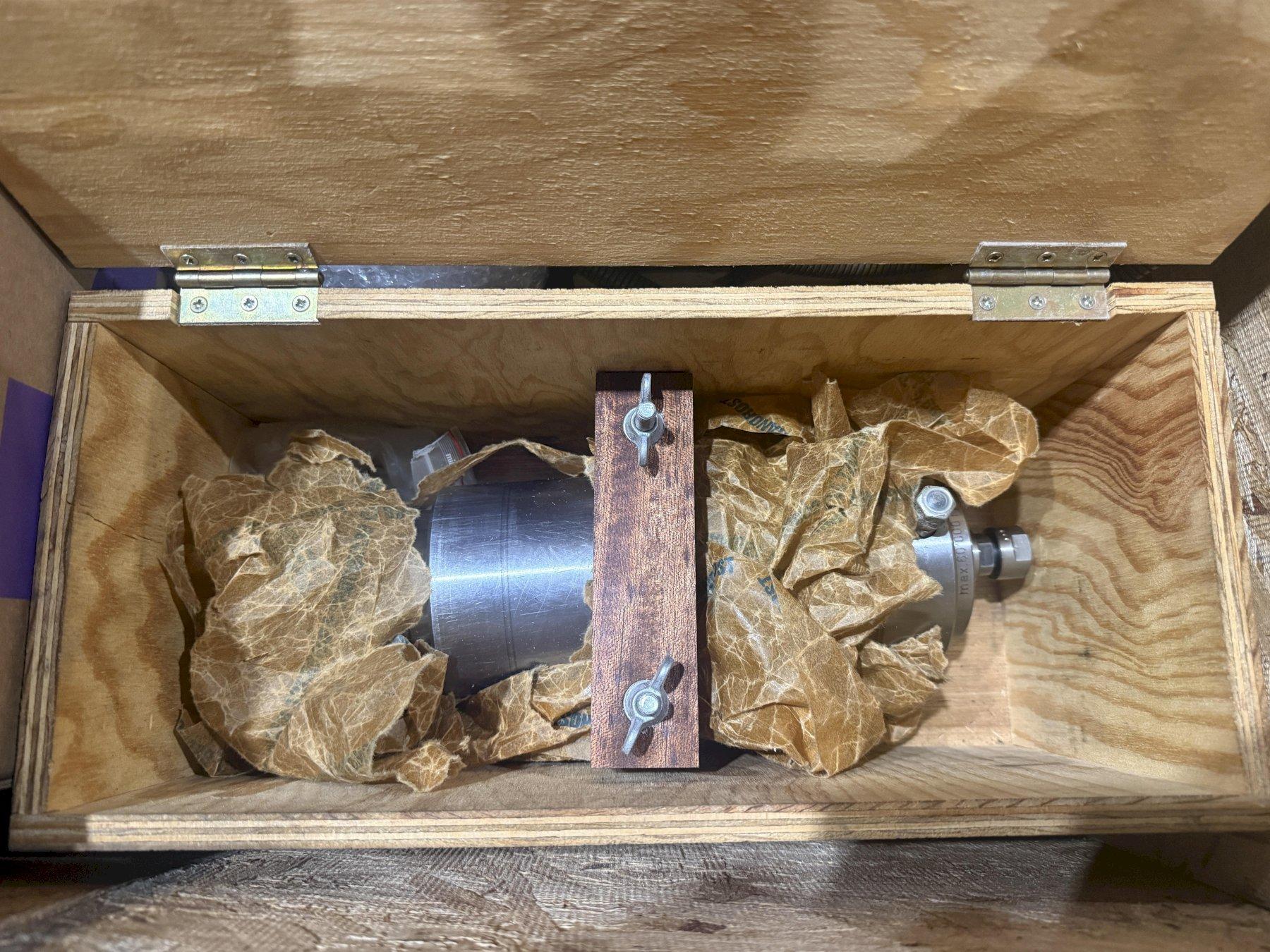

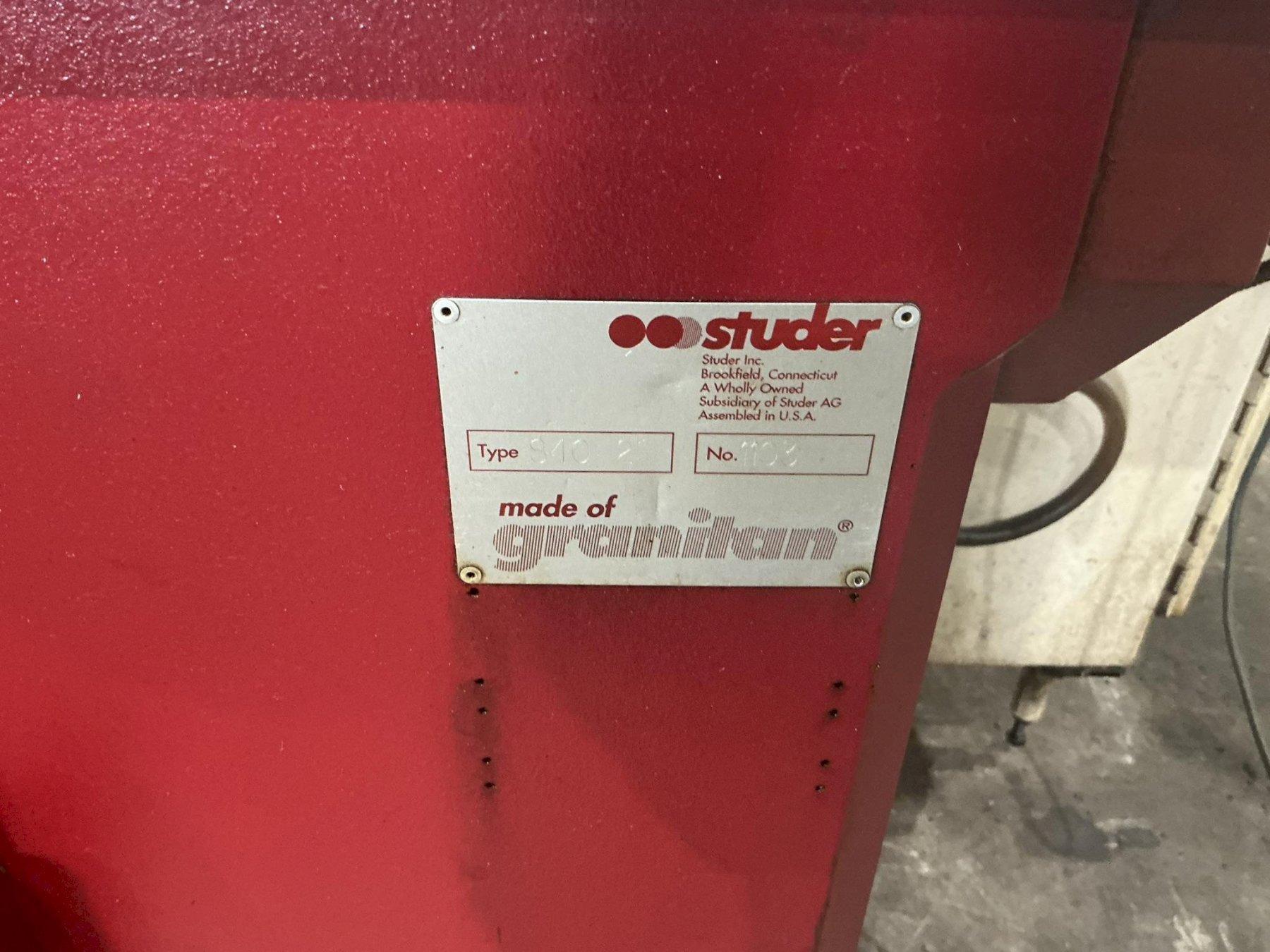

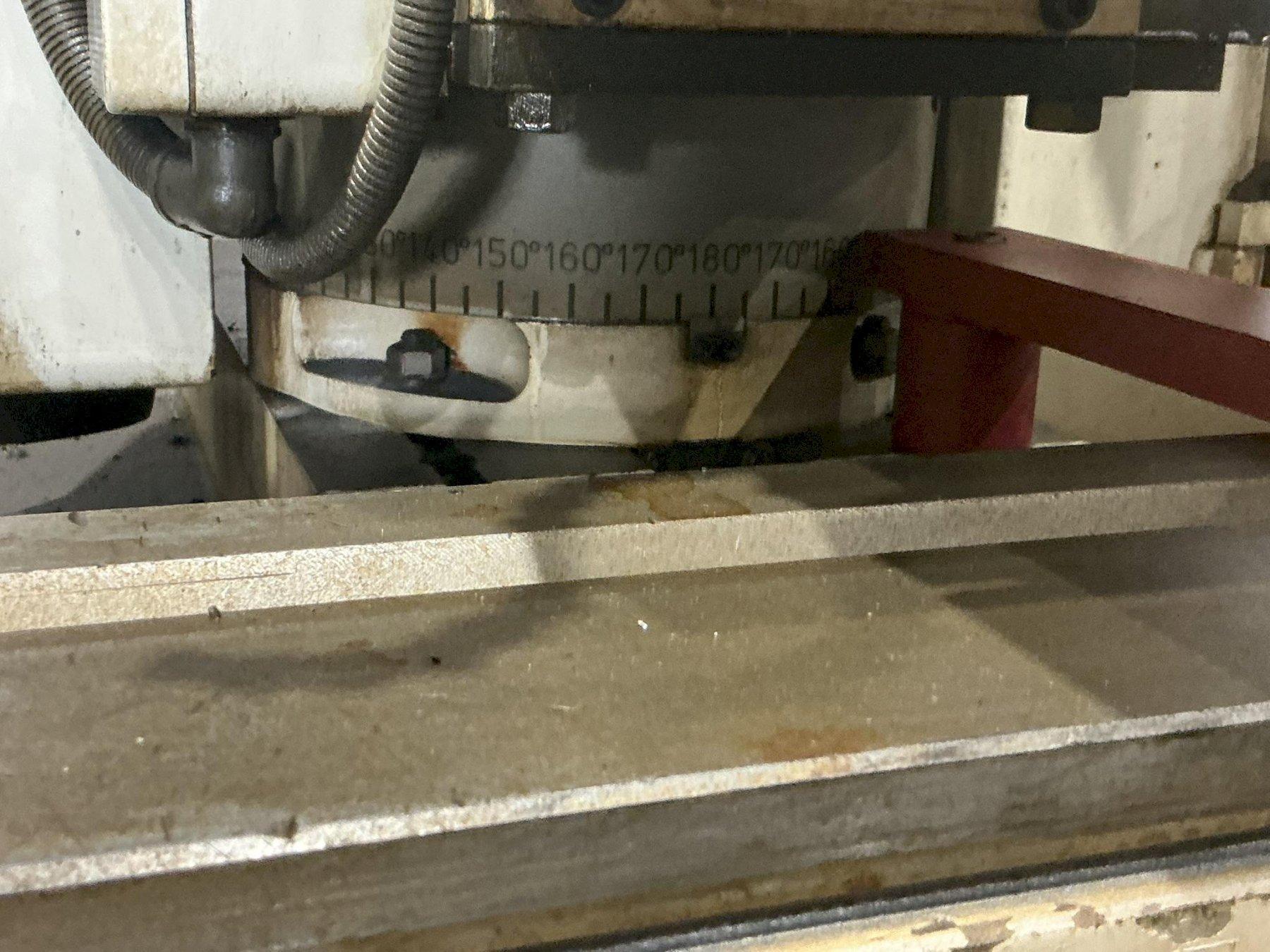

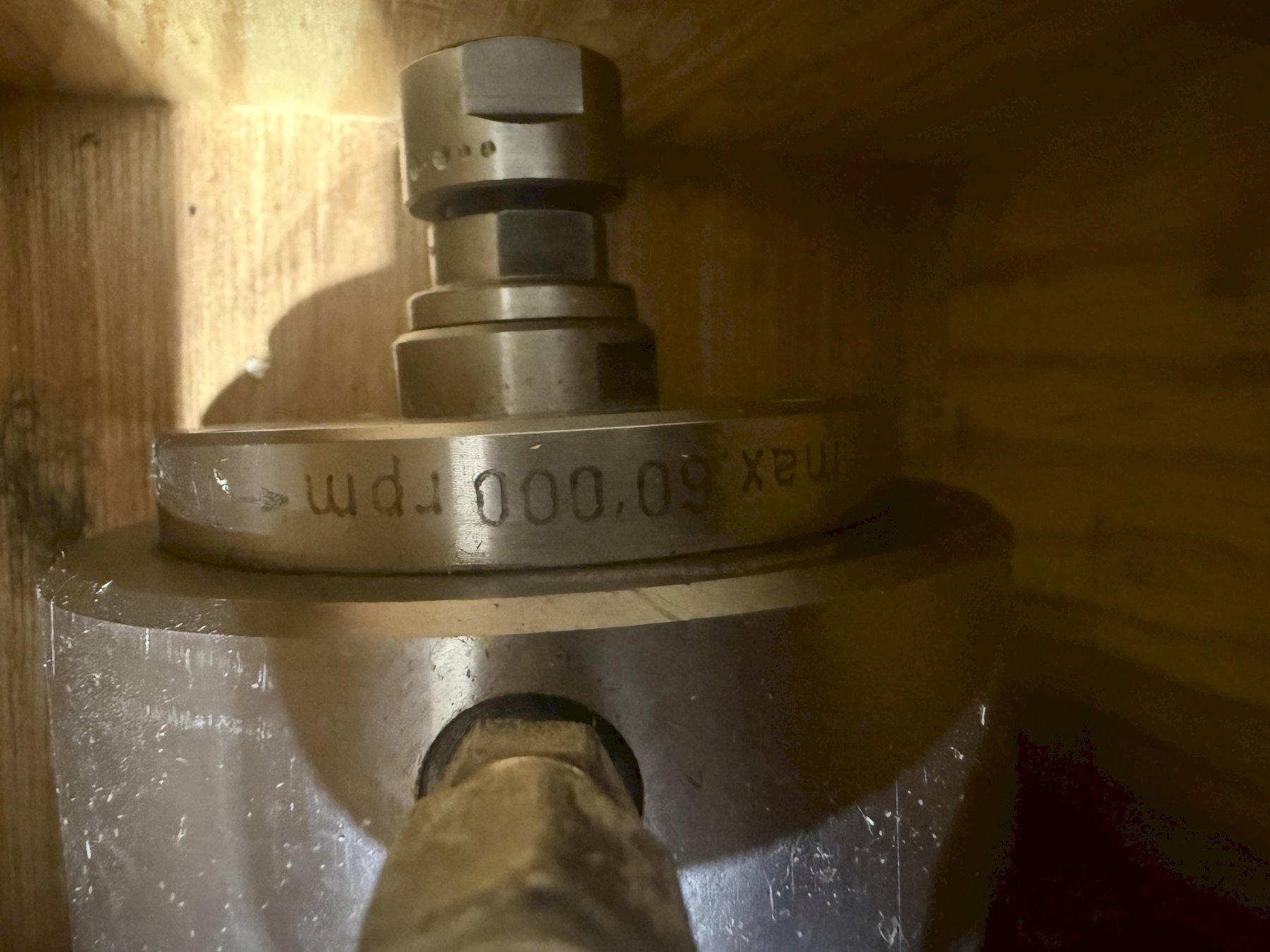

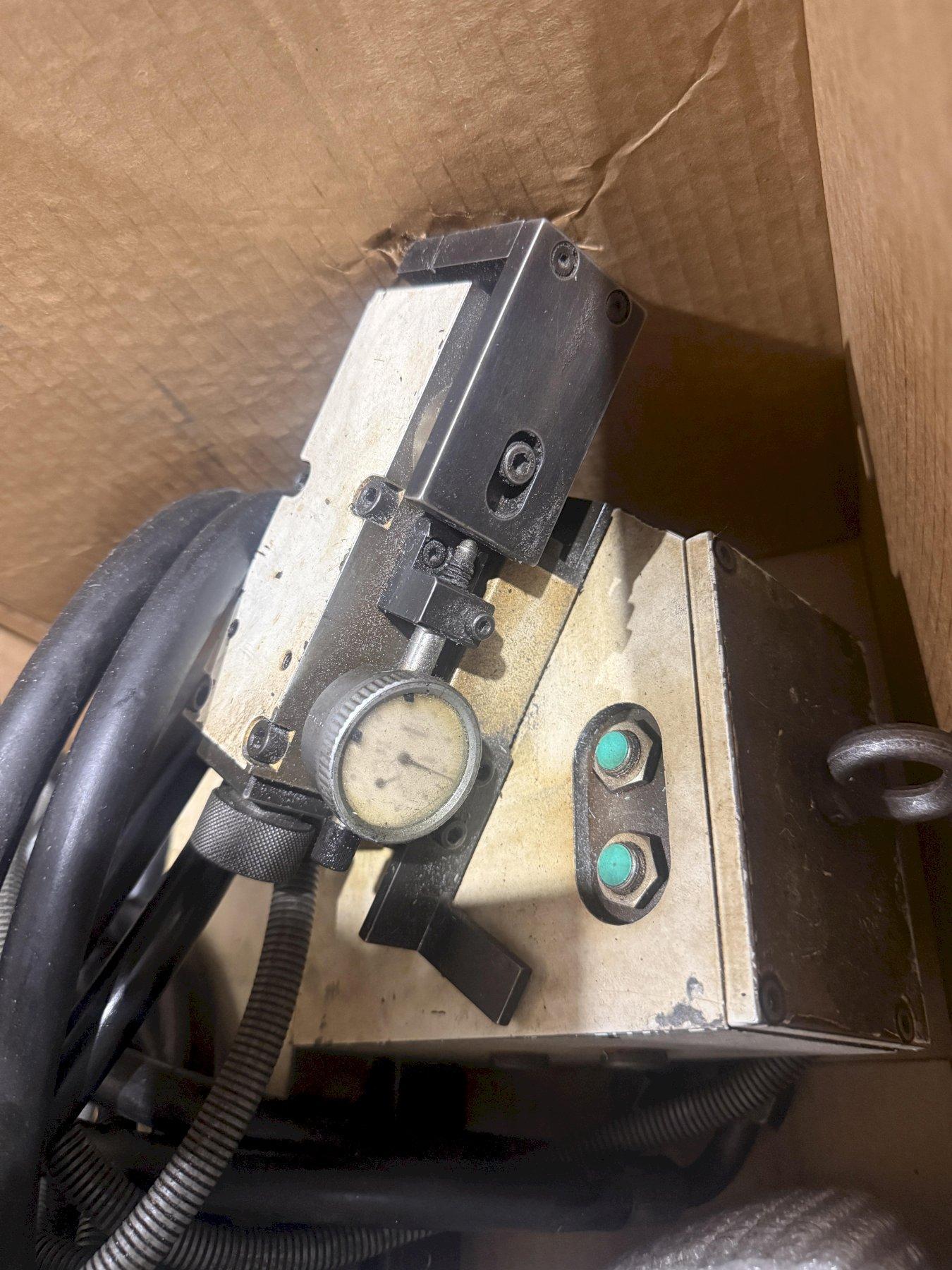

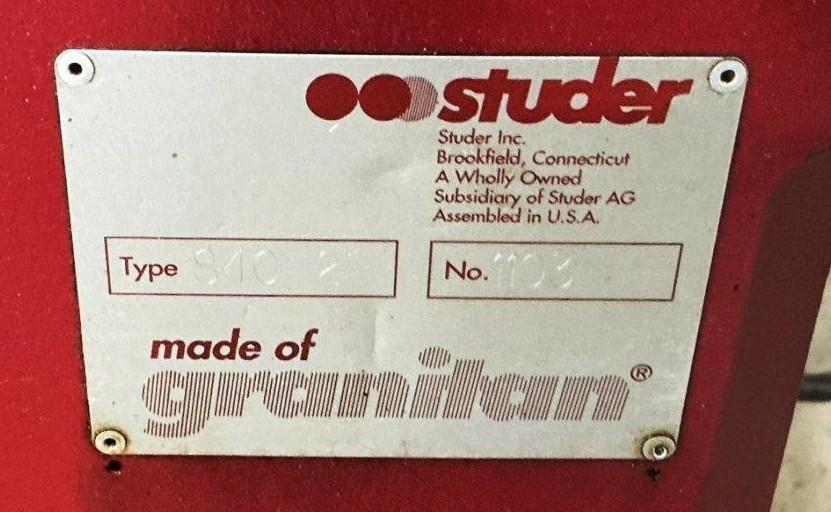

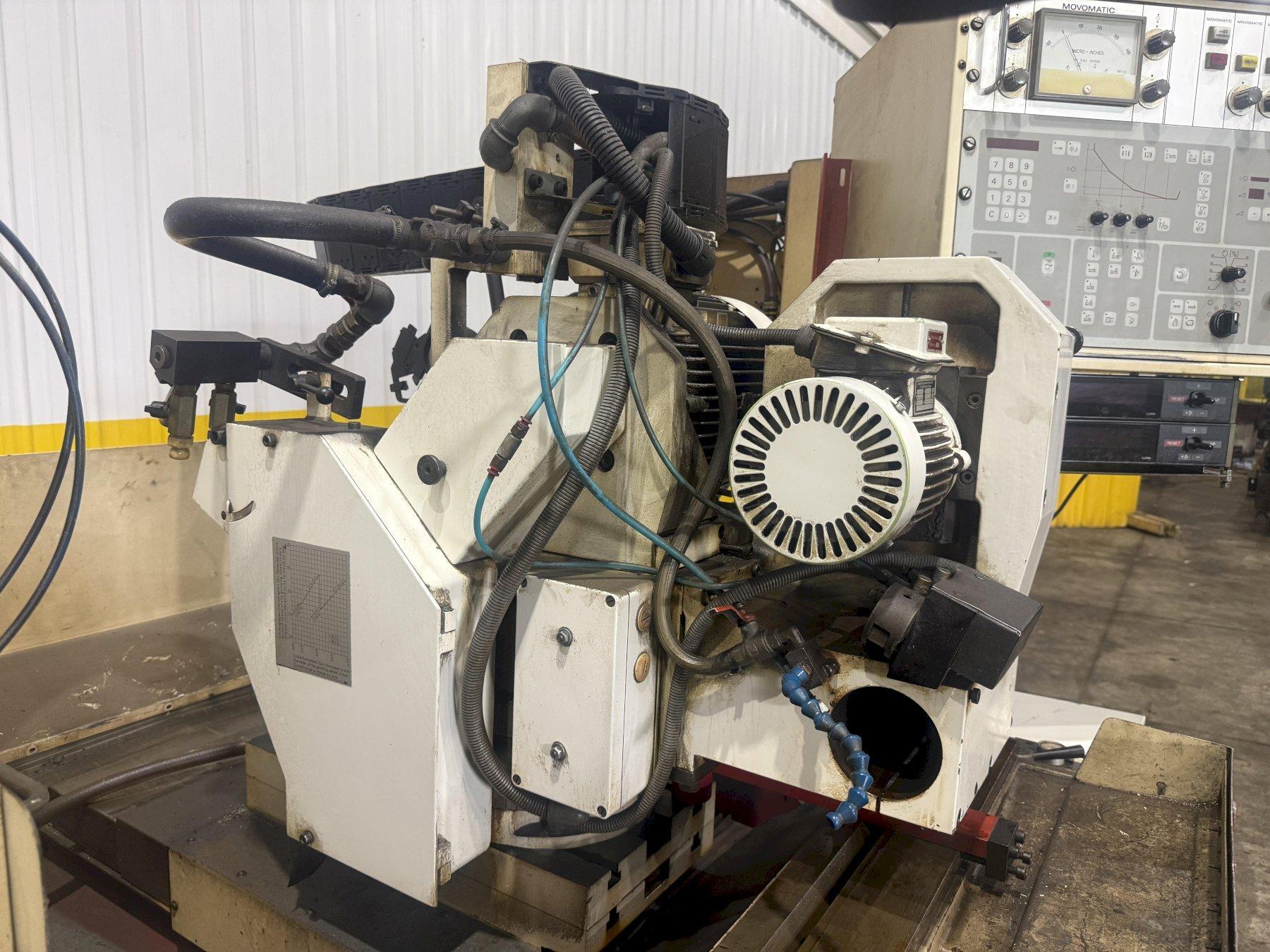

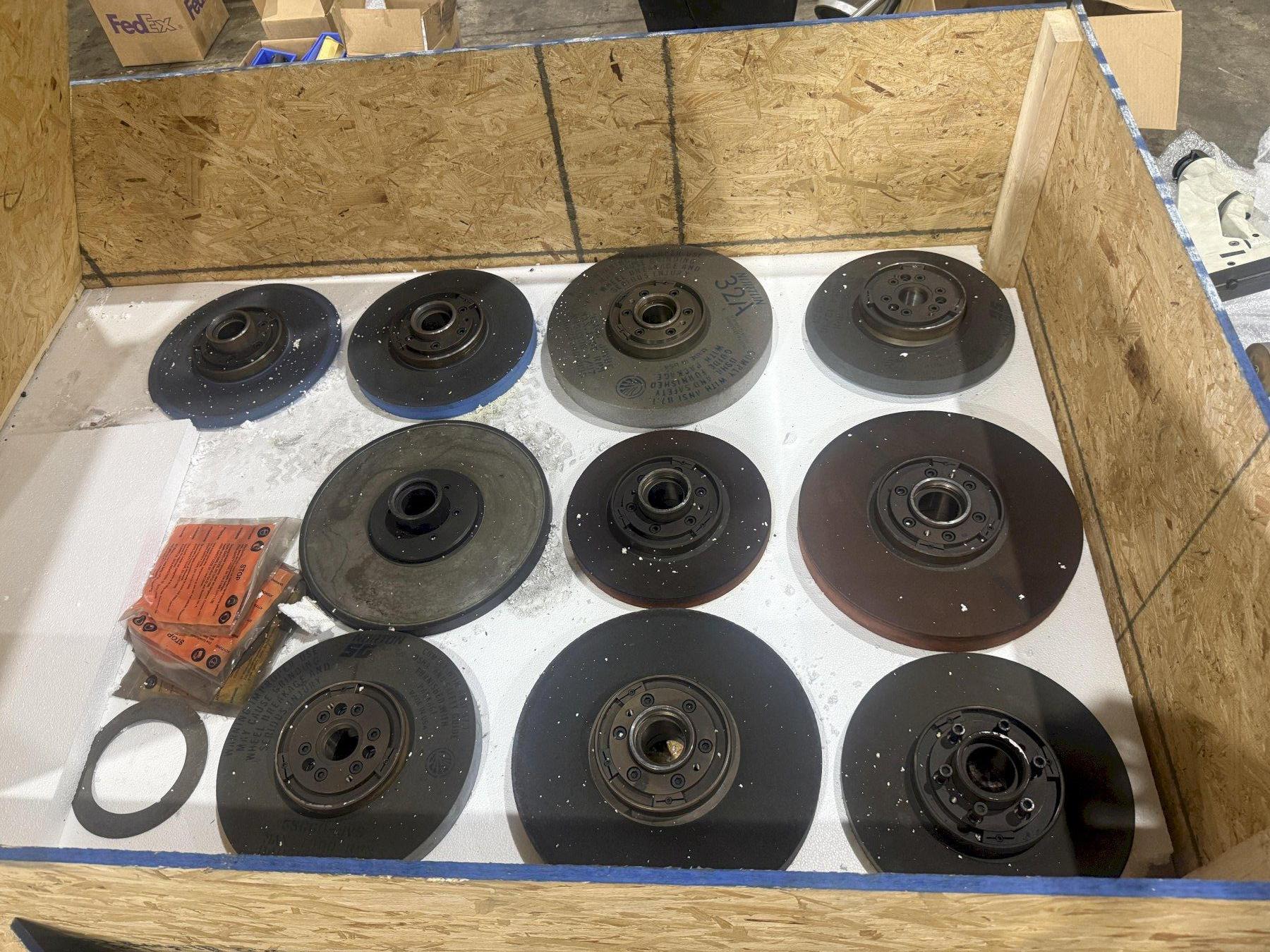

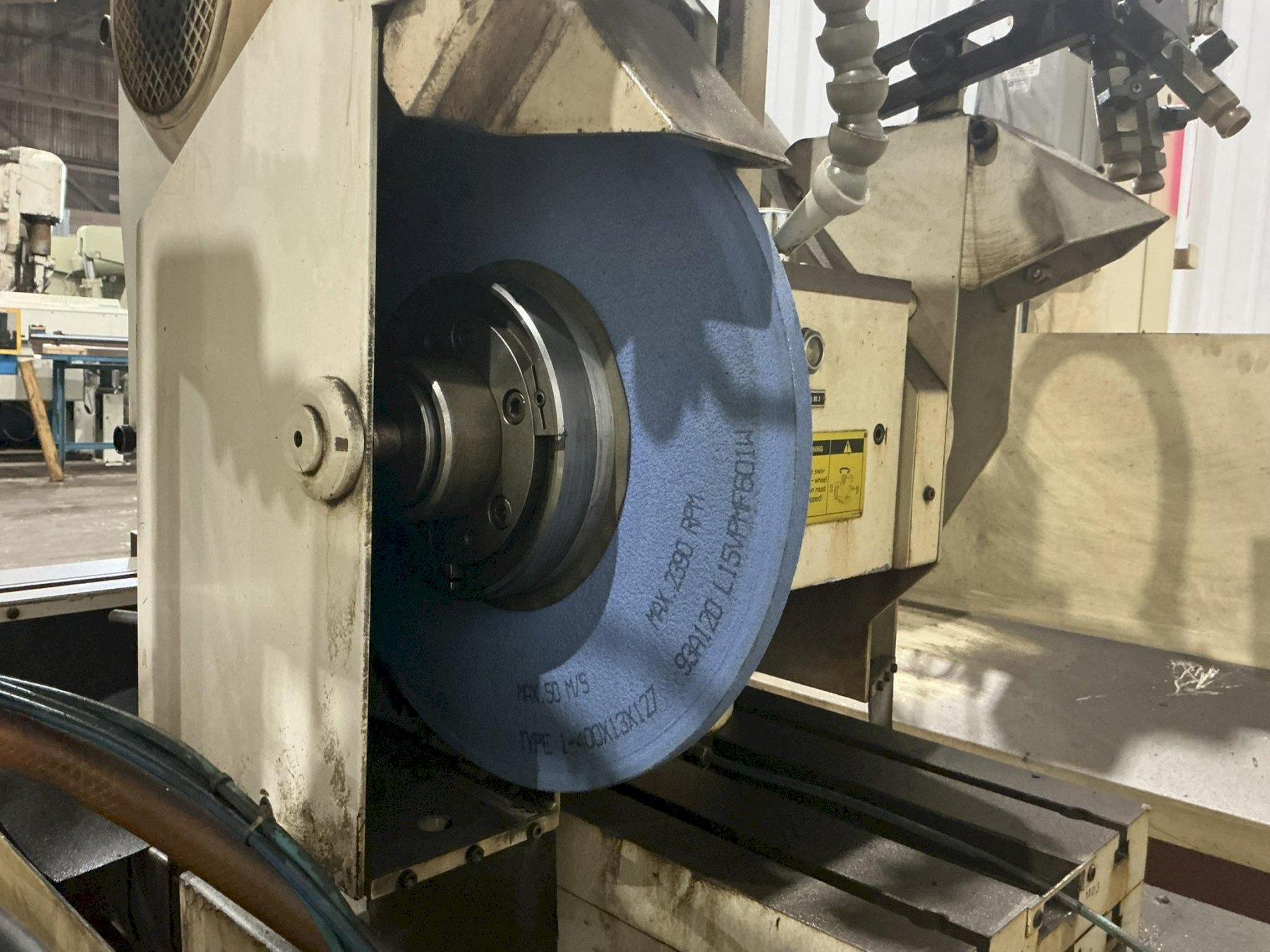

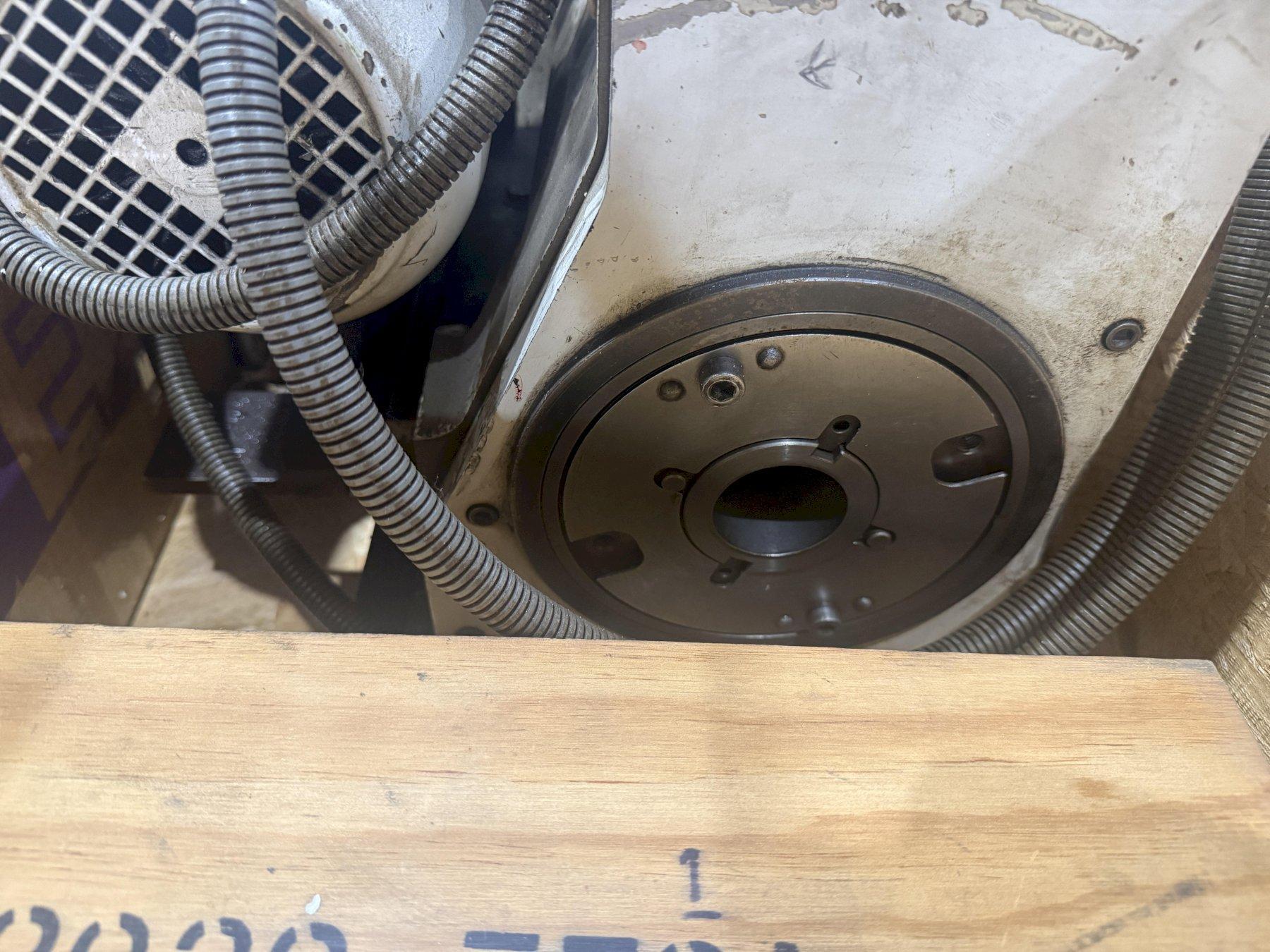

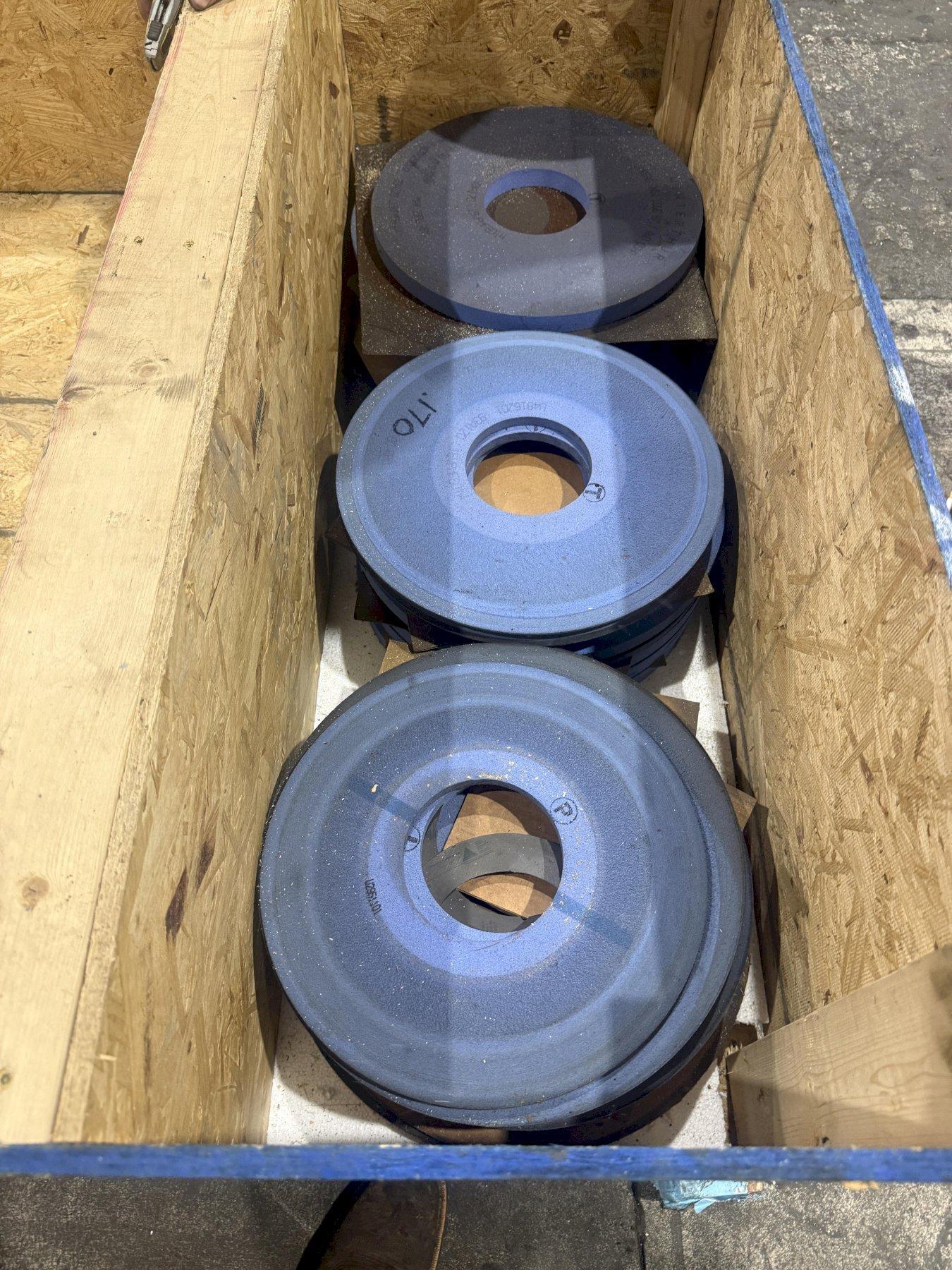

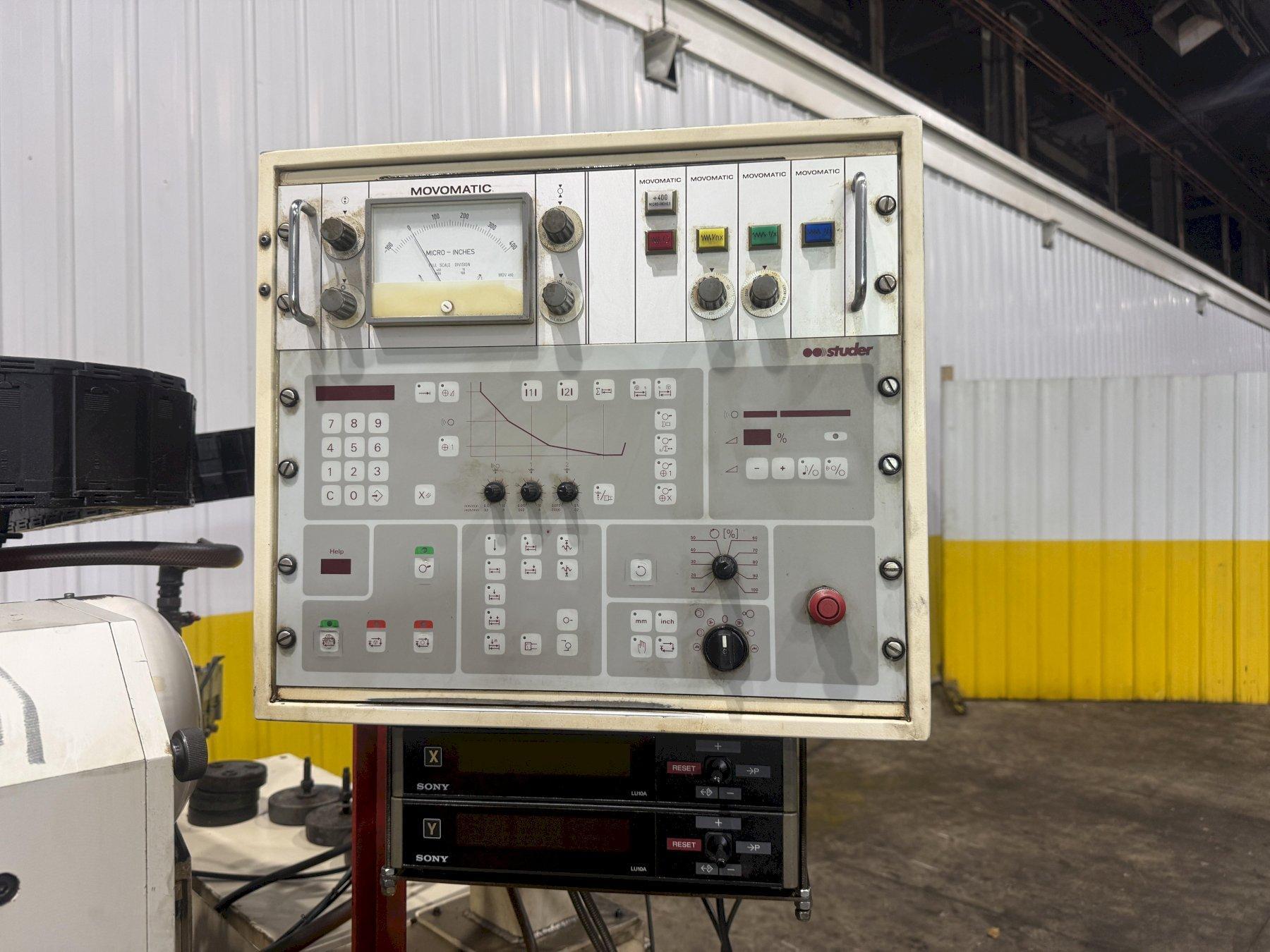

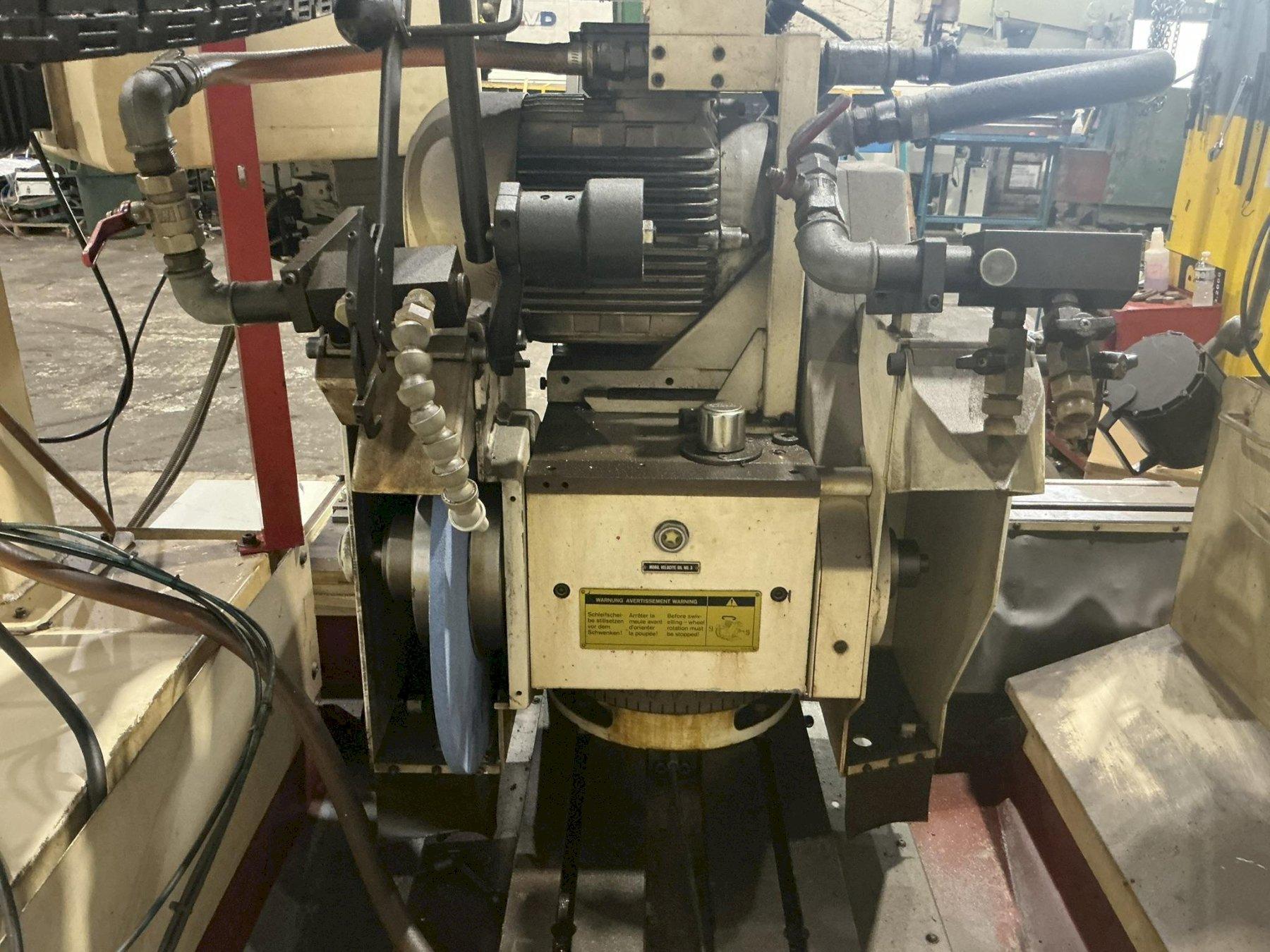

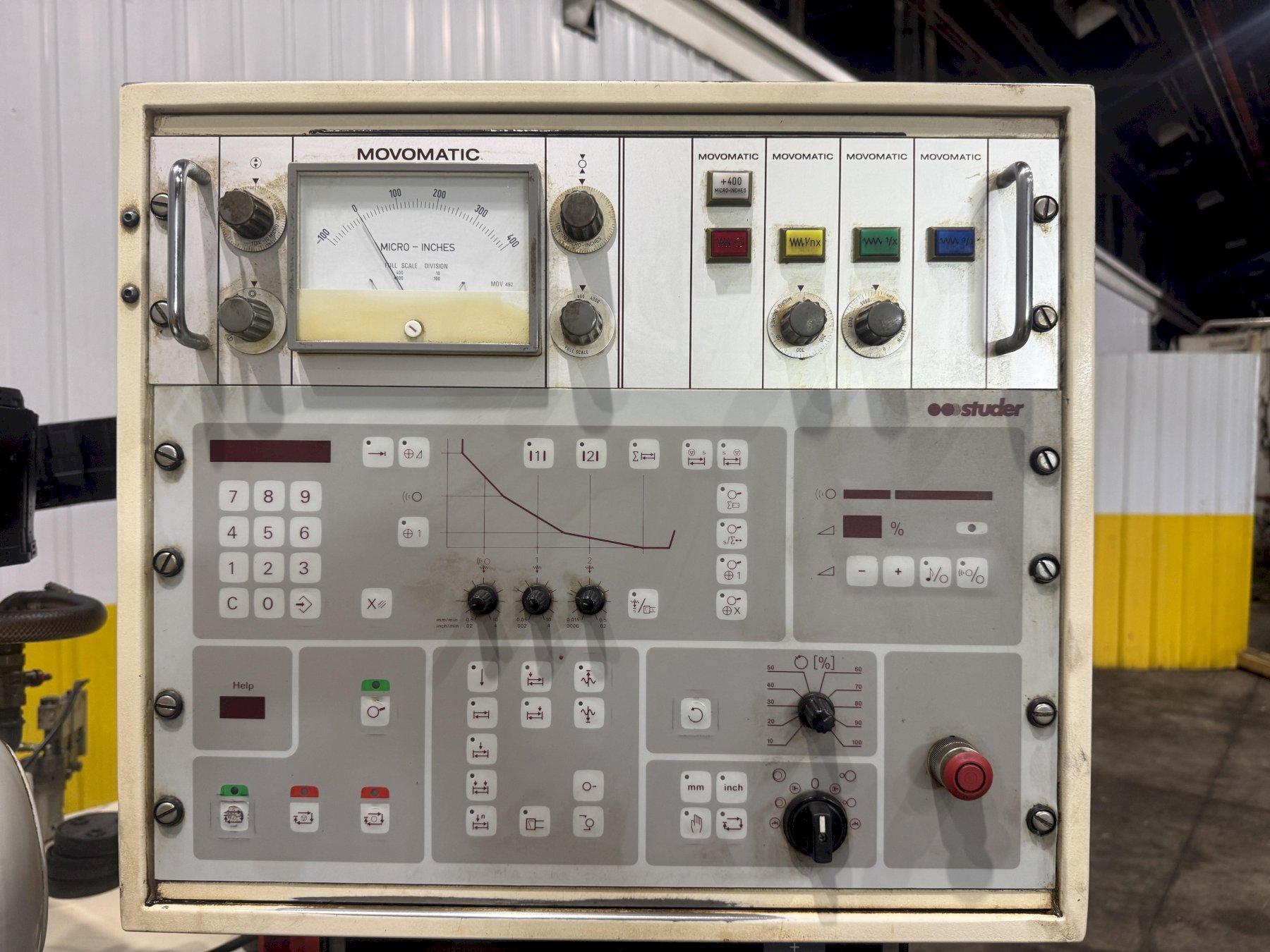

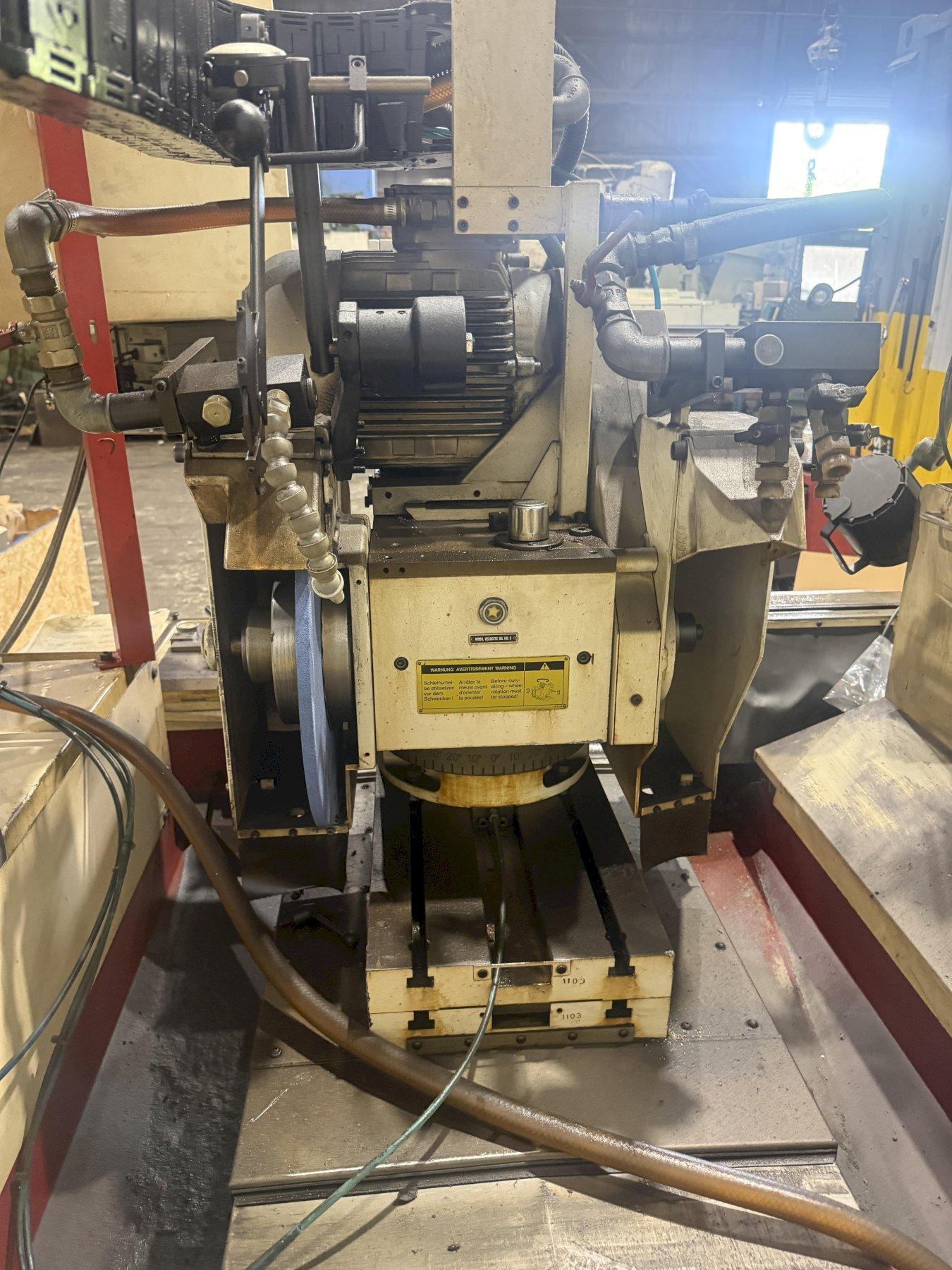

SERIAL ............... 1103 MODEL ................ S40-2 SWING ................ 8.9" CENTERS .............. 25.6" Workpiece weight between centers – 220 Lbs. Live grinding accuracy 0.000004″ Cross slide – X-axis Studer S40: Rapid infeed 1.97″ Travel – maximum 9.84″ Plunge depth 0.15″ Infeed 1 0.002 – 0.39 IPM Infeed 2 0.0006 – 0.02 IPM Incremental infeed 0.00004 – 0.004 IPM Longitudinal slide – Z-axis: Travel – maximum 27.6″ Speed 1.97 – 217 IPM Reversal dwell 0 – 9.9 Sec. Travel – minimum (automatic) 0.02″ Table swivel – maximum 10 Deg. Turret wheelhead: Swivel range (w/2-stops) 0 – 180 Deg. Drive power 7.5 HP Speeds 1,670/2,110 RPM Grinding wheel left 15.7″ x 3.15″ Grinding wheel right 15.7″ x 1.57″ Grinding wheel bores 5″ Circumferential speed 6,888 – 9,840 SFPM ID drive power 2 HP Stepless Drive Workhead Studer S40: Speed range 1 30 – 300 RPM Speed range 2 100 – 1,000 RPM Swivel range 0 – 90 Deg. Fitting taper Morse 5 Bar capacity 1.2″ Drive power 0.75 HP Live grinding load 44 ft. lbs. Tailstock: Fitting taper Morse 3 Barrel travel 1.18″ Studer S40 EQUIPPED WITH: Studer Sensitron Gap Eliminator control ID grinding spindle Stepless drive workhead with hydrodynamic bearing Automatic grinding cycles for plunge and traverse grinding Rapid wheel advance and retraction Spark out timer Tailstock with fine adjustment Coolant filtration system Bachofen Hydraulik hydraulic system Granitan vibration dampening base Splash guards

No files or videos to display
