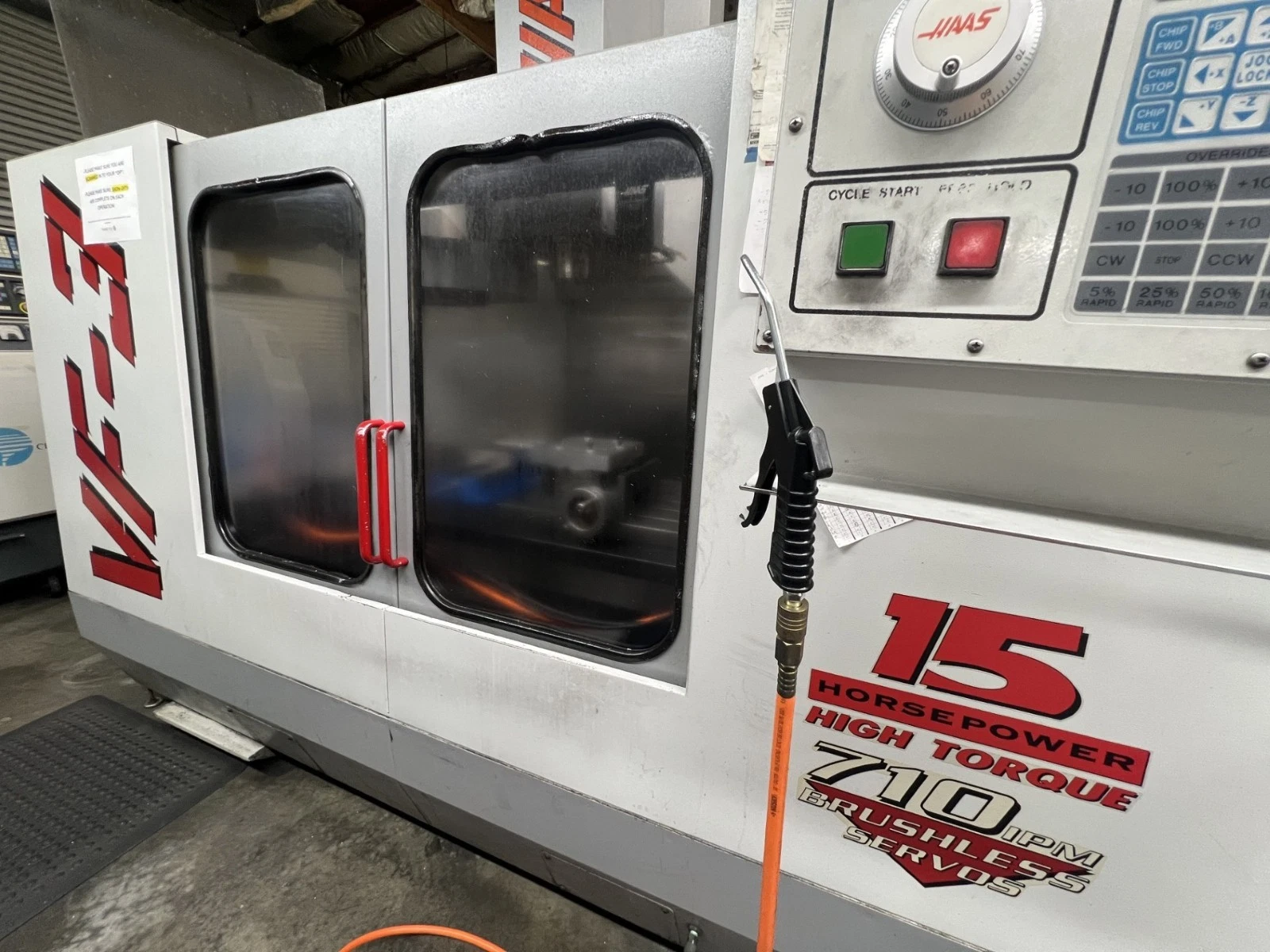

1996 Haas VF-3B CNC Vertical Machining Center | Geared Head | One-Owner | New Spindle 2018 | Under Power | $21,500

• 1996 Haas VF-3B CNC Vertical Machining Center | Geared Head | One-Owner | New Spindle 2018 | Under Power

• Condition: Used – Excellent Mechanical & Functional Condition

• Location: Hayward, CA (On shop floor, under power)

🚀 PREMIUM ADVANTAGES & SELLING POINTS (The "Bells & Whistles")

• The "B" Advantage (Geared Head): This is a true VF-3B model featuring the sought-after High-Torque 2-Speed Gearbox Drive. Ideal for rigid, heavy-milling operations in tough materials, steel, or mold work. Much scarcer and more valuable than standard belt-drive units.

• Single-Owner Pedigree: Purchased brand new from Selway Machine Tool. Never bounced around from shop to shop or abused by auction flippers.

• Verified New Spindle (2018): Low hours since a complete spindle replacement. Runs incredibly smooth and quiet through the full range with zero high-RPM bearing whine.

• In-House Maintenance History: Maintained strictly via regular, disciplined in-house preventative maintenance tracking and internal logbook documentation.

⚙️ PHYSICAL & MECHANICAL SPECIFICATIONS

• Manufacturer: Haas Automation, Inc. (Classic Los Angeles, CA Era)

• Model: VF-3B (High-Torque Gearbox Drive VMC)

• Serial Number: 7518

• Date of Manufacturing: May 1996 (5/96)

• X-Axis Travel: 40"

• Y-Axis Travel: 20"

• Z-Axis Travel: 25"

• Table Size: 48" x 18"

• Max Table Load: 3,500 lbs

• Spindle Taper: CAT 40

• Spindle Speed: 7,500 RPM Max

• Tool Changer: 20-Station Carousel (Umbrella Style)

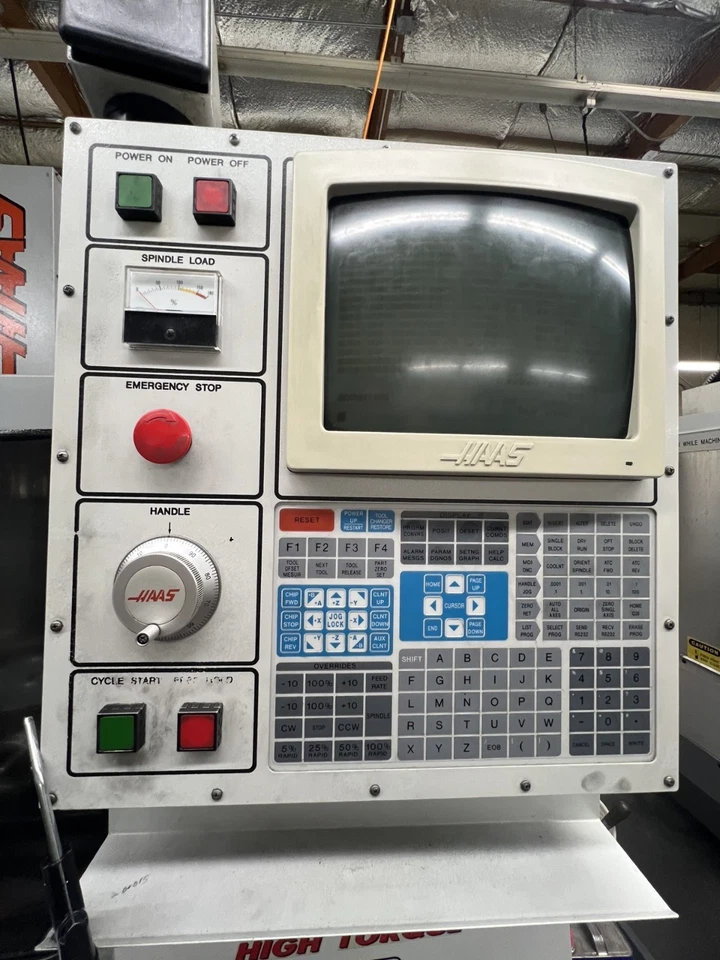

• Control Type: Classic Haas Control

• Coolant Options: Factory Programmable Coolant Nozzle (P-COOL)

• Chip Removal: Internal Chip Auger System Included

• Approximate Machine Weight: 12,500 lbs

• Approximate Machine Dimensions: 118" L x 98" W x 120" H

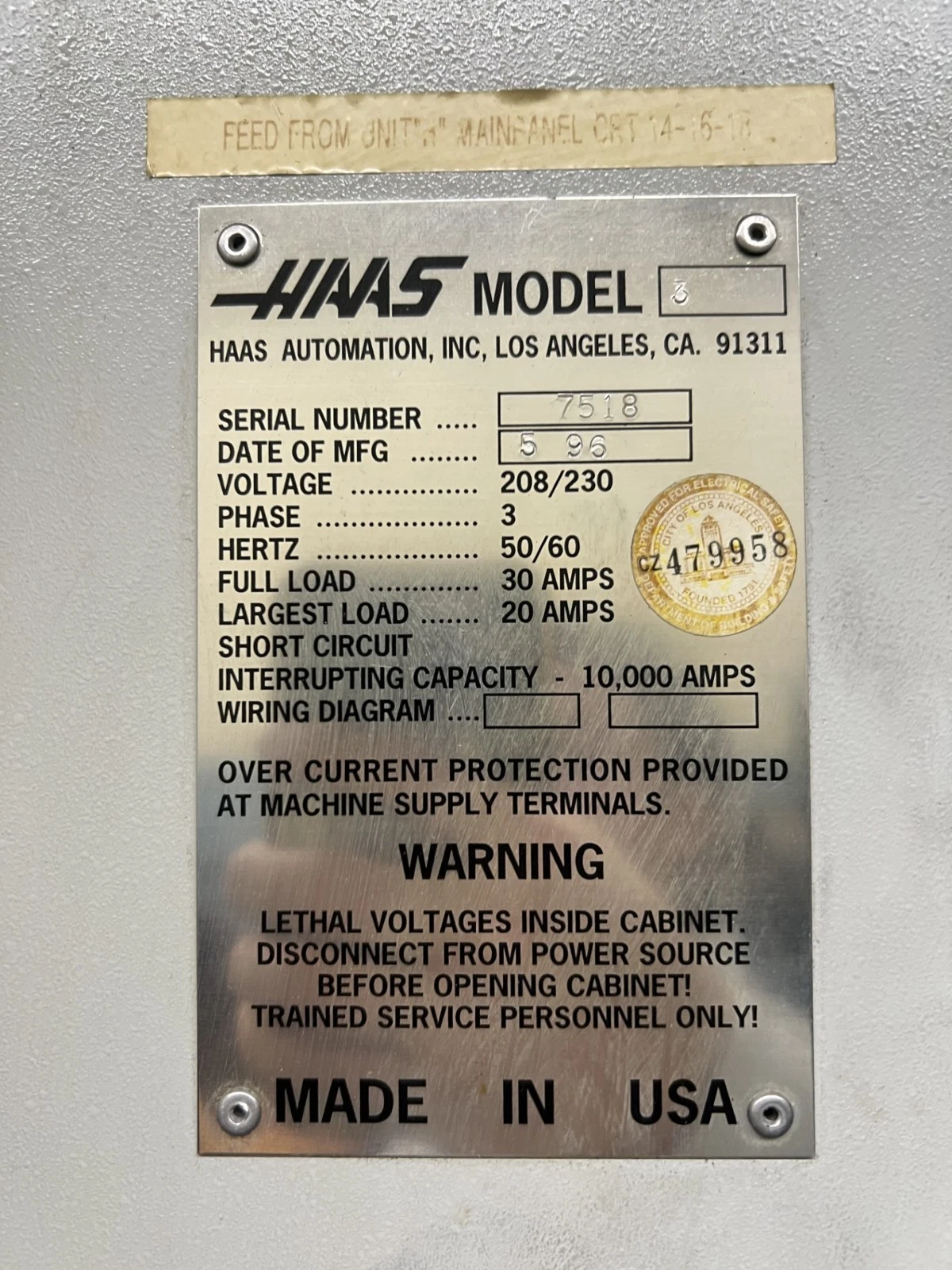

⚡ POWER & UTILITY REQUIREMENTS

• Voltage: 208/230 VAC

• Phase: 3-Phase

• Hertz: 50/60 Hz

• Full Load Current: 30 Amps

• Largest Load: 20 Amps

• Short Circuit Interrupting Capacity: 10,000 Amps

⚠️ CONDITION & DISCLOSURE NOTES

• Tool Changer Wear: The 20-station carousel shows some cosmetic and minor mechanical wear/damage typical for a mid-90s workhorse, but the unit remains functional.

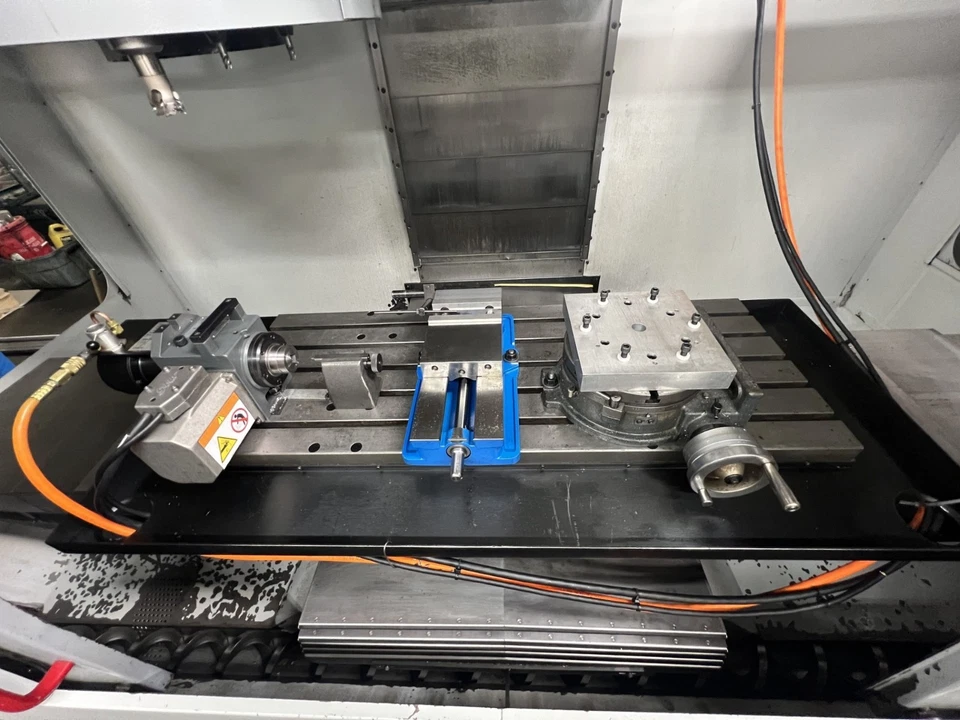

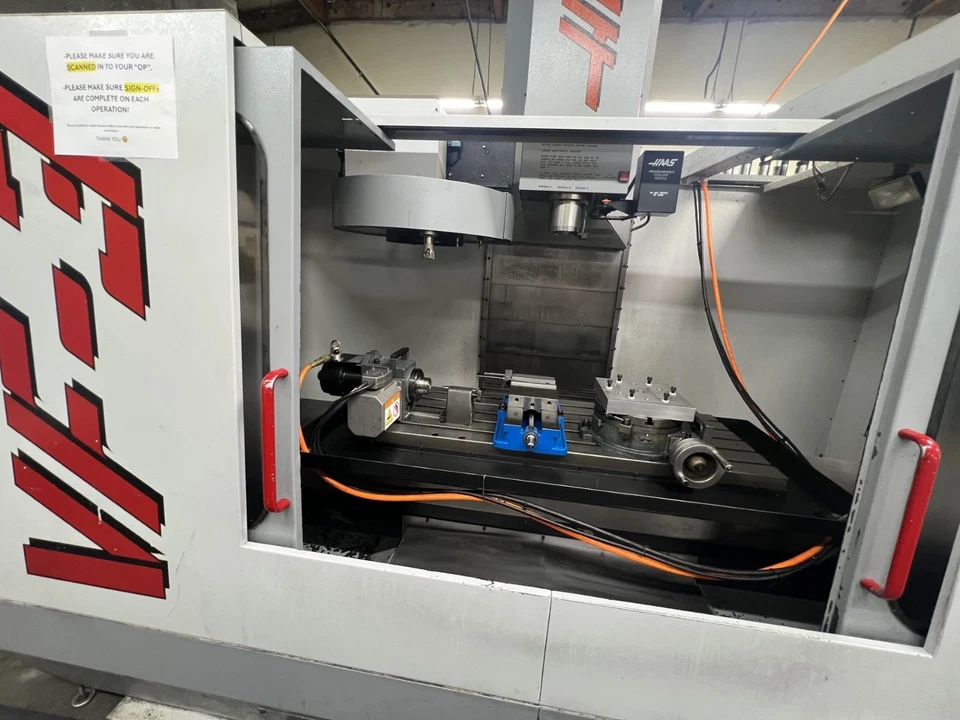

• Exclusions: Any rotary indexers, 4th-axis drives, or custom table fixtures visible in the shop environment photos are NOT included in this sale.

🚛 LOGISTICS, RIGGING & TRUCKING

• Operational Status: Currently under power and fully available for inspection on the facility floor in Hayward, CA.

• Rigging & Trucking: NOT INCLUDED. Rigging out of the facility, loading, and all trucking/freight logistics are the absolute responsibility of the buyer. Professional outside rigging is required for removal. Local Northern California rigger contact information can be provided upon request.
