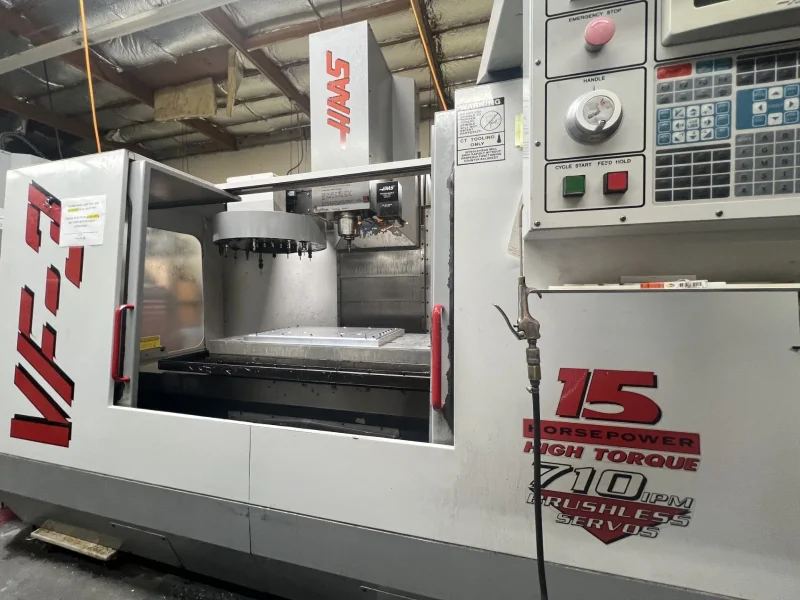

1997 Haas VF-3 CNC Vertical Machining Center | Only 7,700 Hours | One-Owner | Calmotion USB | Selway Serviced 2025 | Under Power | $22,500

📌 BASIC LISTING DETAILS

• Title: 1997 Haas VF-3 CNC Vertical Machining Center | Only 7,700 Hours | One-Owner | Calmotion USB | Selway Serviced 2025 | Under Power

• Condition: Used – Excellent Mechanical & Functional Condition

• Location: Hayward, CA (On shop floor, under power)

🚀 PREMIUM ADVANTAGES & SELLING POINTS (The "Bells & Whistles")

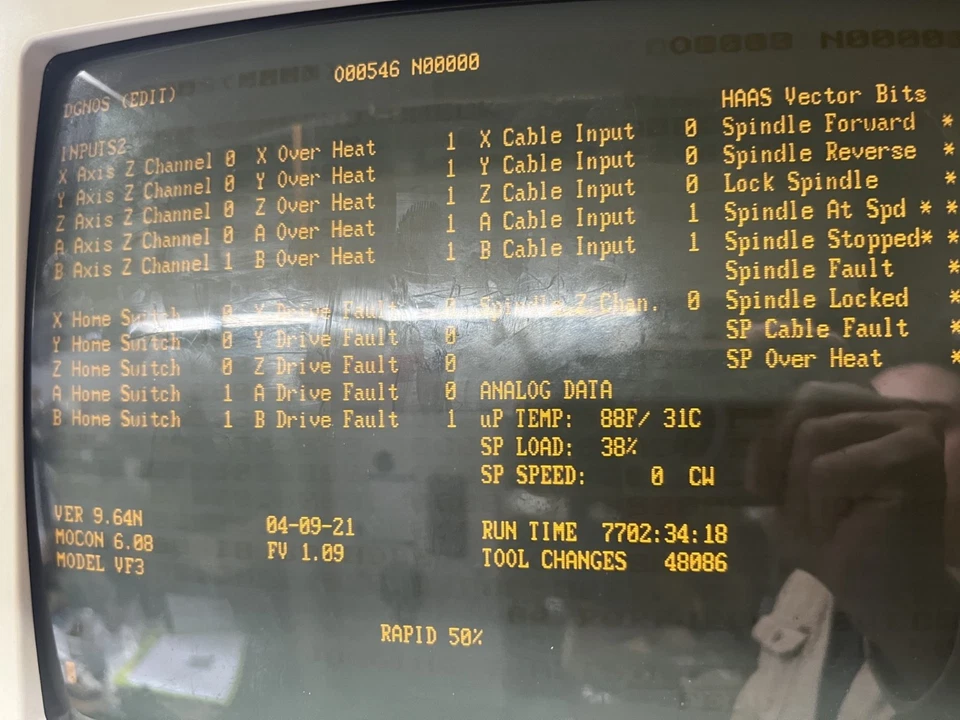

• Extremely Low Verified Hours: Only 7,702 total lifetime run hours and 48,086 total lifetime tool changes. This machine was used exclusively for short-run, low-volume toolroom work—never thrashed in a high-production facility.

• Calmotion USB Interface Retrofit: Includes a factory-integrated Calmotion USB-to-Serial unit plug-in. Allows seamless loading and drip-feeding of large modern CAM/G-code programs directly from a standard USB thumb drive (no legacy floppy disks or messy RS-232 serial cabling required).

• Single-Owner Pedigree: Purchased brand new from Selway Machine Tool. Documented history from a clean facility floor.

• Verified New Spindle (2018): Low operational hours since a complete spindle replacement. Runs exceptionally quiet up to maximum RPMs.

• Recent Selway Service & Logs: Last outsourced field service performed directly by Selway on 3/31/2025 (replaced air/oil pressure kit switch). Meticulously documented by disciplined in-house PM log tracking.

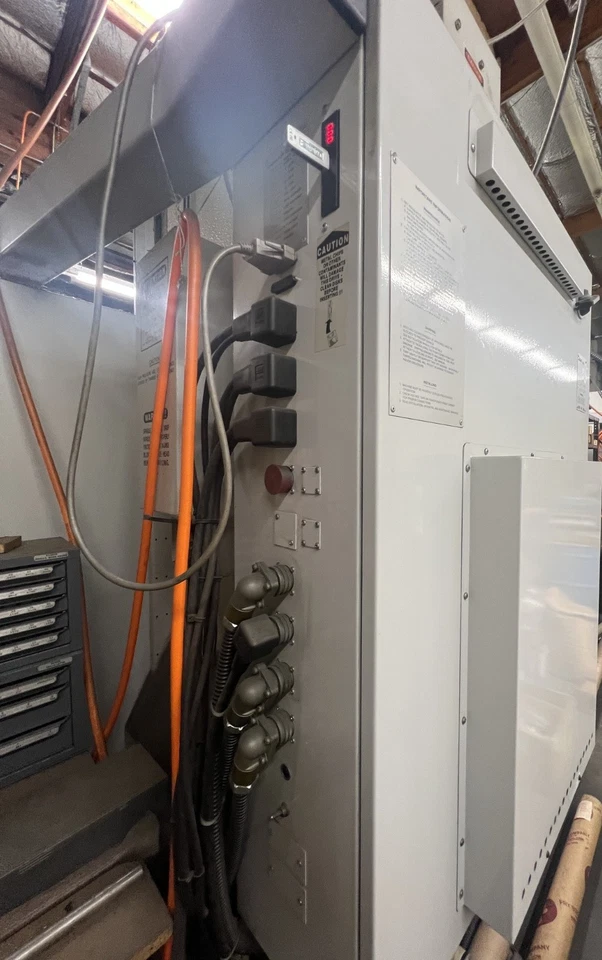

• Factory 4th & 5th Axis Pre-Wire: Side panel connector blocks and internal amp tracks are fully configured from the factory for plug-and-play rotary indexing.

⚙️ PHYSICAL & MECHANICAL SPECIFICATIONS

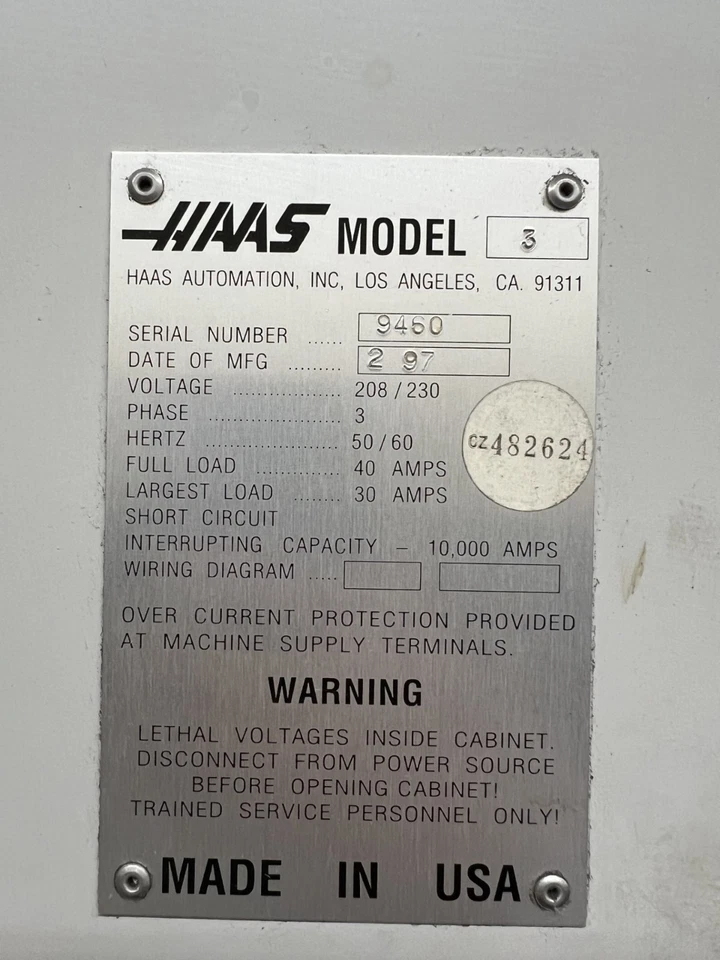

• Manufacturer: Haas Automation, Inc. (Classic Los Angeles, CA Era)

• Model: VF-3 Standard

• Serial Number: 9460

• Date of Manufacturing: February 1997 (2/97)

• Software Version: Rock-Solid, Stable Ver 9.64N (MOCON 6.08)

• X-Axis Travel: 40"

• Y-Axis Travel: 20"

• Z-Axis Travel: 25"

• Table Size: 48" x 18"

• Max Table Load: 3,500 lbs

• Spindle Taper: CAT 40

• Spindle Speed: 8,100 RPM Max

• Servos: High-Reliability 710 IPM Brushless Servos

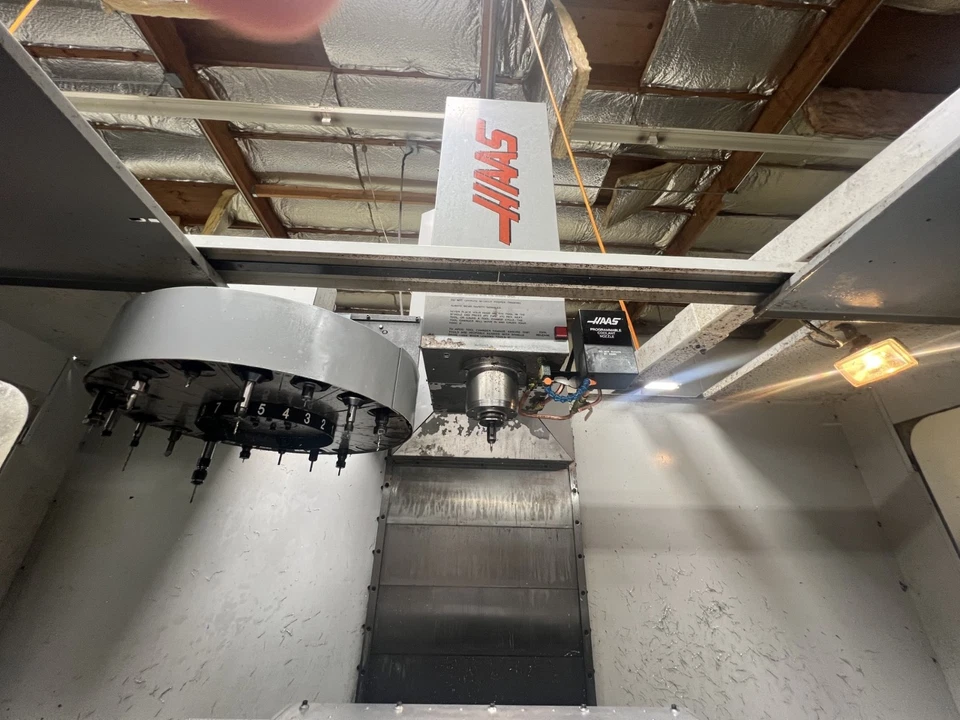

• Tool Changer: 20-Station Carousel (Umbrella Style)

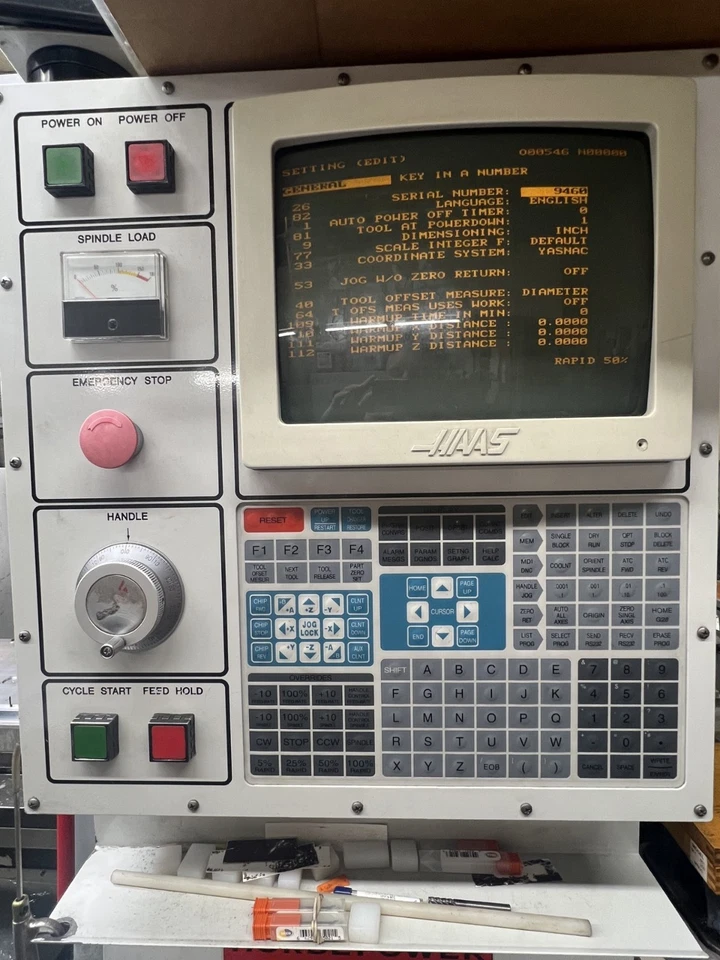

• Control Type: Classic Haas Control

• Coolant Options: Factory Programmable Coolant Nozzle (P-COOL)

• Chip Removal: Internal Chip Auger System Included

• Approximate Machine Weight: 12,500 lbs

• Approximate Machine Dimensions: 118" L x 98" W x 120" H

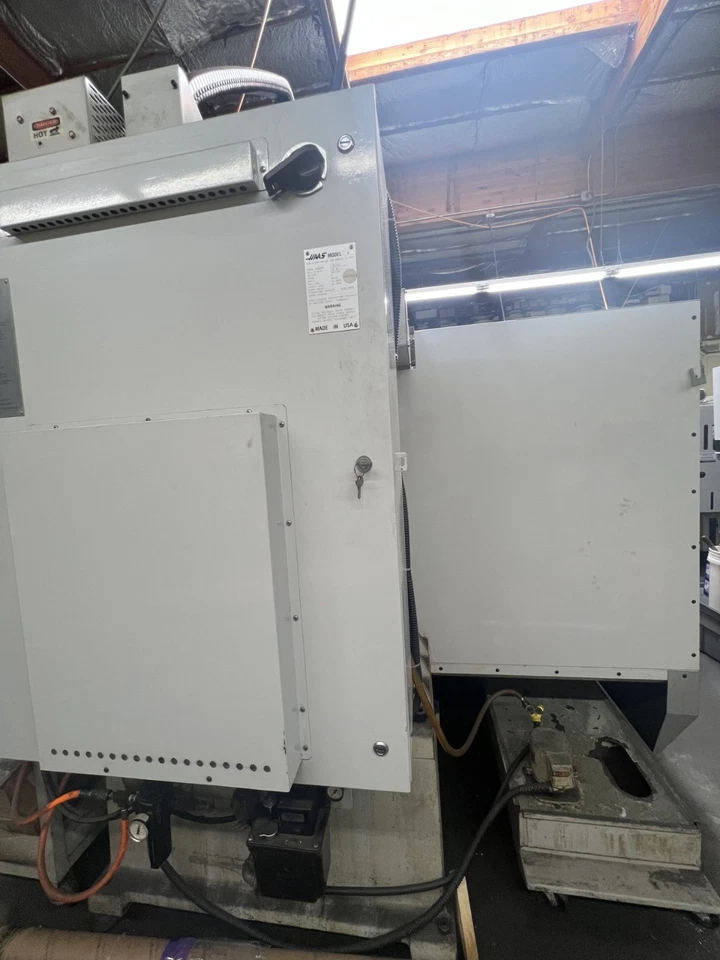

⚡ POWER & UTILITY REQUIREMENTS

• Voltage: 208/230 VAC

• Phase: 3-Phase

• Hertz: 50/60 Hz

• Full Load Current: 40 Amps

• Largest Load: 30 Amps

• Short Circuit Interrupting Capacity: 10,000 Amps

⚠️ CONDITION & DISCLOSURE NOTES

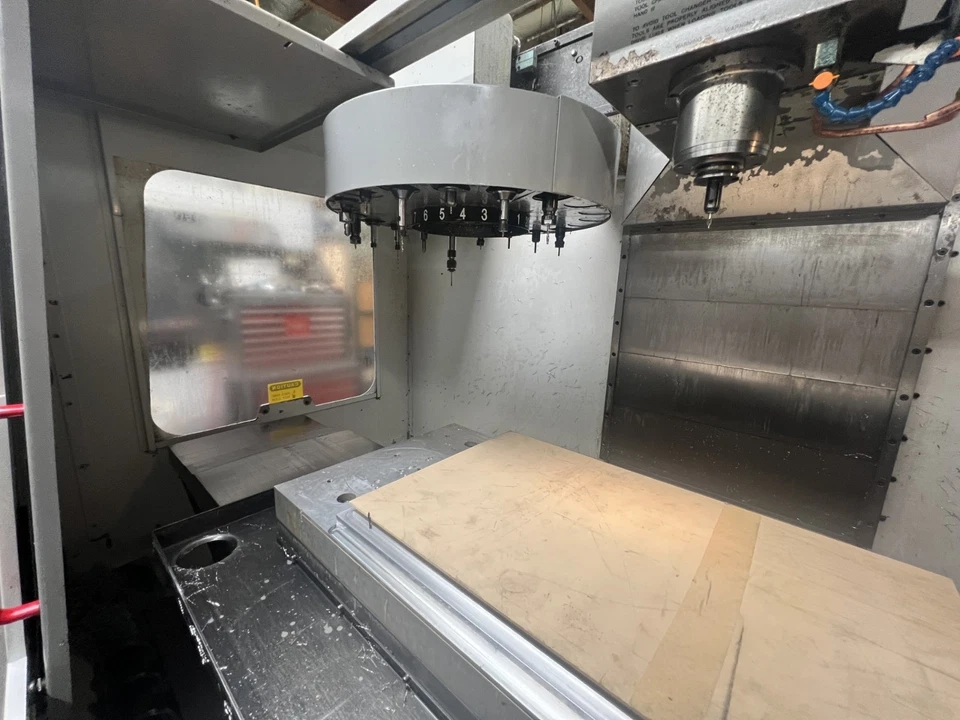

• Tool Changer Wear: The 20-station carousel shows some cosmetic and minor mechanical wear/damage typical for a mid-90s machine, but the assembly remains operational.

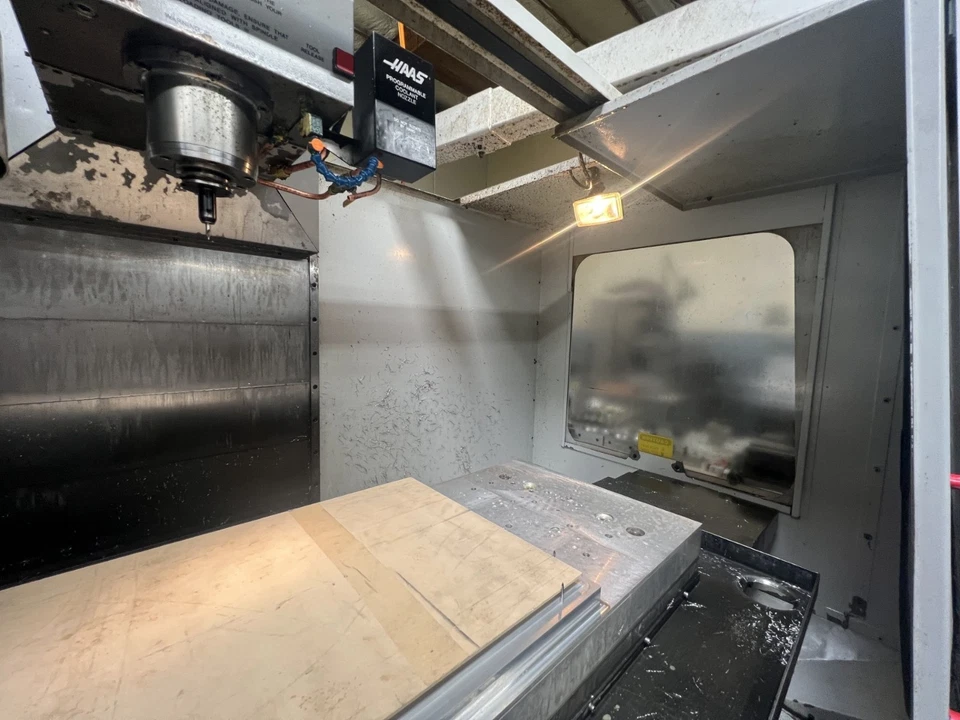

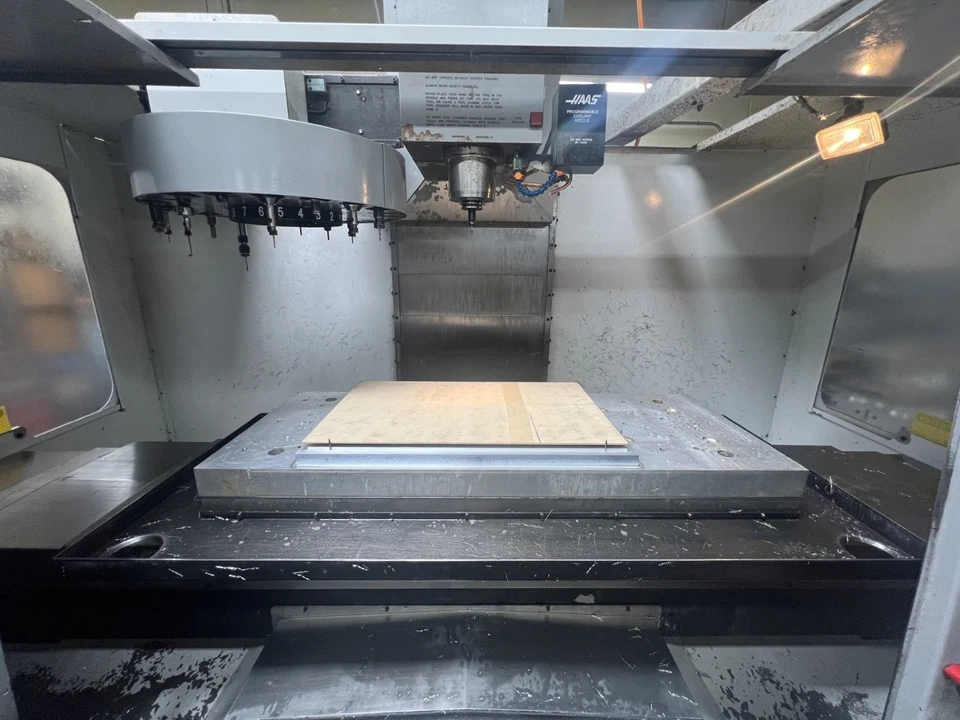

• Exclusions: The aluminum fixture plates, wood protective sheeting, and any independent rotary indexers sitting on the table in photos are NOT included in this sale.

🚛 LOGISTICS, RIGGING & TRUCKING

• Operational Status: Currently under power and fully available for inspection on the facility floor in Hayward, CA.

• Rigging & Trucking: NOT INCLUDED. Rigging out of the facility, loading, and all trucking/freight logistics are the absolute responsibility of the buyer. Professional outside rigging is required for removal. Local Northern California rigger contact information can be provided upon request.
