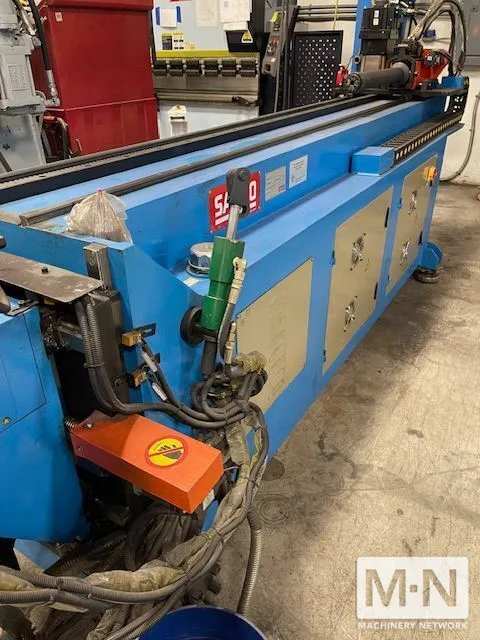

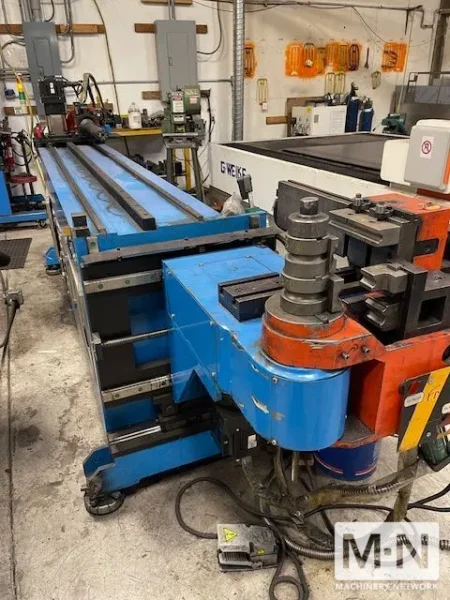

201 SANCO SB-38 CNC-DR-E-R IPC DOUBLE STACKTBE BENDER

General Machine Type

Fully automatic CNC tube bender (multi-axis)

Double-radius (DR) / double-stack capable

Electric bending + servo-controlled axes

Hydraulic clamping & mandrel systems

Industrial PC (IPC) control with 3D simulation

➡️ Designed for 3D complex bends with automatic YBC or XYZ programming

📏 Capacity & Work Range

Max tube capacity:

Ø38 mm x 3 mm wall

Material types:

Carbon steel, stainless, aluminum, copper

Min bend radius: ~1×OD (with tooling)

Max bend angle: 190°

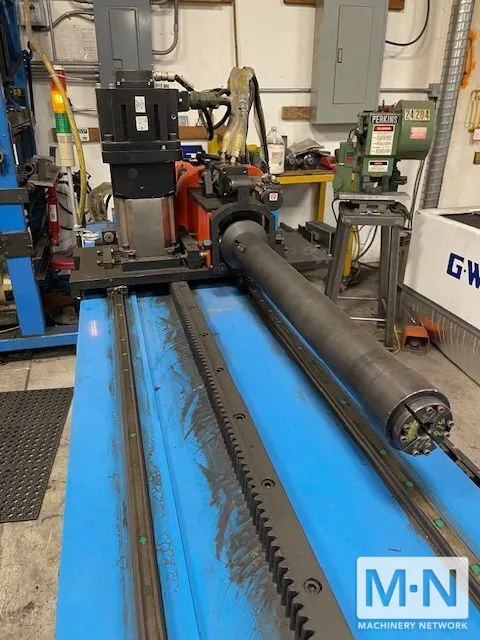

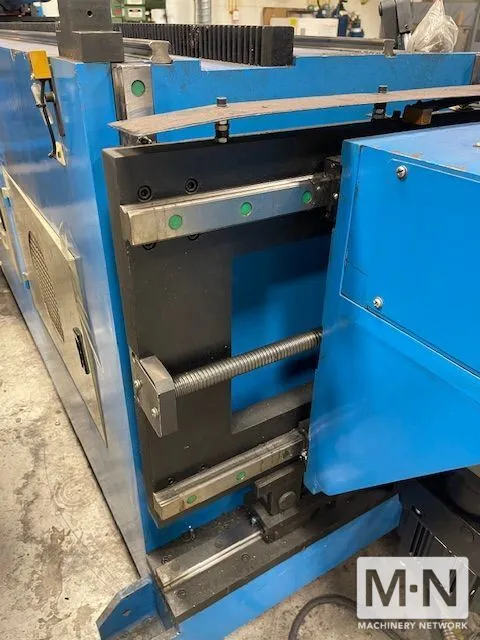

⚙️ Axis / Motion System
Typical configuration (servo driven):

Y-axis (feed): servo

B-axis (rotation): servo

C-axis (bend): servo/electric

Clamp / pressure die / mandrel: hydraulic or pneumatic assist

✔ This is what gives it full CNC 3-axis (or more with options) capability.

🚀 Speeds & Accuracy

Bending speed: ~160°/sec

Feeding speed: ~1000 mm/sec

Rotation speed: ~210°/sec

Precision:

Bend accuracy: ±0.05°

Feed accuracy: ±0.05 mm

Rotation accuracy: ±0.05°

👉 This is tight tolerance for a mid-tier CNC bender—comparable to entry-level SOCO class machines.

📐 Mandrel & Tooling

Standard mandrel length: ~2100 mm

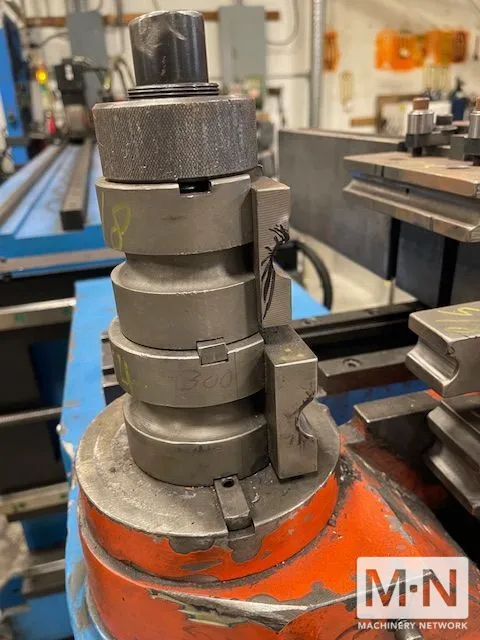

Double-stack tooling:

Allows two radii in one setup (DR)

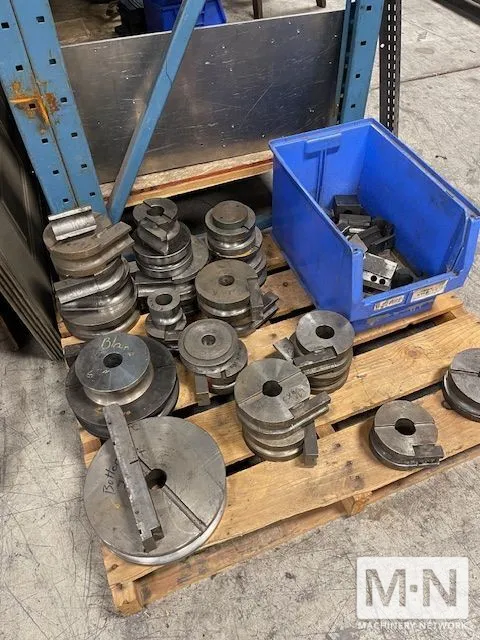

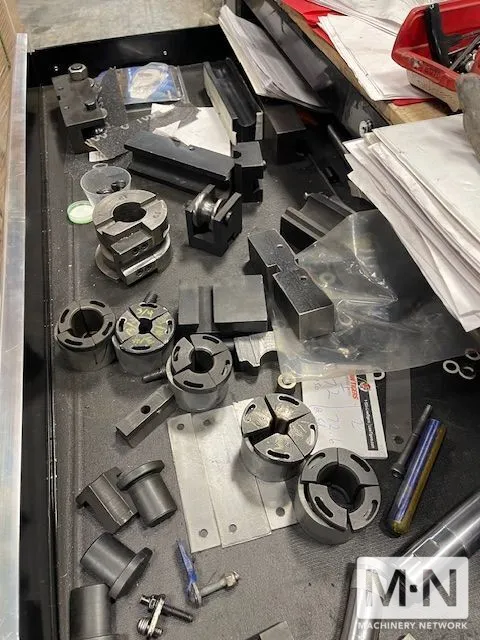

Standard tooling includes:

Clamp die

Pressure die

Wiper die

Mandrel

Bend die

Reclamp function: enables long part bending beyond carriage length

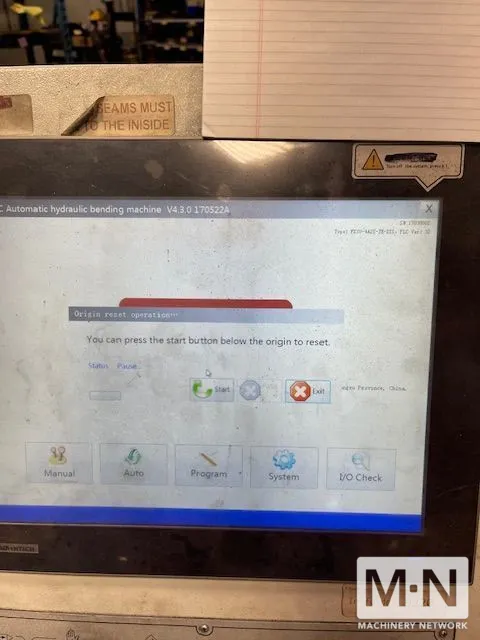

💻 Control System (IPC Version)

Industrial PC (Windows-based)

3D simulation + 3D visualization

CAD file import capability

YBC / XYZ input

Remote diagnostics capability

👉 This is the key upgrade vs. standard PLC machines.

🔄 Double Stack / DR Features

Two radii available without tool change

Optional:

Multi-radius (MR)

Roll bending

Push bending (R function)

Hole punching / cutting integration

🛠️ Standard Features

Automatic lubrication system (mandrel & head)

Separate hydraulic oil tank with filtration

Pneumatic clamp & mandrel movement (fast cycle)

Cooling options (oil / air / water)

Safety light or guarding options

⚡ Electrical / Build

Mix of Japanese / European electrical & hydraulic components

Taiwan-based bending technology platform

CE / ISO compliant

🧠 Straight Take (What Matters)

38mm capacity = small-to-mid tube work (automotive, furniture, HVAC, handrails)

DR + IPC = big jump in capability vs basic CNC

Speed is high, accuracy is solid for its class

Not a premium brand, but very capable production machine
