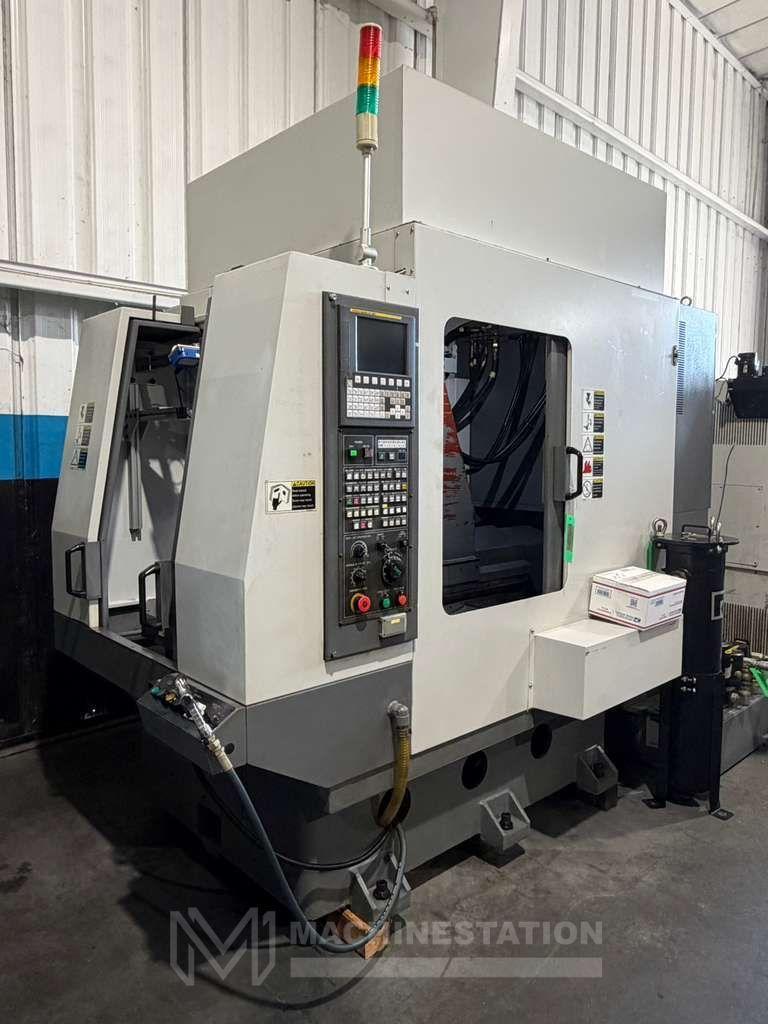

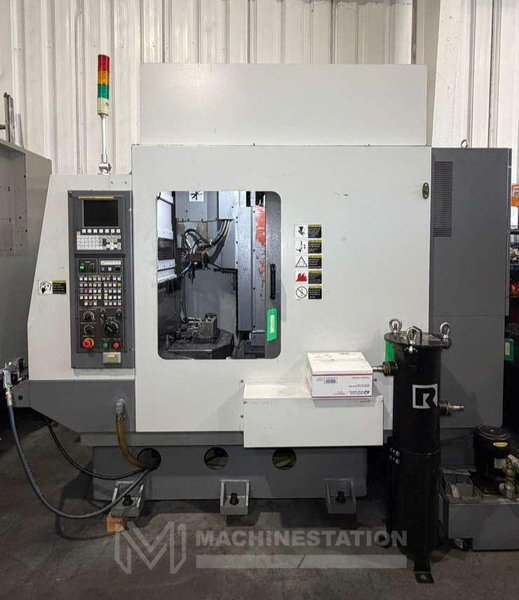

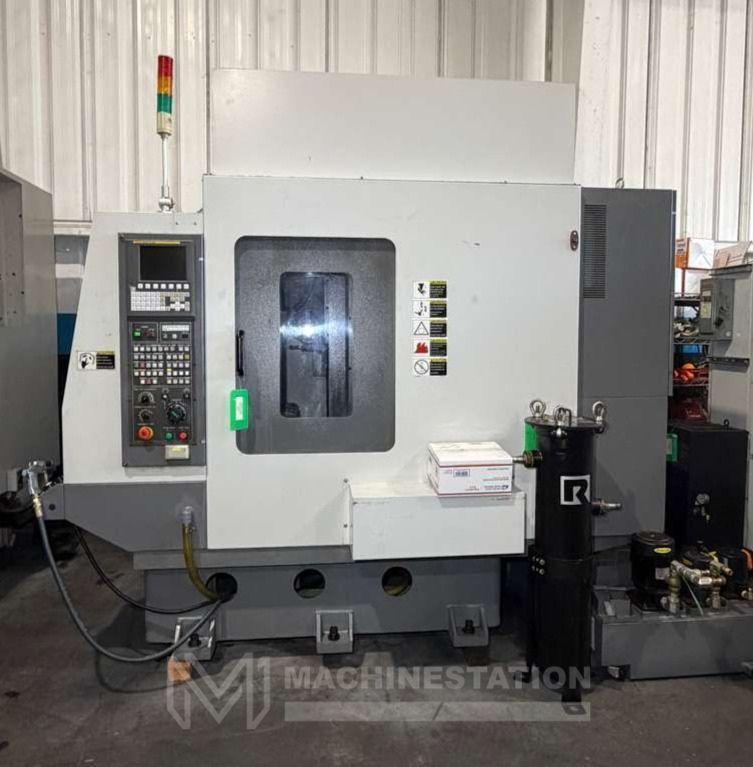

DMC DT32CD CNC Drill Tap Center – 10,000 RPM, Pallet Changer Mill

DMC DT32CD CNC Drill Tap Center – 10,000 RPM, Pallet Changer Mill

Name: DMC DT32CD CNC Drill Tap Center – 10,000 RPM, Pallet Changer Mill
Brand: DMC
SKU: 113559
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	DMC
Model:	DT32CD
Year:	2013

Features:

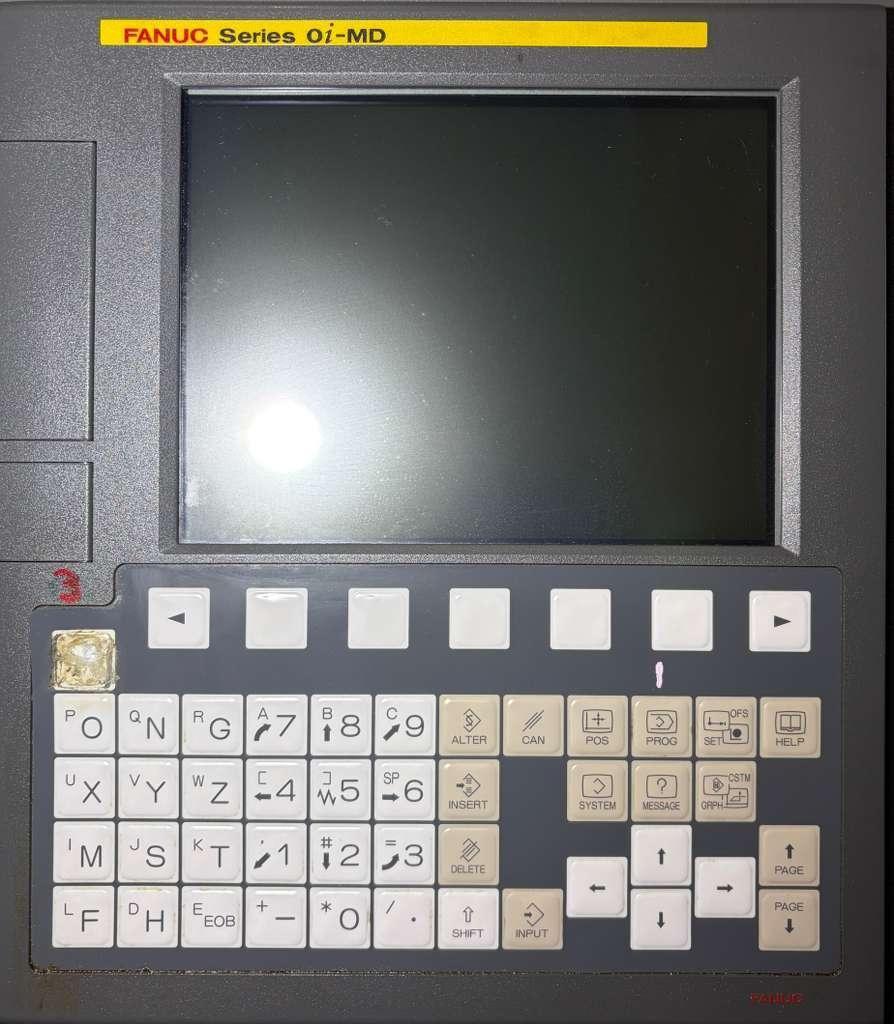

Fanuc Oi-MD Series CNC Control

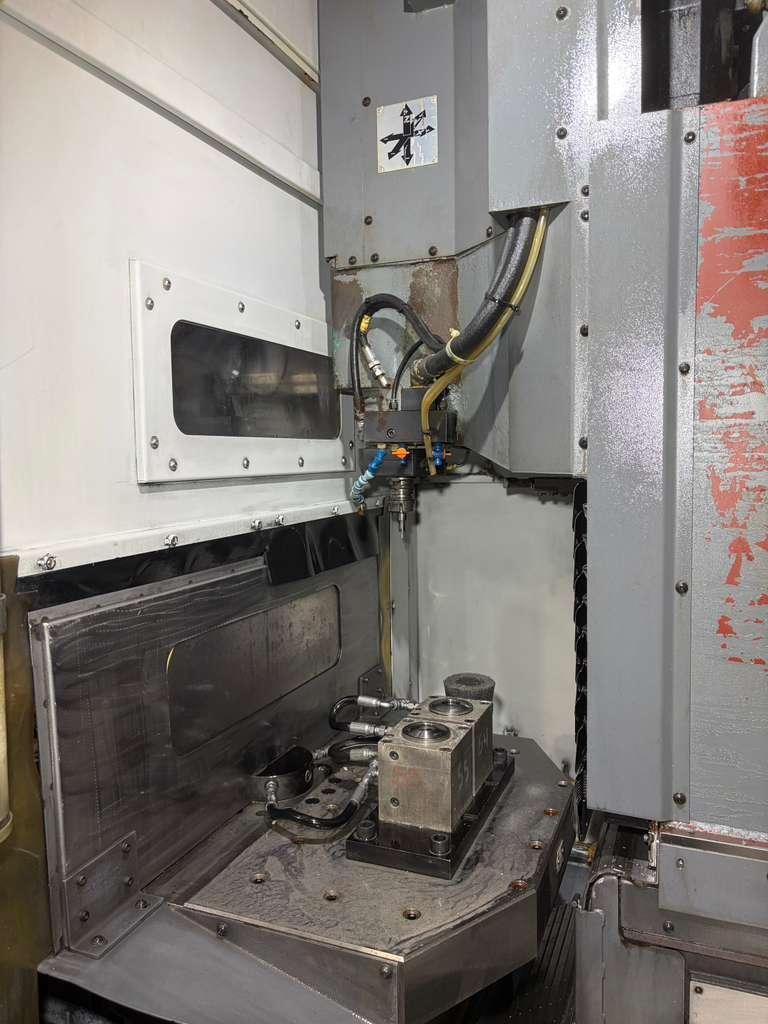

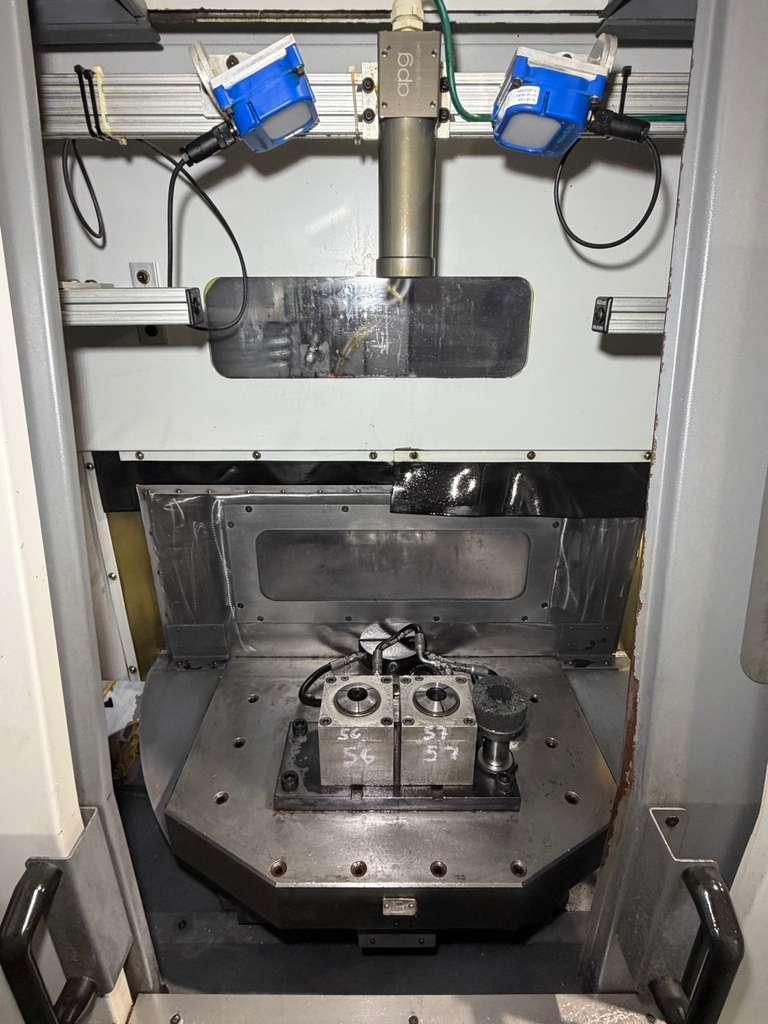

Rotary Pallet Changer

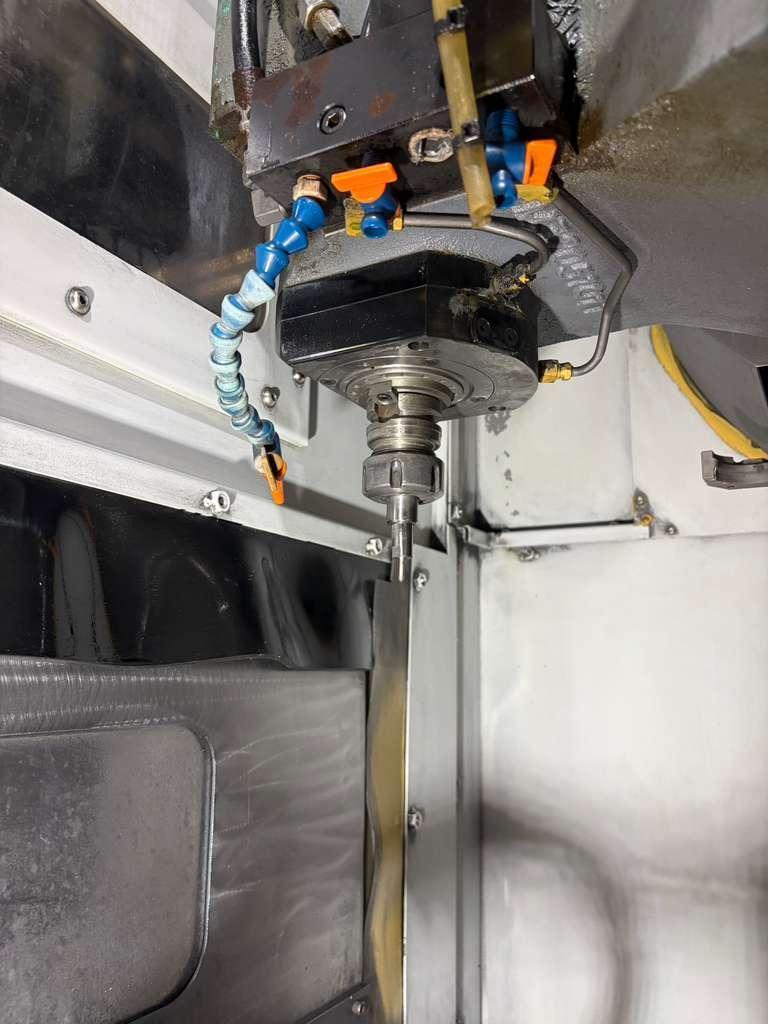

10,000 RPM High Speed Spindle
BT-30 Taper Spindle

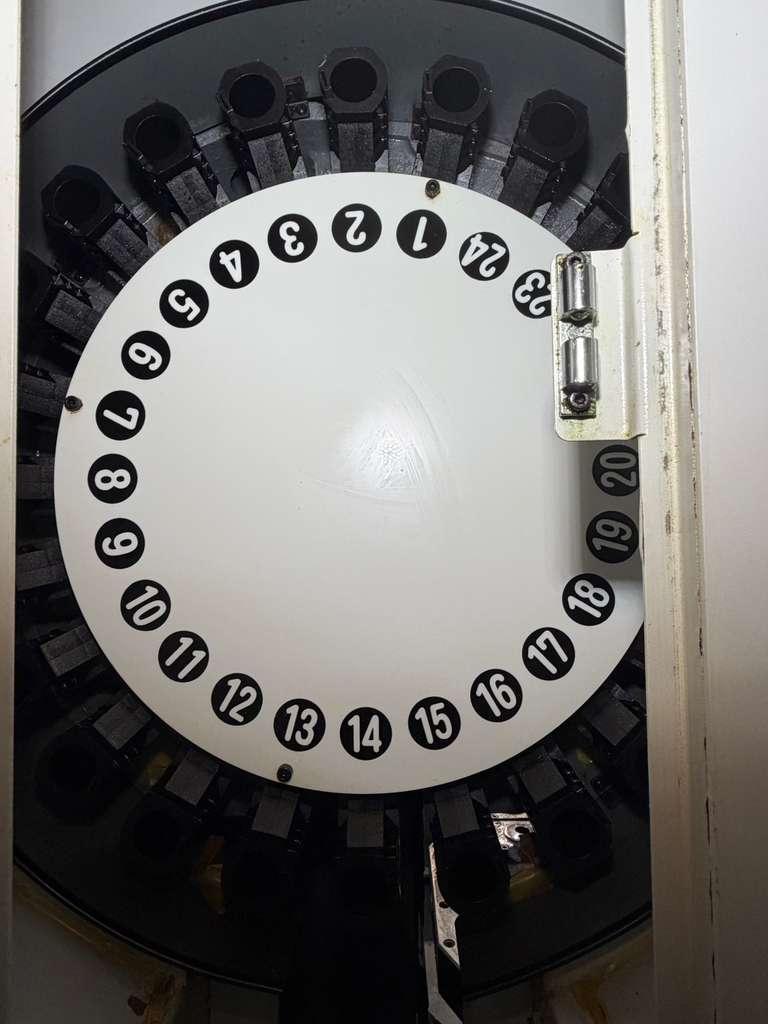

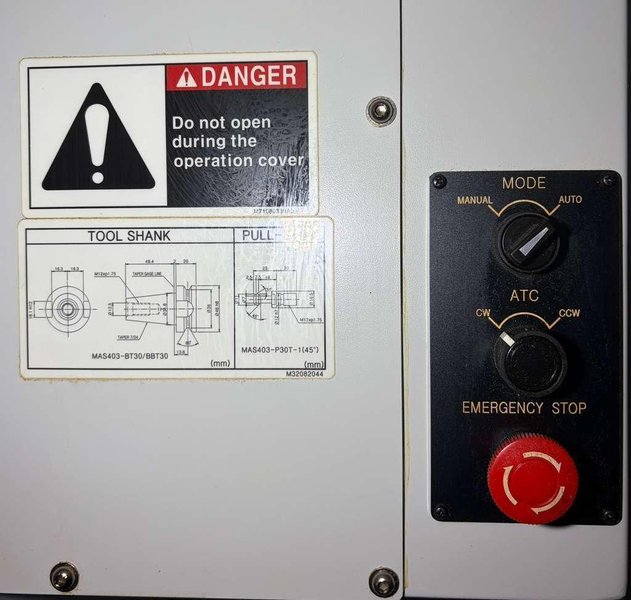

24 Station Automatic Tool Changer
Through Spindle Coolant
PCMCIA Card Interface
Spindle Chiller Unit
Rigid Tapping

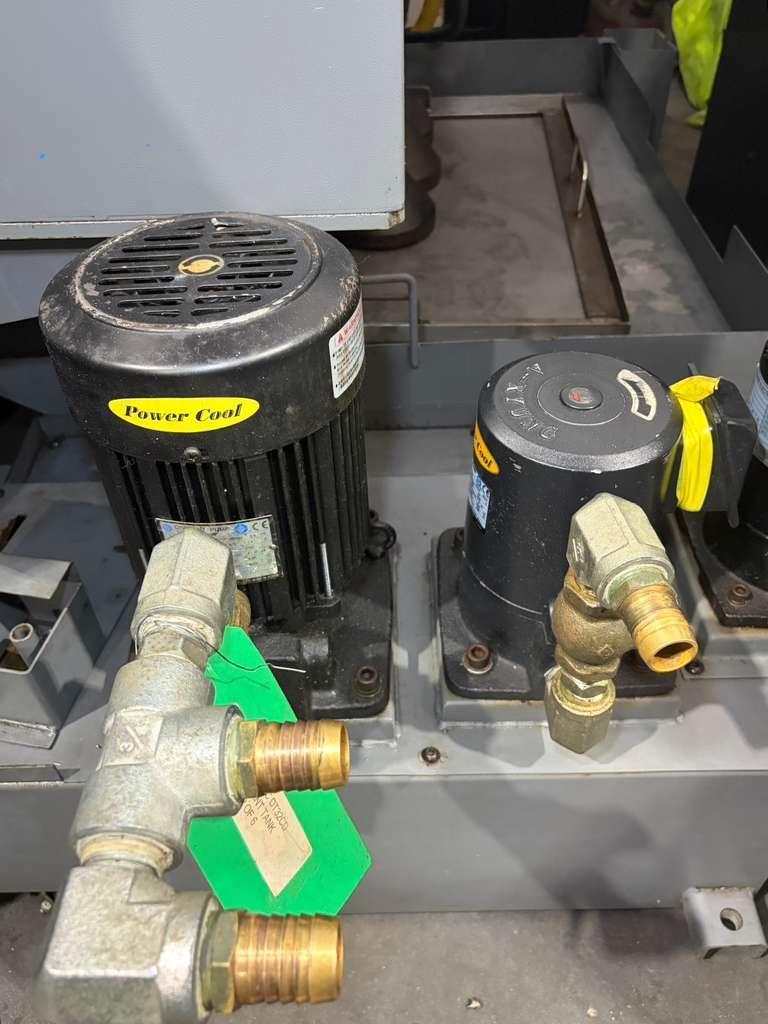

Coolant System
Levelling Pads

Travels:
X-Axis: 20.47″
Y-Axis: 12.59″
Z-Axis: 11.81″
Rapid Traverse Rates X, Y, Z Axis: 1,890 IPM
Spindle Nose to Table (Min. – Max.): 7.87″ – 19.69″

Table:
Number of Pallets: 2
Length: 23.62″
Width: 14.76″
Number of T-Slots: 4
Max Weight on Table: 882 lbs

Spindle:
Spindle Type: Direct Drive
Taper Size: BT-30
Speed Range: 10,000 RPM
Spindle Power: 7.5 HP

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Diameter: 2.75″ – 4.72″
Max Tool Length: 7.87″
Max Tool Weight: 11.02 lbs
Tool Changing Time (Tool-to-Tool): 0.84 Sec

General:
Power: 220v / 3-phase / 20 kva
Overall Dimensions: 110.23″ x 74.80″ x 96.46″ High
Weight: 8,157 lbs
