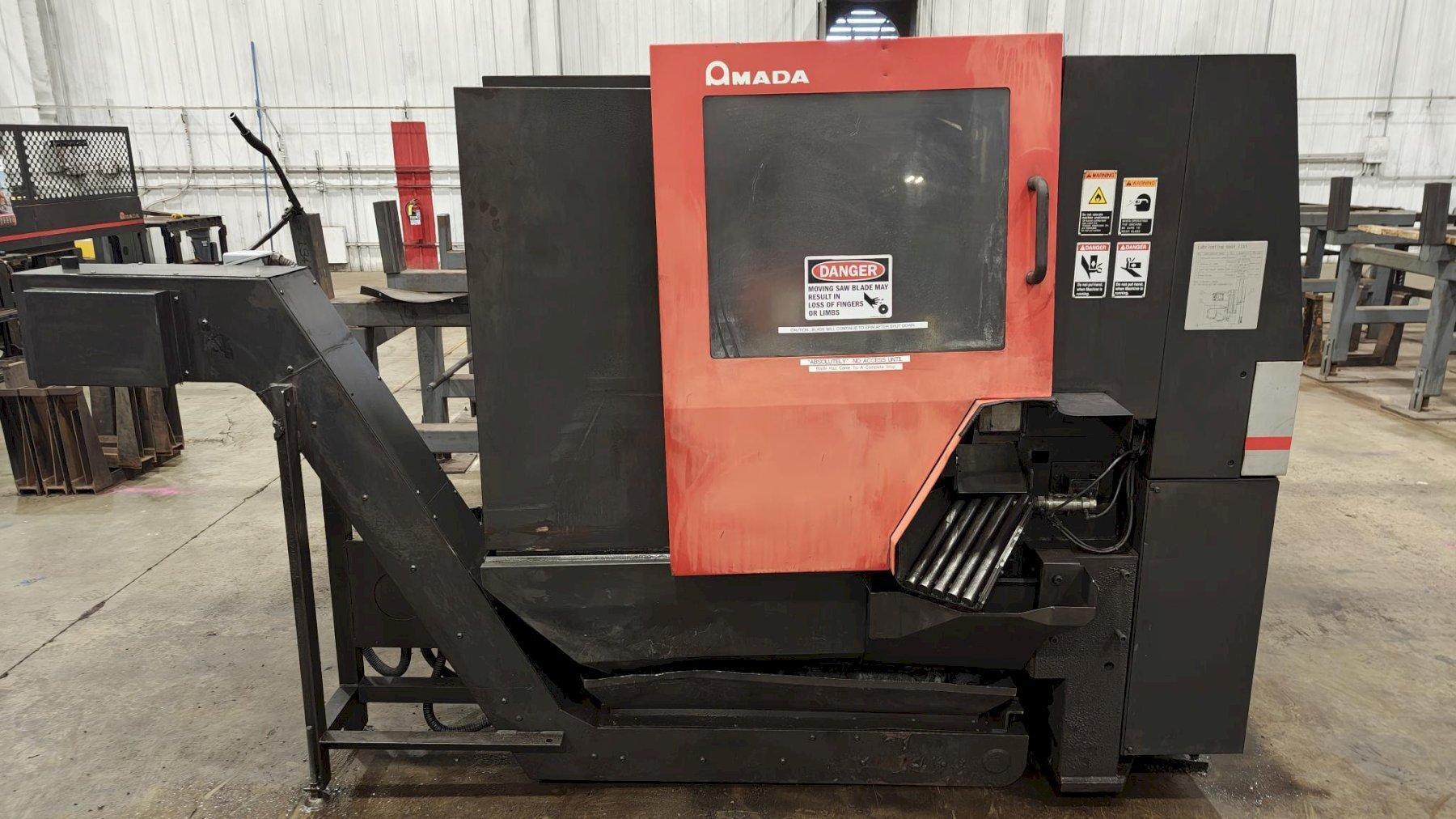

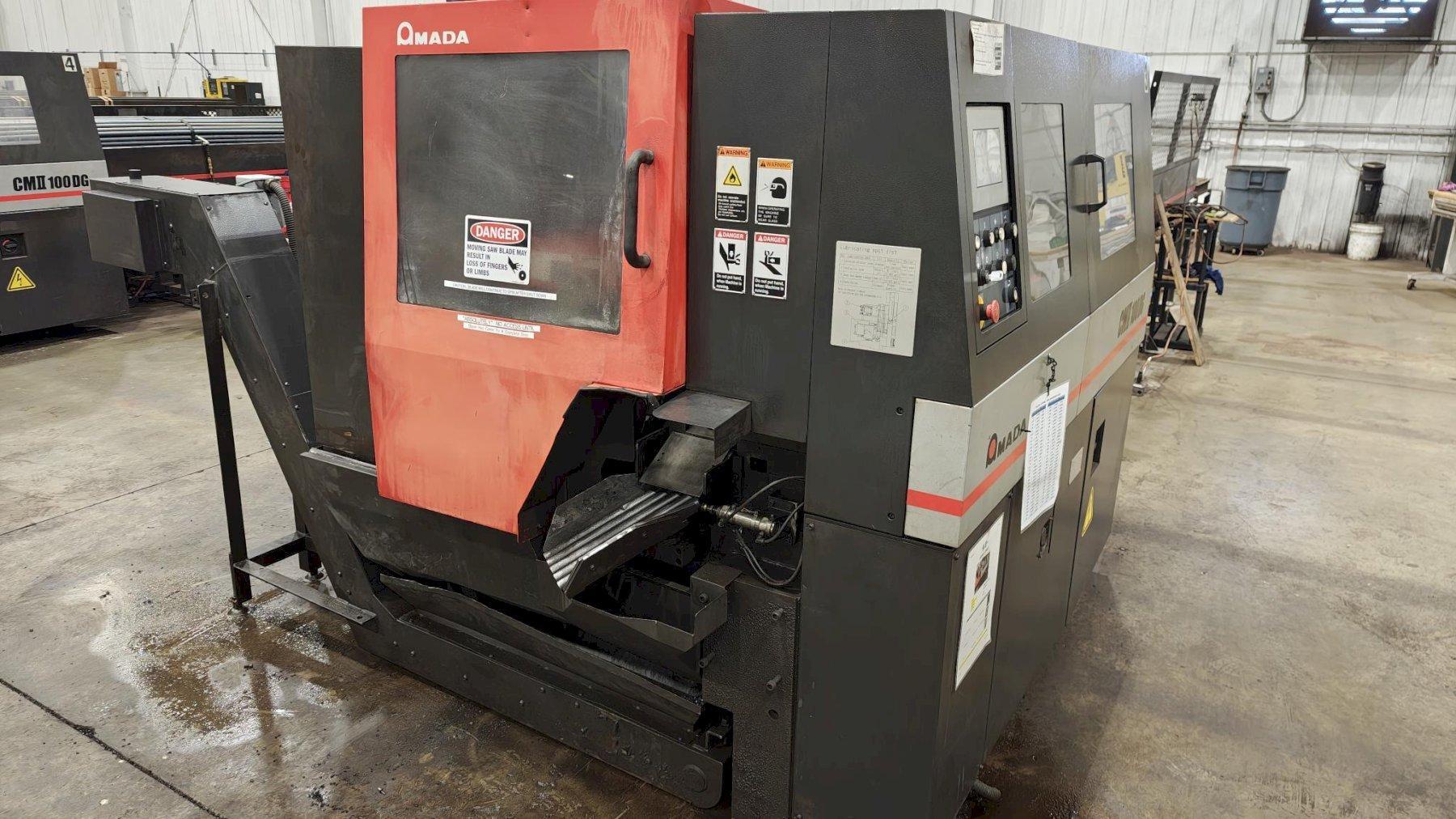

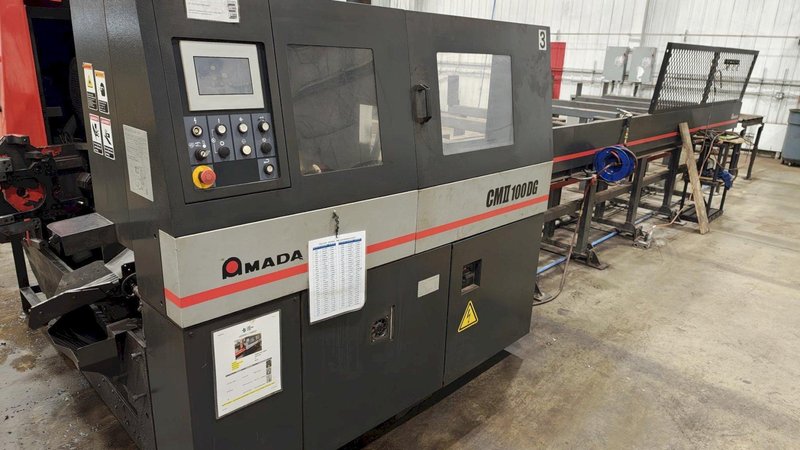

Amada model CM II 100DG High Performance Carbide tipped Cold Saw

Amada model CM II 100DG High Performance Carbide tipped Cold Saw

Name: Amada model CM II 100DG High Performance Carbide tipped Cold Saw
Brand: AMADA
SKU: 7729
Availability: InStock

Brand

AMADA

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

Model		CMII100DG
Cutting Capacity	Round (Diameter)	0.787″ – 4.0″	20 – 101.6 mm
Cutting Capacity	Rectangle (W x H)	0.787″ x 0.787″ – 3.15″ x 3.15″	20 x 20 – 80 x 80 mm
Maximum Stock Table Loading Capacity, Round Bars (L x D)		19.6′ x 4.0″ x 10 bars or 8511 lbs (*1)	6000 x 101.6 mm x 10 bars or 3860 kg (*1)
Incline Table Dimensions (L x W x H)		17.55′ x 53.9″ x 44.3″	5350 x 1370 x 1125 mm

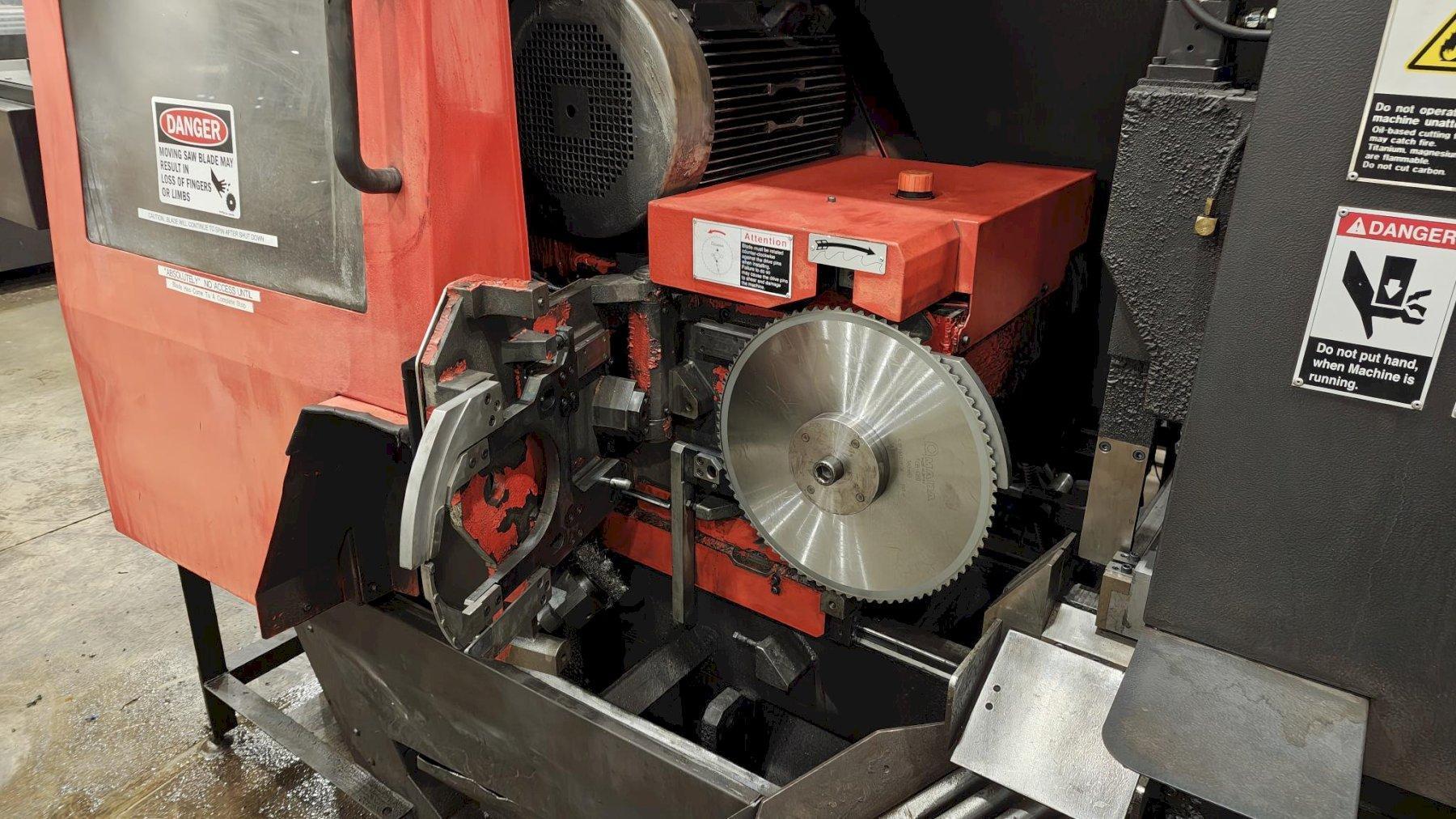

Saw Blade	Number of Teeth	60, 80, or 100
	OD x Bore x T	14.2″ x 1.57″ x 0.102″ (0.098″)	360 x 40 x 2.6 (2.5) mm
	Blade Speed	50-180 RPM by Inverter or 50-250 RPM by Inverter
Motors	Saw Blade	20.1 HP	15 kW
	Saw Head Feed	2.6 HP Servo Motor	2.0 kW Servo Motor
	Hydraulic Pump	3 HP	2.2 kW
	Cut-to-Length Feed	1.3 HP Servo Motor	1.0 kW Servo Motor
Power Requirement	Power Supply Voltage	AC220V±10%, 3 PH, 50/60 Hz or AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement	Power Requirement	30 kVA or 38 kVA
Air Requirements	Air Pressure	72.5 psi	0.5 MPa
Air Requirements	Air Flow Rate	64.6 gal/min	245 L/min
Hydraulic	Tank Capacity	8.0 gal	30 liters
Oil Mist	Tank Capacity	0.47 gal	1.8 liters
Material Index	Index Mechanism	Shuttle Vise
	Material Index	AC Servo Motor & Ball Screw
	Stroke	28.3″	719 mm
	Length	0.394″-393.70″ Multiple Indexing	10-9999.99 mm Multiple Indexing
	End Trimming Length	0.394″-3.9″	10-99 mm
	Remnant Length	1.97″ Plus Length of Parts	50 mm Plus Length of Parts
Machine Dimensions (W x L x H)		65.0″ x 82.3″ x 64.2″	1650 x 2100 x 1630 mm
Table Height		35.4″	900 mm
Machine Weight		5,513 lbs	2,500 kg
