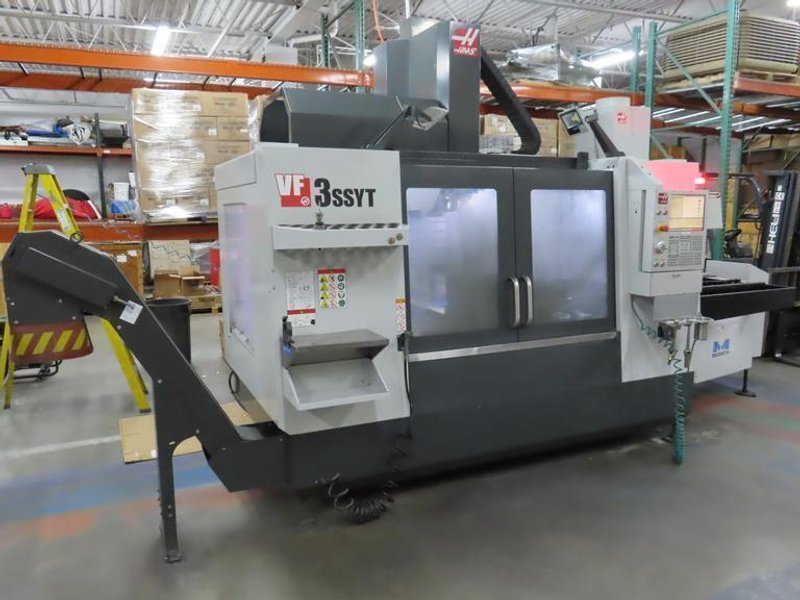

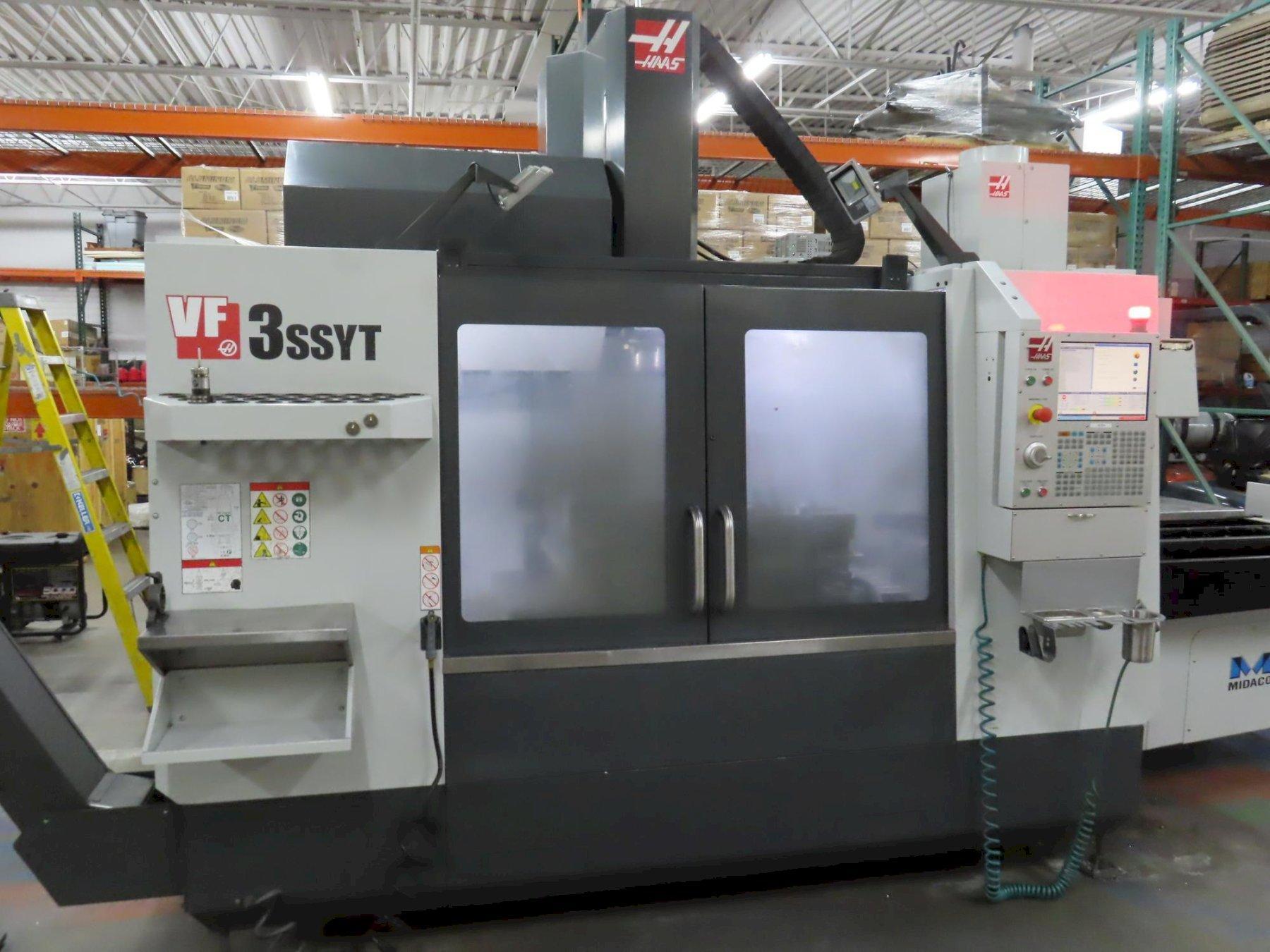

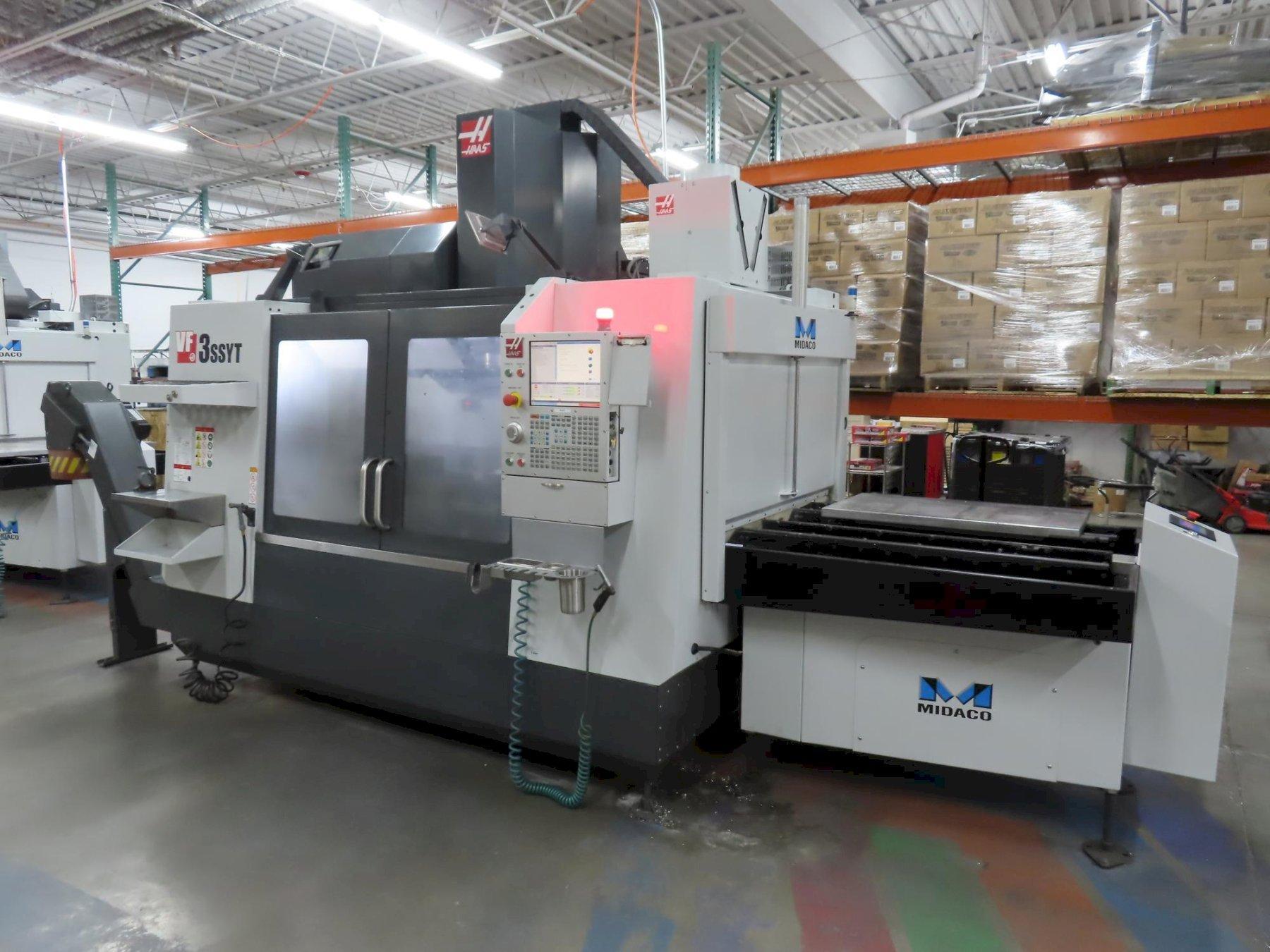

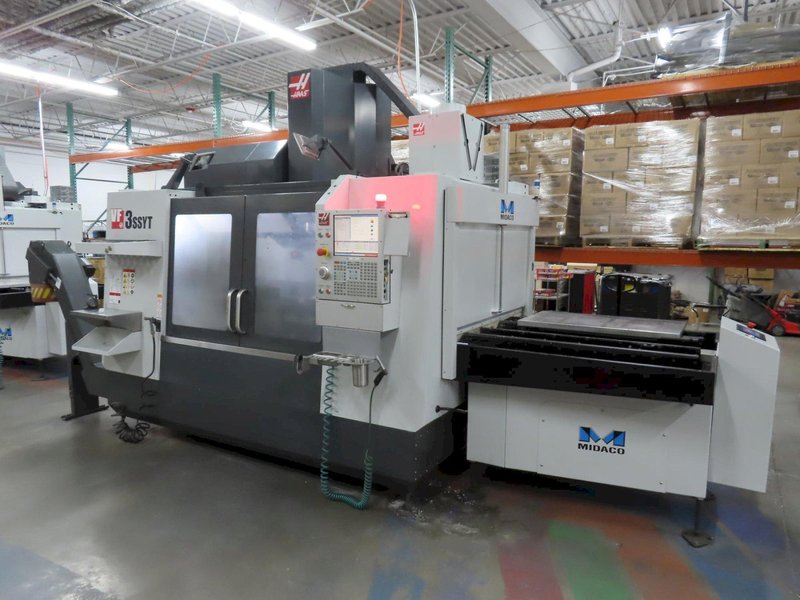

Haas VF-3SSYT CNC Vertical Machining Center with Midaco Pallet Changer, Thru Spindle Coolant, Probing

Brand
Not specified
Model
VF-3SSYT
Stock #
C1003
Year
2020
Condition
Not specified

Location

Minnesota

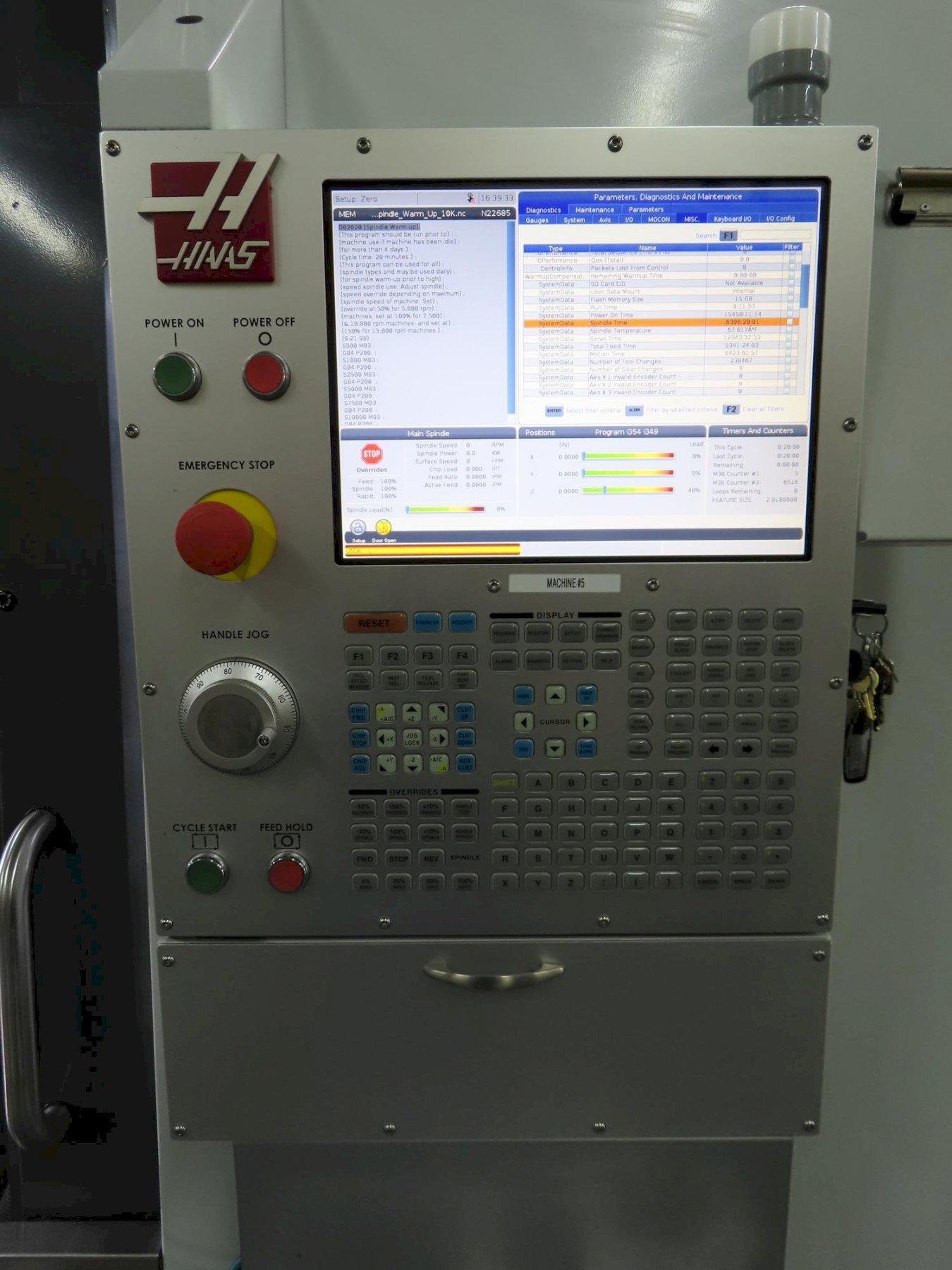

Machine Control: Haas Nex Generation CNC Control

Table Size: 54" x 25"

Machine Travels (X/Y/Z): 40" / 26" / 25"

Spindle To Table Distance: 4" - 29"

Table Capacity: 1750 lbs

Spindle Taper: CT 40

Spindle Speeds: 12,000 RPM Max

Transmission: Inline Direct Drive

Rapid Traverse Rate (X/Y/Z): 1400 ipm.

Maximum Cutting Feed Rate: 833 ipm.

Tool Changer Style: Side Mount, Twin Arm

Tool Changer Capacity: 30 Stations

Tool Change Time: 1.8 Tool to Tool

Max Tool weight: 12 Lbs.

Spindle Drive: 30 Hp Inline Direct Drive

Description:

The Haas VF‑3SSYT is a high‑performance vertical machining center designed for speed, accuracy, and productivity. As part of Haas’ Super‑Speed (SS) line, this machine features faster rapids, a high‑speed spindle, and improved acceleration, making it ideal for high‑mix or production machining environments. The “YT” configuration provides increased Y‑axis travel, allowing for larger fixtures and greater machining flexibility compared to standard VF‑3 models. This machine is equipped with a MIDACO automatic pallet changer, significantly reducing spindle idle time and increasing throughput by enabling concurrent part loading and unloading. With thru‑spindle coolant (TSC) and Haas probing, this VF‑3SSYT is well suited for unattended operation, tight‑tolerance work, and repeatable setups.

Equipped With:

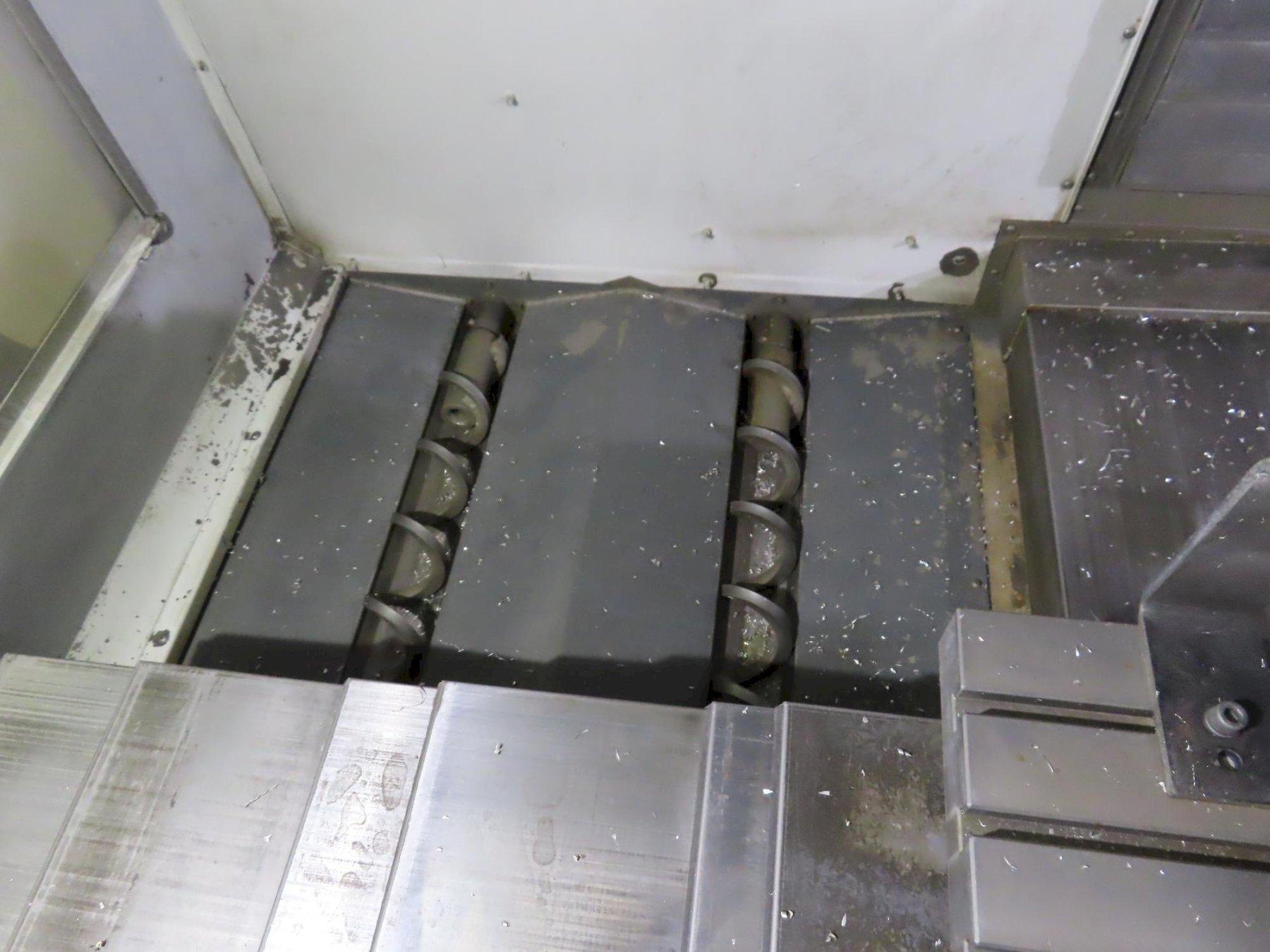

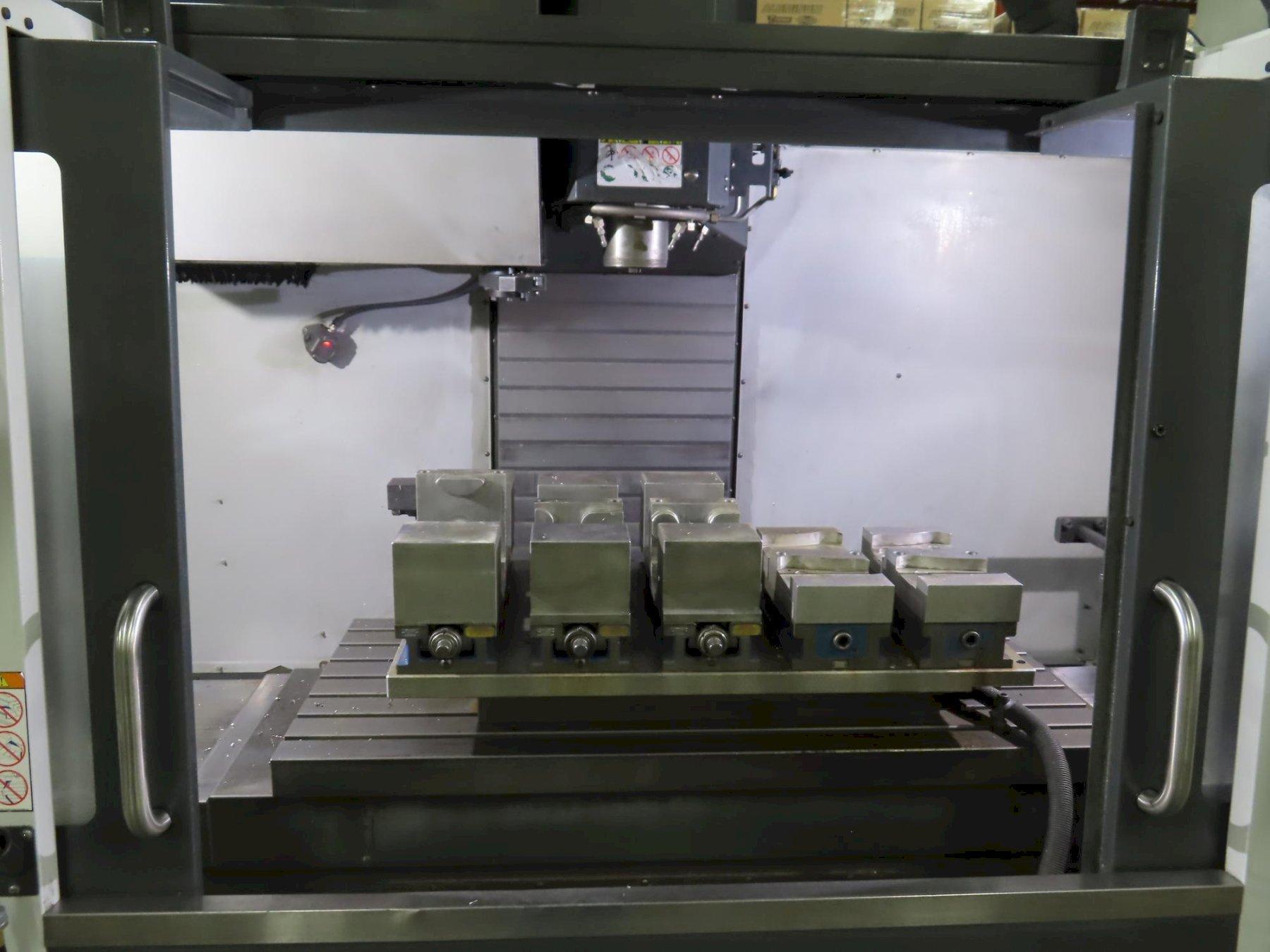

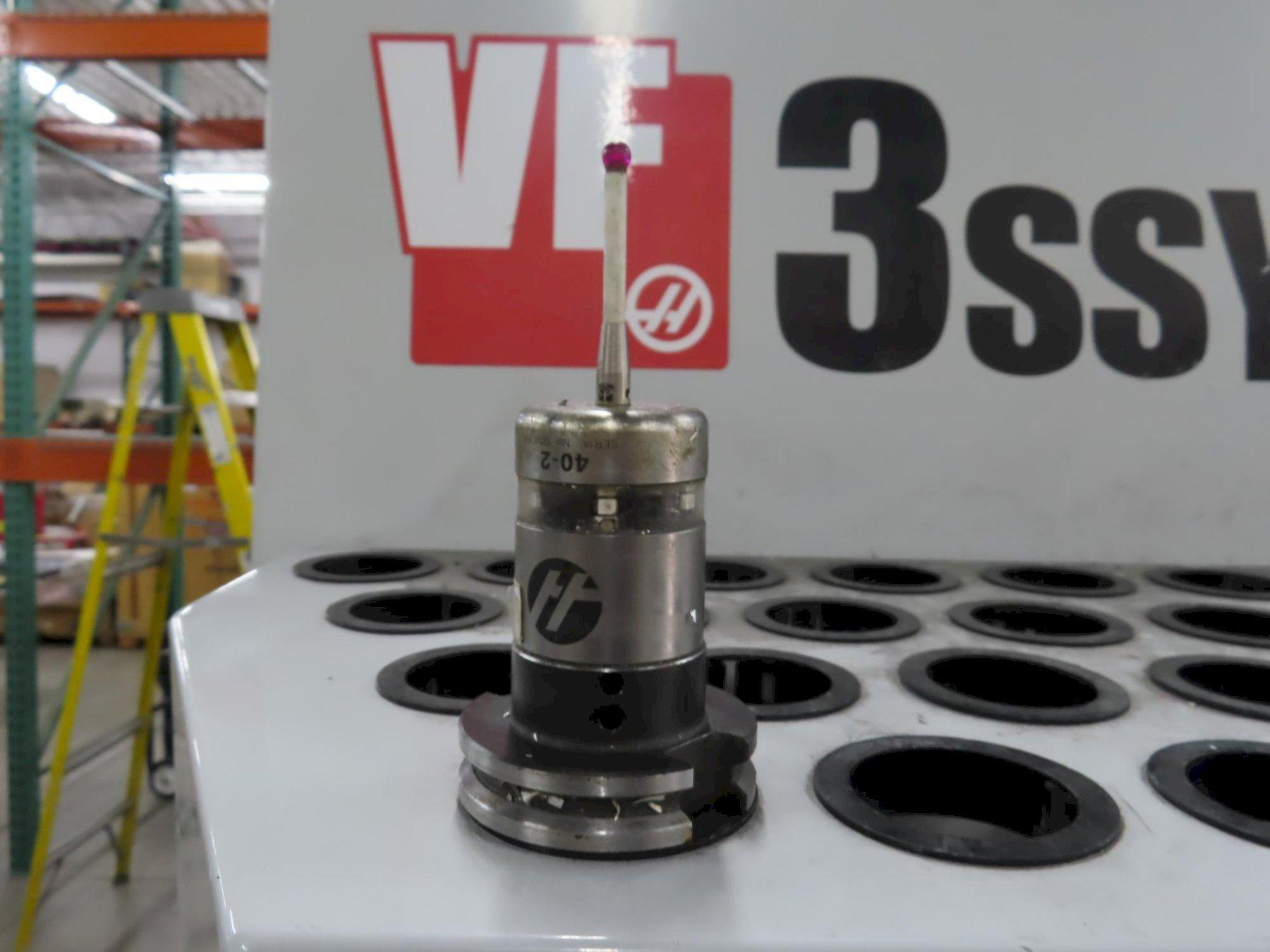

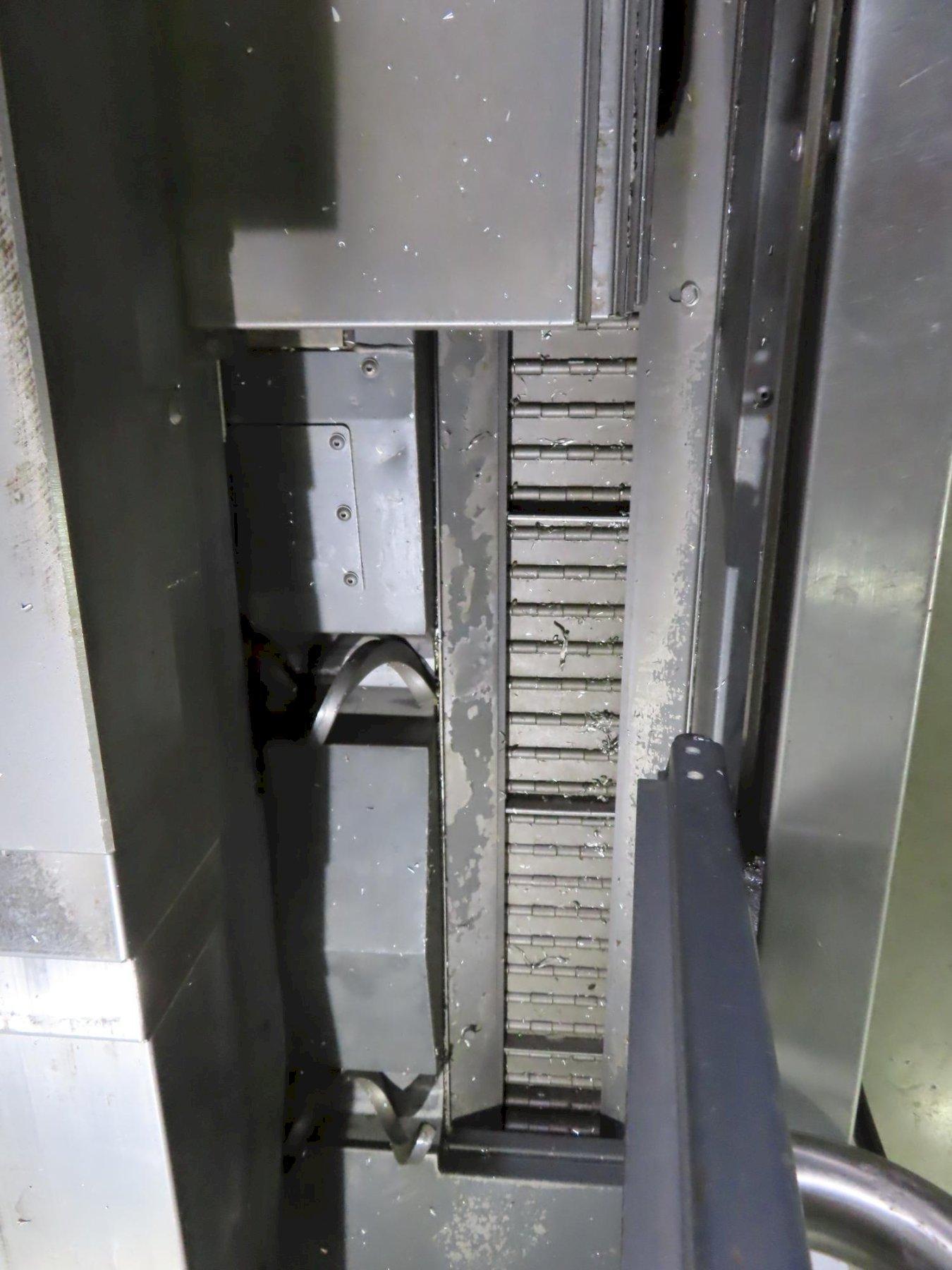

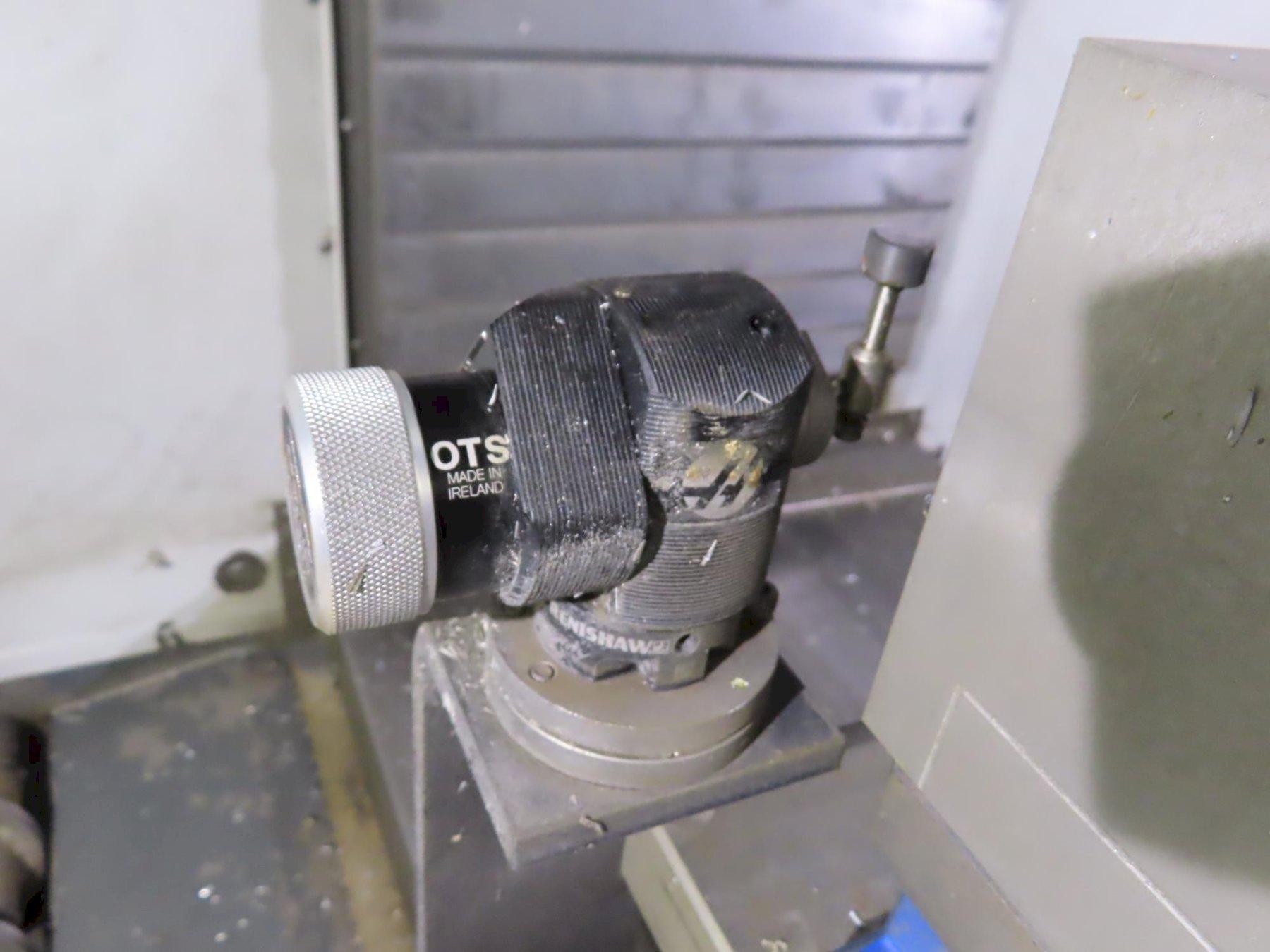

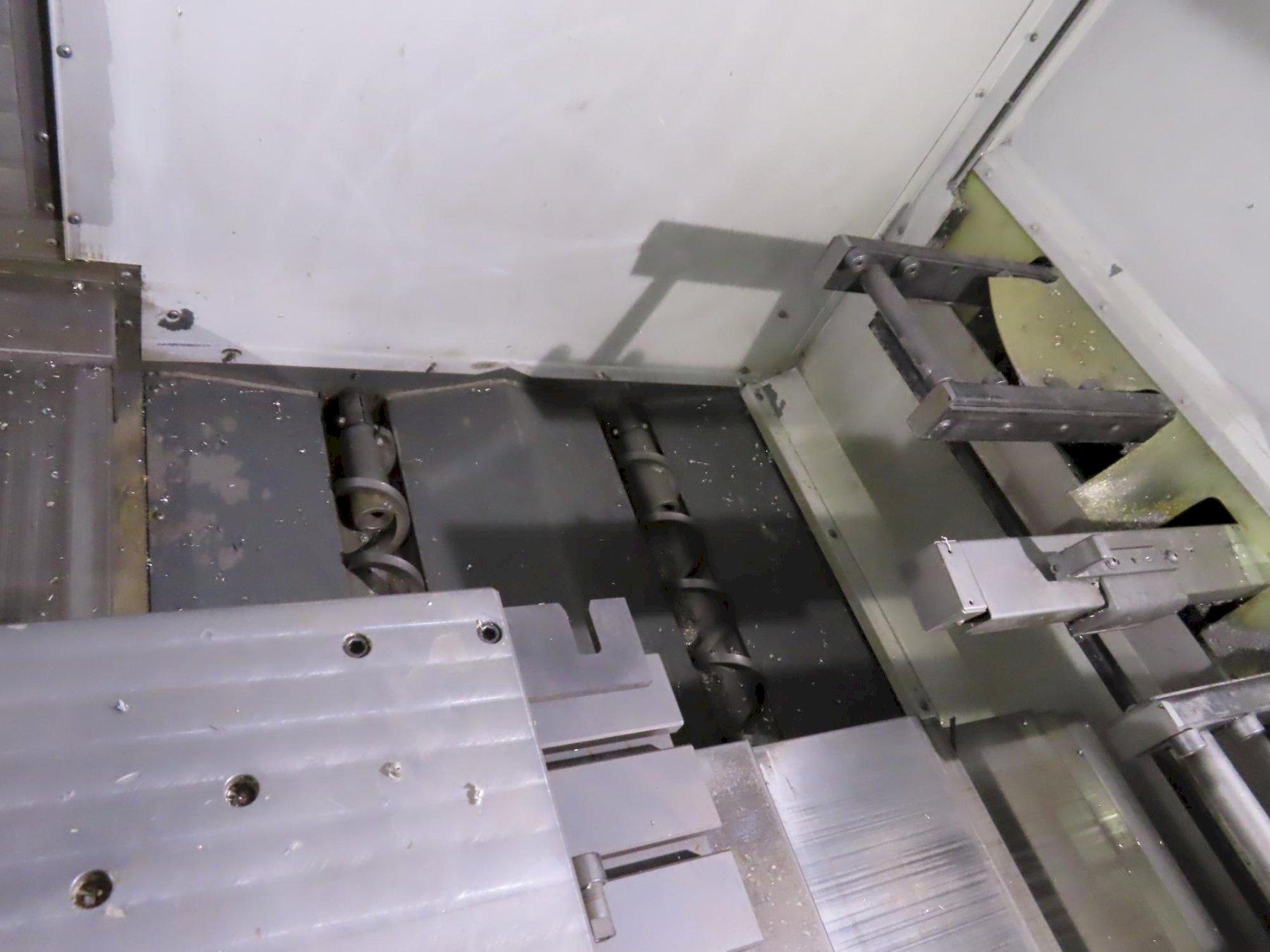

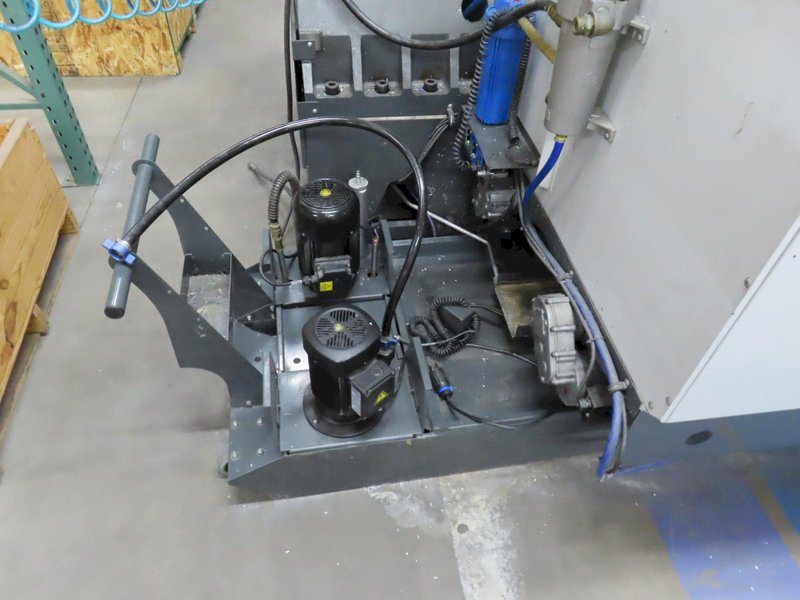

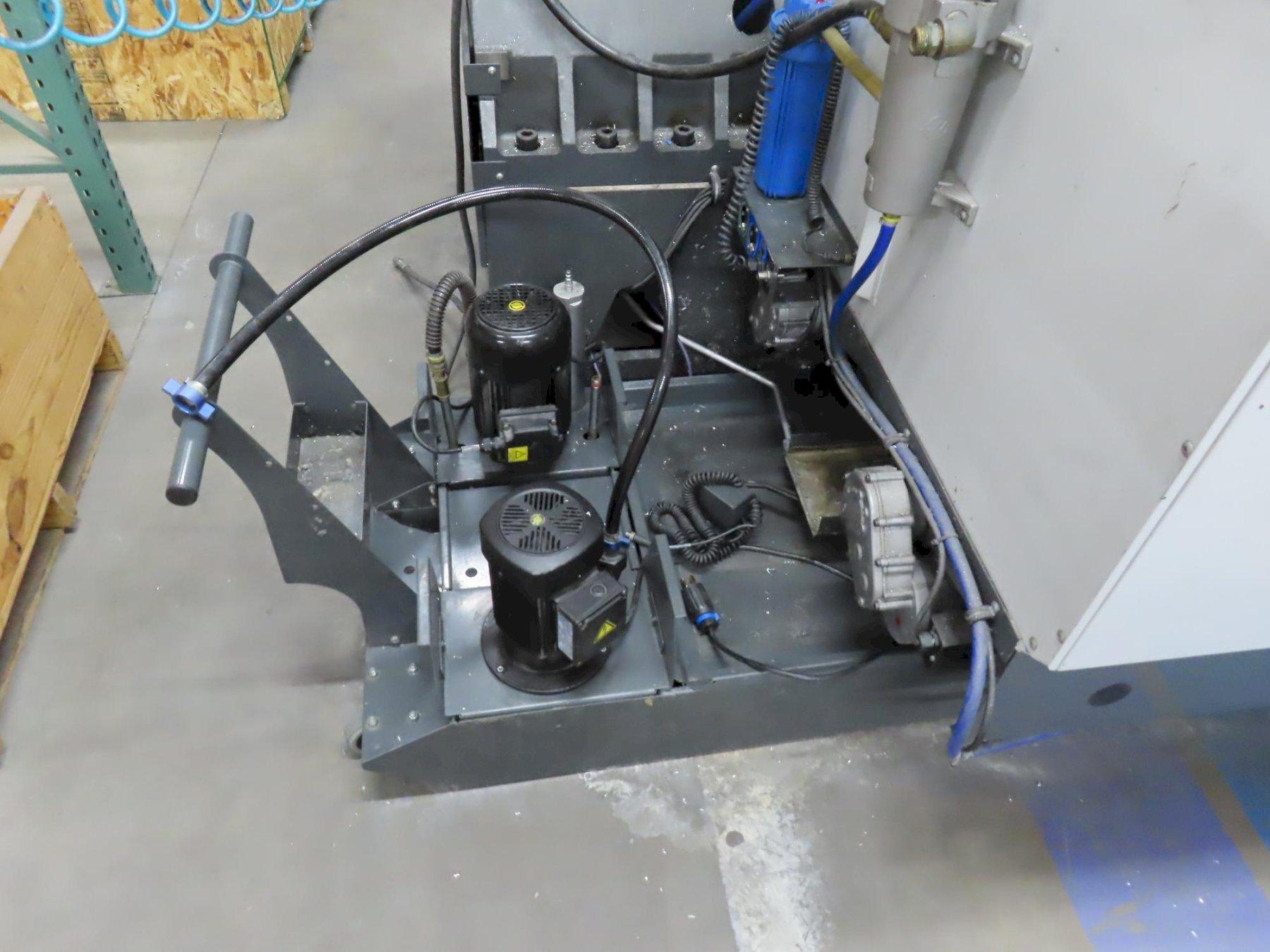

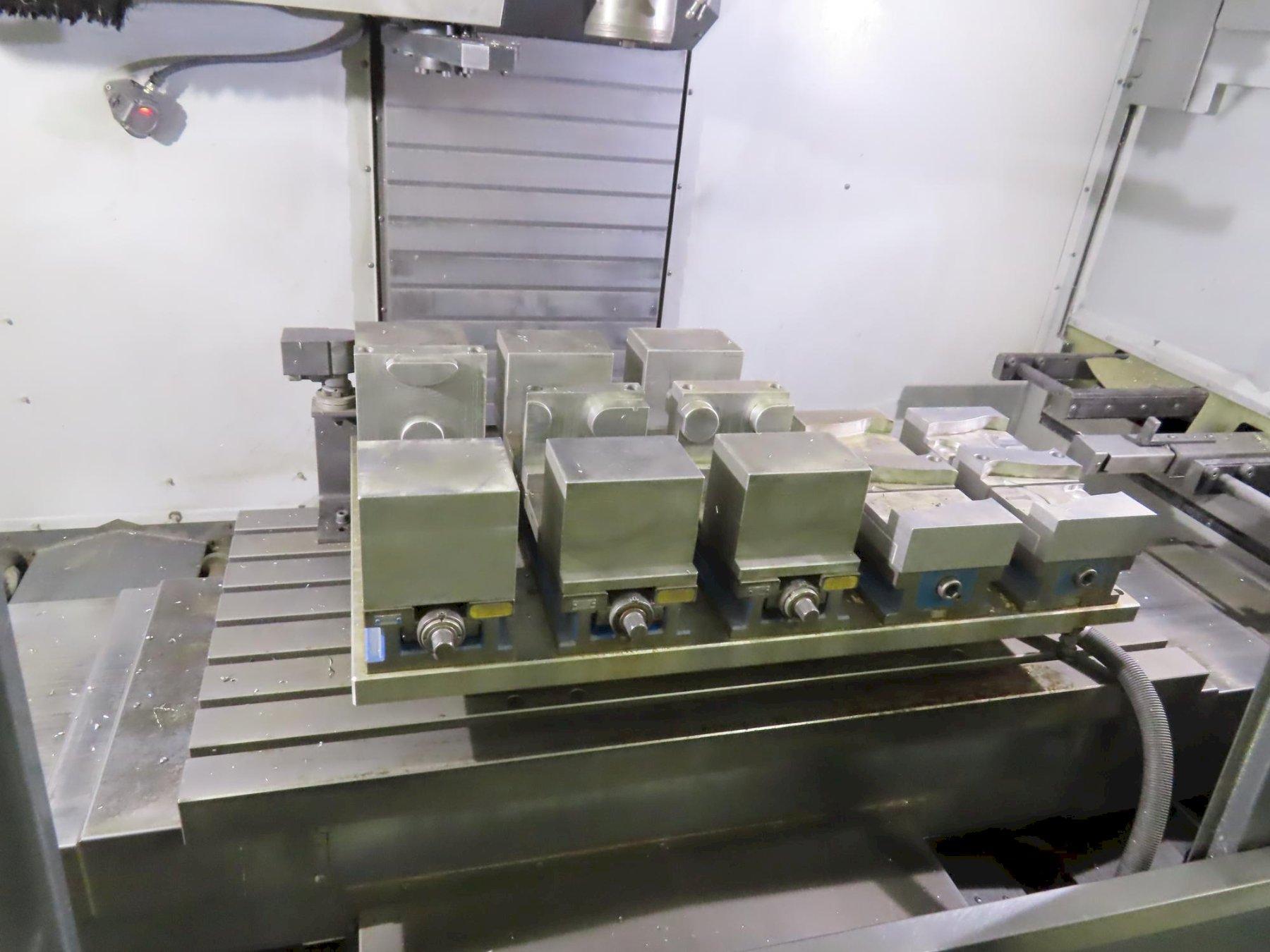

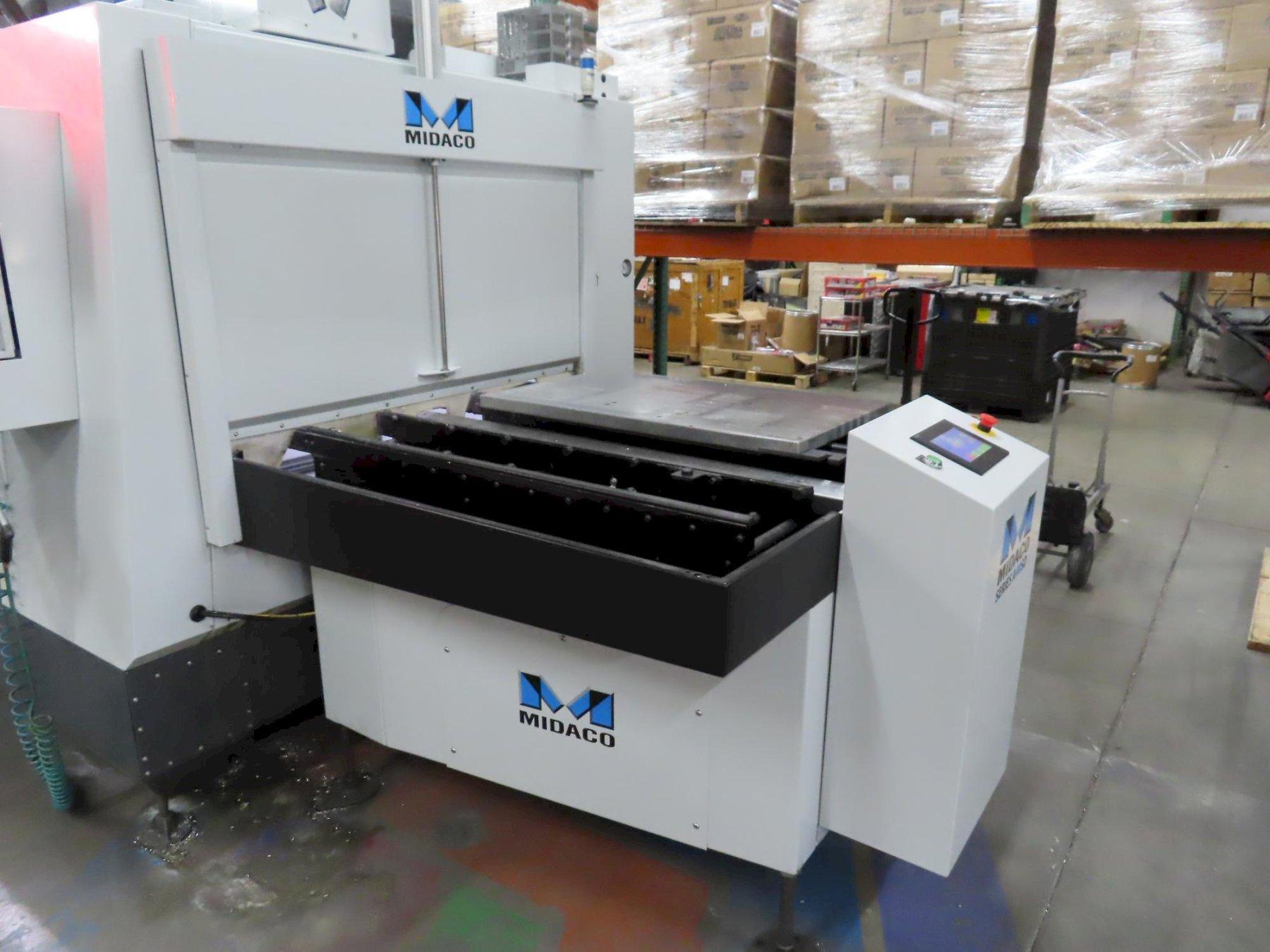

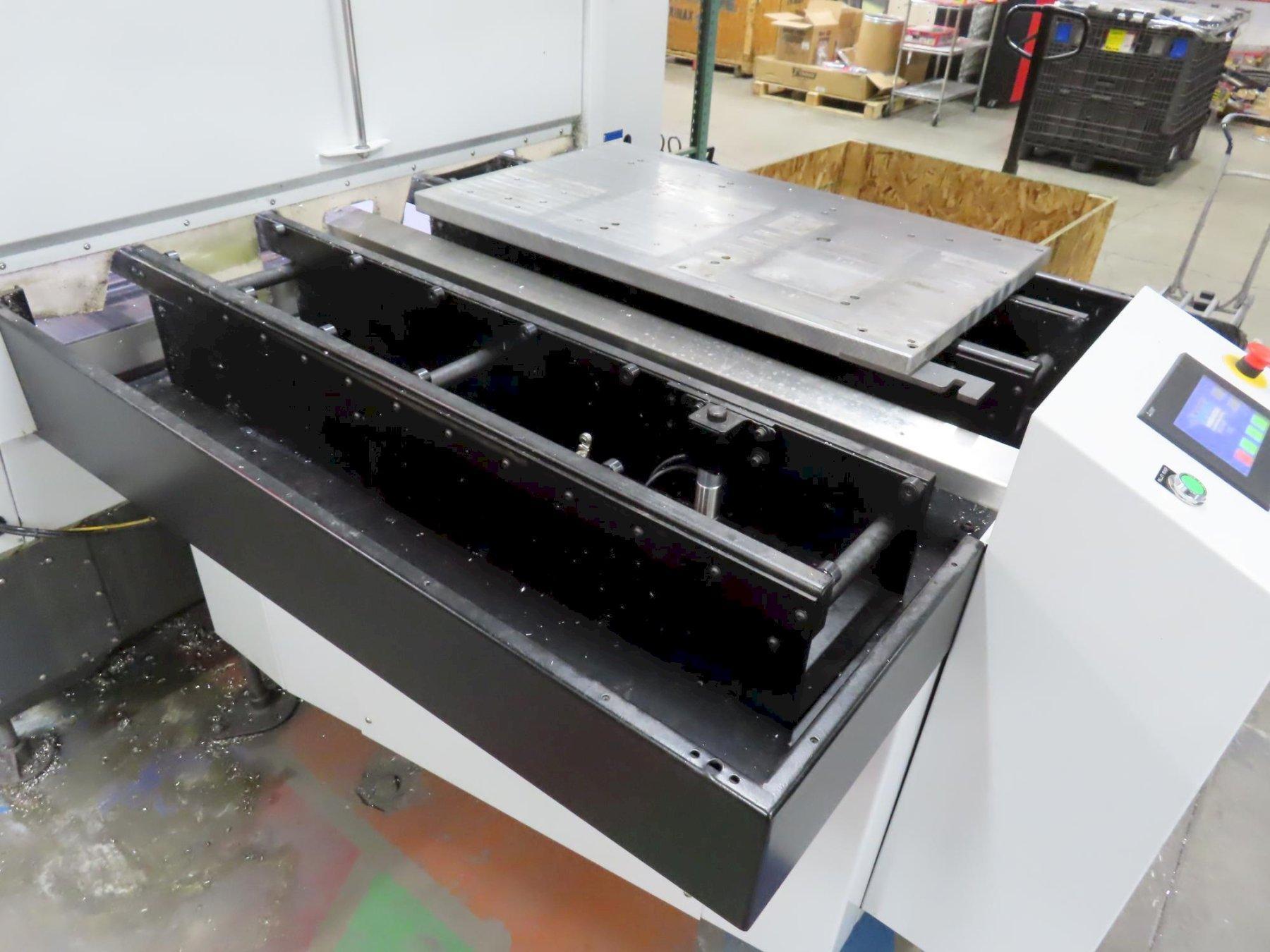

Haas Next Generation CNC Control, 12,000 RPM Max Spindle Speed, 30 Station Automatic Tool Changer, Midaco A40SD Automatic Pallet Changer with Mitsubishi Touch Screen PLC Controler, (2) 24" x 40" Pallets, 300 PSI Thru-Spindle Coolant, Haas Probing System with Tool and Parts Probes, Multi-Auger Chip Conveyor System, Rigid Tapping, WIFI Connect, 1GB Memory, Coolant Tank and Pump, Keys.  NOTE Vises and tool holders in pictures and video are NOT included.

Electrics:

220 Volts, 3 Phase
