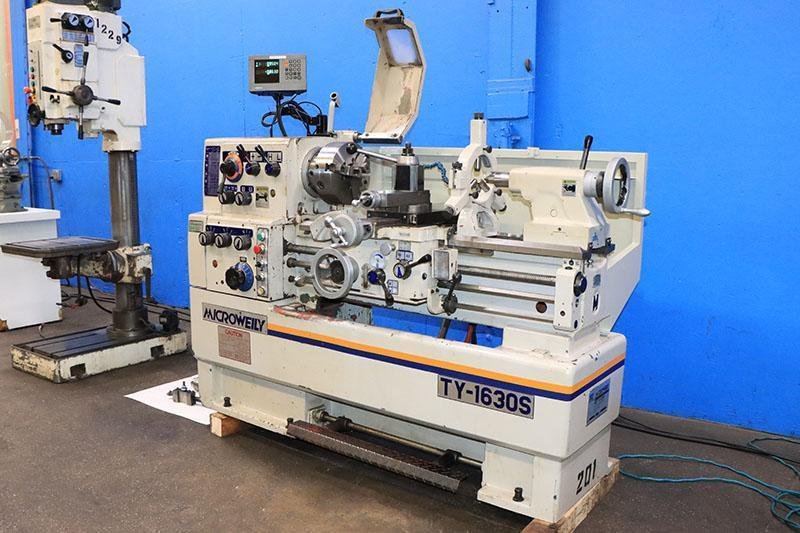

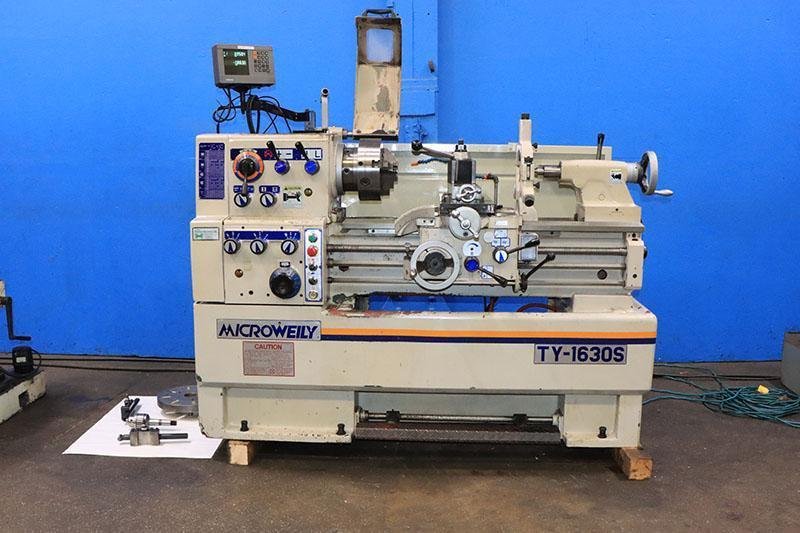

16"/23" X 30" MICROWEILY ENGINE LATHE, MODEL TY-1630S

Brand
MICROWEILY
Category
Lathes & Turning Machines
Type
Engine Lathes
Model
TY-1630S
Stock #
5066
Year
2004
Condition
Used

Location

New Jersey
REQUEST FINANCING

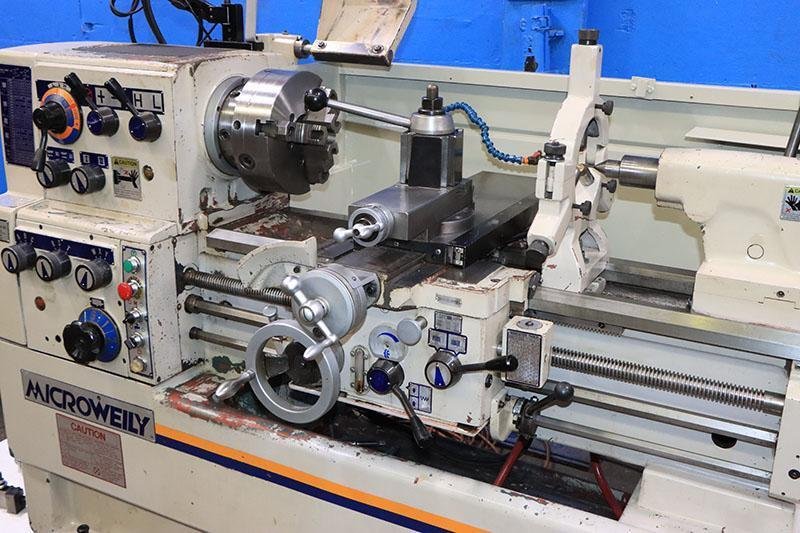

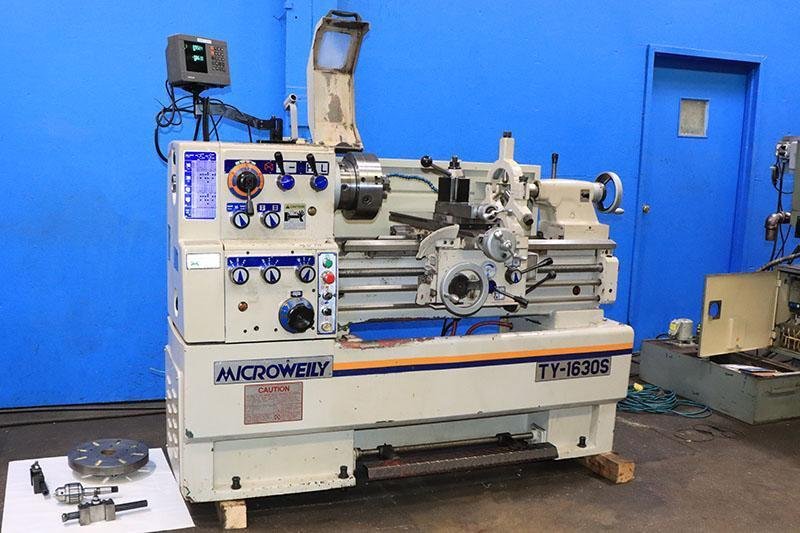

16"/23" X 30" MICROWEILY ENGINE LATHE
MODEL: TY-1630S
NEW: 2004

SPECIFICATIONS:
SWING OVER BED......................... 16.14"
SWING OVER CROSS SLIDE................. 9.4"
SWING IN GAP........................... 23.42"
LENGTH OF GAP IN FRONT OF FACE PLATE... 6.1"
DISTANCE BETWEEN CENTERS............... 30"
WIDTH OF BED .......................... 11.81"

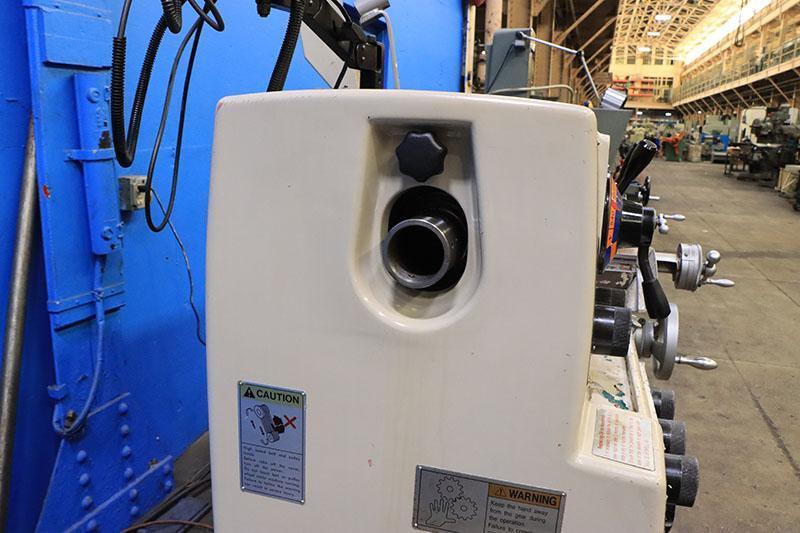

SPINDLE BORE........................... 2.04"
SPINDLE NOSE........................... D1-6

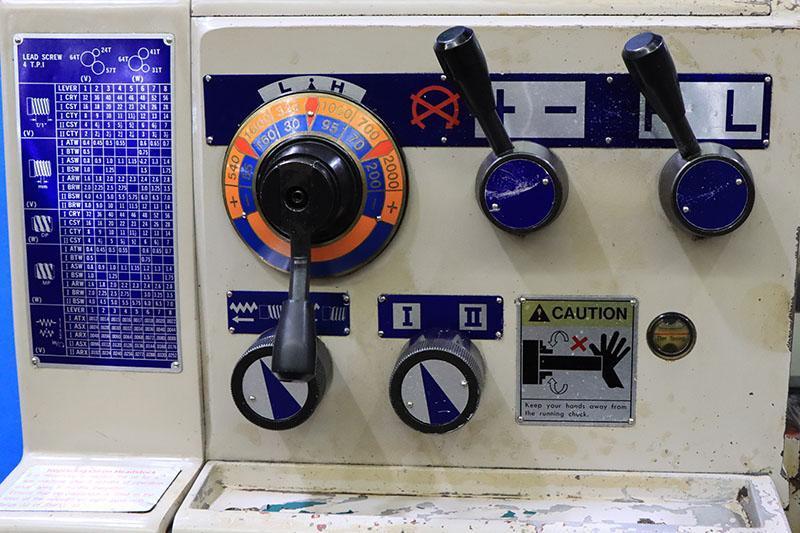

SPINDLE SPEEDS (12 SPEEDS) ..............30 TO 2,000 RPM

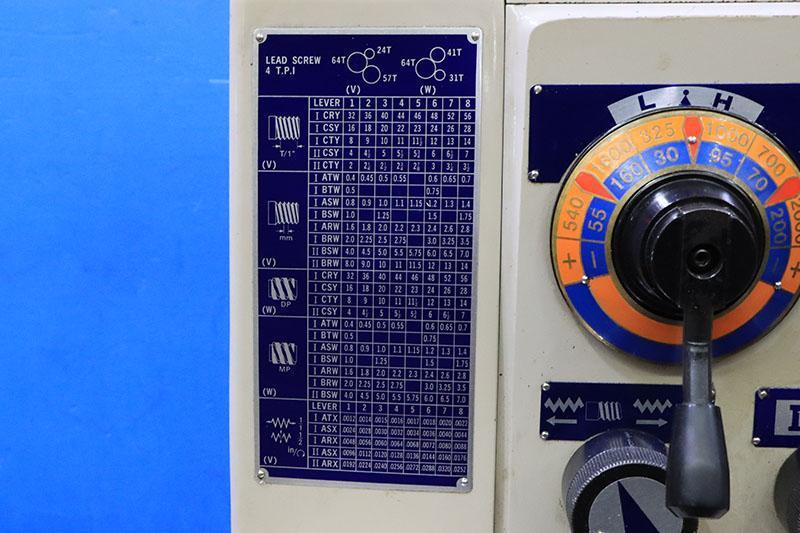

INCH THREADING RANGE .................. 2 - 56 TPI
METRIC THREADING RANGE ................ .4 - 7 mm
CROSS FEED RANGE (40) ................. .0006 - .0126 IPR
LONGITUDINAL FEED RANGE (40) .......... .0012 - .0252 IPR
TAILSTOCK QUILL DIAMETER............... 2.12"
TAILSTOCK QUILL TRAVEL................. 5.11"
TAILSTOCK TAPER........................ 4 MT


EQUIPPED WITH:
INCH & METRIC THREADING CAPABILITY

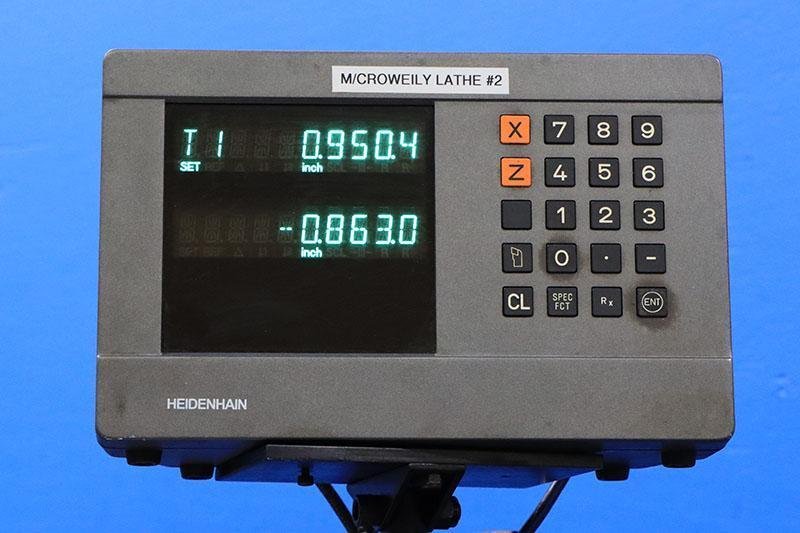

HEIDENHAIN 2-AXIS NEWALL DIGITAL READOUTS

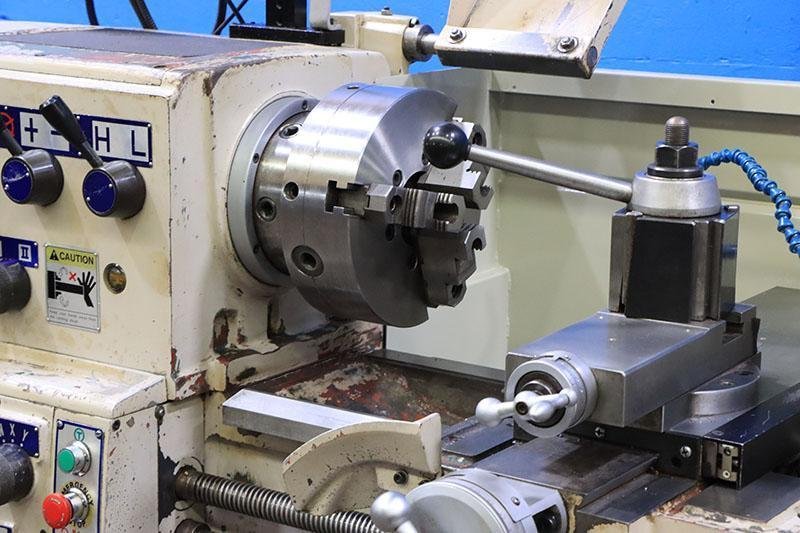

3-JAW CHUCK

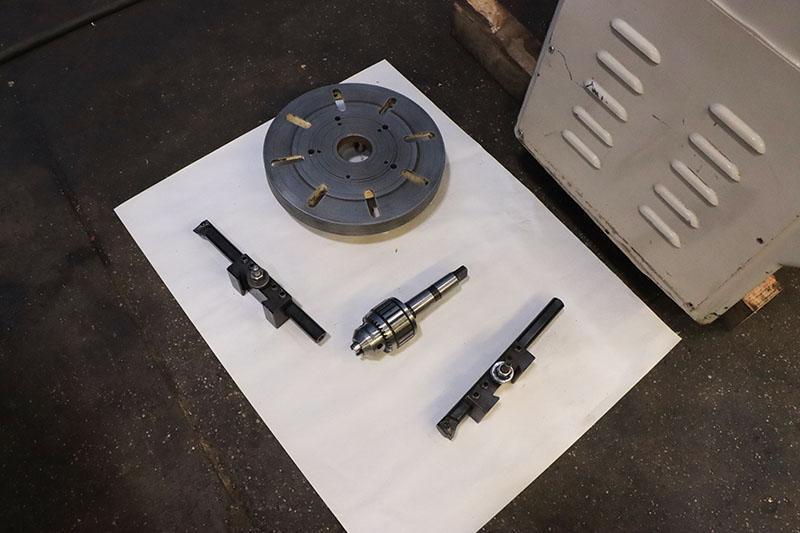

FACEPLATE

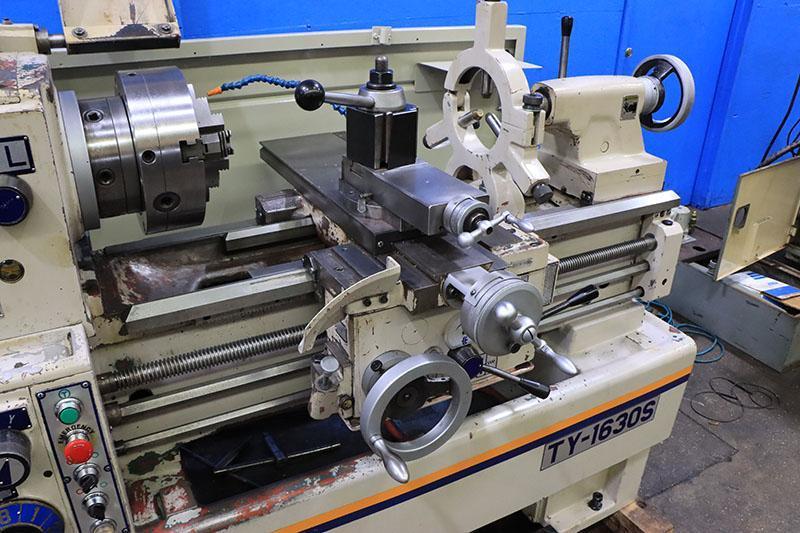

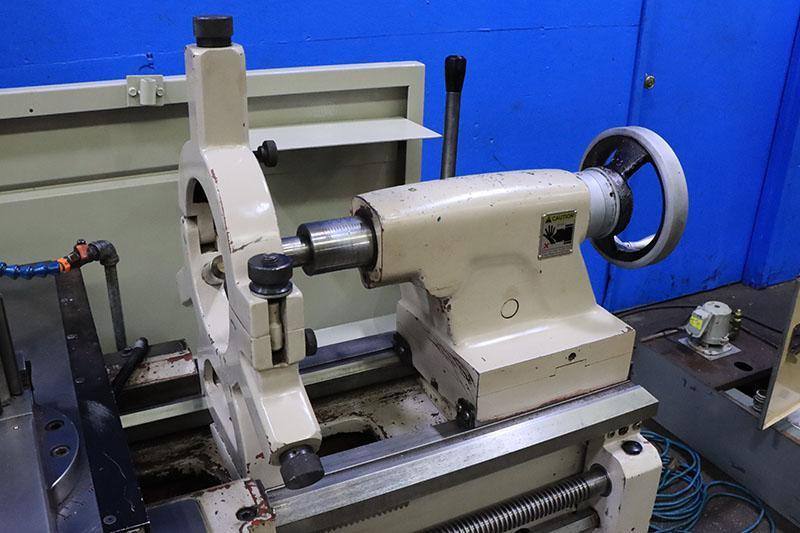

STEADY REST

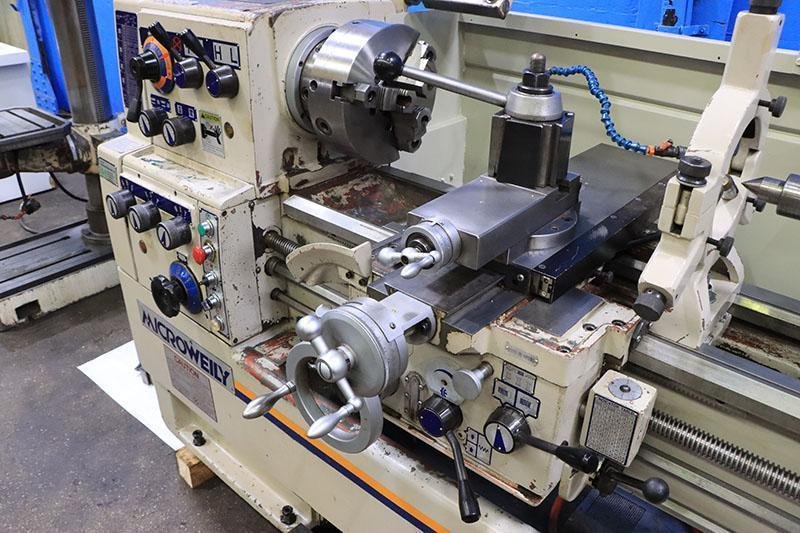

ALORIS MODEL: CA QUICK CHANGE TOOL POST
DEAD CENTER FOR TAILSTOCK
JACOBS DRILL CHUCK FOR TAILSTOCK
THREAD DIAL INDICATOR
FOOT BRAKE

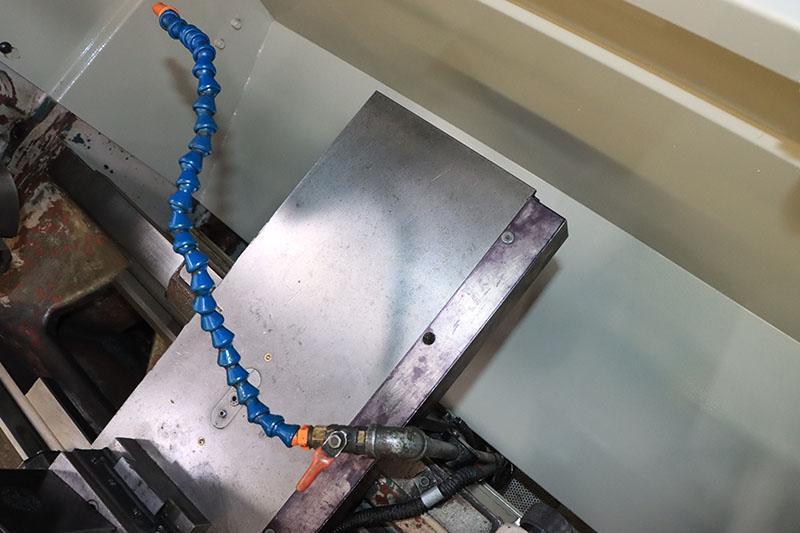

COOLANT SYSTEM WITH REMOVABLE CHIP PAN
5 HORSEPOWER MAIN MOTOR

FOB: ORIGIN
