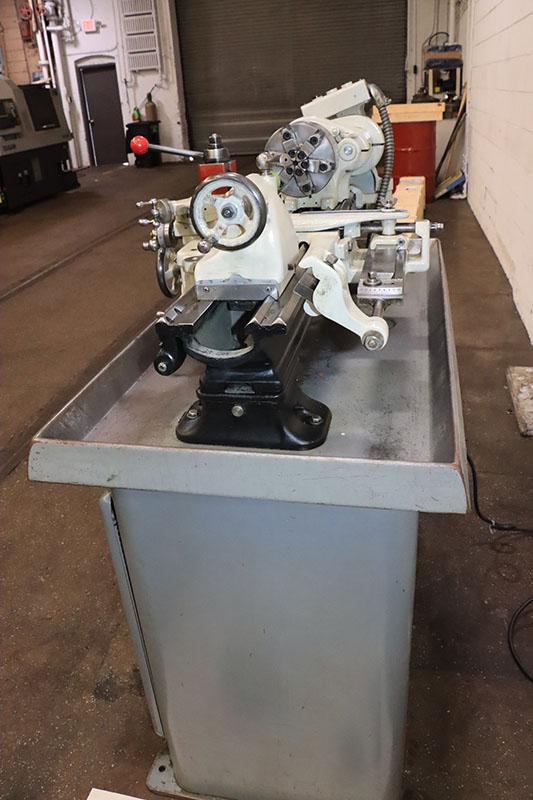

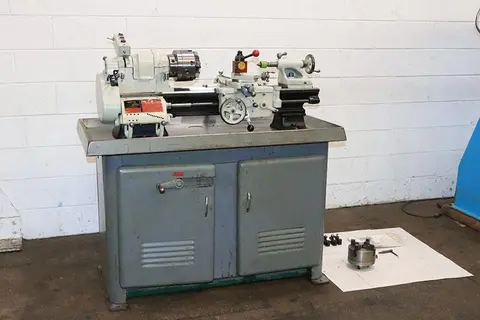

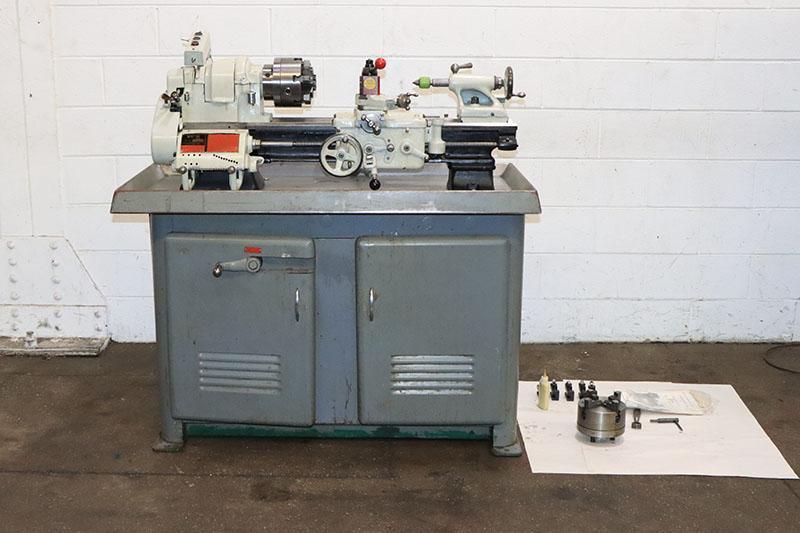

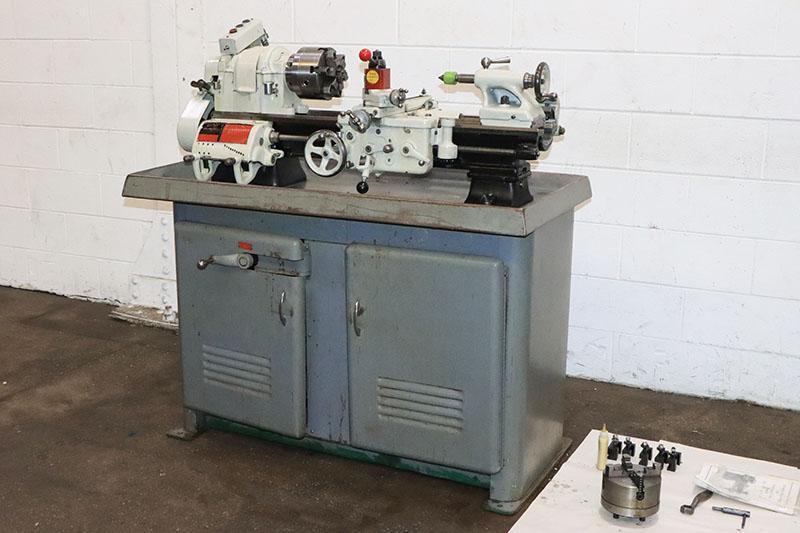

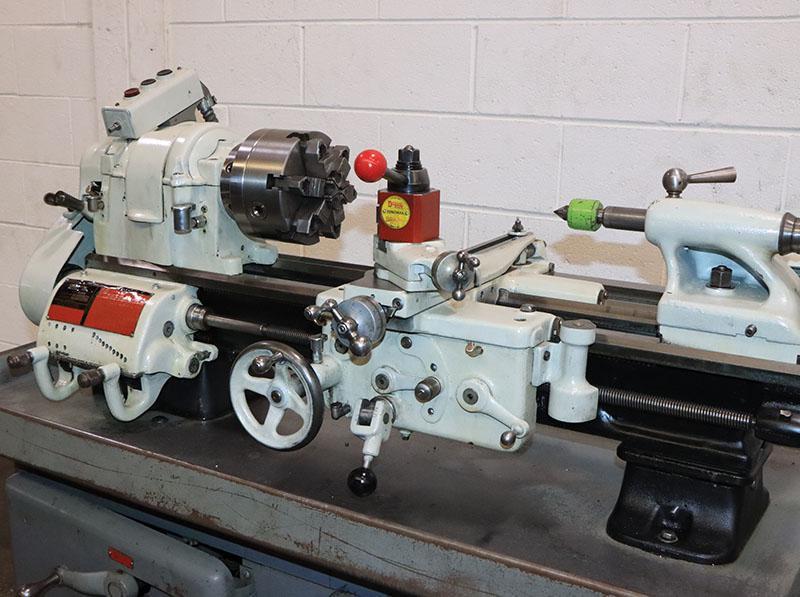

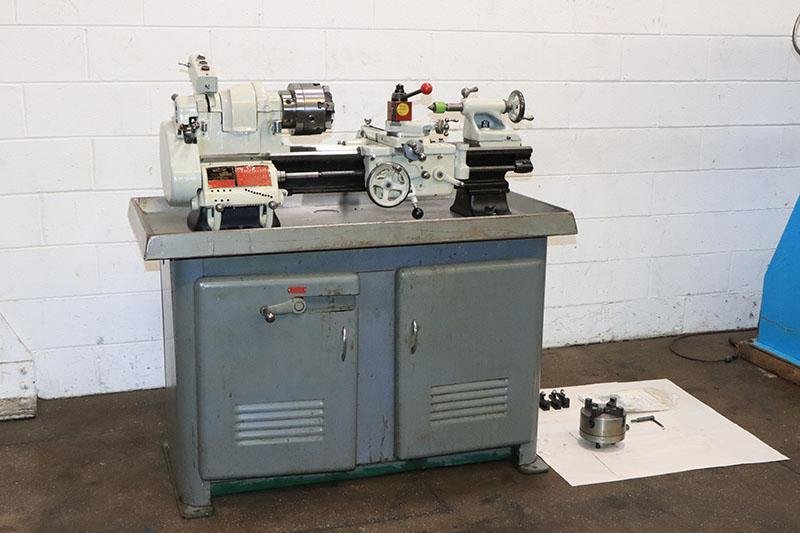

10" x 19" SOUTH BEND PRECISION LATHE, MODEL CL187ZB

10" x 19" SOUTH BEND PRECISION LATHE
MODEL: CL187ZB

SPECIFICATIONS:
SWING OVER BED ........................ 10-1/8"
SWING OVER CROSS SLIDE ................ 5-7/8"
DISTANCE BETWEEN CENTERS .............. 19"
HOLE THRU SPINDLE ..................... 1-3/8"
SPINDLE NOSE CAMLOCK .................. D1-4"
SPINDLE SPEED:
DIRECT DRIVE(6) ................... 304 - 1400 RPM
BACK GEARED (6) ................... 55 - 250 RPM
SPEEDS ARE VARIABLE IN EACH SPEED

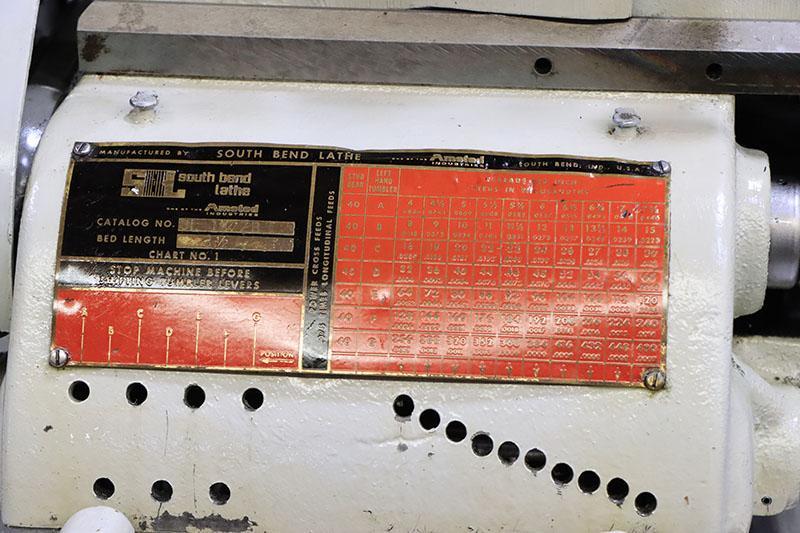

THREADING RANGE (70) .................. 4 - 480 TPI
LONGITUDINAL FEED RANGE (70) .......... .0836" - .0007"
CROSS FEED RANGE (70) ................. .0303" - .0003"

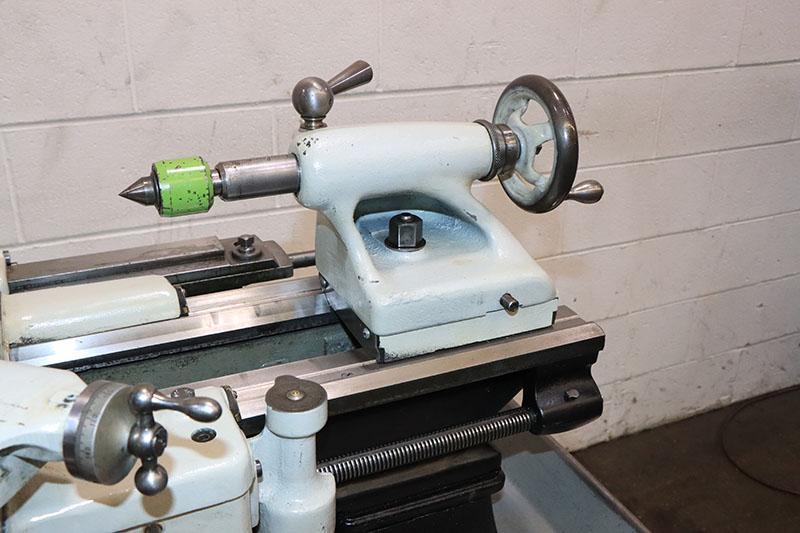

TAILSTOCK SPINDLE TAPER ............... #2MT
TAILSTOCK SPINDLE TRAVEL .............. 2-1/8"
APPROX MACHINE DIMENSIONS ........ 51" x 27.5" x 55"H
APPROX MACHINE WEIGHT ............ 900 LBS

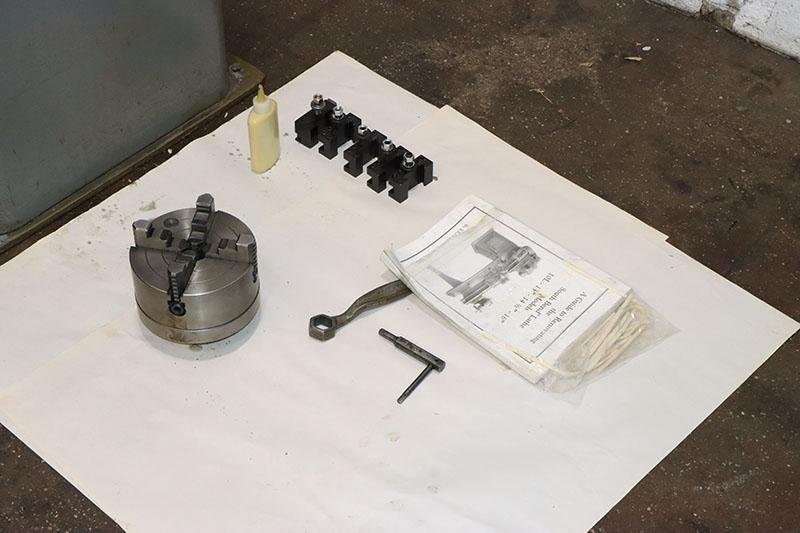

EQUIPPED WITH:

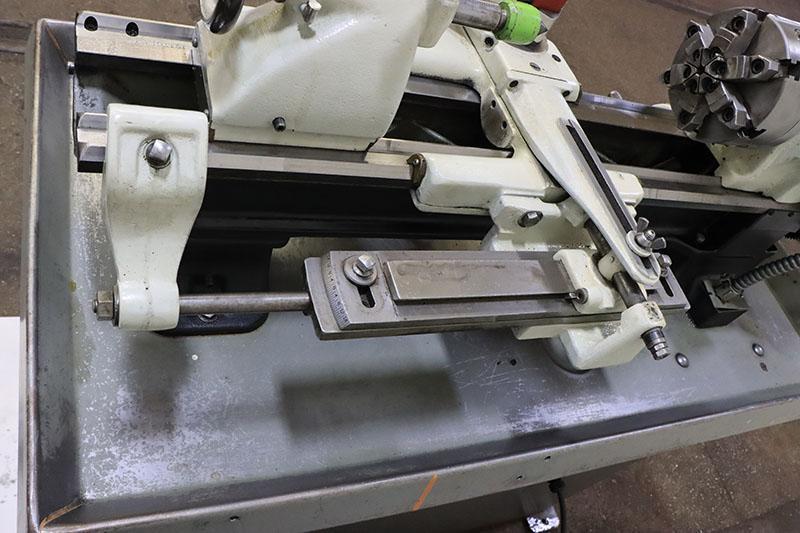

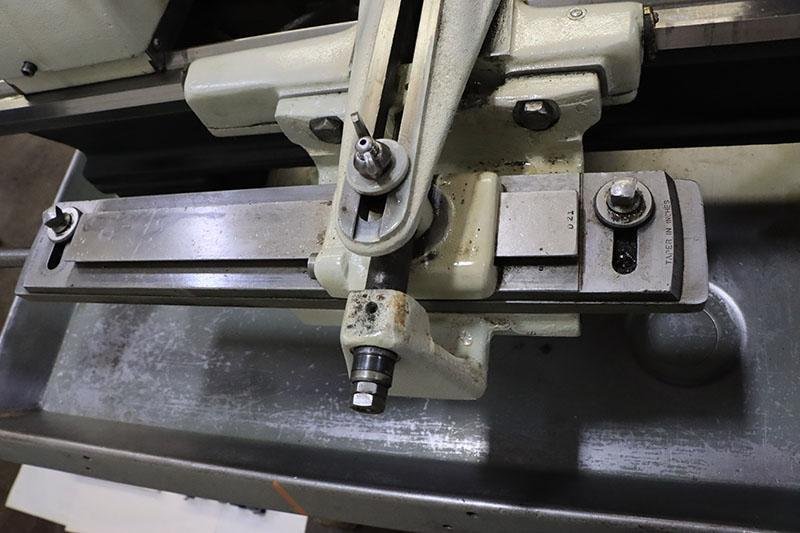

TAPER ATTACHMENT
6" 4-JAW CHUCK

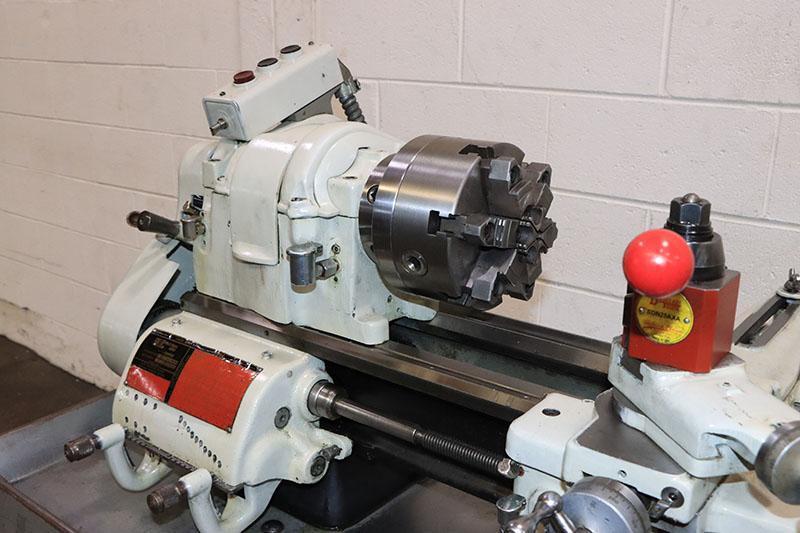

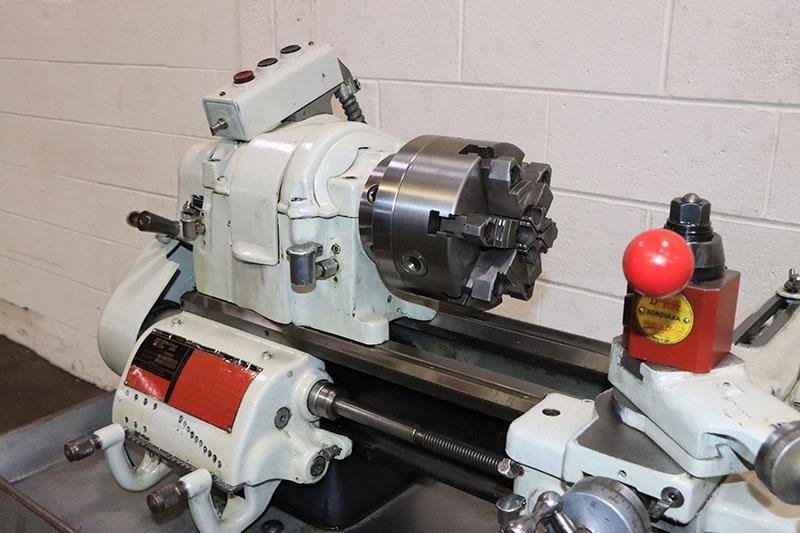

6" 6-JAW CHUCK

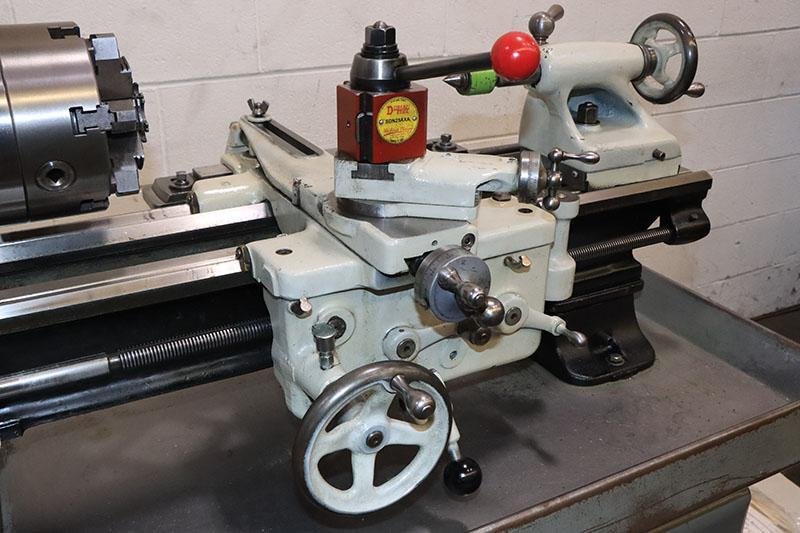

DORIAN QUICK CHANGE TOOLPOST w/HOLDERS
THREAD DIAL INDICATOR
SINGLE PHASE INVERTER DRIVE 115 VOLT
1 HORSE-POWER MOTOR

FOB: ORIGIN
