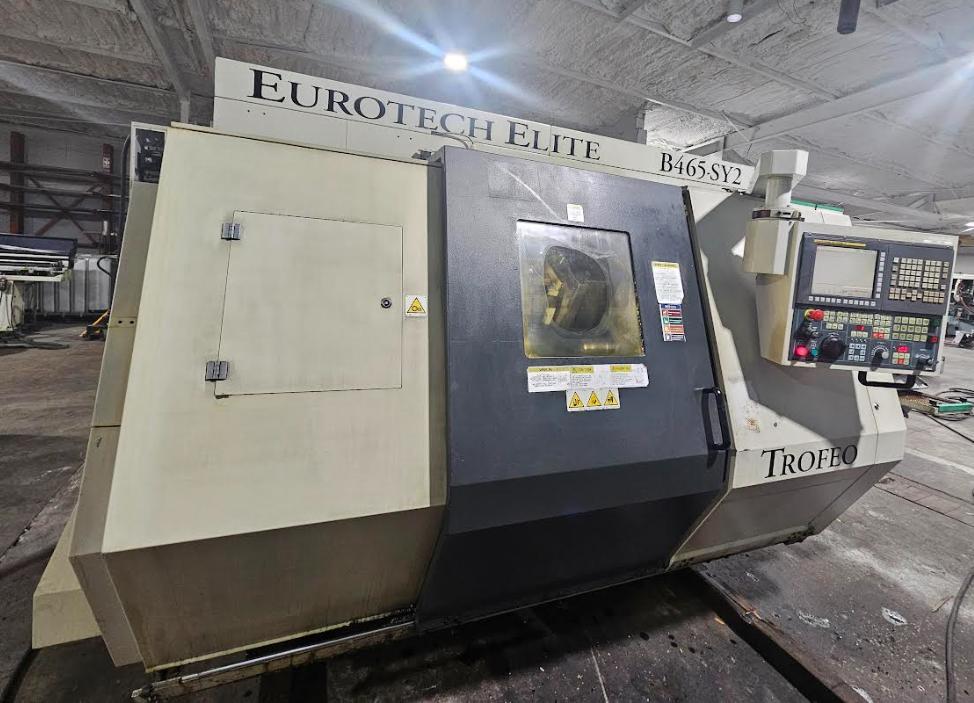

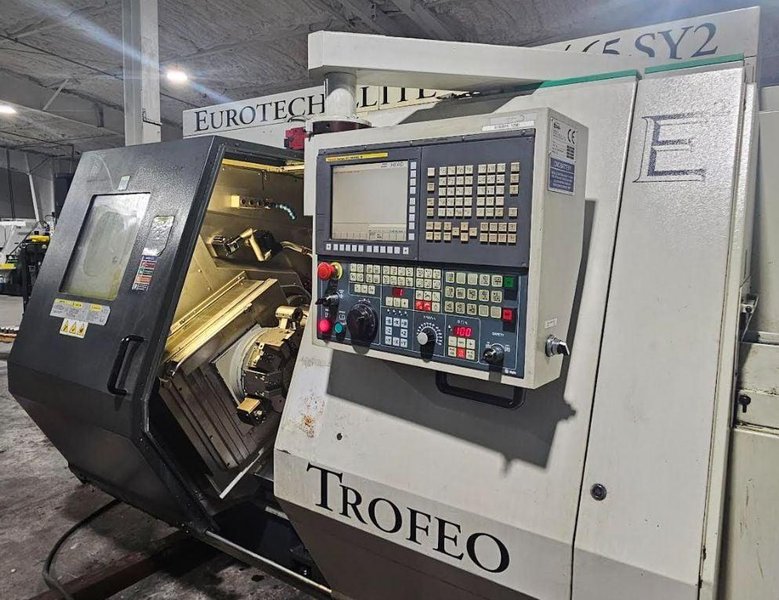

8” X 24.8” CNC Turning Center with Fanuc F1i Multi - Channel Control, 30° Slant Bed, (2) Spindles, (2) Turrets, E - Axis Clear Shift Back Spindle, 1 - Axis Simultaneous Machining + 2 Axes for CNC Controlled Gantry Parts Catcher, Disk Brakes for Both Main & Sub Spindles, Rigid Tapping, Sub - Spindle Ejector and Air Blow, Eurotech Tool Monitoring System, Double Tool Probe and Air Conditioned Electronics Cabinet.

GENERAL SPECIFICATIONS
Machining Capacity
Max Bar Capacity:                        2.75”
Max Turning Diameter:                    8”
Max Swing Y - Axis Stroke (Both):                3.8”

Chuck Work
Chuck Diameter (Main & Sub Spindle):            8”
Type:                                Hydraulic
Max Speed:                            4,000 RPM

Main Spindle
Draw - Tube Capacity:                    2.75”
Spindle Through Bore Capacity:                3.03”
Spindle Speed Range (Infinitely Variable):        4,000
Variable Speed Steps:                    Direct Drive
Spindle Motor:                        35 Hp
Motor Type:                            S Series
Spindle Nose:                        A2-5

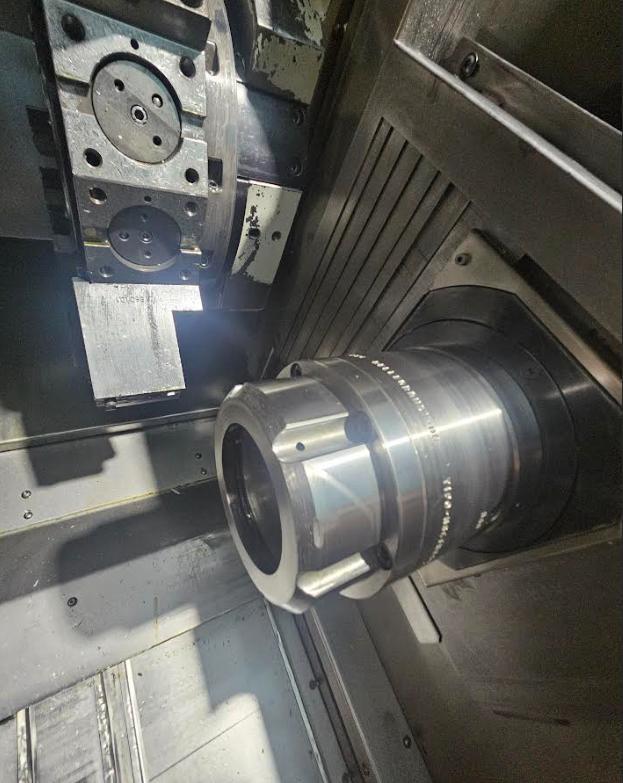

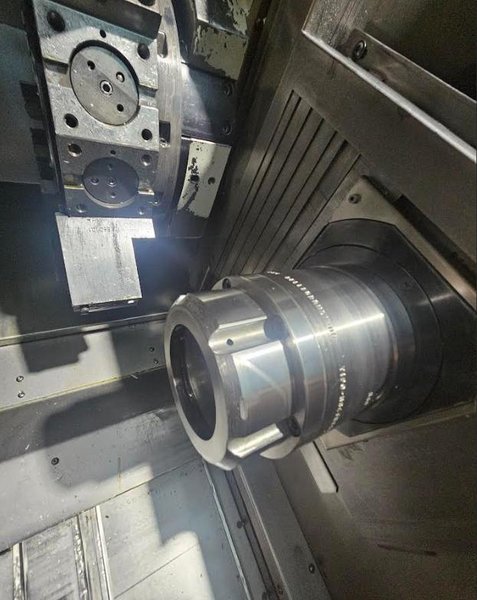

Sub Spindle
Drawtube Capacity:                        1.77”
Spindle Through Bore Capacity:                2.17”
Spindle Speed Range (Infinitely Variable):        5,000
Spindle Drive Motor Max Rating:                15 HP
Spindle Nose:                        A2-5
Slide Movement (B - Axis):                    NC Control
Slide Stroke (B - Axis):                    26.37”

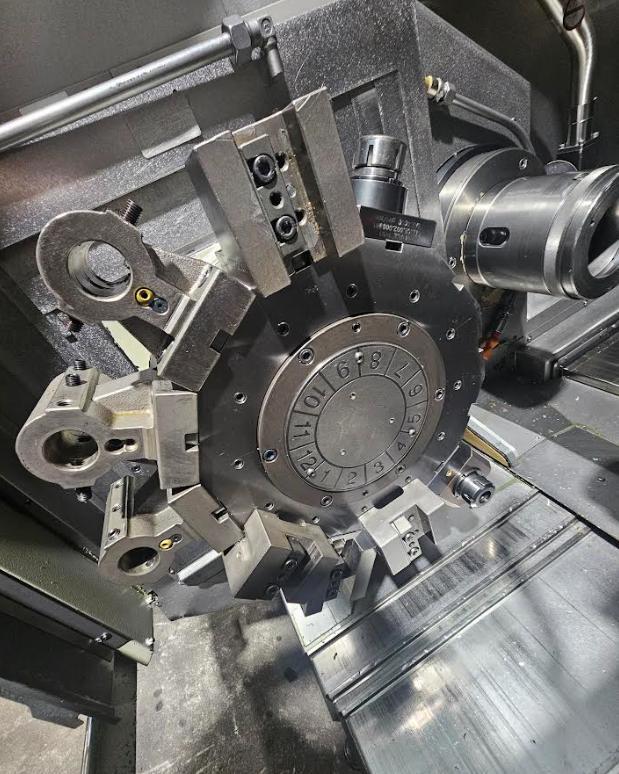

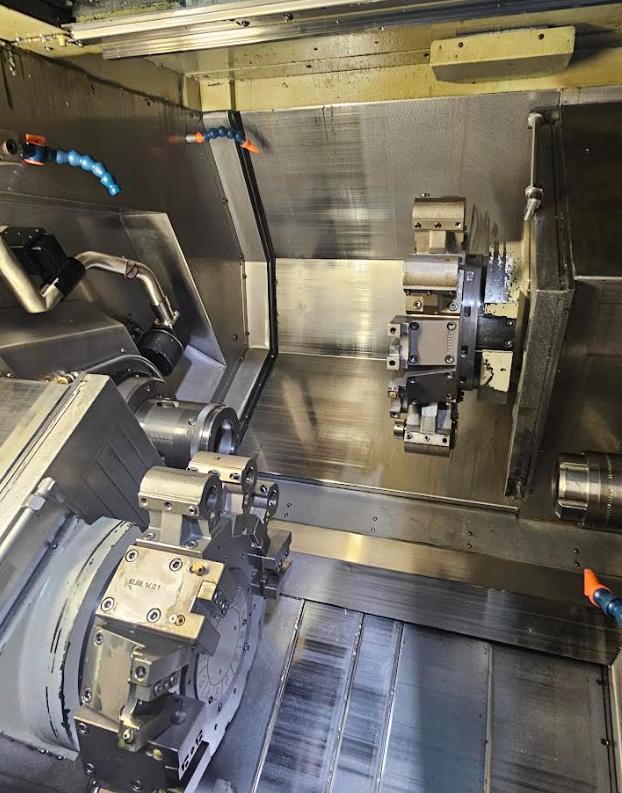

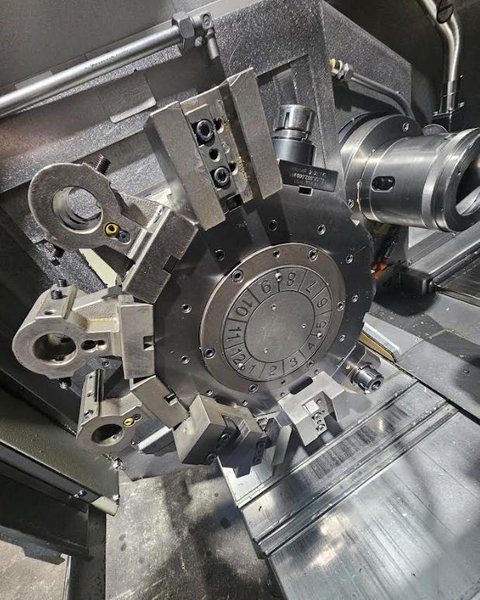

Upper Turret
Number of Tool Stations (Main Spindle):            12
Z -  Axis Slide Stroke:                    24.8”
X - Axis Slide Stroke:                    6.7”

Lower Turret
Number of Tool Stations (Main Spindle):            12
Z - Axis Slide Stroke:                    21.26”
X - Axis Slide Stroke:                    6.7”

Revolving Tool Attachment Upper / Lower Turret
Number of Upper Turret Positions:            12 Max
Number of Lower Turret Positions:            12 Max
Driver Motor Max Rating:                    AC HP 5
Revolving Tool Axis:                        X, C, Z & Y
Y - Axis Stroke (Both):                    +1.97” / -1.57”

Machine Dimensions
Width:                                85”
Height:                            87”
Length w/ Chip Conveyor:                    179”
Machine Weight w/ Chip Conveyor:            16,314 Lbs

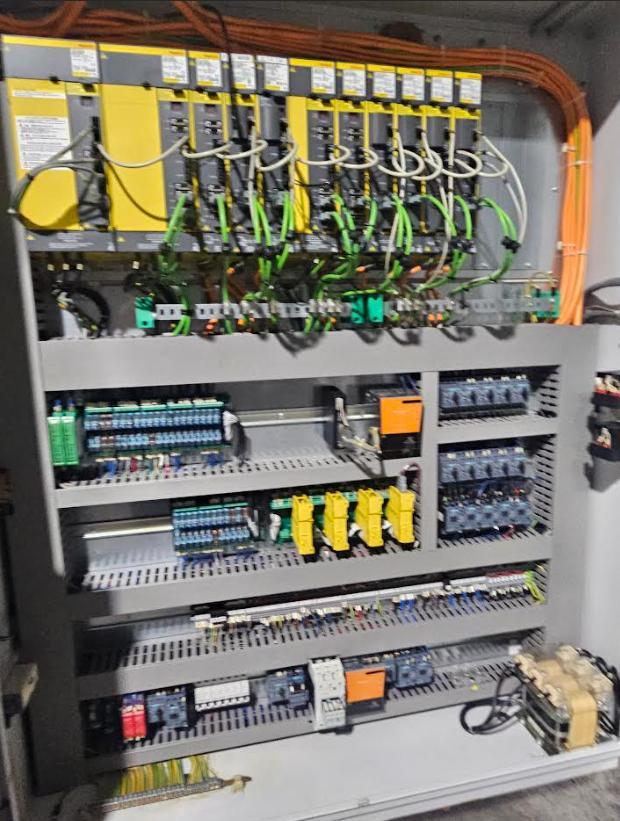

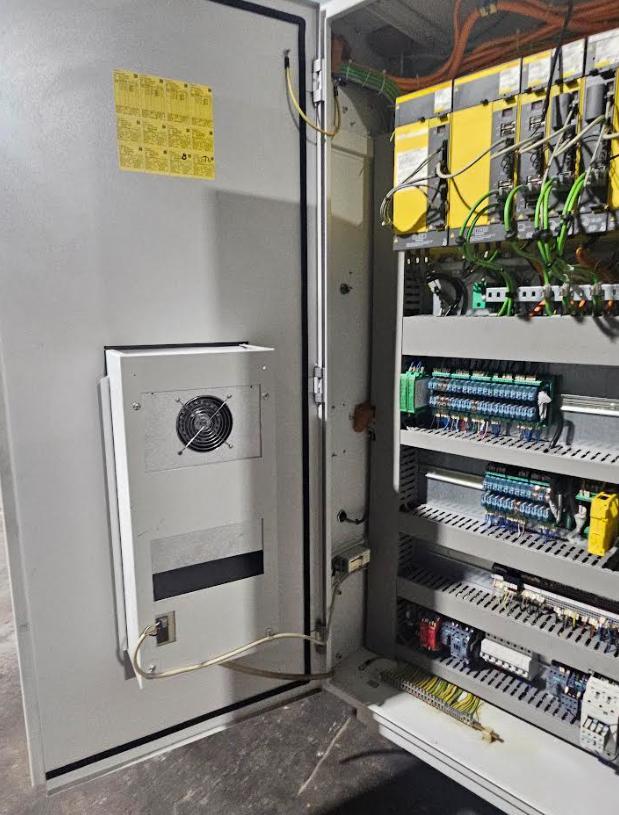

INCLUDES: Fanuc F1i Multi - Channel Control, 30° Slant Bed, (2) Spindles, (2) Turrets, E - Axis Clear Shift Back Spindle, 1 - Axis Simultaneous Machining + 2 Axes for CNC Controlled Gantry Parts Catcher, Disk Brakes for Both Main & Sub Spindles, Rigid Tapping, Sub - Spindle Ejector and Air Blow, Eurotech Tool Monitoring System, Double Tool Probe and Air Conditioned Electronics Cabinet.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
